Bump stops hitting springs

Discussion in '80-Series Tech' started by Trunk Monkey, Mar 2, 2007.

  1. Trunk Monkey

    Trunk Monkey Moderator

    Messages:
    8,604
    Likes Received:
    956
    Joined:
    Apr 27, 2003
    Location:
    Salt Lake City
    I've got J springs, 1.5" spacers sitting on top of the bump stop, and caster plates. With the axle a little angled from the caster plates, the bump stop is hitting the spring. I am trying to figure out a solution.

    I've ordered the earlier frame mounted bump stops. I'm thinking if I cut the conical bump stop in half, it will still work to locate the spring, the tip won't tag the spring, and the frame bump stop will limit the axle. Sound like a viable plan?

  2. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,673
    Likes Received:
    1,670
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado
    Do you have any pictures Cory that would better describe your issue.

  3. Trunk Monkey

    Trunk Monkey Moderator

    Messages:
    8,604
    Likes Received:
    956
    Joined:
    Apr 27, 2003
    Location:
    Salt Lake City
    There's a lip just above the rubber bump stop (red line) where it turns into the steel cone. That lip it tagging the coil right in front of it, makes great "whang" noises driving. There's an indentation in the steel (yellow line) where I'm thinking about lopping it off. One issue I see is that it would be an open cavity where road crap could collect.

    Last edited: Jul 12, 2007
  4. DanKunz

    DanKunz SILVER Star

    Messages:
    9,566
    Media:
    2
    Albums:
    1
    Likes Received:
    943
    Joined:
    Feb 7, 2002
    Location:
    Woodstock, GA
    I don't think that looks right...you sure you bolted that up right?

  5. sseaman

    sseaman

    Messages:
    1,903
    Likes Received:
    30
    Joined:
    Sep 26, 2006
    Location:
    Nashville, TN
    somethings out of alignment

  6. Trunk Monkey

    Trunk Monkey Moderator

    Messages:
    8,604
    Likes Received:
    956
    Joined:
    Apr 27, 2003
    Location:
    Salt Lake City
    Nope it's all bolted up right. The way the caster plates turn the axle allow the spring to contact the bump stop. I've got two friends, identical set ups, identical issue. Between this and the tie rod hitting the control arms I'm thinking about ditching the plates, replacing the OME CC bushings and just living with somewhat twitchy steering.

  7. chibo

    chibo

    Messages:
    942
    Likes Received:
    1
    Joined:
    May 27, 2006
    Location:
    Tempe, Arizona

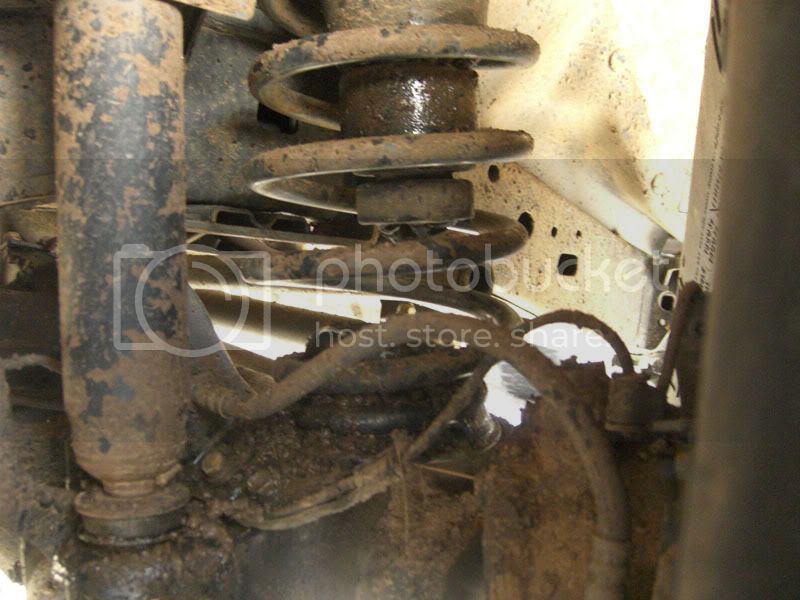

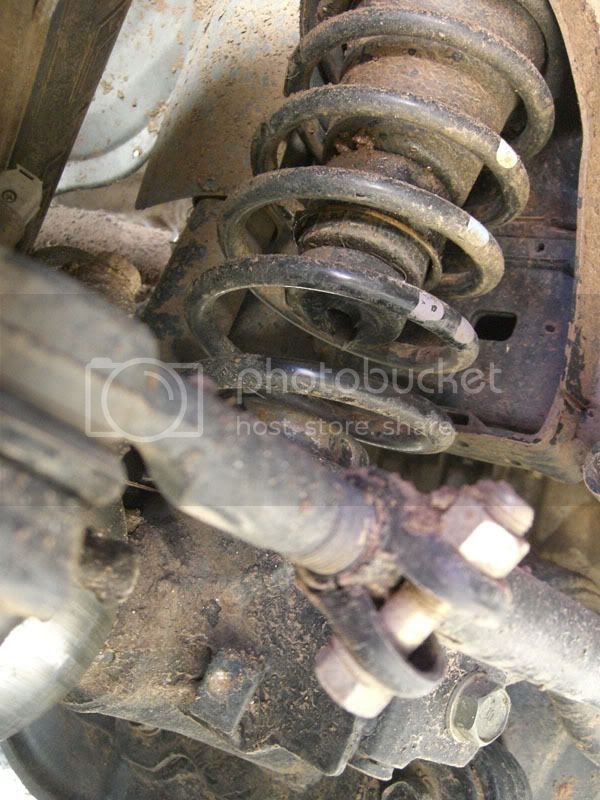

    I've also got a very similar issue, and have had it for some time. It got to the point that the entire pass side bottom half of the bumpstop ripped off. I note that the drivers side is angled too but it doesn't contact or anything, it's just the pass side. I don't think it's hitting the springs, but I've never gotten under there to look under full flex. It mostly happens during high speed hits (which is 99% of my offroading).
    [​IMG]
    [​IMG]


    The sound is rather annoying but I've somewhat gotten used to it. Hasn't caused any damage in about 2000 miles of 100% offroad so...

  8. alkaline747trio

    alkaline747trio

    Messages:
    4,577
    Likes Received:
    11
    Joined:
    Feb 2, 2005
    Location:
    Albemarle NC
    With the amount of lift you have, your control arm is effectively to short, the axle is being pulled back, and is also being rotated from the plates putting it in an all around bad situation. Slee arms, CC bushing in the rear frame mount, or dealing with no caster correction would all fix your problem.

  9. landtank

    landtank SILVER Star

    Messages:
    18,958
    Likes Received:
    1,098
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    chibo, you're problem is corrected with adjustable panhards I think.

  10. e9999

    e9999 You want to do what...? Moderator

    Messages:
    16,582
    Likes Received:
    479
    Joined:
    Sep 21, 2003
    Location:
    US
    they sell all kinds of aftermarket hydraulic or gas stops don't they?
    any that could readily be bolted to the rails?

  11. Trunk Monkey

    Trunk Monkey Moderator

    Messages:
    8,604
    Likes Received:
    956
    Joined:
    Apr 27, 2003
    Location:
    Salt Lake City
    :confused:

  12. chibo

    chibo

    Messages:
    942
    Likes Received:
    1
    Joined:
    May 27, 2006
    Location:
    Tempe, Arizona
    What would cause a problem to require adjustable panhards on a 100% stock suspension? :confused:

  13. Kalawang

    Kalawang

    Messages:
    1,099
    Likes Received:
    3
    Joined:
    Jan 25, 2005
    Location:
    Philippines
    I suggest you first try switching the bumpstops. If that doesn't work, or doesn't work well enough, try adding washers judiciously to adjust the angle of the bumpstops. In my case, I switched them and it was sufficient.


    Kalawang

  14. concretejungle

    concretejungle SILVER Star

    Messages:
    9,474
    Likes Received:
    715
    Joined:
    Oct 27, 2003
    Location:
    North Cadillac
    when i installed the plates, it caused the same rubbing issue with the spring and bump stop.

  15. landtank

    landtank SILVER Star

    Messages:
    18,958
    Likes Received:
    1,098
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    Are you sure that it's stock. The distance from the bumpstop to the spring perch looks to me to be greater than stock.

  16. chibo

    chibo

    Messages:
    942
    Likes Received:
    1
    Joined:
    May 27, 2006
    Location:
    Tempe, Arizona
    1
    100% stock, the bottom half of the bump stop tore off from hitting the metal pad - I assume this is where you see the discrepancy between what I have an what you're used to.

  17. landtank

    landtank SILVER Star

    Messages:
    18,958
    Likes Received:
    1,098
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    OK, I see that now. Something is bent then like the panhard rod itself. Was the truck in an accident?

  18. chibo

    chibo

    Messages:
    942
    Likes Received:
    1
    Joined:
    May 27, 2006
    Location:
    Tempe, Arizona
    It was daily driven by my mother prior to me buying it off them... so yes :eek: Guess it's time to take measurements.

  19. ats4x4dotcom

    ats4x4dotcom

    Messages:
    892
    Likes Received:
    7
    Joined:
    Aug 2, 2005
    Location:
    Drysdale Vic Aus
    its a common problem witht he 80 / 105 to do this, you can remove the whole cup the rubber sits in, enlarge the hole, or space the bump stop on an angle to tilt it slightly, or, like we do, have your aftermarket springs wound bigger dia ;)

  20. Trunk Monkey

    Trunk Monkey Moderator

    Messages:
    8,604
    Likes Received:
    956
    Joined:
    Apr 27, 2003
    Location:
    Salt Lake City
    One of the other guys with the same issue removed the rubber portion of the bump stop yesterday and bolted on the frame mounted bump stop, problem solved.
