I'll see you this weekend. I'm taking the diesel 80, but won't be wheeling it. I haven't finished swapping out the gears up front and am running 4.10's in the front and 3.70s in the rear. Thank God for manual hubs. The damn 40 is giving all sorts of problems with the carb. I hate CARBS. I wish it had a diesel in it!
No problem!! I'm glad to help
The way my truck is parked the sun is glaring in the engine bay, washing out all my pictures. These two came out OK but I'll have to wait till later tonight to get some better pictures.
Lower coolant output sticks straight out towards the PS fender and sits inbetween the alternator ( on top ) and AC compressor ( on bottom ).
With where my engine is placed, the front geartrain is directly above the front axle and the AC compressor has about 3/4" clearance to the frame.
- Thread starter
- #224
Dave,
Can we pay when we show up?
Can we pay when we show up?
Yes, did you go? I ended up crunching my rear corner, but had a ton of fun.
- Thread starter
- #226
I took my son for a few hours. I didn't see anyone from Austin there so I figured they were on the trails. I did however get to see some land cruisers I been following here on mud.
- Thread starter
- #227
ok time for some updates. I went to Edwin's shop today to see the transmission installation. Edwin had to make a few minor mods to the output shaft for it to fit the adapter.
truck

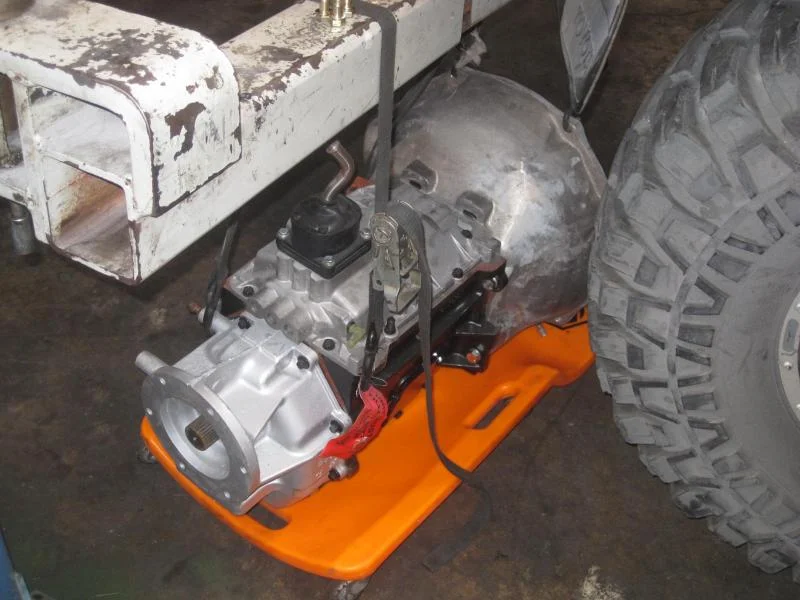

tranny
before install

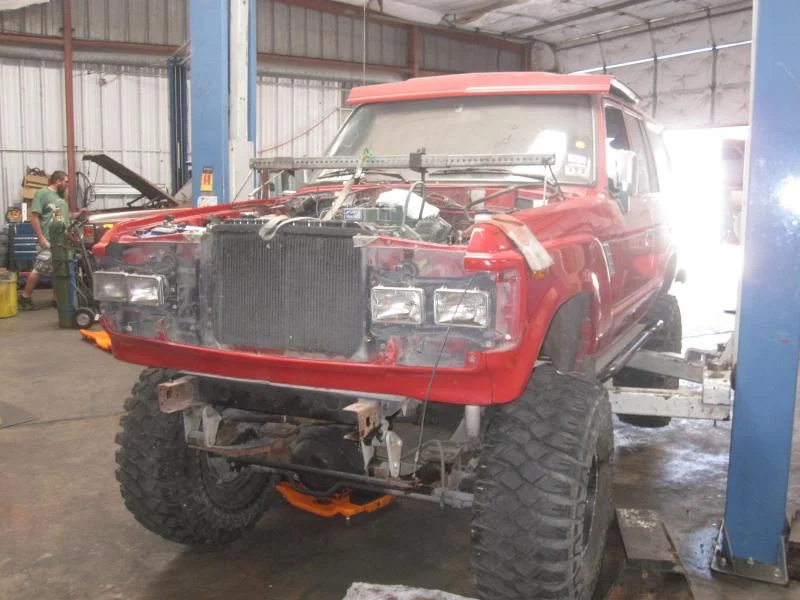

truck
tranny
before install
- Thread starter
- #228
mating the transmission

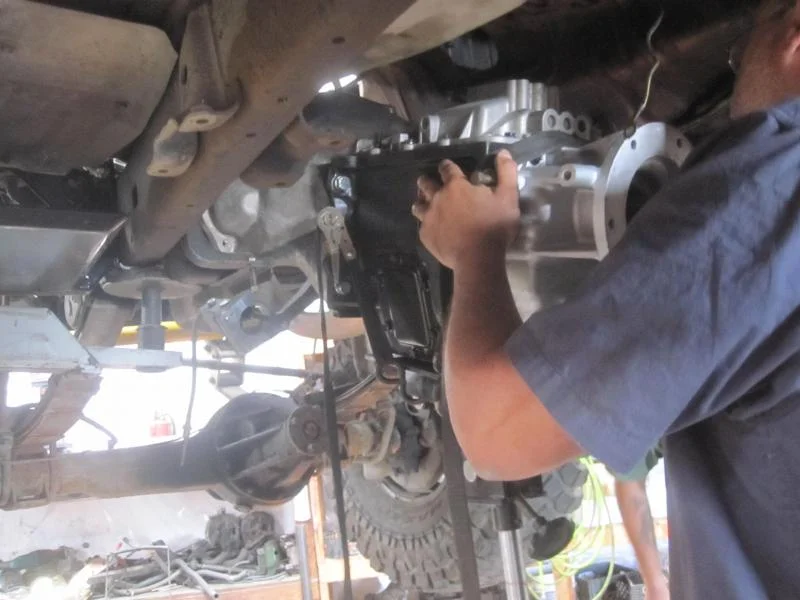

line it up and bolting it in
took out the back end to replace with the adapter piece from AA so that it will fit the Toyota transfer case
line it up and bolting it in
took out the back end to replace with the adapter piece from AA so that it will fit the Toyota transfer case
- Thread starter
- #229

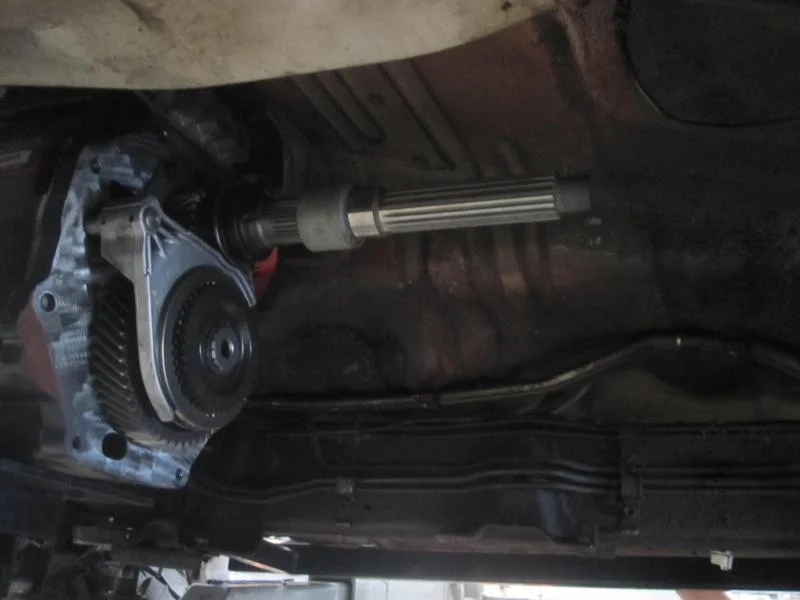

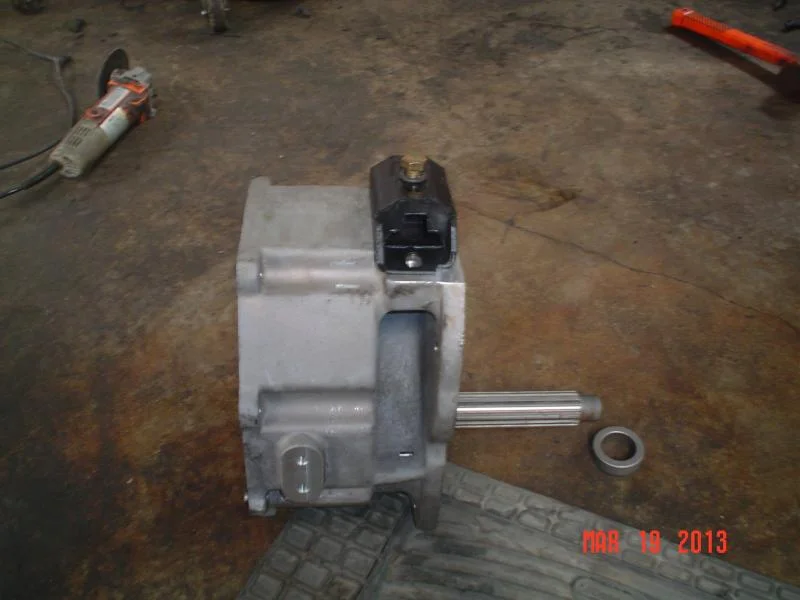

mock up of how the spud shaft will sit in the adapter.

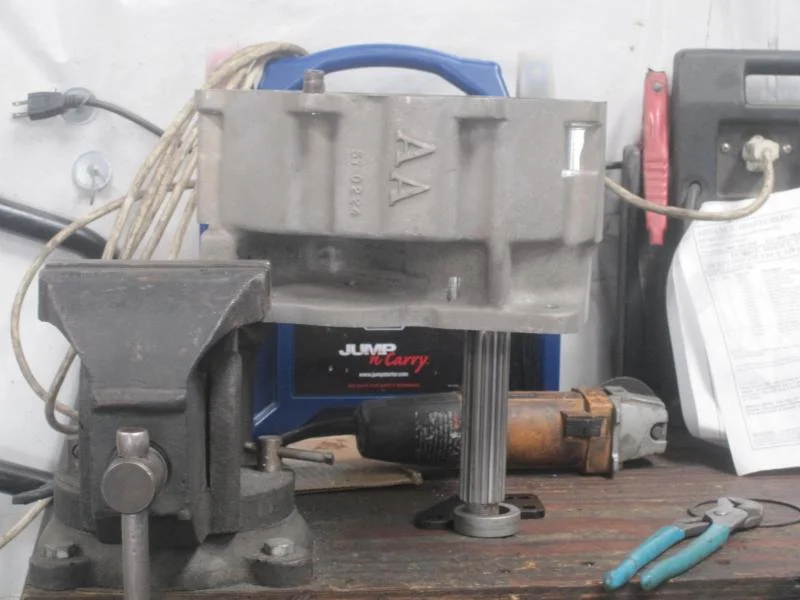

Adapter and shaft
Here you can see that it sticks out about half an inch. So Edwin had to cut out that much from the transmission output shaft
Adapter and shaft
Here you can see that it sticks out about half an inch. So Edwin had to cut out that much from the transmission output shaft
- Thread starter
- #230

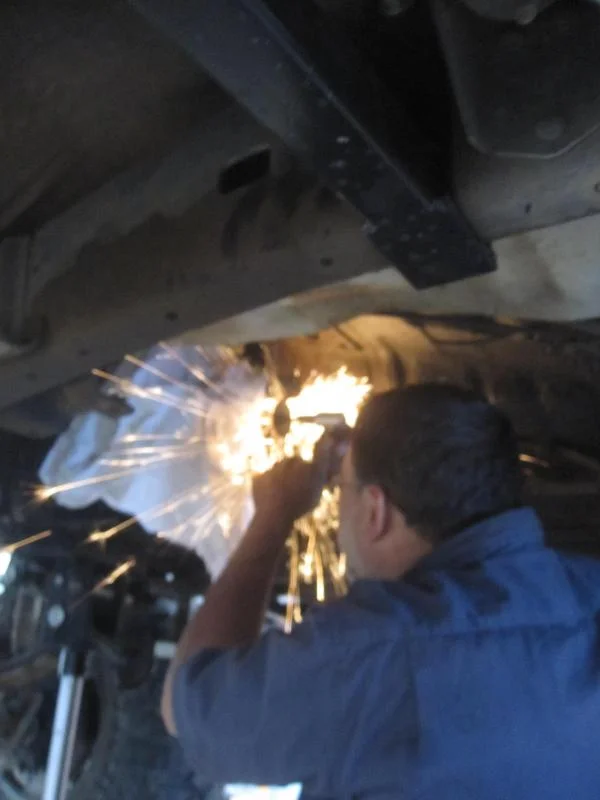

so he measured it, marked it and cut it.
here it is up close

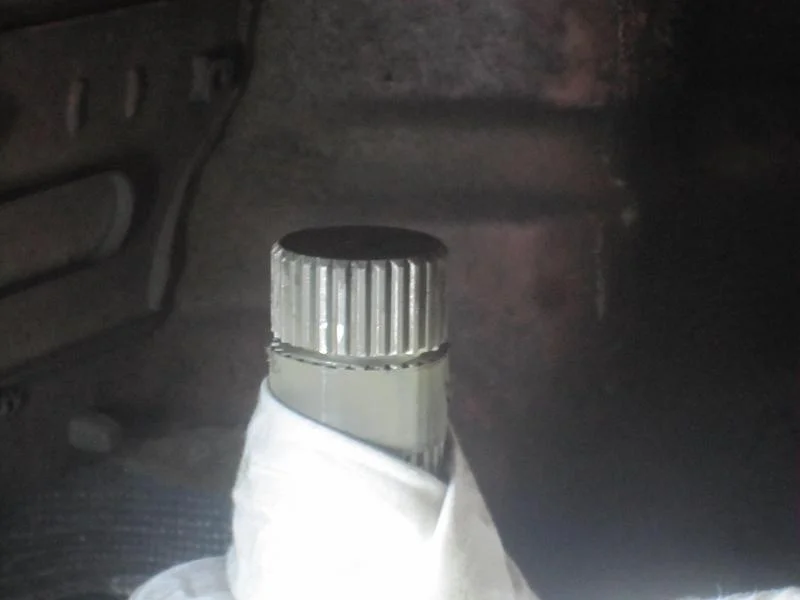

here it is after the cut and before the adapter piece installation
here it is up close
here it is after the cut and before the adapter piece installation
- Thread starter
- #231

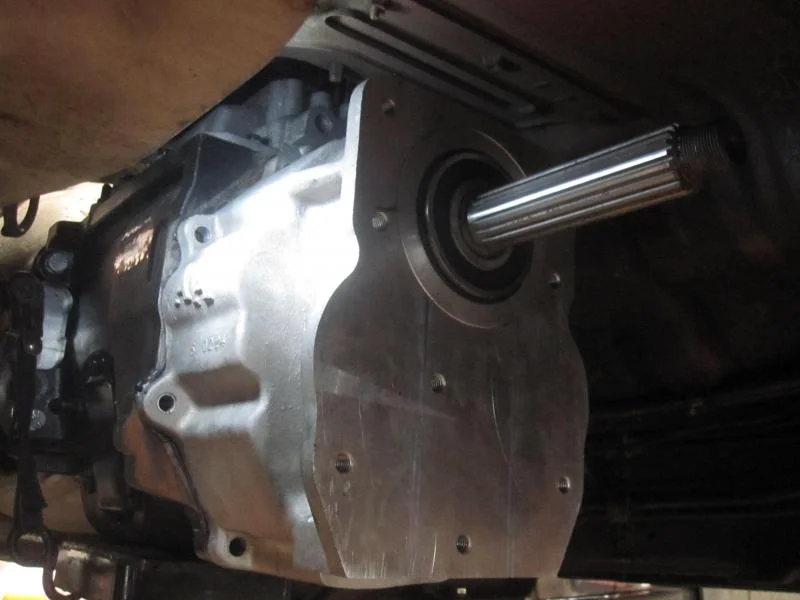

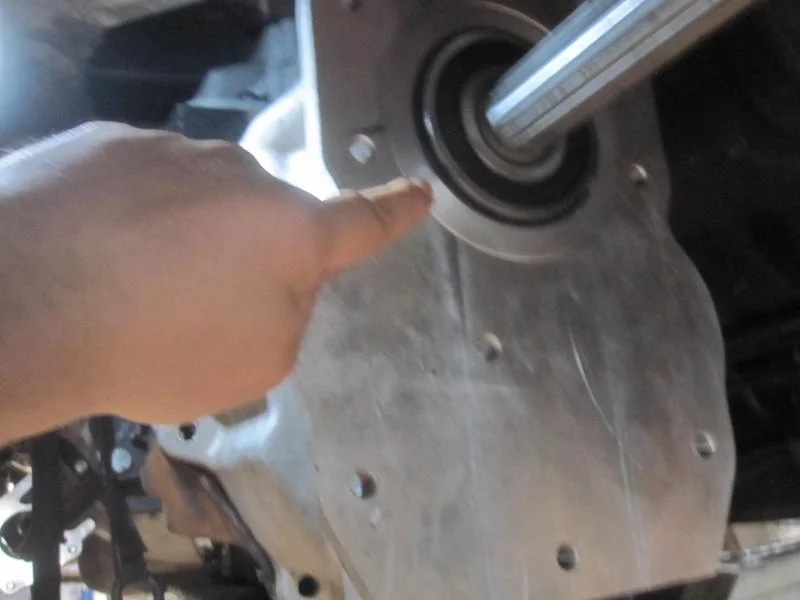

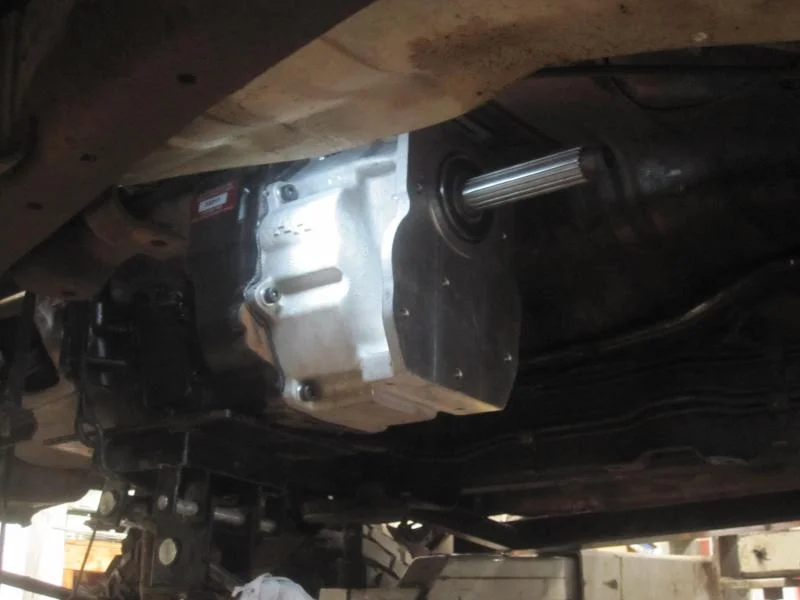

here it is with the AA adapter on.
you can see that it now sits flush.
one more
you can see that it now sits flush.
one more
- Thread starter
- #232

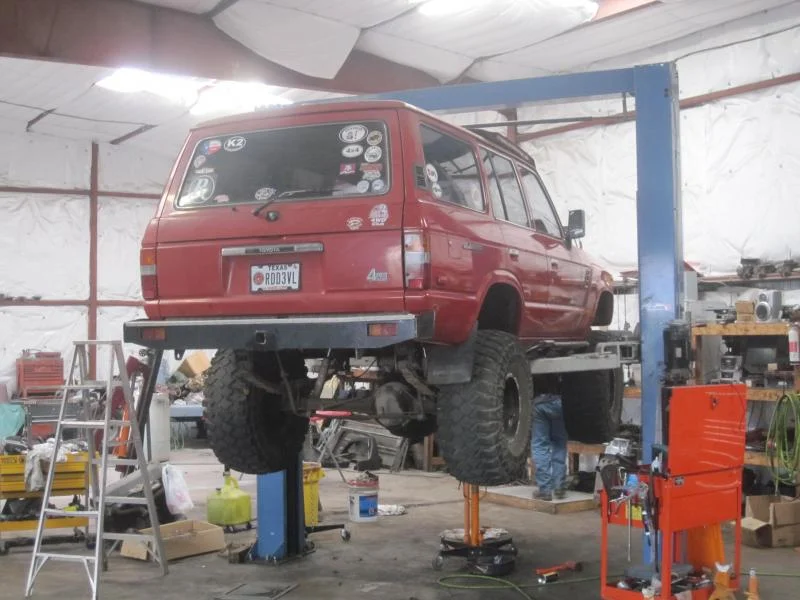

And now poser pics of Big Red
another one

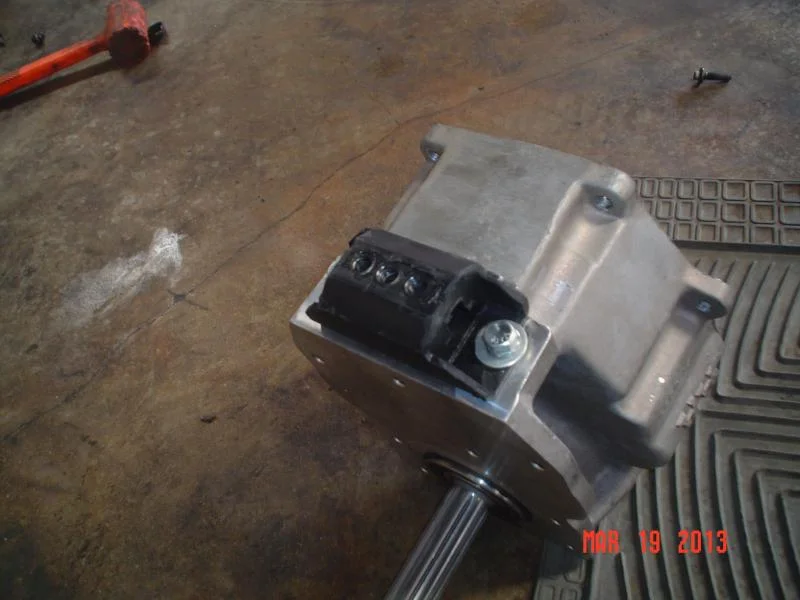

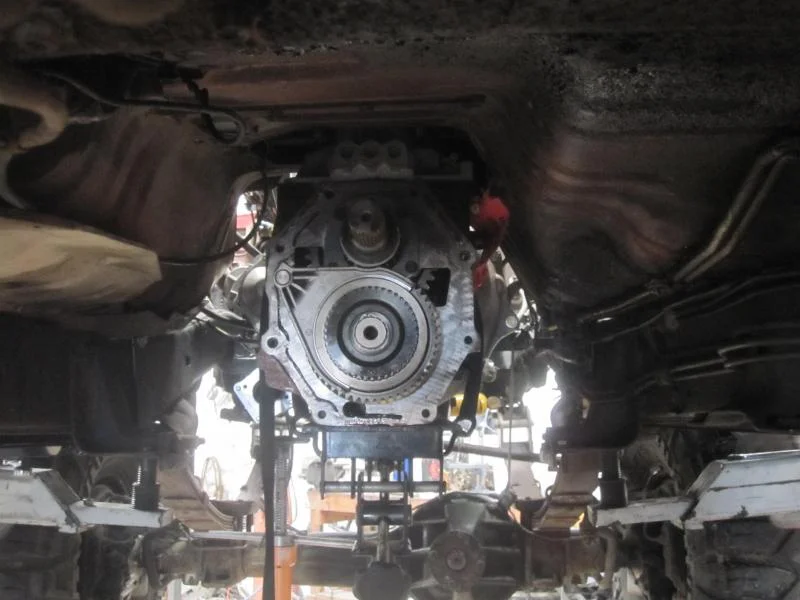

transfer case. This is hopefully be installed either tomorrow or in the next few days. Edwin will be making a beefy mount for the tranny.
another one
transfer case. This is hopefully be installed either tomorrow or in the next few days. Edwin will be making a beefy mount for the tranny.
say good to see you. hope you enjoyed haning out with us all day. you are always welcome to hang with us. i will get you pics of the t-case and mount. i think it will be over kill but very simple & some think you can work off of if wanted.
Very sweet! Are you planning on sticking with the vacuum shift split-case or are you converting to manual shift?
- Thread starter
- #235
Edwin,
Thanks for letting me hang around I had a great time. Most fun I had in a very long time. I learned a bit and saw Big Red come that much closer to completion. I'll try to swing by again when I can.
- Thread starter
- #236
Johnny,
Ideally I'd want a manual shift split t-case, there's just something about it that says fail proof. However I already own the vacuum activated one and I'm trying to save on funds for other accessories. Unless Edwin has one he's willing to trade, I'll be sticking with the vacuum t-case.
SameSame tcase, just need a linkage and some shifter detent manipulation... I'll let Johnny fill in the blanks.
Awesome rig Phoenician.
Aaron's right, it's the same case, just a different way of moving the internals around. It costs a couple of sheckles to do the conversion but it isn't too bad. Here's one thread that documents the conversion:
https://forum.ih8mud.com/60-series-wagons/216335-vacuum-manual-t-case-conversion.html
https://forum.ih8mud.com/60-series-wagons/216335-vacuum-manual-t-case-conversion.html
- Thread starter
- #239

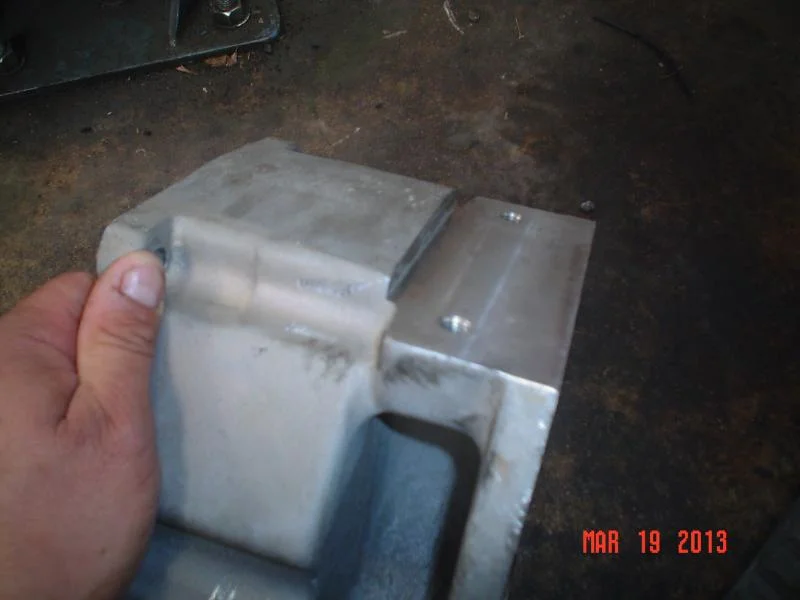

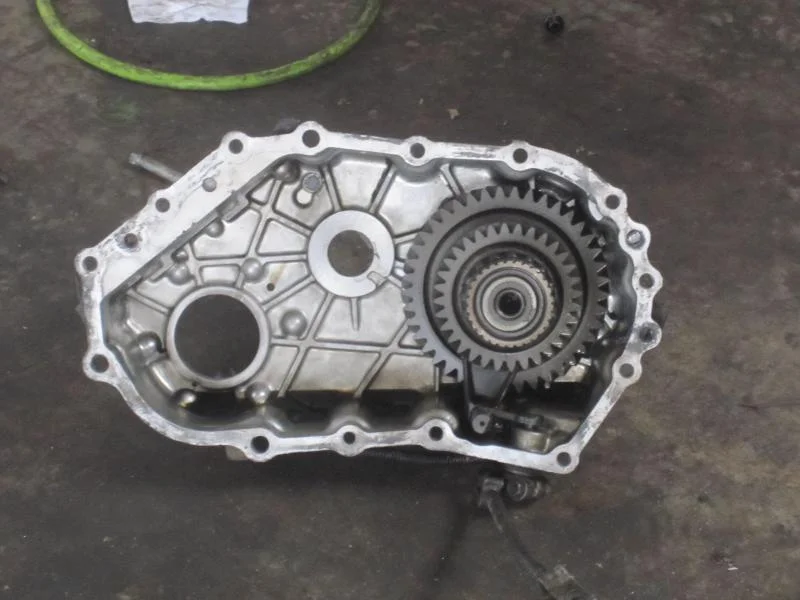

Ok small update. took the adapter piece back off to get the correct mount fitted. Will be attaching the transfer case on soon. Edwin is looking into making the transfer case manual instead of a vacuum activated. if it's gonna be time consuming and costly I'll just leave it the way it is. Here are some pics.
- Thread starter
- #240
Another fast update.

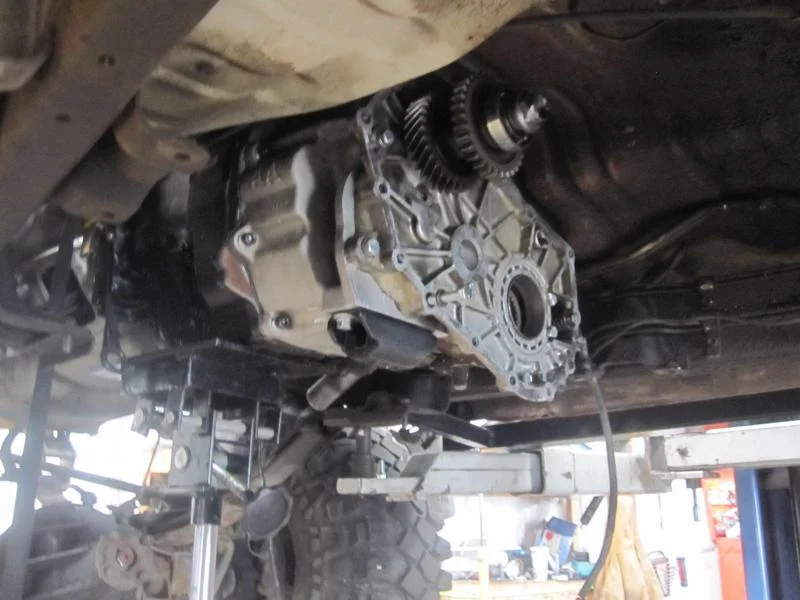

Mounted the transfer case, The TC vacuum was hitting the frame, so Edwin had to straighten up the engine for it to fit. He also ordered a few things for the TC and made a crossmember strong enough to handle the oncoming apocalypse.
Here are some pics.
waiting on parts, hopefully tomorrow

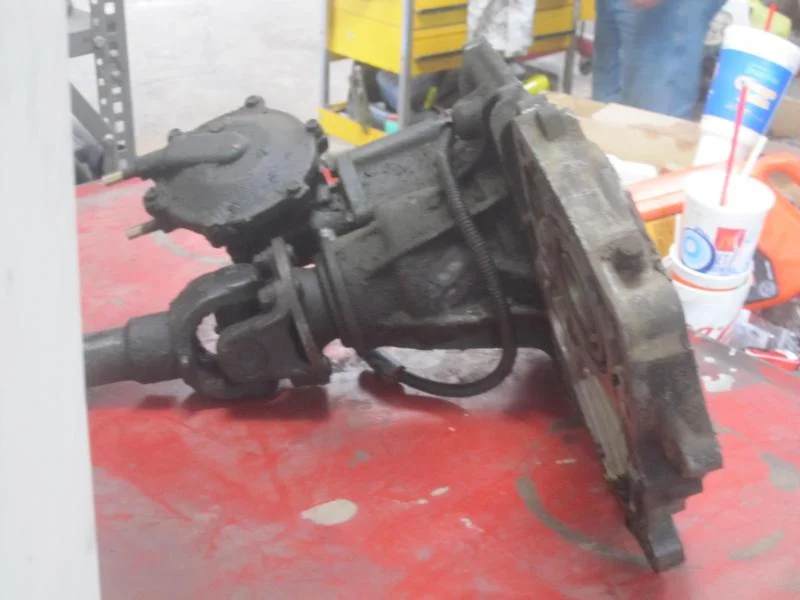

you cant really tell with this picture, but the vacuum pump clears the frame though it's still very close.
Mounted the transfer case, The TC vacuum was hitting the frame, so Edwin had to straighten up the engine for it to fit. He also ordered a few things for the TC and made a crossmember strong enough to handle the oncoming apocalypse.
Here are some pics.
waiting on parts, hopefully tomorrow
you cant really tell with this picture, but the vacuum pump clears the frame though it's still very close.
