What is everyone running for power supply?
I will eventually be adding a full fuse panel for lots of other accessories, but may just run an add-a-fuse on the drivers kick panel for the time being.
Not sure if there are any free switched 12v spots in there or not.
I will eventually be adding a full fuse panel for lots of other accessories, but may just run an add-a-fuse on the drivers kick panel for the time being.
Not sure if there are any free switched 12v spots in there or not.
Somebodyelse5
16124-75030
I've been kicking around the idea of one of these relax blocks, combined with a fuse block, but all in (with the tools for the thick gauge connectors) it ends up adding up pretty quick. Some cool reading from tacoma world on how to go about it:
DIY - Build and install a Bussmann RTMR Fuse/Relay Block
Part 1 - Introduction [IMG] This is Part 1 in a series of tutorials that will show you how to build a Bussmann RTMR fuse/relay block. If you’re not...
www.tacomaworld.com
For me at least, I would really like having a relay block and a fuse block (the blue sea 12 circuit = 2 independent banks of 6) with one bank being switched and the other always on. At that point, you have pretty much every connection you could ever need, tidy, and safe.
- Thread starter
- #204
I really like that plan as well and really thorough power distribution is high on my list to do. I'm really itching to get my turbo in and temporarily going to run an innovate AFR/cheap boost gauge i have laying around from subaru builds until i have time to move into a 14-1 or something down the road.I've been kicking around the idea of one of these relax blocks, combined with a fuse block, but all in (with the tools for the thick gauge connectors) it ends up adding up pretty quick. Some cool reading from tacoma world on how to go about it:
DIY - Build and install a Bussmann RTMR Fuse/Relay Block
Part 1 - Introduction [IMG] This is Part 1 in a series of tutorials that will show you how to build a Bussmann RTMR fuse/relay block. If you’re not...
For me at least, I would really like having a relay block and a fuse block (the blue sea 12 circuit = 2 independent banks of 6) with one bank being switched and the other always on. At that point, you have pretty much every connection you could ever need, tidy, and safe.
Hoping someone has tapped a switched add a fuse for something similar for the time being.
Somebodyelse5
16124-75030
that’s how I did mine for now, happy to send you pics of my setup, it’s pretty simple
- Thread starter
- #206
Post em up if you don't mind. Worth having on here.
I know an add a fuse is stupidly simple to do - done em a million times on other cars for temporary stuff but curious where people are putting them on an 80.
Somebodyelse5
16124-75030
Here is my "semi-temporary" setup. Once I get the relay box and all that sorted, I will do a HAM radio and two more gauges.

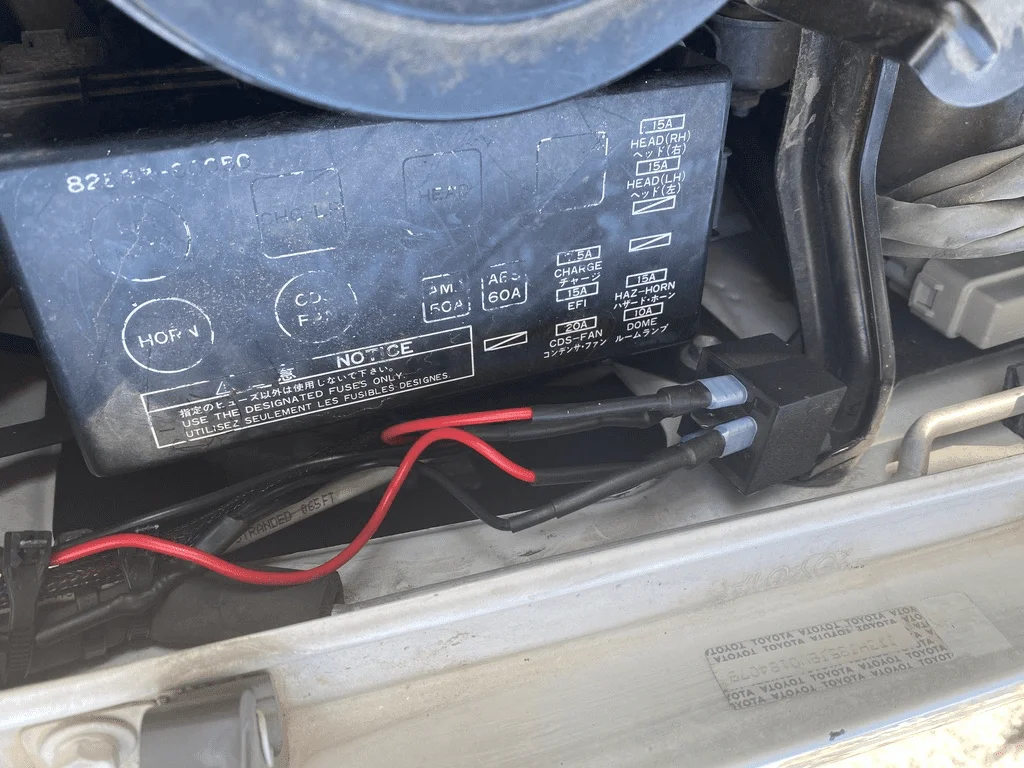

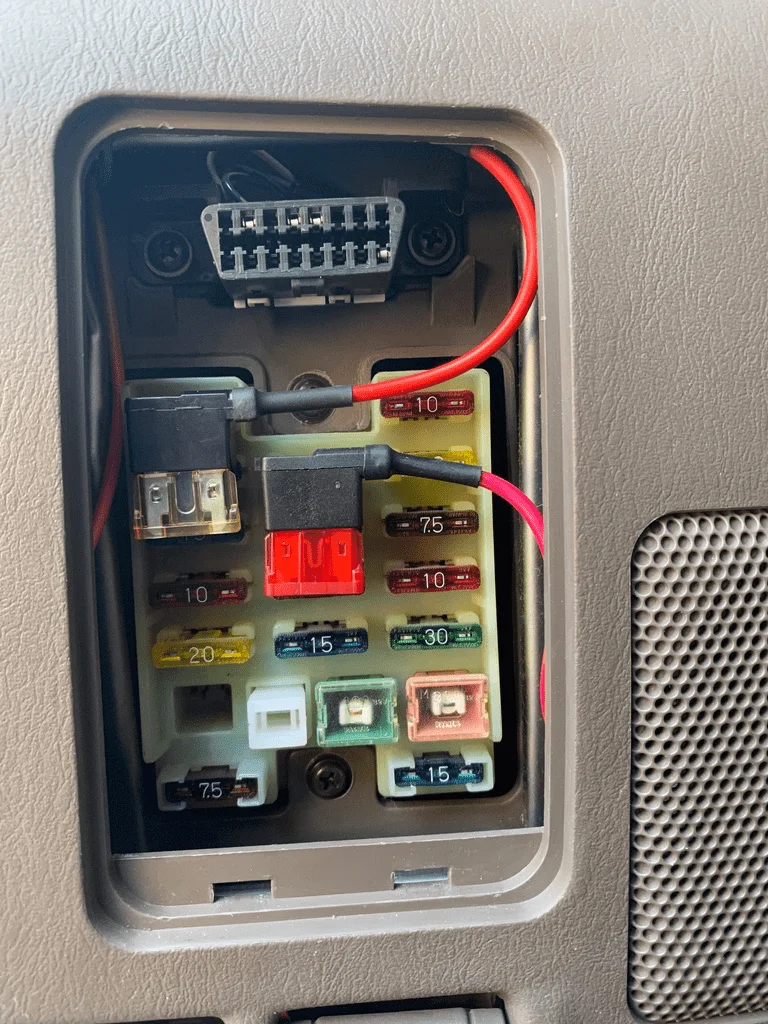

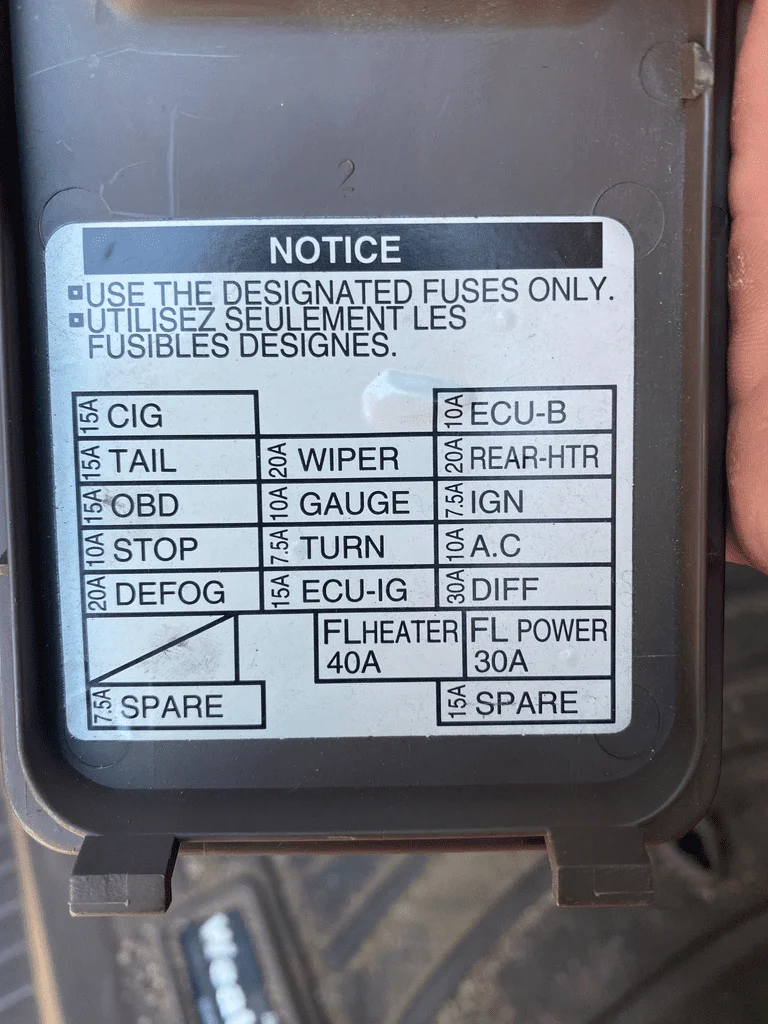

Alrighty, here is the Add-a-fuse (The top left one is for the gauge, the one on the right is for my LCPhil Fan):
Here is the relay mounted:

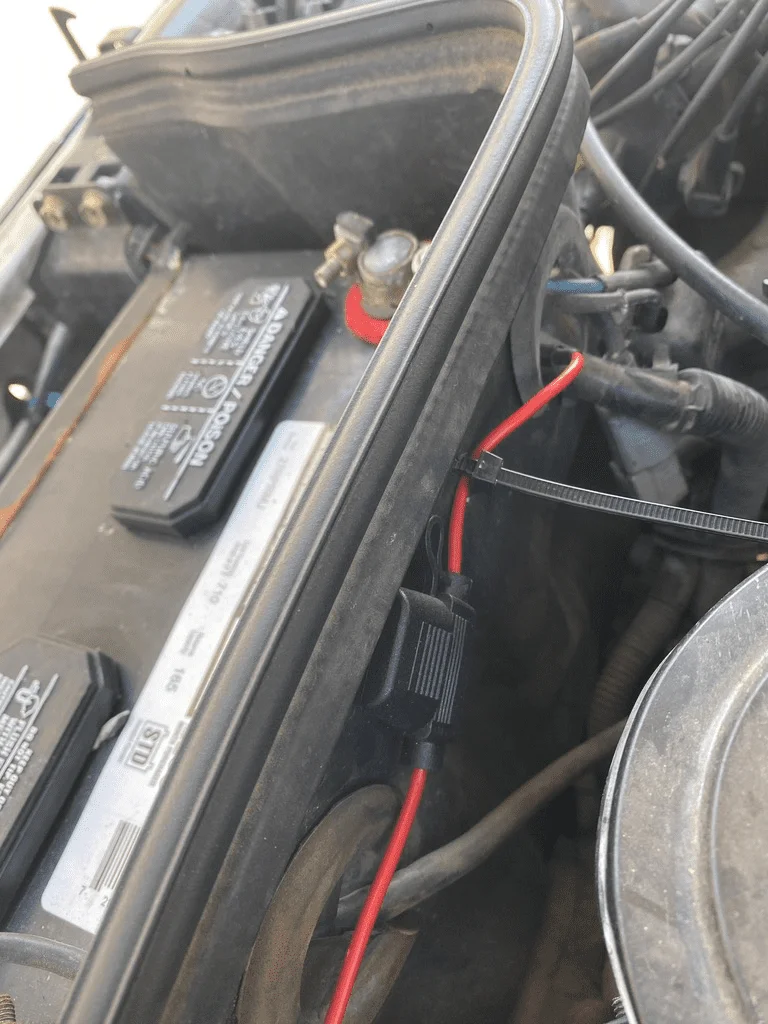

Here is the Fused power supply, if I remember correctly it splits with one leg going to the relay and the other going straight to the gauge:
- Thread starter
- #208
So you're running 12v off the battery and just using the add a fuse as your relay switch power?
I'm trying to figure out how bad of an idea it would be to run an add a fuse AS the power source to a couple gauges for now.
- Thread starter
- #209
After going back and forth a million times on what i was going to do with gauges i just pulled the trigger on the 14-1.
I have an innovate wideband and a boost gauge sitting in the cruiser, but can't find any mounting options i really like, and i don't want to drop a ton of money on a DVS center console right now. Hard to beat the amount of sensors/inputs on the 14-1 for the cost. I bought the full kit, plus wideband and sandwich plate adapter to run oil temp off of and it was $400 to my door with faster shipping.
I was liking the dual autometer holder in the center console but oreily can't get it for a few days and amazon is 1mo out for stuff (including my heat wrap for my locker harness and main harness
)
I do wish the 14-1 was a bit higher end looking, but it'll do its job. Likely going to try and find a spot to stick it left of the steering wheel somewhere.
I have an innovate wideband and a boost gauge sitting in the cruiser, but can't find any mounting options i really like, and i don't want to drop a ton of money on a DVS center console right now. Hard to beat the amount of sensors/inputs on the 14-1 for the cost. I bought the full kit, plus wideband and sandwich plate adapter to run oil temp off of and it was $400 to my door with faster shipping.
I was liking the dual autometer holder in the center console but oreily can't get it for a few days and amazon is 1mo out for stuff (including my heat wrap for my locker harness and main harness
)I do wish the 14-1 was a bit higher end looking, but it'll do its job. Likely going to try and find a spot to stick it left of the steering wheel somewhere.
- Thread starter
- #210
Dude you need my gentex mirror mount and then just mount it on there.
Hey Joey,
Thinking of going this route for my 14-1 but don't want to upgrade the mirror yet.
Nevermind. Looked at the stock mirror and answered my own question.
Last edited:
- Thread starter
- #211
Curious where did you manage to stick the main control box? Thinking of where i want to try and wedge it under the dash or maybe even under the drivers seat. Or maybe under the center console.
- Thread starter
- #212
@spyduh where did you mount your control box? With my sandwich adapter and routing the sensor wire over to the fender and back i only have 2' or so of wire within the cab. Looking for the best place to mount it. First idea is off the abs module but worried ill kick it/get it muddy/wet.
Did you extend the sensor wiring?
jjdeneen918
SILVER Star
here for posterity’s sake & reference.

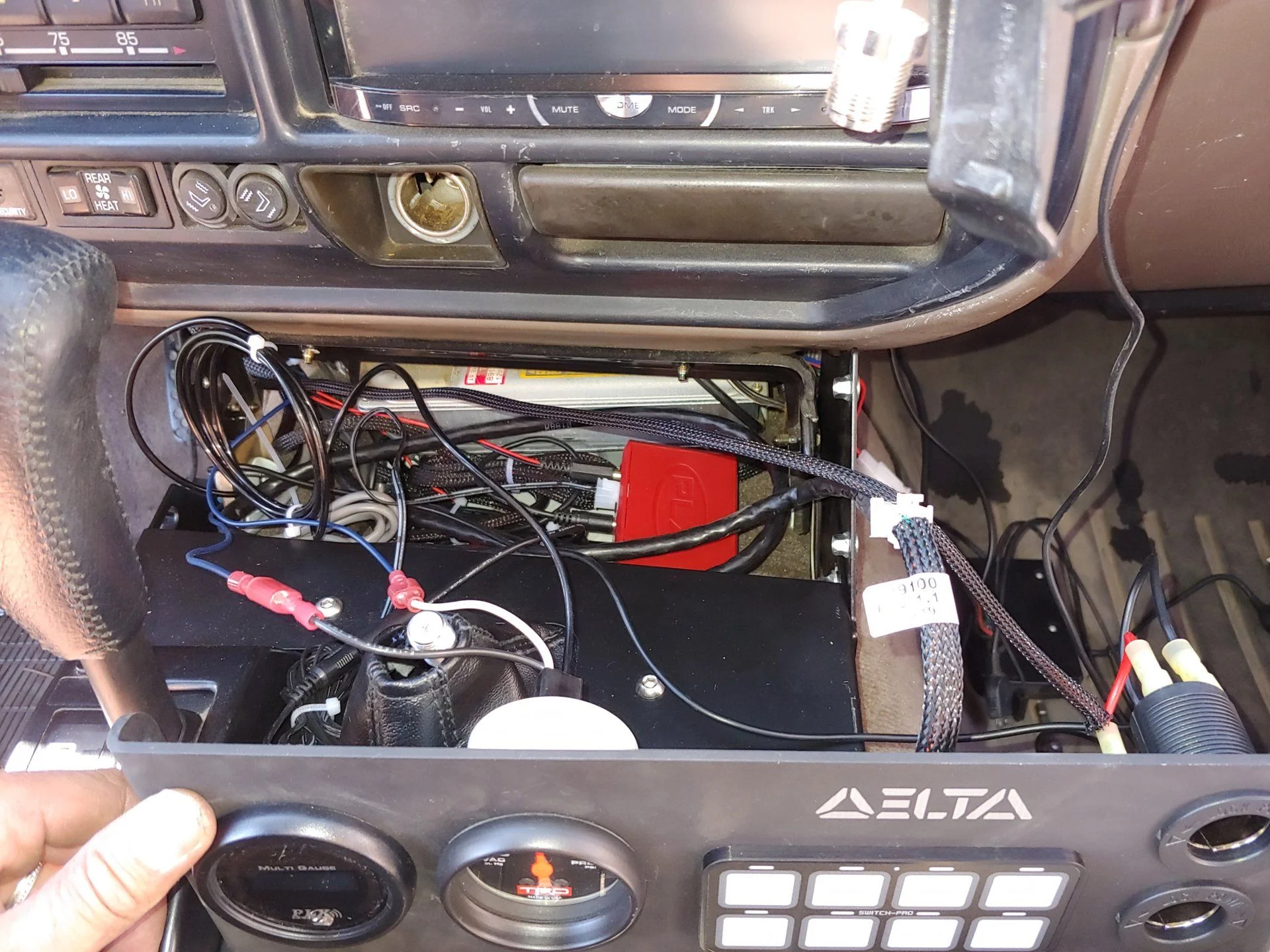

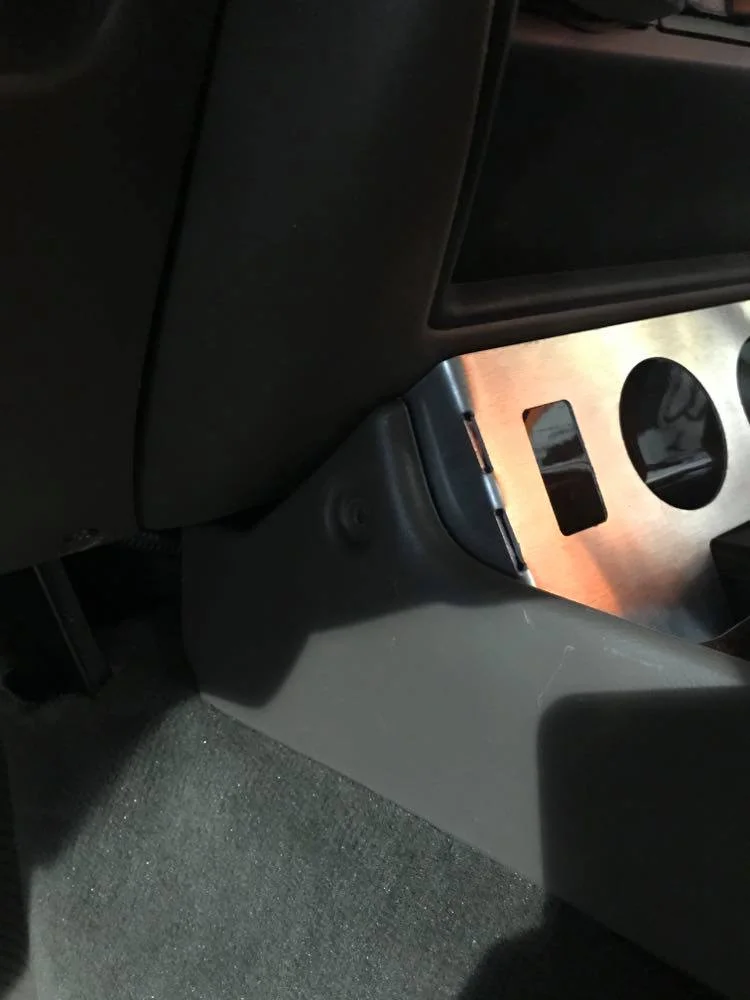

14-in-1 control box is tucked behind the metal colored box just under the dash & along the drivers fender.

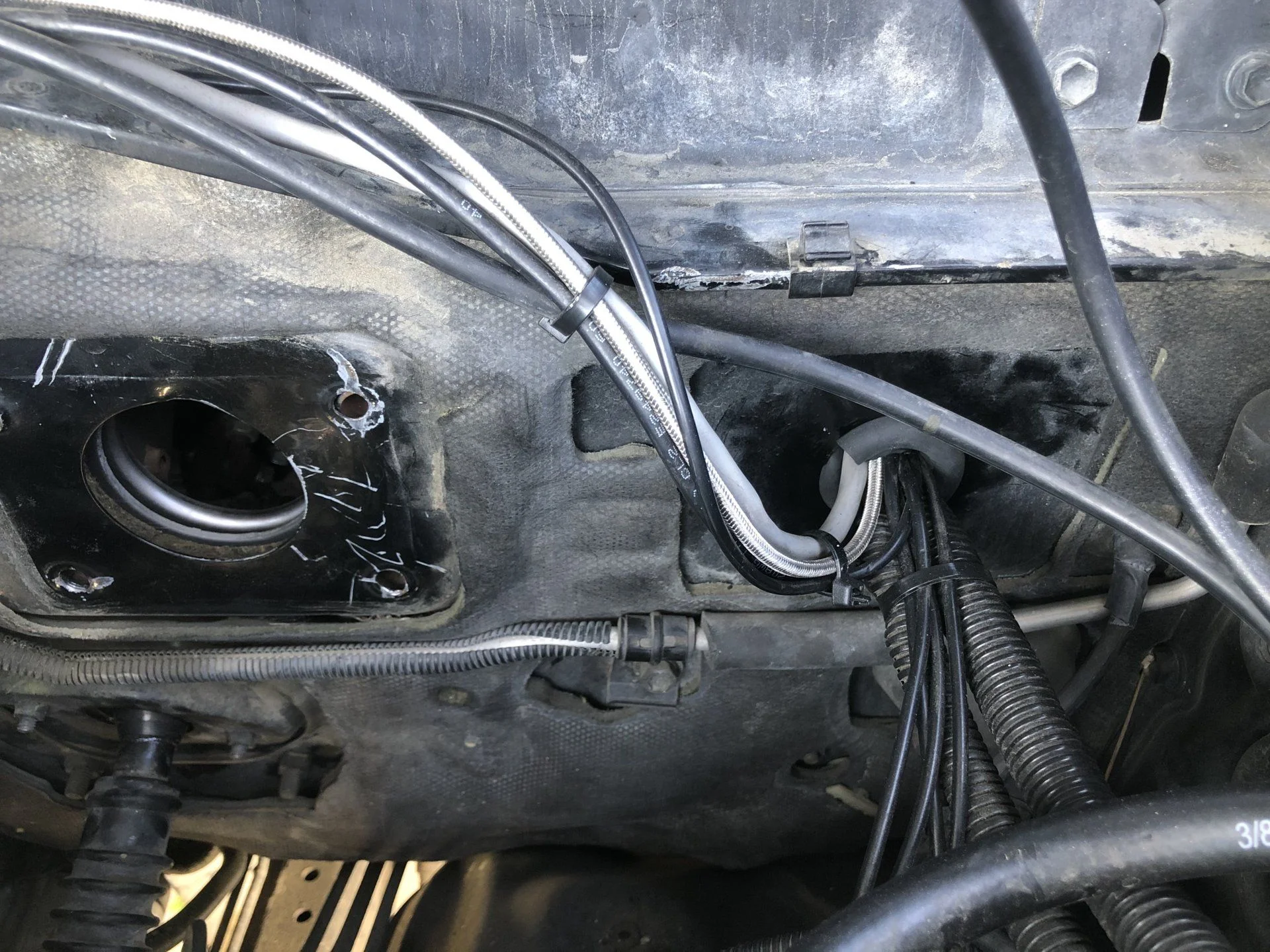

Wires were all ran through the large grommet on the fire wall, next to the brake booster. (Disregard my brake booster currently missing).
Box for the sensors live under the Delta Console gauge plate. My sensor wires were way more than enough to reach all the way from engine to inside cab behind the gauges.
- Thread starter
- #215

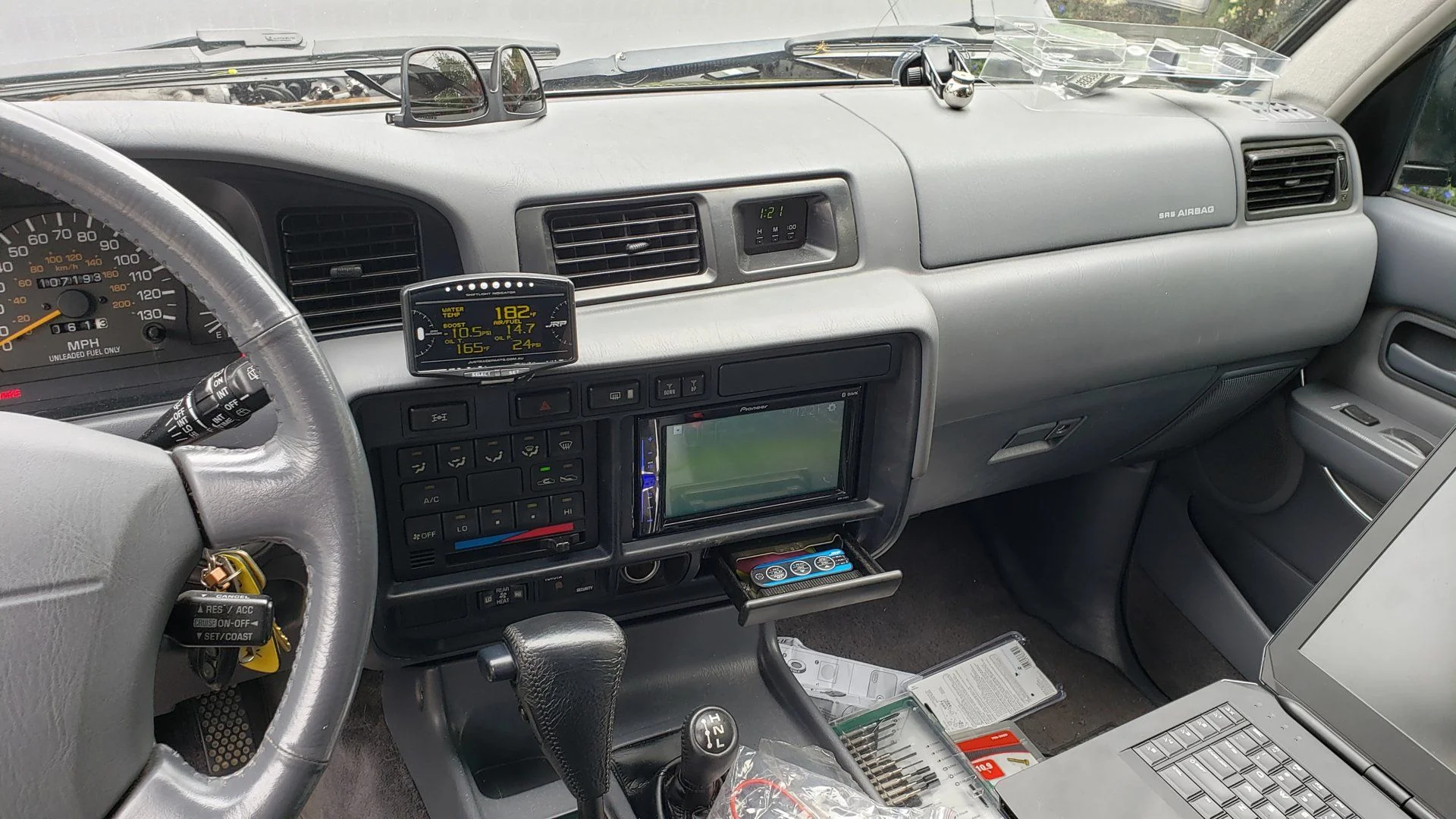

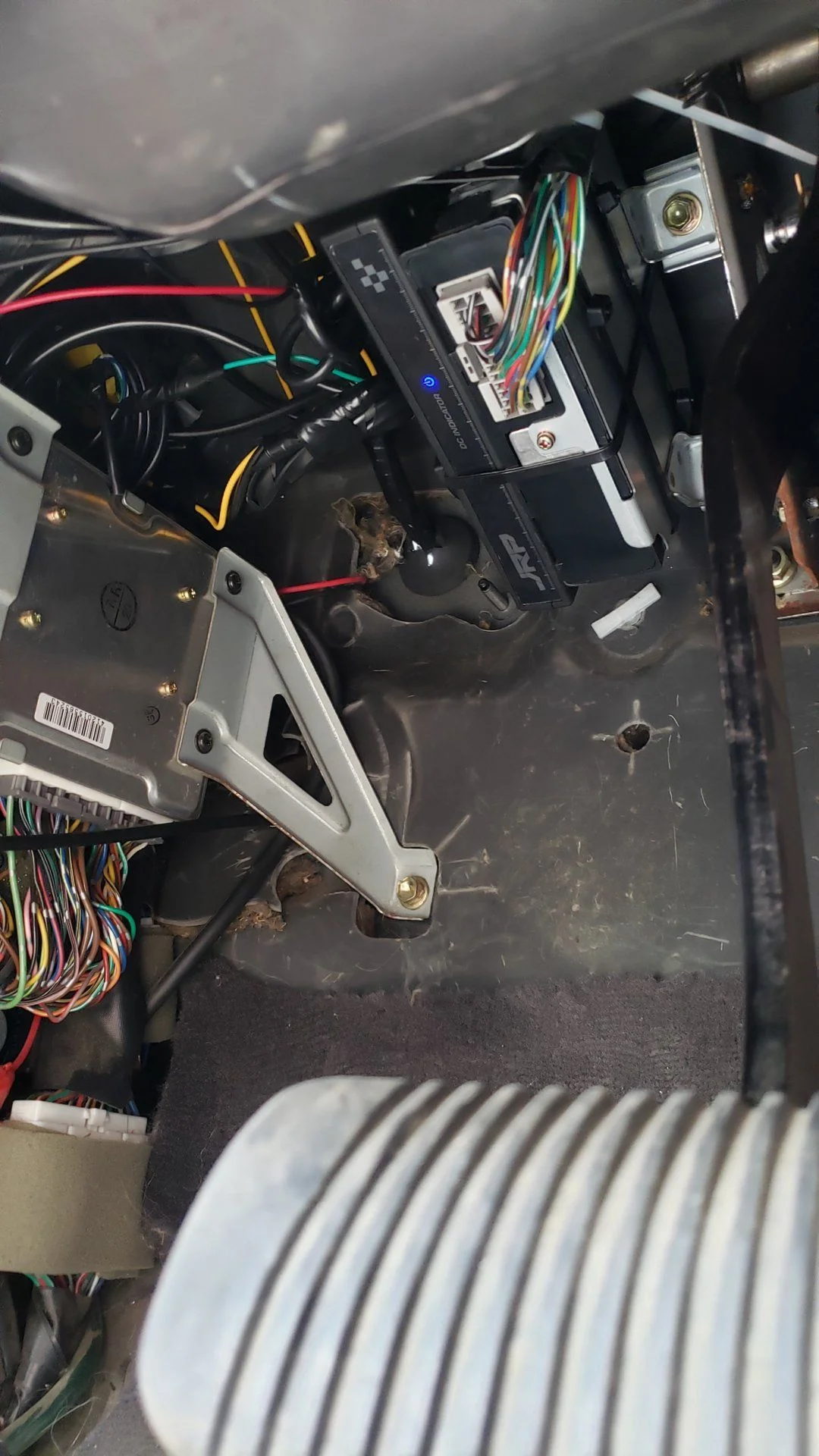

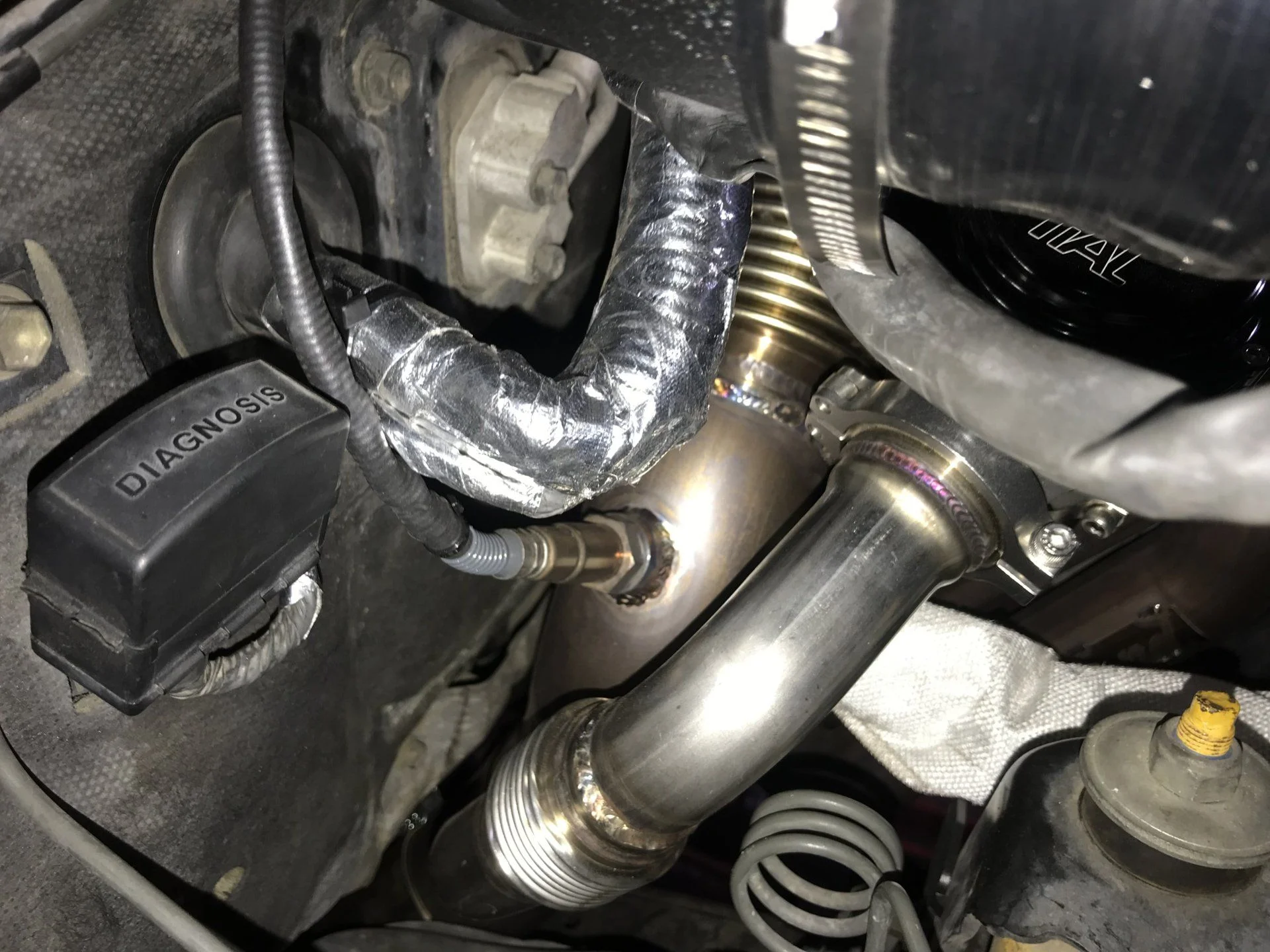

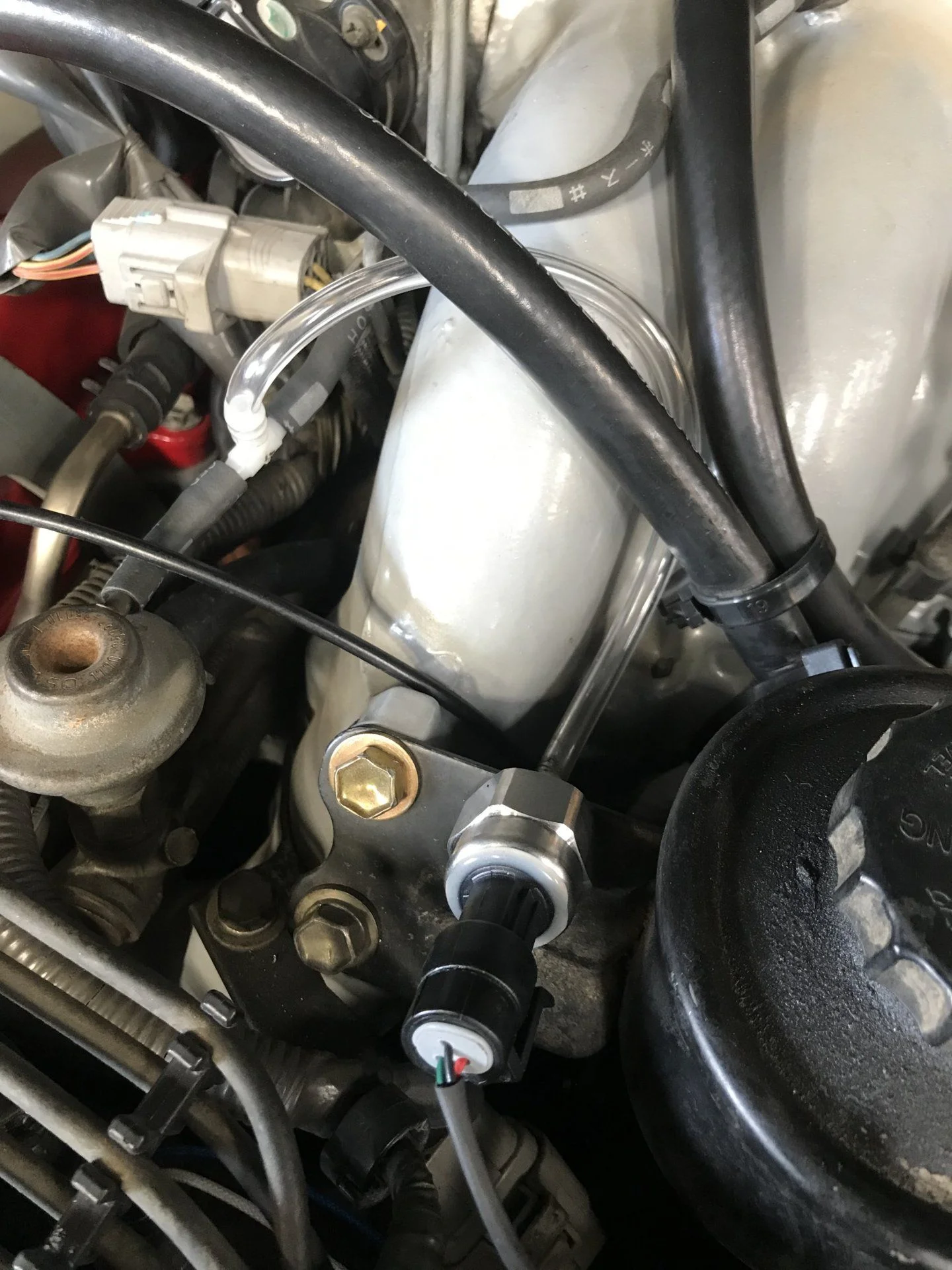

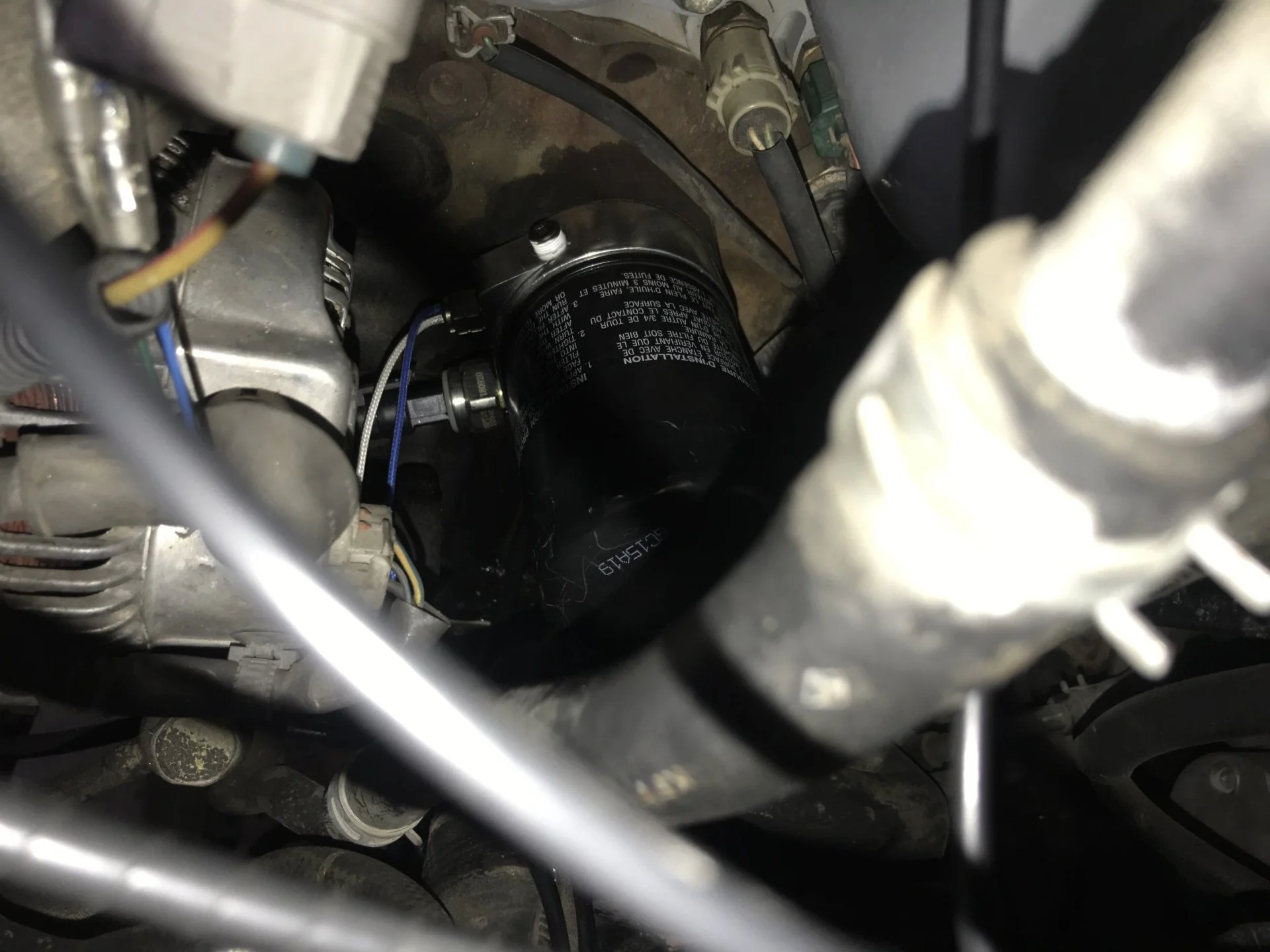

14-1 is done. Pretty damn impressed with this thing. Made a bracket that comes off the back of the HVAC stud/screw.
Wish it was just the display without the stuff around it but the alarm parameters are awesome. Mounted the unit with high tech zip ties above the brake pedal to a control unit of some type (honestly not sure which that one is).
Control switch is in the ash tray for out of sight but easy access.
Power is coming off a fuse tap on the gauge fuse until I can install a fuse panel.
Both the AFR and sensor hub require a 5amp fuse. They're T'd off the fuse tap and running a 10amp fuse for now. So far no issues.
Wish it was just the display without the stuff around it but the alarm parameters are awesome. Mounted the unit with high tech zip ties above the brake pedal to a control unit of some type (honestly not sure which that one is).
Control switch is in the ash tray for out of sight but easy access.
Power is coming off a fuse tap on the gauge fuse until I can install a fuse panel.
Both the AFR and sensor hub require a 5amp fuse. They're T'd off the fuse tap and running a 10amp fuse for now. So far no issues.

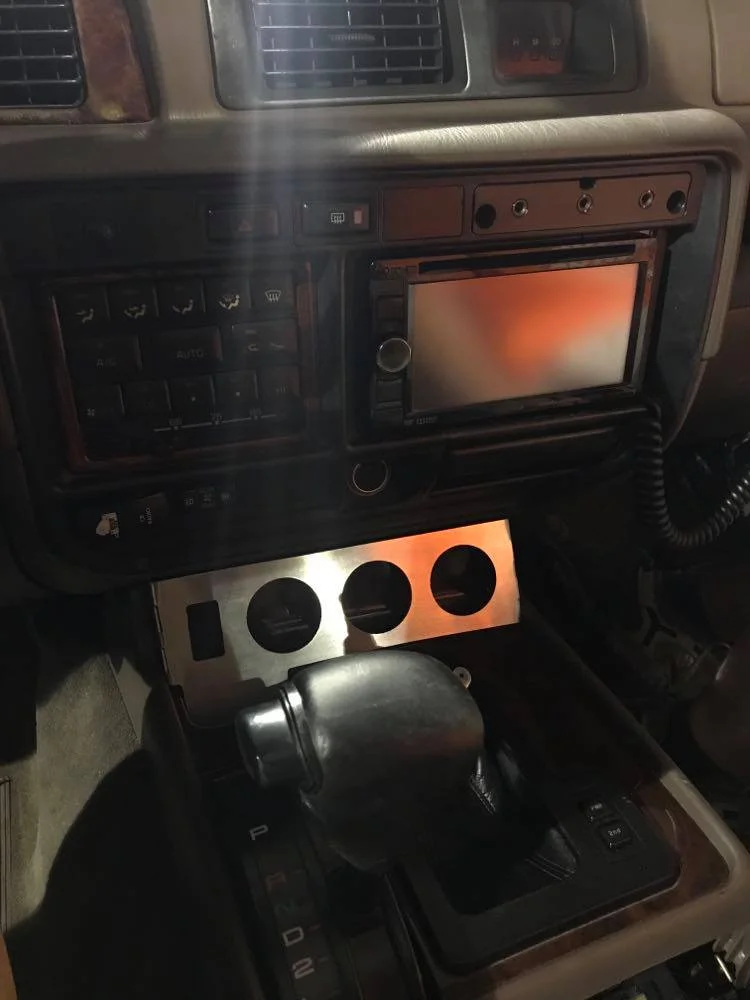

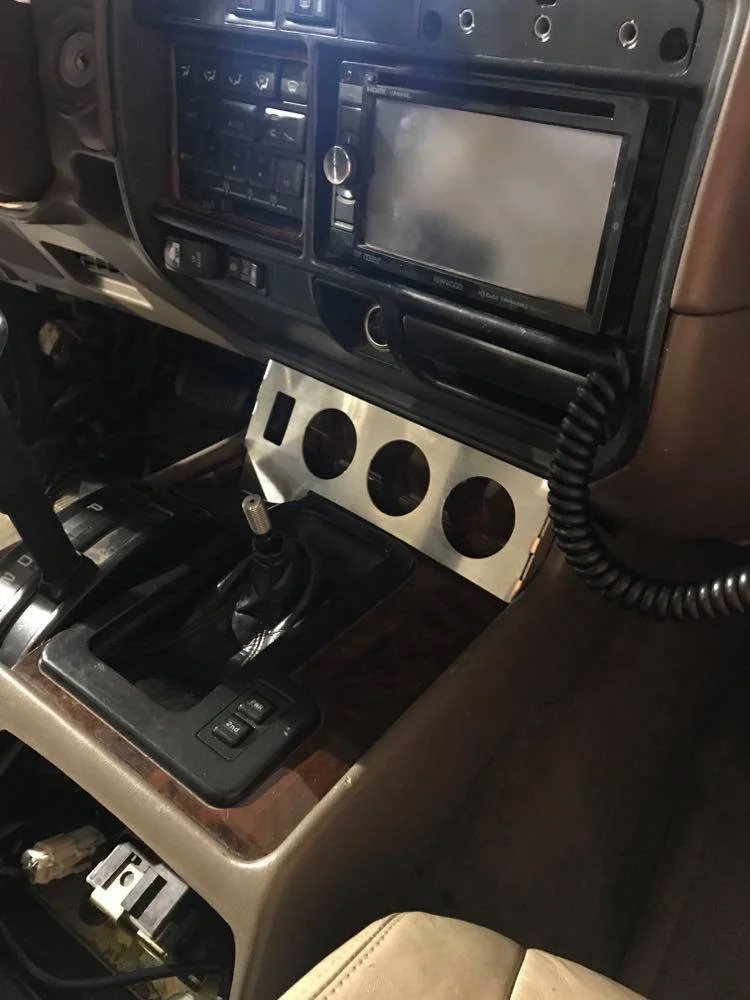

Well my brother and I spent the day yesterday working on this bad boy. I am beyond stoked with how it turned out. I will let the pictures do the talking. Next step is the gauges, thankfully all of the wires are run and ready to be plugged in. Just need to run some power. Happy Mondayyyyyyy or whatever day it is.
BillyGoatMTB
SILVER Star
Bump
Looks awesome. Do you have any pictures or thoughts on the finished product?
I personally could not be happier with them. There is no movement in the piece, meaning it should not rattle off road. The gauges and the rocker switch are easy to view and access from the drivers seat. I am over the moon about them.
The only thing I came to learn about them is that the really only fit then 95-97. Duuuuuuuh, right?
If you are on Facebook, I have a more detailed post about them on the Toyota Land cruiser Association Page
Jack
BillyGoatMTB
SILVER Star
Awesome!I personally could not be happier with them. There is no movement in the piece, meaning it should not rattle off road. The gauges and the rocker switch are easy to view and access from the drivers seat. I am over the moon about them.
The only thing I came to learn about them is that the really only fit then 95-97. Duuuuuuuh, right?
If you are on Facebook, I have a more detailed post about them on the Toyota Land cruiser Association Page
Jack

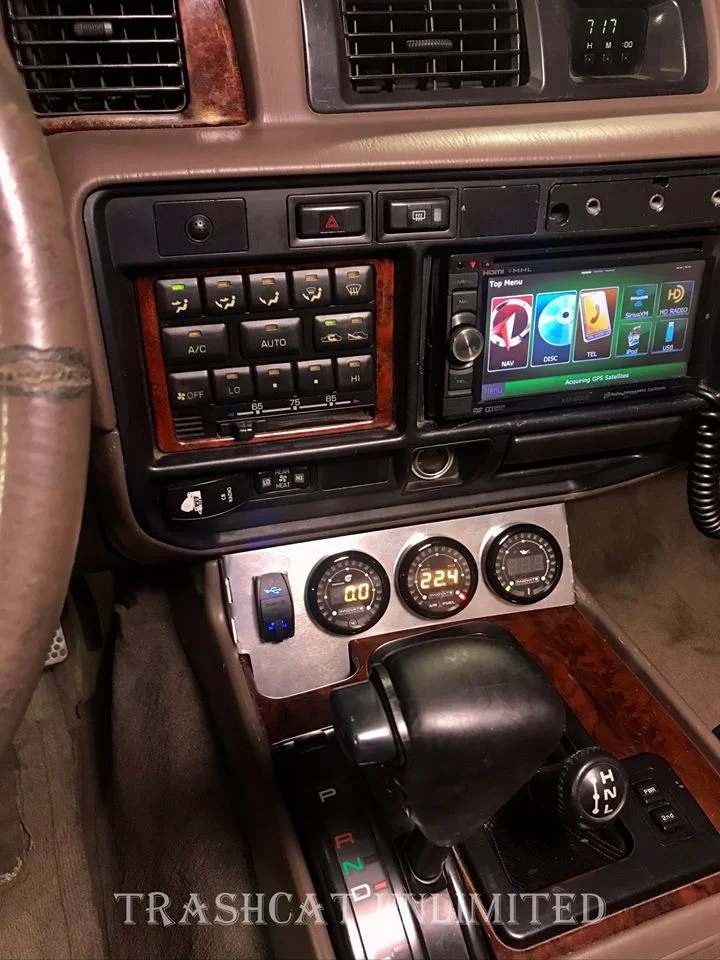

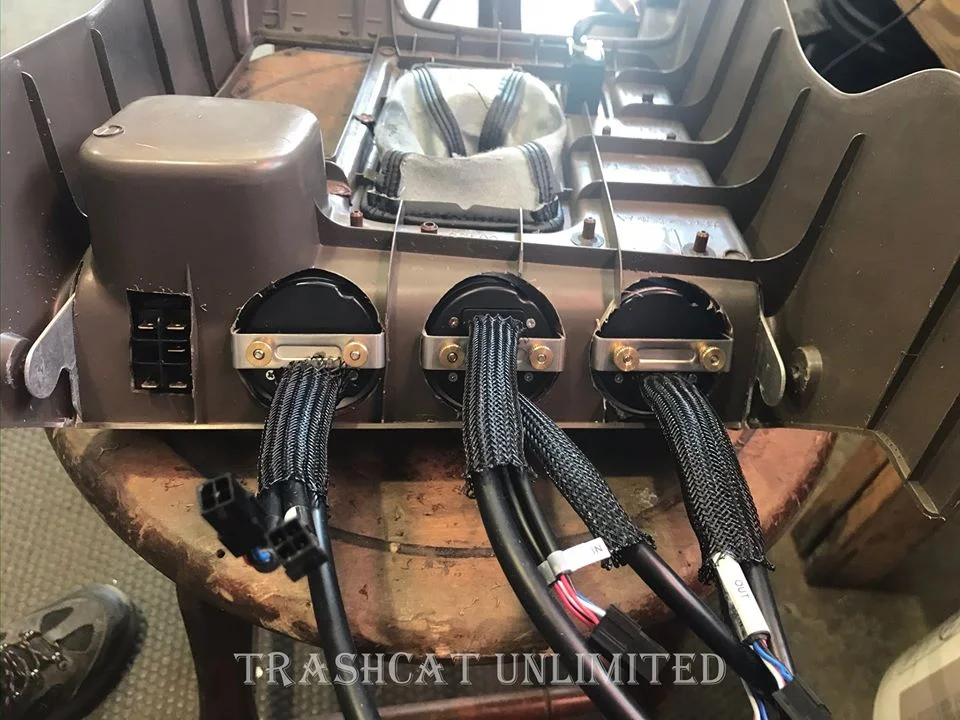

View attachment 2318140

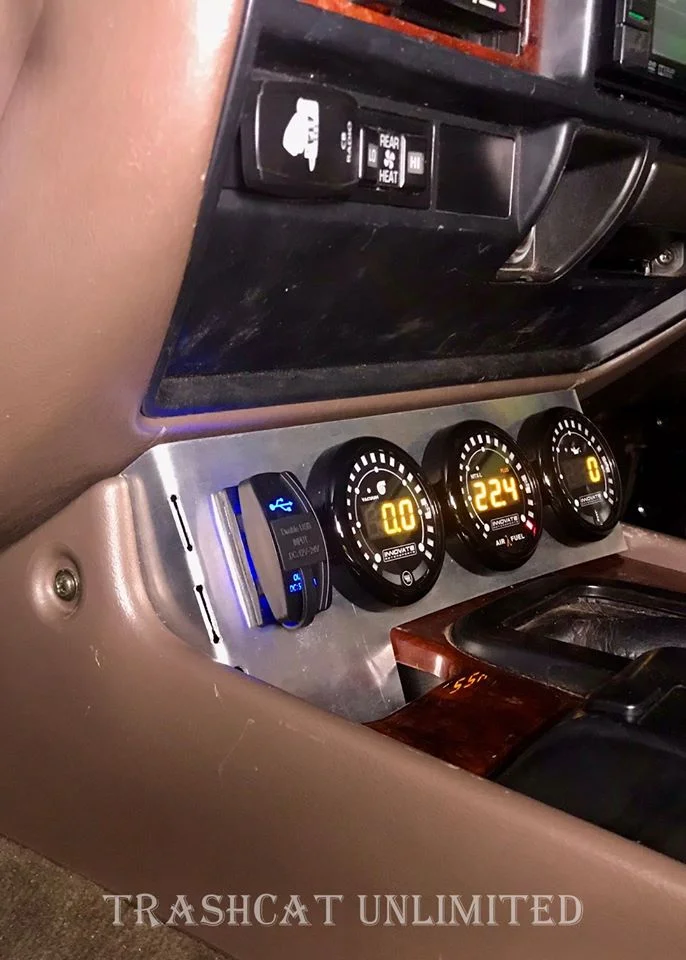

View attachment 2318141
View attachment 2318142
View attachment 2318143
Are you happy with that brand gauge? I am on the fence between these and PLX. I like the Innovate because i can get a water temp/voltage in one.
They are great. Very easy to read and the quality is very good. My only complaint was that I did not have the correct outlet on my laptop to tune and calibrate the warnings, so I had to buy an adapter. They use the VGA plug on their gauge for data transfer which makes it a little tricky but like I said, I like them a lot.
