Everyone else has a build thread, so I figure why not have one too?

1999 UZJ100

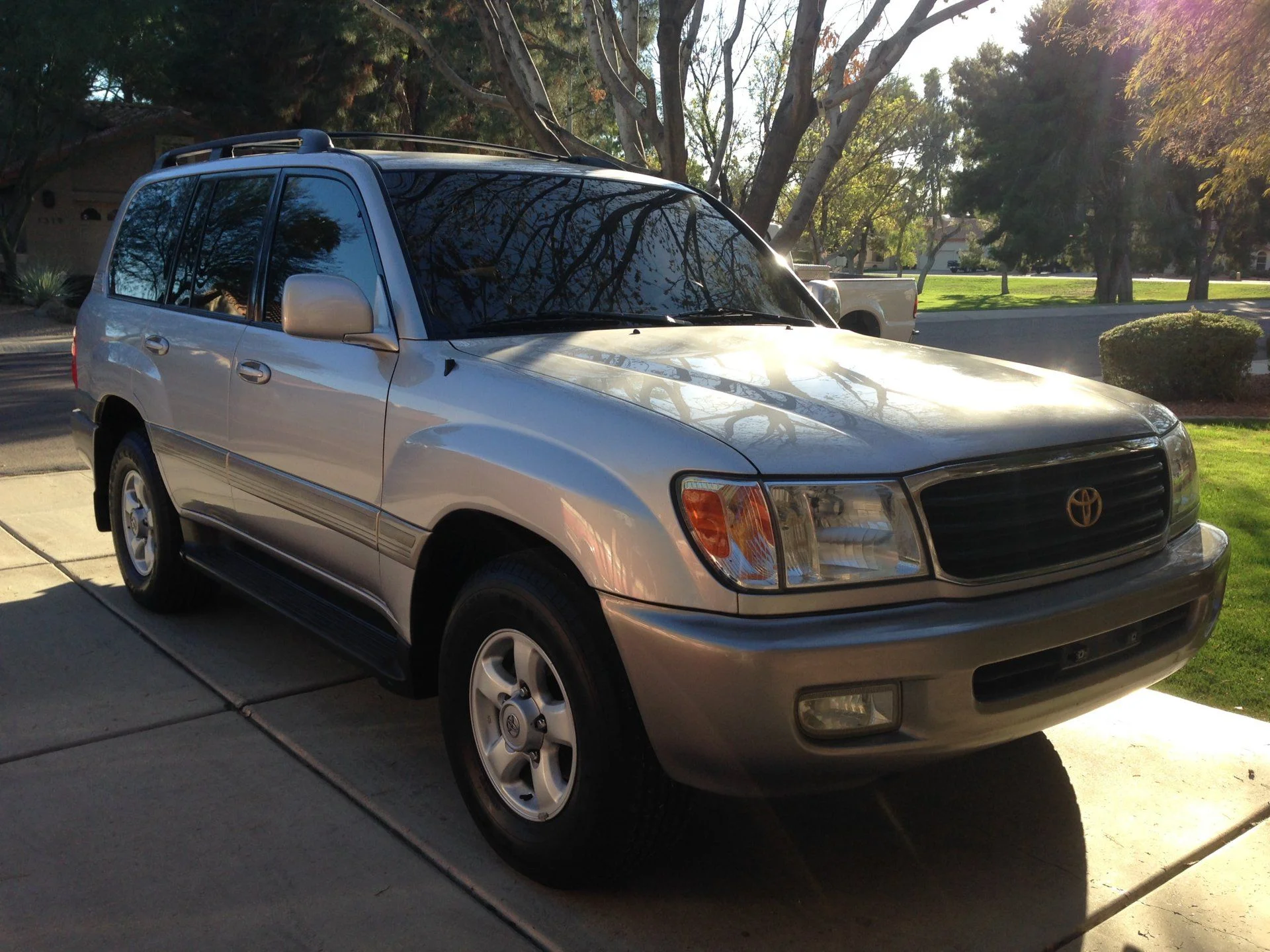

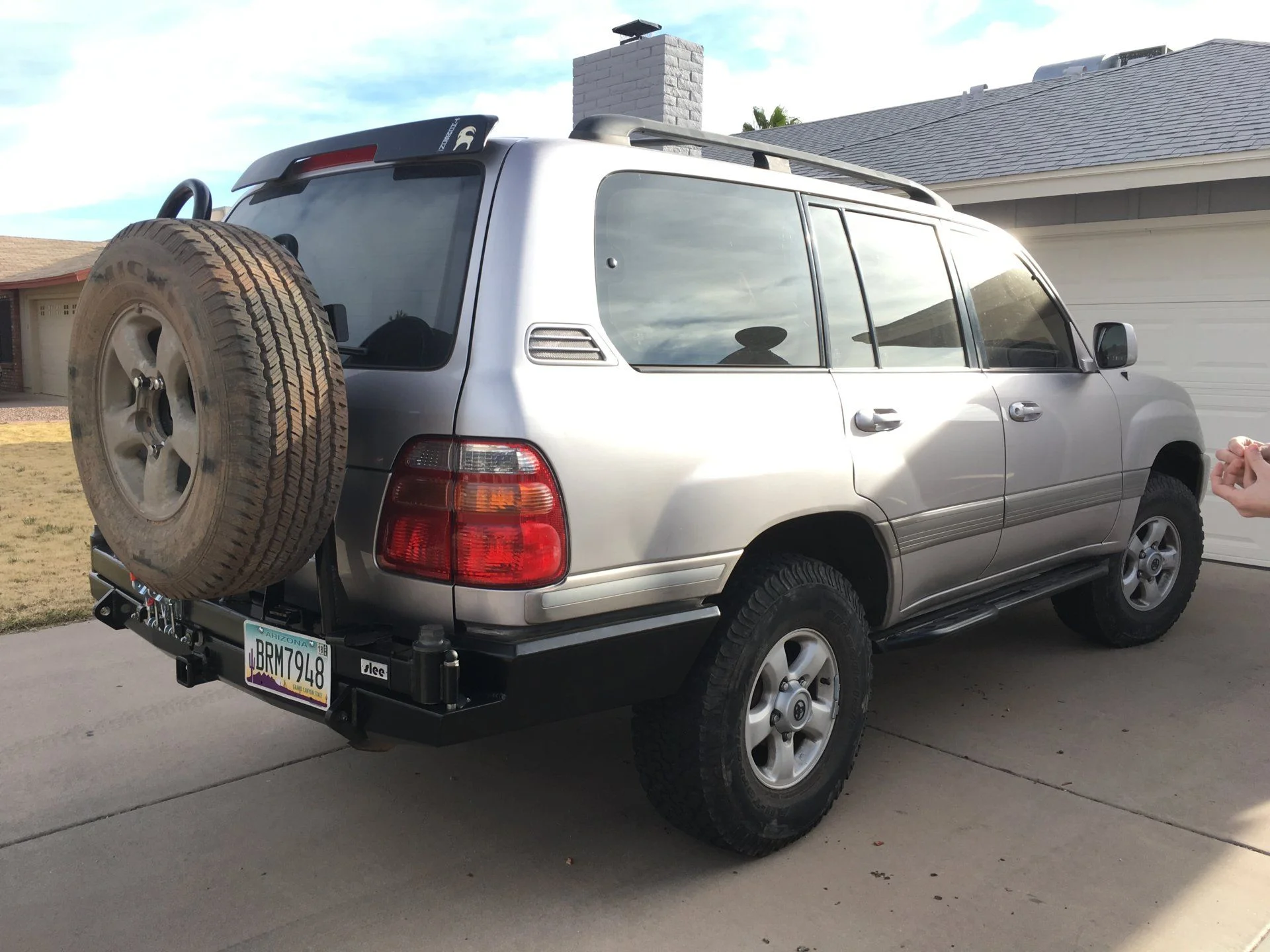

The day she came home back in 2014:

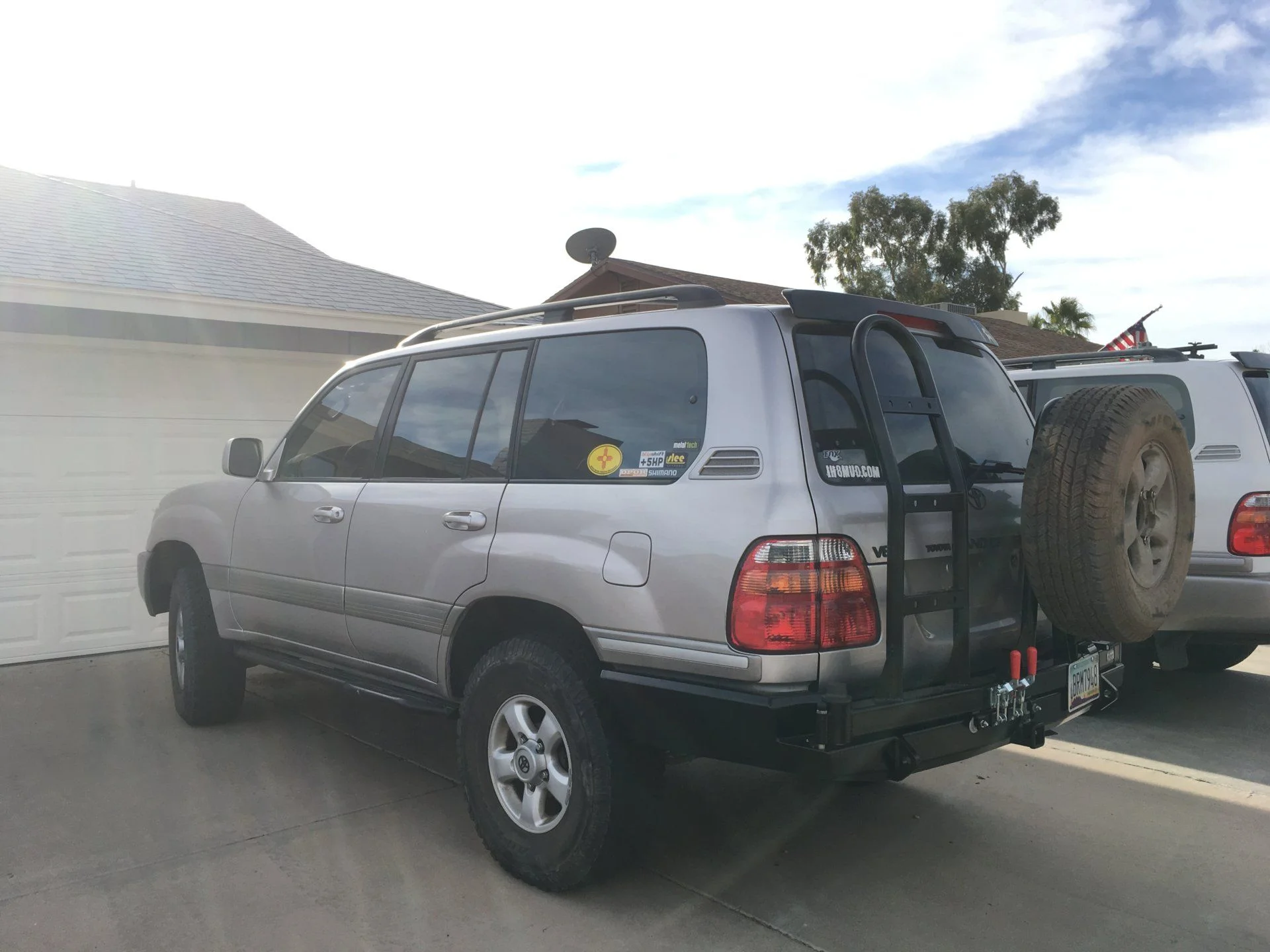

Current:
73620a71-dee1-4783-9539-900d7260e3aa-jpeg.1662422


OME 2865 (heavy) - 2.5" Lift
1.25" SpiderTrax wheel spacers
Slee rear bumper with Cooler rack, built by me
Wrangler DuraTrac's - 275/70/r18

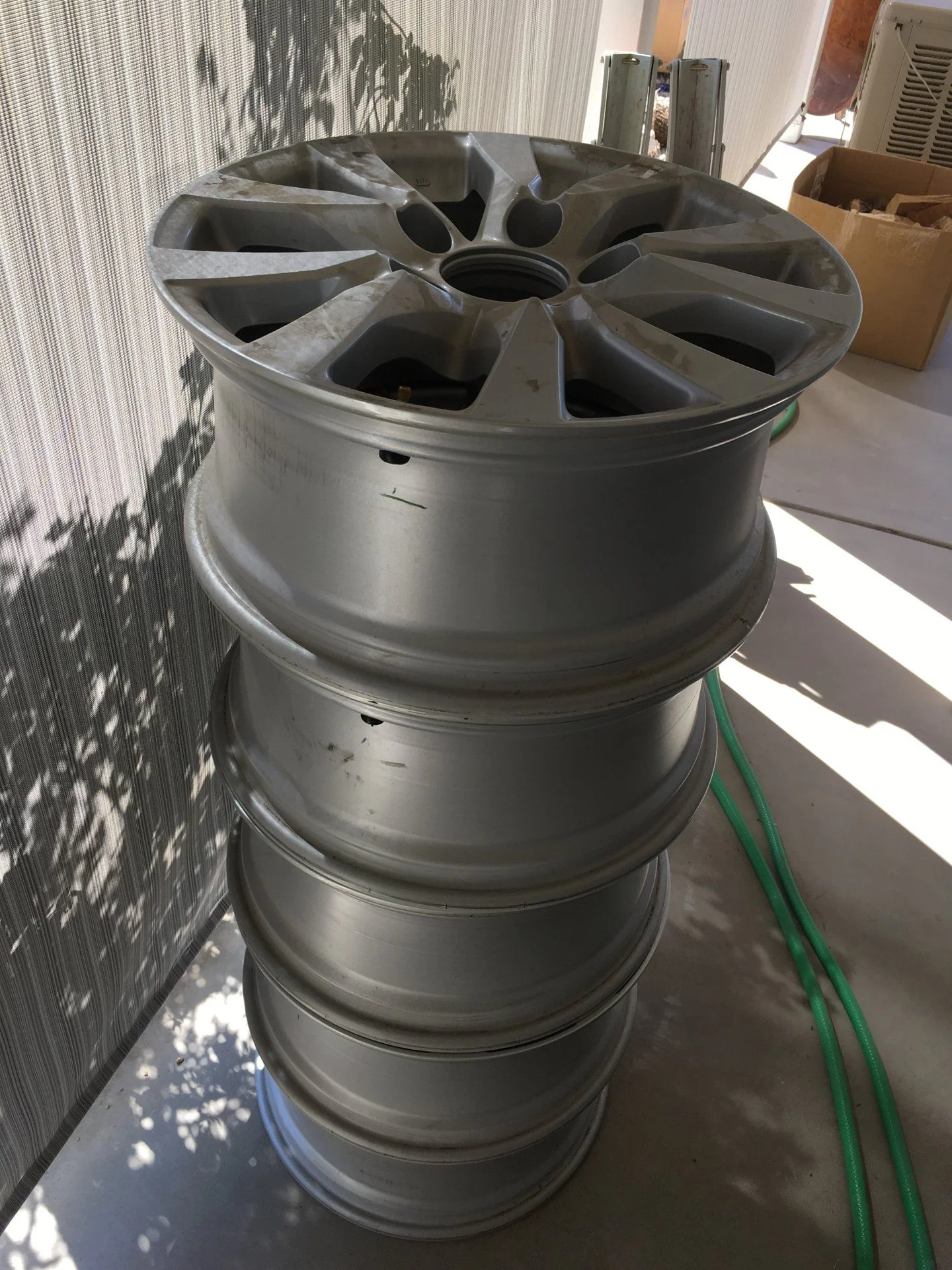

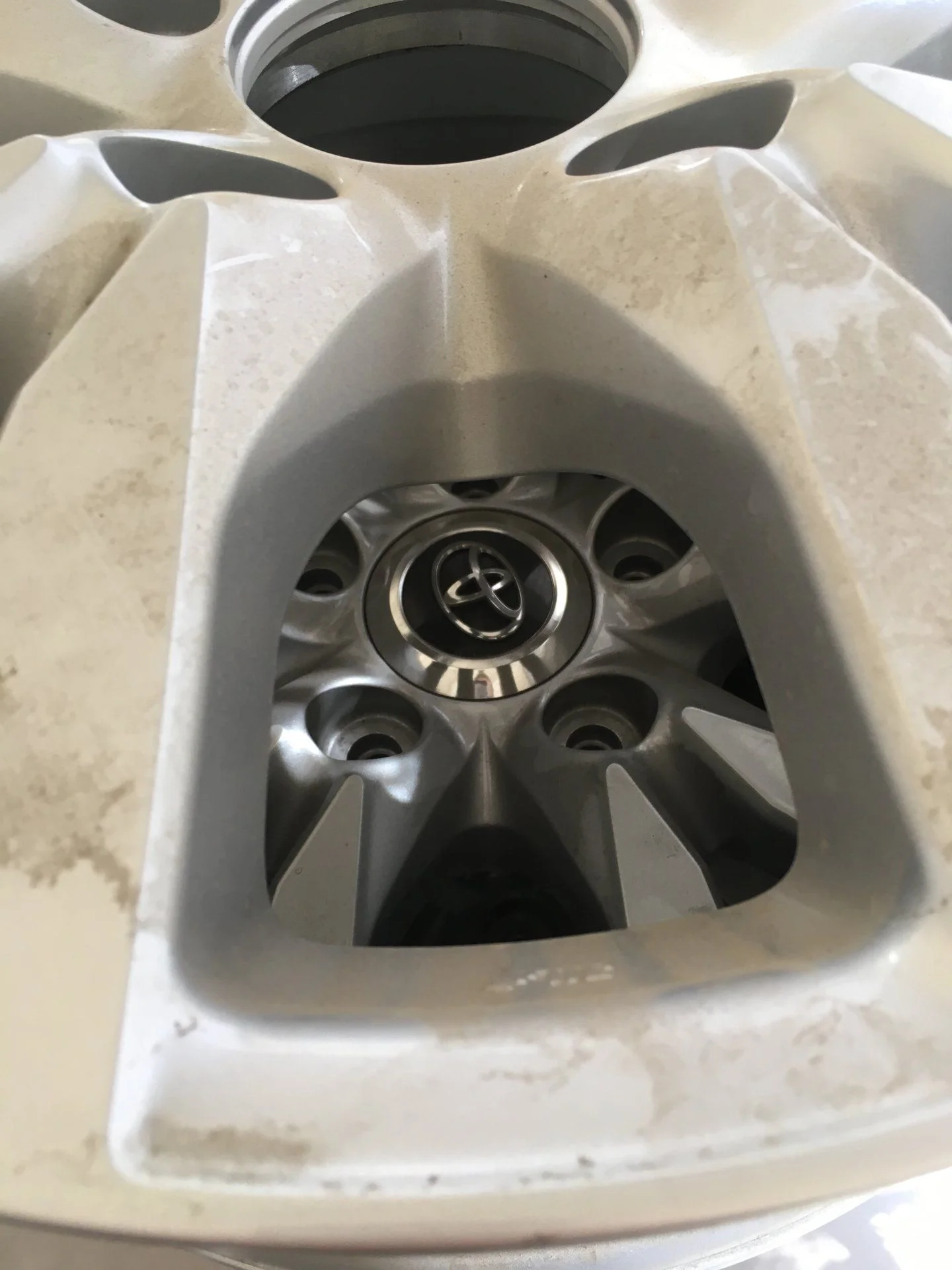

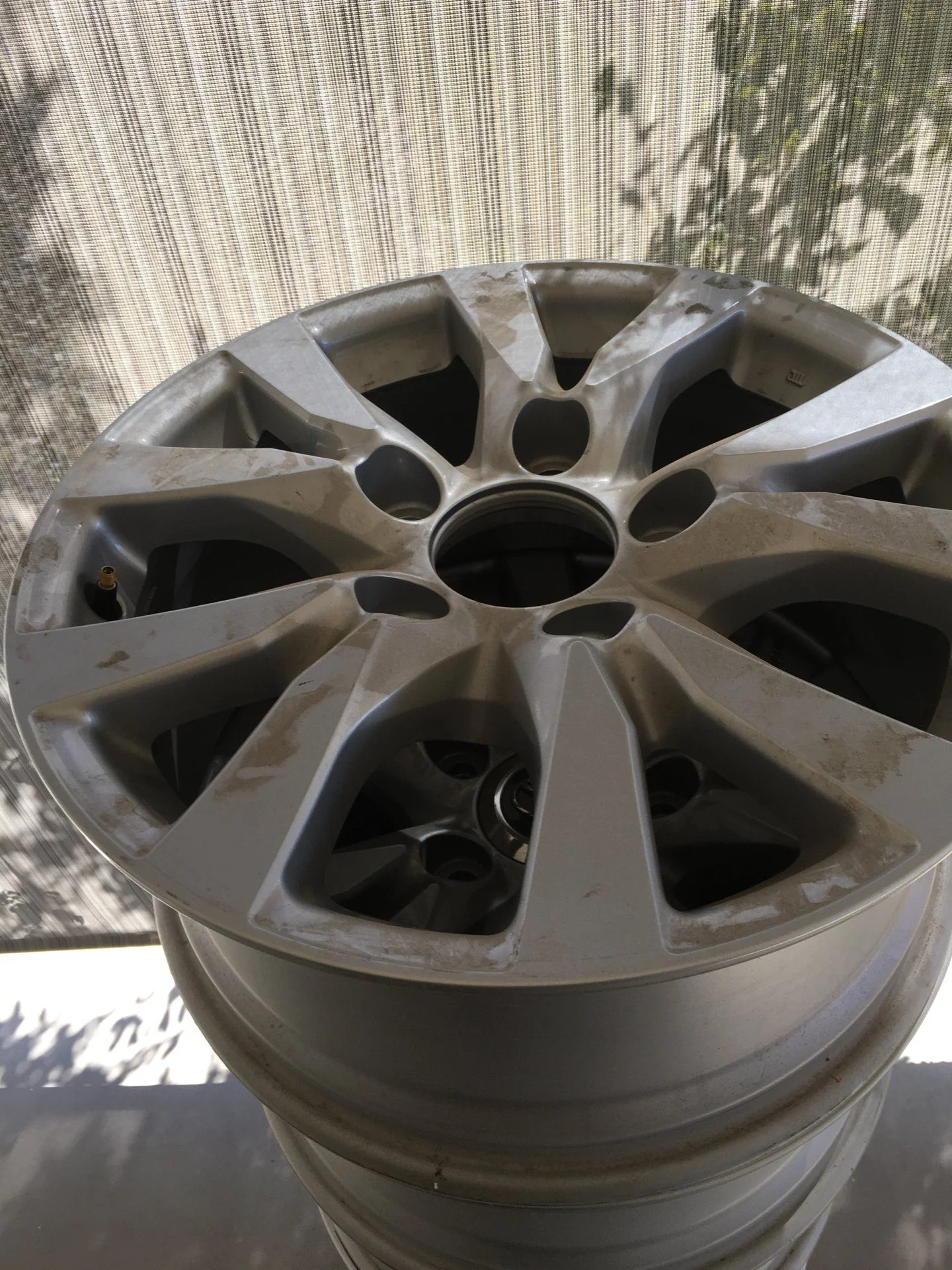

2016 200 series 18" Wheels
Drawers built by me
Attic rack built by me

IN WORK:
Roof rack, built by me


Future plans: (planning to build most myself)
- Cooler rack mounted to ladder swingout - DONE
- Roof rack - Planning to use Gamviti feet and 1 1/4" tubing for the structure - 25% DONE
- Wedge type RTT out of 80/20 extrusion
- CB - MIDLAND something or other + 4" Firestik - DONE
- front bumper
- Flip down table inside of ladder
- Blue (or 5000k) LED's behind dash (and everywhere else)
- Tint 5% all around, 50% entire windshield - DONE

upload_2018-10-6_11-56-53-png.1804918





Last edited:

Somebodyelse5

Enginerdin'
SILVER Star
Joined
Feb 9, 2014
Messages
3,566
Location
Tukee Town, AZ
Sway bar part numbers for anyone who needs them in the future
(For future searching: 100 series sway bar bushings part numbers, sway bar, stabilizer bar)

FRONT
Sway Bar Bushing 48815-60111 QTY 2
Cushion Front Stabilizer 90948-01003 QTY 4
Cushion Retainer 90948-02180 QTY 4
Sway Bar Link Assy - L / R 48820-60032 QTY 2
Lock Nut 94184-61001 QTY 2
End Link Bolt 90119-10765 QTY 2
bushing bracket bolt ????

REAR
Sway Bar Bushing 48815-60140 QTY 2
Sway Bar Links 48802-60090 QTY 2
Link Stablizer Cushion 48817-30010 QTY 4
Link retainer Cush 1 90948-02126 QTY 4
Link Retainer Cush 2 90948-02127 QTY 2
Sway Bar Bush 90385-11021 QTY 2
Sway Bar Spacer 90560-10275 QTY 2
Link Retainer Nut 90179-08062 QTY 2
Lock Nut 94180-41000 QTY 2
sway bar bush bracket bolts 90119-08834 QTY 4
Rear lower/upper link bolts 90105-14123 QTY 4

Here are a few of the torque values I have written down...
FRONT:
-bolt (through stabilizer bar link and mount): 38ft lbf
-nut (on top of assembly): 18ft lbf

REAR:
-Bracket bolts: 13 ft lbf
-bolt (through stabilizer bar link & stabilizer bar): 19ft lbf
-nut (on top of assembly): 11 ft lbf
-stabilizer bar brackets: 13ft lbf

Joined
Nov 10, 2011
Messages
614
Location
Minnesota
@Somebodyelse5 Nice looking rig! Who's awning and sides is that? How do you like it for camping in? What kind of setup and teardown time does it take?


Somebodyelse5

Enginerdin'
SILVER Star
Joined
Feb 9, 2014
Messages
3,566
Location
Tukee Town, AZ
@Somebodyelse5 Nice looking rig! Who's awning and sides is that? How do you like it for camping in? What kind of setup and teardown time does it take?

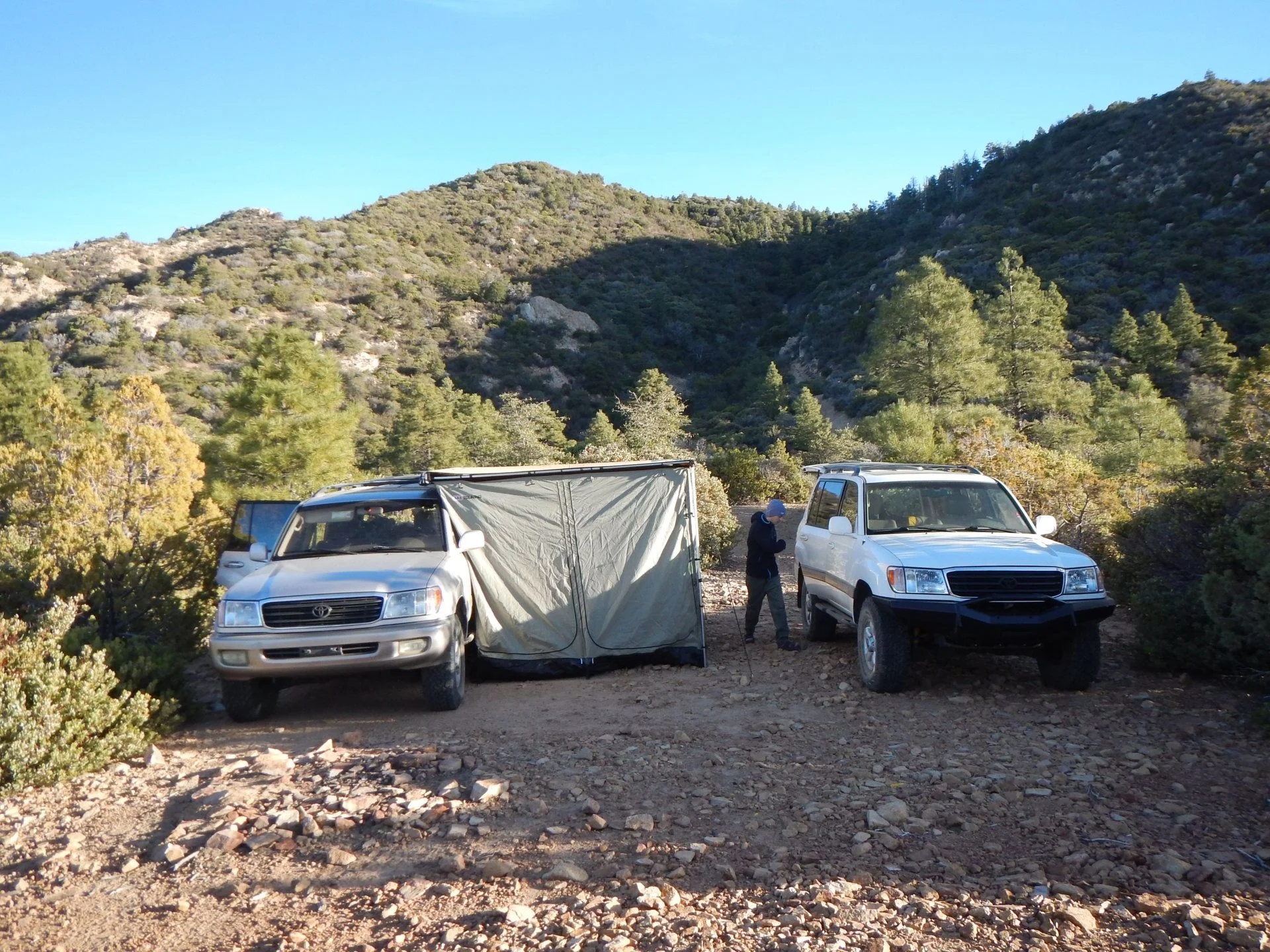

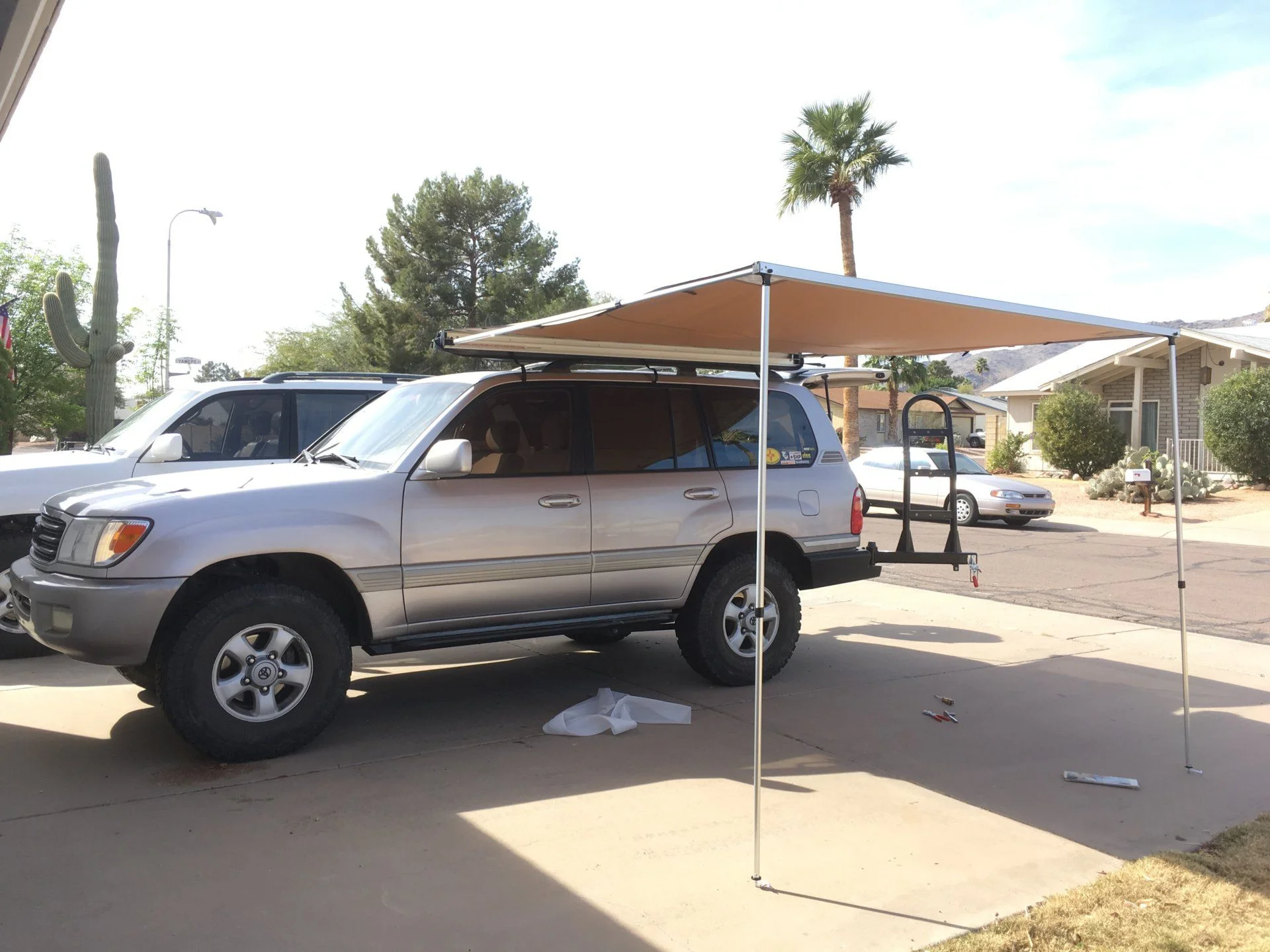

It's the ARB 2500 X 2500 awning with the ARB Deluxe Awning Room with Floor (813108A). It's great, I really like it. We use it as a living room and still sleep on the drawers in the back of the cruiser. No complains so far.

Setup is surprisingly quick once you get the hang of it. Definitely easier with two people but it's manageable by yourself. We can get the awning itself set up/tore down in under 5 minutes. The room is best setup with an extra person to help slide the round strip on the room into the channel on the awning base... but from then on, pretty simple. I have a stop motion video of setup that I am trying to figure out how to post


Somebodyelse5

Enginerdin'
SILVER Star
Joined
Feb 9, 2014
Messages
3,566
Location
Tukee Town, AZ
@fjdiesel forgot to add, I have it mounted to the factory roof rack with some 3/8" thick X 3" wide aluminum brackets I fabbed up real quick. they've worked perfectly so far, I will snap some pictures


Somebodyelse5

Enginerdin'
SILVER Star
Joined
Feb 9, 2014
Messages
3,566
Location
Tukee Town, AZ

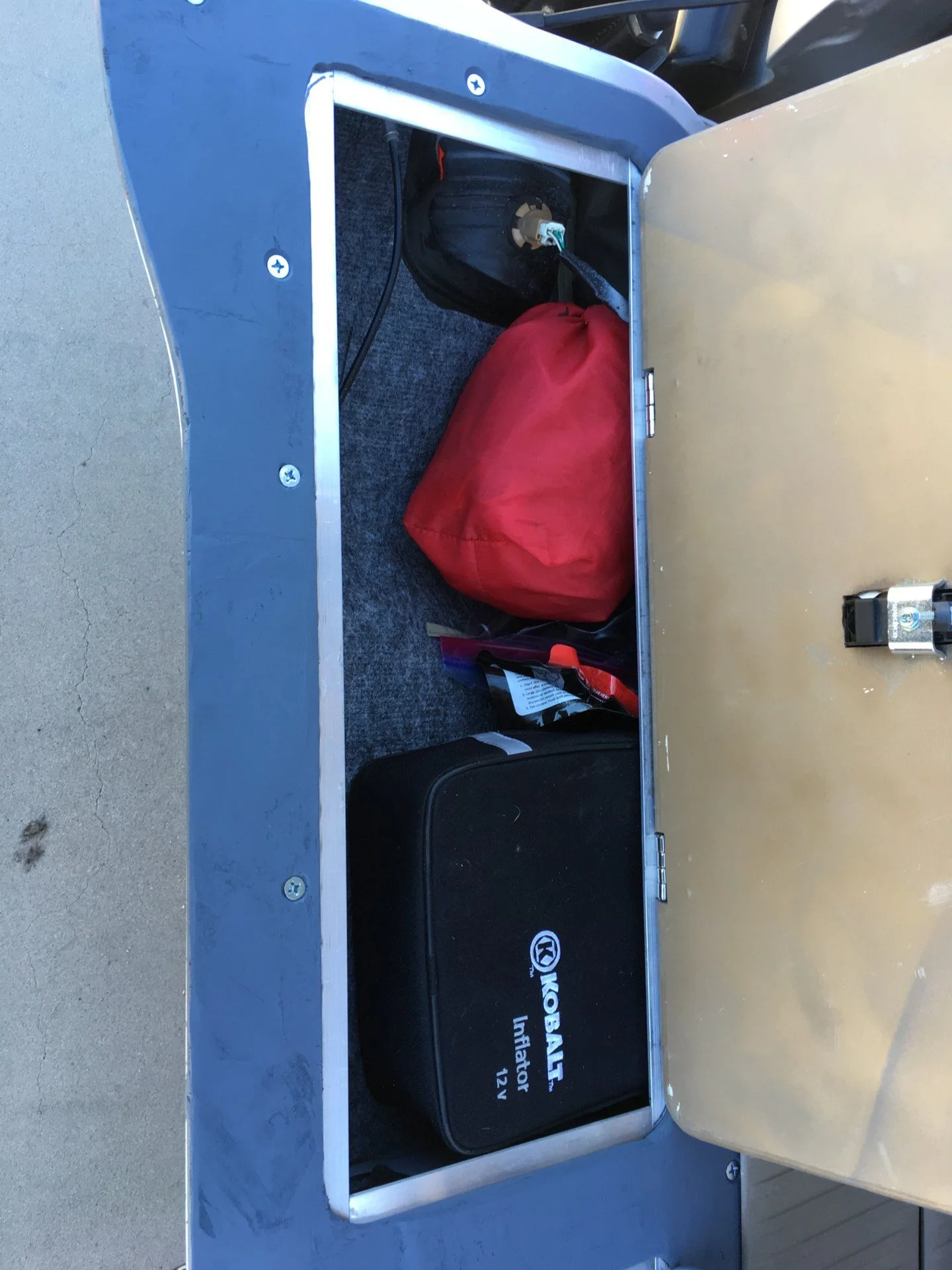

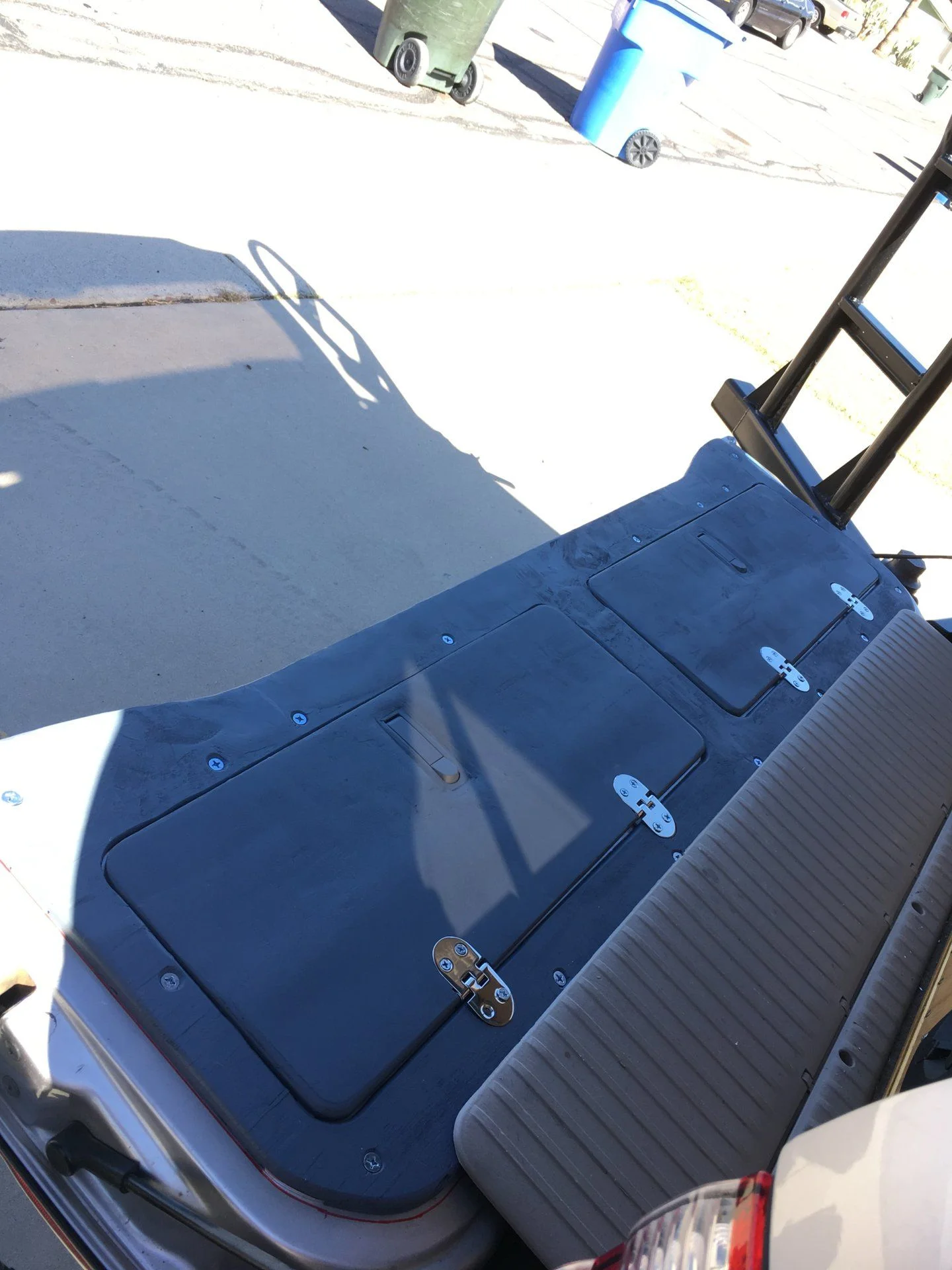

Tailgate Storage Version 1, needs some fine tuning for the next go... but so far this works pretty well. I'd really like to retrofit a tailgate lift assist, the tailgate gets pretty heavy full of junk. Not bad for a free piece of plywood huh?

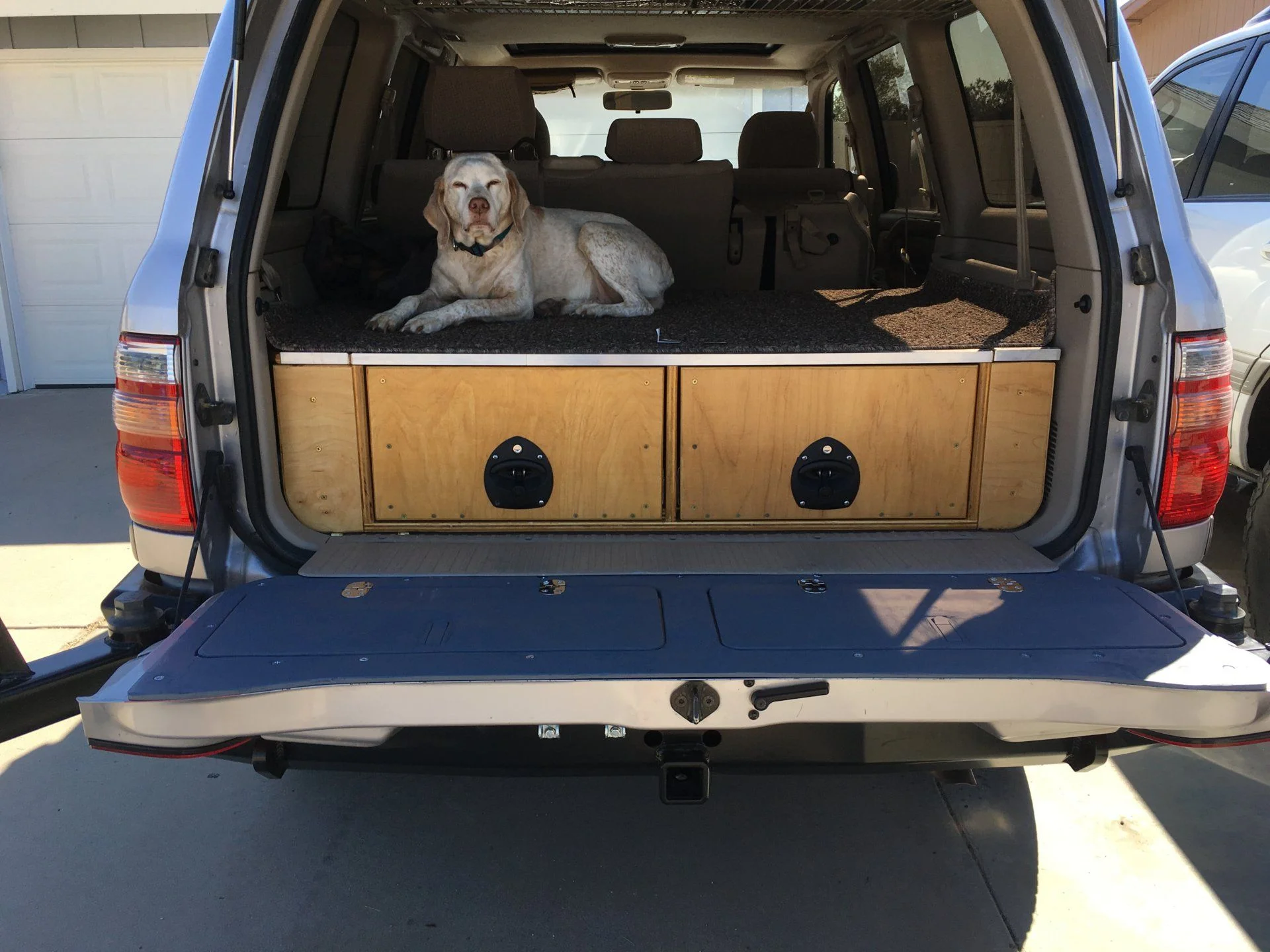

This is my assistant.... she loves hanging out in the cruiser




Somebodyelse5

Enginerdin'
SILVER Star
Joined
Feb 9, 2014
Messages
3,566
Location
Tukee Town, AZ

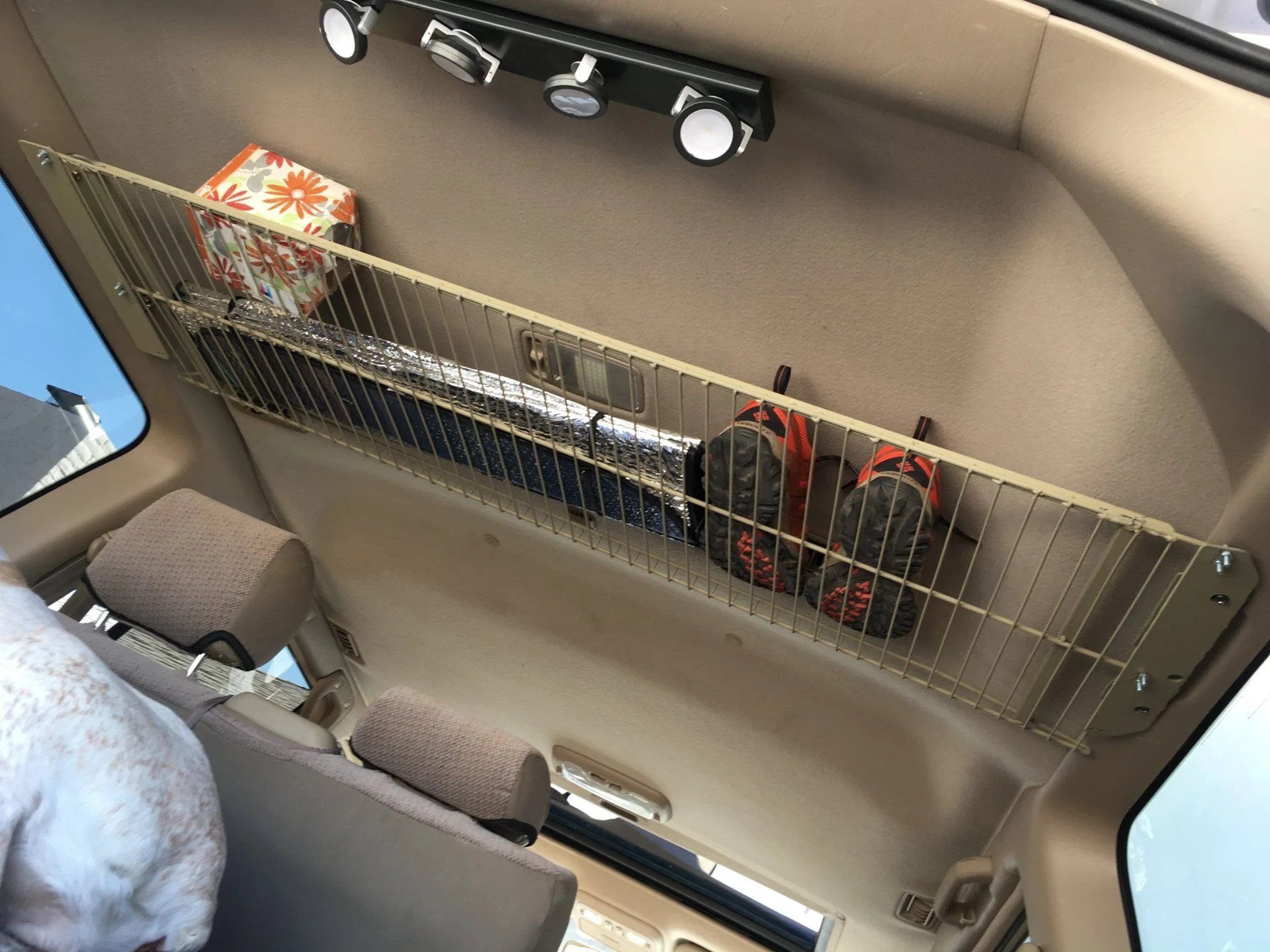

Built my own attic rack. The PS bracket could be a little better, but for my first go it worked pretty well. Used a metal shelf from HD that I reinforced and modified to fit. Super useful so far. (ignore the dog butt!)

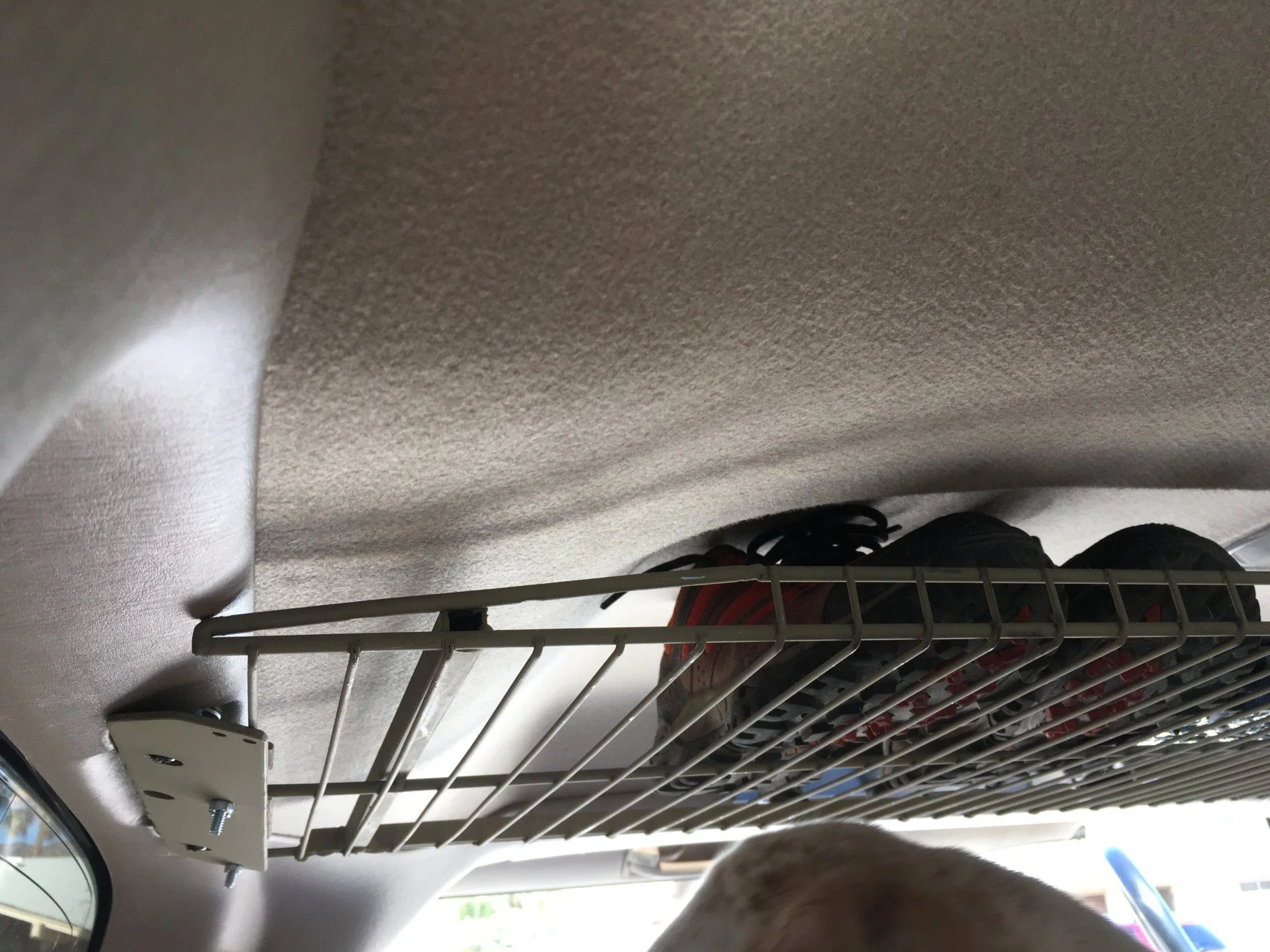

This bracket needs some work, I didn't get the angles quite right and the shelf interferes a bit with the plastic trim.


Last edited:

Somebodyelse5

Enginerdin'
SILVER Star
Joined
Feb 9, 2014
Messages
3,566
Location
Tukee Town, AZ

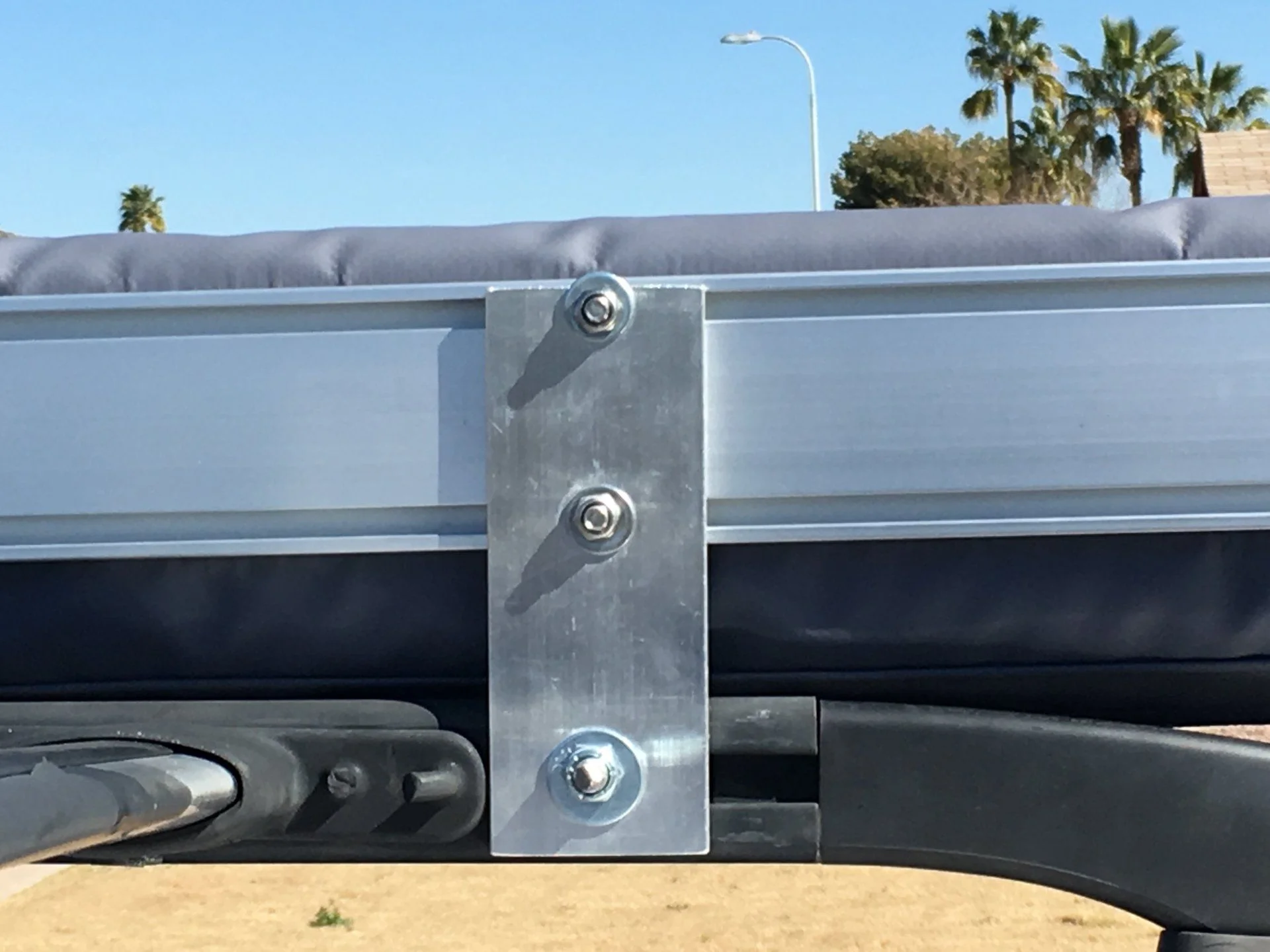

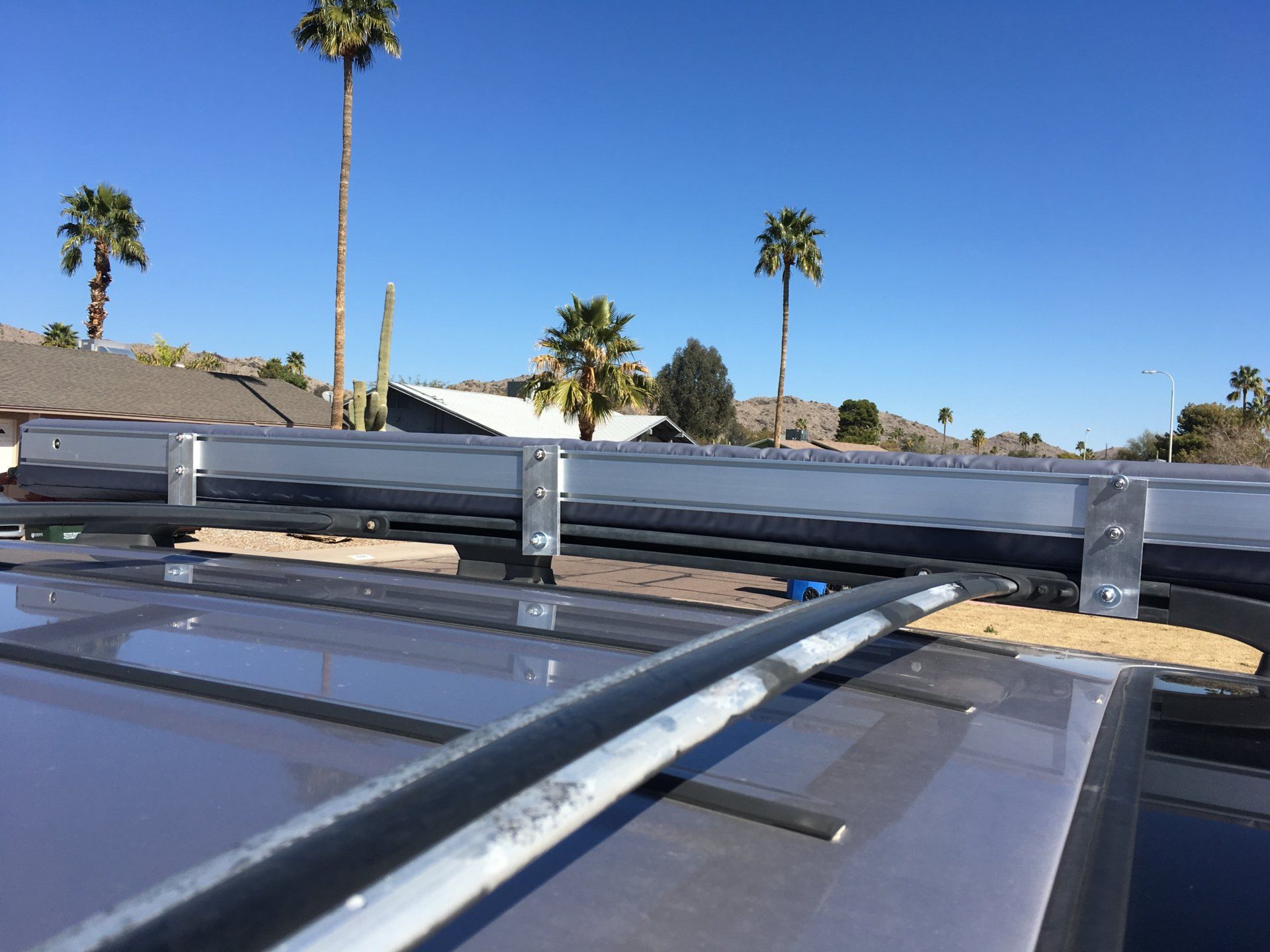

@SouthJerseyJim Here you go sir! I ordered the 3/8" thick Al plate from mcmaster carr for a few bucks, used some 5/16 T-bolts, matching nuts and washers, and the hardware that comes with the awning. I drilled the holes in the plate a bit oversized to give me some wiggle room. If I were to do it again, I might go with the shorter awning, the big overhand forward of the roofrack looks a little goofy, but it should be a lot less funky looking once I build my roof rack and can get the rack tucked down and back a little. With the mounting setup I have now, position is dictated by interference in the back when the hatch opens.

(Ignore my nasty looking factory rack, it's days are numbered...the brown truck delivered a JMR tube bender and 1 1/4" dies the other day:) )

Joined
Nov 1, 2017
Messages
281
Location
Southern NJ
Looks great. Going to copy this design for sure.


@SouthJerseyJim Here you go sir! I ordered the 3/8" thick Al plate from mcmaster carr for a few bucks, used some 5/16 T-bolts, matching nuts and washers, and the hardware that comes with the awning. I drilled the holes in the plate a bit oversized to give me some wiggle room. If I were to do it again, I might go with the shorter awning, the big overhand forward of the roofrack looks a little goofy, but it should be a lot less funky looking once I build my roof rack and can get the rack tucked down and back a little. With the mounting setup I have now, position is dictated by interference in the back when the hatch opens.

(Ignore my nasty looking factory rack, it's days are numbered...the brown truck delivered a JMR tube bender and 1 1/4" dies the other day:) )
View attachment 1644398 View attachment 1644399


Somebodyelse5

Enginerdin'
SILVER Star
Joined
Feb 9, 2014
Messages
3,566
Location
Tukee Town, AZ

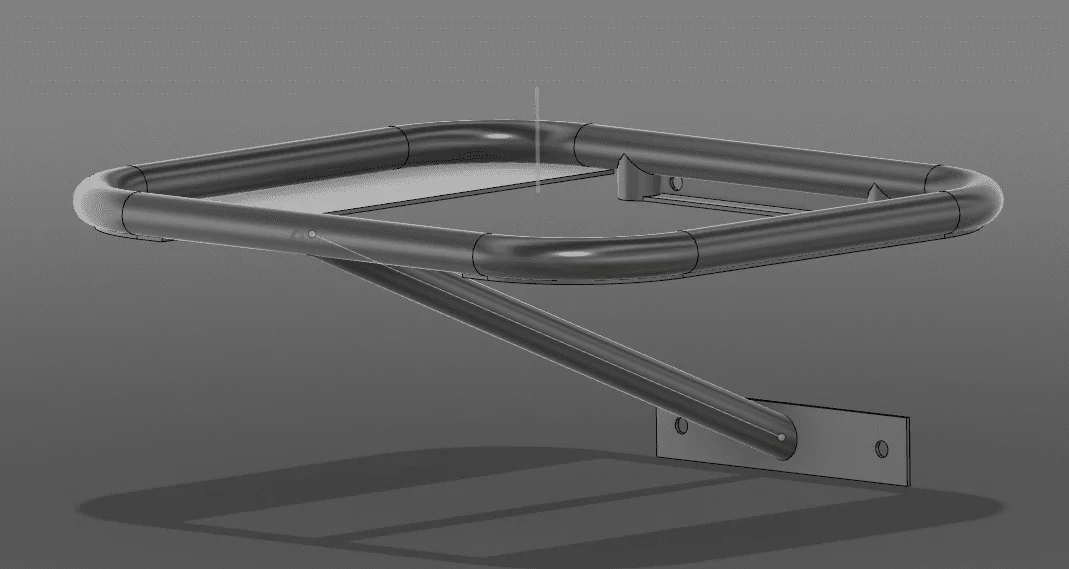

This is going to be my next project... I'd really like to mount my cooler (Yeti Tundera 50) off the back of my slee ladder swing out, here is what I am currently planning on doing...

Screen Shot 2018-03-01 at 12.18.31 PM.png

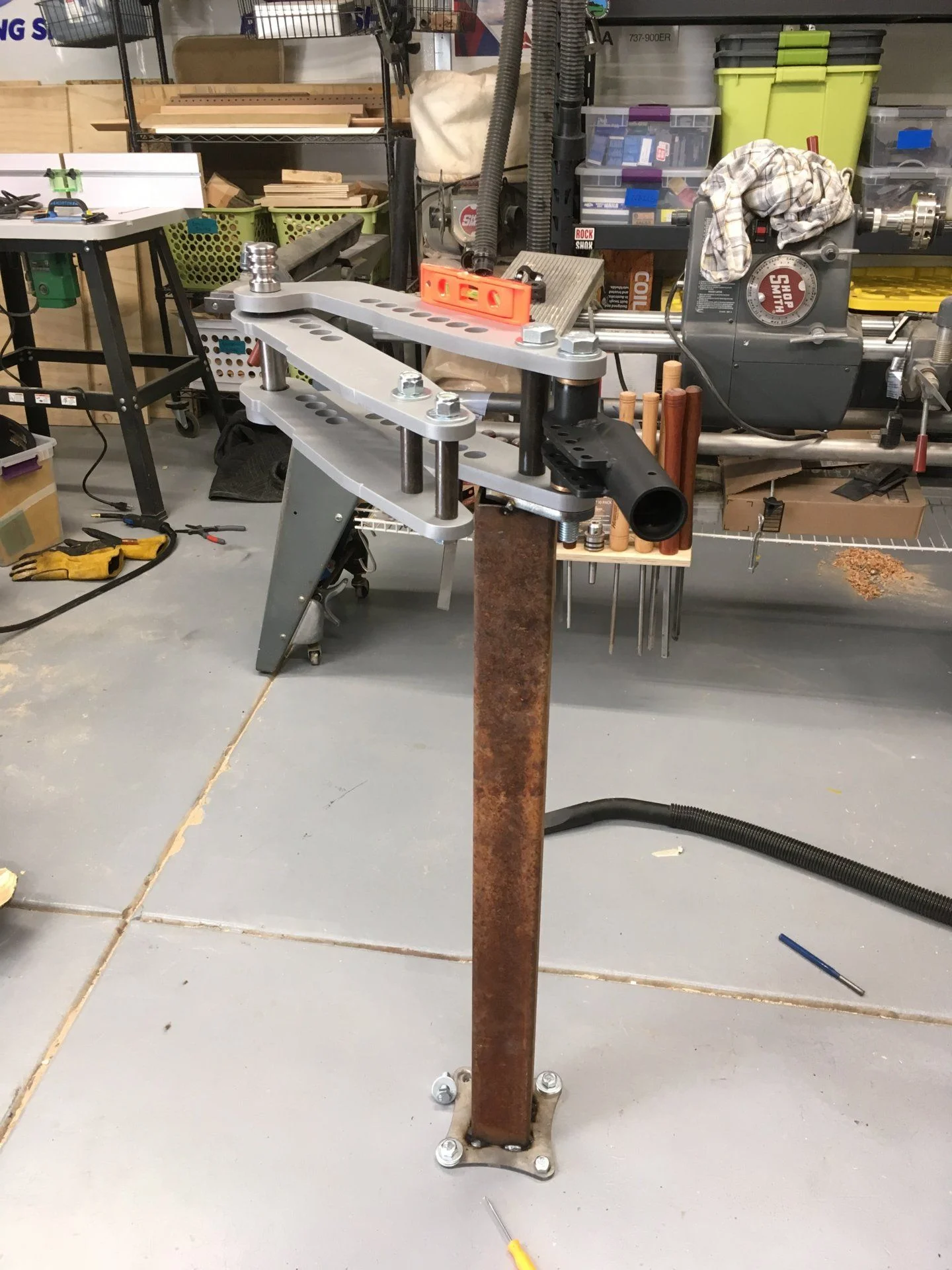

But I need to finish getting the tube bender mounted up first ;)
