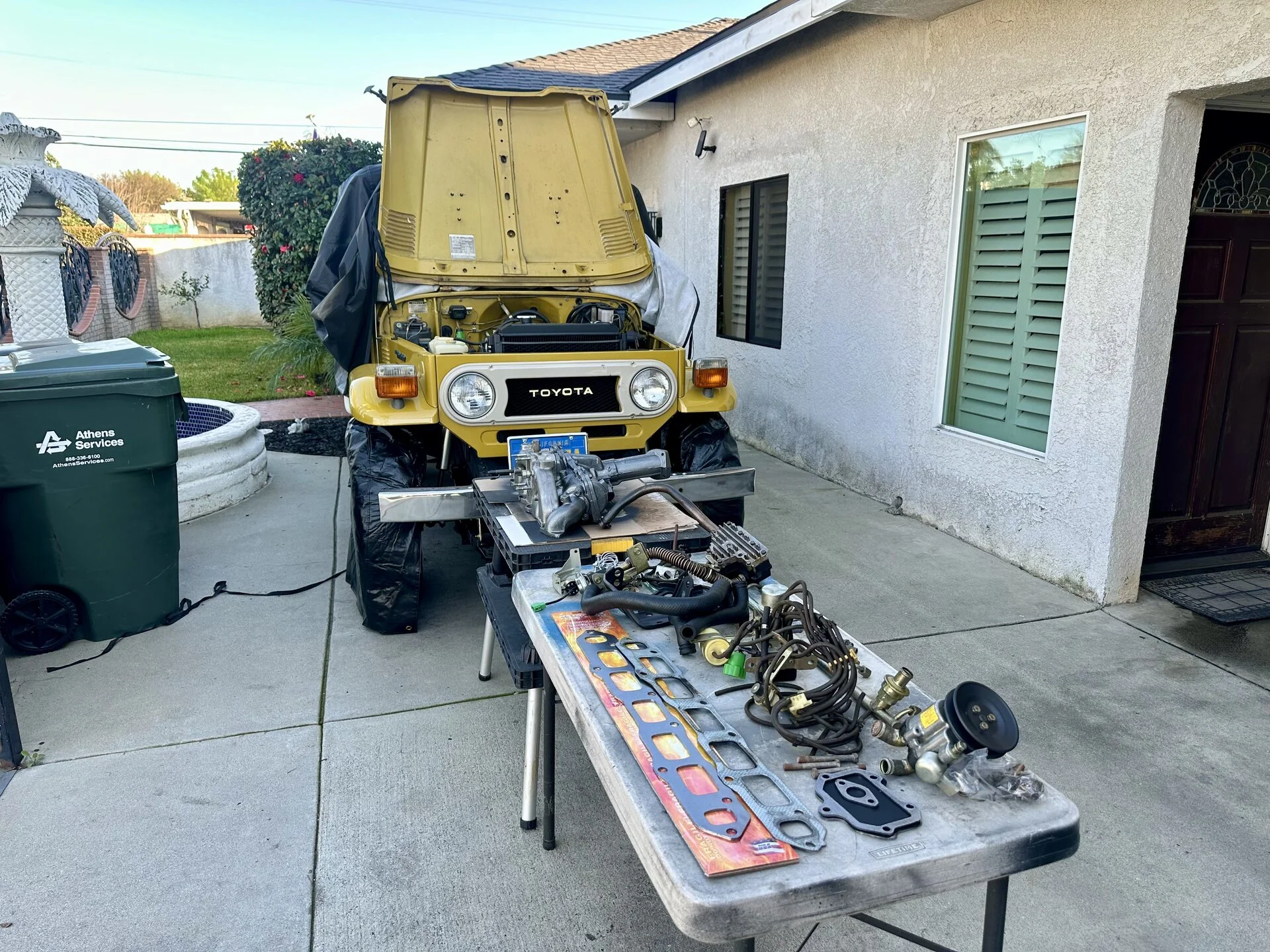

Staged. Let’s do this!



[greenEFSI]

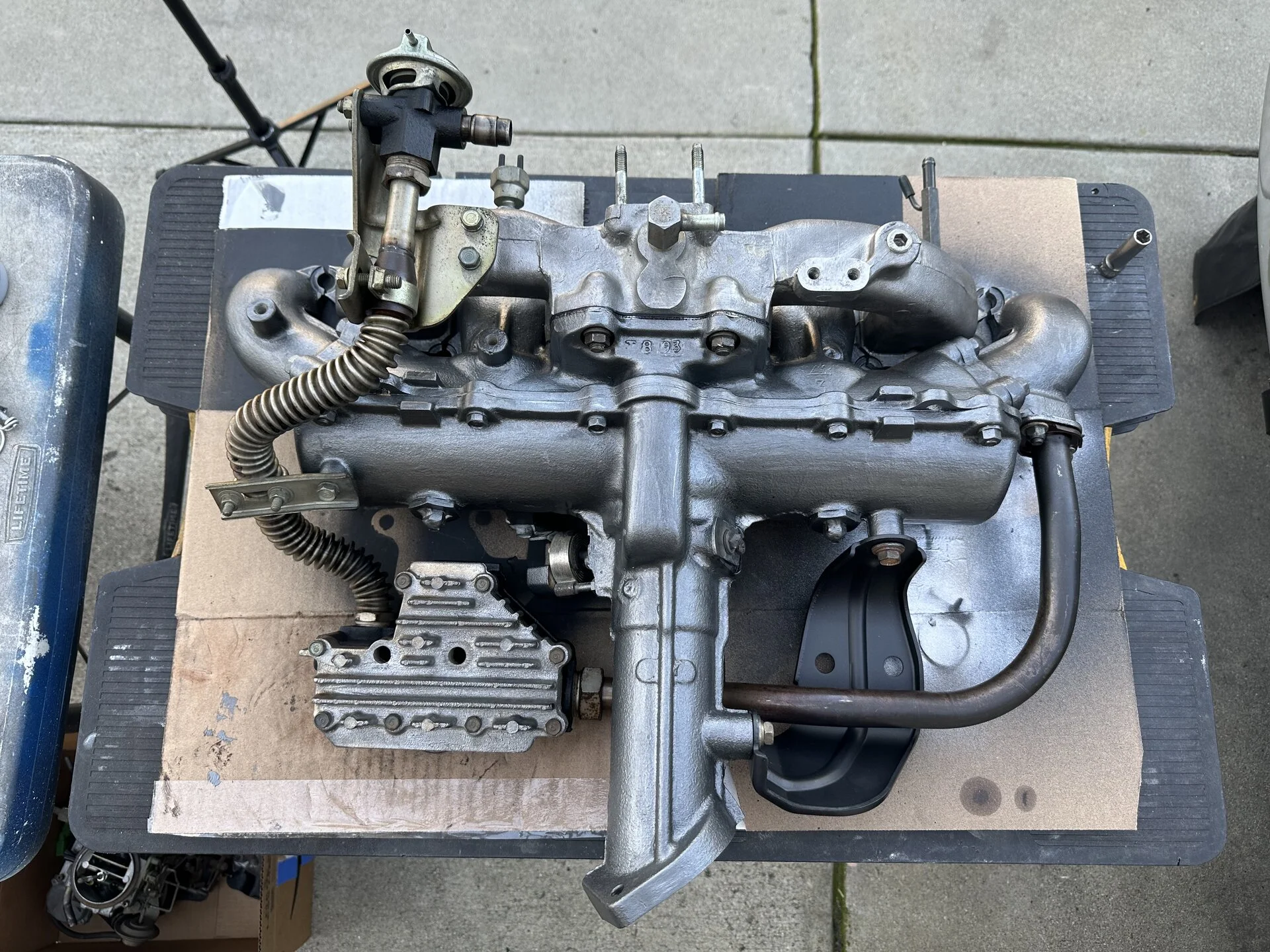

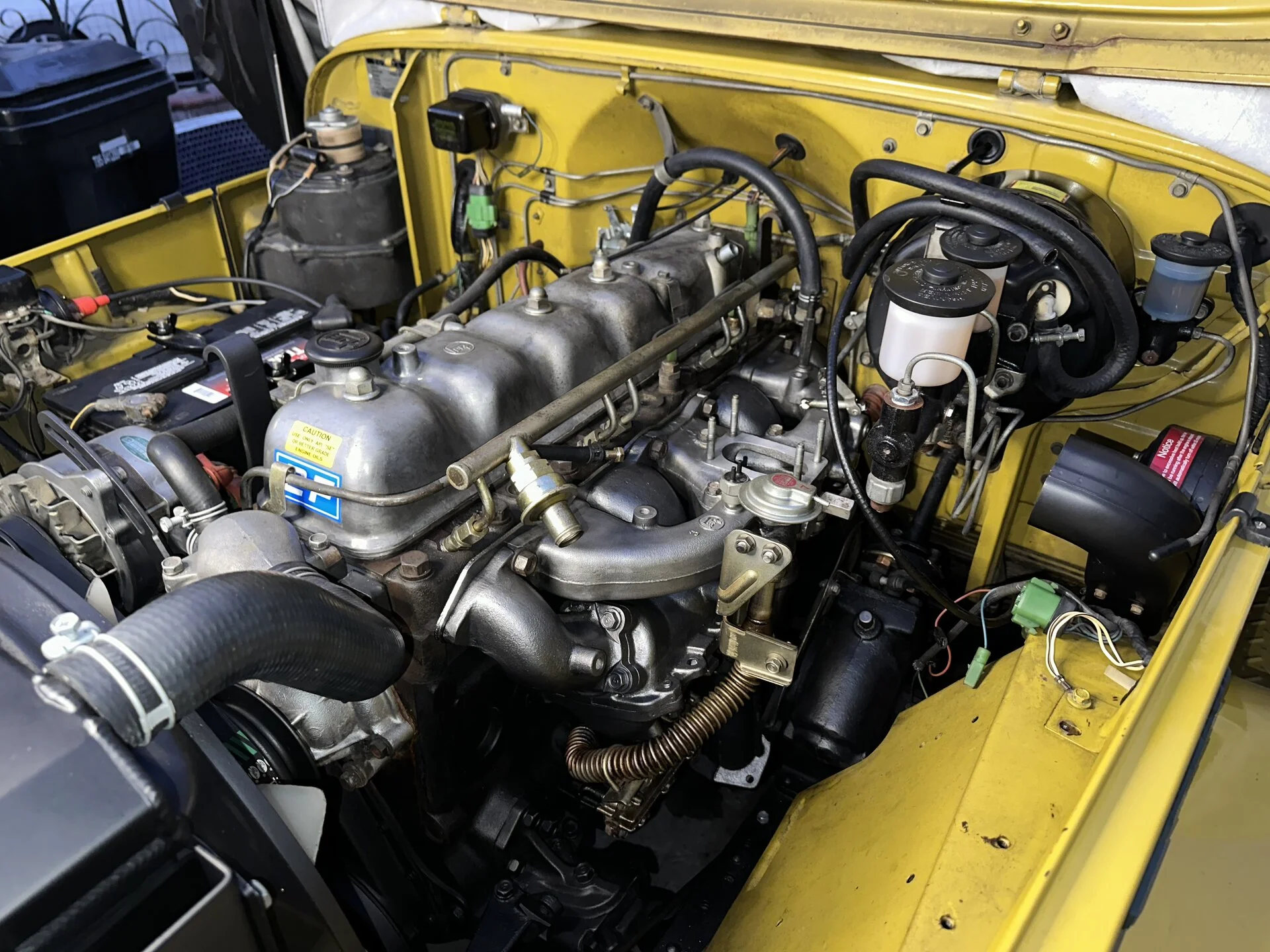

Dinner break. Almost dislocated my shoulder getting that thing mounted in place



[Soberacho]

Dinner break. Almost dislocated my shoulder getting that thing mounted in place

View attachment 3569690

View attachment 3569691

Looking good..!



[greenEFSI]

Looking good..!

Thank you! I’m stopping here for the night.



[greenEFSI]

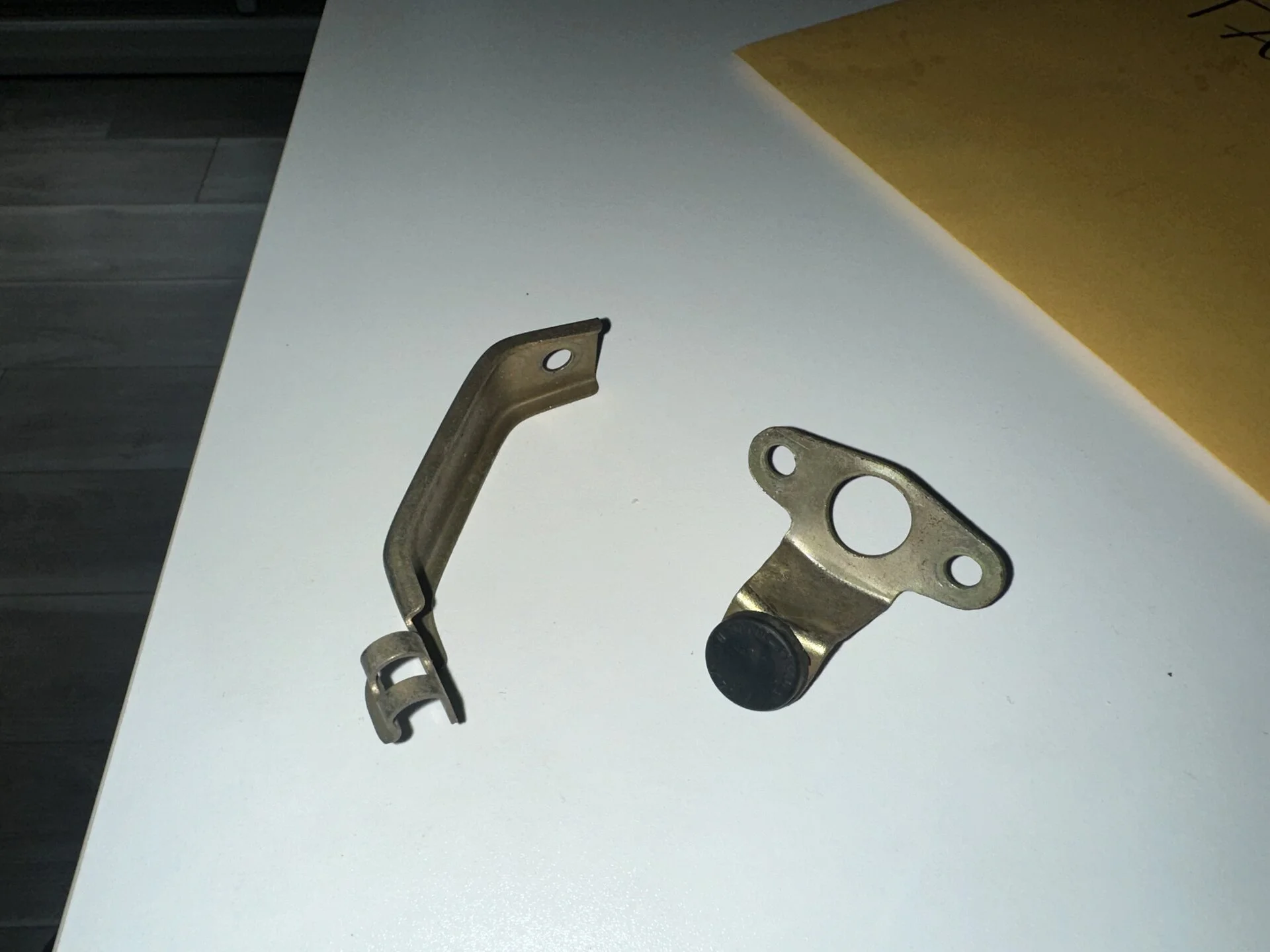

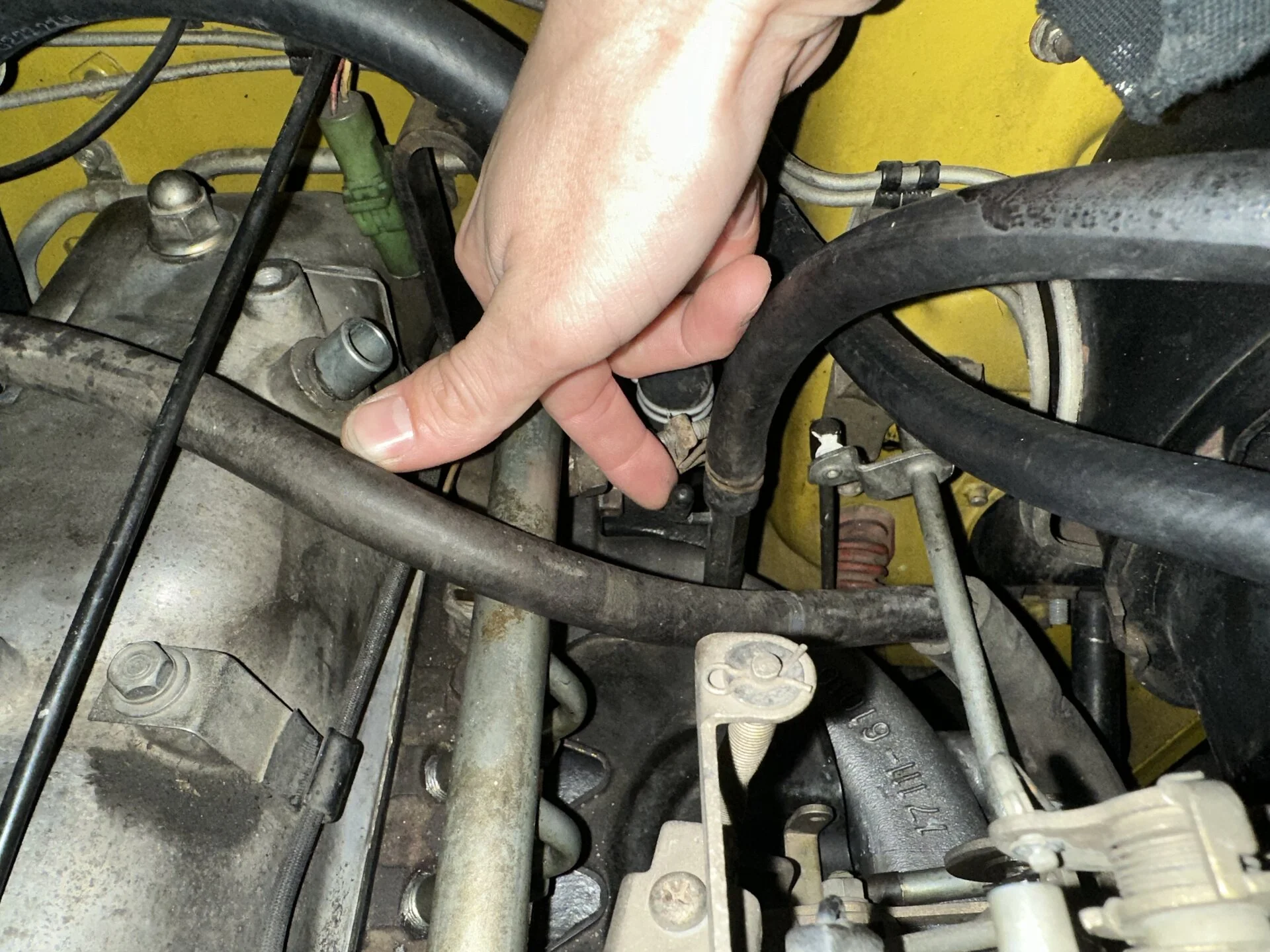

Can anyone ID the location for these two pieces?



[bhsdriller]

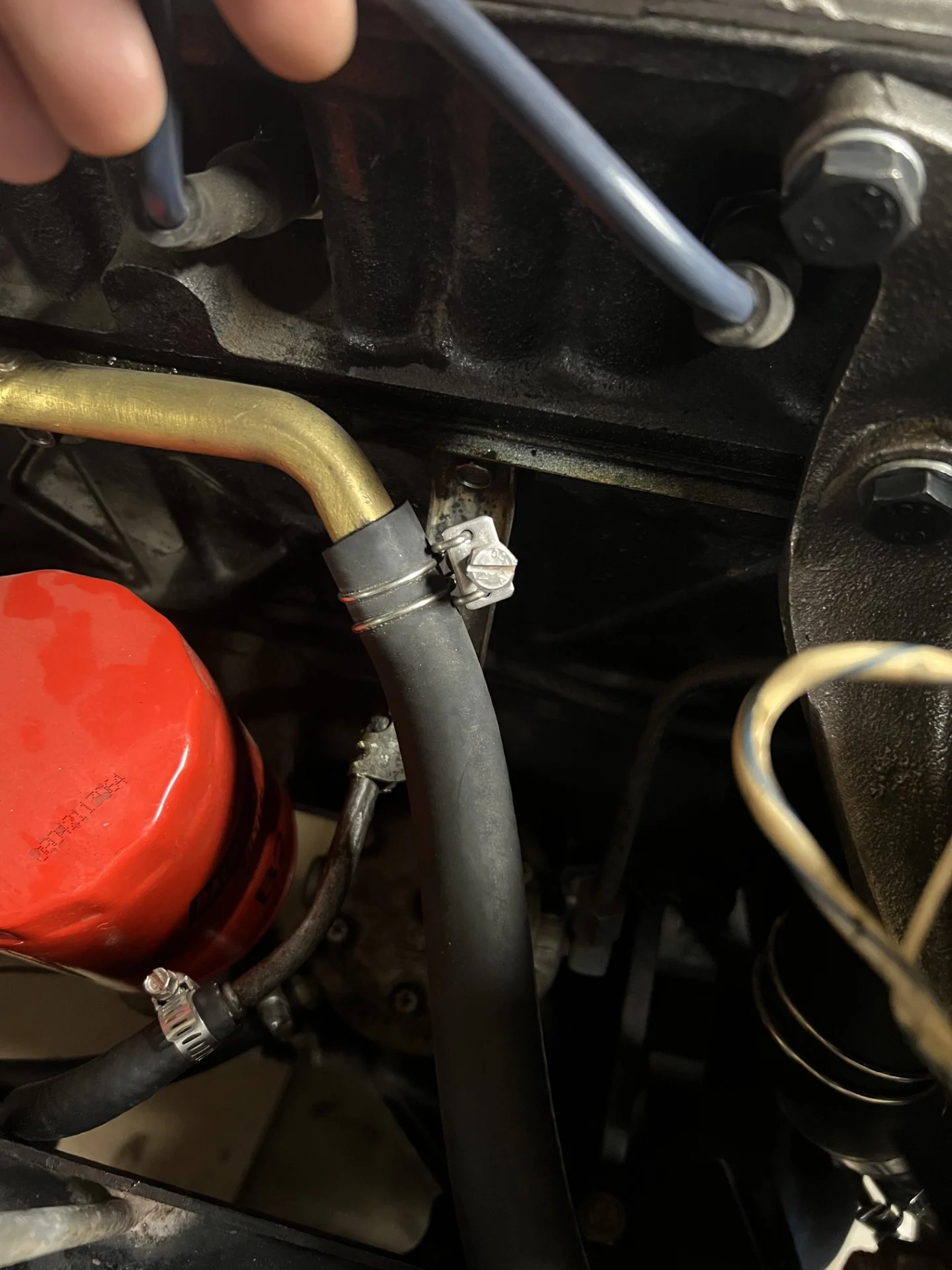

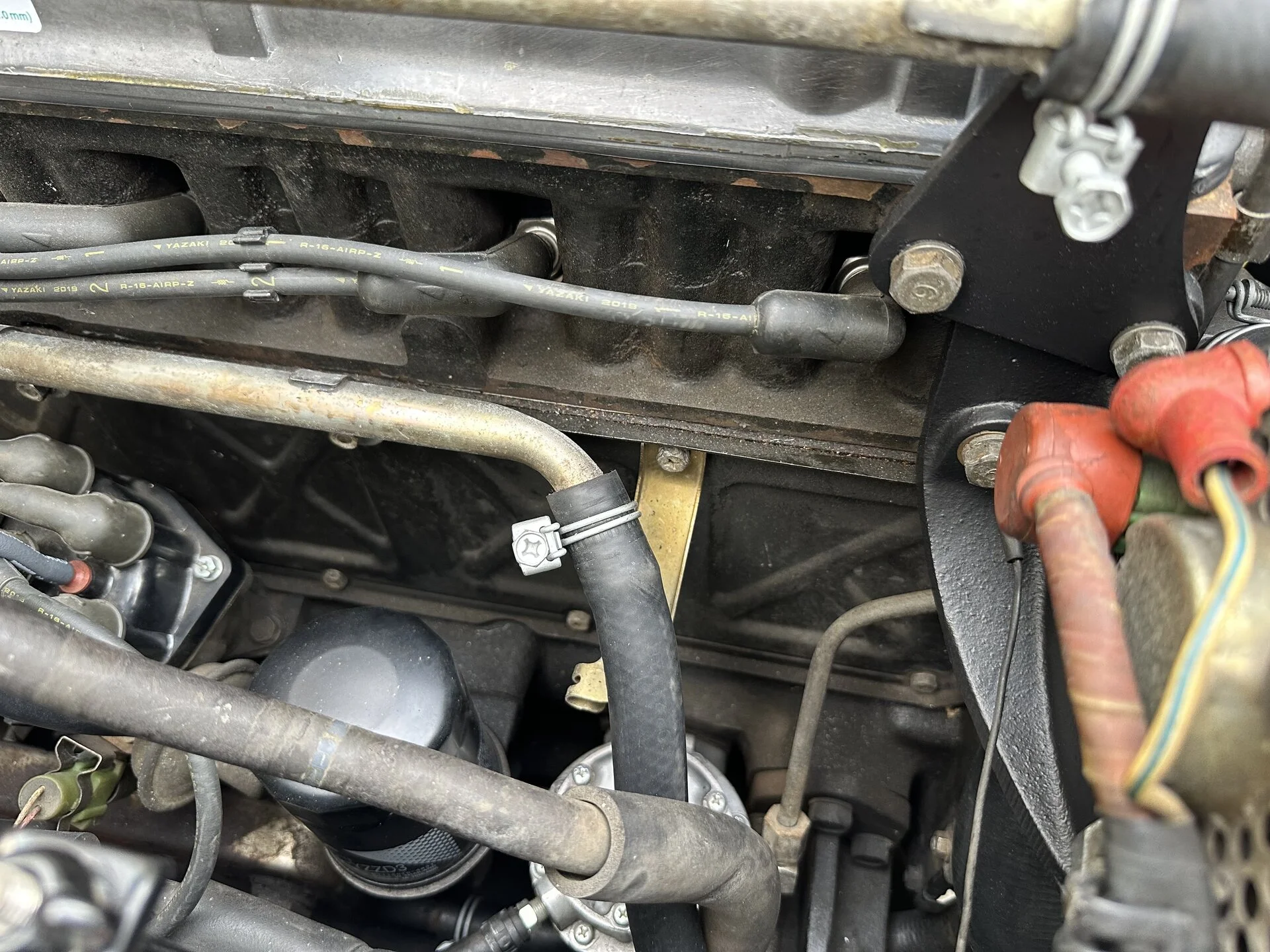

@greenEFSI Hard to get a pic but the one holds the fuel hardline by the oil filter/heater hose line



[greenEFSI]

@greenEFSI Hard to get a pic but the one holds the fuel hardline by the oil filter/heater hose line

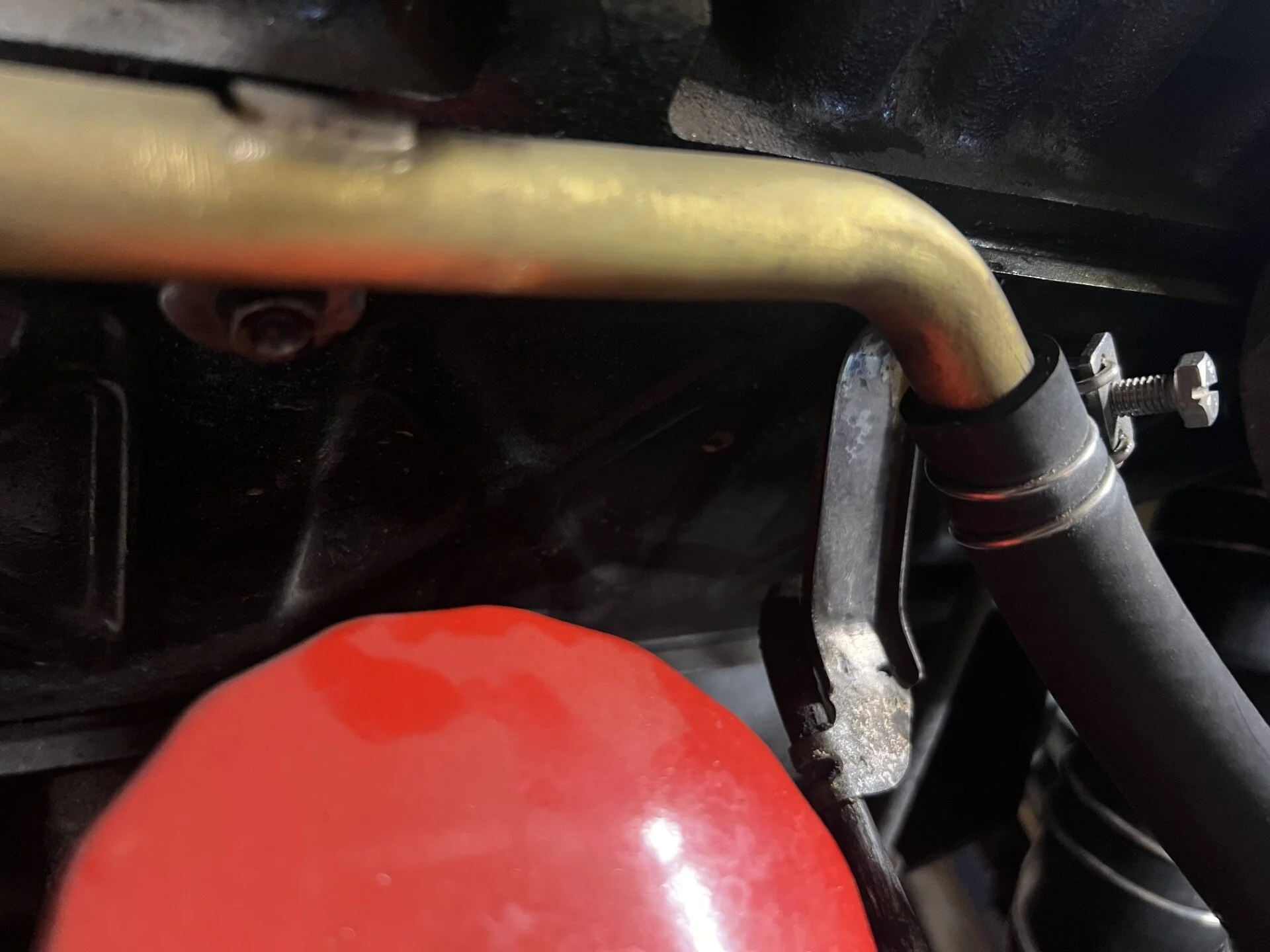

View attachment 3570004

View attachment 3570005

Heck yea, thank you for this!!



[greenEFSI]

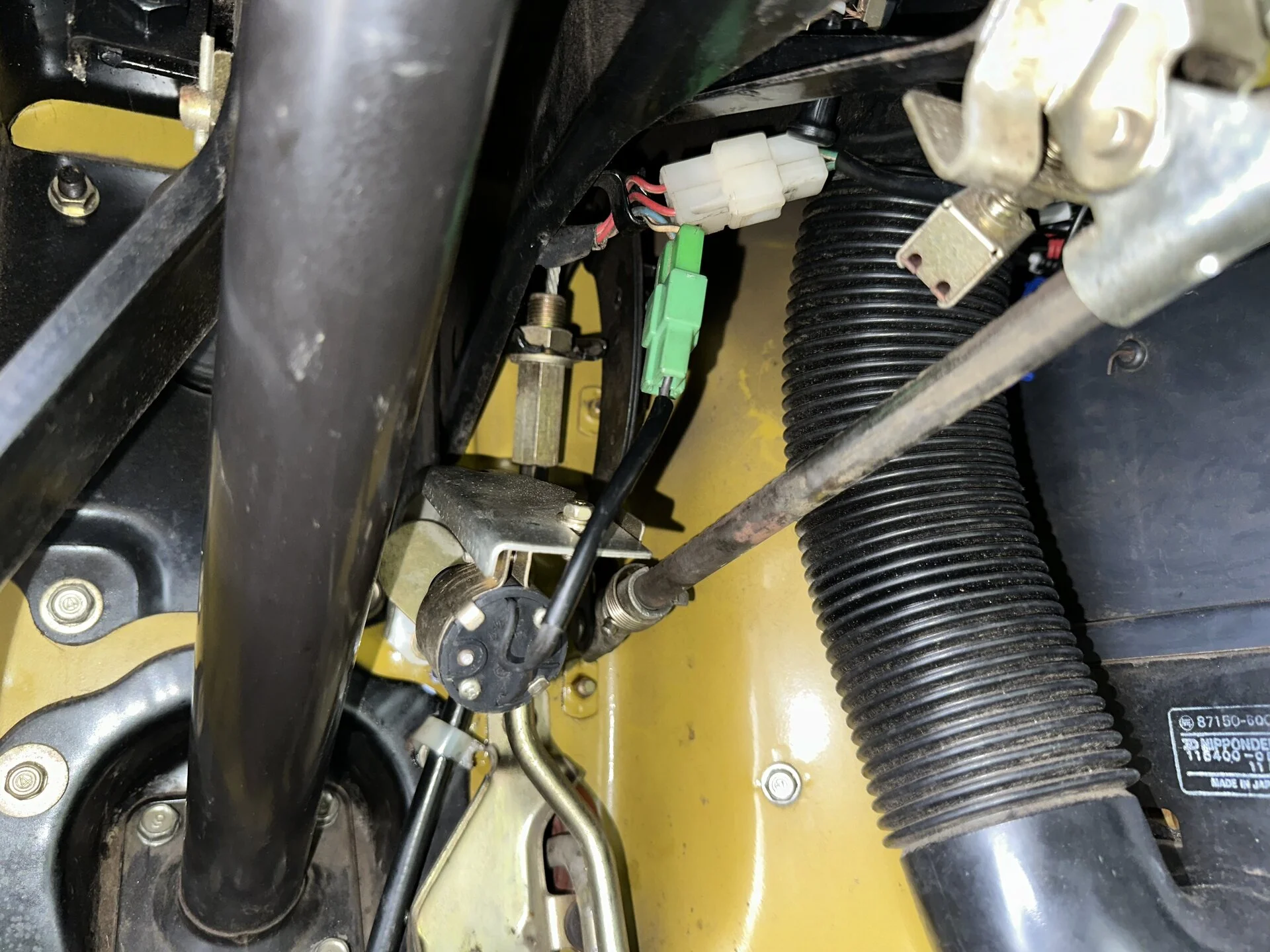

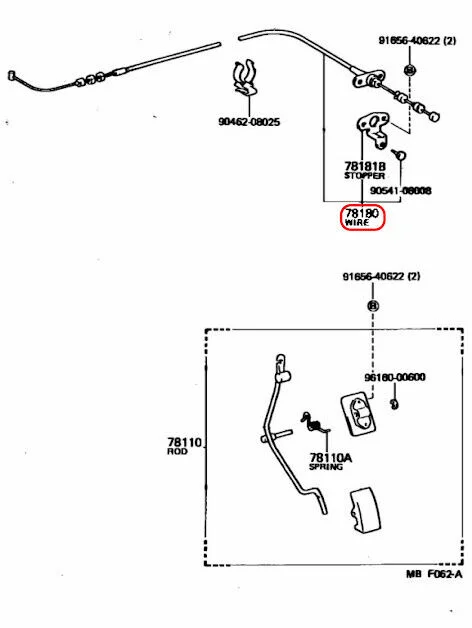

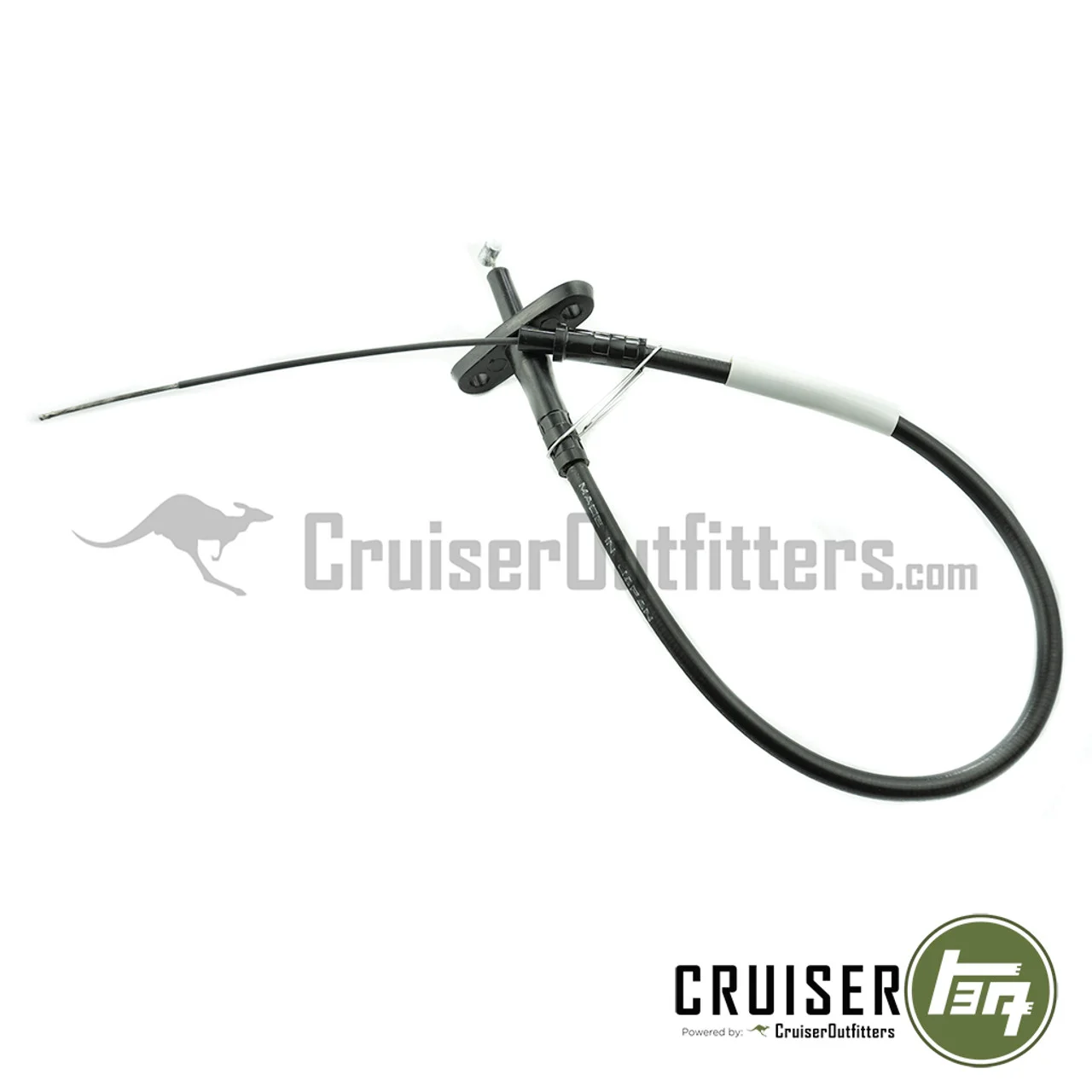

I think I figured out the last part. It looks like a piece from a throttle cable assembly for an aftermarket carb. Which makes sense because of the Holley carb and downey plate in the other crate.



[Slapshot]

Good luck with getting your rig smogged. I know it’s a PITA.



[greenEFSI]

Smog pump video is live. Kinda boring but I get back to the fun stuff on the next vid.



[greenEFSI]

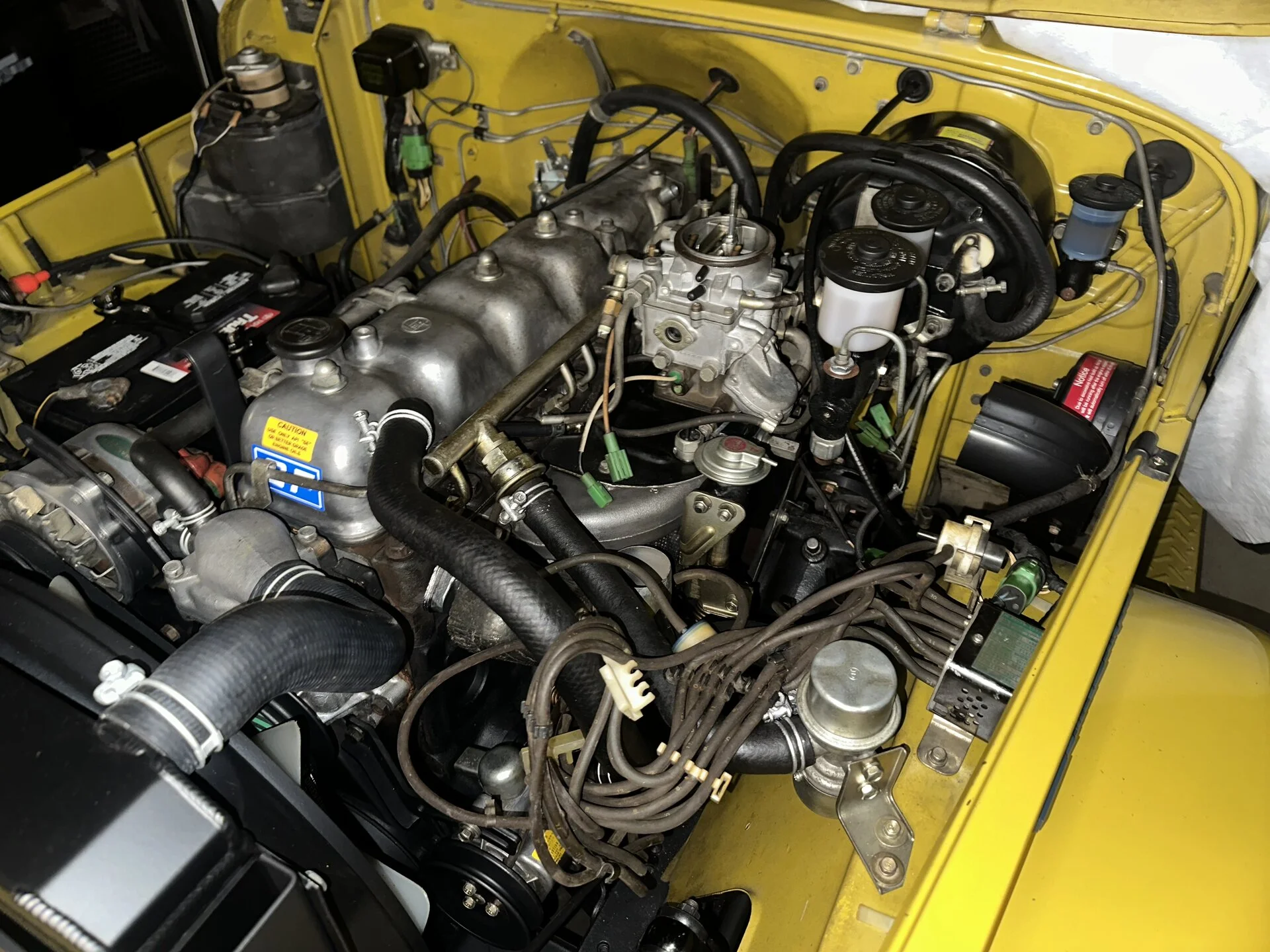

Some more progress.



[greenEFSI]

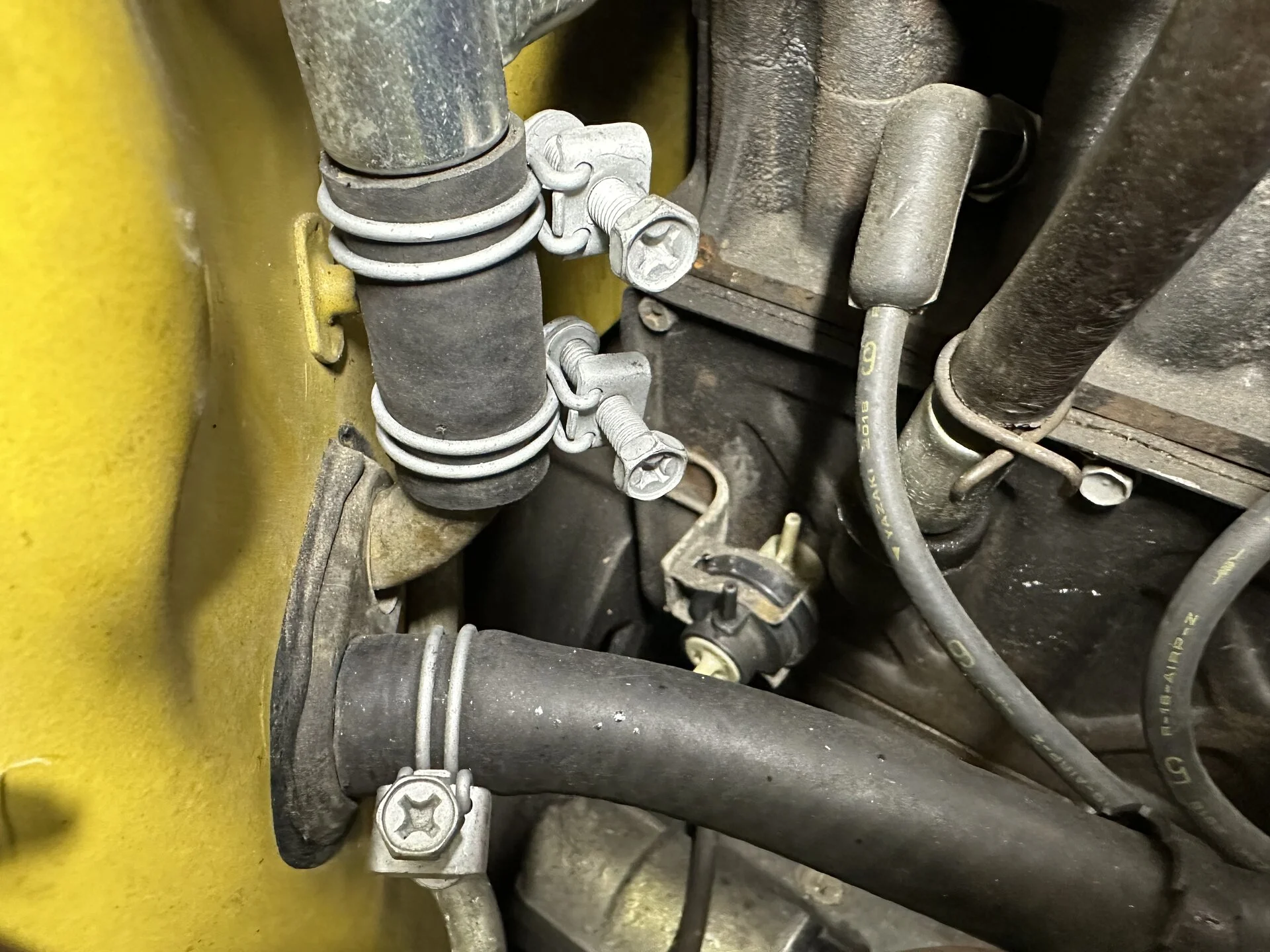

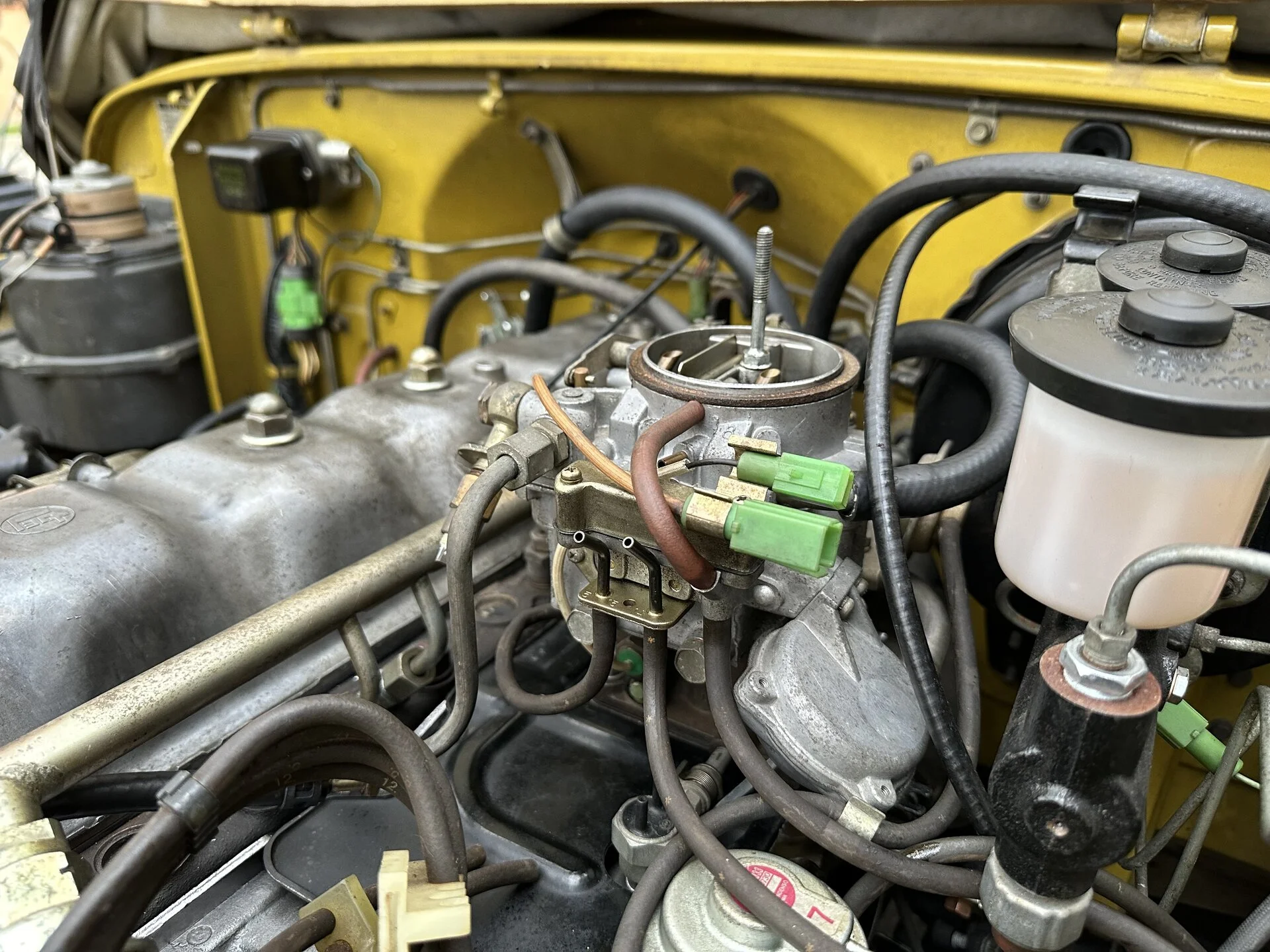

I accidentally found out I can clean that old grime off with brake cleaner. Now I’m stuck doing all the vacuum lines

Also realized the line that goes to the distributor has the og metal clamps to secure on the fuel line



[RevISK]

I accidentally found out I can clean that old grime off with brake cleaner. Now I’m stuck doing all the vacuum lines

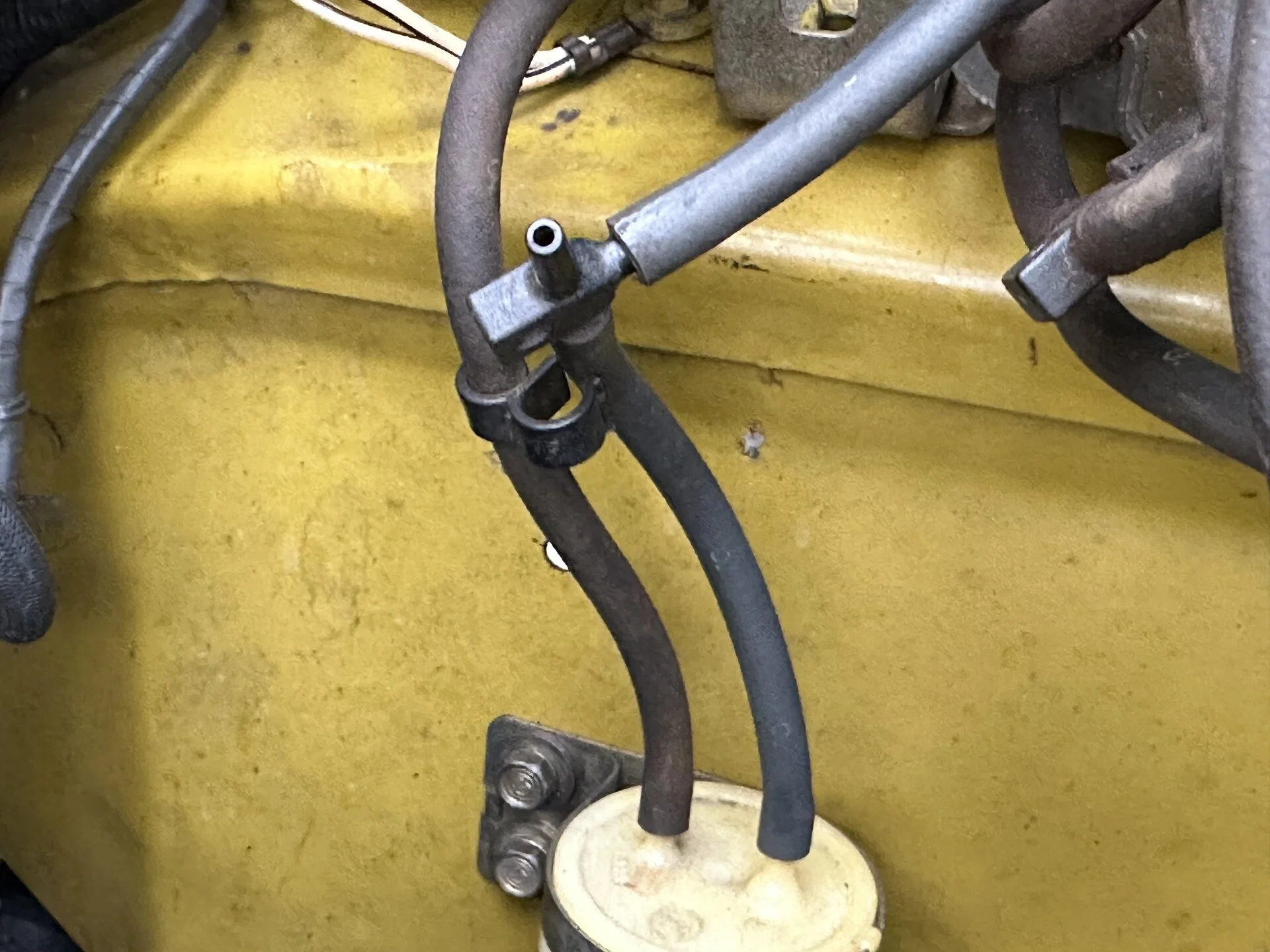

View attachment 3570332

View attachment 3570333

View attachment 3570334

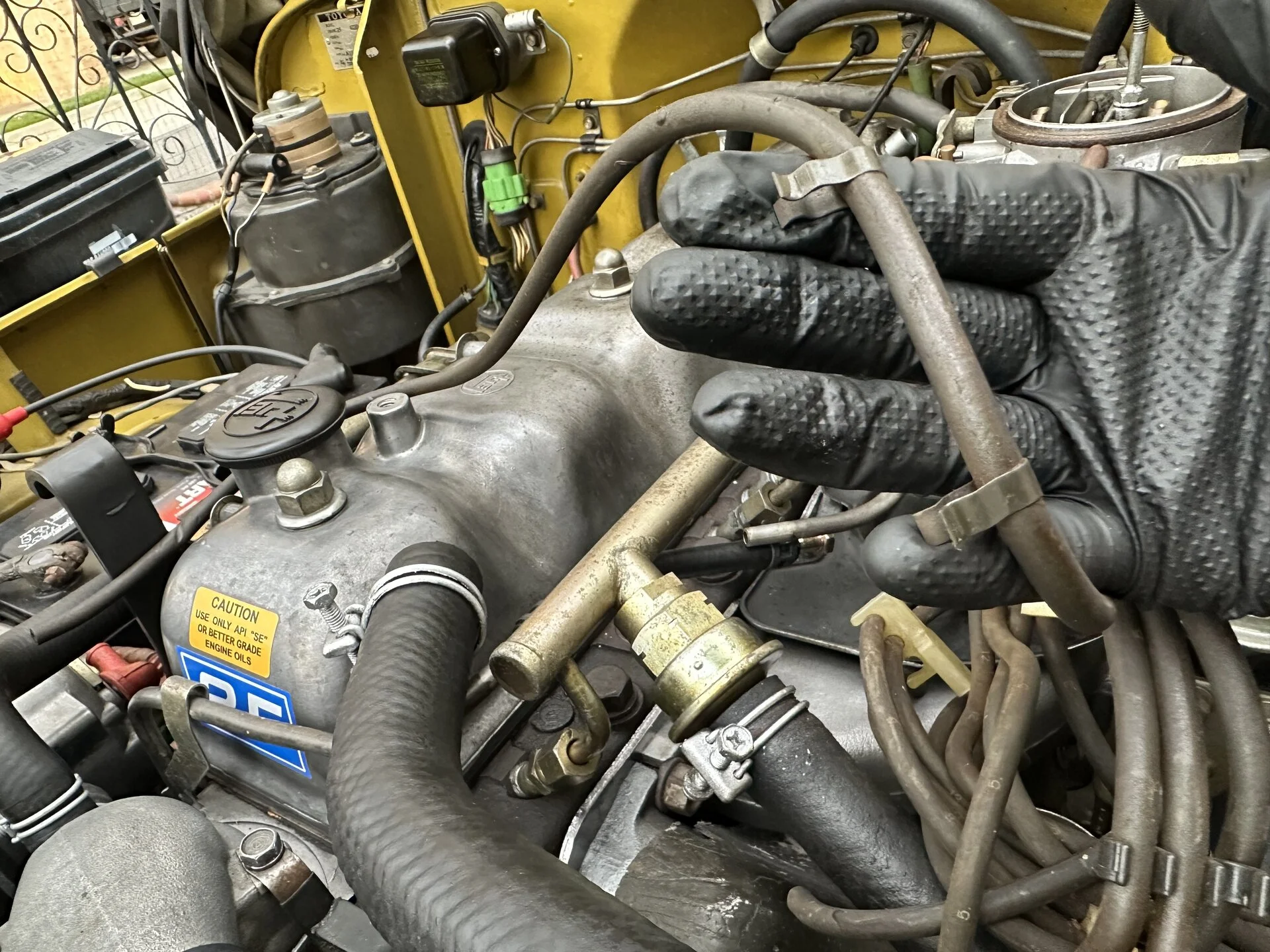

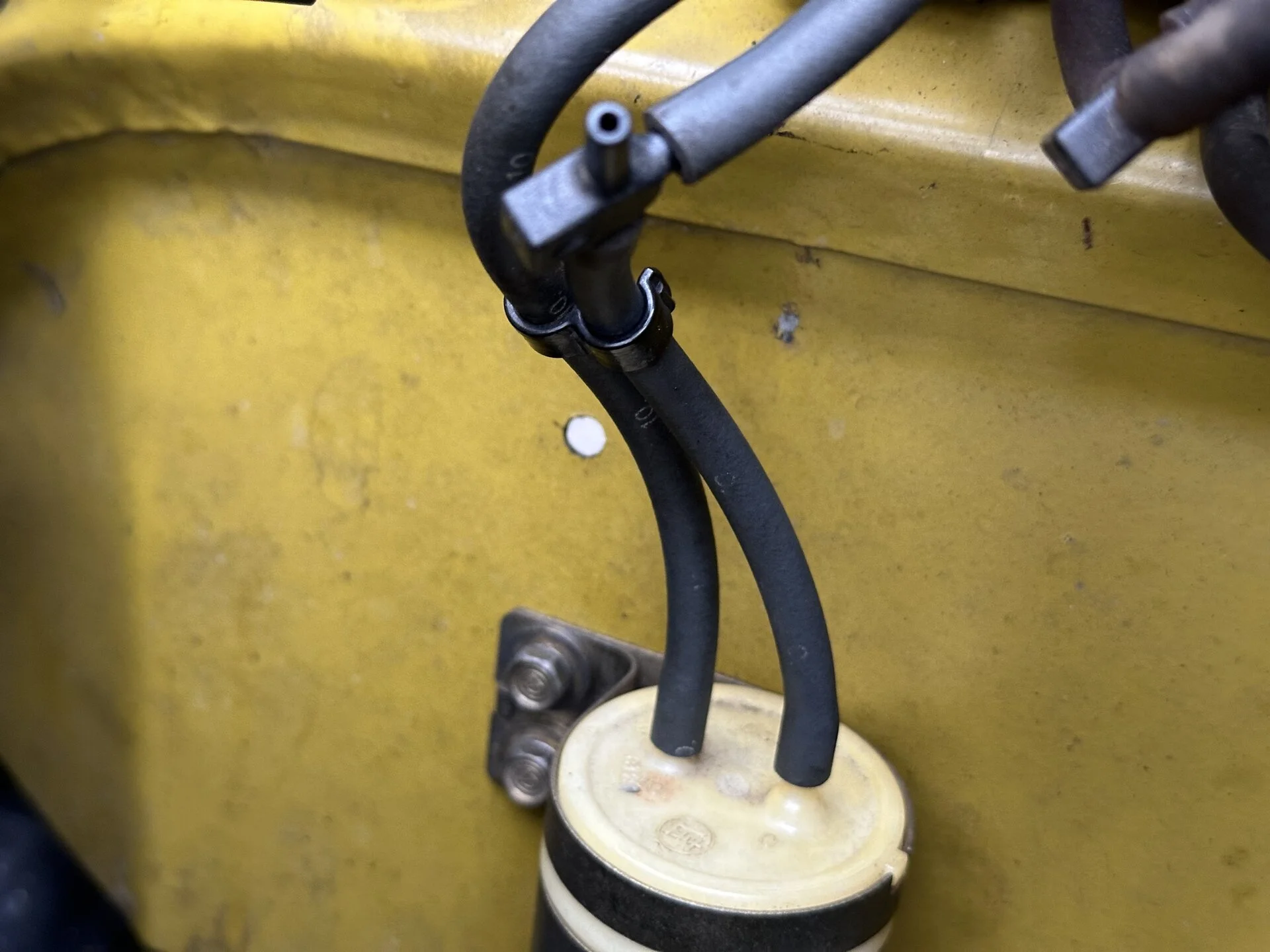

Also realized the line that goes to the distributor has the og metal clamps to secure on the fuel line

View attachment 3570335

I’m a total hack and use brake cleaner for almost everything.

WTF man, I looked up to you.



[Goldbug]

Really impressive work. Well done!



[greenEFSI]

I’m a total hack and use brake cleaner for almost everything.

WTF man, I looked up to you.

Ok fine I’ll use paint thinner

Really impressive work. Well done!

Thank you!

Rough mock up to see where some of these dang lines go



[RevISK]

Ok fine I’ll use paint thinner

I’m in the “Mineral Spirits gallon a Week Club” so, yeah.



[greenEFSI]

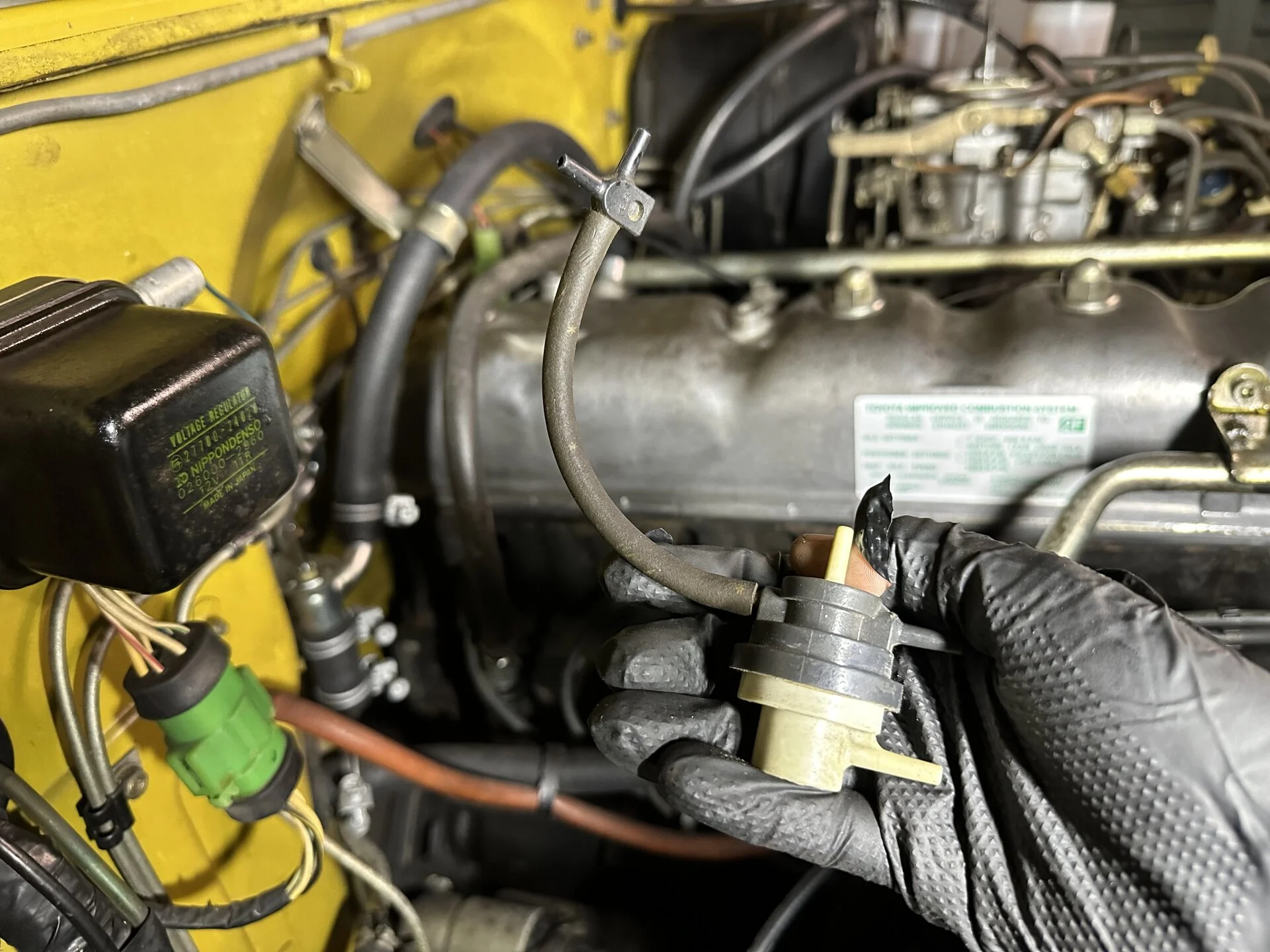

I pretty much got all the lines figured out, but I have this valve and have no clue what it’s for. I think it goes on this bracket, but there aren’t any lines or sensor to plug into.



[DuckBone]

Looks like the VCV that connects to the distributor and the air cleaner.



[greenEFSI]

Looks like the VCV that connects to the distributor and the air cleaner.

I googled the part number on it, but I don’t see the distributor or air cleaner listed on the diagram



[greenEFSI]

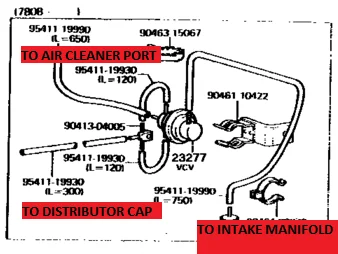

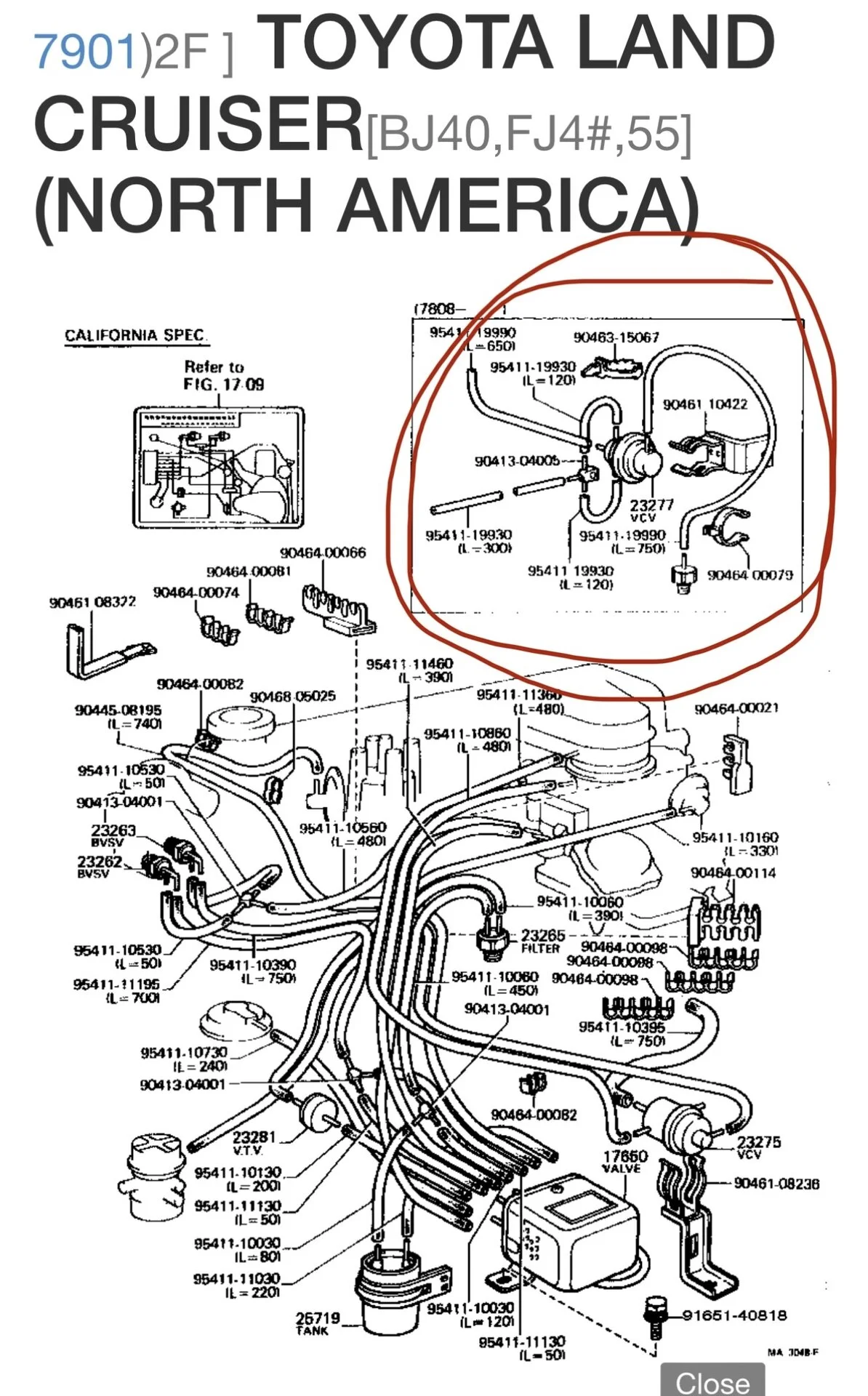

This is what I've come up with based on vague info I found online

For future reference, that 23277 vcv in the diagram is part number is 90925-03035

Intake manifold port
