2UZFE a343F/HF2AV swap into FJ80

Joined
Jul 9, 2012
Messages
2,151
Location
South KC

I just wonder if internals are different. Talked to several Supra trans builders that said if I sent them a trans they could verify internals. I believe I found the 340 has a few less clutch packs a the 343 in a few different locations. Those trans builders machine cases and change steel to increase clutch counts and there for contact area to hold high HP Supra builds that are north of 1000hp with the same family of trans. I’ve just never had the need or time. TC seems to be the weak link so far with the diesel swap community, that I have been more a part of.

Joined
Feb 2, 2004
Messages
10,686
Location
Salt Lake City, UT



When I did this in my 55, I used a Tundra 2UZ, an early 100 series trans and TC and it was almost all plug and play. I did use a later engine that had drive by wire so that was a little bit of a pain but still not bad.

Joined
Oct 20, 2019
Messages
49
Location
Redmond, Washington
When I did this in my 55, I used a Tundra 2UZ, an early 100 series trans and TC and it was almost all plug and play. I did use a later engine that had drive by wire so that was a little bit of a pain but still not bad.
Yes, it's a pleasure to get a response from you Scott, because I read a number of your posts from years past which were very beneficial. I thought the 100 a343f would be the best option, but I came across the 96 a343 with the TC for $300.. I just couldn't pass it up. looking at the 96 TC, it's clear they changed the speedo cable to electronic pulse, but I'll probably use the 91 gauge cluster and continue using the analog cable to make it easy else I need to get a 96 cluster and wiring.

Joined
Jul 9, 2012
Messages
2,151
Location
South KC

Yes, it's a pleasure to get a response from you Scott, because I read a number of your posts from years past which were very beneficial. I thought the 100 a343f would be the best option, but I came across the 96 a343 with the TC for $300.. I just couldn't pass it up. looking at the 96 TC, it's clear they changed the speedo cable to electronic pulse, but I'll probably use the 91 gauge cluster and continue using the analog cable to make it easy else I need to get a 96 cluster and wiring.
I have a 100 series speed sensor in my 96 100 series so even though they appear different the same pulse and plug are being used. i know it doesn't help you with the 91 cable driven version.

Joined
Oct 20, 2019
Messages
49
Location
Redmond, Washington
I just wonder if internals are different. Talked to several Supra trans builders that said if I sent them a trans they could verify internals. I believe I found the 340 has a few less clutch packs a the 343 in a few different locations. Those trans builders machine cases and change steel to increase clutch counts and there for contact area to hold high HP Supra builds that are north of 1000hp with the same family of trans. I’ve just never had the need or time. TC seems to be the weak link so far with the diesel swap community, that I have been more a part of.
That is for sure! the 343 has more clutch packs and larger overdrive gear from what I saw. I have to dig up pics for that.

Joined
Oct 20, 2019
Messages
49
Location
Redmond, Washington
:popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn::popcorn:

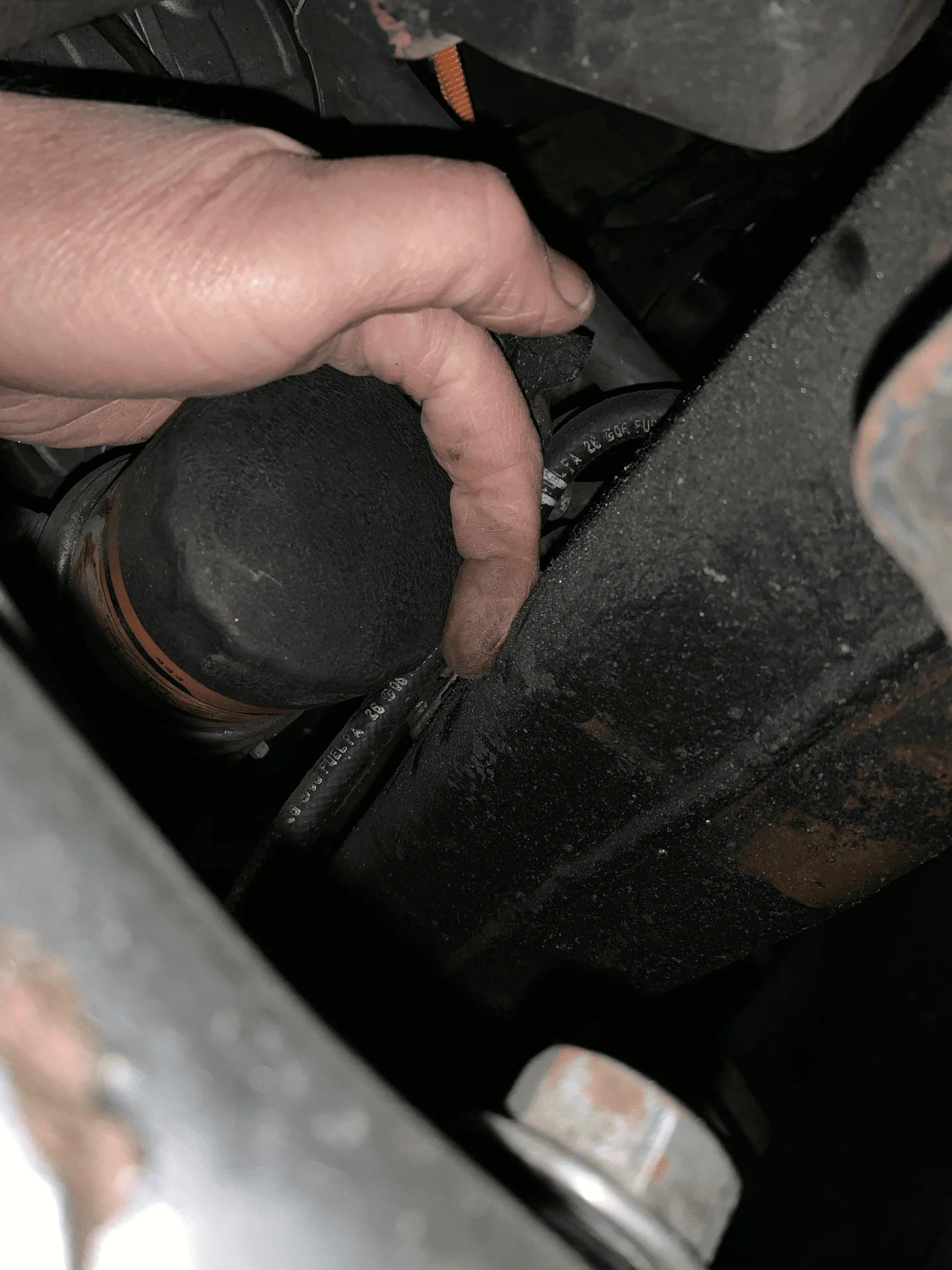

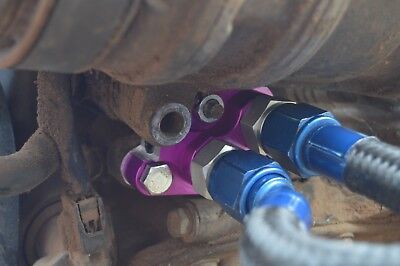

got a bunch of popcorn.... FYI, I did not feel that I needed the remote filter kit where I mounted my 2uz. I have the 100 series tranny also, only had to modify the plug for the shifter indicator locator using a tundra harness.


not saying it is not close....
View attachment 2159409
That is great to know, I ended with an Ebay thing.. I may reconsider :-(

Joined
Sep 5, 2007
Messages
10,410
Location
lenexa, ks


That is great to know, I ended with an Ebay thing.. I may reconsider :-(

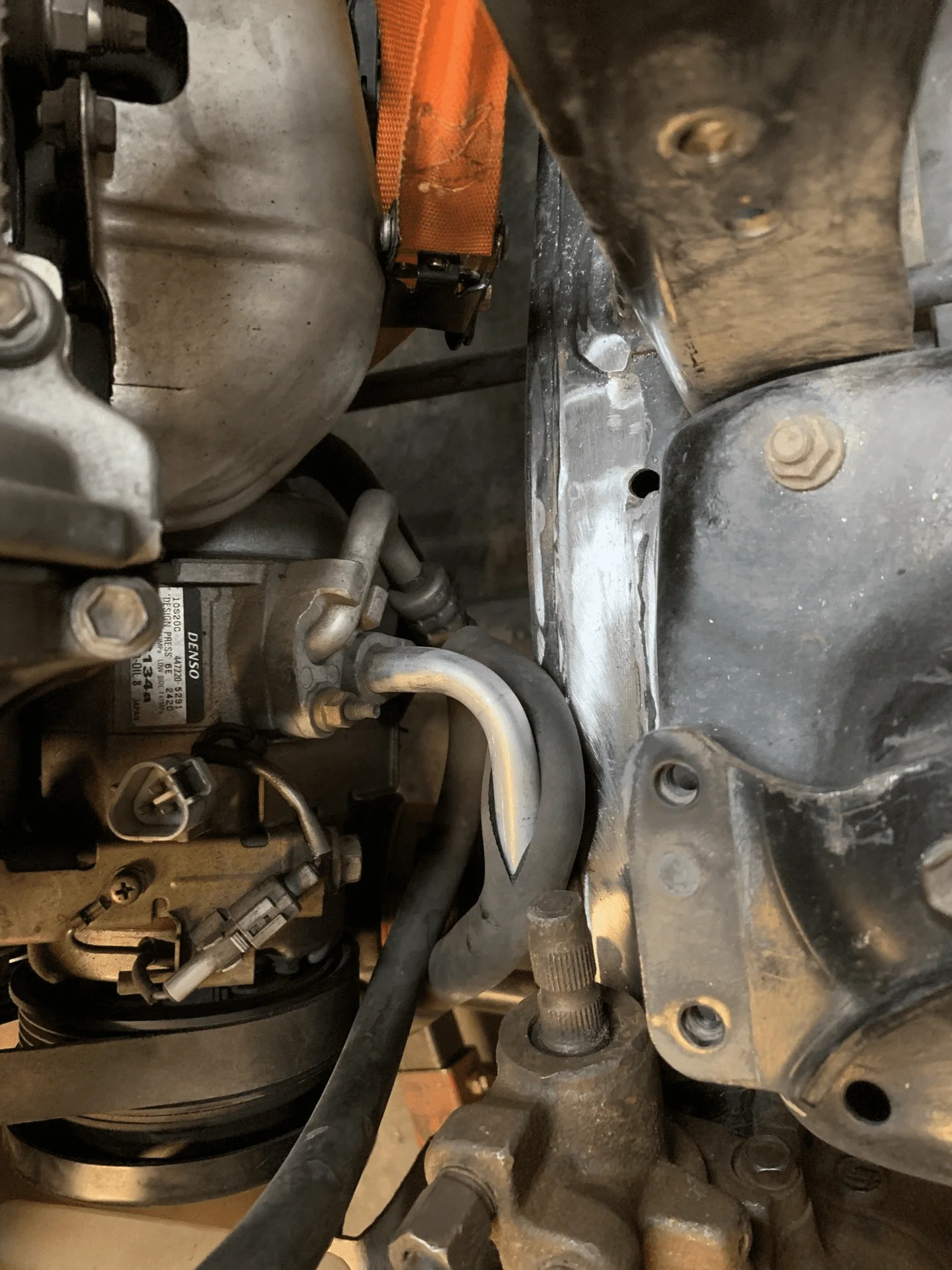

thanks for the link , I might have to go that way if the engine rotates much. Actually my big issue has been with AC lines as they are right next to the frame rail. If you find lines that work, let me know. As you can see the lower line needs to be like the upper with the direct 90 degree turn.


Joined
Oct 20, 2019
Messages
49
Location
Redmond, Washington
thanks for the link , I might have to go that way if the engine rotates much. Actually my big issue has been with AC lines as they are right next to the frame rail. If you find lines that work, let me know. As you can see the lower line needs to be like the upper with the direct 90 degree turn.

View attachment 2159642
Wow that is tight! Those AC lines look the same as my Sequoia donor. When I get to that point will have to look into options. I want everything engineered as if Toyota did it.

Joined
Sep 5, 2007
Messages
10,410
Location
lenexa, ks


I found later model sequoia's in the junkyard that appear to have different line sets, but with different ends, thus likely different compressor, and likely different brackets.... my point is may be an option there....

Joined
Oct 20, 2019
Messages
49
Location
Redmond, Washington
I found later model sequoia's in the junkyard that appear to have different line sets, but with different ends, thus likely different compressor, and likely different brackets.... my point is may be an option there....
good point.. I'll have to make my way to the Boneyard soon.

Joined
Oct 20, 2019
Messages
49
Location
Redmond, Washington

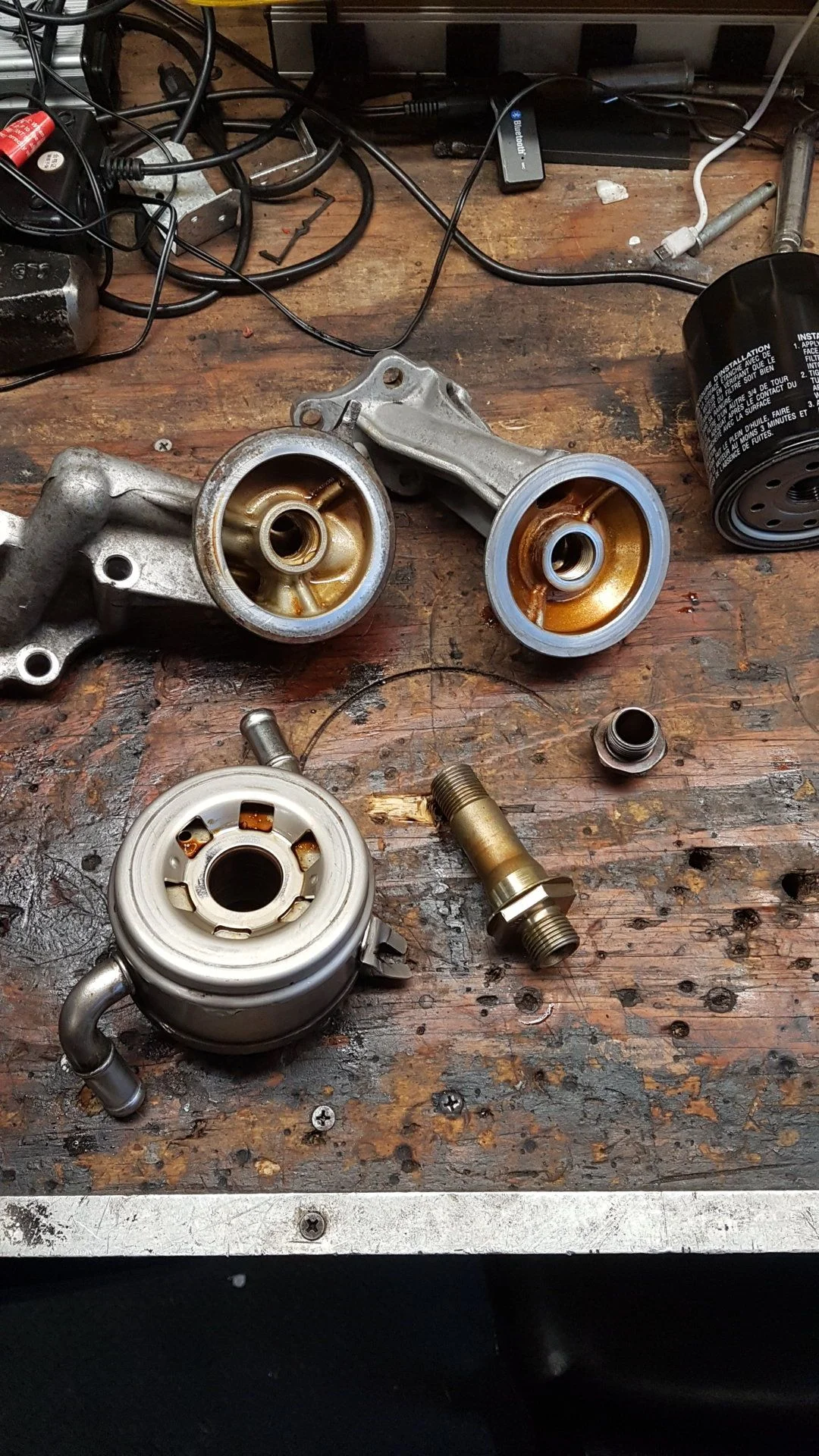

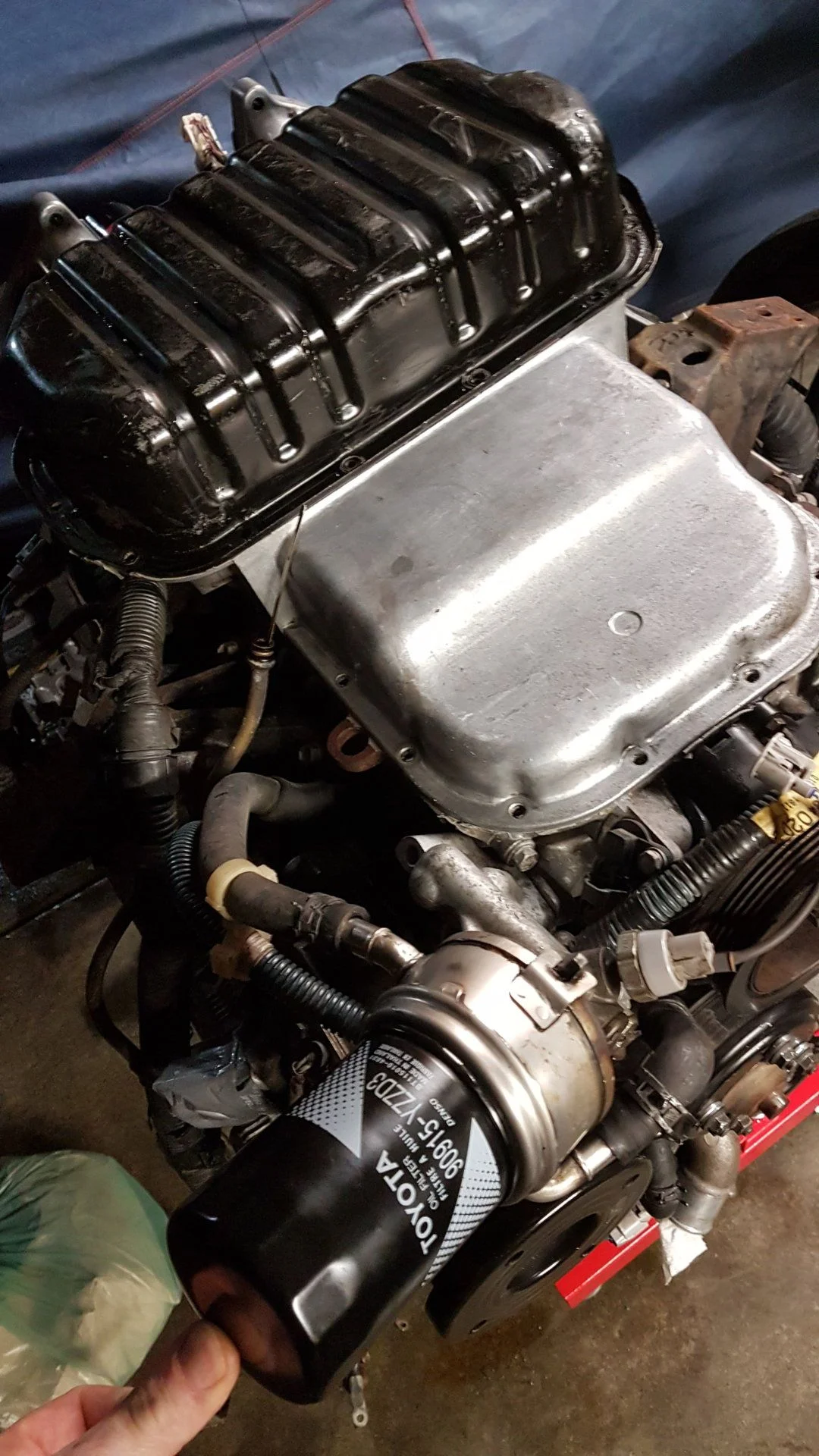

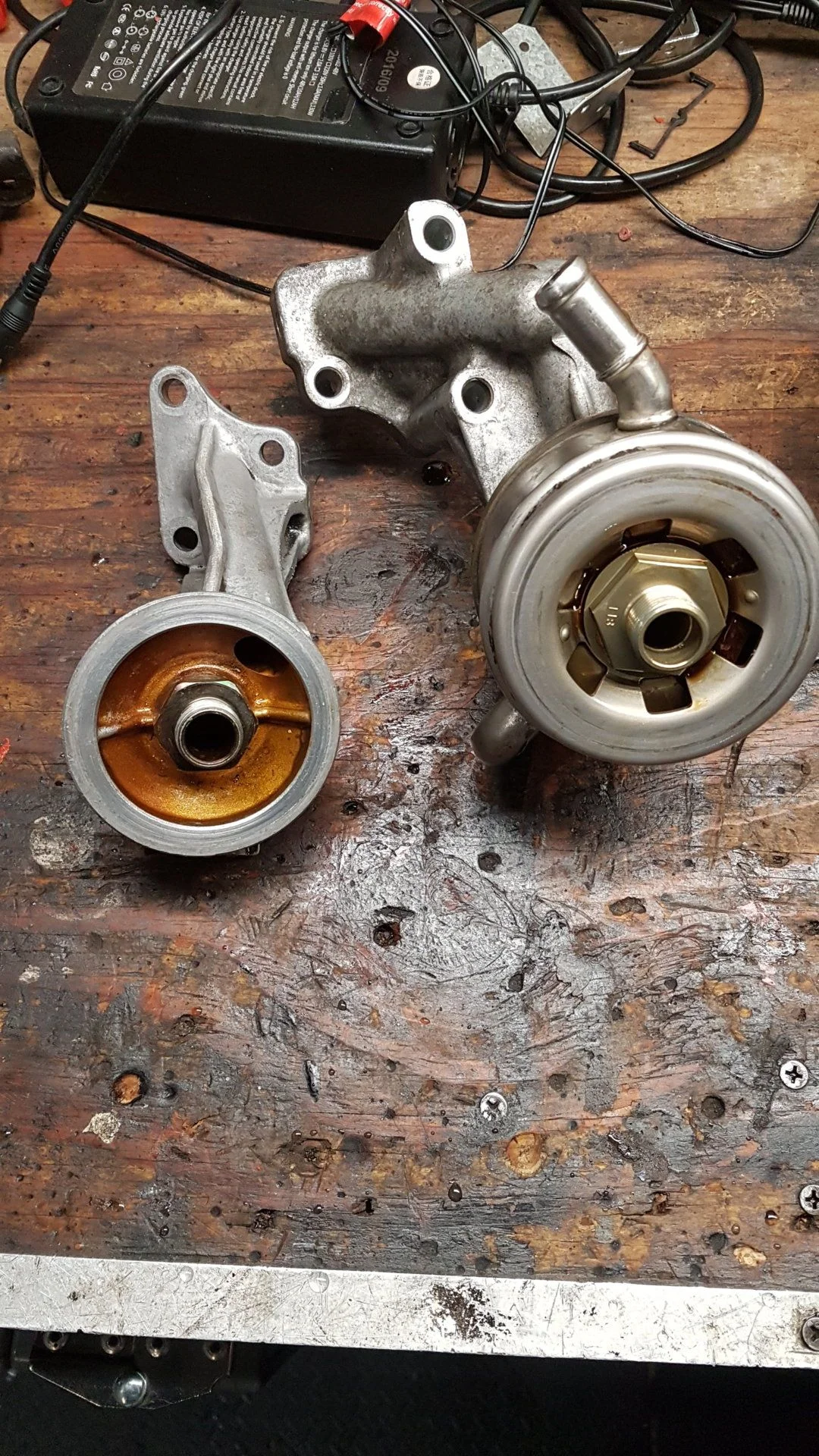

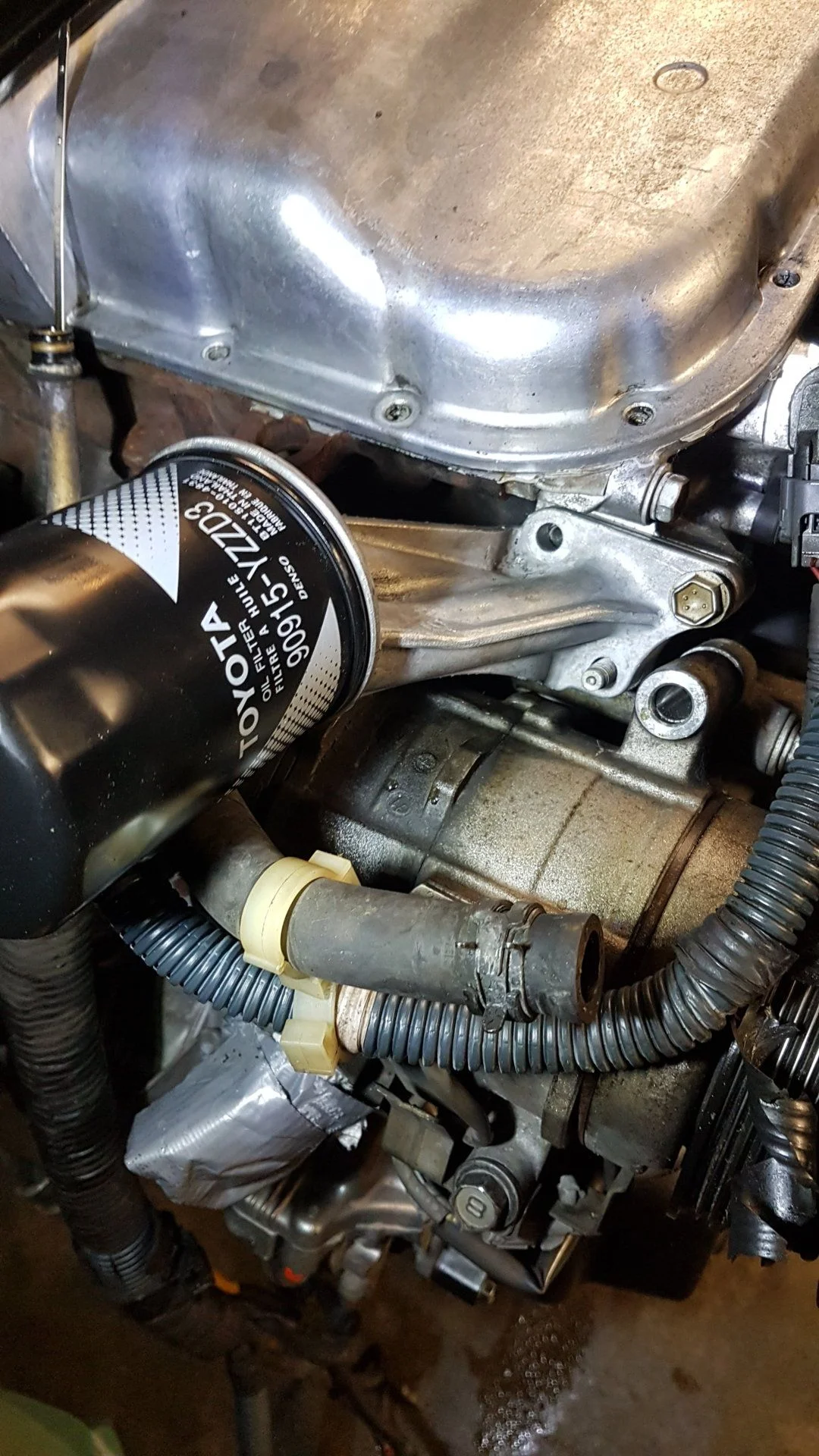

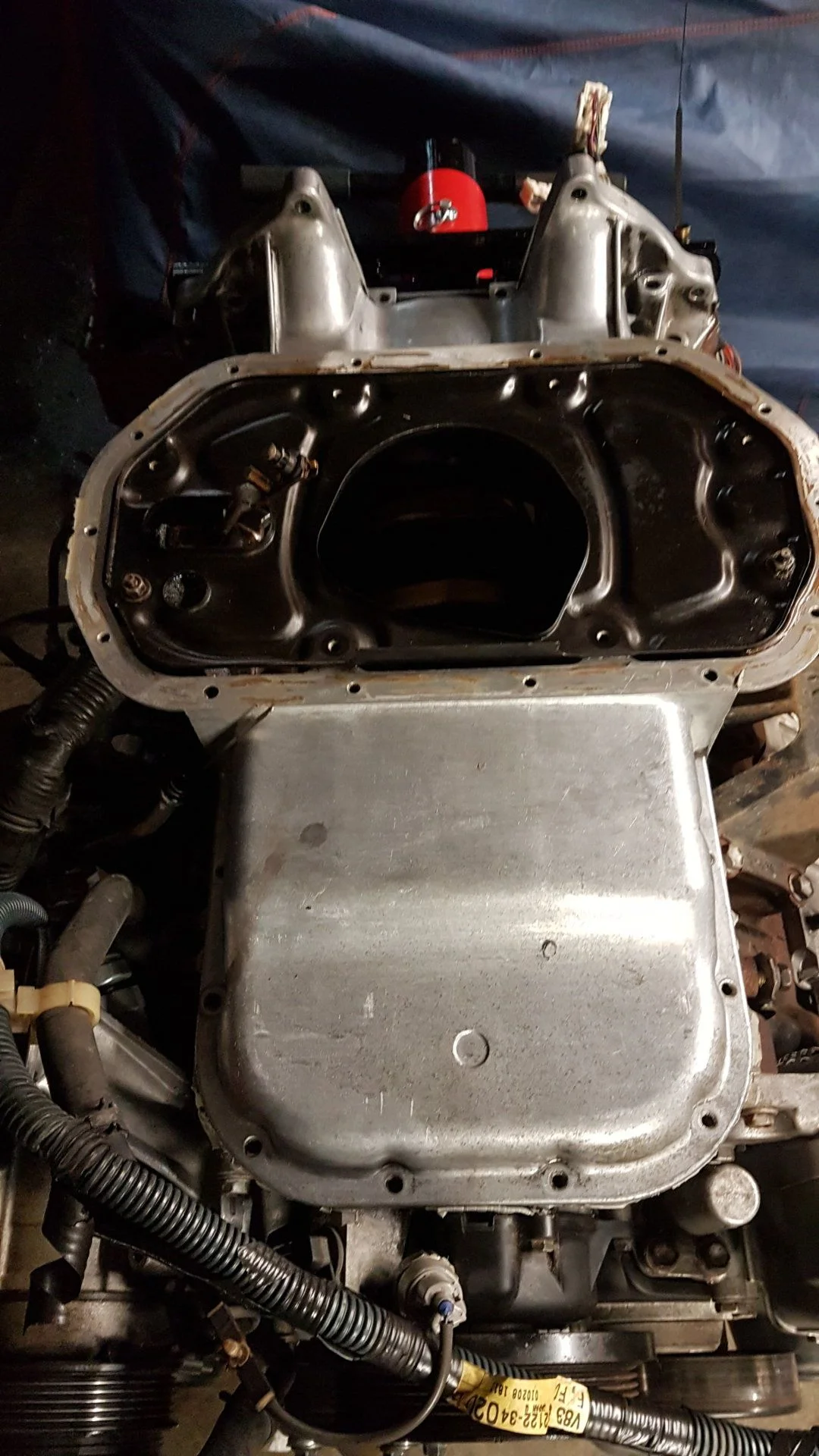

So the oil filter location thing: I came across a local guy with a 99 sc400 engine. Ended up buying it for $100 and plan to use the rear sump oil pan, pump pickup, windage tray, oil filter holder and a few other things. I did not realize the oil filter faced the rear on all rear sump pans in the UZ family. The difference between this 1uz is there is no oil cooling like the 2uz. The pics below show the 1uz adapter on the left and 2uz on the right. Wondering if I can move the cooling assembly to the 1uz adapter.








Joined
Oct 20, 2019
Messages
49
Location
Redmond, Washington
So the oil filter location thing: I came across a local guy with a 99 sc400 engine. Ended up buying it for $100 and plan to use the rear sump oil pan, pump pickup, windage tray, oil filter holder and a few other things. I did not realize the oil filter faced the rear on all rear sump pans in the UZ family. The difference between this 1uz is there is no oil cooling like the 2uz. The pics below show the 1uz adapter on the left and 2uz on the right. Wondering if I can move the cooling assembly to the 1uz adapter.

View attachment 2161312

View attachment 2161314

View attachment 2161315

View attachment 2161324

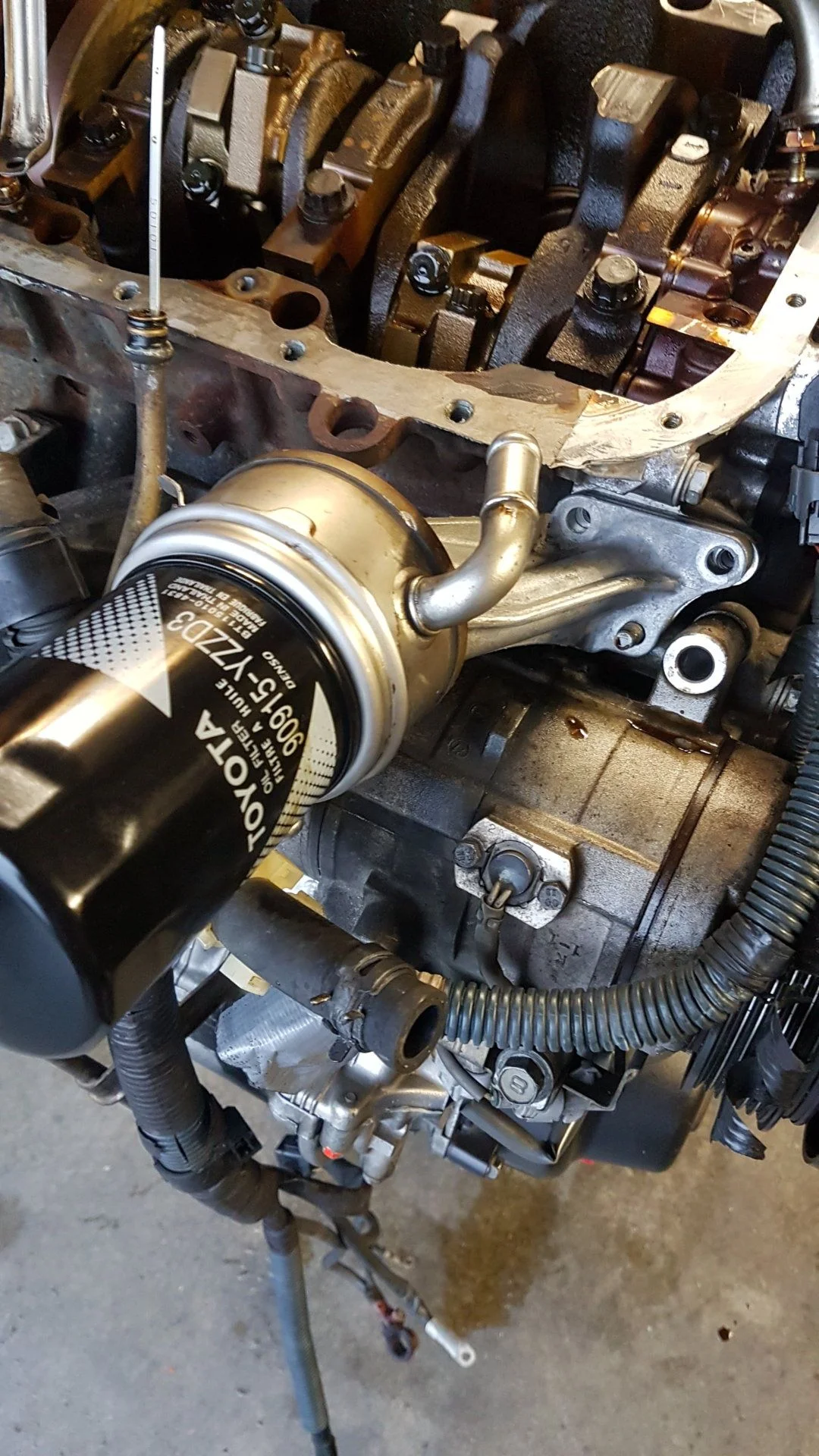

looks like i can swap the cooler of the oil filter, need to see what it looks like in the truck before this is final. I always like relocating filters for better accessibility and better cooling, but factory parts is the goal and they always seem to be better made.






Joined
Apr 15, 2018
Messages
82
Location
Hope, maine
this is a great resource I have been seeing a few rusted out Sequoia's (everything in Maine rusts) for cheep and thought it would be a great swap. thanks for taking the time to help out the community.
