2 pin pigtail (1 Viewer)

[braddamarlon]

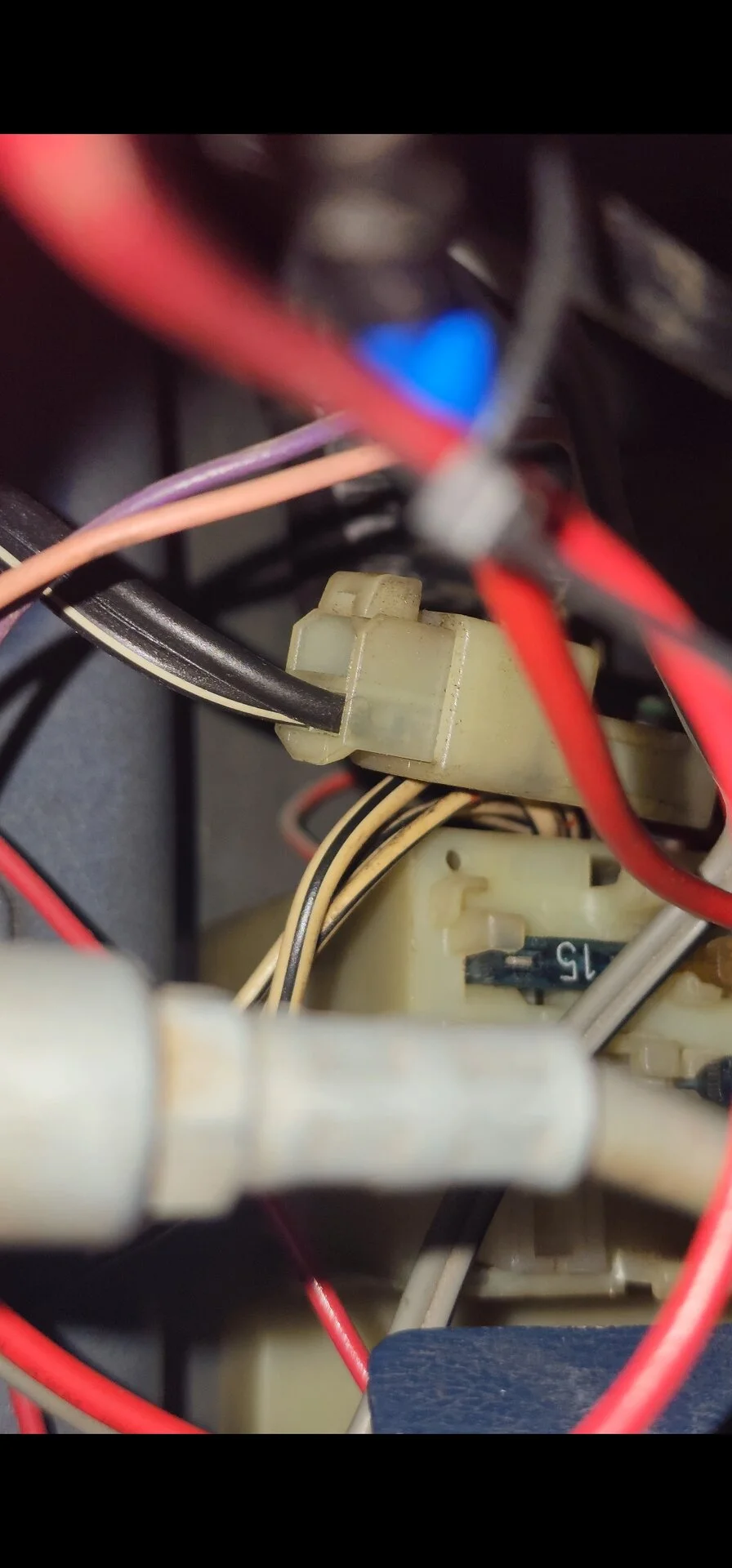

I have a 86 4runner and I'm trying to figure out what the 2 pin connector with the black ,/white cable and black cable is for? I picked up a dome light harness but not sure where to plug it

That 2 in harness goes thru a hole on the left . I thought maybe it was a harness for a dome light but I don't have wires In the location where I pulled the dome light harness from.



[gnob]

that plug is the dome/map lites



[gnob]

pic



[braddamarlon]

Ahh thank you so it's the one in the center of cab not the front. I wonder how I can run one for the mirror



[gnob]

Ahh thank you so it's the one in the center of cab not the front. I wonder how I can run one for the mirror

if your truck has the map lights they share the same harness...
i was going to add map lights to my 85 but the structure isn't there.



[braddamarlon]

if your truck has the map lights they share the same harness...
i was going to add map lights to my 85 but the structure isn't there.

My truck has the light that is behind the head. I wonder if I can just splice into that 2 pin connector for my recently added rearview mirror light



[gnob]

yes



[braddamarlon]

yes

Awesome thanks!



[braddamarlon]

So I've tinkered with the dome light that I'm trying to add to my passenger side to cover a rip in the panel.

I am able to bench test it and get it to turn on when I had 12v to constant and ground to the door open switch and it turns on but when I ground the on side I do not get the light to turn on. It's baffling my mind right now. If I ground out the 2nd strip it lights but when I ground the 1st one with the the 2 holes for screws nothing. Do you guys have any idea on why ground it does not get it to turn on



[gnob]

likely those contacts are crusty.
clean them and the ball in the switch.



[gnob]

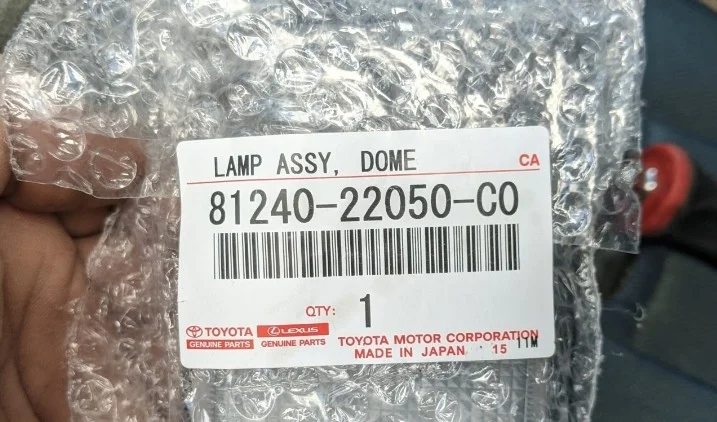

here's the current part number



[braddamarlon]

likely those contacts are crusty.
clean them and the ball in the switch.

When I put ground to the blue color directly it doesn't light up if the red is touching. If I flip the switch to off and send ground directly I get light. But when that switch is switched to on where both those meet I get no light.



[braddamarlon]

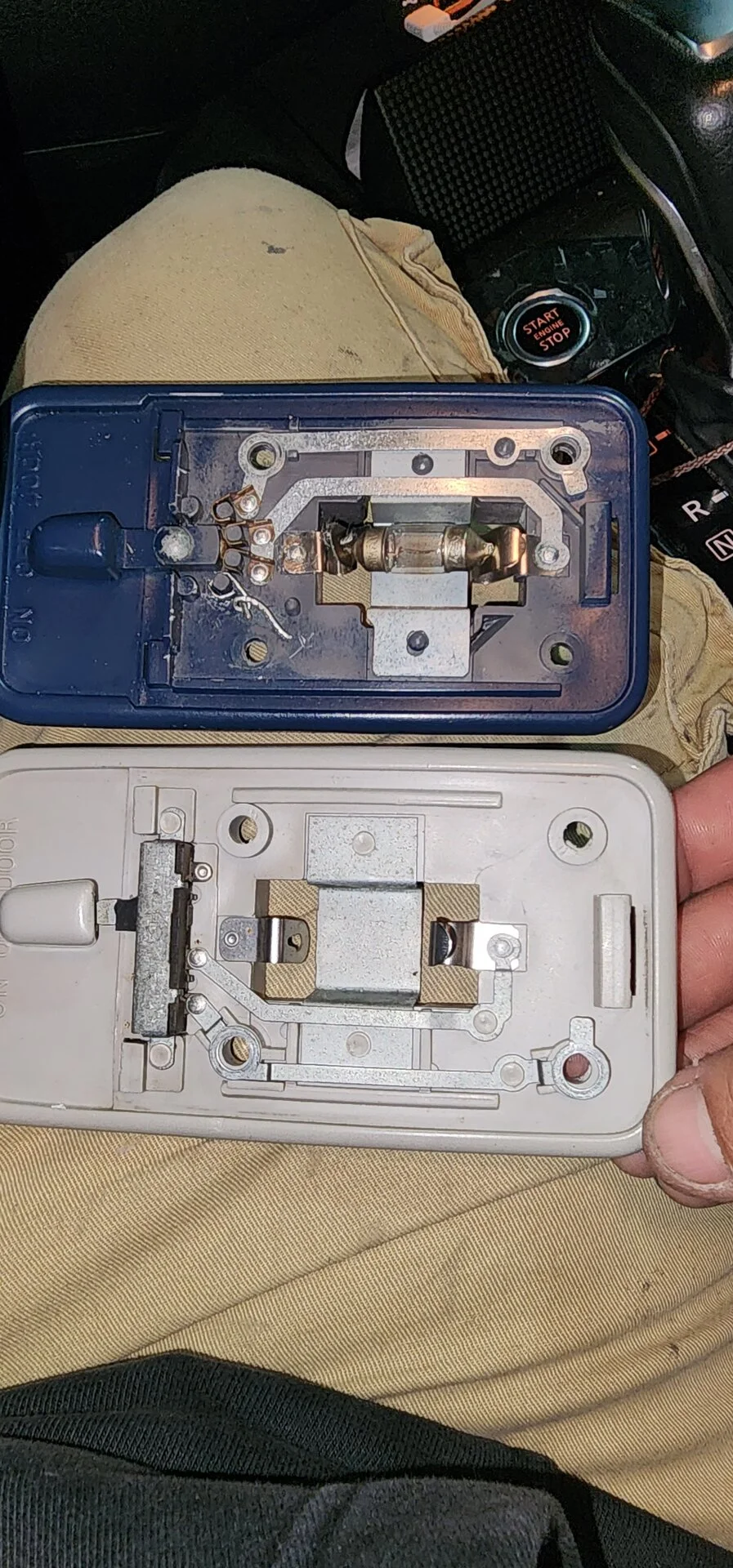

This is throwing me for a loop I plugged in the light the blue one into the pigtail in my roof and I get nothing. I plug in the stock light the tan one and when I switch to door it comes on. I see the light lays outs are onn opposite sides.

The tan is stock 86
Blue is from a 95 4runner

Did toyota change the way these lights work?



[braddamarlon]

Pic



[gnob]

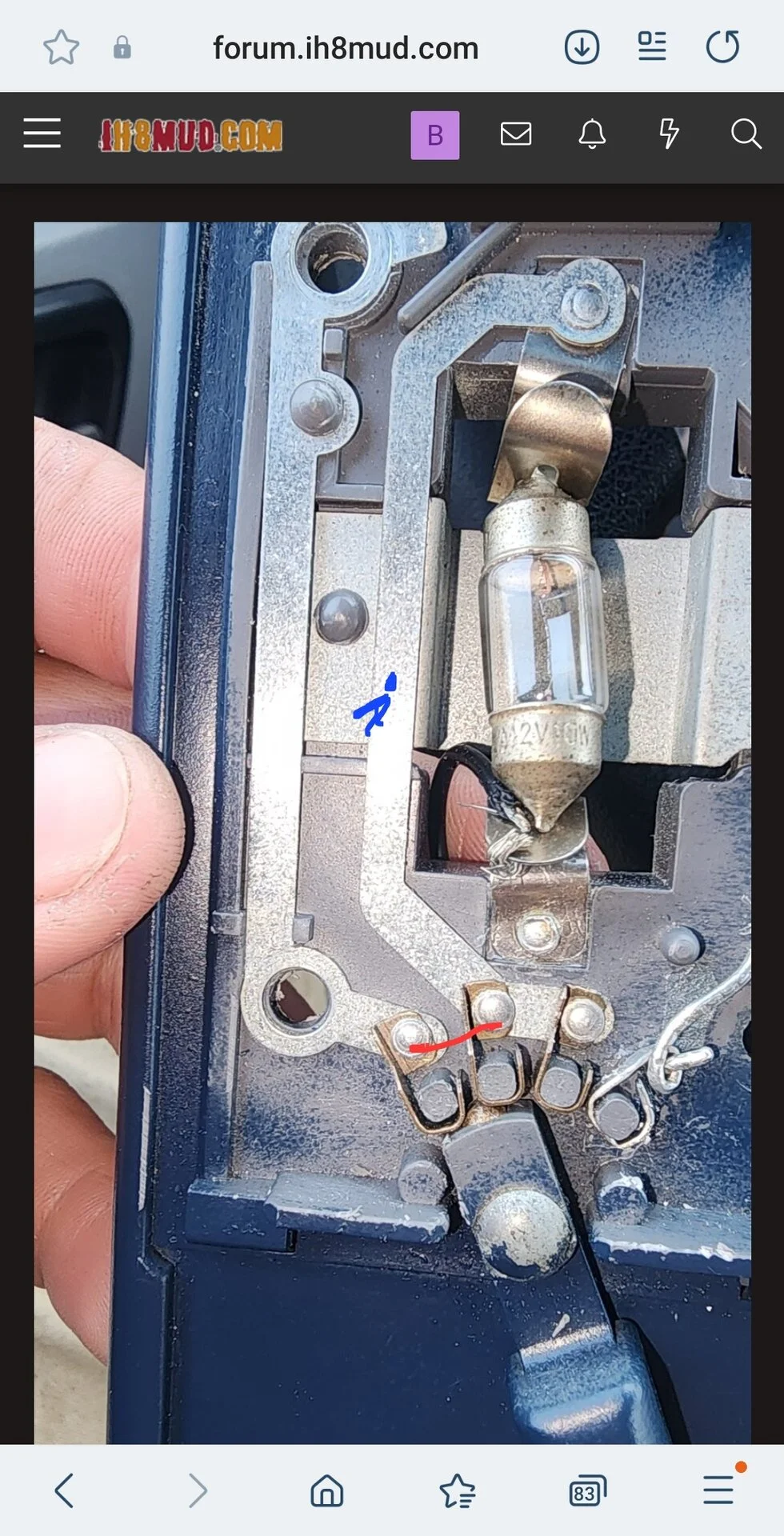

When I put ground to the blue color directly it doesn't light up if the red is touching. If I flip the switch to off and send ground directly I get light. But when that switch is switched to on where both those meet I get no light.

View attachment 3505331

what's the resistance across these points. with the switch in this position?



[liveoak]

it's obviously been modified. the door tab has been removed or something and then wrapped with a wire. that tab should be making it's way to the door trigger wire on the plug. that whole thing is a wreck, I'd throw it out and find a better one.



[liveoak]

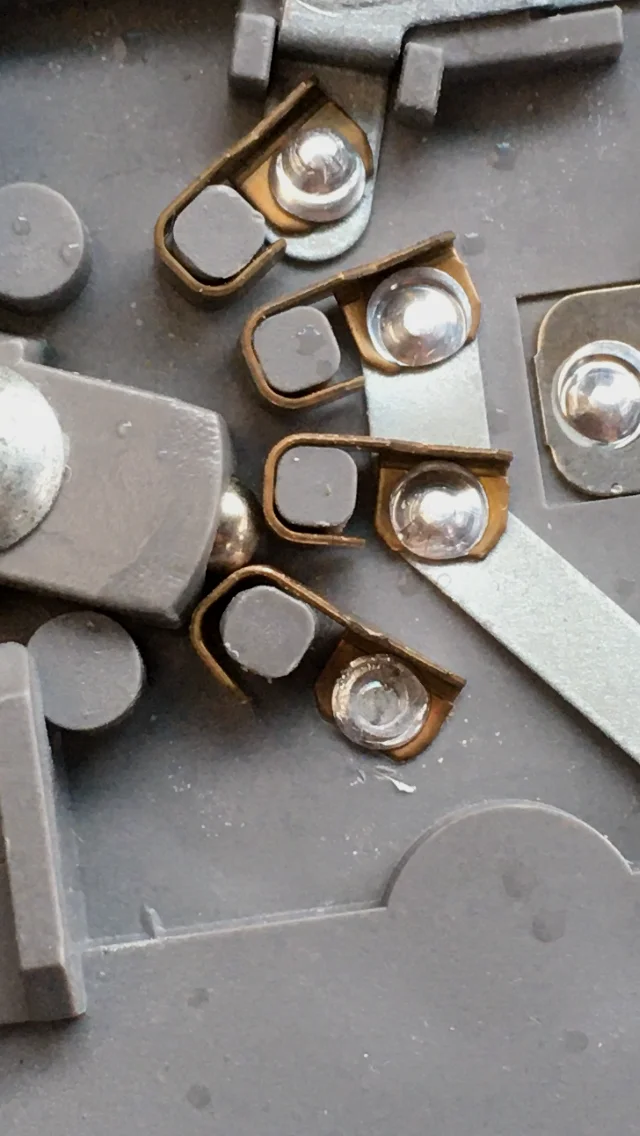

should look like this one



[ToyotaMatt]

If anyone ever needs OEM TOYOTA japan spec. Electrical connector
Topic assistance or the dreaded fusible links. As well . I do stock 99% of all the 79-89 era OEM SUMITOMO and Yazaki genuine service parts …

I will be checking in with @pappy getting his input on the best approach on creating a 95 and older mini-truck electrical connector and related terminals and OEM color coded tracer stripe wire resource and reference tech. thread

This whole Circa-Era is my niche specialty of sorts , one thing don’t know exists is a. Comprehensive break for of all the styles and locations of the cold spec pend for example ….

Below is a TECH. Example of what I do for a living , and I have a passion for making once disc. NlA small size spec parts live once again ….

If I’m correct ?

This large diameter master cylinder float sensor equipped fluid cap , is a 79-1990 Era Accross the board usa spec parts application ?

- I am actually working with both FD and NEW ERA in japan to bring the 27700-38110 / 38111 /. 38112 / 38113. Voltage regulator back from the dead , the oval 6pin green plug now disc.

Among other things related…

My 27060-35070 genuine NipponDenso japan alternator has been very popular and I will be expanding on that 22R / 22R-E charging system arena too !



[aztoyman]

I had thought about sending you a PM with questions at times but, I thought you just did Land Cruisers.



[pappy]

I had thought about sending you a PM with questions at times but, I thought you just did Land Cruisers.

Matt has helped me out several times with connectors on my 4Runner.
