Anyone interested in the early model LHD evap (pre 2007, 88510-60510) you should but it sooner than later. They won't be around forever and my source (Onur) said that he believes the all in one fan/ac evaps will not fit in earlier trucks (88510-6A440). 60510 were out of stock for a few years and may have had a second production run but who knows how many.....
Build 1996 HZJ75 Land Cruiser Pickup
- Thread starter Will Van
- Start date
Member Builds and Stories
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
TreadingLight
"Overlanding is Sh*t"
Edit: I misremembered. PartsOUQ and ToyoDIY list two part numbers for my VIN. Both the cooler box assembly and the evaporator are listed but I can't figure out which part number is right for my '90 hzj75 aus troopy, and I can't find the parts in stock anywhere.
When I punch the part numbers for the evaporator into fleabay I get no direct matches - just a tantalizing list of inexpensive evaporators for other Toyotas.
| 8851060430 | UNIT ASSY, COOLER | 88510 | FJ70,75,FZJ70,75,HZJ7#,LJ7#,PZJ7#,RJ77..RHD..(ARL,GEN) |
| 8851060520 | UNIT ASSY, COOLER | 88510 | LJ79..RHD..STD;FZJ70,75,HZJ7#,KZJ77,LJ72,PZJ7#,RJ77..RHD..(ARL,GEN) |
| 8850160080 | EVAPORATOR SUB-ASSY, COOLER, NO.1 | 88501 | LJ79..RHD..STD;FZJ70,75,HZJ7#,KZJ77,LJ72,PZJ7#,RJ77..RHD..(ARL,GEN) |
| 8850160050 | EVAPORATOR SUB-ASSY, COOLER, NO.1 | 88501 | FJ7#,FZJ70,75,HZJ7#,LJ7#,PZJ7#,RJ7#..RHD..(ARL,GEN) |
In a week I'll have my rig back and just enough time to attempt to install my AC system before making a baja run. At this point I think I've given up and will just try to clean and reuse the evaporator in my existing cooler box. I have a replacement pressure switch and expansion valve ready to go in.
Last edited:
Will Van
GOLD Star
- Thread starter
- #563
I’m dumb. I ordered a brand new Toyota evaporator assembly. For some reason, I assumed it had domestic #10 and #6 o-ring fittings. I kept trying to mock-up the soft lines and couldn’t get the fittings to thread on. I finally realized the obvious: “These are metric fittings.”
I don’t think I damaged anything, but the #6 male fitting on the evaporator is swiveling on the hardline (hopefully it does not leak).
I need to order new fittings to adapt from the male metric M22 and M16 o-ring fittings on the evaporator to the #10 and #6 o-ring fittings on the soft lines. It looks like it will be another week.
However, I did manage to direct-wire and test my new Rockford Fosgate 4” speakers to the 80s Modern Tech radio.
I was able to get the right speaker installed. But I ran out of time to remove the instrument cluster and install the left speaker.
Sorry for the terrible tunes, it was what was on the FM dial when I keyed on the ignition.
I don’t think I damaged anything, but the #6 male fitting on the evaporator is swiveling on the hardline (hopefully it does not leak).
I need to order new fittings to adapt from the male metric M22 and M16 o-ring fittings on the evaporator to the #10 and #6 o-ring fittings on the soft lines. It looks like it will be another week.
However, I did manage to direct-wire and test my new Rockford Fosgate 4” speakers to the 80s Modern Tech radio.
I was able to get the right speaker installed. But I ran out of time to remove the instrument cluster and install the left speaker.
Sorry for the terrible tunes, it was what was on the FM dial when I keyed on the ignition.
Last edited:
Great information about adding A/C, I'm looking forward to seeing how this project goes on
I also ordered a 88510-60510 evaporator, dryer, (and AC blower switch + knobs if I find amplifier) from Partsouq to my 75. Pipes and hoses I plan to make myself with the help of the local shop. Also bought a Nissens 94053 J70-series condenser and maybe I get some universal (China-) compressor. However, I'll try to make it as OEM-like as possible..
I also ordered a 88510-60510 evaporator, dryer, (and AC blower switch + knobs if I find amplifier) from Partsouq to my 75. Pipes and hoses I plan to make myself with the help of the local shop. Also bought a Nissens 94053 J70-series condenser and maybe I get some universal (China-) compressor. However, I'll try to make it as OEM-like as possible..
what year is your 75?Great information about adding A/C, I'm looking forward to seeing how this project goes on
I also ordered a 88510-60510 evaporator, dryer, (and AC blower switch + knobs if I find amplifier) from Partsouq to my 75. Pipes and hoses I plan to make myself with the help of the local shop. Also bought a Nissens 94053 J70-series condenser and maybe I get some universal (China-) compressor. However, I'll try to make it as OEM-like as possible..
ah, was wondering if they came with all the hangers from the factory and just used what was needed. that's one thing that needs to be moved if one was doing a rhd to lhd swap.
gilmorneau
SILVER Star
I've been watching all this a/c tech with interest. I've just bought a 1997 HZJ75 pickup in France that came with no a/c.
I bought a complete a/c kit from @joekatana and I'm hoping it bolts right in. We'll see. I may be contacting @Will Van for some intel when I get around to the install. Meantime, I'll continue to spy on this thread.
I bought a complete a/c kit from @joekatana and I'm hoping it bolts right in. We'll see. I may be contacting @Will Van for some intel when I get around to the install. Meantime, I'll continue to spy on this thread.
Have you looked through my build? I installed one of Joeries kits under the dash, had to do some modding. But mine is a 85 so don’t know if it much different from a 97 in this regard
Will Van
GOLD Star
- Thread starter
- #573

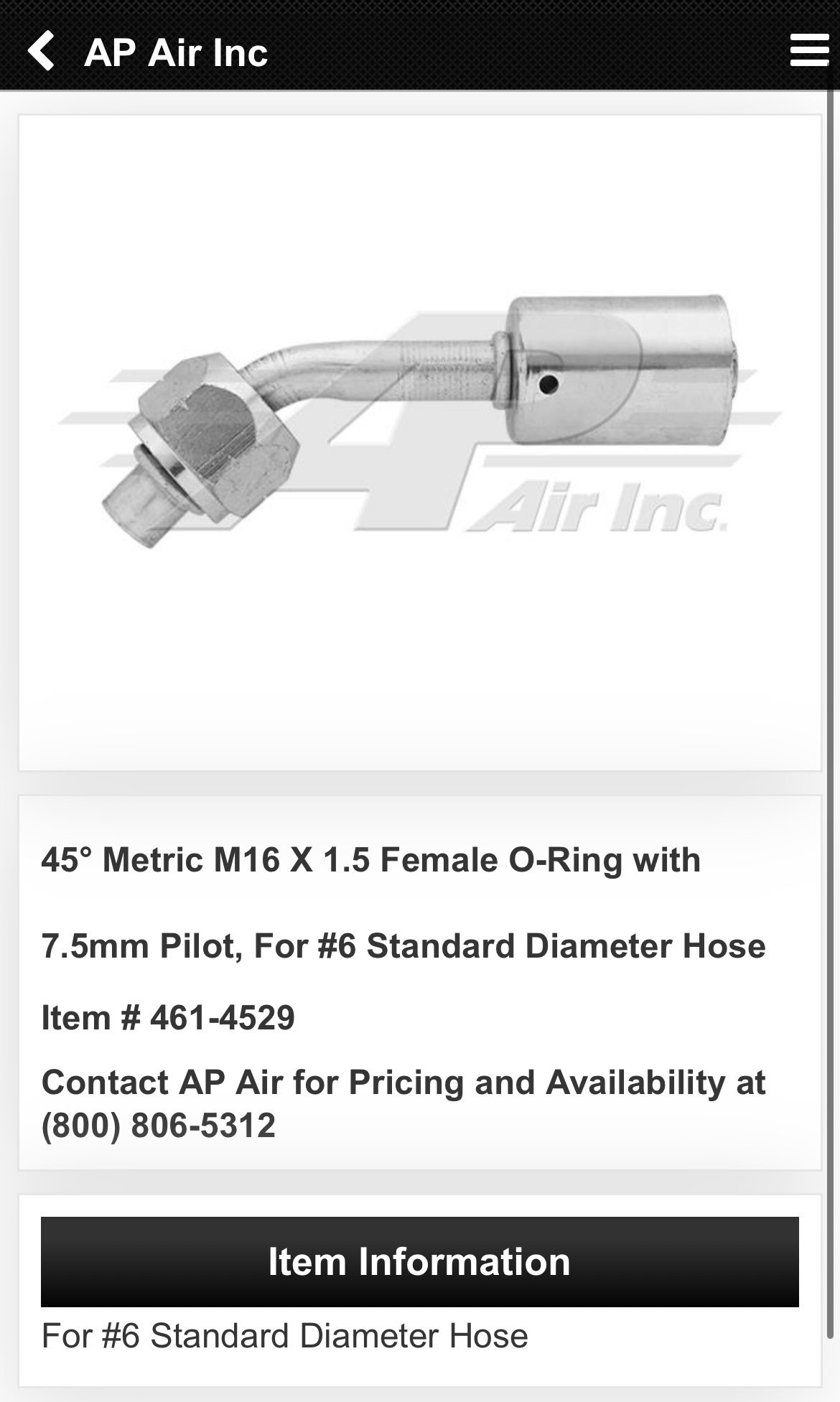

I thought transitioning from the metric evaporator fittings to the conventional crimp-on soft lines would be fairly simple - just find some metric to crimp fittings and we’re back in business.
