Build Troopysaurus - One Less Sprinter!!

[SNLC]

Just checking clearance at full stuff with a 35” tire.

Cheers



[SNLC]

A few pictures of it outside on the 80-series chassis.

Cheers



[JohannesSteudel]

Great updates! The body mounts turned out great. The front wheel hubs look like they aren’t center in the wheel arch is that just the photo angle?



[SNLC]

Great updates! The body mounts turned out great. The front wheel hubs look like they aren’t center in the wheel arch is that just the photo angle?

Front axle is pushed forward on purpose. 35" tire will be the size it runs and under max compression we want it a bit forward of the rear wheel well arch, that is where it will rub and if it does we have to trim the inner fenders. Pushing the front axle forward helps or eliminates this problem.

Cheers



[SNLC]

Pulled donor axles and swapped our “roller” axles underneath it.

Cheers



[SNLC]

Super nice SoCal axles here, degreasing them right now. Doubt we even need to take these to bare metal for painting, just get them clean and start painting!

Ordered all the goodies for them, E-Lockers, ring & pinions, RCV shafts and rebuild parts.

Cheers



[SNLC]

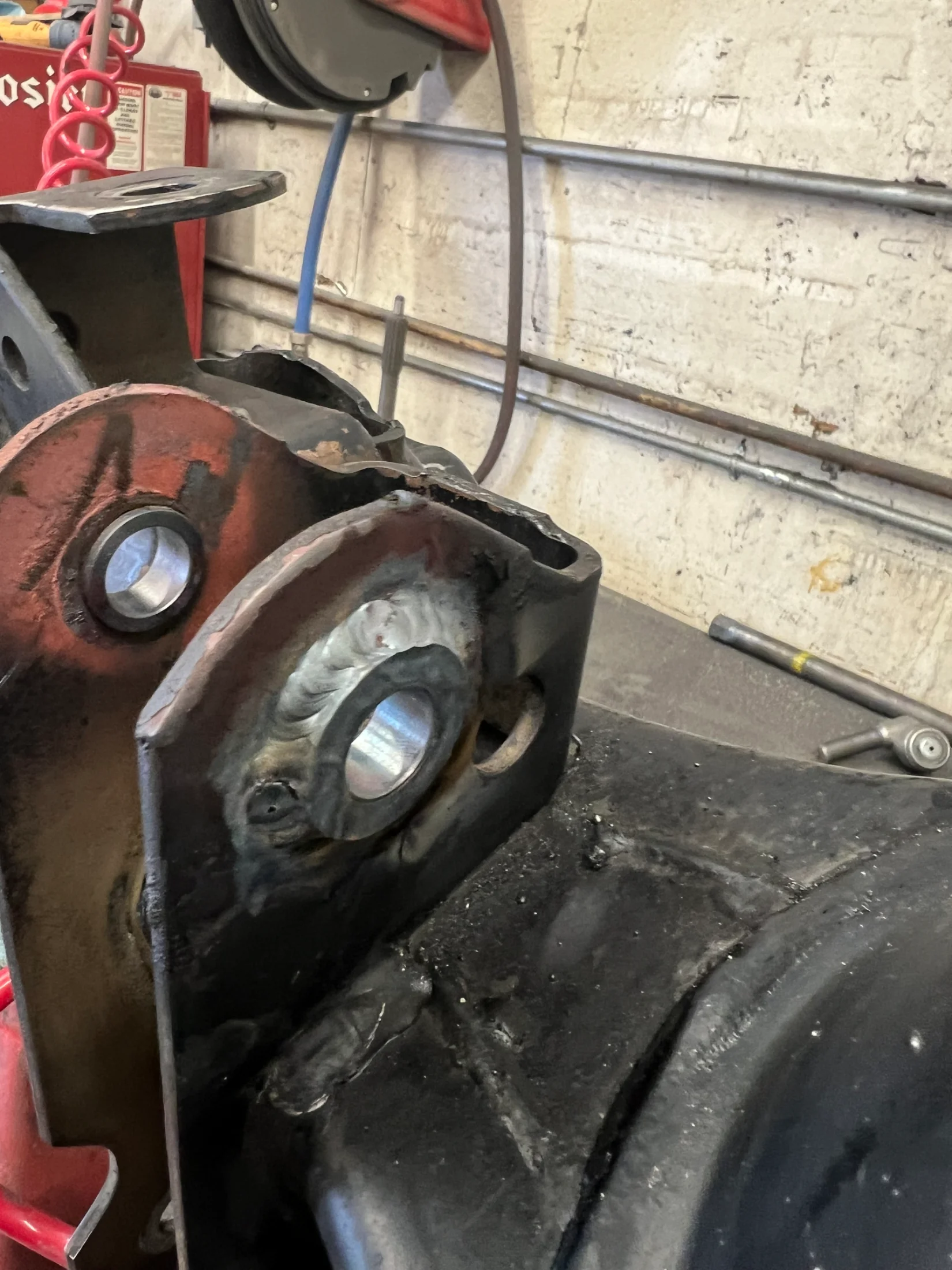

While these are real nice street axles this is a common problem I have seen on at least 50% of 80-series these days. We are nearly 30yrs out now from the end of them. These pics don’t show the before well more show the repair but what happens is the front radius arm mount on the axle gets egged out. To remedy this we have welded on chromoly weld washers. Longer bolts required but the nut remains OEM.

Cheers



[SNLC]

Just about ready to paint these housings, got a whole bunch of rebuild and upgraded goodies as well.

Cheers



[SNLC]

A little spot sand blasting late in the day today and these are just about ready to go for 2k epoxy prime + top coat.

Cheers



[Broski]

While these are real nice street axles this is a common problem I have seen on at least 50% of 80-series these days. We are nearly 30yrs out now from the end of them. These pics don’t show the before well more show the repair but what happens is the front radius arm mount on the axle gets egged out. To remedy this we have welded on chromoly weld washers. Longer bolts required but the nut remains OEM.

View attachment 4097908
View attachment 4097909
View attachment 4097910
View attachment 4097911


Cheers

Most excellent Sir !!



[SNLC]

Painted!

Cheers



[SNLC]

Wowzers! Beadlock wheels ~ were ordered from here.

Off-Road Beadlock Wheels | Cast, Flow Formed & Forged Beadlocks

Shop off-road beadlock wheels from Battle Born Wheels. Cast, flow formed, and USA-forged beadlocks for Jeep, Toyota, Ford, GM, Ram, Bronco, Ranger, and serious 4x4 builds.

www.battlebornwheels.com

Cheers



[SNLC]

Should be good enough for the Troopysaurus!

Cheers



[SNLC]

Axle build out has started!

About as good as it gets for a 31yr old knuckle ball!

Cheers



[SNLC]

Front axle mostly done, we were waiting on brakes to finish which showed up today.

Hubs ready to go, the knuckles, hubs and housing plus 3rd member (diff carrier) are all old parts reused in the axle builds. Steering arms and knuckle caps too. Most of the rest of the parts are new including the spindles.

The racing brakes, of the 17” variety.

Cheers



[SNLC]

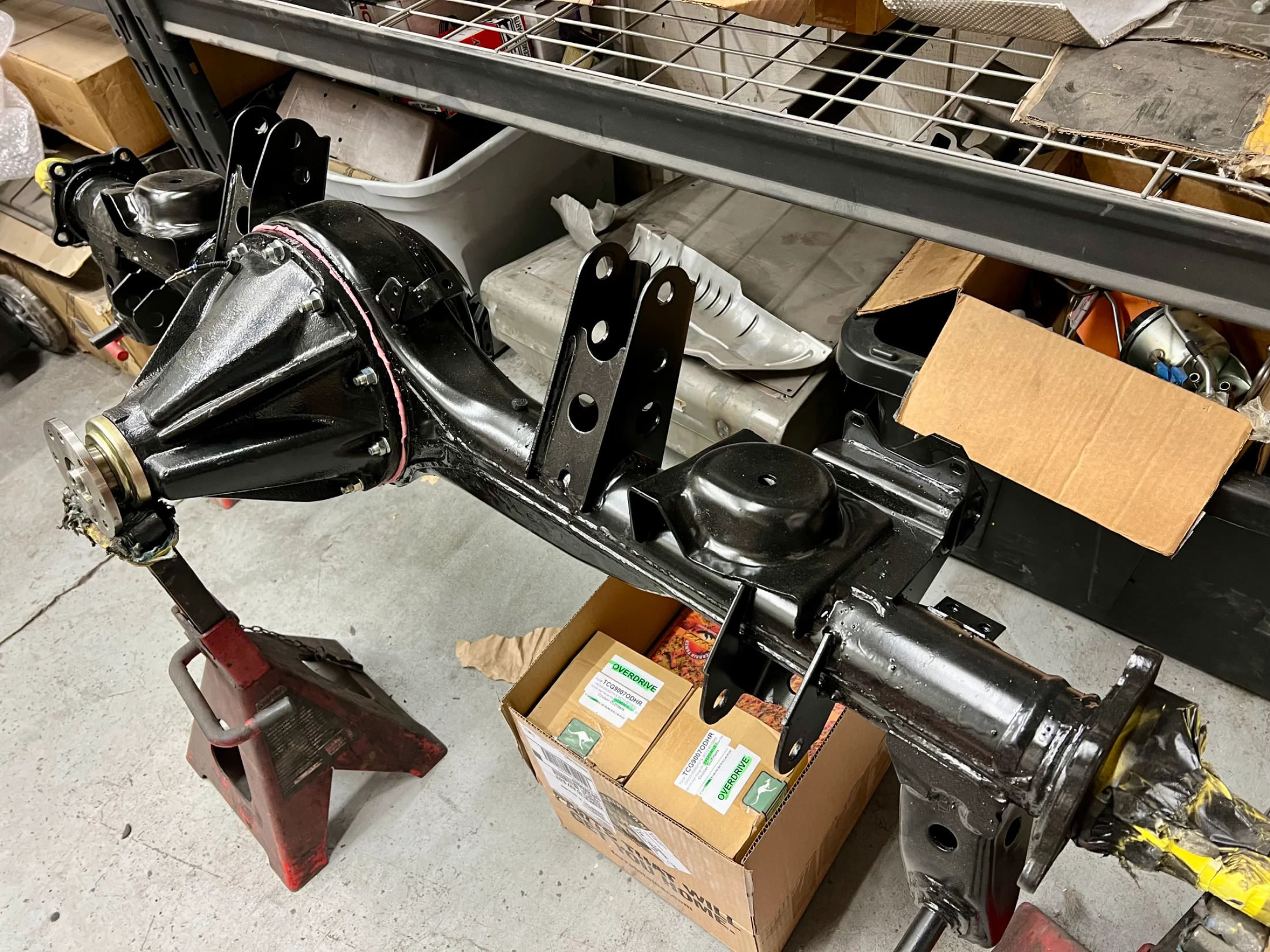

The rear axle ready to go for rebuild! Diff obviously already done.

Both axles got new diff gears and Eaton E-Lockers. The gears are 4.11 and the rear are Yukon gears, for the front I could only find Nitro (no) and OEM in stock so we went OEM. Both axles also are getting RCV axle shafts.

Cheers



[Matt Sierra]

The rear axle ready to go for rebuild! Diff obviously already done.

View attachment 4122858

Both axles got new diff gears and Eaton E-Lockers. The gears are 4.11 and the rear are Yukon gears, for the front I could only find Nitro (no) and OEM in stock so we went OEM. Both axles also are getting RCV axle shafts.

Cheers

Looking great!

Is there a supplier you like for the Eaton E-Lockers?



[SNLC]

Looking great!

Is there a supplier you like for the Eaton E-Lockers?

Any is fine, Cruiser Outfitters, Terrain Tamer USA or whoever. You need what’s in the box! Those are our first go to for parts like lockers or gears though.

Cheers



[SNLC]

Cheers



[SNLC]

We have been gathering a lot of parts. This build is about to get going!

Axles built out besides rear calipers and brake lines.

Massive brakes! RCV shafts, elocker, 4.11 gears.

Cheers
