Build Troopysaurus - One Less Sprinter!!

[SNLC]

H152 and HF1A tcase.

Cheers



[SNLC]

So we are going with some pretty nice mods on this one.

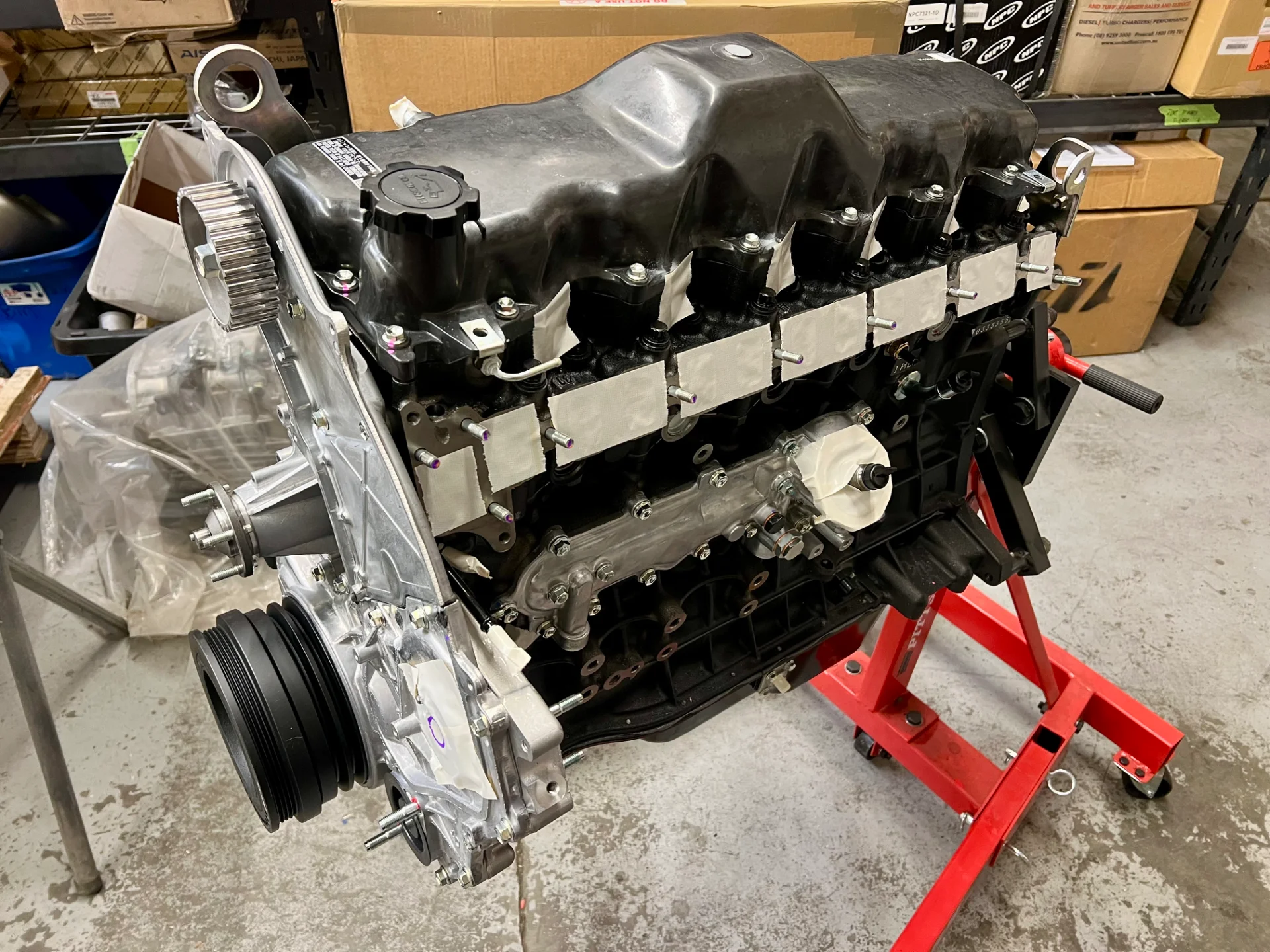

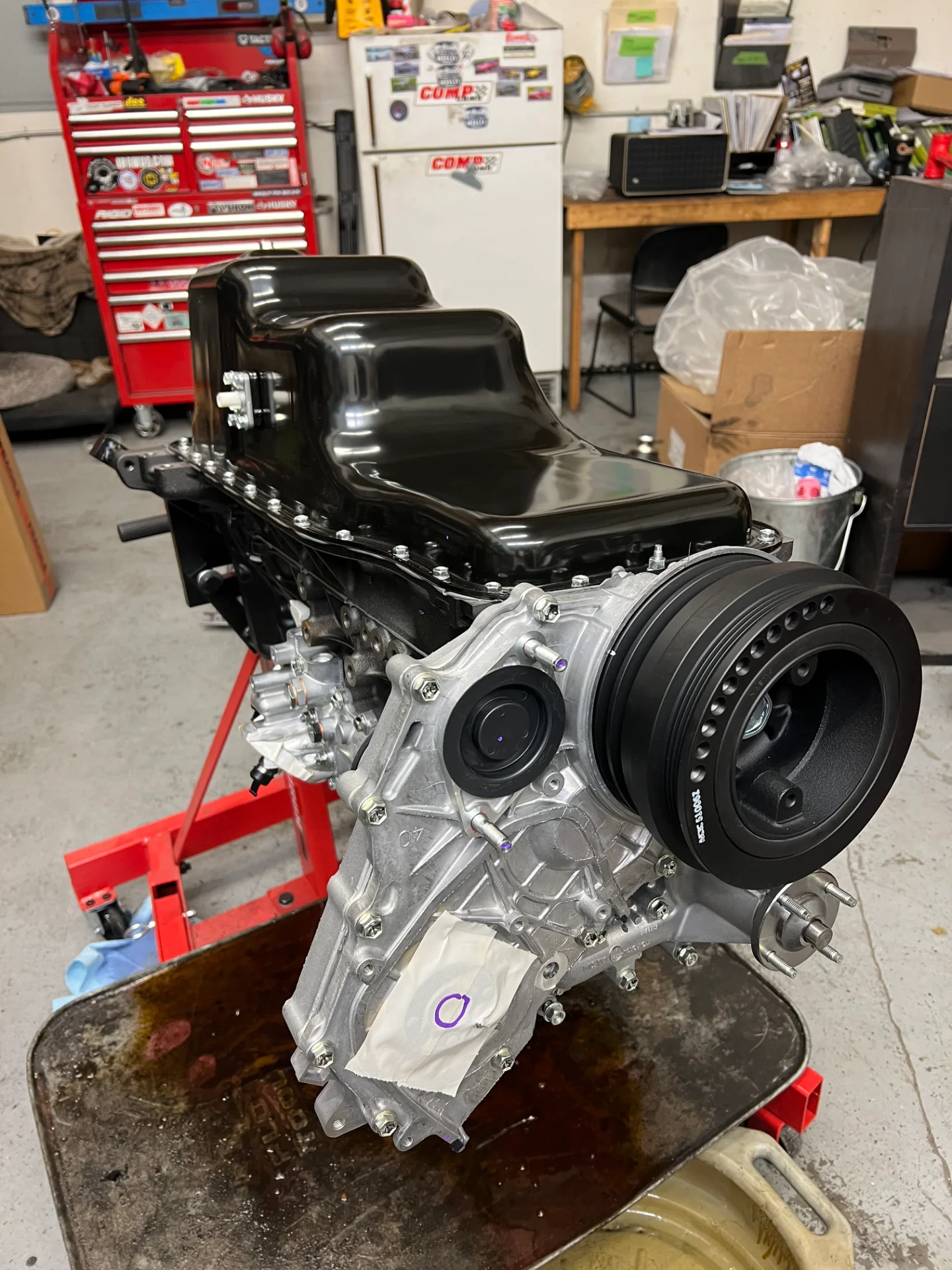

The 1HD-FTE is getting;
-UFI 23L turbo capable of 35psi
-+50 injectors

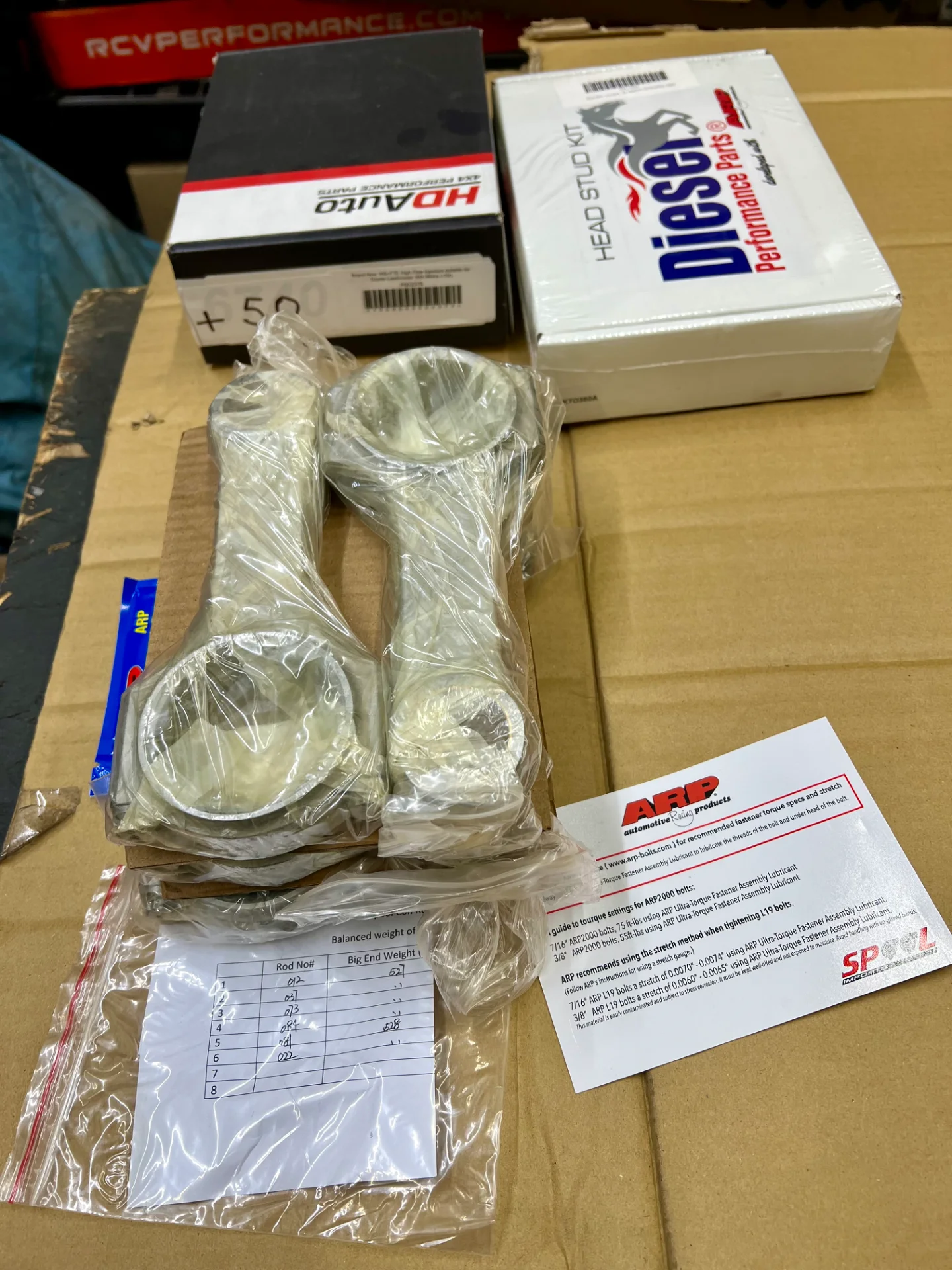

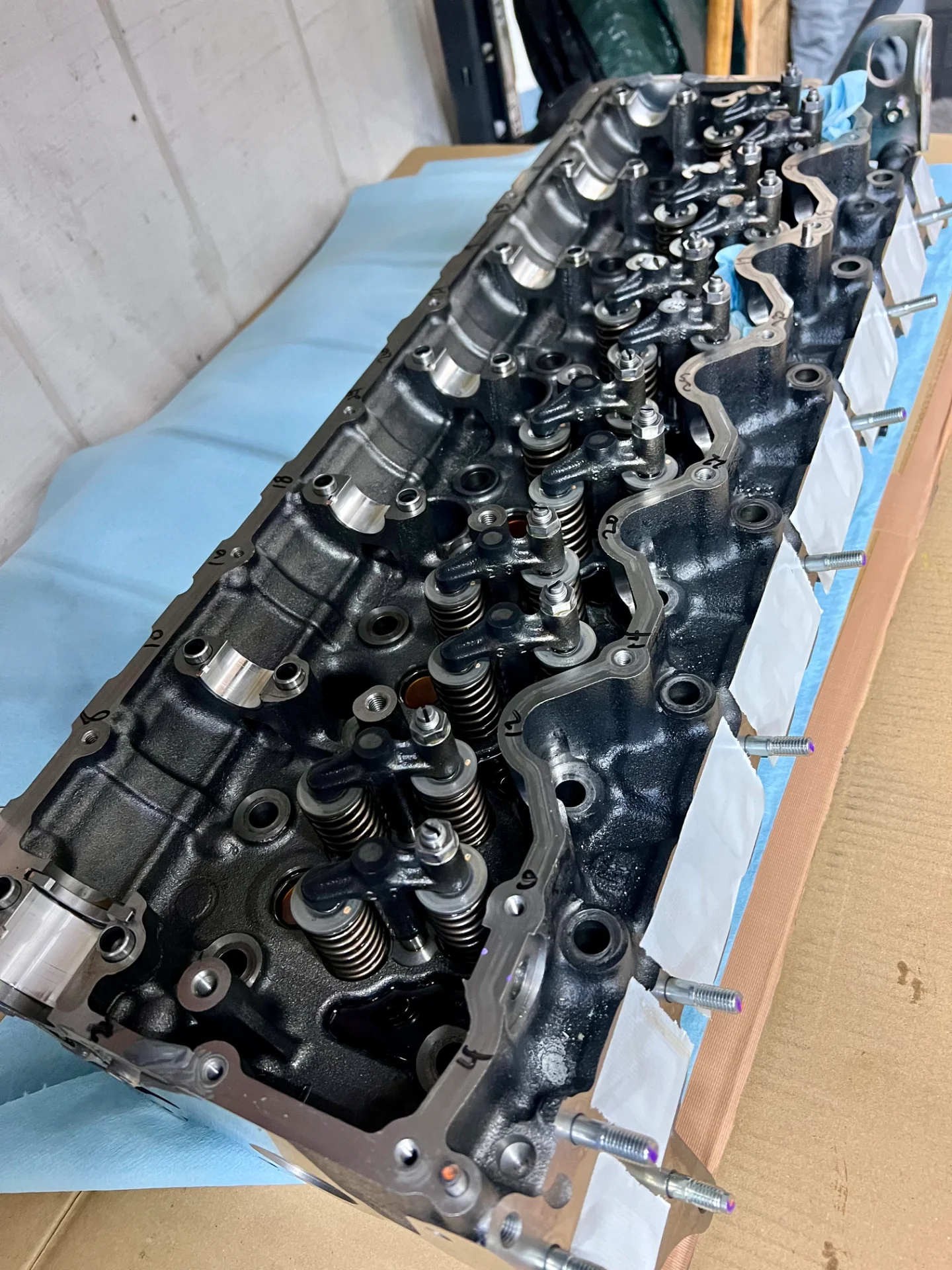

-ARP head studs

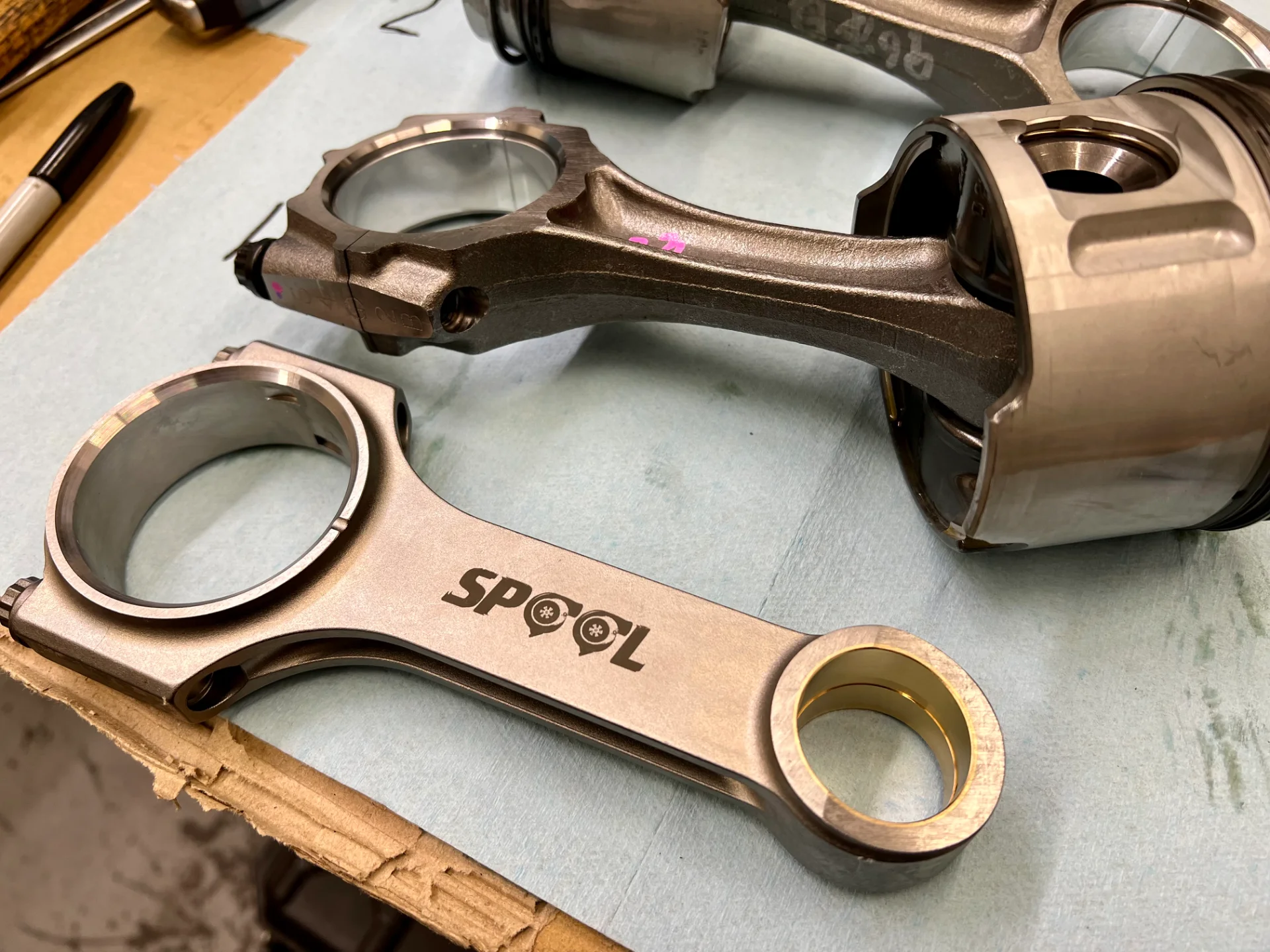

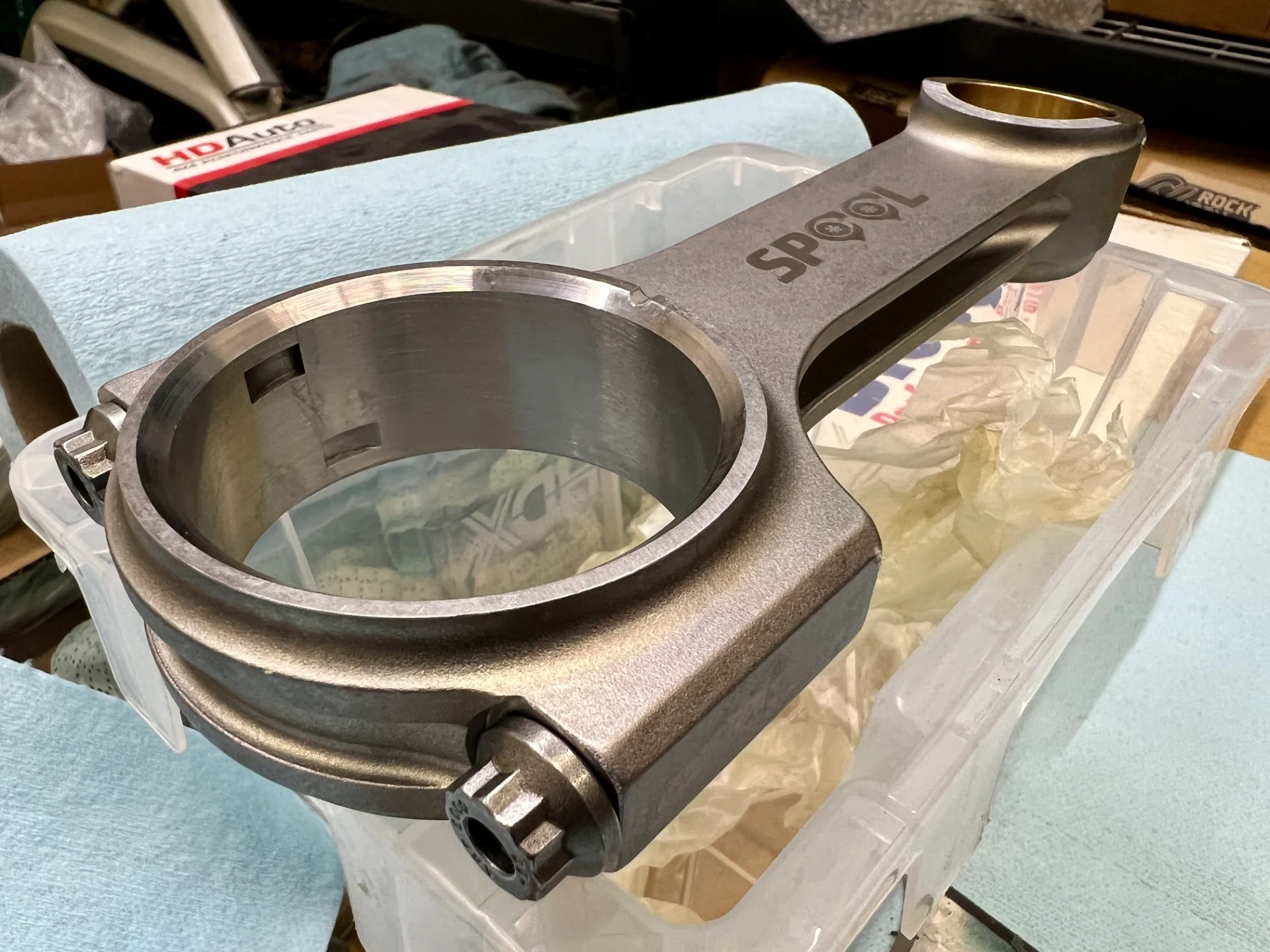

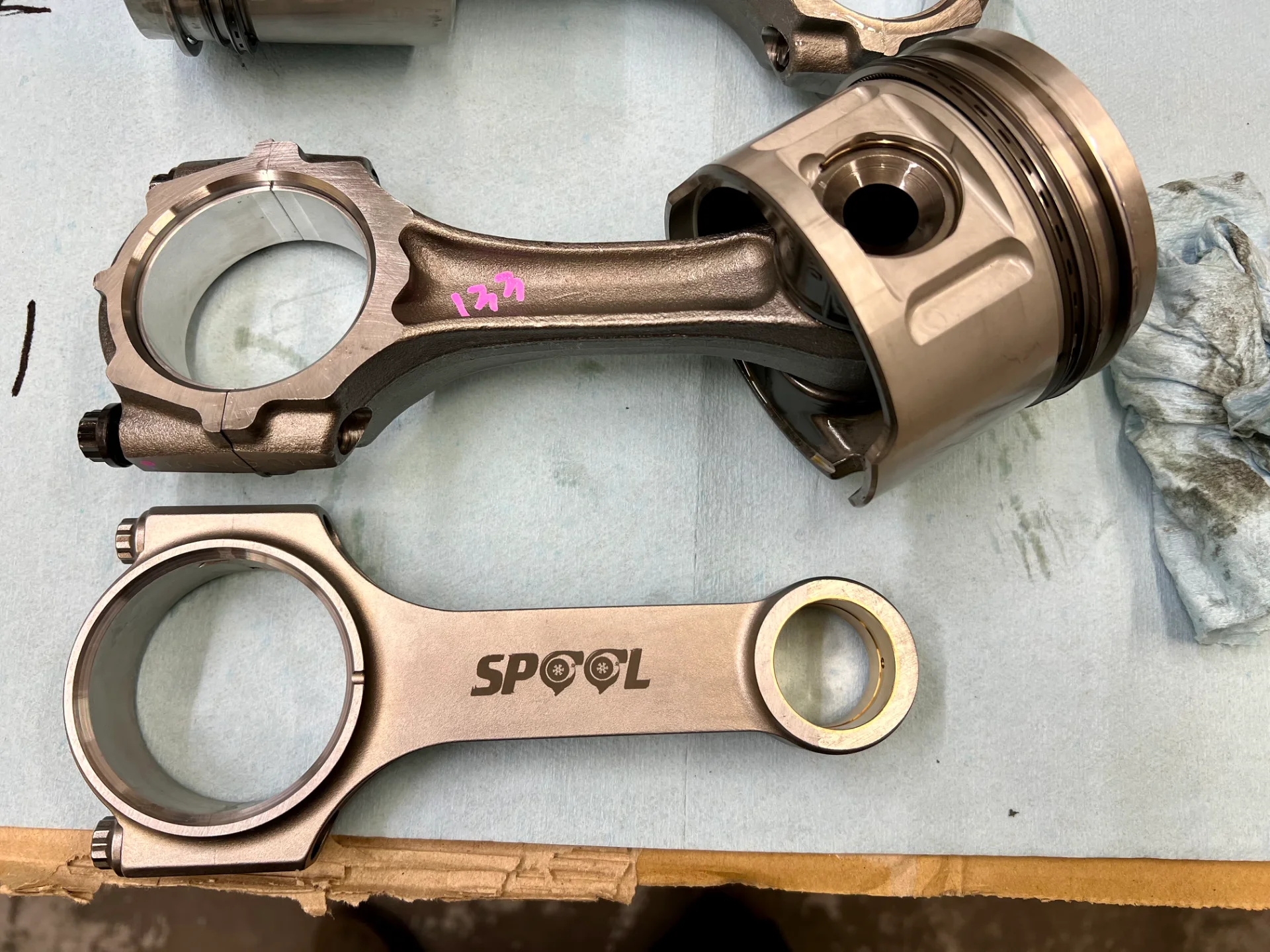

-400+hp conrods
-5map Unichip
-NPC billet flywheel and 1300nm clutch
-big front mount PDI intercooler
-In house made 4” in/out air box
-In house built 3” SS exhaust

We should be 350+hp with this setup. Plenty for a big heavy Troopy!



[SNLC]

H152 input shaft swap.

Cheers



[Bisonthecruiser]

Man, that thing is going to look like rolled off the factory floor, but in a far more usable and potent way.



[SNLC]

Headspace camper ordered. If you haven't seen these check them out, pretty awesome!

TOYOTA LANDCRUISER 75/78 TROOP CARRIER

The Headspace Campers Roof Conversion gives you two metres of standing room, up in the tent— with space to move, breathe, and actually live inside your vehicle. Set-up and pack-down happen in seconds, so you can focus on what matters: the drive, the view, the quiet in between. Every unit is...

www.headspacecampers.com

Cheers



[SNLC]

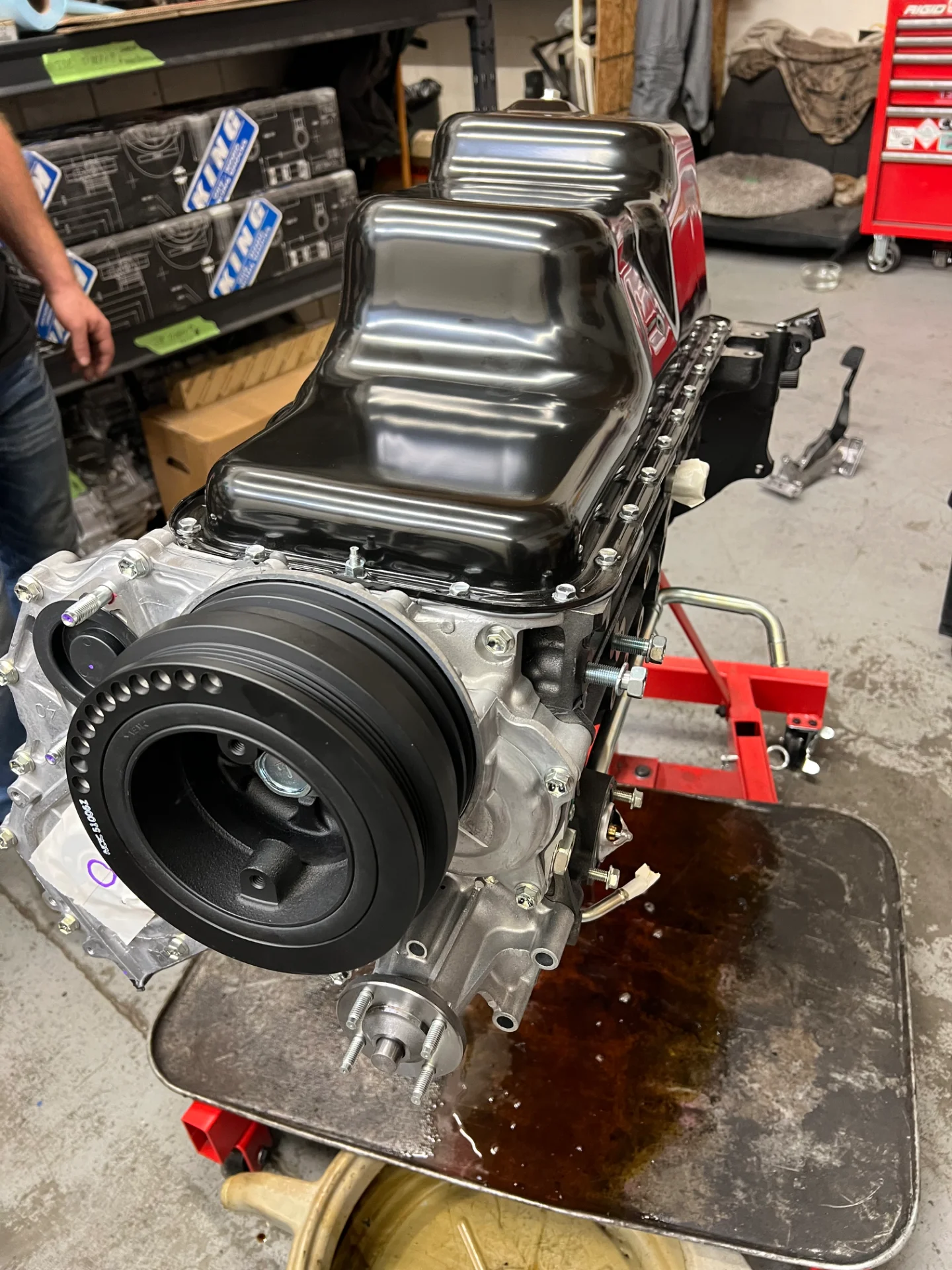

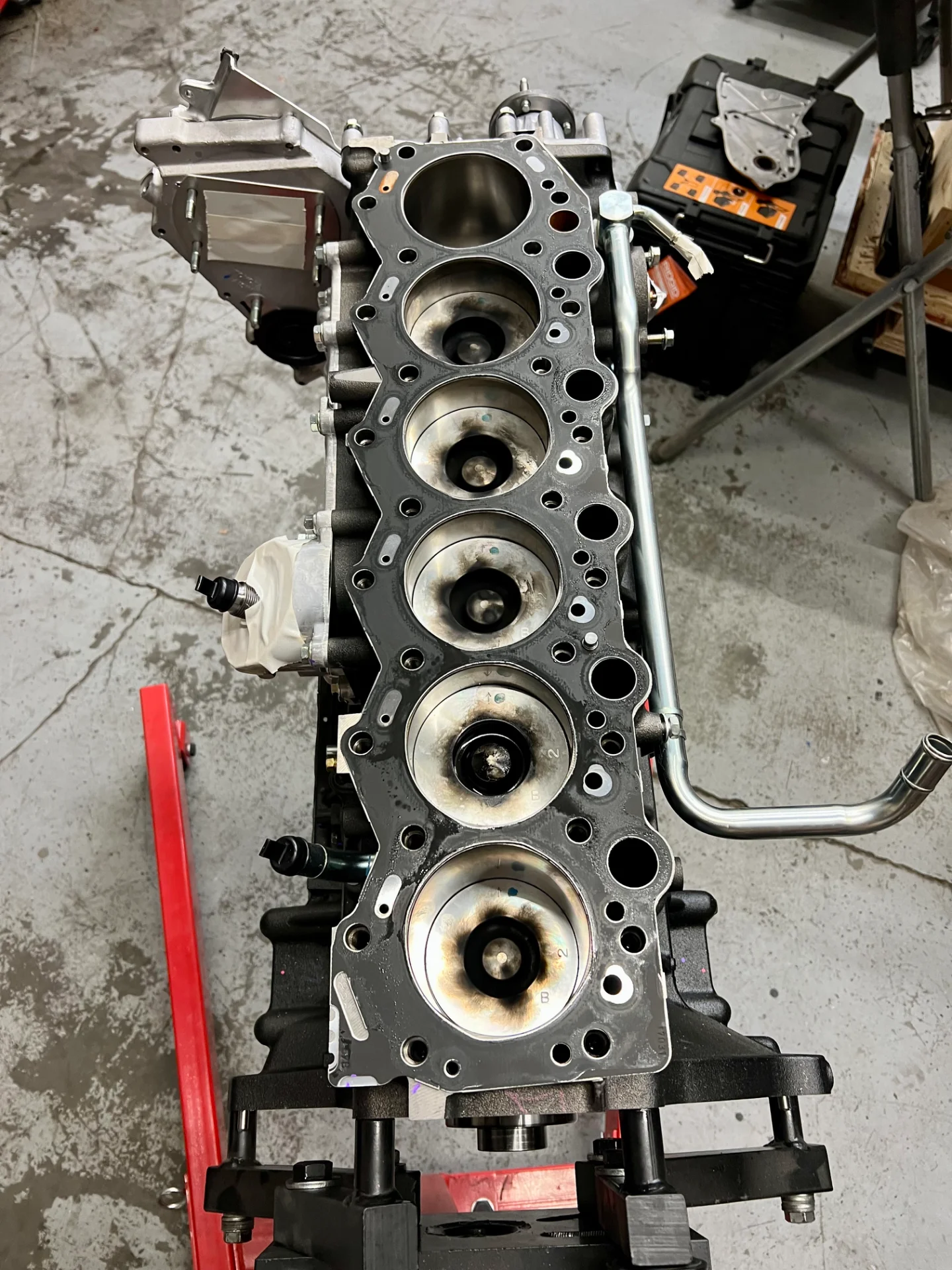

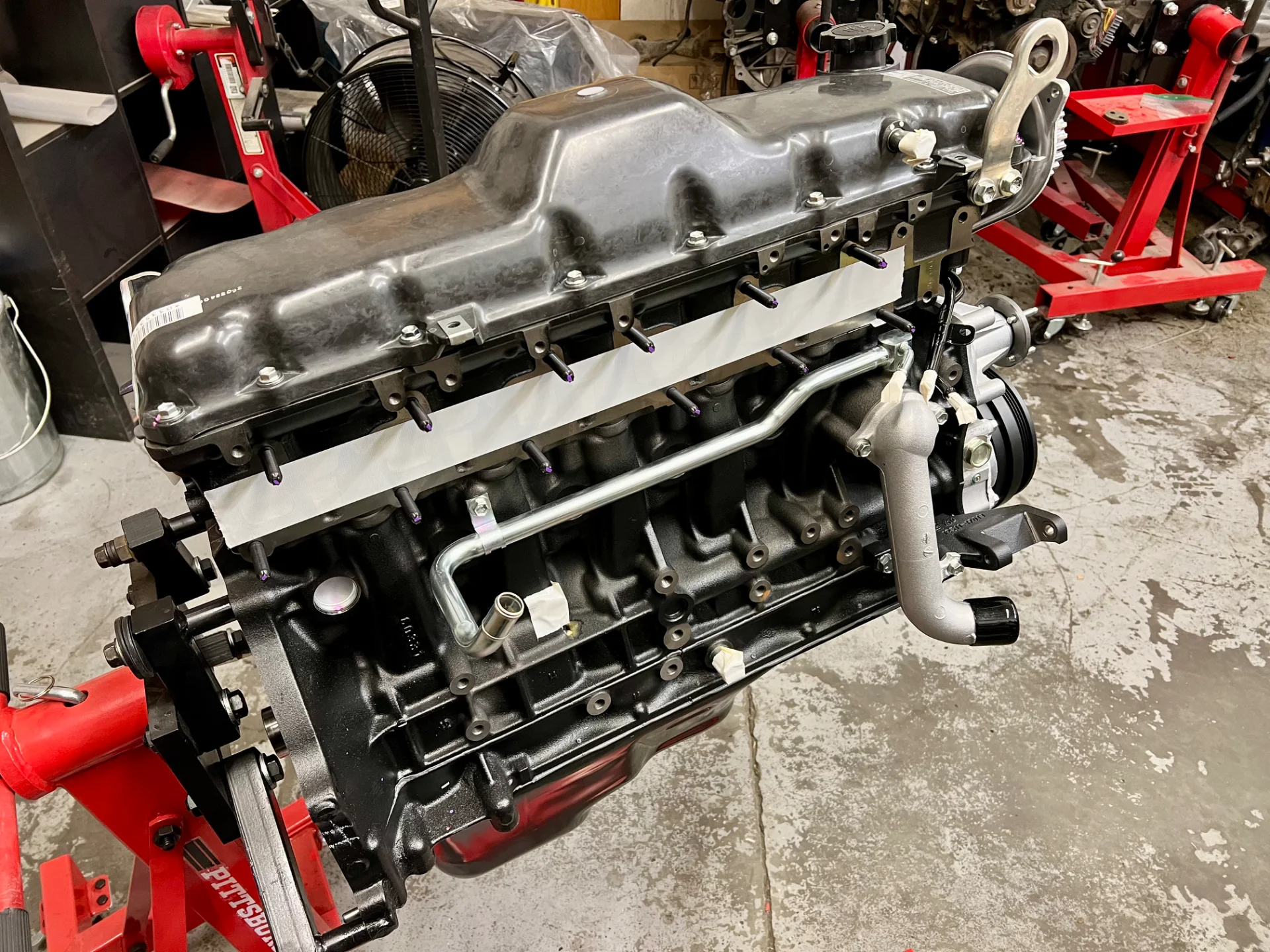

Trans and tcase are ready to go! We are just waiting on the NPC clutch and flywheel before mating this to the fresh 1HDFTE long block.

Cheers



[SNLC]

Bigger tires really help the new front body style in my opinion. The proper front bumper to go with it and I think they look pretty good!

Cheers



[SNLC]

Grill and valance helps too.

Cheers



[SNLC]

The Troopy is probably going to weigh 8-10,000lbs when done! So I think we are going to do some strengthening of the frame.

We did move front axle and also are moving frame side suspension brackets.

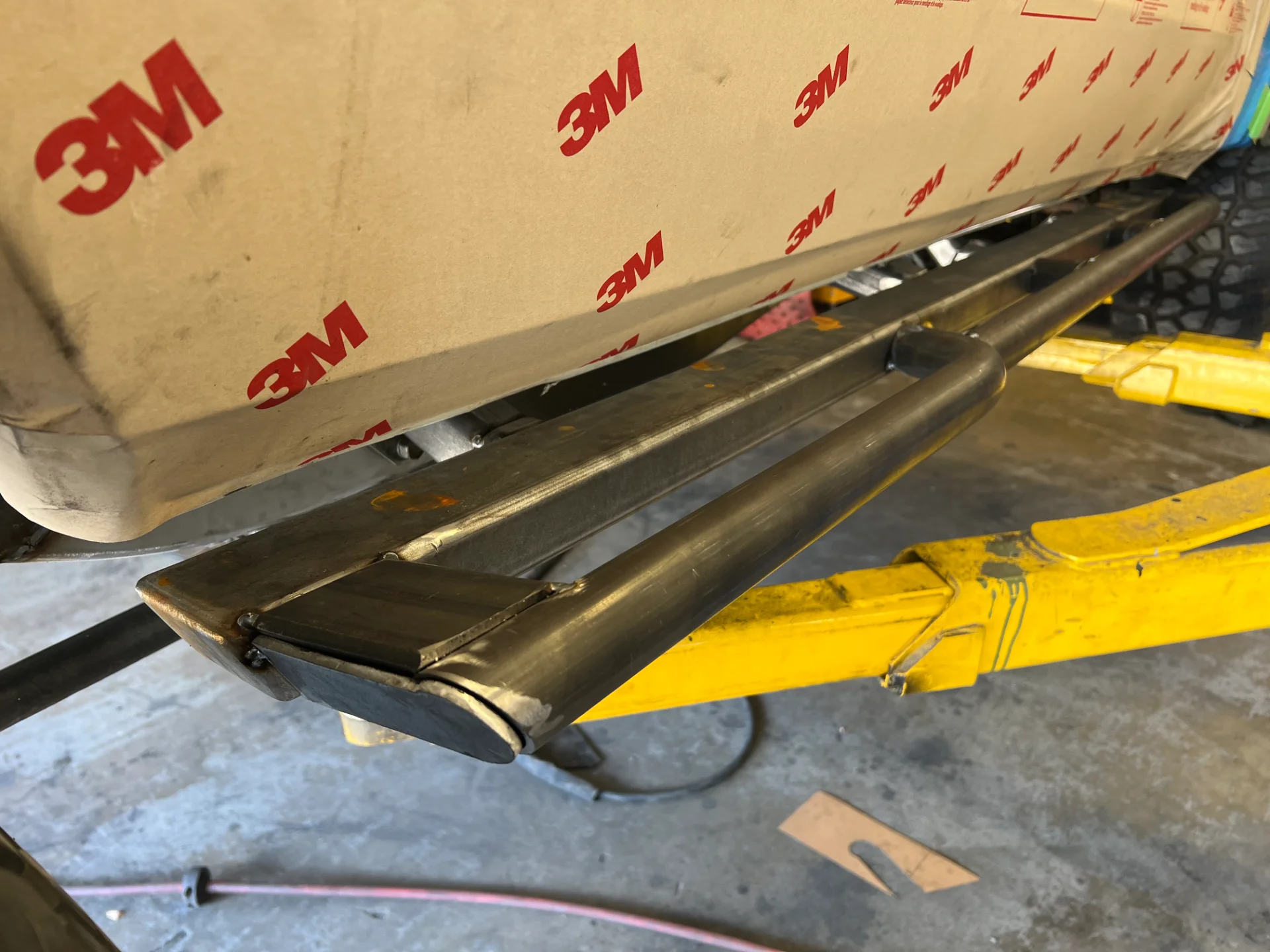

This is a slider mount, 1/2” plate tapped and frenched into the frame rails.

Cheers



[clrussell]

Are the Boulder MT staying on it? I love the look



[SNLC]

Are the Boulder MT staying on it? I love the look

Just shop roller tires and wheels. It is getting a similar size though.

Cheers



[FJ73Texas]

Headspace camper ordered. If you haven't seen these check them out, pretty awesome!

TOYOTA LANDCRUISER 75/78 TROOP CARRIER

The Headspace Campers Roof Conversion gives you two metres of standing room, up in the tent— with space to move, breathe, and actually live inside your vehicle. Set-up and pack-down happen in seconds, so you can focus on what matters: the drive, the view, the quiet in between. Every unit is...

www.headspacecampers.com

Cheers

I saw that the US distributor for headspace is an hour and half away from me. Did you order from those guys?



[SNLC]

I saw that the US distributor for headspace is an hour and half away from me. Did you order from those guys?

No sir we did not, directly from Australia.

Cheers



[SNLC]

We have decided like I say to go ahead and plate the frame with some 3/16’s. I don’t know yet what final weight of the Cruiser will be but I do expect it to weigh more than the 79-series DC we finished earlier this year. That Cruiser rolls around at 8,000lbs before packed for a trip! I would assume this Troopy will weigh more if it gets all the overland goodies.

Cheers
