Spook50 said:
ER70s3 is my go-to for solid wire. I wish my welder had enough power to run spray arc honestly. Hot, fast and furious, but I can lay some gorgeous beads with it. Recently I had to go electrode negative flux core to go fix a friend's tractor in central WA. I would've preferred to use 6010 rod on it but I don't have a buzzbox, just my Millermatic. Interesting that FCAW had such high failure rates. We didn't do RT or MT testing for our certifications, all we did was a visual and bend test. My test plates were flawless for that at least, so now I'm curious to see how they would've fared for RT and MT.
Click to expand...

I come from a oil and gas/cryo/nuc background. Anytime I went into a code fab shop and they wanted to run FCAW I said that was fine but we were going to 100% RT on all welds and my company refused to pay for repairs or materials ..... they changed their tune FAST and went to solid wire without a debate and submitted new WPS' and PQR's.

Bend test depends on the radii bent. An API 2" bend test... Someone that takes their time with a oxy torch and bailing wire can pass it. ASME B31.1- 6G - 1/2" radius on .436" or a super coupon (.625") to test for all thicknesses is a different story. Bend test root and cap. Most think bending the cap is good enough, but it's what separates the field.

I still xray samples from time to time to make sure myself and my equipment are in order.

J

Last edited:
TRAIL TAILOR said:
I have been asked on countless occasions why I have product threads (racks and sliders mainly) on the other boards but not on the 60 forum. Well... not sure, I guess I "ASSUMED" most knew me and my offerings and my passion for the 60 series.

Sliders, racks and custom one-off bumpers not to mention several other 60 offerings.

Racks are NOT on the website as there are just too many options to consider. Please PM or email me if interested.

60 series items:

Racks
Sliders
Bumpers
TOUGH DOG SUSPENSION KITS AND COMPONENTS
CB Antenna mounts
Adjustable rack gutter mounts and plates
Front steering skid plates
Knuckle kits w/ KOYO trunnion and wheel bearings
54mm sockets
B-pillar panel replacements
Weather strip kits
Glass lockstrip kits
Tailgate storage lids
Quarter panel storage and blanks
Molded carpet and vinyl kits
Custom carpet floor mat sets
Tow points
Rust repair panels
Rear cross member replacements
C-Channel repair kit
Engine bay apron seals
Bumper spindles (brz bearing style and new 3" tapered T-T custom)
TOYO U-joints (Made in Japan)

PLUS MISC other items and custom fabrication services.

Thank you all,

Jason and Andrea

Easiest way to look at items is on the website:

Featured Products
Click to expand...
just recv'd my steel steering skid plate & man what a BEAST! I can't wait to go run over something intrusive to test it out! lol.... are there any mods I might want to consider to the front end (MAF/ OME extra heavy springs 4" w/ shackle reversal) & ARB with warn winch? I see the dual front shocks are getting more popular

offroadin4fun said:
just recv'd my steel steering skid plate & man what a BEAST! I can't wait to go run over something intrusive to test it out! lol.... are there any mods I might want to consider to the front end (MAF/ OME extra heavy springs 4" w/ shackle reversal) & ARB with warn winch? I see the dual front shocks are getting more popular
Click to expand...

You should be good. The steel front skid weighs 37# and made of 1/4' plate wit 3/8" brackets.... It'll take a beating!

Thank you for the order.

Jason

On another note............. Another new product for Trail Tailor coming soon.

RED Winches from the UK.

RW 1.webp
RW 2.webp
RW 3.webp
RW 4.webp
RW 6.webp

recessed fairlead? Get out of town. That looks money!

I just bought another 62. I may need one of these down the line.

Will future bumpers have mounting provisions for the Red winches, or is winch mounting pretty standardized now? I dig the design of your bumpers, and would love to have one with a full bull bar on it and adjusted to compensate for a 1" body lift. I've got a laundry list of things to do on my 62 once my financial situation improves, and a new front bumper to replace my banged up OEM one is on it.

Spook50 said:
Will future bumpers have mounting provisions for the Red winches, or is winch mounting pretty standardized now? I dig the design of your bumpers, and would love to have one with a full bull bar on it and adjusted to compensate for a 1" body lift. I've got a laundry list of things to do on my 62 once my financial situation improves, and a new front bumper to replace my banged up OEM one is on it.
Click to expand...

For now the front will accept most all standard foot down winches, including the RED Winches Explorer 2 -Standard and Adventure models. I will always make a custom version for the RED Winches Hornet II and Cobra as well as the Warn 8274 upon request.

Body lift is easy enough. I'll just need to know when ordering.

J

Reedo311 said:
Got my attention, always loved your bumpers, still haven't pulled the trigger yet for my truck. Would love to see what you have in store. 60 Series please ;)
Click to expand...

Rears will mimic the new "Zerk" front and offer all the old standard options; ladder, jerry can, BBQ pit, and tire carrier.

J

So heres the scoop- I am embarrassed to say that I over estimated my capabilities with that beautiul steering skid plate you made me. While it is obviously bulletproof I am afraid with recently becoming disabled it is too heavy for me to install by myself which is not a big deal for the original setup but may be a challenge in the future for routine maintenance. It is still in it's packaging as received so would it be possible to switch over to an aluminum one that I can handle easier? After seeing the craftsmanship & practicality of the unit I would almost feel naked heading up the mountain without one but I certainly should have asked for the specifications prior to placing the order. Thanks

And the "ZERK" rear bumper is born!

Will be available without swing arms, dual arms, right or left OR single centered. Recessed recovery pockets for soft shackles, stainless pop pin slide plate, bearing style spindles and bear claw latches.

Jason

TRAIL TAILOR said:
And the "ZERK" rear bumper is born!

Will be available without swing arms, dual arms, right or left OR single centered. Recessed recovery pockets for soft shackles, stainless pop pin slide plate, bearing style spindles and bear claw latches.

Jason
Click to expand...
Can't wait to see! Will it have quarter panel protection?

TRAIL TAILOR said:
And the "ZERK" rear bumper is born!

Will be available without swing arms, dual arms, right or left OR single centered. Recessed recovery pockets for soft shackles, stainless pop pin slide plate, bearing style spindles and bear claw latches.

Jason
Click to expand...

This makes me happy. :bounce::bounce::bounce:

So I had to look at bear claw latches when you posted that and came across this:

www.rockyhinge.com

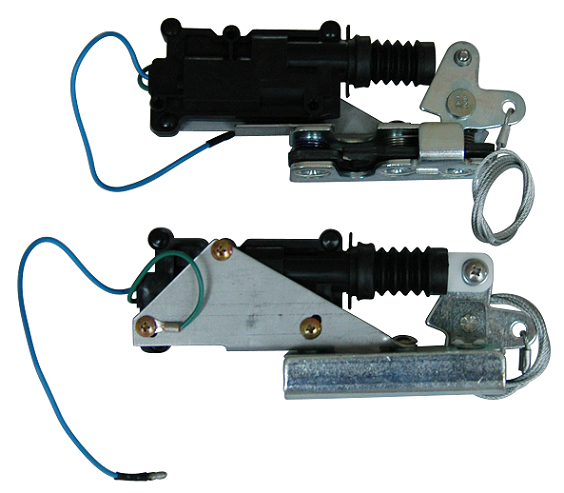

Power Bear Claw Latches

Our power latches include a built on actuator and can be operated from the outside of your hot rod with a Remote Keyless Entry Kit or a hidden external switch. Can be mounted in the door or body. Standard operation for inside lock. Comes complete with strikers, stainless mounting bolts and...
www.rockyhinge.com

So you could set these up in a way that it has a remote and gas struts to open at the click of a button.

Maybe this would be better suited on the “Dingo” thread.

NookShneer said:
So I had to look at bear claw latches when you posted that and came across this:

www.rockyhinge.com

Power Bear Claw Latches

Our power latches include a built on actuator and can be operated from the outside of your hot rod with a Remote Keyless Entry Kit or a hidden external switch. Can be mounted in the door or body. Standard operation for inside lock. Comes complete with strikers, stainless mounting bolts and...
www.rockyhinge.com

So you could set these up in a way that it has a remote and gas struts to open at the click of a button.

Maybe this would be better suited on the “Dingo” thread.
Click to expand...



Yeah those are nice, but the arm would be massive to house it... Just basic manual latches like these with a stainless steel pin.

www.rockyhinge.com

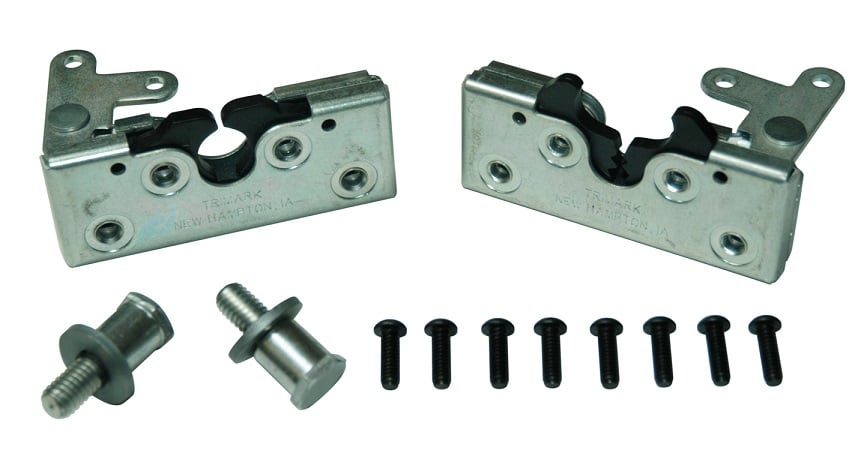

Large Bear Claw Latches

American made two rotor bear claw latches work great in doors that are 1 7/8" wider or more. Our latches are zink plated with clear chromate steel components and feature non corrosive stainless steel springs and threaded mounting holes. Our large latches measure 1 7/8" wide x 3/4" thick x...
www.rockyhinge.com

J
