TheIcemanCometh said:
I am trying to make my own wire harness for the lift gate switch. I have obtained the bezel and the switch:
https://www.amayama.com/en/part/toyota/8493060090
and the female housing connector is 90980-11013

But have not found the right wire terminal. I thought perhaps it was this one from Sumitomo
www.customconnectorkits.com

8100-0461 | Sumitomo TS 090 Female Terminal

8100-0461-L Sumitomo TS090 female terminals in stock! Order by 2pm PT for same day shipping. Free US shipping on orders $125+!
www.customconnectorkits.com www.customconnectorkits.com

but the distributor was not able to confirm.

Mr T. sells the individual wires for like $12 each which is silly expensive when the terminals and wire is like $1. Anyone know the part number I would need?
Click to expand...
I have only ever seen the repair wires, but I haven’t dug super deep on this. I do believe whatever resources are available will be in the Electrical Wiring Diagram section of the FSM vs the normal parts lookup system. But if you’ve found the connector housing you’re probably already using that resource..

TheIcemanCometh said:
I am trying to make my own wire harness for the lift gate switch. I have obtained the bezel and the switch:
https://www.amayama.com/en/part/toyota/8493060090
and the female housing connector is 90980-11013

But have not found the right wire terminal. I thought perhaps it was this one from Sumitomo
www.customconnectorkits.com

8100-0461 | Sumitomo TS 090 Female Terminal

8100-0461-L Sumitomo TS090 female terminals in stock! Order by 2pm PT for same day shipping. Free US shipping on orders $125+!
www.customconnectorkits.com www.customconnectorkits.com

but the distributor was not able to confirm.

Mr T. sells the individual wires for like $12 each which is silly expensive when the terminals and wire is like $1. Anyone know the part number I would need?
Click to expand...
If you're resourceful you could find a junk Toyota harness with a similar style connector with the same pin type and de-pin it and use what you need. We keep a bunch of old harnesses around just for this purpose.

TheIcemanCometh said:
I am trying to make my own wire harness for the lift gate switch. I have obtained the bezel and the switch:
https://www.amayama.com/en/part/toyota/8493060090
and the female housing connector is 90980-11013

But have not found the right wire terminal. I thought perhaps it was this one from Sumitomo
www.customconnectorkits.com

8100-0461 | Sumitomo TS 090 Female Terminal

8100-0461-L Sumitomo TS090 female terminals in stock! Order by 2pm PT for same day shipping. Free US shipping on orders $125+!
www.customconnectorkits.com www.customconnectorkits.com

but the distributor was not able to confirm.

Mr T. sells the individual wires for like $12 each which is silly expensive when the terminals and wire is like $1. Anyone know the part number I would need?
Click to expand...

I used Sumitomo connectors from this site for my diff locker conversion. Maybe they have what you need?
www.bmotorsports.com

Ballenger Motorsports - High Performance Electronics

www.bmotorsports.com www.bmotorsports.com

Some info here
sdnative

Post in thread 'Adding F/R lockers to 2003 Land Cruiser'

The connectors that plug into the diff are part numbers 90980-11156 and 90980-11194. The connector that plugs into the Diff Lock ECU is 90980-10801. The connector that plugs into the dash switch is 90980-10631 (same for the 100-series and 80-series).

I used these terminals for the sealed connectors:
Home » Shop » Connectors / Harnesses » Sumitomo » Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
(Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856

and these for the unsealed:
Home » Shop » Connectors / Harnesses » Sumitomo » Sumitomo...
  • Like

Thanks everyone. I have not dug into the FSM as I was able to get all of the parts via the online parts lookup - and a little help from my parts source.

A while ago I did find this terminal from Ballenger Motorsports:

www.bmotorsports.com

Home » Shop » Connectors / Harnesses » Yazaki » Sumitomo 2.3mm Unsealed Female terminal for Toyota Repair Wire 82998-12170

Ballenger Motorsports Sumitomo 2.3mm Unsealed Female terminal for Toyota Repair Wire 82998-12170 (CONN-100989) for only $0.39!
www.bmotorsports.com www.bmotorsports.com

The blade with is right width best I can tell.

I will try to dig into the FSM. Are folks downloading the FSM via the links in this MUD thread? Or is there a better source?

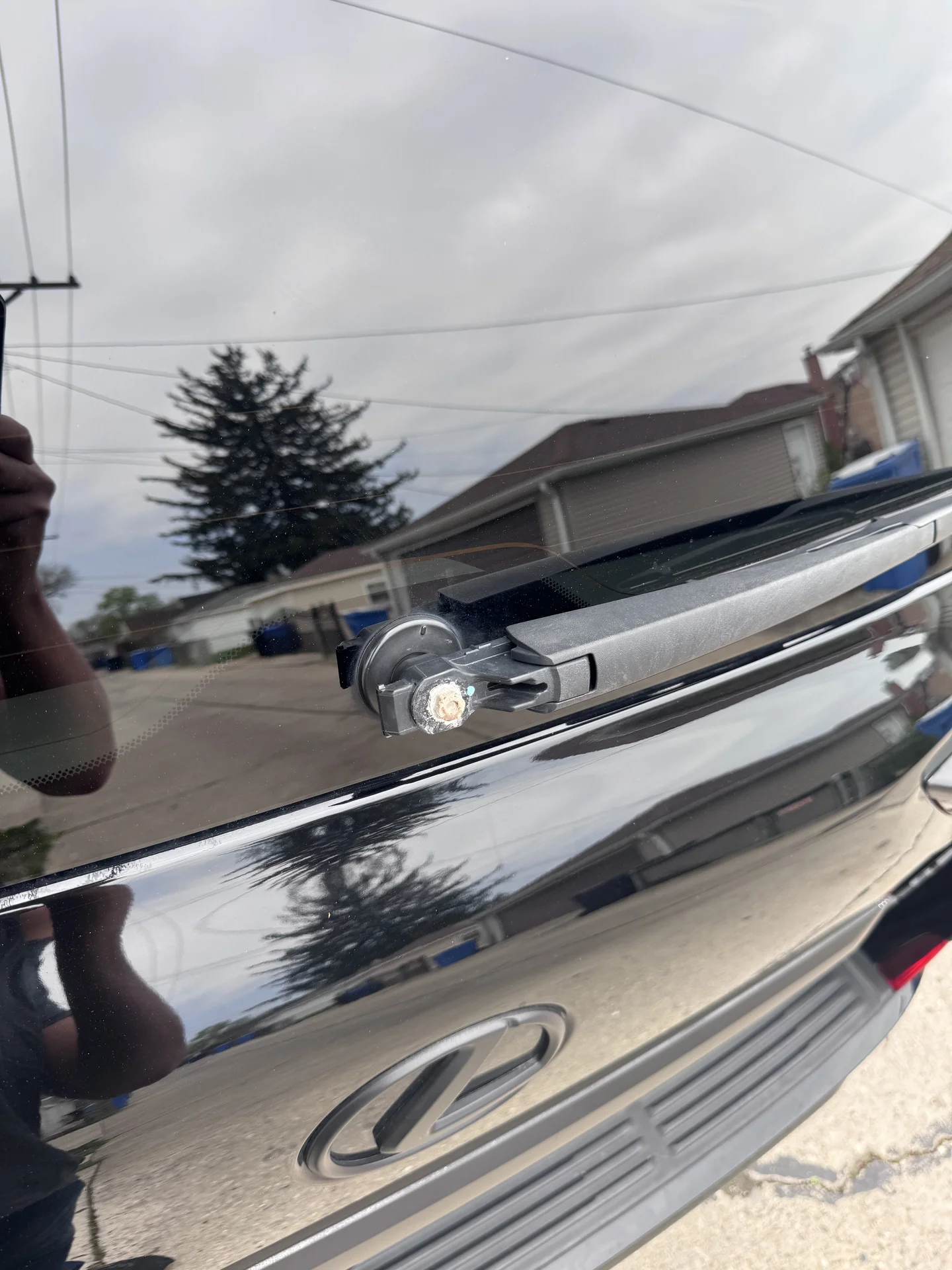

Need this cap. Must have fell off during a car wash. 2017 LX570.


Got this one on ebay but it didn't fit.


prharper said:
Question on TRD brake pads.
I have ordered the following in the past:
Front (2016+) TRD Pads - Part Number: PTR09-0C111

I have some notes on the TRD rear pads as part # PTR09-0C110 but those don't seem available anymore.

FWIW - I placed an order with Serra for the front's late last week. Now looking at my order, appears front PTR09-0C111 are no longer available either...
Click to expand...
I received my order of TRD front brake pads today. That was a nice surprise and apparently still in production.

I have a hose with a hole in it in my evaporative emissions system leading to very small vacuum leak OBD2 code (p0456).

The vehicle is a 2016 Land Cruiser.

I am having trouble locating it in the online parts lookups.

This hose runs from the vsv purge valve bolted to the intake manifold, down to a hard line that goes to the charcoal canister. It is held on by two springy hose clamps.

Any ideas?


CharlieS said:
I have a hose with a hole in it in my evaporative emissions system leading to very small vacuum leak OBD2 code (p0456).

The vehicle is a 2016 Land Cruiser.

I am having trouble locating it in the online parts lookups.

This hose runs from the vsv purge valve bolted to the intake manifold, down to a hard line that goes to the charcoal canister. It is held on by two springy hose clamps.

Any ideas?

View attachment 4128782
Click to expand...
Charlie - looks like this one:

HOSE, FUEL VAPOR FEED, NO.1​

Part number: 2382638010​


Thank you very much.

Ordered. $24.32 list. I got it locally, since even the discounted price at online parts places was more expensive once shipping was included.

Last edited:
So I got the black window moldings ...and now I am wondering if there are other OEM parts that are grey/black for the LX570 or LC..
anyone have any part numbers for the Lexus emblem/LX570/door handles etc (if it even exists in black)..
those giant trim pieces on the back in silver is something i want to black out.


check out this car on carmax...


Last edited:
Sajan said:
So I got the black window moldings ...and now I am wondering if there are other OEM parts that are grey/black for the LX570 or LC..
anyone have any part numbers for the Lexus emblem/LX570/door handles etc (if it even exists in black)..
those giant trim pieces on the back in silver is something i want to black out.


check out this car on carmax...

View attachment 4132202
Click to expand...
I'm on the move with limited ability to search but this was covered a number of pages back in this thread.

bloc said:
I'm on the move with limited ability to search but this was covered a number of pages back in this thread.
Click to expand...
let me start browsing this thread

EDIT: found it but unfortunately the parts I wanted are not mentioned.



Dyer Maker

Post in thread 'The official part number request thread'

Boston Mangler said:
Maybe find a VIN of one somewhere and then use that on a toyota parts online website to get the specific specialized parts

I do this with my Ram sometimes

I used a friends VIN that has the “night edition” to get those headlights for mine (peasant model)
Click to expand...
Yeah, definitely sound advice. I've already started, but was hoping someone was able to verify my work and fill in some gaps.
Might help someone else out down the road when they're doing a search for their project.
Updated list below:
  • Gloss alloy wheels (42611-60E50 / caps 4260B-60470)
  • Front grill (53101WQ040 or...

Last edited:
Sajan said:
let me start browsing this thread

EDIT: found it but unfortunately the parts I wanted are not mentioned.

View attachment 4132245

Dyer Maker

Post in thread 'The official part number request thread'

Boston Mangler said:
Maybe find a VIN of one somewhere and then use that on a toyota parts online website to get the specific specialized parts

I do this with my Ram sometimes

I used a friends VIN that has the “night edition” to get those headlights for mine (peasant model)
Click to expand...
Yeah, definitely sound advice. I've already started, but was hoping someone was able to verify my work and fill in some gaps.
Might help someone else out down the road when they're doing a search for their project.
Updated list below:
  • Gloss alloy wheels (42611-60E50 / caps 4260B-60470)
  • Front grill (53101WQ040 or...
Click to expand...
You might find some overlays if they don't make stock parts.

Hi, please help with part numbers for transfer case and transmission seals, o-rings, nuts, gaskets, etc. for rear and front side, also for the o-rings for the A/C lines (not sure how many of them and what size). Thank you.

Forgot to add - 2011 Lexus LX570.

Last edited:
You need to be way more specific than that. It is also necessary to specify the exact vehicle you are working on.

cruiserdan said:
You need to be way more specific than that. It is also necessary to specify the exact vehicle you are working on.
Click to expand...
I need to change seals on the TC and transmission on both sides (between driveshaft and transfer case, transfer case and transmission, and transmission and engine) and o-rings on the A/C lines.

avrguser said:
I need to change seals on the TC and transmission on both sides (between driveshaft and transfer case, transfer case and transmission, and transmission and engine) and o-rings on the A/C lines.
Click to expand...

90311-51008: 1
90311-51009: 1
90301-31003: 2
90311-50039: 1

90430-A0003: 2
90311-50065: 1
90179-24011: 2
90311-45032: 1

AC O-RINGS:

FRONT SYSTEM:

90069-08007: 4
90068-14011: 6
90068-14010: 4

If you need the AC o-rings for the rear system and cool box, some of them are serviced and some of them are not.
