Tailgate Key Barrel Service

Joined
Dec 3, 2016
Messages
49
Location
Sydney
Visit site
I have a tailgate key barrel that needs to be re-keyed.

Does anyone know how to remove the key barrel from the cylinder?




Joined
Apr 2, 2003
Messages
811
Location
Wyoming
Visit site
mine does not work. Had a local locksmith come out to make sure the key was correct (ignition key right?) he determined my ignition key controlled it. It only turns 1/4 turn, does not activate the motor to open the window. Any ideas what to check? Bad solenoid somewhere? Window is controlled up and down just fine from the dash.


WarDamnEagle

SILVER Star
Joined
May 20, 2007
Messages
5,206
Location
Riyadh and Auburn
Visit site
mine does not work. Had a local locksmith come out to make sure the key was correct (ignition key right?) he determined my ignition key controlled it. It only turns 1/4 turn, does not activate the motor to open the window. Any ideas what to check? Bad solenoid somewhere? Window is controlled up and down just fine from the dash.
The wiring diagram is in post #9 of the Rear Window Article thread at the top of the forum. It appears that if the dash switch works and the rear doesn't that it is either a broken wire between the junction strip (the one in the tailgate) and the key cylinder or something isn't making contact properly in the key cylinder. Have you tried to jumper the two wires that connect to the cylinder?


WarDamnEagle

SILVER Star
Joined
May 20, 2007
Messages
5,206
Location
Riyadh and Auburn
Visit site
@WarDamnEagle I'll have to take it apart again, I don't think i have a junction strip in the tailgate.
Interesting. So I just looked at the wiring diagram again. The key cylinder will have 3 wires connected. Light Blue is power. Jumper it to Light blue with black stripe to go down and jumper it to light blue with white stripe to go up. Assuming I'm reading that correctly.


WarDamnEagle

SILVER Star
Joined
May 20, 2007
Messages
5,206
Location
Riyadh and Auburn
Visit site

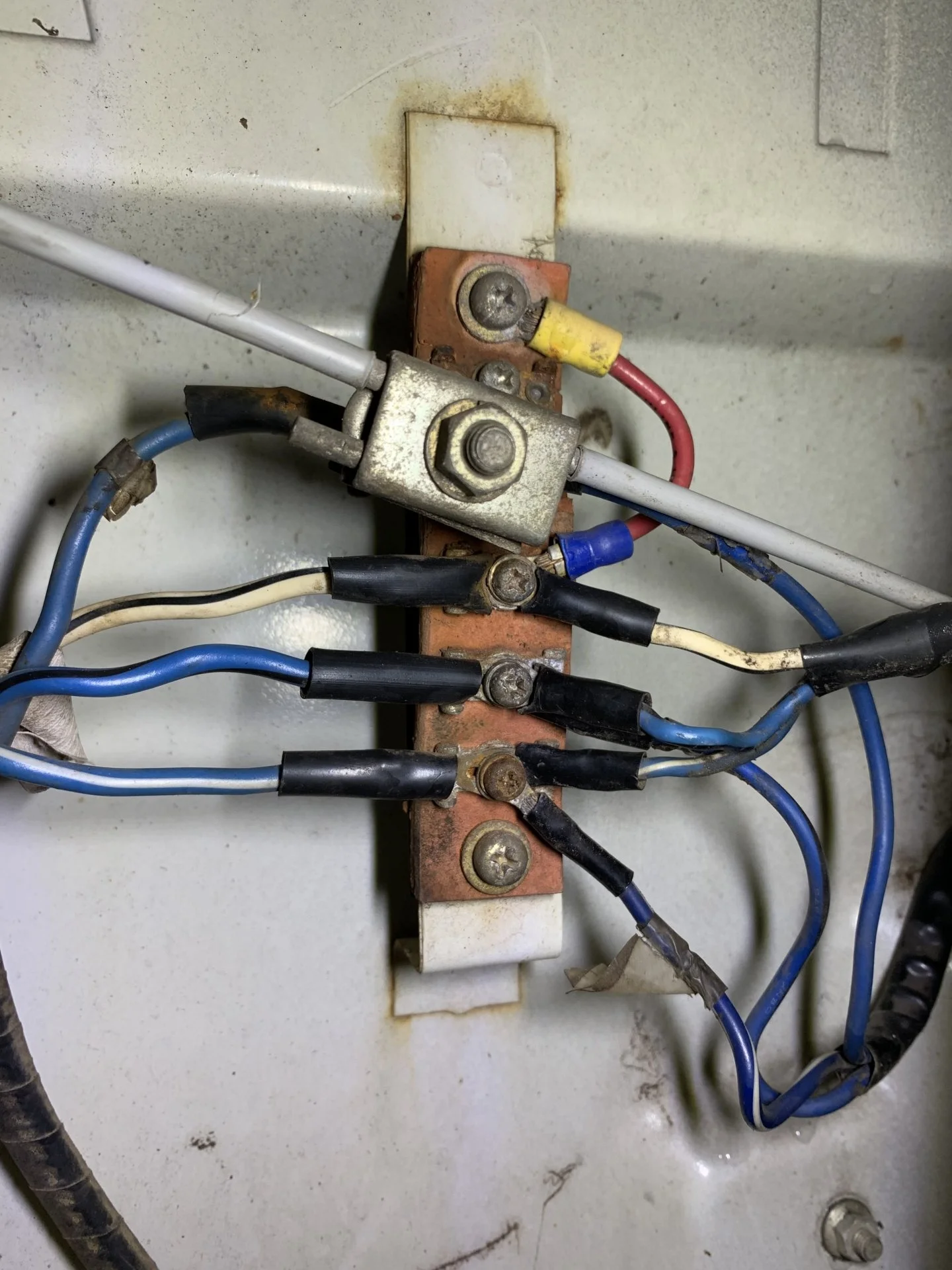

Maybe, I don't even see a spot it would have been mounted.

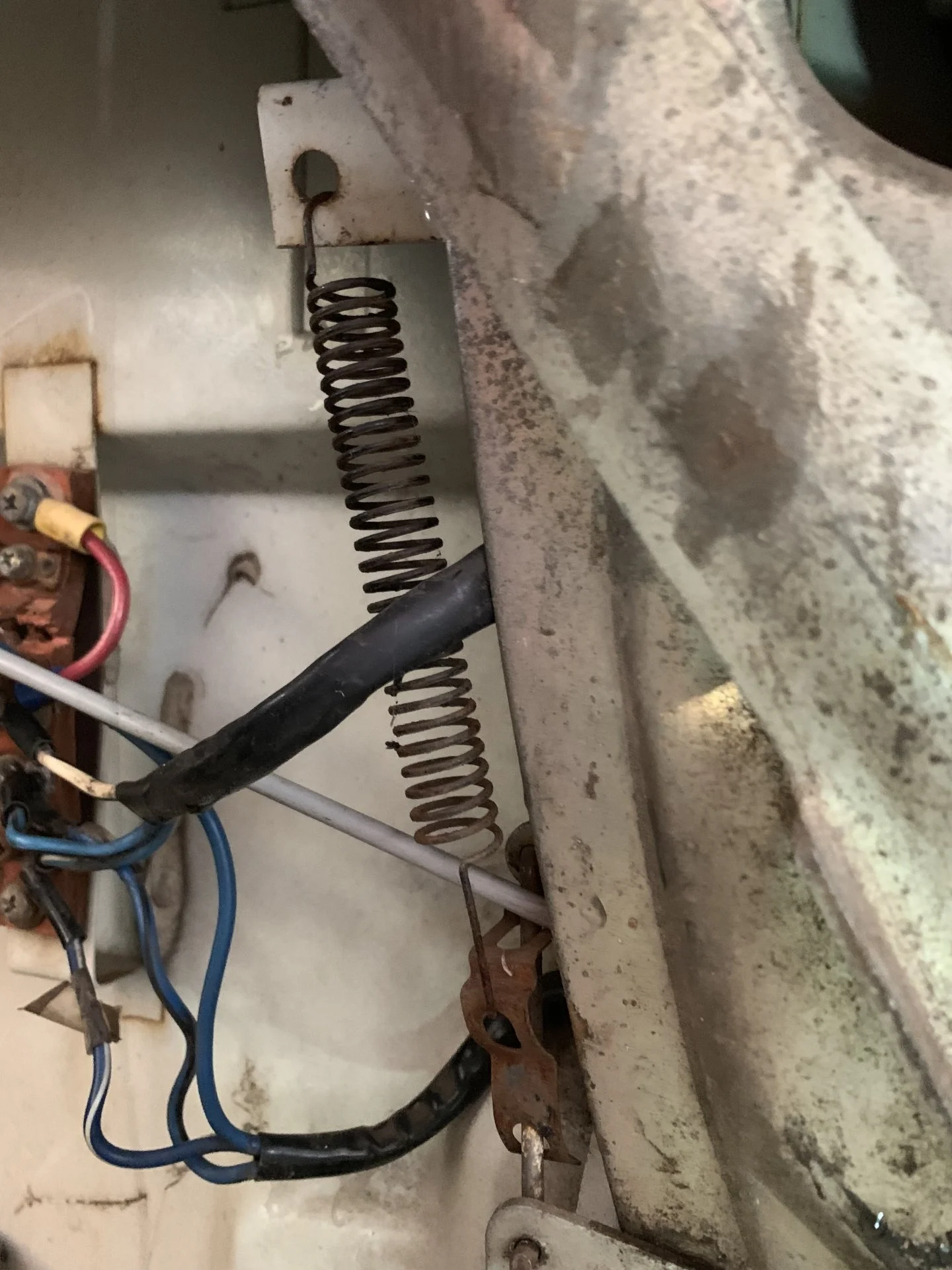

These are the best photos I have to hand. It’s mounted on a vertical tab just left of the spring on the window motor assembly. The wires can easily be connected without it. FWIW I don’t think those are Toyota connectors in your hand. Doesn’t matter though as long as it works.





Gordobe

SILVER Star
Joined
Apr 21, 2011
Messages
1,131
Location
Ojai, CA
Visit site

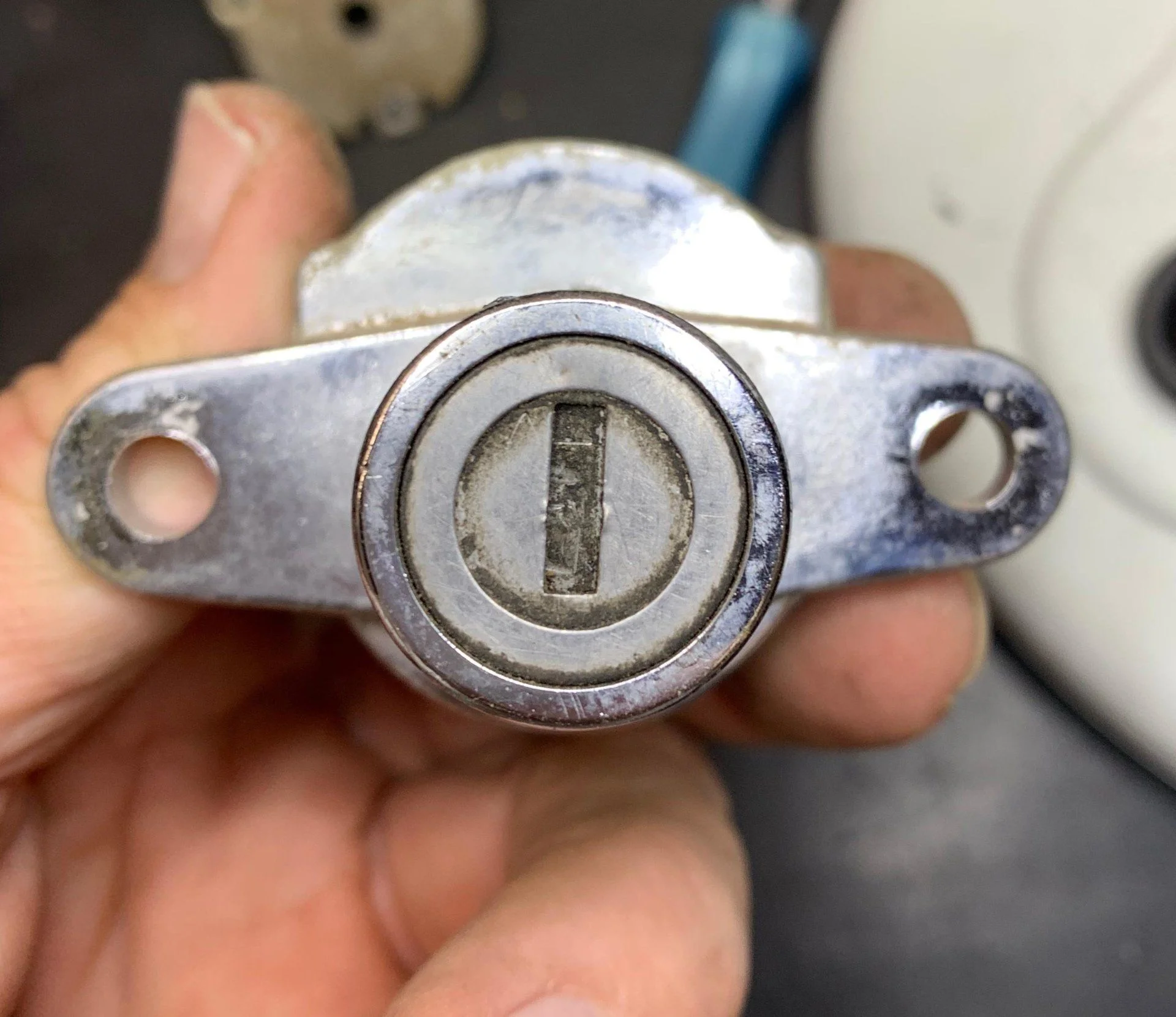

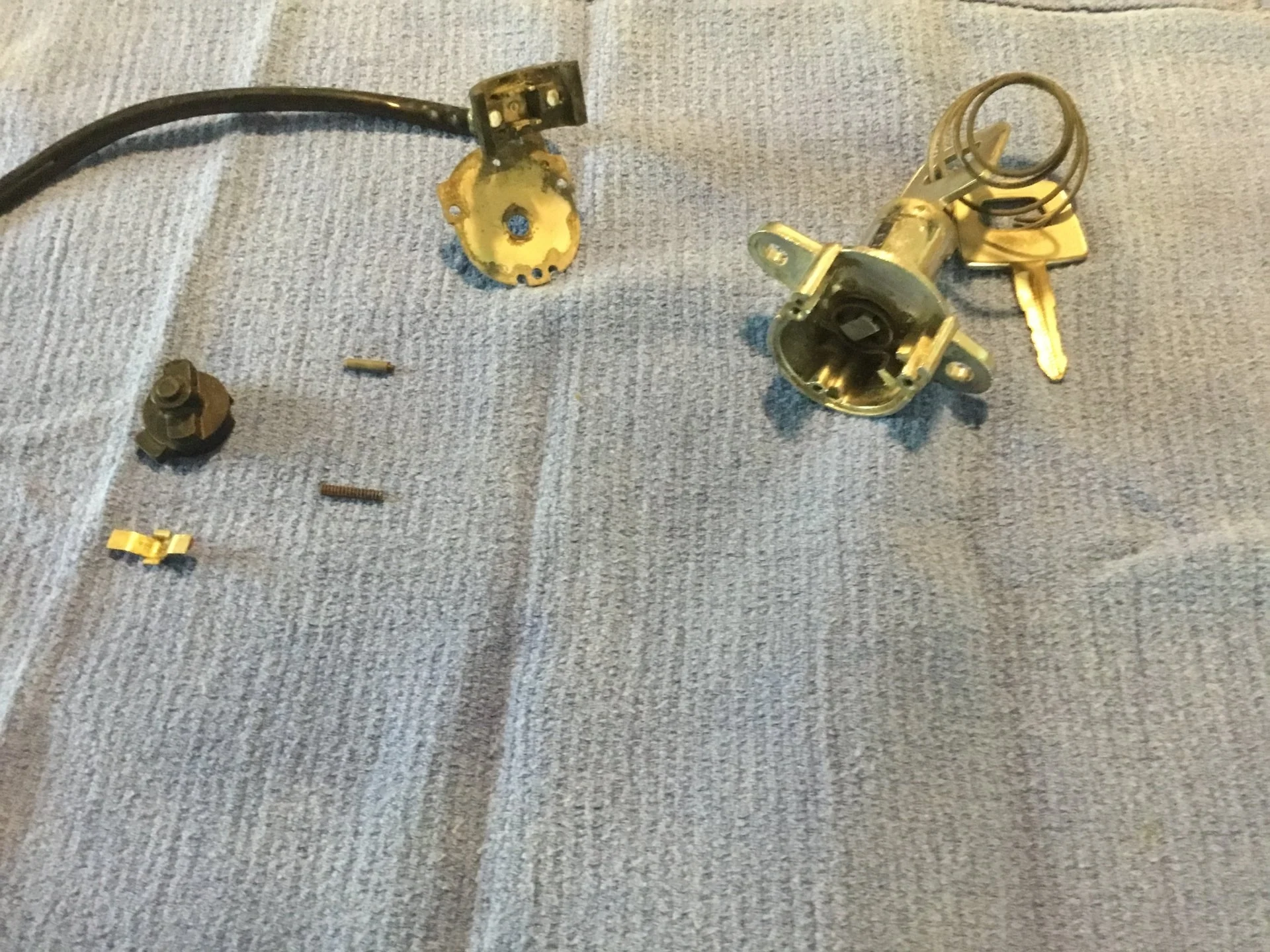

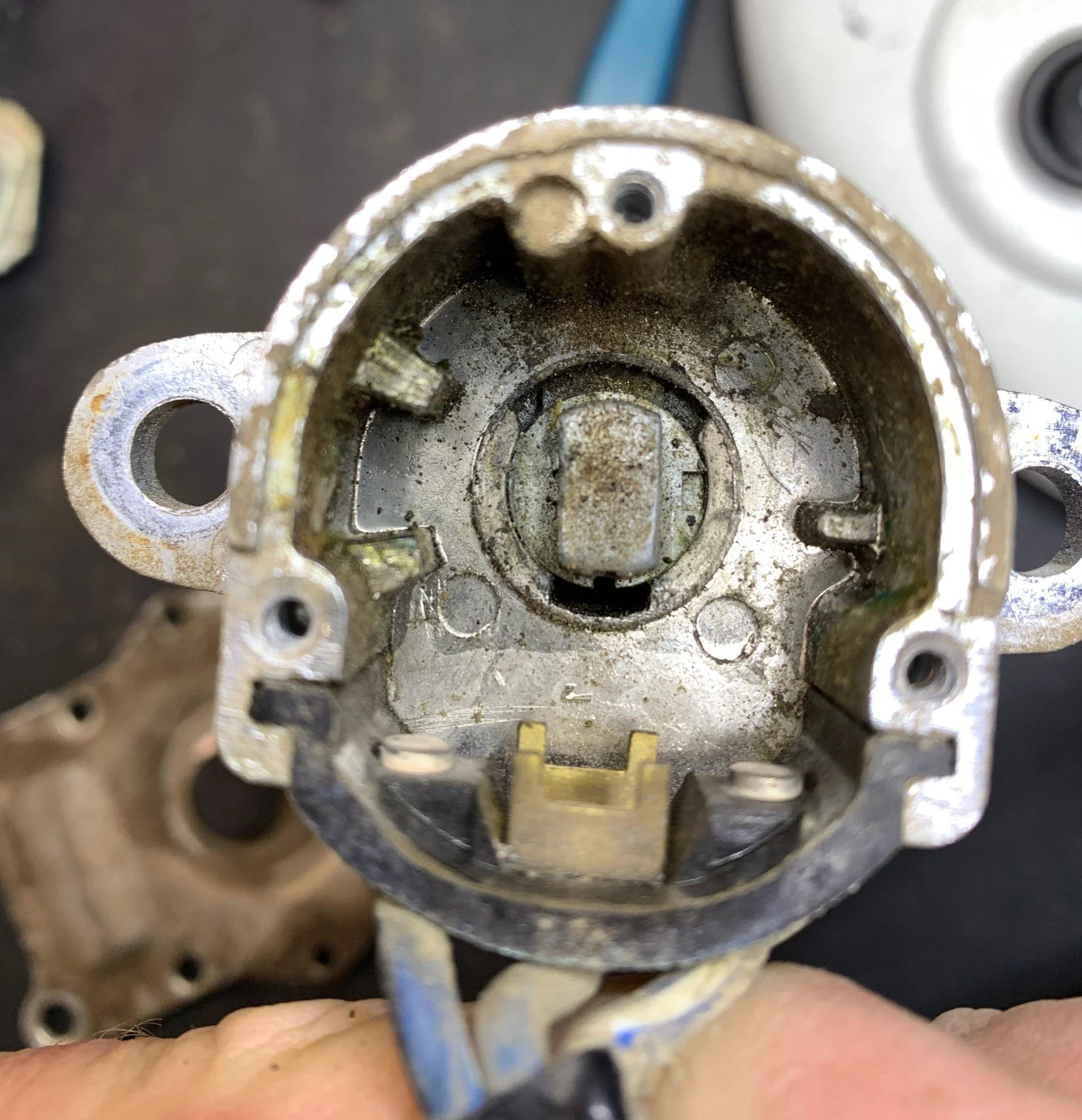

I just fixed both of my window switches. 61pwtw showed me how easy it is to take the back cover of the key chamber and clean the contacts. Super easy. One of mine the contact chamber was very dirty and contact super corrode. The other switch a wire had come off the chamber a bit more challenging put totally fixable. Take the switch out and take it apart.

buss bar looks correct


Ming89FJ62

Pig farmer extraordinaire
GOLD Star
Joined
Jul 31, 2002
Messages
1,665
Location
Palatine, IL
Visit site
mine does not work. Had a local locksmith come out to make sure the key was correct (ignition key right?) he determined my ignition key controlled it. It only turns 1/4 turn, does not activate the motor to open the window. Any ideas what to check? Bad solenoid somewhere? Window is controlled up and down just fine from the dash.
The tailgate key is the master switch that should operate whether the pig is running or not. The dash switch requires that the ignition key be in the on position for it to be active.
