Something timing belt-ish failed

Discussion in '100-Series Cruisers' started by chopperjamie, Feb 8, 2018.

  1. chopperjamie

    chopperjamie

    Messages:
    51
    Media:
    1
    Likes Received:
    26
    Joined:
    Jan 9, 2017
    Location:
    Seattle, Wa
    Tuesday morning I was happily driving to work and all the sudden, the truck just quit. I pulled over to the side of the freeway. It would crank but not start. I got it towed home and put the scanner on it and it returned a P0340 code. Camshaft Position Sensor Circuit Malfunction. I looked at scottm's fantastic timing belt write up :Timing Belt for Dummies writeup
    and found the picture of the drivers side cam sensor, then my heart hit my shoes. It could be a knackered timing belt.
    Last night I got the drivers side inspection cover peeled back enough to find the timing belt is all floppy on the cam gear. Great.
    1998 Land Cruiser with 230K on the clock. I have owned it for almost exactly a year and have put 16K on it in that time. The PO told me the timing belt had been changed "recently" but had no paper work and I was going to change it out this spring. I guess I waited too long.
    I have done a bunch of lurking and research on this site and it seems the consensus is most of the time valves don't crash when timing belts (or pulleys or whatever failed) fail.
    Unless someone can convince me differently, I am going to go about my business buying all the parts for a timing belt service and put it back together to the point I can crank it and do a compression test. I figure if the engine is junk and I have to replace it with a used one, I will use all that stuff anyhow.

    I have another car and a few motorcycles to get me around, so it may be a bit before I post what is going on, but I know you guys appreciate closure so I will keep you informed. More than a few times I followed a thread that the OP just fell off the face of the earth and that sucks!

    Comments or suggestions are always appreciated.
    Jamie

  2. rjones

    rjones SILVER Star

    Messages:
    154
    Likes Received:
    219
    Joined:
    Sep 8, 2016
    Location:
    Elk Grove, CA
    Bummer, sorry to hear about the inconvenience. I think you have a good plan though. Please do report back because it would great for us to be able to add one more to the non-interference column!

    Best of luck,
    rjones

    vipergrhd likes this.
  3. JPS

    JPS

    Messages:
    93
    Likes Received:
    17
    Joined:
    Jan 17, 2018
    Location:
    Florida
    Curious to how fast you were traveling when it happened? .

  4. 2000UZJ

    2000UZJ Where's My Hammer?

    Messages:
    8,792
    Media:
    32
    Albums:
    2
    Likes Received:
    303
    Joined:
    Oct 7, 2008
    Location:
    Earth
    Always change out the timing belt on these. It doesn't matter when they said it was done, redo it with OEM Toyota parts. It's cheap insurance.

    vipergrhd likes this.
  5. vipergrhd

    vipergrhd

    Messages:
    3,014
    Media:
    18
    Albums:
    2
    Likes Received:
    795
    Joined:
    May 29, 2007
    Location:
    no.california S.F.O BAY AREA (EAST BAY)
    Get an Aisin kit which comes with everything you need, replace cam seals and crank seal and forget about it. Let us know what happens.

  6. REZARF

    REZARF

    Messages:
    4,294
    Likes Received:
    1,362
    Joined:
    Sep 8, 2003
    Location:
    Bozeman, MT
    I agree, I just did mine a few weeks ago, its a :banana::banana: job at most it just takes a bit of time... like 10 hours.

    However, if it is flopping around inside the inspection cover then something went really really wrong. We have seen lots of folks say that the cruisers have fired right back up after this... leading us to believe it is a NON interference motor when Mr. T says it is.

    I think your plan is solid. I found an awesome (OEM parts) kit on amazon for under $200. I would recommend replacing the Thermostat, tstat gasket, any coolant hoses that need it, all your radiator coolant (Toyota red) and the pesky heater "T's" while you have it drained.

    You'll be up and running again. It can only go up from here boss, keep your chin up.

  7. chopperjamie

    chopperjamie

    Messages:
    51
    Media:
    1
    Likes Received:
    26
    Joined:
    Jan 9, 2017
    Location:
    Seattle, Wa
    Thanks rjones,
    An inconvenience it is, but that is all. I love this truck and it has gone from Daily Driver status to project. I will keep you informed and I hope I am in the non-interference column!!!!!

    JPS, I was doing about 50mph at the time. I didn't hear any noise, but then again I was listening to my stereo at a rather high volume at the time.....

    I know....I know. It was on my list but I blew it. If I was a betting man, I would lay money on me pulling it apart and finding a dayco belt or Chinese idlers or something.

    A loooonnnnngggg time ago I used to work for a wholesale auto parts giant and we carried Aisin stuff. I don't remember it being bad. A quick search found a kit for $180. Would you really do this over OE?

    HA! Thanks for the words of encouragement! I will look on Amazon for that kit.
    Funny thing is I did the heater hose T's about two weeks ago thinking I was way ahead of the curve on keeping this thing alive to 500K.

    Last edited by a moderator: Feb 8, 2018
  8. JPS

    JPS

    Messages:
    93
    Likes Received:
    17
    Joined:
    Jan 17, 2018
    Location:
    Florida
    I had this happen to me at 65mph - 70.... I heard animal from the muppets beating drums under my hood. I think you would have heard no matter what if there was engine killing damage..... hopefully that’s a good sign.

  9. chopperjamie

    chopperjamie

    Messages:
    51
    Media:
    1
    Likes Received:
    26
    Joined:
    Jan 9, 2017
    Location:
    Seattle, Wa
    Funny, I used to like animal from the muppets before this. HA! I hope you are right.

    JPS likes this.
  10. nissanh

    nissanh

    Messages:
    807
    Likes Received:
    224
    Joined:
    Sep 9, 2016
    Location:
    Odessa/Midland TX
    I bought AISIN (be careful with lettering, fake brands may have a name like AISIA or something) and it is good because AISIN is the toyota's parts division. The OEM is the best and the next is AISIN. I never doubt AISIN products. You'll have to buy cam and crank seals and STAY with TOYOTA seals. If the radiator/hoses are old get those replaced with OEM or DENSO radiator and OEM radiator hoses. Did you do the heater T joints? if not, get those done as well. While the radiator is out, ask the technician to clean the AC condenser fins with air to remove debris and flies and what not trapped in there.

  11. chopperjamie

    chopperjamie

    Messages:
    51
    Media:
    1
    Likes Received:
    26
    Joined:
    Jan 9, 2017
    Location:
    Seattle, Wa
    OK. Thanks for the heads up.
    You are talking to the technician that will be doing the work, I will make certain he cleans the AC condenser fins out!! HA!

  12. REZARF

    REZARF

    Messages:
    4,294
    Likes Received:
    1,362
    Joined:
    Sep 8, 2003
    Location:
    Bozeman, MT
  13. chopperjamie

    chopperjamie

    Messages:
    51
    Media:
    1
    Likes Received:
    26
    Joined:
    Jan 9, 2017
    Location:
    Seattle, Wa
  14. Tres Toys

    Tres Toys

    Messages:
    22
    Likes Received:
    7
    Joined:
    Jan 11, 2009
    I had a similar experience a while back and was in a bit of disbelief as I had changed the timing belt, water pump, tensioner and all idler bearings out with factory toyota parts about 70k mi previously. I must have gotten a not so good bearing in the water pump as it went out and the play in the bearings allowed the belt to push to one side and finally jump out of time. I put a new water pump and timing belt in and it was good to. Your PO may have given you the straight scoop on the recent timing belt replacement, however if some other timing belt connected component such as the water pump goes out, it can cause even a new timing belt to fail. Just be sure to check all your bearings and tensioner to figure out if there was some other failure that made the belt either break or go slack. Hope you get it back on the road soon.

  15. JPS

    JPS

    Messages:
    93
    Likes Received:
    17
    Joined:
    Jan 17, 2018
    Location:
    Florida
    I think that was what happened in my case. The hose on the water pump came off/loose causing the new timing belt to jump/slack. The spray from the pump didn't make it out form under the hood to the windshield and being my first 10 mins in the vehicle, at night, didn't help either.

  16. joseywales

    joseywales

    Messages:
    528
    Likes Received:
    140
    Joined:
    Apr 16, 2006
    Location:
    Roca Blanca
    I bet you’re right on the off brand (country of origin) parts.


    Someone please correct me if I’m wrong, but I’m pretty sure Aisin is connected with Toyota and actually builds the OEM part which is stuck into baggies with red and white stickers and a 100% mark-up?

  17. Pighead

    Pighead Stop calling it an FJ

    Messages:
    7,588
    Likes Received:
    635
    Joined:
    Aug 31, 2004
    Location:
    Denverish
    Incorrect...it's a 200% mark-up

    joseywales likes this.
  18. 2001LC

    2001LC

    Messages:
    5,865
    Likes Received:
    2,006
    Joined:
    Nov 4, 2007
    Location:
    Colorado
    From the Aisin kits I've used both from @cruiseroutfit & Amazon, they seem to be identical too the Toyota. Except the belt doesn't say Toyota, it reads Mtsuboshi CD298 made in USA. I've not sliced the belts open to do a side by side comparison but I'll bet they're the same. With Cruiser Outfitters you know it's not a bootleg.

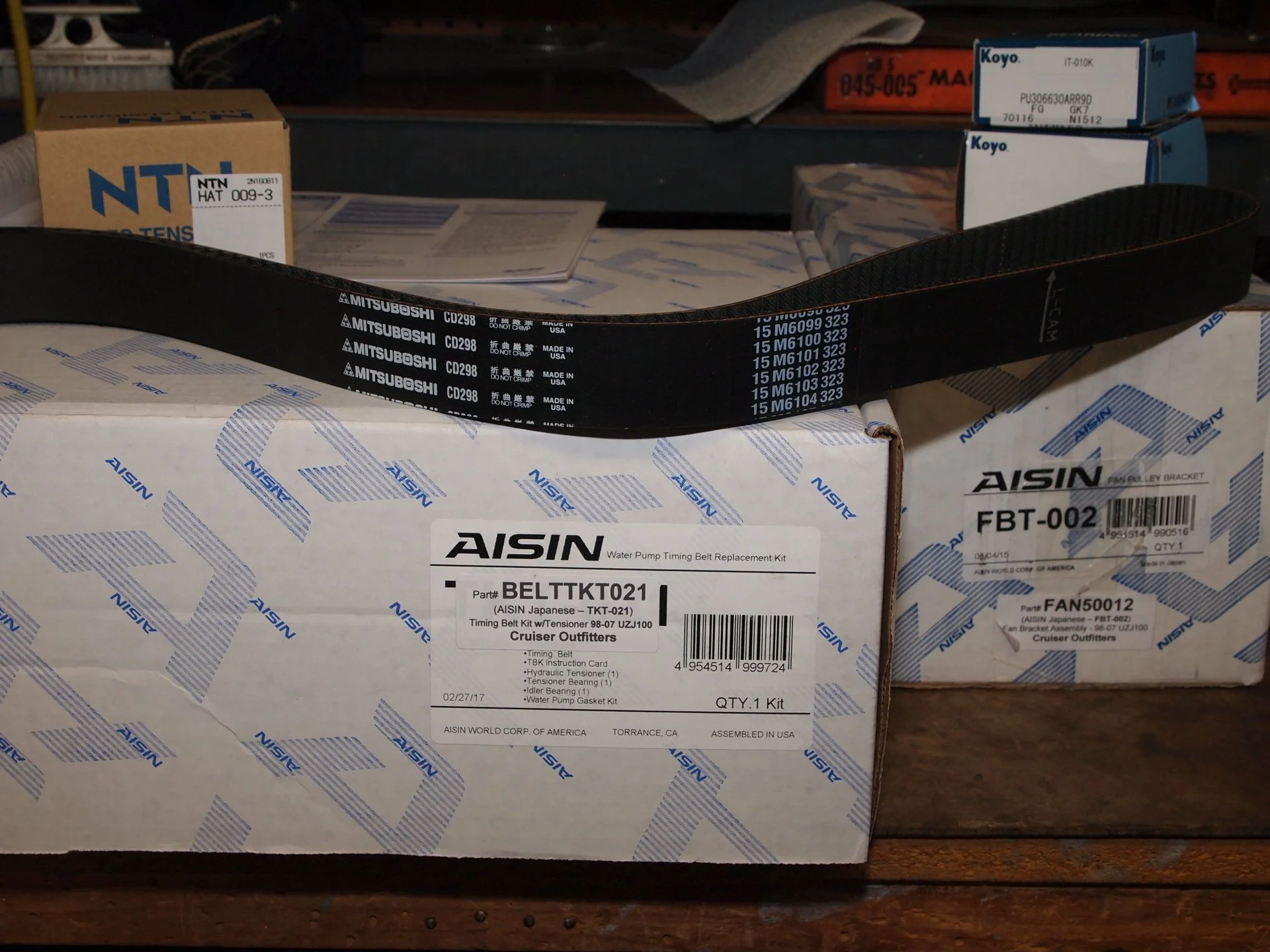

    T-belt kit w-tensioner & fan bracket (13).JPG
    A few tips you may find helpful;
    A chain wrench makes short work of the crank bolt. Protecting the crank pulley with old drive belt is nice touch.

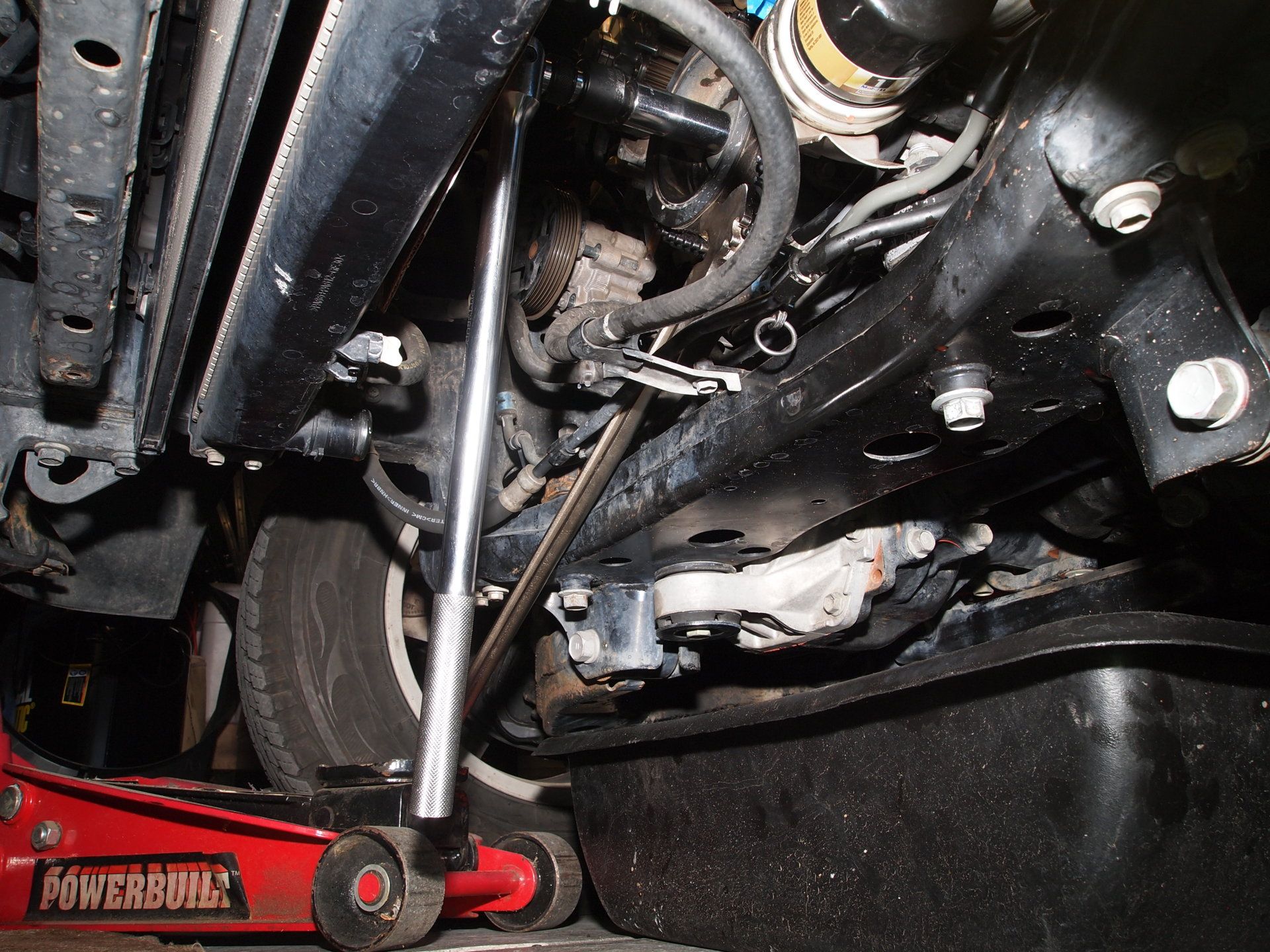

    I like to support the chain wrench with my floor jack as pull on my 3/4 breaker bar (big boy, one of my favorite tools).

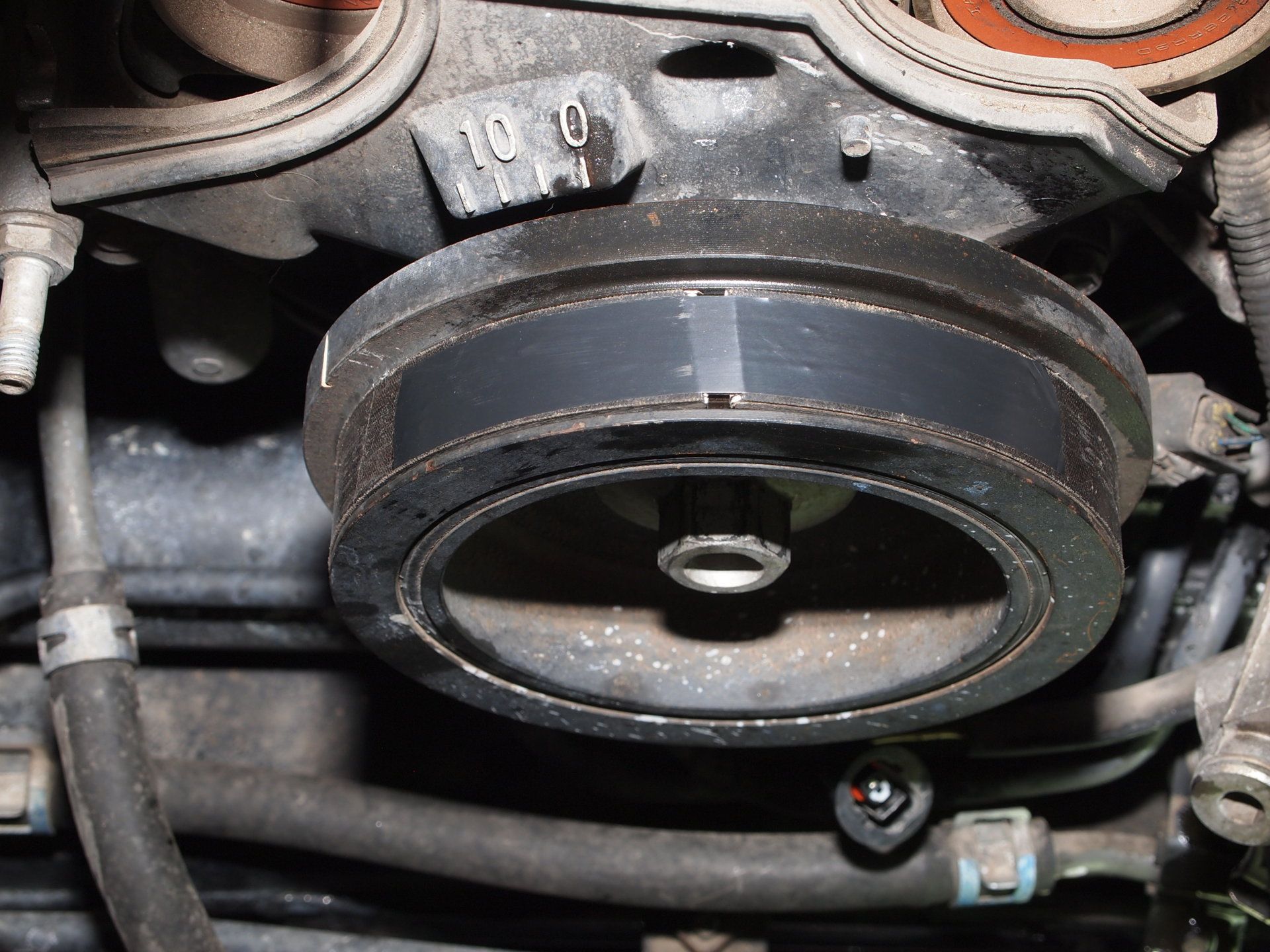

    Even shops mistakenly use the "T" as time mark. To be clear the "T" is not your timing mark.
    Timing Belt 06LC 194K 067.JPG
    Timing Belt 06LC 194K 076.JPG

    Last edited: Feb 9, 2018
  19. 2001LC

    2001LC

    Messages:
    5,865
    Likes Received:
    2,006
    Joined:
    Nov 4, 2007
    Location:
    Colorado

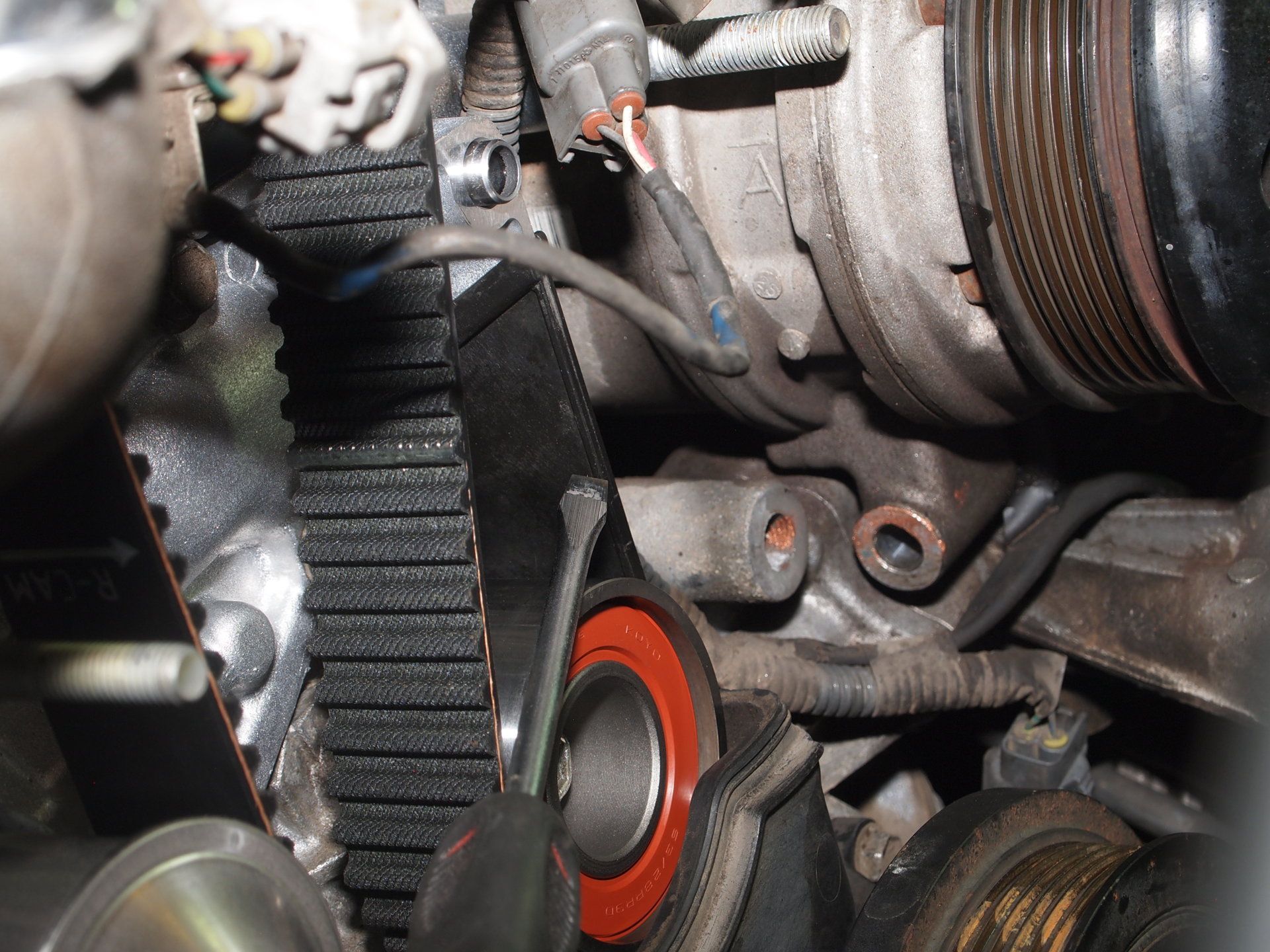

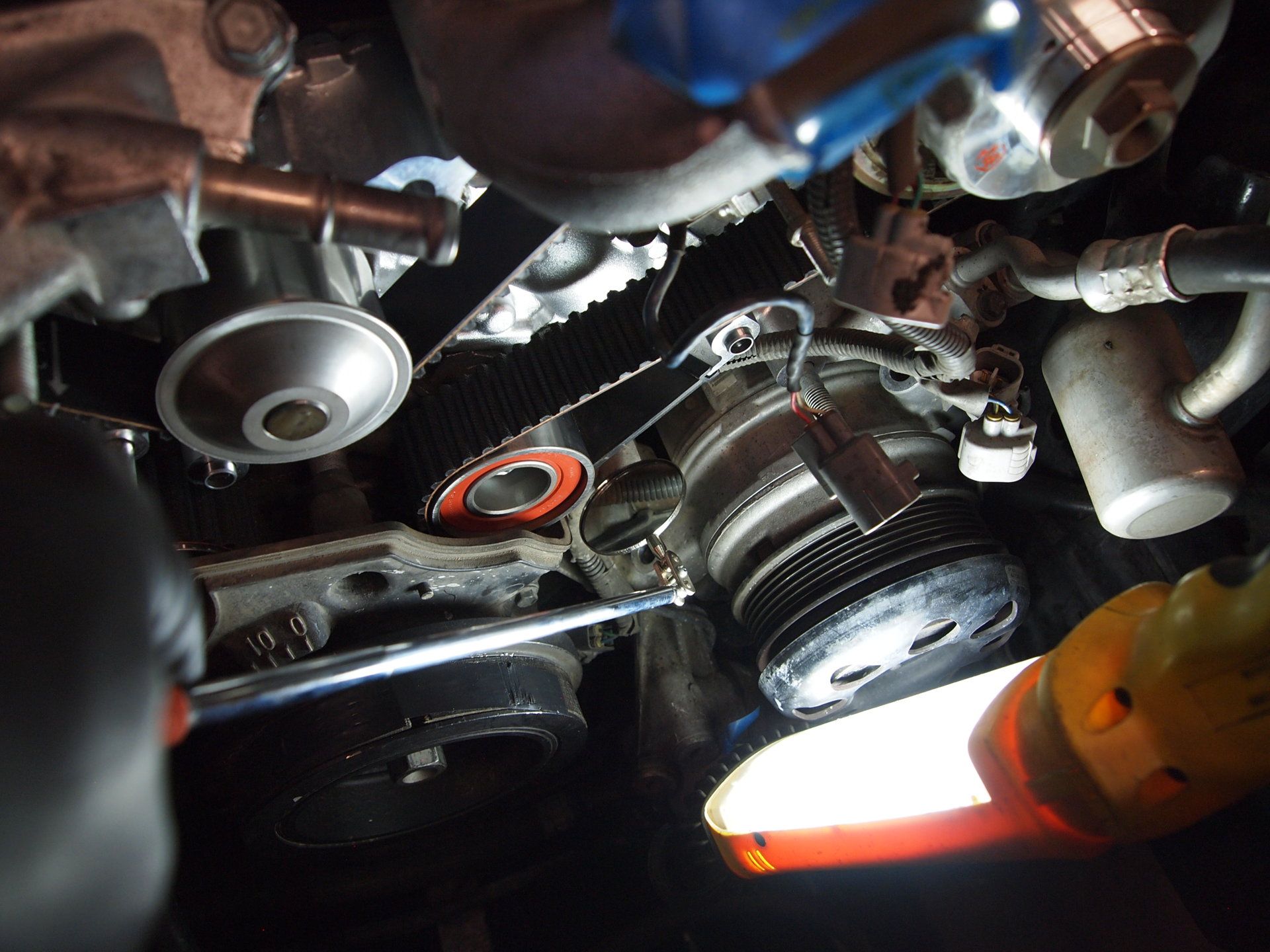

    Follow the FSM to the letter. There's one thing (IIRC that's not in the FSM clearly) so often left out, it's these two tiny plastic pieces (shield). We had a report of one mud member leaving these out. A mouse got in belt area through the opening and took out the belt. Yes that's right Mickey took out a Cruiser!

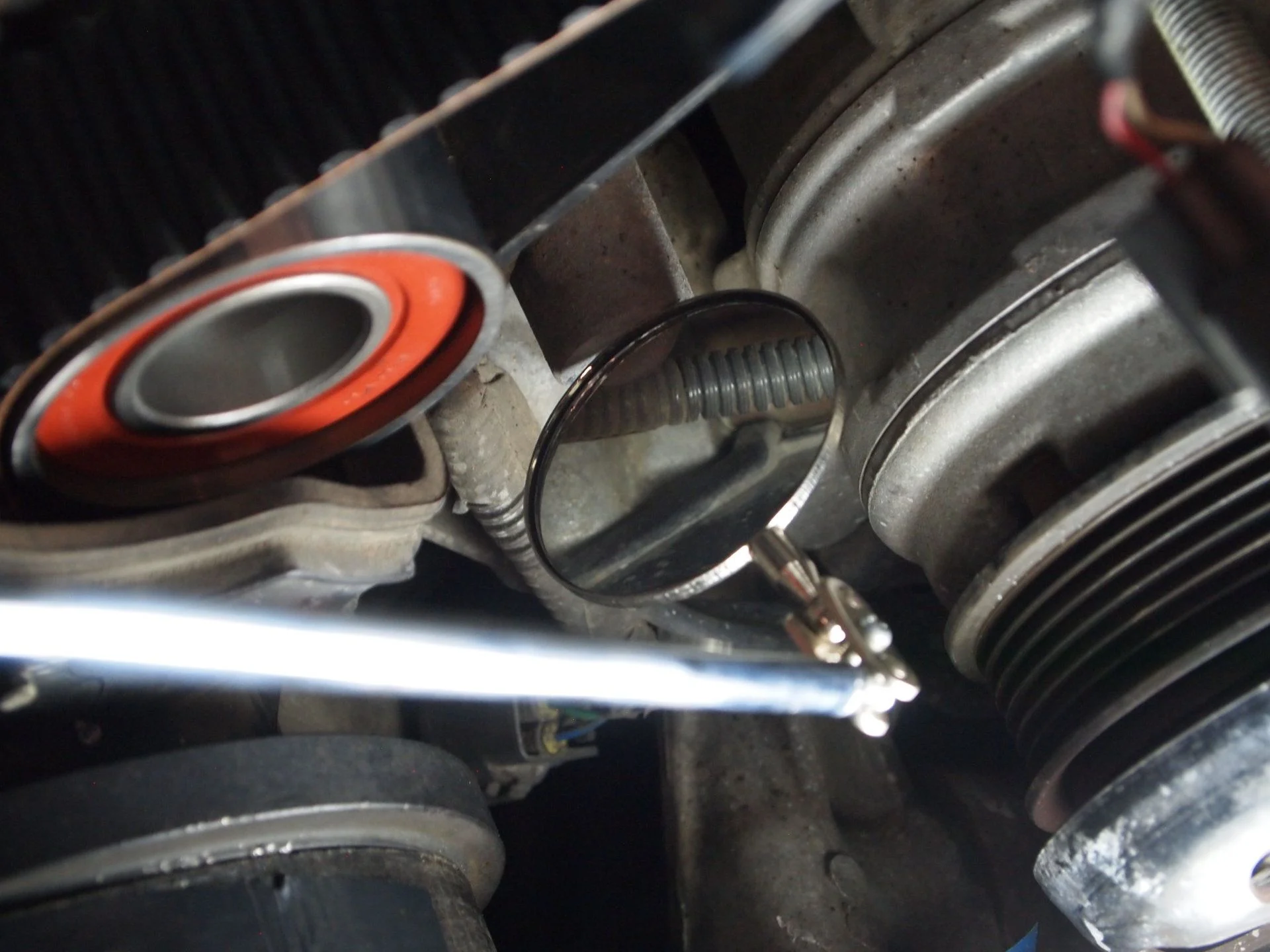

    Timing Belt 06LC 194K 077 a (2).JPG 029.JPG 032.JPG

    Oh don't forget to protect your radiator.
    A Paint & Rust removal wheel (fine or medium probably best), makes short work of clean off block.
    Timing Belt 06LC 194K 005.JPG

    Last edited: Feb 9, 2018
    rjones likes this.
  20. chopperjamie

    chopperjamie

    Messages:
    51
    Media:
    1
    Likes Received:
    26
    Joined:
    Jan 9, 2017
    Location:
    Seattle, Wa
    Like I said, a long time ago I worked for a very large import wholesaler. If you drive any import and have bought parts someplace other than the dealer, there is a 75% chance you have bought parts through this company.
    The story they told us is OEM's go to manufactures like AISIN and tell them they will buy 10 thousand water pumps but they are only going to pay something like $50 for each. AISIN knows it will cost them $60 each to make them, so they make 100 thousand of them. They put 10 thousand in an OE box and send them to Toyota who sells them for $170. The put the other 90 thousand in their own boxes and sells them for $90 each to the aftermarket and that is how the make their money.
    True or not, I am not sure but that was the story we go.

    vipergrhd likes this.
