another scab plate

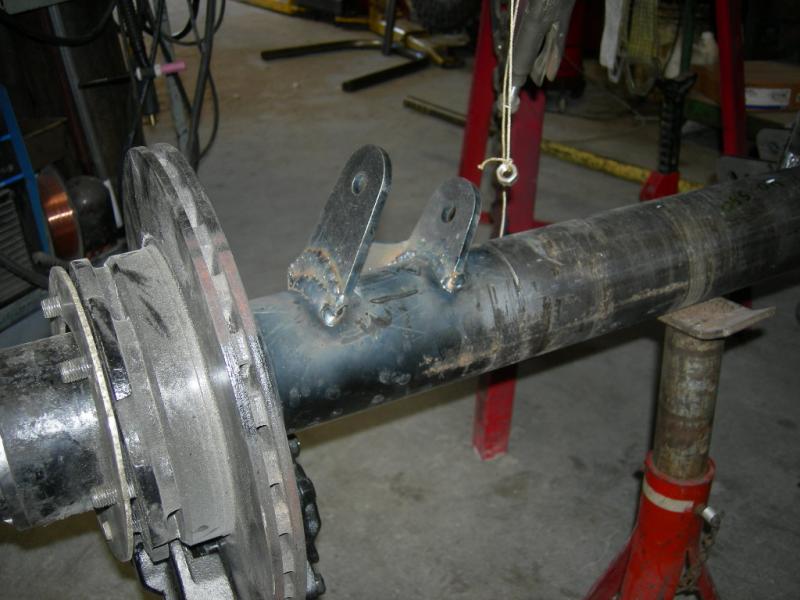

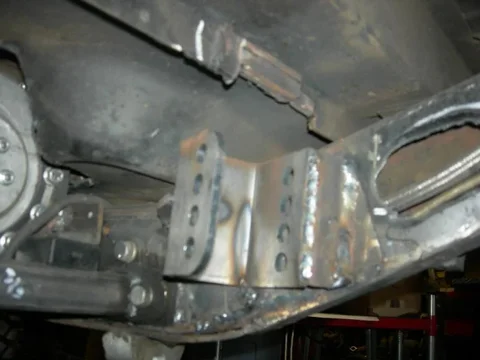

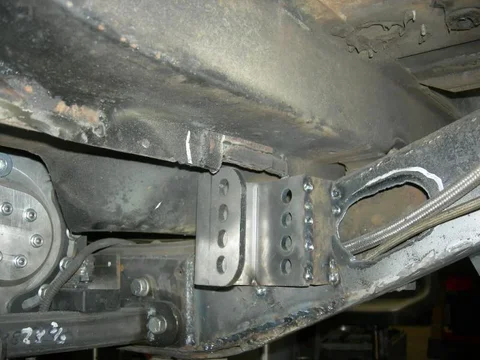

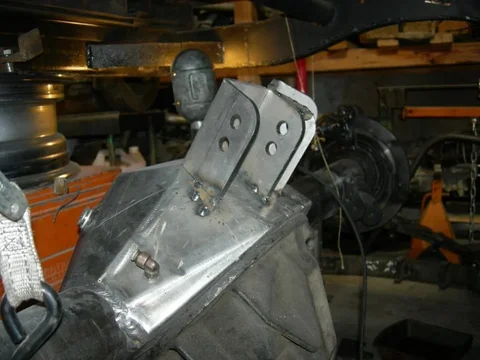

mounted the uppers frame brackets a bit rearward of the lower.

Allowed me to mount the bracket a bit higher due to clearance issues

I will make up the difference on the axle

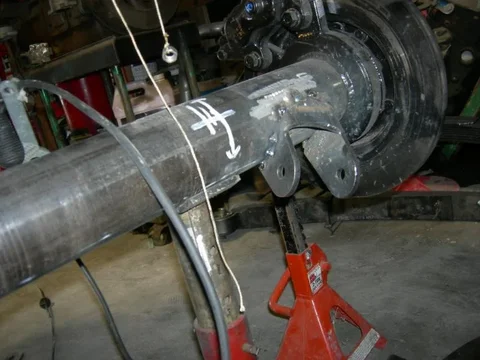

upper axle end. I am going to move them back a bit to the axle center line




thats it for now



[mrqtipp]

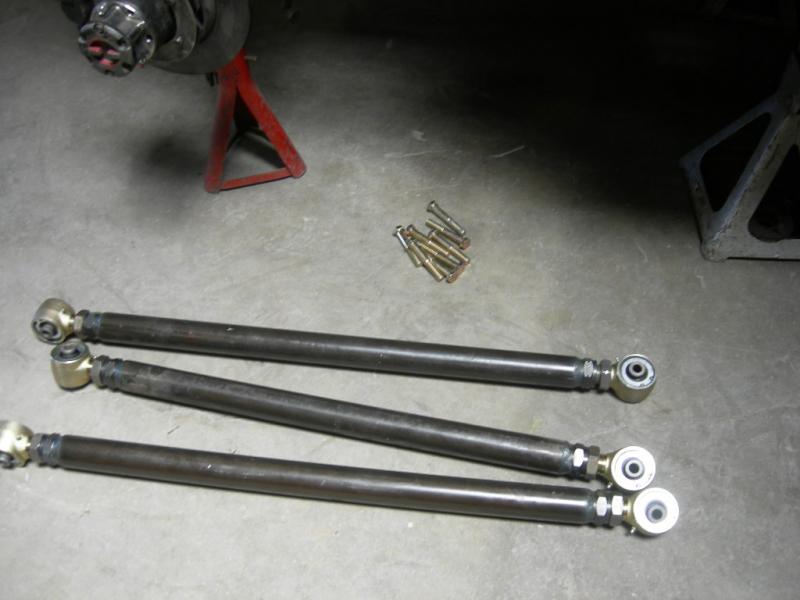

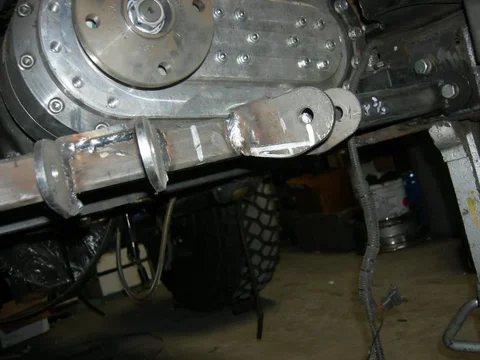

lower links with mods



[mrqtipp]

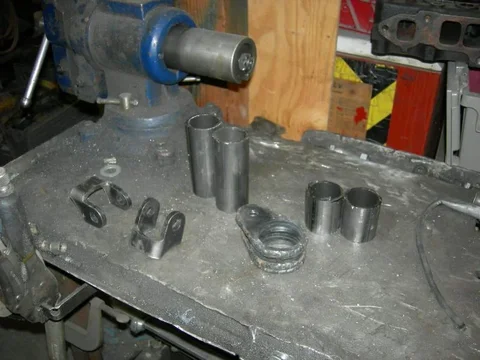

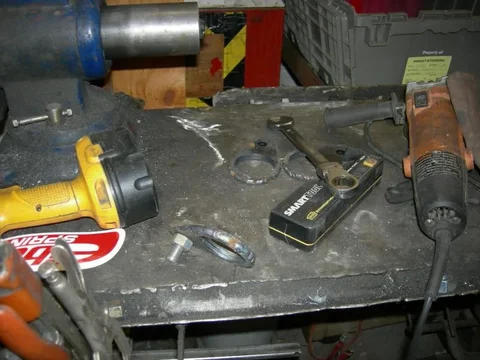

Started to make the links



[mrqtipp]

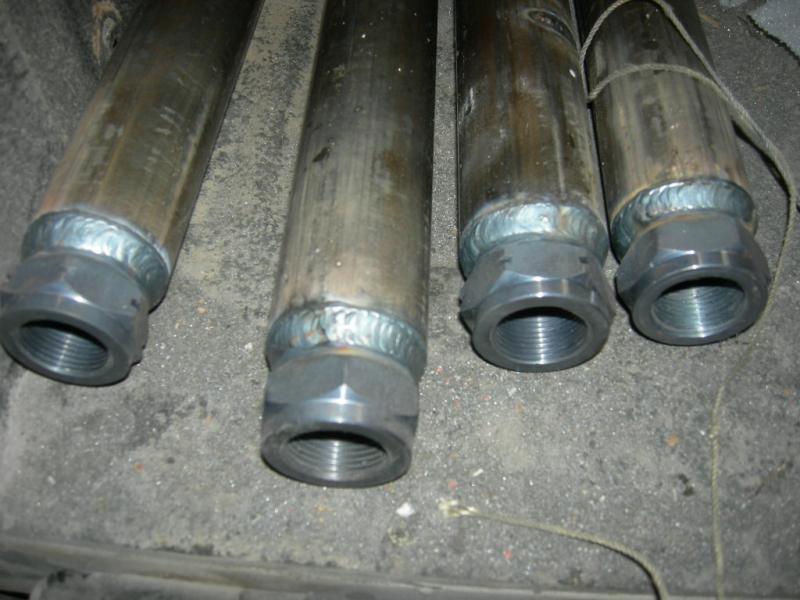

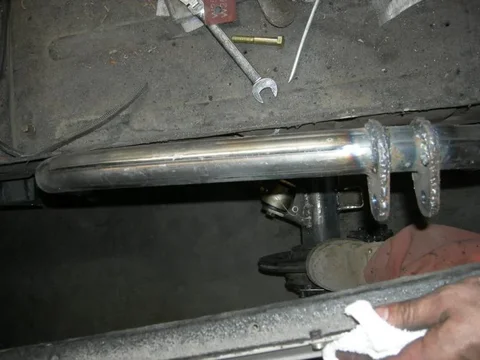

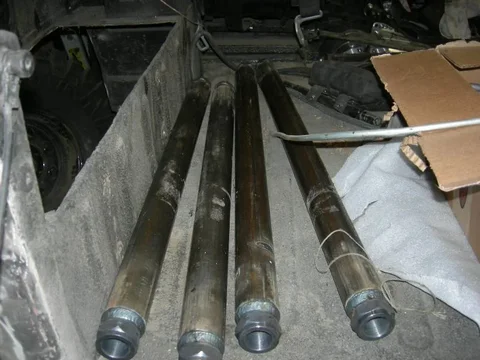

links all welded up





JJ's



[mrqtipp]

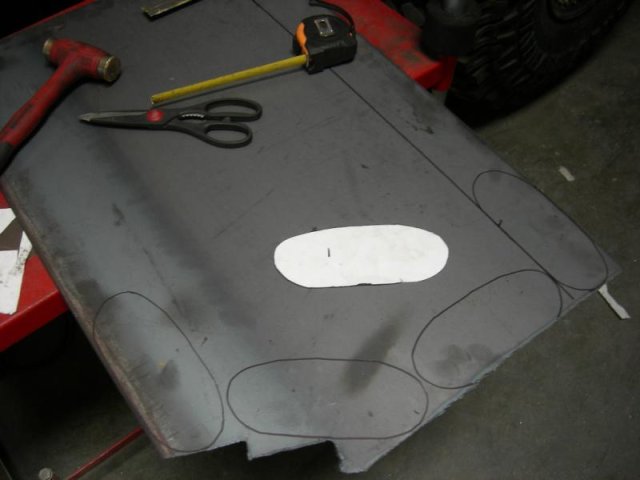

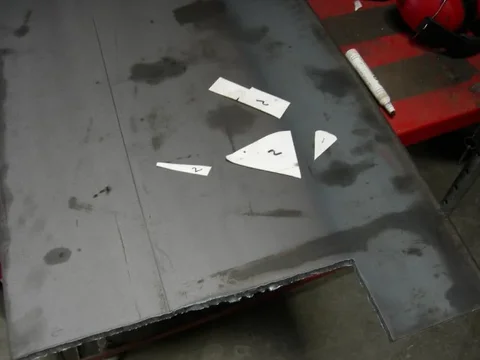

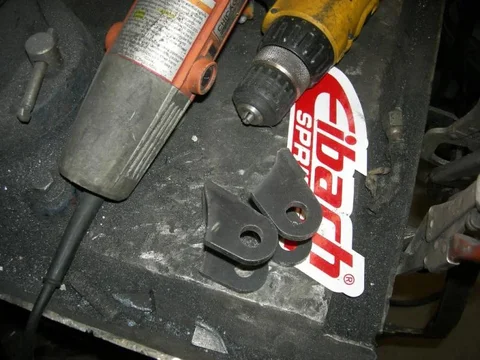

gusset templetes



uppers



[mrqtipp]

lowers


uppers with some lateral support mocked up



[mrqtipp]

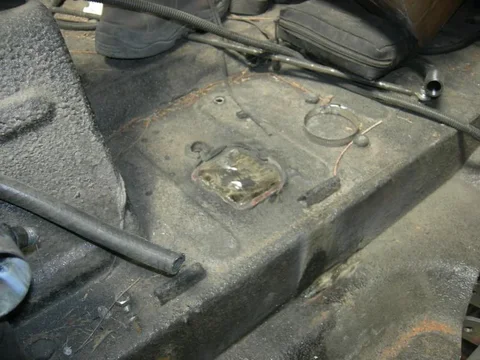

floor repair



[mrqtipp]

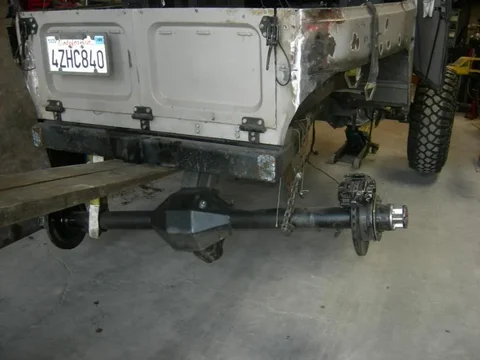

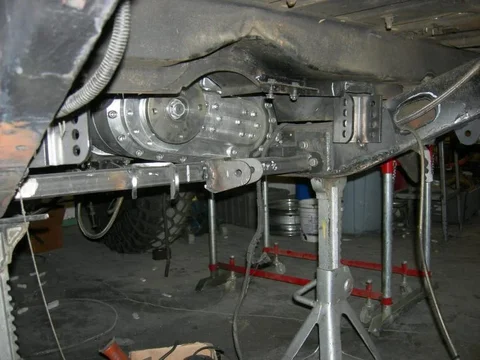

had to move the truck around

to change front springs



[mrqtipp]

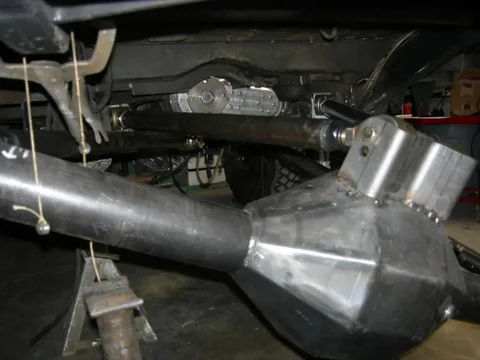

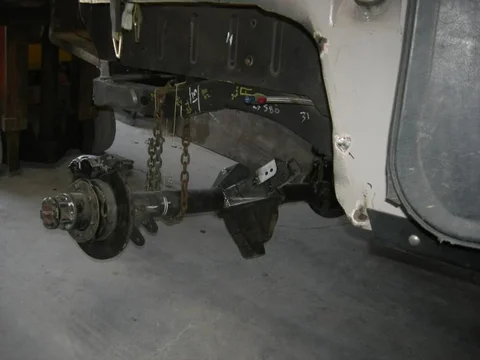

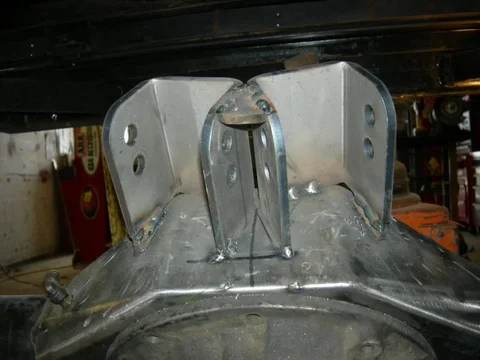

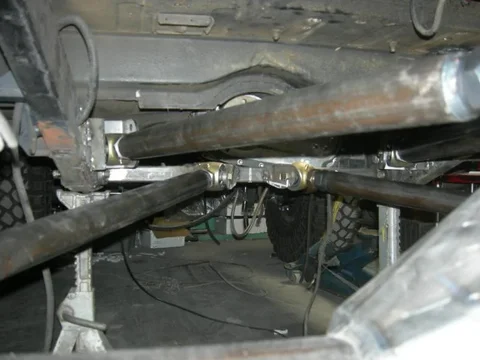

uppers axle end mocked up

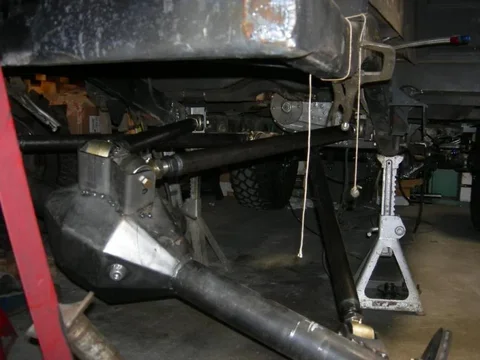

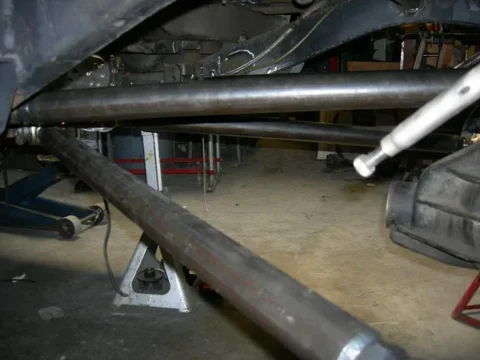

links mocked up



[mrqtipp]

more link pics





passenger drop



[mrqtipp]

more pics





At full drop the lowers get into the uppers a bit but it might not be in issue

we will be see later



[mrqtipp]

everything looked pretty good in mock up so I started to burn everything in



[mrqtipp]

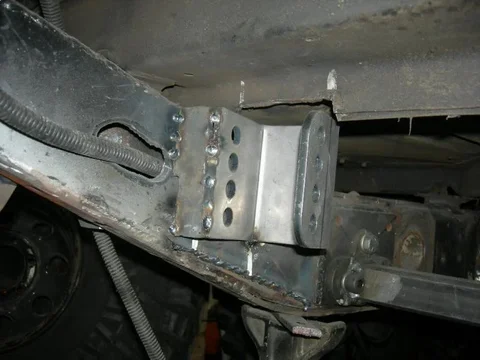

lowers frame end



uppers burned in



[mrqtipp]

welded a gussett on the uppers for support

the frame started to bleed old oil stains



[mrqtipp]

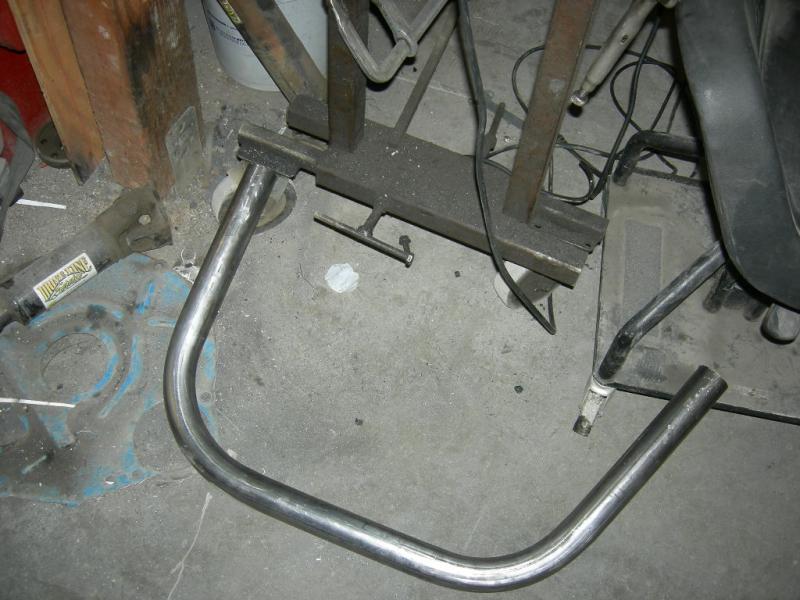

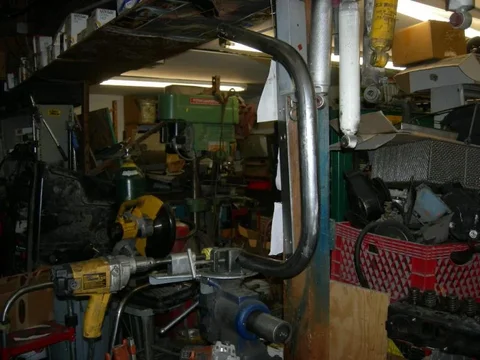

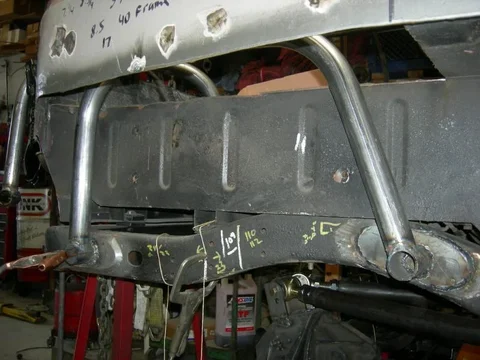

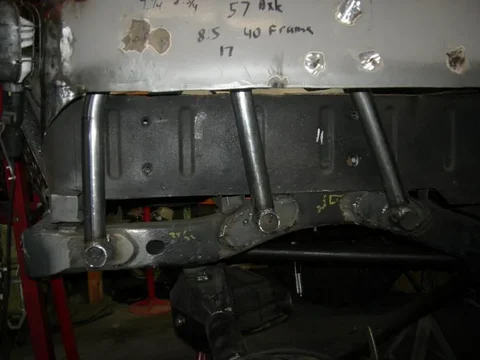

hoops bent

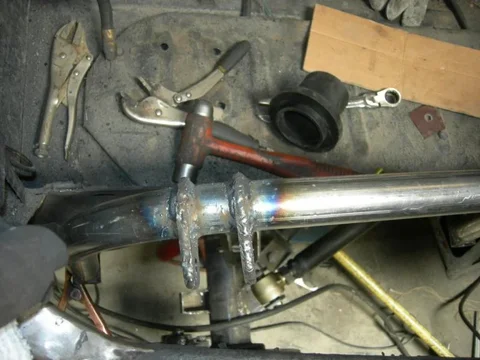

tub tabs welded together



[mrqtipp]

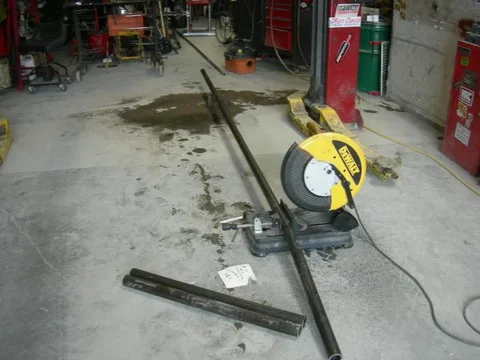

cutting the hoops






tube tabs welded together

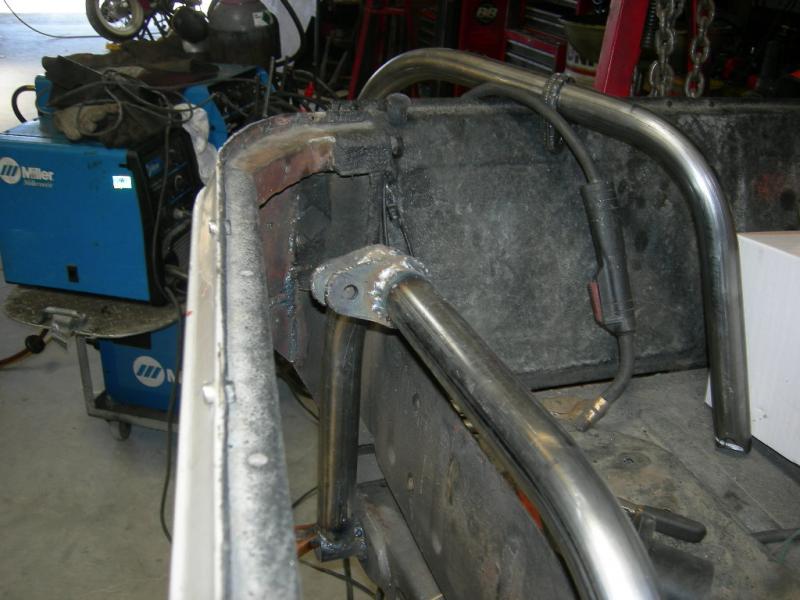

frame hoop frame extensions



[mrqtipp]

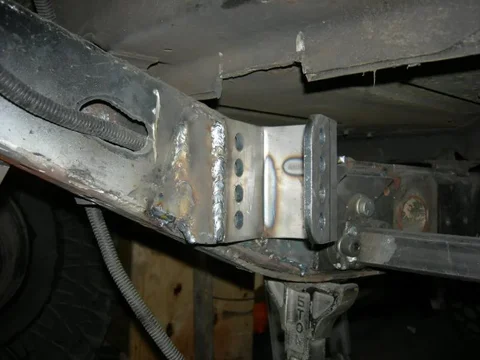

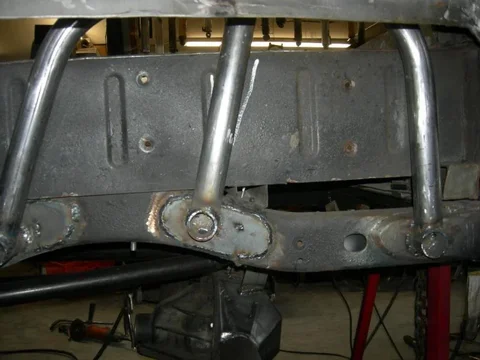

scab plates



passenger side



[mrqtipp]

tube tabs welded in




top view



lower shock mount



[mrqtipp]

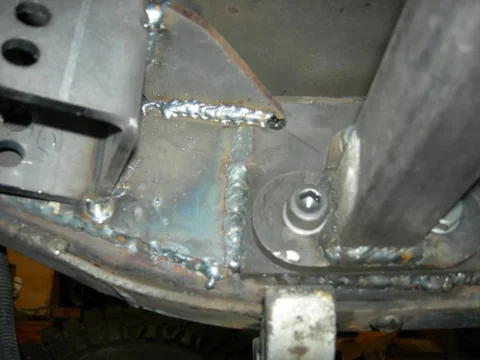

added another scab plate and a third support

lots of impurities so welds didnt come out very well



[mrqtipp]

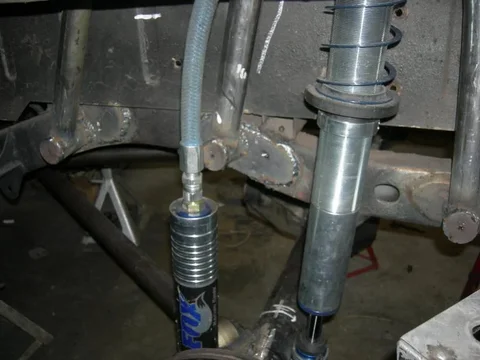

coilover mocked up

capped off the shock hoop frame extensions
