Rear quarter panel armor - FINALLY!

Discussion in '80-Series Tech' started by jcardona1, Nov 13, 2017 at 6:24 PM.

  1. jcardona1

    jcardona1

    Messages:
    4,081
    Likes Received:
    4,735
    Joined:
    Aug 12, 2011
    Location:
    Sacramento, CA
    This is not going to be everybody's cup of tea so purists might wanna turn back now.

    For the past few years I've been wanting some rear quarter panel armor similar to what you see on the various Jeep platforms. Anybody who wheels their 80 will probably have a few scars and dents on her big ass by now, maybe even a few broken taillights. Mine is not as bad as the dents Nukegoat and 2fpower have earned but it's starting to get a few dents that will get worse over time. Yeah she's a wheeler, but I still want to keep the truck in decent shape for as long as possible.

    Earliest version I've seen of this was Action Jackson's rig with the squared off diamond plate. Not the best looking but it got the job done. The challenge with the 80 is that curvy behind she has. Because of all the bends and contours I knew I would have to leave it to the professionals. I'm sure any DIY version would have looked pretty bad.

    I reached out to a few local places until I found a guy willing to take on the job (MetalCraft Innovations in the Sacramento area). After a few months of trying to make schedules work I was finally able to get the truck in his shop. After letting him know what i wanted and doing some cardboard mock ups he drew it up in his fancy software program:

    [​IMG]

    The panel would end up being 10ga plate, a little over 1/8" similar to the Jeep armor. I think it will be plenty strong. After all, this is isn't built to protect the truck from a high speed collision. It's to keep the paper thin factory sheet metal from denting by merely rubbing up against a rock or a tree. The rub rail give it just a bit more room as well to hopefully avoid breaking the sliding rear windows.

    I knew I wanted the factory taillights gone for sure as one was already cracked. In it's place went oval LED trailer lights (from RuffStuff) and a flush mount 2x2 China LED pod. The yellow pod is used for the turn signals. I will be mounting another set of flush-mount LEDs in the tailgate to serve as backup lights, similar to what Apounder did.

    Before I get on to the pics, just want to give props to Mitchell at MetalCraft Innovations. He was great to work with and highly recommend him. He normally builds Jeep parts but if you take a look at his website you can see his fabwork is top notch. It is still TBD if he will be able to make these a production piece as there is a considerable amount of massaging needed to make the bends just right. Also, mine is more of a one-off as my fenders have had several inches trimmed away.

    Despite that though, he said he could make some more sets, maybe even offer a DIY version. But don't expect these to be $199 like the XJ quarter panel armor from the JC Whitney catalog. It's just one guy in a small shop making stuff by hand. I'd suggest reaching out to Mitchell if you're interested and see what he can do (website link with contact info above).

    Enough rambling, on to the pics. Over the next few weeks I will be unbolting these for the first time for paint. Thinking of going with a rattle can finish, similar gray color as my front bumper. I'll post updated pics here whenever that happens.

    :cheers:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    RFB, MKtaco98, 92LXAZ and 10 others like this.
  2. LandCruiserPhil

    LandCruiserPhil Peter Pan Syndrome Supporting Vendor

    Messages:
    19,990
    Media:
    55
    Albums:
    3
    Likes Received:
    9,319
    Joined:
    Mar 10, 2004
    Location:
    Scottsdale Arizona
  3. retrofive

    retrofive

    Messages:
    14,370
    Likes Received:
    6,239
    Joined:
    Jan 6, 2008
    Location:
    so. oregon
    Does that dynomat really help that poor ole speaker? :flipoff2:

    I do think it looks cool, but like mentioned in another thread; any concerns with dirt, debris, etc getting between it and the body?

    RFB and Bripars40 like this.
  4. BILT4ME

    BILT4ME

    Messages:
    3,885
    Media:
    3
    Albums:
    2
    Likes Received:
    3,260
    Joined:
    Nov 9, 2012
    Location:
    Olathe, KS, USA
    Now you need to find some girls to swing from those bars while taking pictures to make sure they will hold up.

    NLXTACY and MEATWAD like this.
  5. jcardona1

    jcardona1

    Messages:
    4,081
    Likes Received:
    4,735
    Joined:
    Aug 12, 2011
    Location:
    Sacramento, CA
    Dude that turn cardboard speaker can pump some serious bass.

    I'll not too concerned. Gonna paint the inner shell with some Monstaliner Chassis Saver I never used. Not intended to be an airtight seal, I can just hose it down periodically.

    retrofive likes this.
  6. jcardona1

    jcardona1

    Messages:
    4,081
    Likes Received:
    4,735
    Joined:
    Aug 12, 2011
    Location:
    Sacramento, CA
    I'm sure they'll hold up, but just to be sure, what size girls we talking here?

    retrofive and mudgudgeon like this.
  7. steffan

    steffan GOLD Star

    Messages:
    393
    Likes Received:
    384
    Joined:
    Dec 17, 2009
    Location:
    Knoxville, TN
    I like it! It would be a lot of work but I’d like to do the whole body up like that

  8. mudgudgeon

    mudgudgeon

    Messages:
    1,905
    Likes Received:
    999
    Joined:
    Dec 17, 2007
    Location:
    Sydney, Australia
    I think it's obligatory to use midgets for the kind of pics @BILT4ME is looking for.

    BILT4ME likes this.
  9. retrofive

    retrofive

    Messages:
    14,370
    Likes Received:
    6,239
    Joined:
    Jan 6, 2008
    Location:
    so. oregon
    Or @Aloha Jen for the rest of us. :grinpimp:

    1973Guppie, NLXTACY, LS1FJ40 and 2 others like this.
  10. LandCruisinMy93

    LandCruisinMy93

    Messages:
    2,059
    Likes Received:
    944
    Joined:
    Apr 4, 2013
    Location:
    Springfield, OR
    Wow! Just wow @retrofive. Why are you still here? Aren't you trying to sell your 80 and leave us :slap: you know you'll regret It and be back, they always come back.

    NLXTACY and thatcabledude like this.
  11. jcardona1

    jcardona1

    Messages:
    4,081
    Likes Received:
    4,735
    Joined:
    Aug 12, 2011
    Location:
    Sacramento, CA
    BRB, getting shipping quotes to Hawaii.

  12. baldilocks

    baldilocks GOLD Star

    Messages:
    3,409
    Likes Received:
    2,929
    Joined:
    Jan 29, 2014
    Location:
    Northern California
    Nice Jose. I’ll give Mitchell a call and see about working out a DIY kit.

    jcardona1 likes this.
  13. retrofive

    retrofive

    Messages:
    14,370
    Likes Received:
    6,239
    Joined:
    Jan 6, 2008
    Location:
    so. oregon
    :lol: Ya, i need to delete that 4sale thread.

    NLXTACY likes this.
  14. LandCruisinMy93

    LandCruisinMy93

    Messages:
    2,059
    Likes Received:
    944
    Joined:
    Apr 4, 2013
    Location:
    Springfield, OR
    Don't you mean shipping costs FROM Hawaii;)

    NLXTACY and mudgudgeon like this.
  15. nukegoat

    nukegoat

    Messages:
    2,398
    Likes Received:
    2,016
    Joined:
    Apr 11, 2013
    Location:
    San Jose, CA
    Neat. I think those are pretty cool

  16. inkpot

    inkpot SILVER Star

    Messages:
    11,821
    Likes Received:
    1,725
    Joined:
    Jan 30, 2003
    Location:
    Chandler, Az.
    You can find those LED tail lights pretty cheap at most big truck stores/stops.

  17. Fj81

    Fj81

    Messages:
    291
    Media:
    13
    Albums:
    1
    Likes Received:
    346
    Joined:
    Jan 1, 2017
    Location:
    Los Angeles, CA
    Cheap, but if if you get good ones they can be $$. My Reitnouer trailer runs nicer ones than the run of the mill truck stop ones. They use peterson plugs and are weather sealed. Look waaaaay better than the cheapy ones when Lit up. BUT the size is pretty standard so they are easy to replace and even if you have to change the plugs.

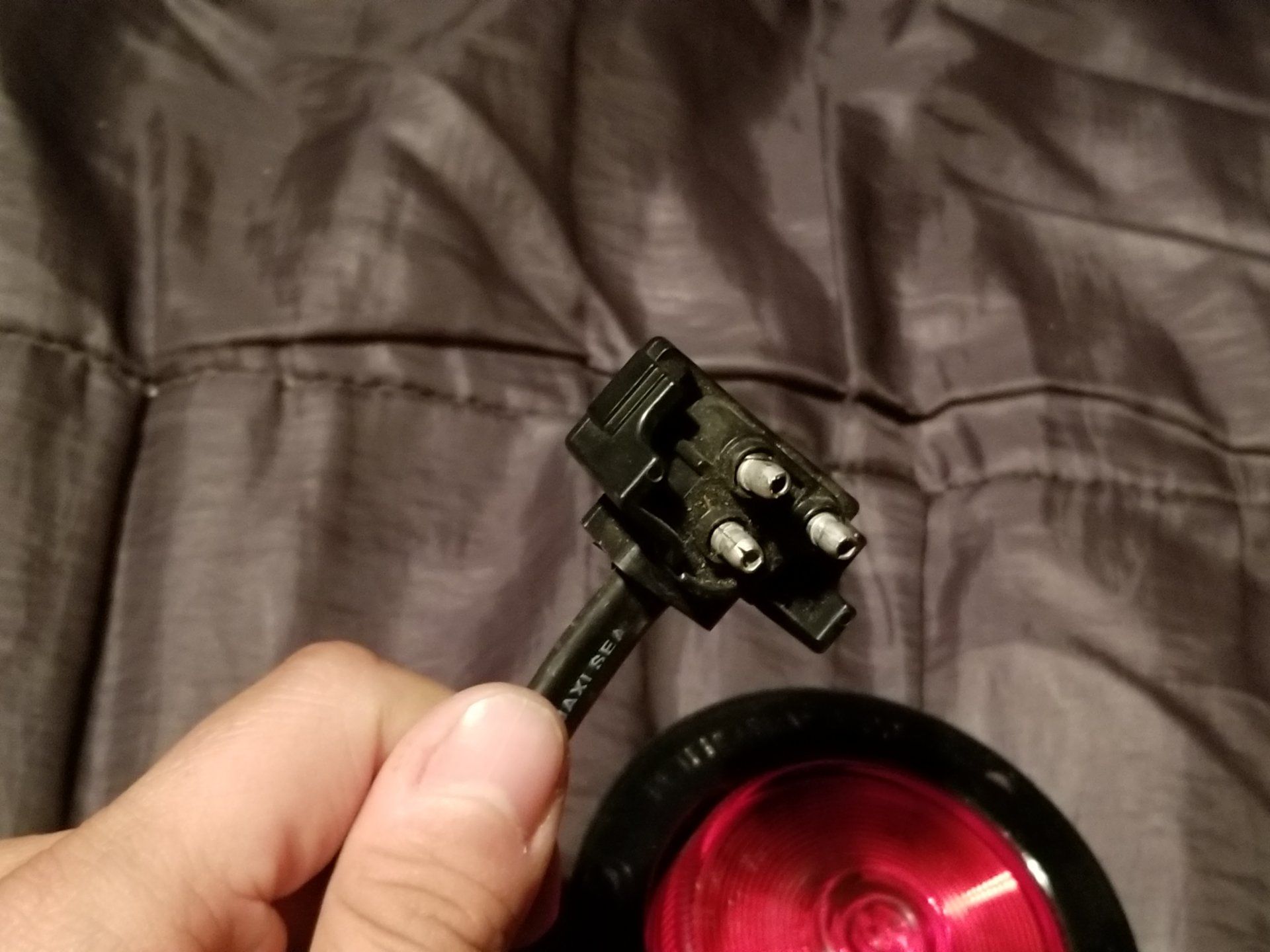

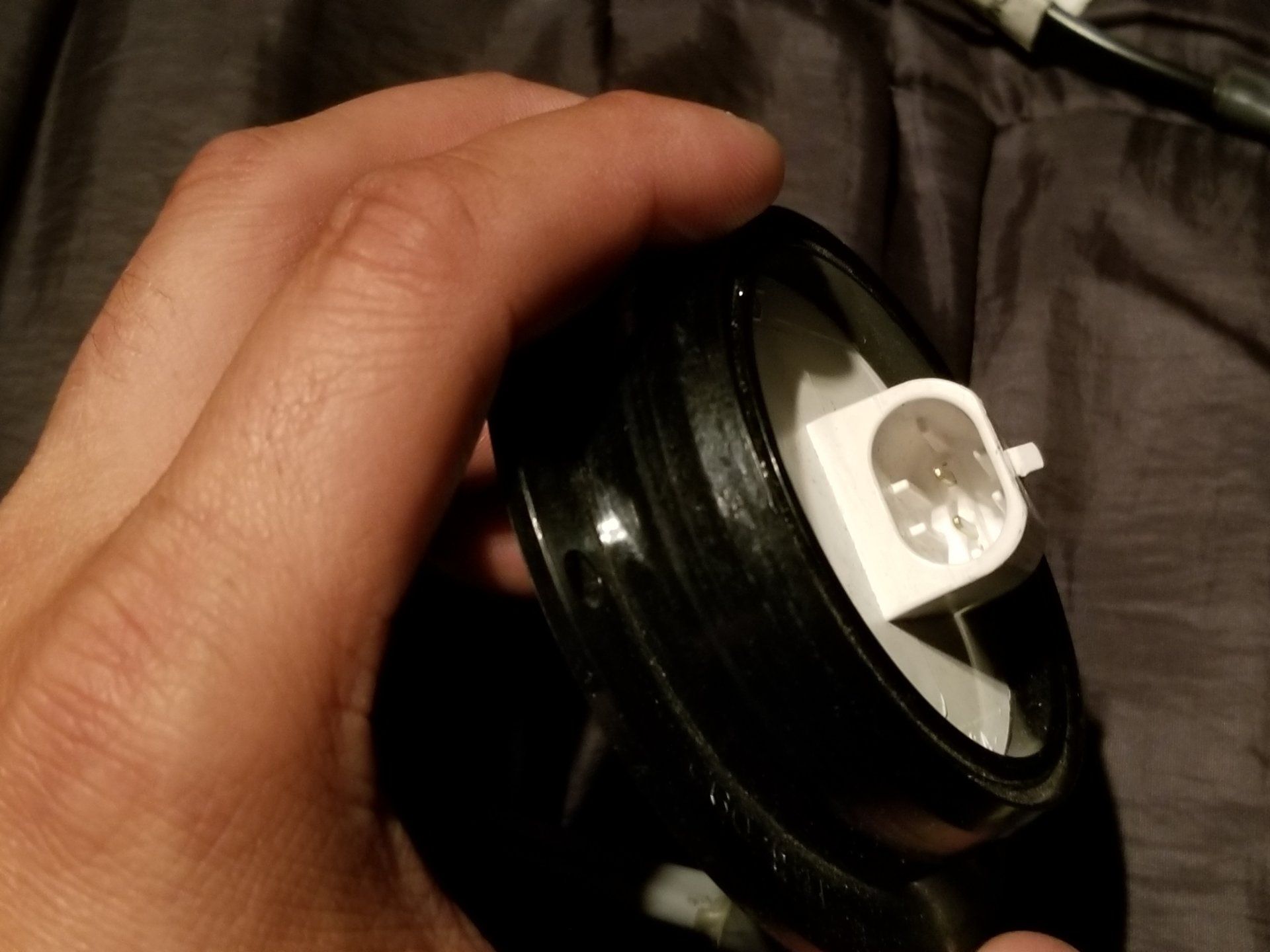

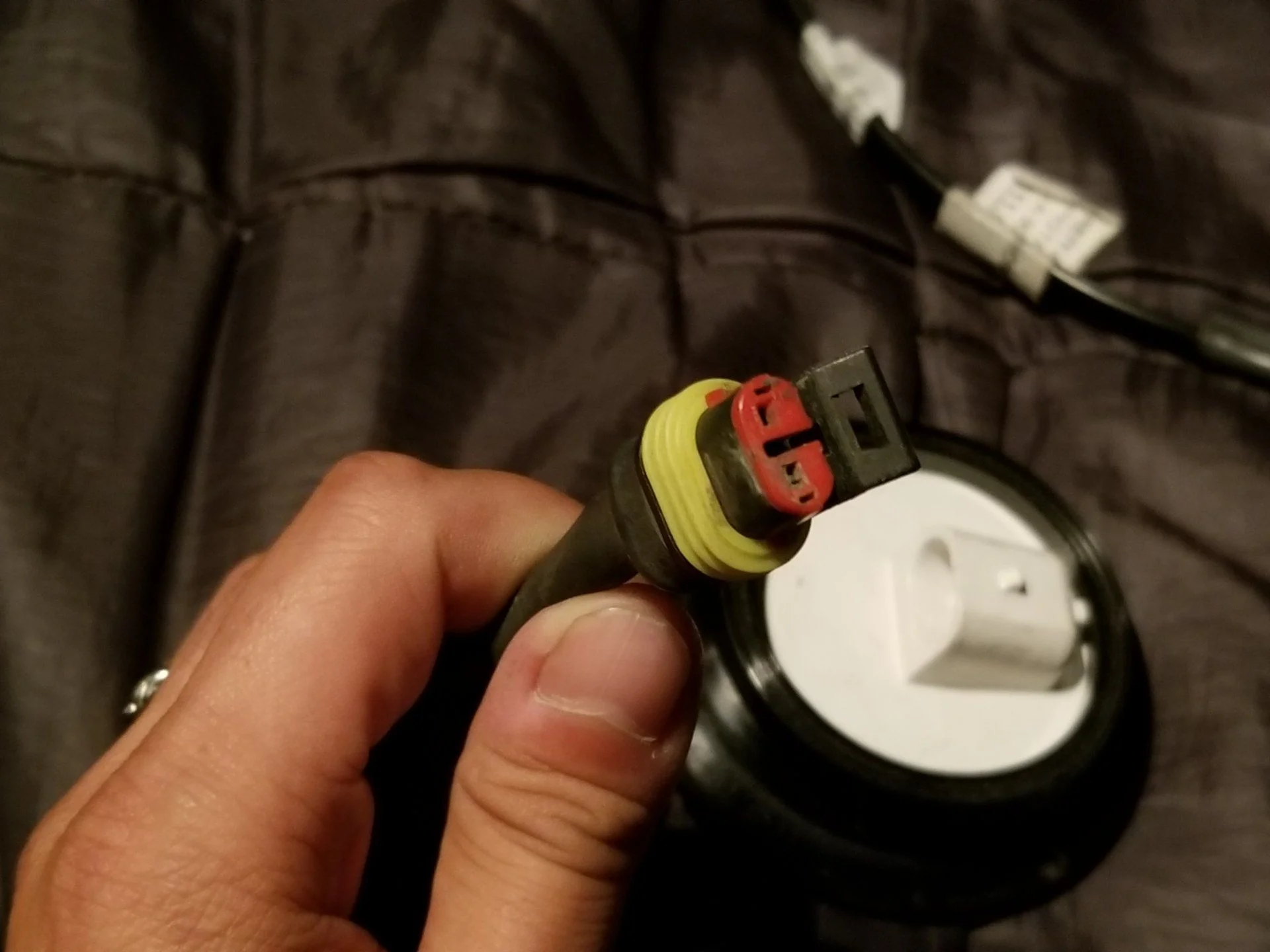

    Here is a 2 wire peterson style plug and light.

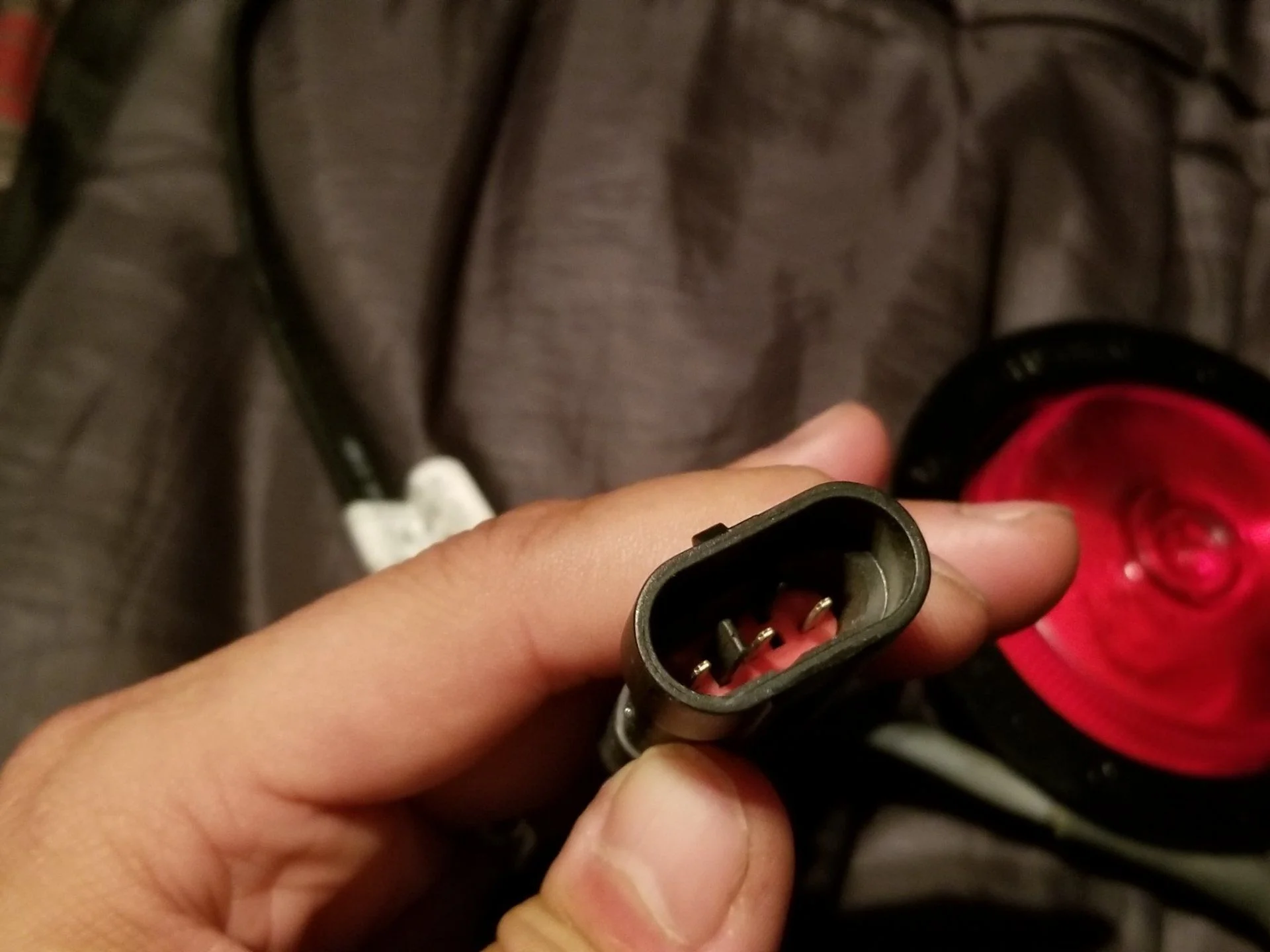

    Here is a three wire female peterson pkug to standard truck stop 3 wire setup.
