Readers Rides, for pics and specs on your Toy(s). (5 Viewers)

[Combat Chuck]

I sure will. In the morning I'll get some pics of the brackets I made. It uses the factory A/C belt also.

Much obliged!
I'm really interested in how you did this!



[DrifterTim]

83 Toyota 4x4 SR5 Custom Cab light wheeling - YouTube


1983 Toyota 4x4 Custom Cab SR5 5spd
225,000 Kilometers
Solid Axle
Motor mounts were separated wondering if trail gear bomb proofs the answer
Flat Bed Stainless Steel With wood and tow pkg. Plus 3 D -ring shackles
Oil Pressure Gauge and Volt meter

Frame is in great condition

22r Original Motor just needs a new rear main seal

I purchased new seals OEM Toyota for building a spare motor.

Rear main seal
Oil Pan Seal
Exhaust Manifold Gasket
Intake Manifold Gasket
etc..
Tires : 4 33x12.5x15 M/T avec truck
2x New 33x10.5x15 BFG Mud pour $200 Extra



New Marlin Crawler HD Clutch

My New Engine :
20r/22R Hybrid

Still 0 Kilometre

1980-1981 22R Block ( High Nickle Content ) Honed
1978-1980 Head with combustion chambre of 75cc, No mechanical fuel pump hole ( Better airflow than 22r )
Compression 10.5/1
Head is ported and polished by race shop in Europe and Port Matched to intake manifold
1mm oversized valves intake and exhaust
HD Valve Springs
TRD Stage 2 Camshaft
LC Engineering adjustable cam gear
Double Row Chain
Alloy 22R Rocker Arms
New Pistons and Rings
Rods and Pistons balanced to be all equal
Rods are Shot Peanes
Crankshaft repolished
All BEarings are 77 Clevite

Holly Street Dominator Intake Manifold for a 4 Barell Carb ( Port and Polished and Port Matched with the Head )
Holly 500CFM 2 BBL Carb with Adaptor to match Intake
4 to 1 Header with header wrap
Holly Electric Fuel Pump and Fuel Pressure regulator
New Intake gasket for ported head and intake

4" HD trail gear IFS eliminator kit since I wanted the rotors
Front and rear are both trail gear.
HD transfercase mount ( trail gear )
10" long spline with creeper joint (trail gear )
5150 Bilsteing X 4
V6 Calipers
Etc.....



[Carcas]

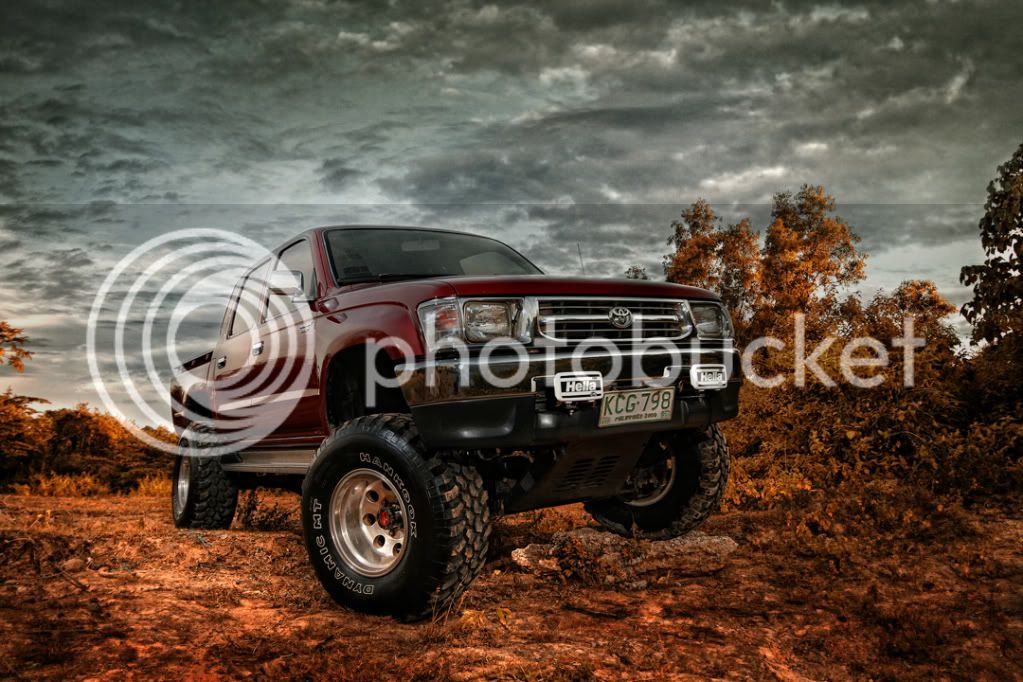

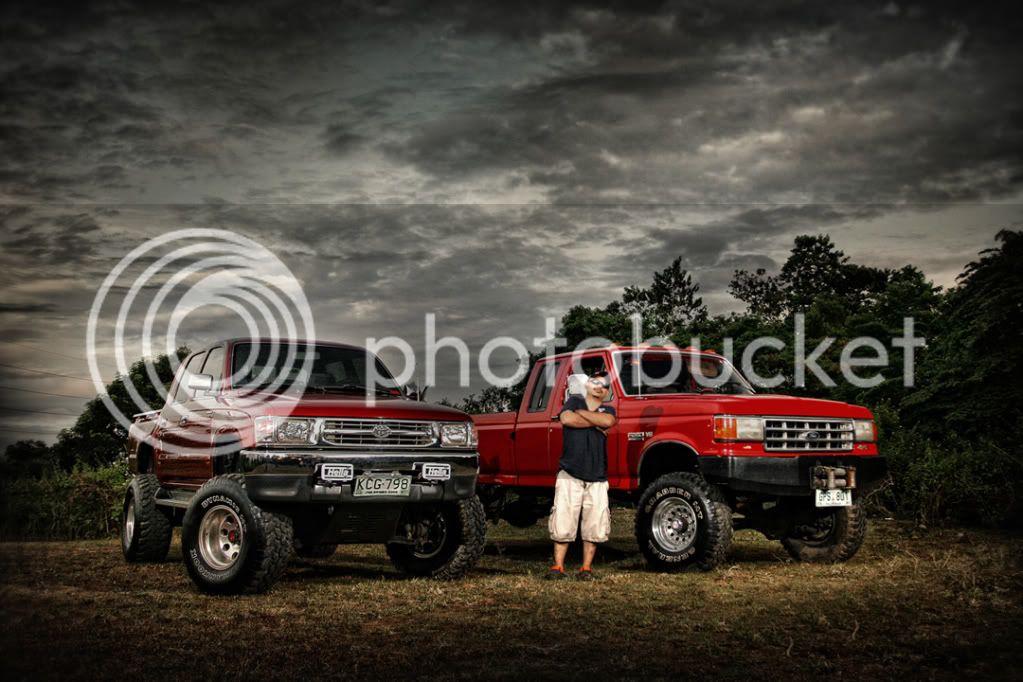

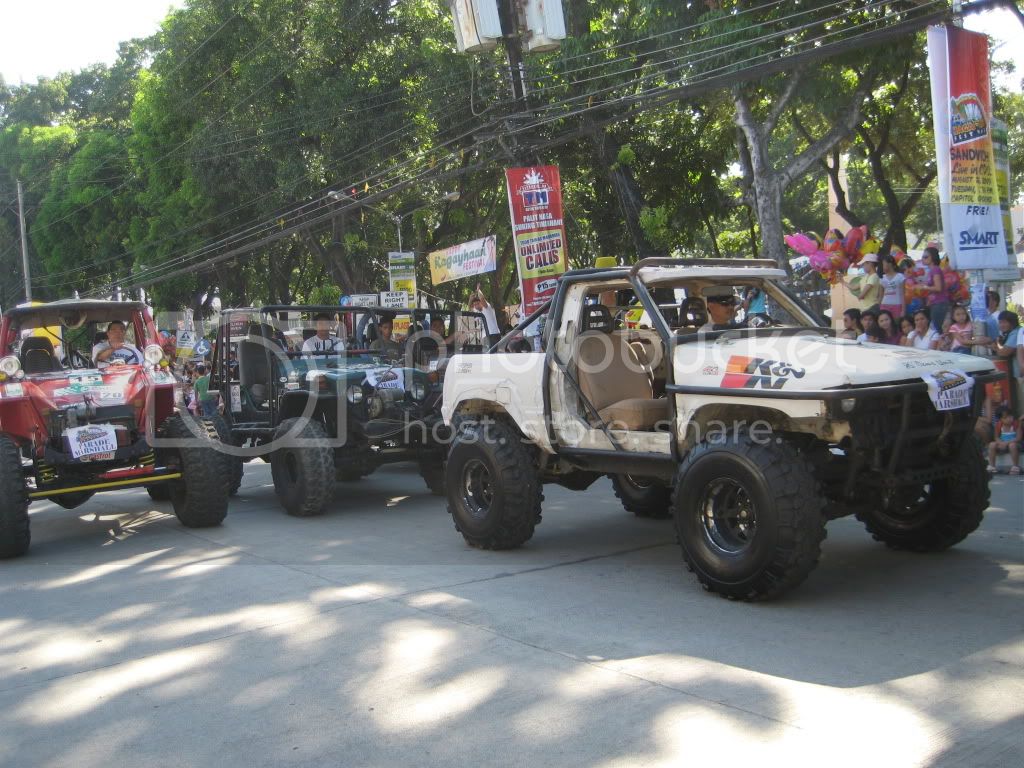

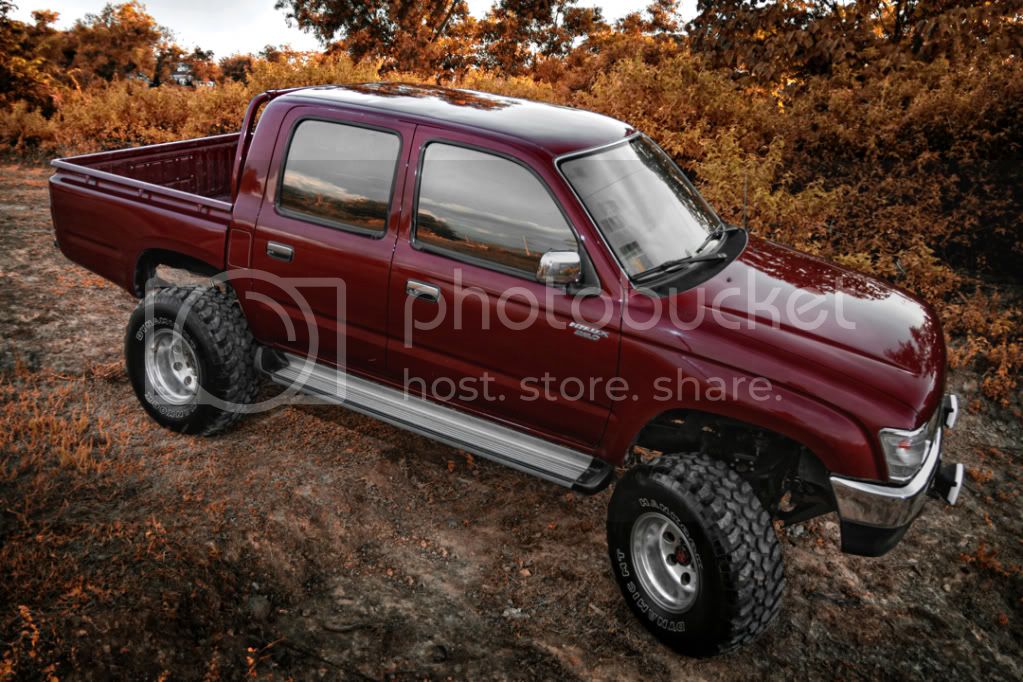

Here are my pics of the Yota's l have:



[Combat Chuck]

Nice collection!
Love those old Fords, too.



[Carcas]

Nice collection!
Love those old Fords, too.

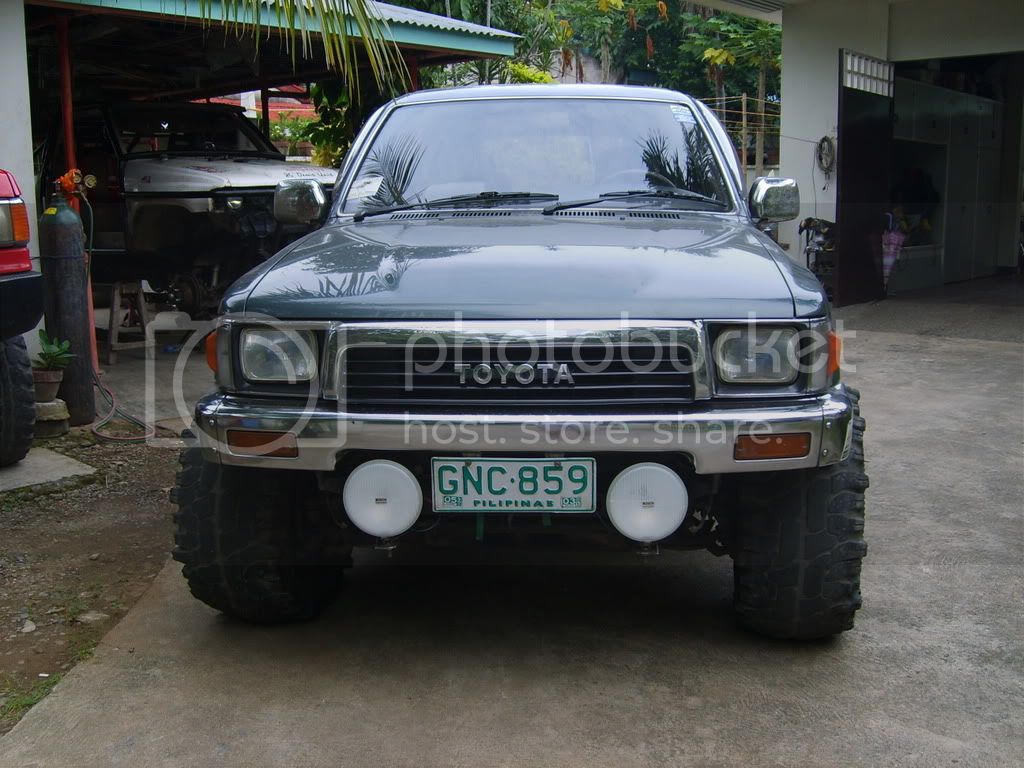

The Surf/4runner is a JDM,converted to LHD, noticed the wipers? l didn't like to convert it so metal won't have to undergo burning.



[Combat Chuck]

I didn't notice that, but now that you mention it, I see JDM detail differences, like the running light lenses.
Very nice!



[Carcas]

I didn't notice that, but now that you mention it, I see JDM detail differences, like the running light lenses.
Very nice!

And talking bout JDM, what we did was make the RHD steering box as the idler arm so it's tad stronger than a mere idler arm, cost just the same.



[pholife]

good stuff pare!



[sr5pickup]

Here are my pics of the Yota's l have:

Nice to see some Filipino's on here! Nice trucks! Where exactly are you located? All my relatives on my mom's side live near Cebu, and my sister lives in Davao.



[jtkkz]

'88 4x4 toyota truck

'88 4x4 22RE 5 speed
239K original miles
all stock



[Carcas]

Nice to see some Filipino's on here! Nice trucks! Where exactly are you located? All my relatives on my mom's side live near Cebu, and my sister lives in Davao.

l'm in Cagayan de Oro Sir, one picture there in the water, the one driving is a fellow member here KAARR, he's in NJ.



[sr5pickup]

l'm in Cagayan de Oro Sir, one picture there in the water, the one driving is a fellow member here KAARR, he's in NJ.

Cool, one thing I like when I visit the Phils is to admire all the Toyota 4x4's that we don't have here in the states haha.



[jtkkz]

l'm in Cagayan de Oro Sir, one picture there in the water, the one driving is a fellow member here KAARR, he's in NJ.

I was born in the Philippines too.

Moved to cA. when I was 18



[eetdirt47]

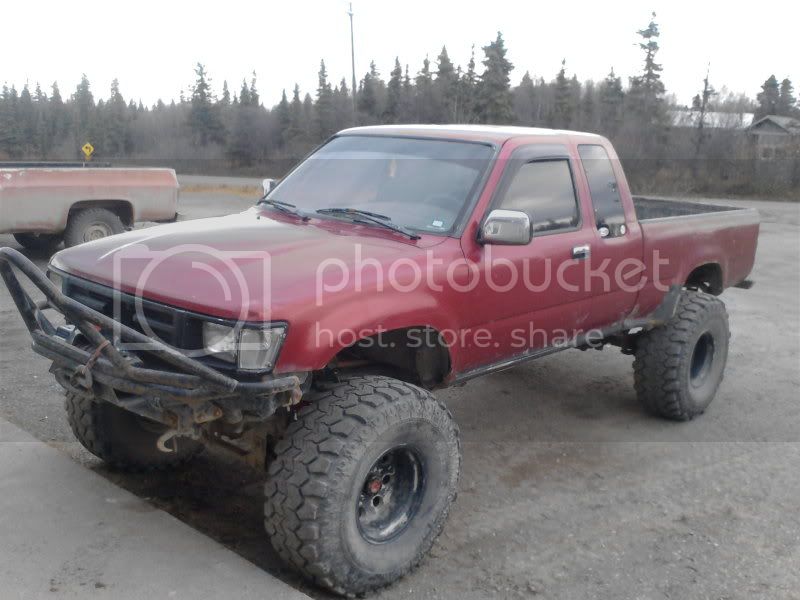

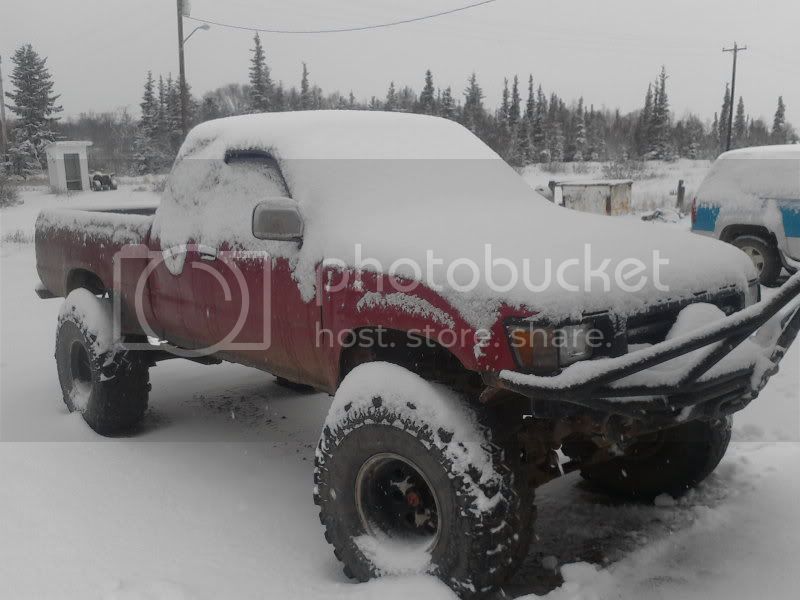

my 1992 Pickup DLX in Bristol Bay Alaska

1992 toyota pickup dlx,
4 inch drop diff with rear soft ride springs suspension lift,
bilstein 5100 rears with rancho 9000xl fronts,
bigger stiffer torsion bars.. forgot what brand..
yukon 4.88's with trutrac up front and a lock right in the rear, 35x14.50 tsl ssr's on 15 inch alum's,
stainless steel braided extended brake lines,
front diff steel skidplate,
stainless borla cat-back with no cat,
K&N filter, 4Runner buckets mirrors and leather steering wheel, kenwood 1000 watt amp with a 1.5 farad capacitor running a 10 inch kicker solo baric in a vented box,
trail gear rock defense front bumper and a custom rear bumper,
front bumper is about to have 4 piaa super white driving lights and the rear is about to have the rigid dually flood pattern for back up lights ( i'm tinted kinda dark so i need bright reverse lights )
warn 9.5ti winch, hand held floating and water proof vhf,
handheld waterproof GPS,
GoPro hero mounts,

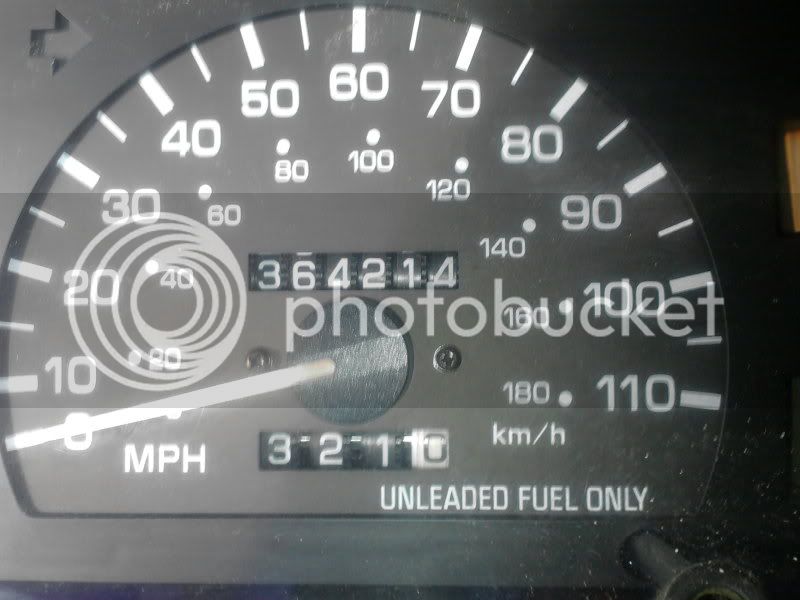

364,XXX miles on the truck... second engine and trans,
about to replace the heads and head gasket set,
has tons of new parts on it like the timing belt and pulley's, seals, energy suspension poly bushings, way too much to list.
got some sweet forehead spider cracks in the windshield from my girlfriend and I falling through ice at about 40 mph.
soon to do a National Luna dual battery set-up and next year a 3.4 swap.



[axed existence]

@eetdirt47: nice setup, i like that trailgear stinger a lot, plan to pick one up for myself one day.

how long was she dipped in the front like that? water collect in the diff? did you have to rebuilt the locking hubs?



[2ndGenToyotaFan]

Awesome pics! I think you might want to adjust your toe-in though....



[S4Cruiser]

Picked this up about a month ago...wheels good. Could use a leaf removed from each pack though.

'91 4wd rg cab, 22re, 5spd, duals w/4.7 in the rear case, 5.29s, arb front, detroit rear, rear discs, 4" all pros front and rear, warn 9k, rci fuel cell, 38.5 TSL SXs...



[eetdirt47]

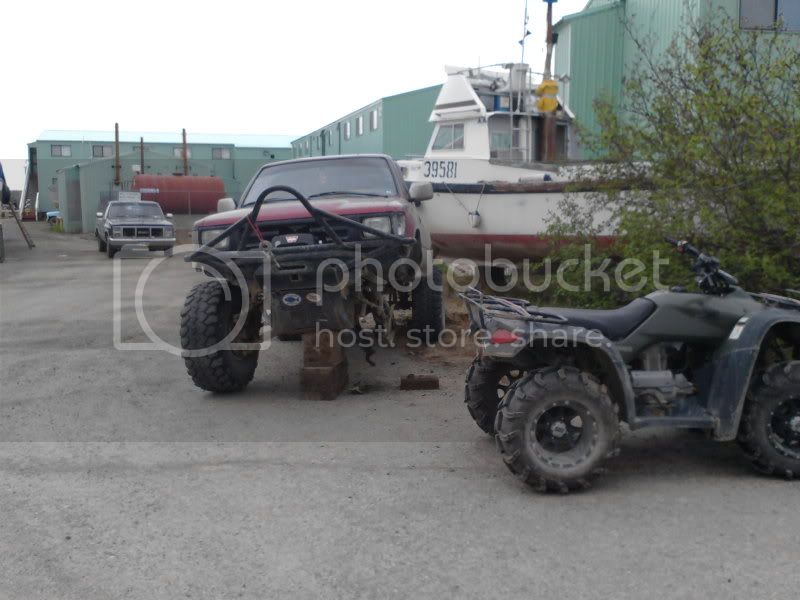

@axed. it was there over night and i didn't have to rebuild my hubs. there was a little water in the diff and the first attempt to pull it out broke a tie rod and bent the centerlink. i'm gonna tack weld the bumper on too.



[Phessor]

[URL="http://farm8.staticflickr.com/7155/6578301083_60d9c6cd2f.jpg"][URL="http://farm8.staticflickr.com/7155/6578301083_60d9c6cd2f.jpg"][URL="http://farm8.staticflickr.com/7155/6578301083_60d9c6cd2f.jpg"][URL="http://farm8.staticflickr.com/7155/6578301083_60d9c6cd2f.jpg"] [/URL][/URL][/URL][/URL]
HILUX UTE by Phessor, on Flickr

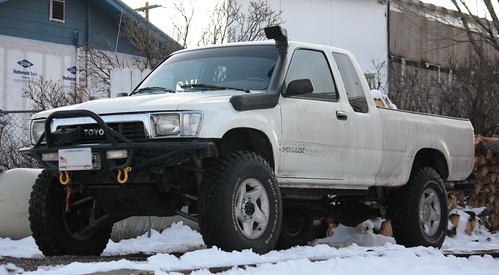

My 1989 HILUX nicknamed "UTE"

22RE with custom cold air intake using snorkel, RV cam and header with custom exhaust.
Swapped in a 5 speed.
Currently running 4.56 gears but I have a set of 4.88 axles waiting to thaw out.
Total Chaos long travel with Sway-A-Way and Fox 2.5 shocks.
Downey springs and a set of Fox 2.0 shocks to install soon.
Addicted Off-Road bumper with a Warn 8000 pound winch.
Tacoma rims with BFG 255/85-16 KM2's.
Installed SR5 gauge cluster, mirror with light, center console and seats.

It has been fun working on this truck, but I still have a way to go.

Phessor



[Mekanecman]

Heres my 85 4Runner

Freshly rebuilt 22RE, 326,000 on original motor. Have 4inch all pro springs, cross over steering to install.
