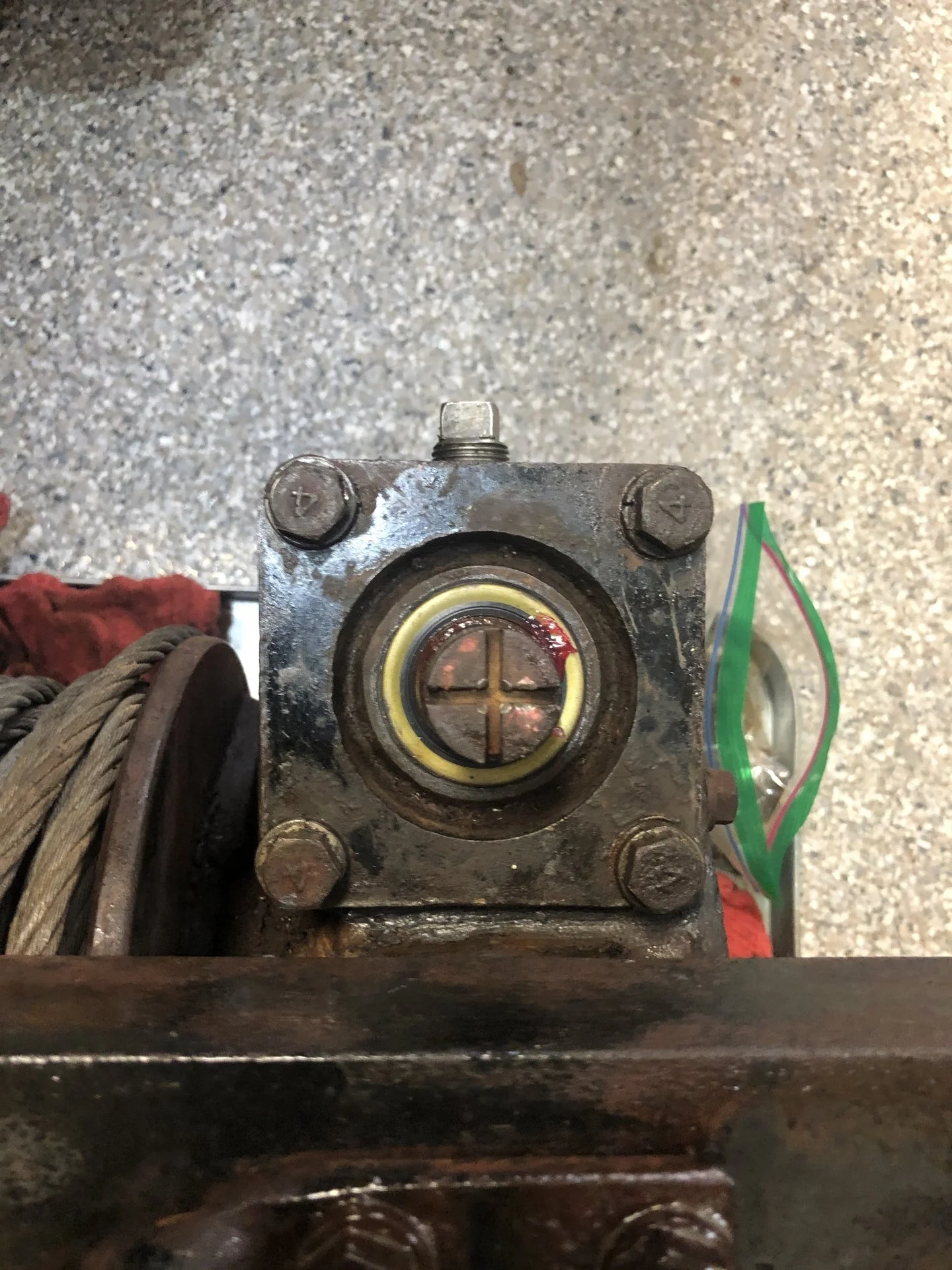

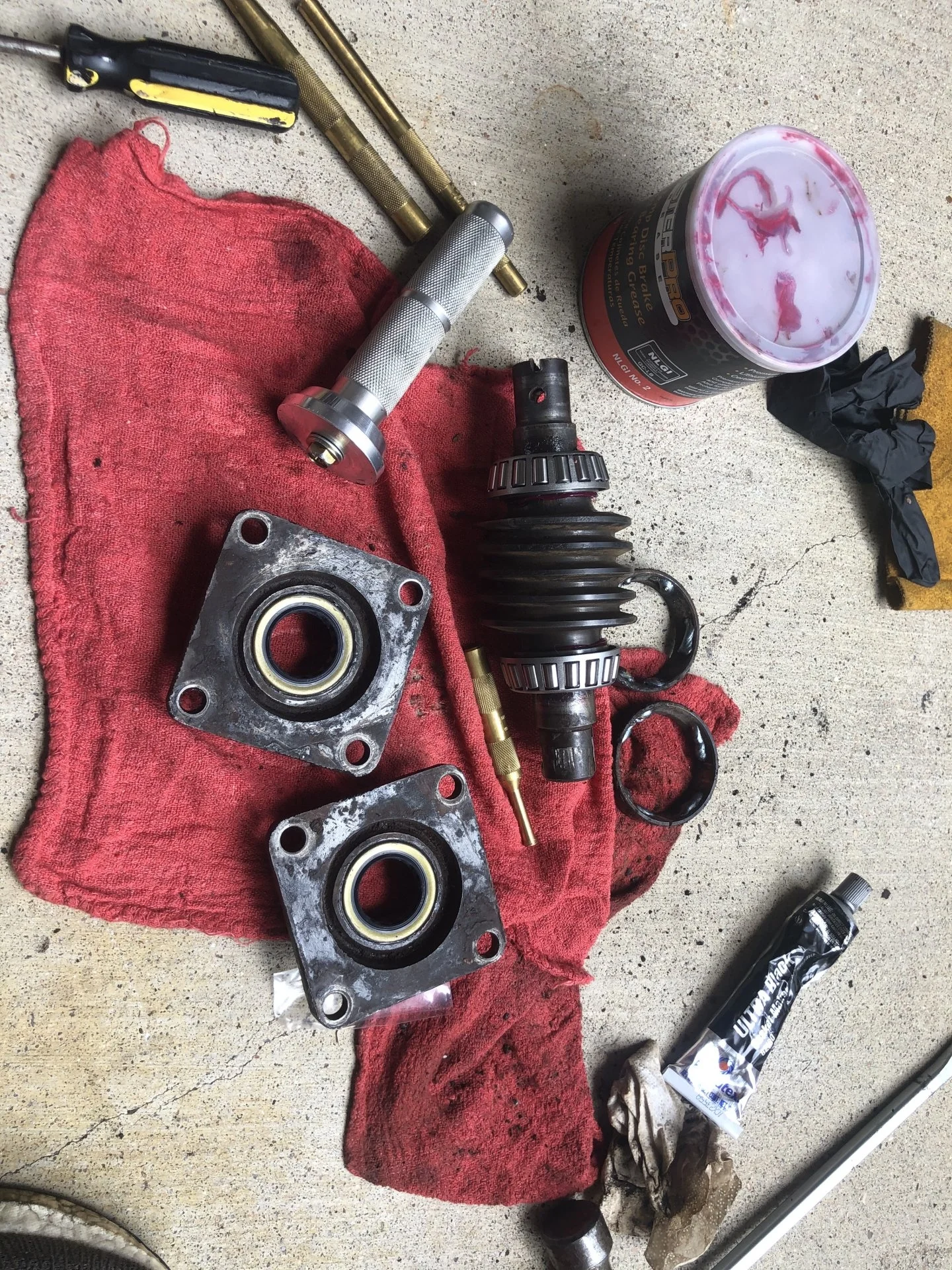

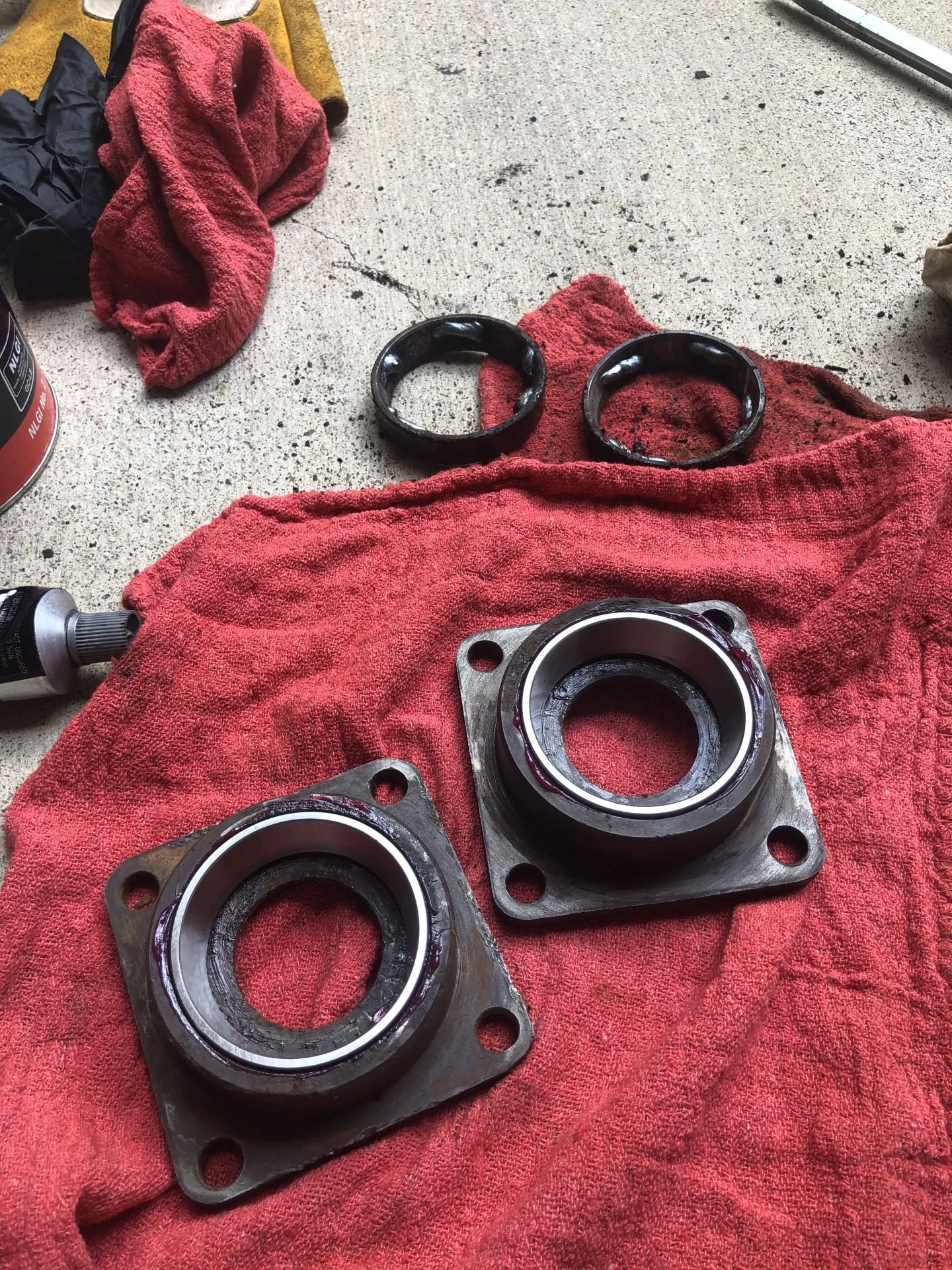

Quick reassembly question. The two end caps that hold the bearing races for the worm gear have metal plate gaskets. That’s where I was having a leaks. Gaskets aren’t to bad. Is it best to reuse and add a LITTLE black FIPG or should I cut new gaskets out of a sheet of gasket material? Make a difference?

thank you. Marc
Toyota uses black for engines and orange for drivetrain.


houstonfj40

SILVER Star
Joined
Dec 30, 2015
Messages
474
Location
Houston, TX

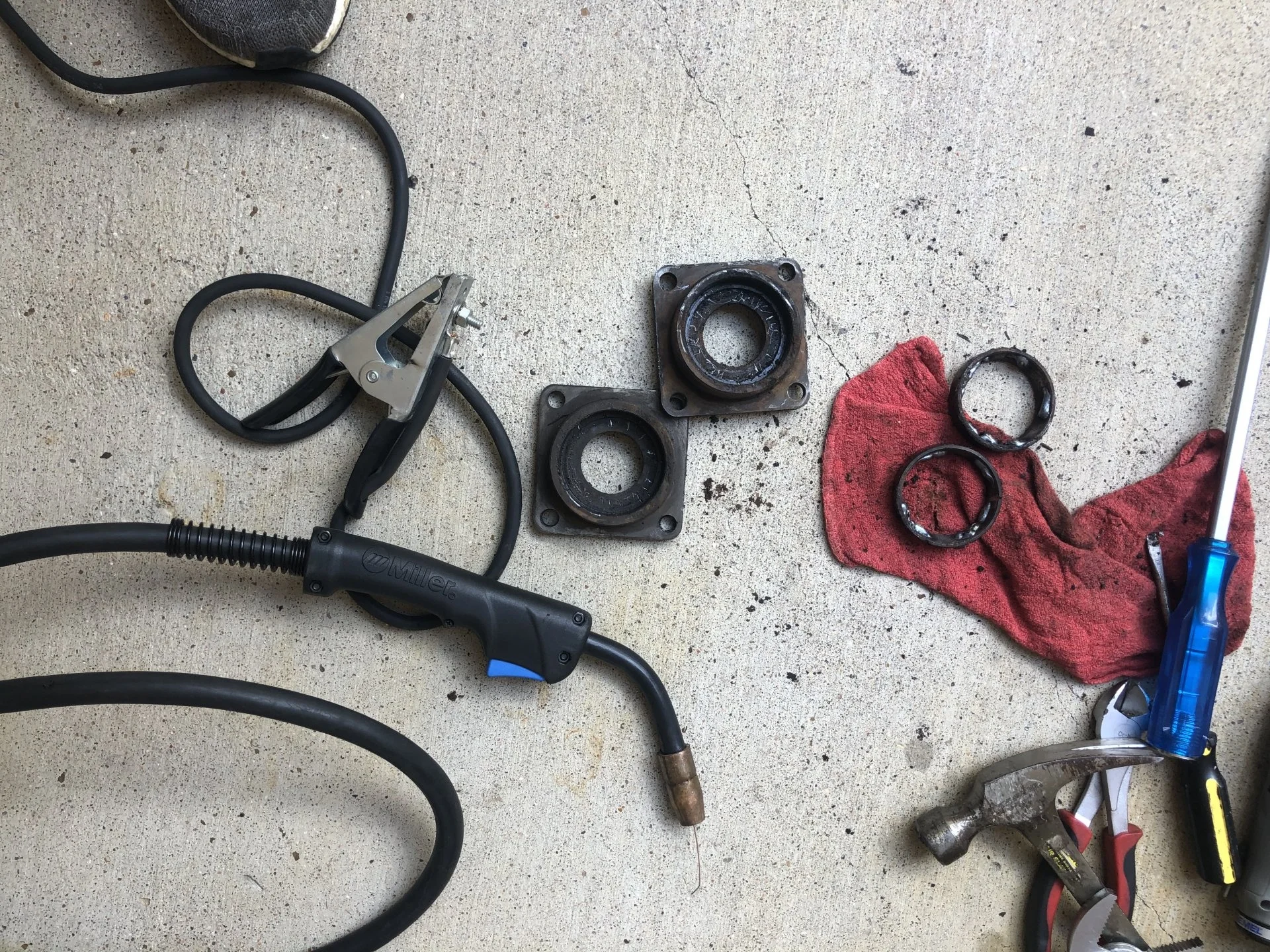

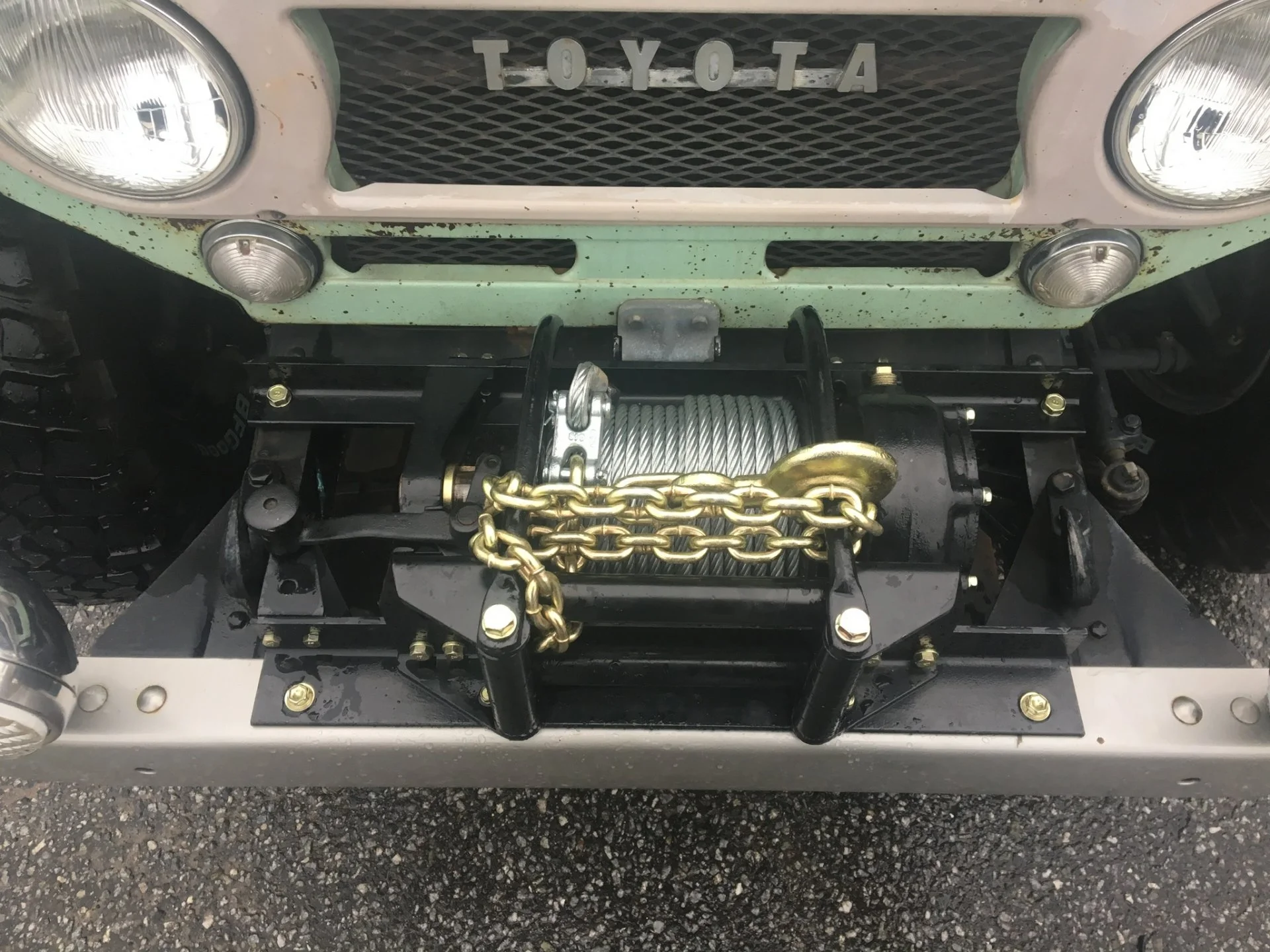

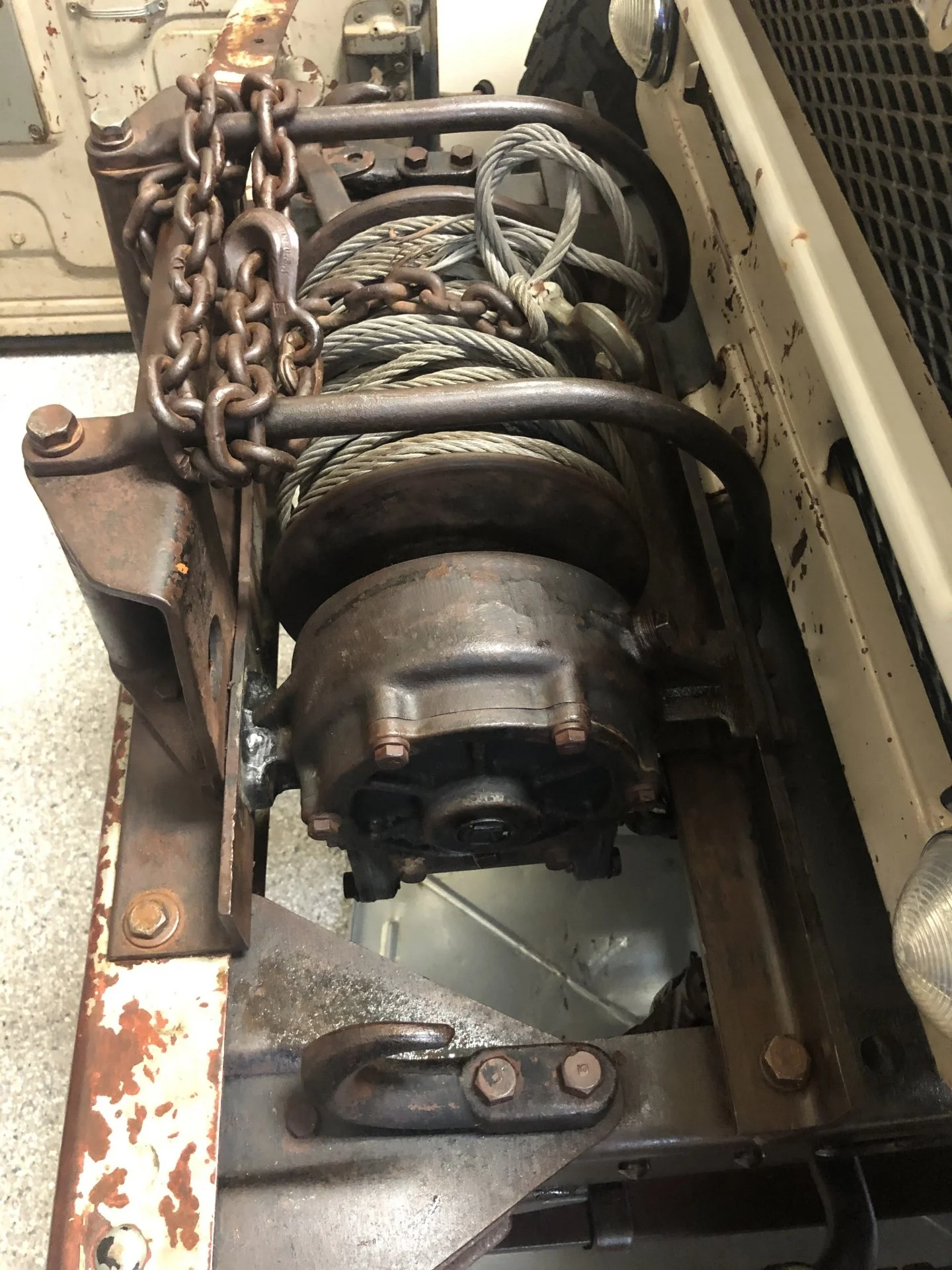

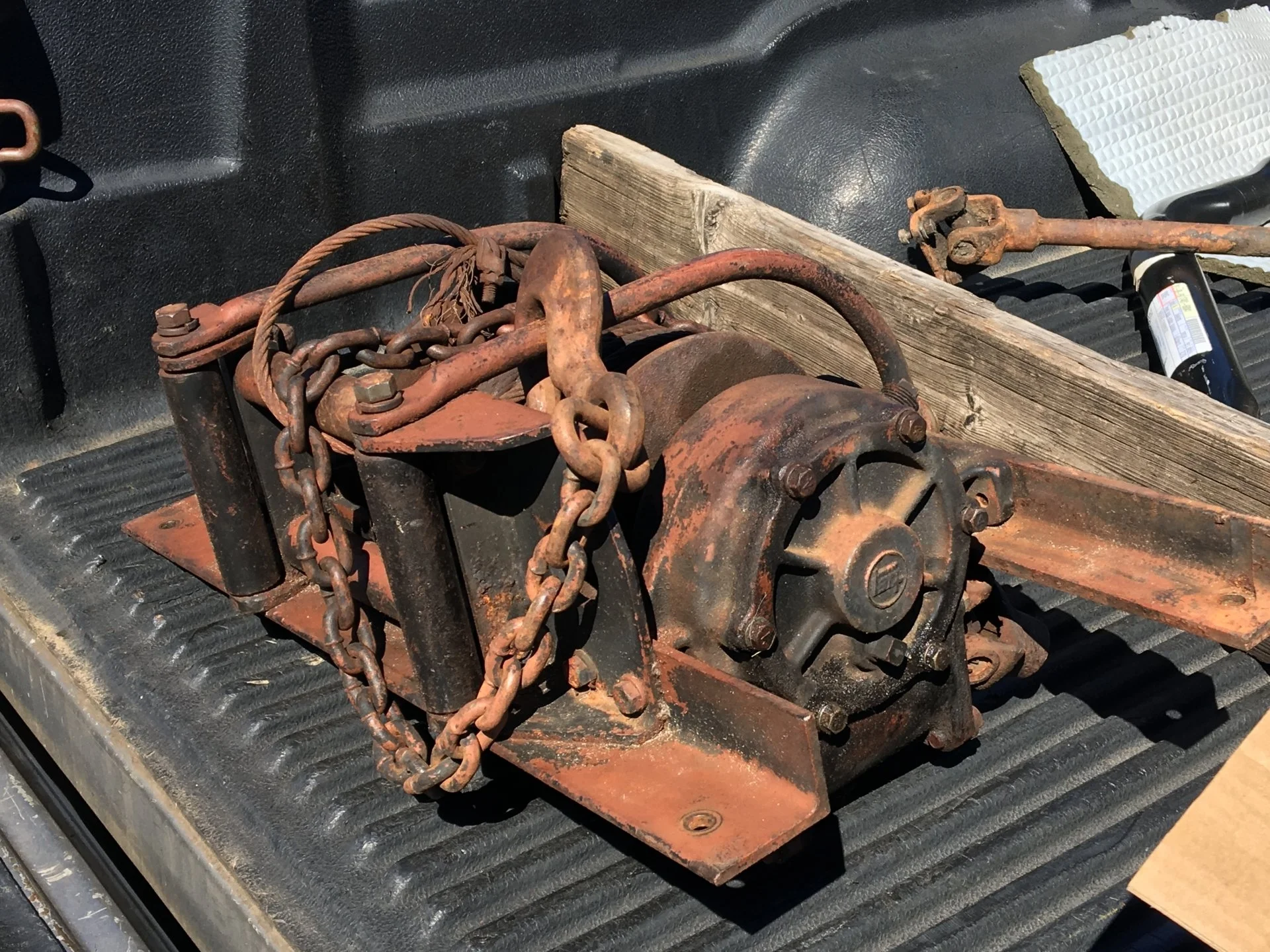

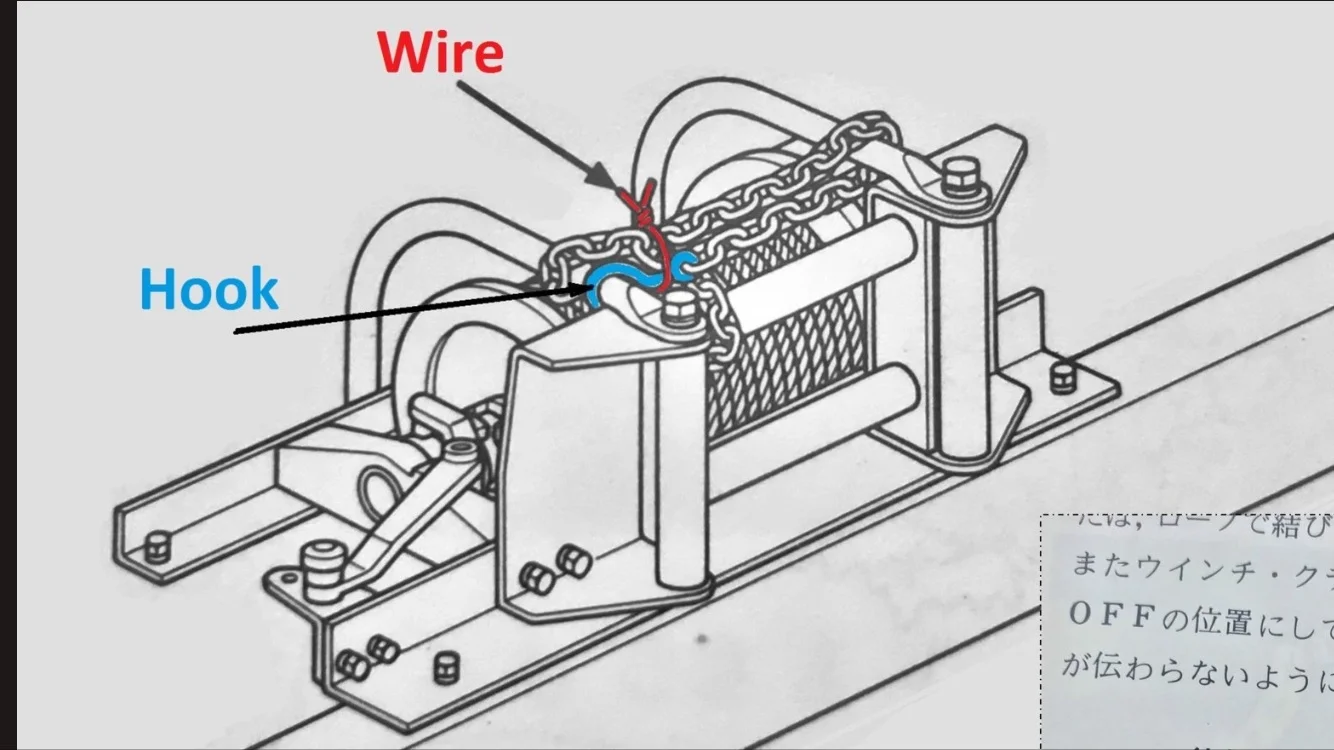

Done, letting FIPG set overnight and will fill with GL4 gear oil. Kept the patina, just new bearings, races and seals. Will pull drum next time around. Need to order the cable you guys did, my chain looks cool, but some of the links are trashed, almost split. Thanks everyone for the help!


Joined
Feb 15, 2016
Messages
476
Location
Somerset KY
TIG weld? Stick?
Beautiful welds in any case.

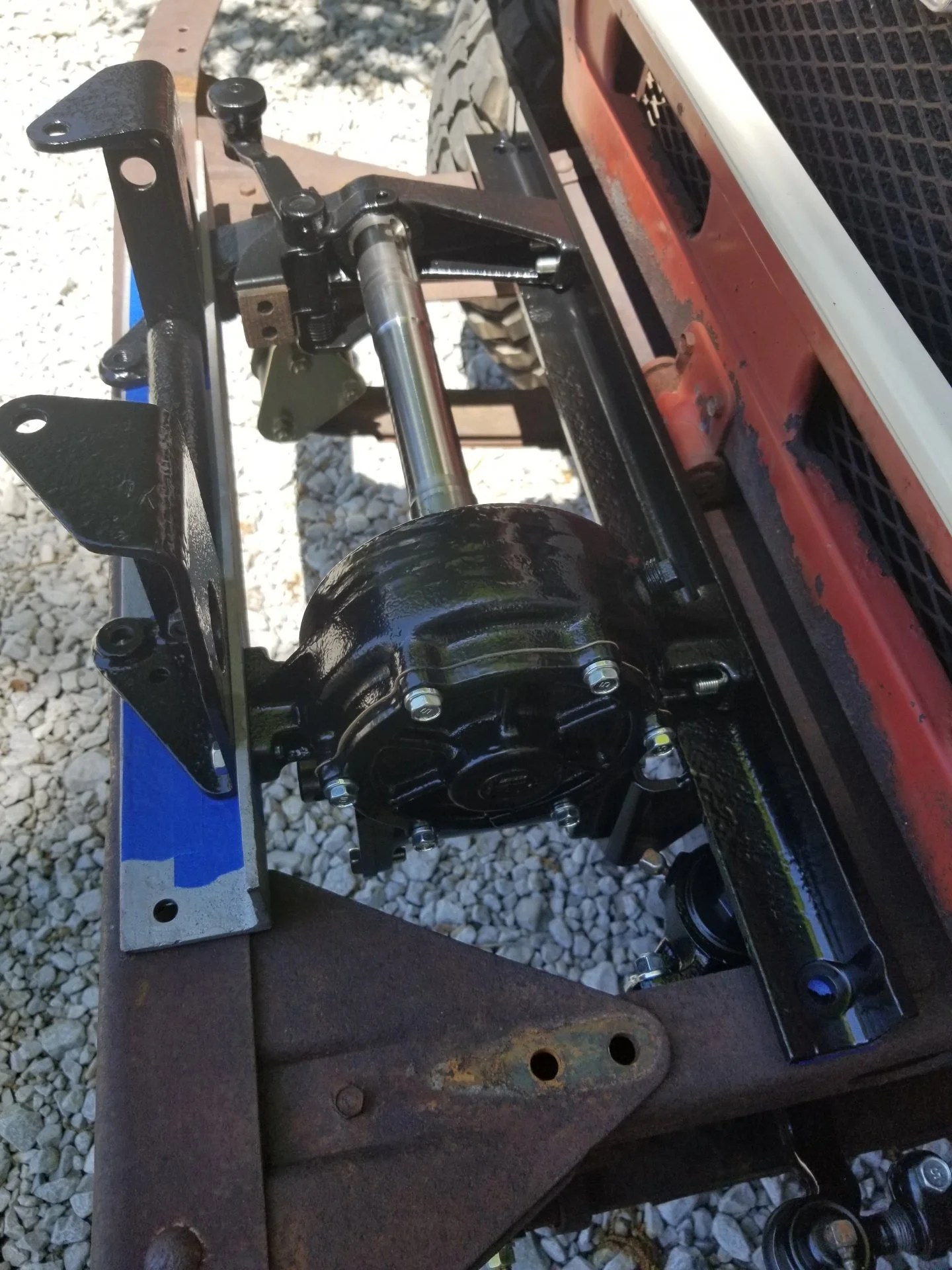

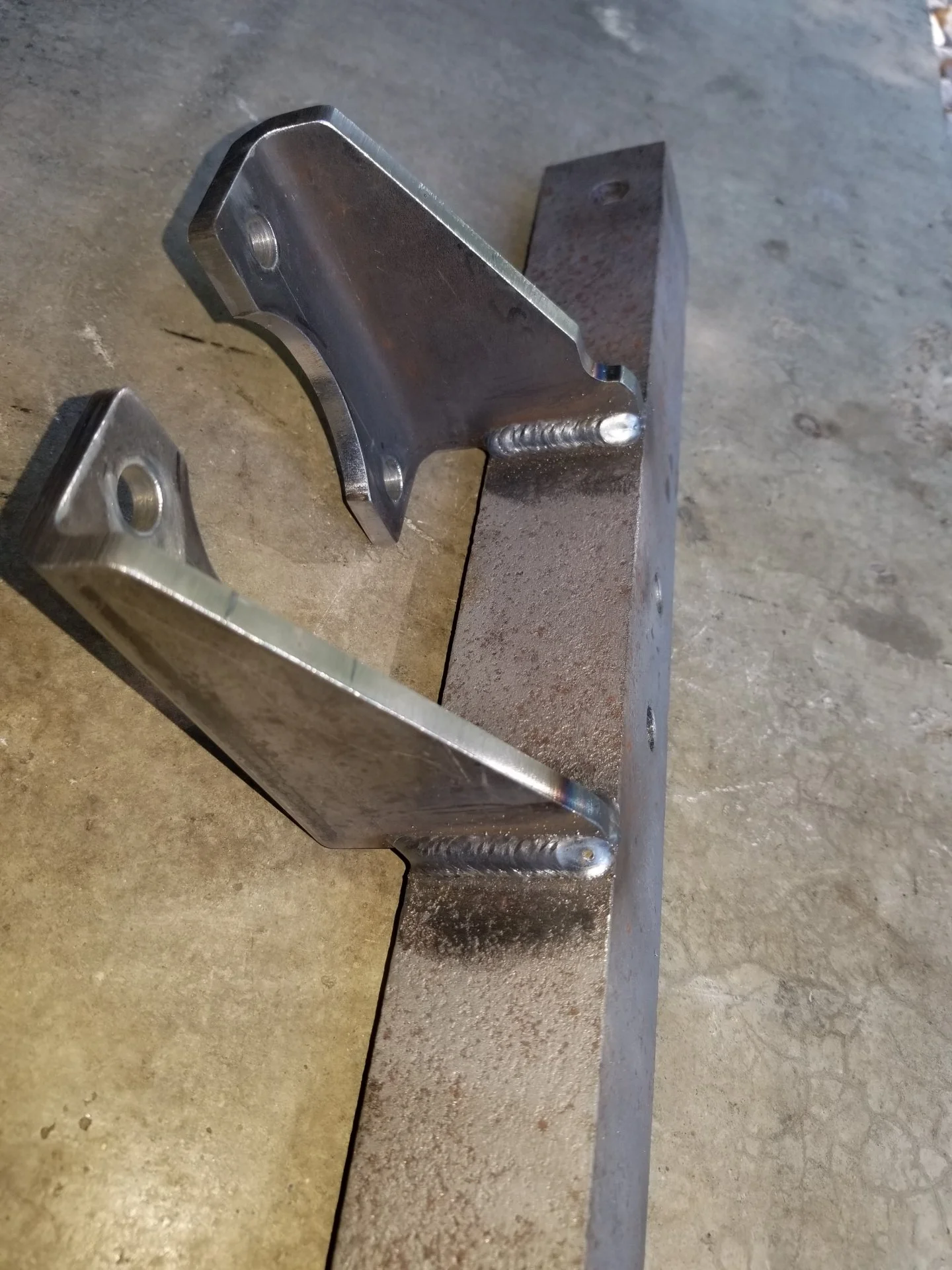

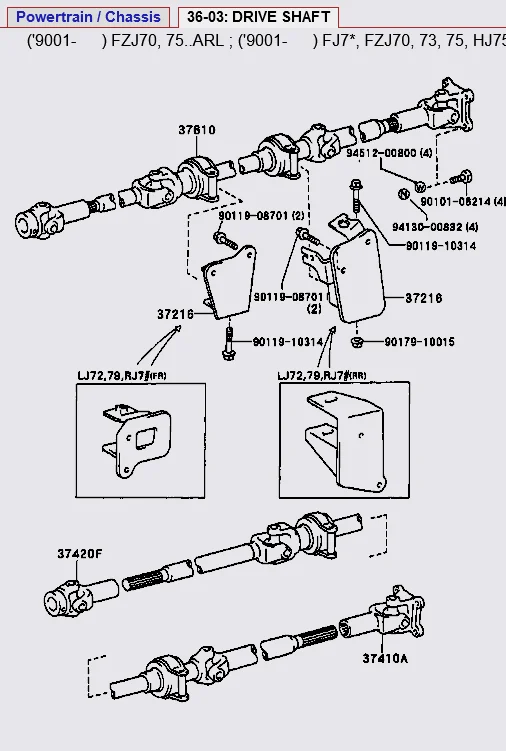

Thanks. Metal Inert Gas, or MIG for short. ER70S-6 weld material, so 78 ksi tensile strength. The loading is eccentric, so a single fillet should be sufficient. No sense in going through the math's since were just adding this supplemental to the original mounts. If this breaks before the shear pin, we've got bigger problems. ;)

BTW @cruiserdan I was cleaning up the gasket surfaces on my PTO today. It had never been disassembled before and the "FIPG" was silver in color.

Last edited:
Joined
Feb 15, 2016
Messages
476
Location
Somerset KY
How old is that winch? most of them pre-date the usage of liquid sealer.
Late 60's early 70's? I don't have an exact date. The winch section in the FSM specifically states the use of liquid sealer on some components, but neither black nor orange FIPG existed then. I believe Threebond products were in use in Japan in the early 60's. They are probably the manufacturer of the FIPG products used today. I will be using "black" when re installing as I do not believe the orange (for high temps) is necessary here.

Joined
Feb 15, 2016
Messages
476
Location
Somerset KY
Interesting timeline. I started with Toyota in 1979 and the first exposure we had to liquid sealers came about around 1985. That was the year where engine oil pan gaskets went away and were replaced by FIPG.
Not really a timeline. You mention your first introduction to liquid sealers, was this as a Toyota mechanic or as a parts specialist? There are many things that Toyota uses and does in Japan or at the factory level that is not available or is not done/sold at the dealer. You have gotten me curious about this topic. I've reached out to Threebond for some historical info.


cruiserdan

SupportingVendor Emeritus
Moderator
Joined
Mar 27, 2003
Messages
24,365
Location
Land Cruiser Heritage Museum broom closet
Not really a timeline. You mention your first introduction to liquid sealers, was this as a Toyota mechanic or as a parts specialist? There are many things that Toyota uses and does in Japan or at the factory level that is not available or is not done/sold at the dealer. You have gotten me curious about this topic. I've reached out to Threebond for some historical info.
I worked in a Toyota dealer parts department.
