pappy said:
Did use use a 60 series steering box?
Yes, FJ60 steering box in my FJ40 to mini-truck hi-steer arms. But, I used an aftermarket pitman arm on the steering box. Mini-truck, FJ60/62, and FJ/FZJ80 all use rod ends with the same taper.
- Thread starter
- #44
Gotcha the stock pitman arm would have interfered with the soa.
- Thread starter
- #45
New goodies for the project
alia176
SILVER Star
Good grief those tires are huge! I bet one of those could support an entire 40!!
- Thread starter
- #48
Is that sarcasm? They are only 33/12.5R15s. That is pretty mild for a 40, at least one that is staying SUA
- Thread starter
- #49
Front suspension, check.
Next job steering, Beno I will be calling about some rod ends.
added the before pic
Next job steering, Beno I will be calling about some rod ends.
added the before pic
Last edited:
irbrito said:
I still have those allen plugs for ya....
- Thread starter
- #51
beno said:I still have those allen plugs for ya....
I picked em up 2 weeks ago. Thanks!
Last edited:
Isaac, here's is what I'm going to do on my next iteration, coming up soon:
-LHD BJ70 drag link end (rebuildable) at the pitman arm:
-BJ70 drag link rod (comes with drag link end).
-FJ60 drag link end at the passenger side TRE:

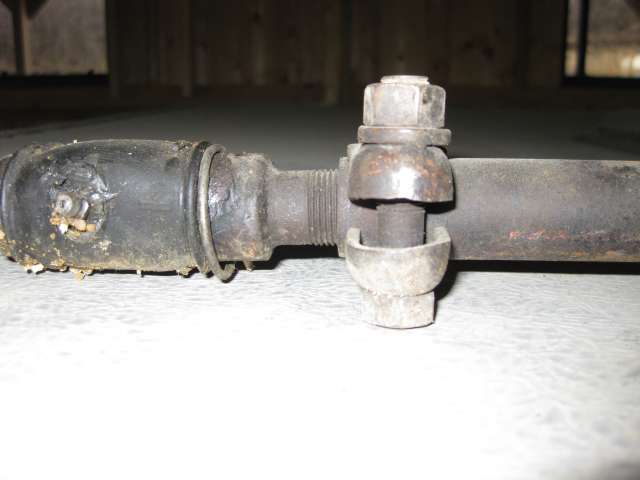

-Stock FJ40 passenger side TRE, reamed out to accept FJ60 drag link end (Kurt at Cruiser Outfitters can do this):
Like this but reamed out and using the FJ60 drag link end instead of that other TRE that's being used:
If you have FJ60 knuckles etc. then you could buy a whole FJ60 TRE kit and get a custom drag link rod made, that would be pretty slick.
-LHD BJ70 drag link end (rebuildable) at the pitman arm:
-BJ70 drag link rod (comes with drag link end).
-FJ60 drag link end at the passenger side TRE:
-Stock FJ40 passenger side TRE, reamed out to accept FJ60 drag link end (Kurt at Cruiser Outfitters can do this):
Like this but reamed out and using the FJ60 drag link end instead of that other TRE that's being used:
If you have FJ60 knuckles etc. then you could buy a whole FJ60 TRE kit and get a custom drag link rod made, that would be pretty slick.
- Thread starter
- #53
Isaac, here's is what I'm going to do on my next iteration, coming up soon:
-LHD BJ70 drag link end (rebuildable) at the pitman arm:
-BJ70 drag link rod (comes with drag link end).
-FJ60 drag link end at the passenger side TRE:
-Stock FJ40 passenger side TRE, reamed out to accept FJ60 drag link end (Kurt at Cruiser Outfitters can do this):
Like this but reamed out and using the FJ60 drag link end instead of that other TRE that's being used:
If you have FJ60 knuckles etc. then you could buy a whole FJ60 TRE kit and get a custom drag link rod made, that would be pretty slick.
That should be pretty stout! are you having problems with your current setup???

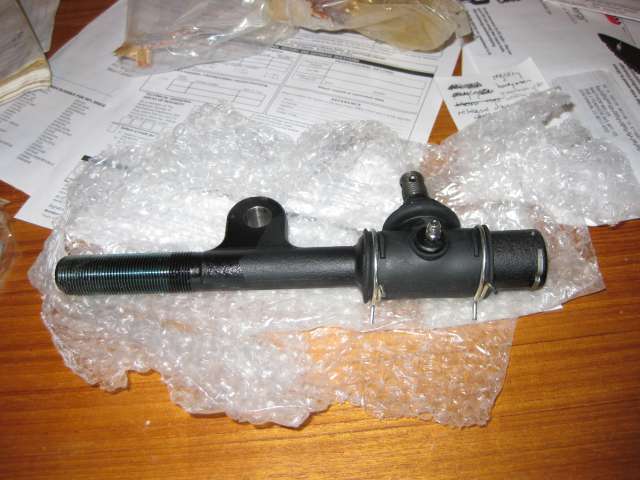

I talked to 4Wheel Auto in Canada about the XJ7Y relay rod end, they typically only sell them in kits, but are looking to see if they have a loose one lying around.
- Thread starter
- #54
FZJ80 Locker
I recently came across a good deal and made an impulse purchase on a complete locking 3rd member out of an 80, should I:
-put it in the front? I will have about 3" of lift with the Dakar Heavy leaf springs and 1.5" lift shackles, I really don't want to put it through my oil pan
-Convert/swap to Free float rear axle and use there?
-Resell it, and go ARB?
I recently came across a good deal and made an impulse purchase on a complete locking 3rd member out of an 80, should I:
-put it in the front? I will have about 3" of lift with the Dakar Heavy leaf springs and 1.5" lift shackles, I really don't want to put it through my oil pan
-Convert/swap to Free float rear axle and use there?
-Resell it, and go ARB?
I assume in the FJ40. As you said, an upgrade to full float would be required for the rear. I would install in the front. You will need a new long side axle shaft with the longer splines, two longer studs, and a gasket to use as template to grind in the notch. Install is very straight forward. You will also need the harness, and I would recommend getting the rear harness used in the FZJ80. It will reach the dash, IIRC.
alia176
SILVER Star
Harness? As in the harness that go from the locker to the ECU? How will he control the locker activation - some kind of a black box or the factory ECU? Has anyone come up with an elegant way to activate/deactivate these lockers w/o using the locker ECU?
I use a very simple DPDT switch. Can't be any easier. As I recall the harness went from the locker to the frame harness.
- Thread starter
- #58
Yes, amaurer designed one that was build with a handfull of radio shack parts https://forum.ih8mud.com/40-55-series-tech/270721-elocker-install-40-series-ff-rear.html
- Thread starter
- #59
That’s kinda what I am thinking, just a bit concerned with a SUA setup after Fast Eddy's fiasco- punching the actuator through the oil pan. I guess extending the bump stops could solve that problem. Also, I am kinda anal about symmetry and consistency, so having a lunchbox or ARB in the rear and elocker in the front would really bug me. I could already feel my mind trying to justify a FF rear axle just to have a rear elocker. I am really a sucker for scope creep
I have a lunch box in the rear of mine. I would not do that again. An ARB is in my very distant future for the rear. Love the e in the front.
