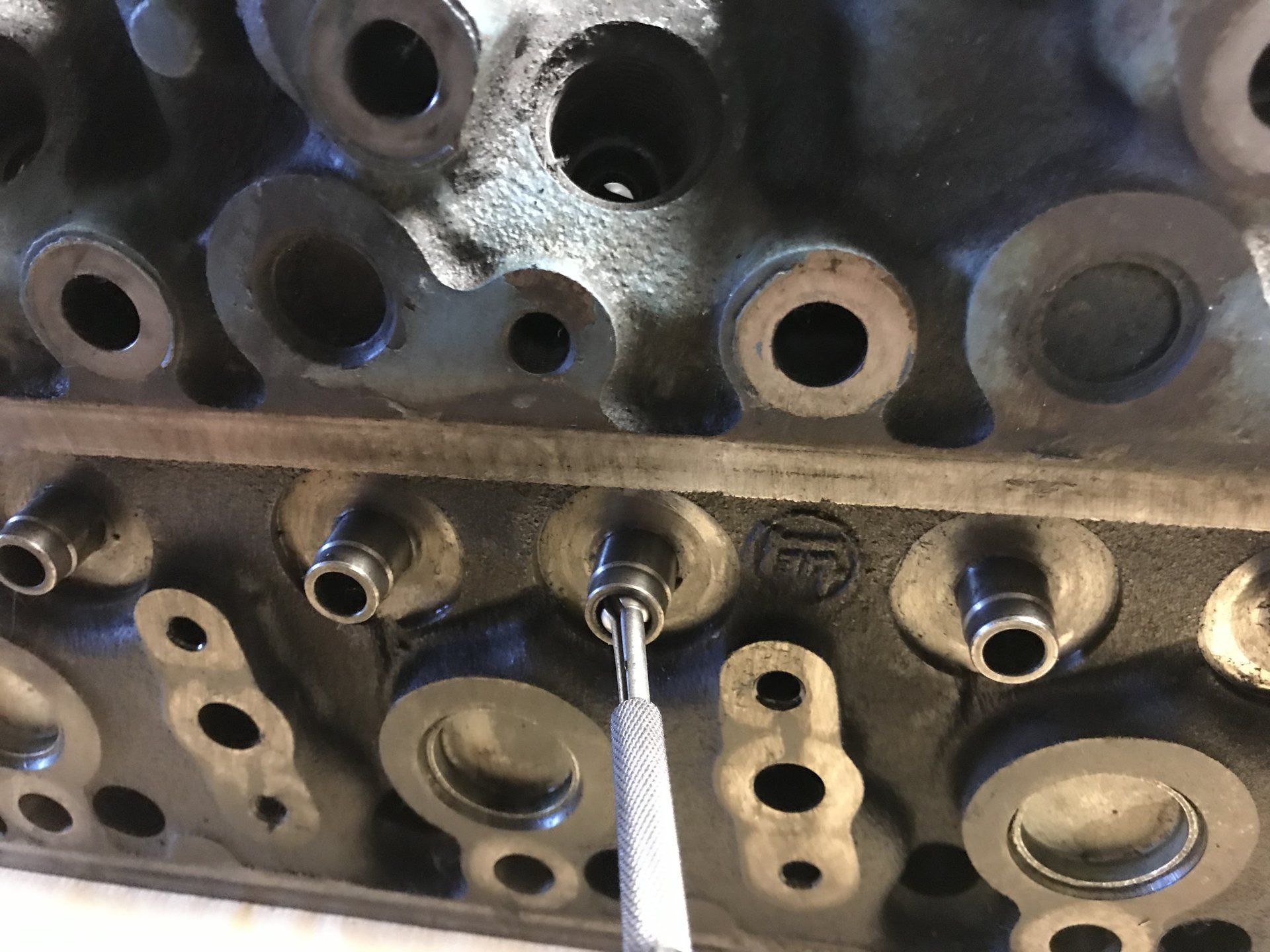

After making sure everything was good (all up to spec) which they were we started measuring the stem guide holes, and they came out really good! The engine seems to be in really good condition. I did make a spread sheet (@CaptClose :)) of this so I will post that and a full engine report on what we did.








Cylinder 1 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.40mm / FSM - 44.30mm)
  • Outer Spring Intake (48.12mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 44.27mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.11mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 9.00mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diameter ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.03mm / FSM - 0.10mm MAX)
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX)
Cylinder 2 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.00mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.19mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 43.86mm /FSM - 44.30mm)
  • Outer Spring Exhaust ( 47.99mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 9.00mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 9.01mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diameter ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.03mm/ FSM - 0.10mm MAX)
  • Valve Oil Clearance Exhaust ( 0.02mm/ FSM - 0.12mm MAX)
Cylinder 3 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.99mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.22mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 44.03mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.08mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 8.98mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diameter ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.05mm / FSM - 0.10mm MAX )
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX )
Cylinder 4 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.22mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.02mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 44.12mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.10mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 8.98mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diameter ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.05mm / FSM - 0.10mm MAX )
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX )
Cylinder 5 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.02mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.28mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 43.99mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.30mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 8.99mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm/ FSM 8.954mm - 8.970mm )
  • Stem Guide Diametere ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.04mm / FSM - 0.10mm MAX )
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX )
Cylinder 6 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.30mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.19mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 44.10mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.13mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 8.98mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diametere ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.05mm / FSM - 0.10mm MAX)
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX)
Not bad for 300,000 miles!! This too a heck of a lot of time, at least now I know it's good. :)

Last edited:

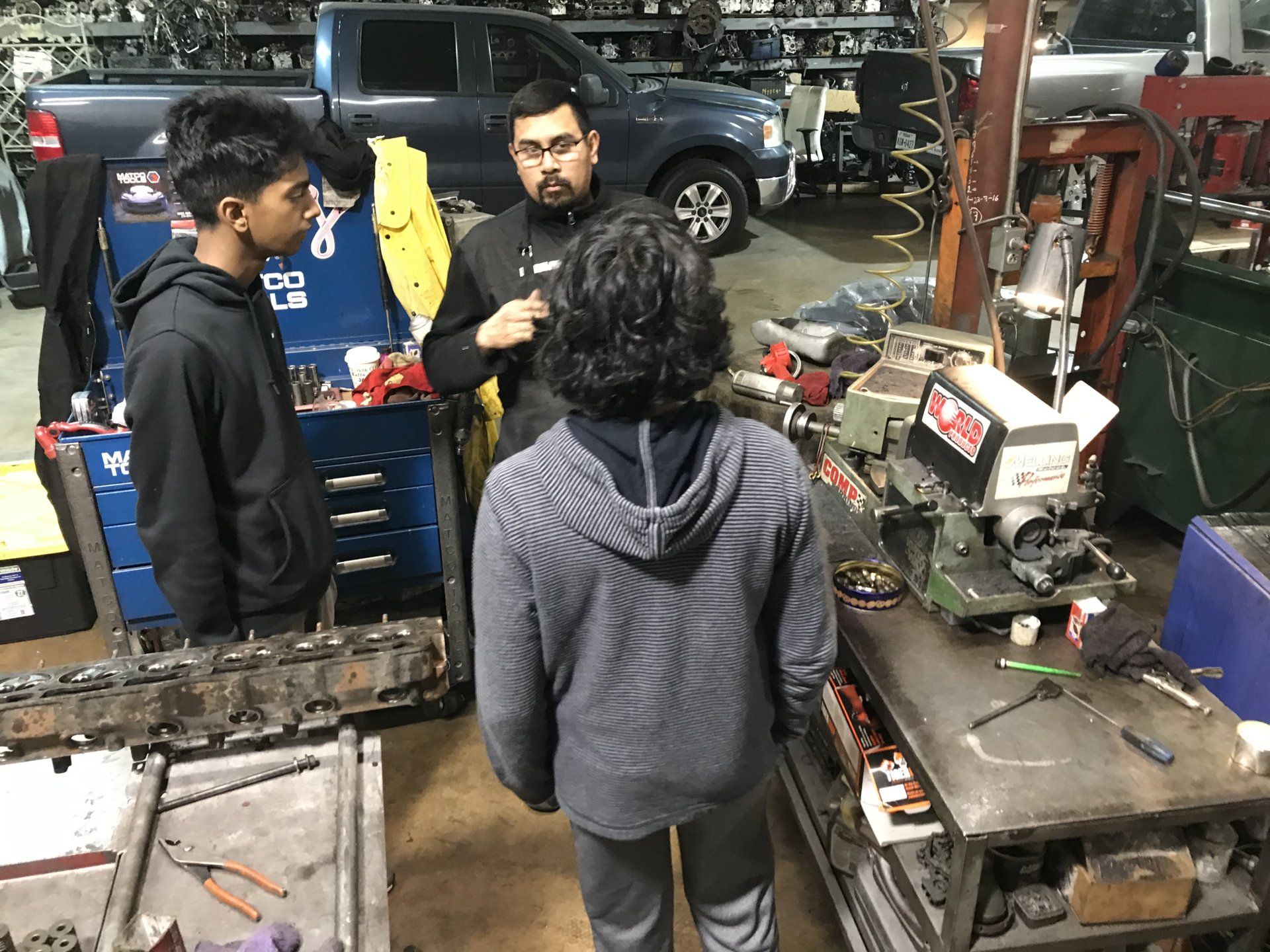

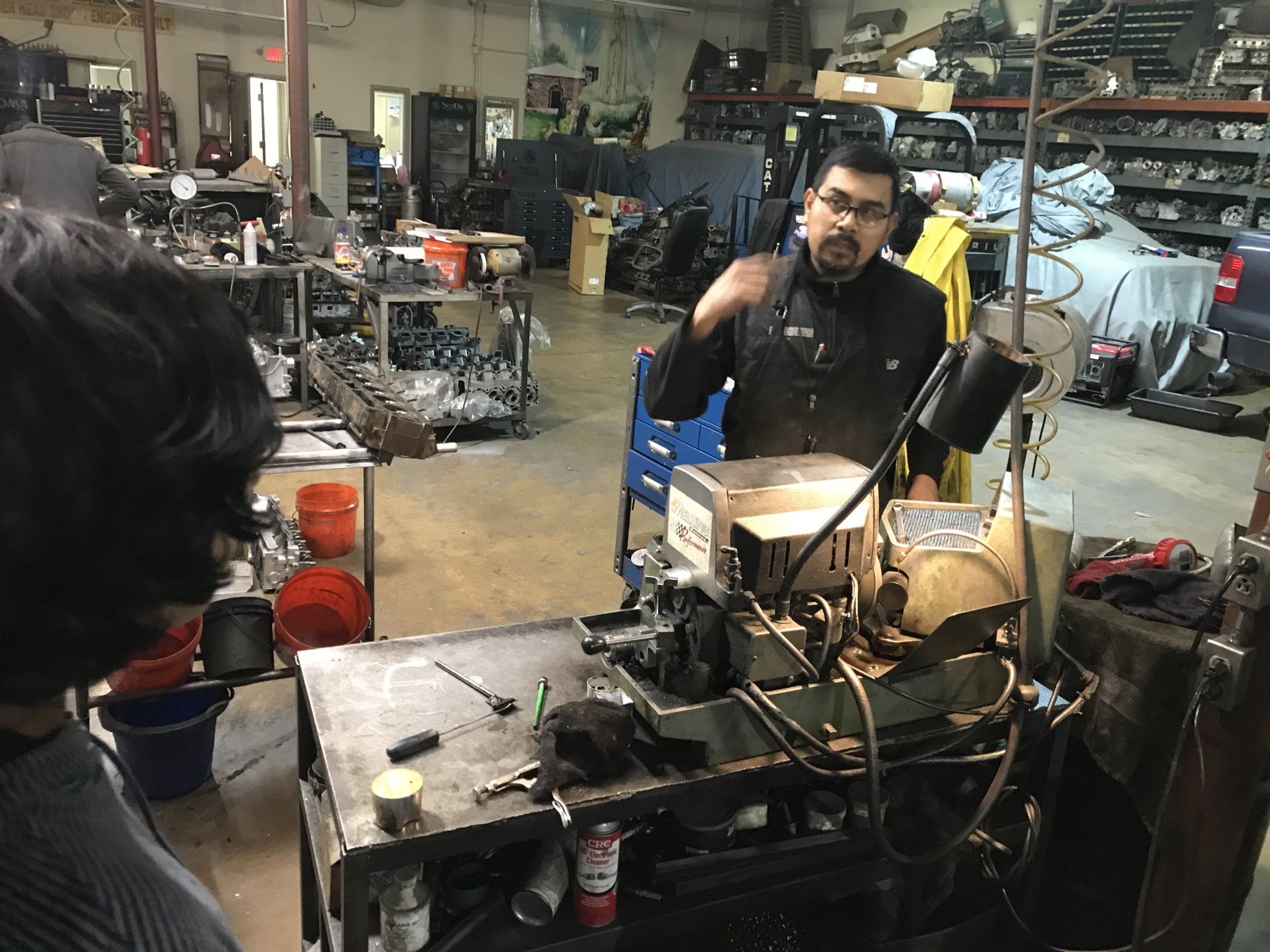

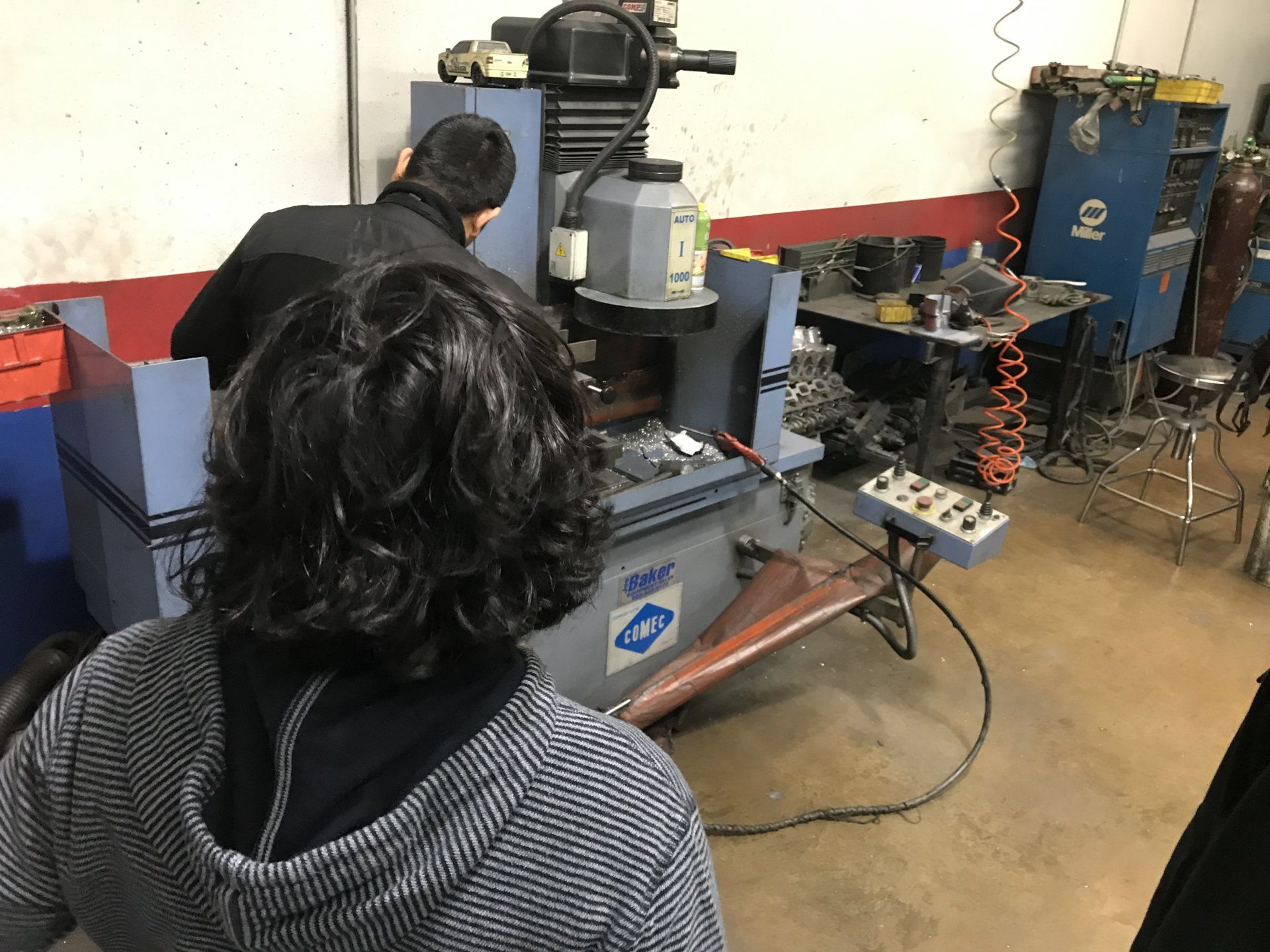

Since it was all good we took the cylinder head to the machine shop for valve and seat grinding/hot dip and re-assembly with new valve guide stem seals. We are re-using all springs, valves, and valve guides. We took a look around the shop, and learned a good deal from Mario! It might be my future internship in the summer, or your place @Yackster!:)

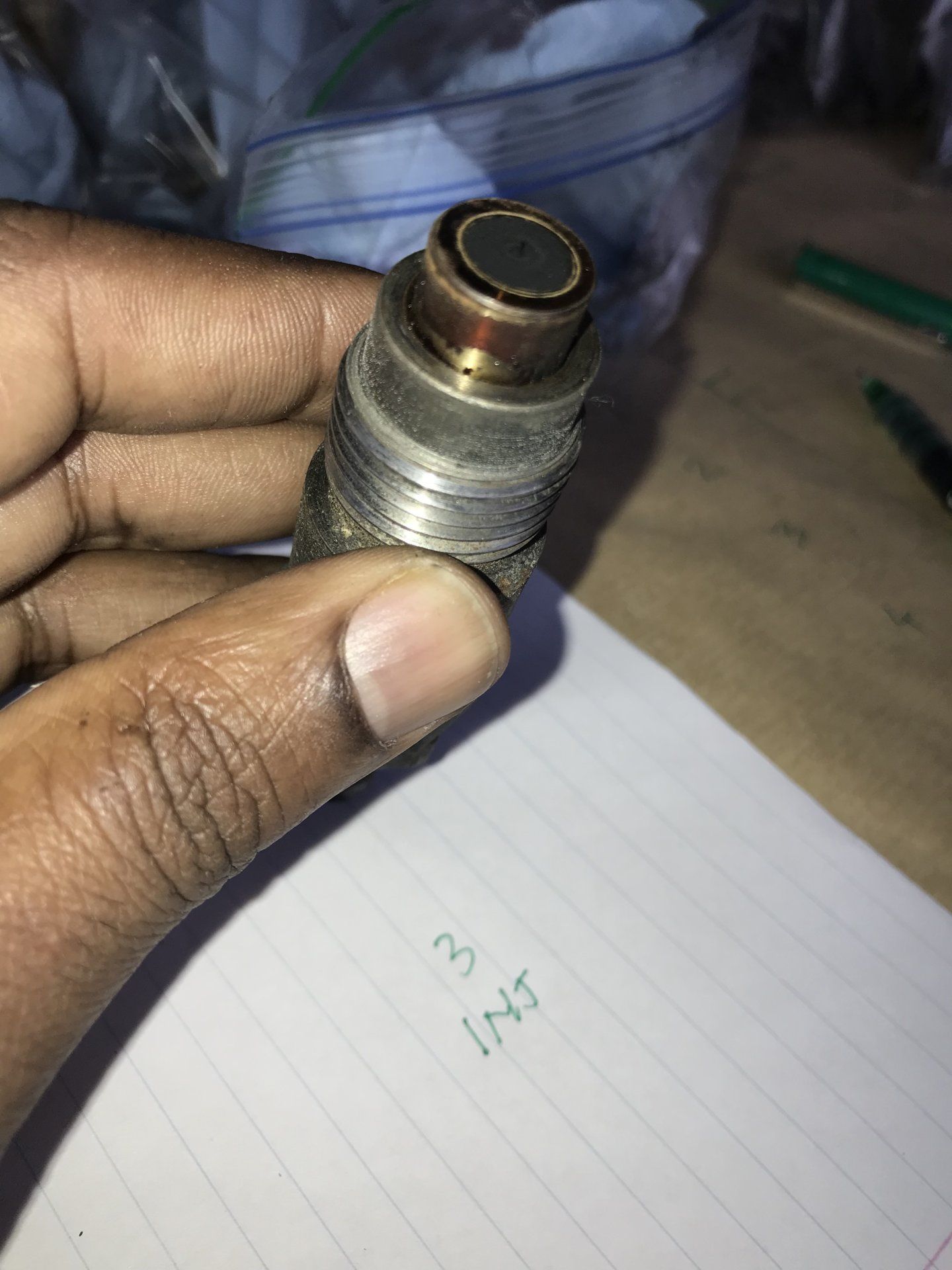

We realized we had not taken any injector pictures so here they are. We plan on taking them in for a rebuild!










They all look fairly good, but want to check the squirt pattern too.

Cowboy45 said:
Cylinder 1 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.40mm / FSM - 44.30mm)
  • Outer Spring Intake (48.12mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 44.27mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.11mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 9.00mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diameter ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.03mm / FSM - 0.10mm MAX)
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX)
Cylinder 2 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.00mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.19mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 43.86mm /FSM - 44.30mm)
  • Outer Spring Exhaust ( 47.99mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 9.00mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 9.01mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diameter ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.03mm/ FSM - 0.10mm MAX)
  • Valve Oil Clearance Exhaust ( 0.02mm/ FSM - 0.12mm MAX)
Cylinder 3 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.99mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.22mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 44.03mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.08mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 8.98mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diameter ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.05mm / FSM - 0.10mm MAX )
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX )
Cylinder 4 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.22mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.02mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 44.12mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.10mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 8.98mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diameter ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.05mm / FSM - 0.10mm MAX )
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX )
Cylinder 5 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.02mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.28mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 43.99mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.30mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 8.99mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm/ FSM 8.954mm - 8.970mm )
  • Stem Guide Diametere ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.04mm / FSM - 0.10mm MAX )
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX )
Cylinder 6 - Good
  • Spring Trueness :rofl:
  • Inner Spring Intake ( 44.30mm / FSM - 44.30mm)
  • Outer Spring Intake ( 48.19mm / FSM - 48.10mm)
  • Inner Spring Exhaust ( 44.10mm / FSM - 44.30mm)
  • Outer Spring Exhaust ( 48.13mm / FSM - 48.10mm)
  • Valve Stem Diameter Intake ( Avg. 8.98mm / FSM 8.973mm -8.989mm)
  • Valve Stem Diameter Exhaust ( Avg. 8.99mm / FSM 8.954mm - 8.970mm )
  • Stem Guide Diametere ( 9.03mm / FSM 9.101mm - 9.030mm )
  • Valve Oil Clearance Intake ( 0.05mm / FSM - 0.10mm MAX)
  • Valve Oil Clearance Exhaust ( 0.04mm / FSM - 0.12mm MAX)
Not bad for 300,000 miles!! This too a heck of a lot of time, at least now I know it's good. :)
Click to expand...

This would make Andre proud. A little bit of Swiss precision.

Nice job on the measuring of the head components.
What might be interesting is to see if the spring compression rate is still equal.
You can use a weight or a scale to press each spring with the same force and measure the length then.

Cowboy45 said:
After making sure everything was good (all up to spec) which they were we started measuring the stem guide holes, and they came out really good! The engine seems to be in really good condition. I did make a spread sheet (@CaptClose :)) of this so I will post that and a full engine report on what we did.

View attachment 1883750

View attachment 1883751

View attachment 1883752

View attachment 1883753
Click to expand...

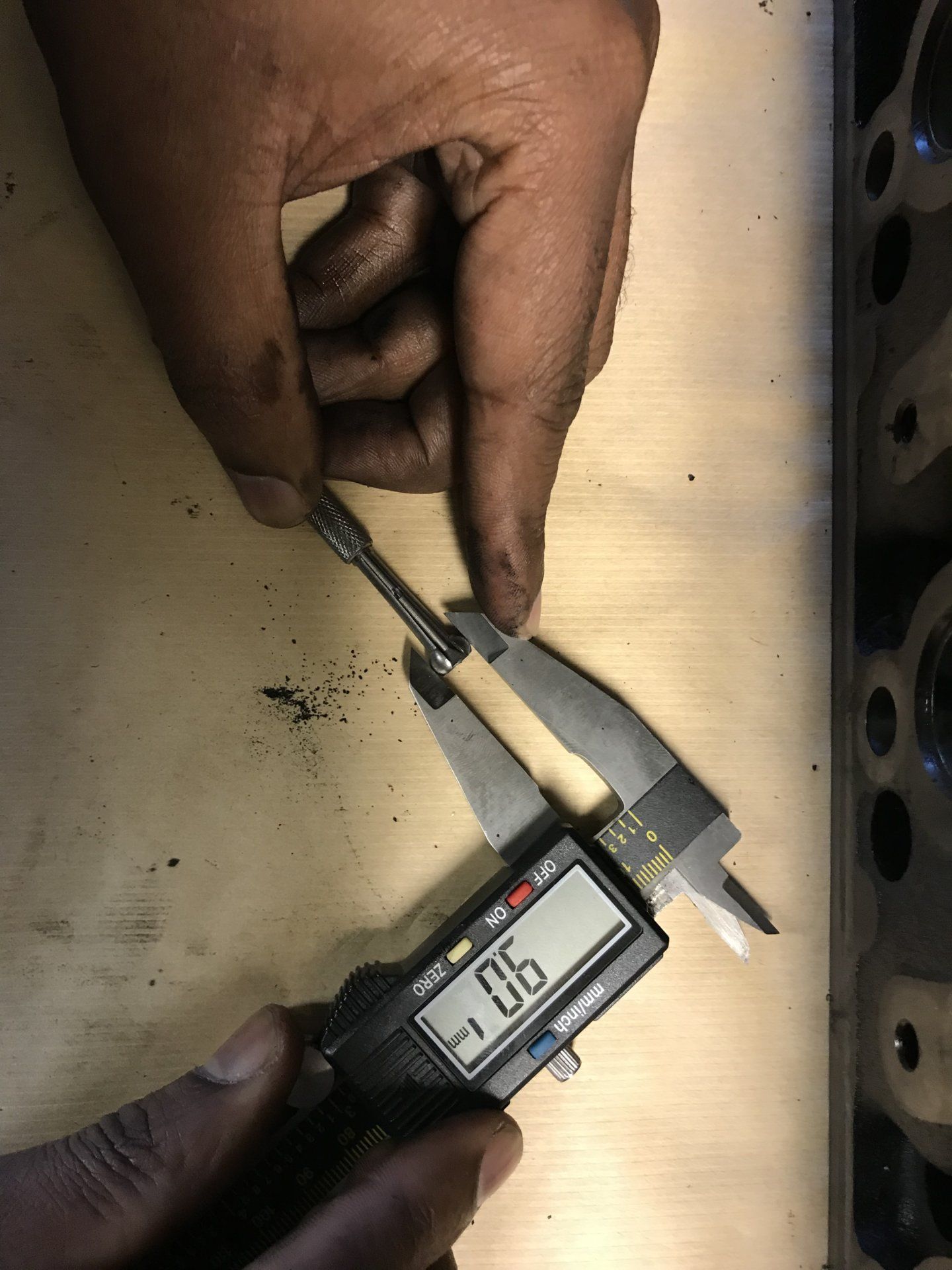

What is the name of this tool you're using to measure the diameter of the guide? Not the digital caliper but the item you're inserting?

-Geoff

jgeoffr said:
What is the name of this tool you're using to measure the diameter of the guide? Not the digital caliper but the item you're inserting?

-Geoff
Click to expand...

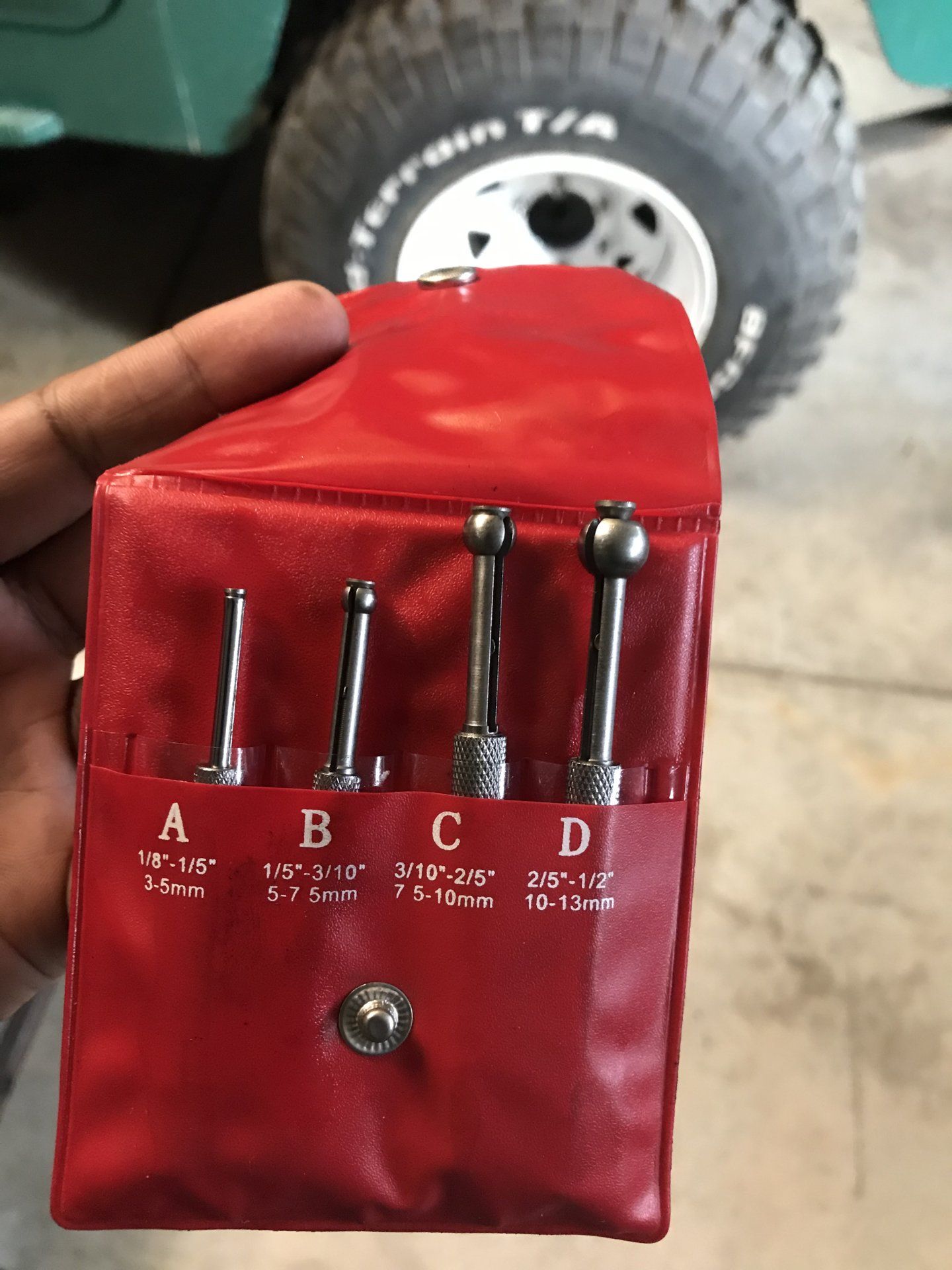

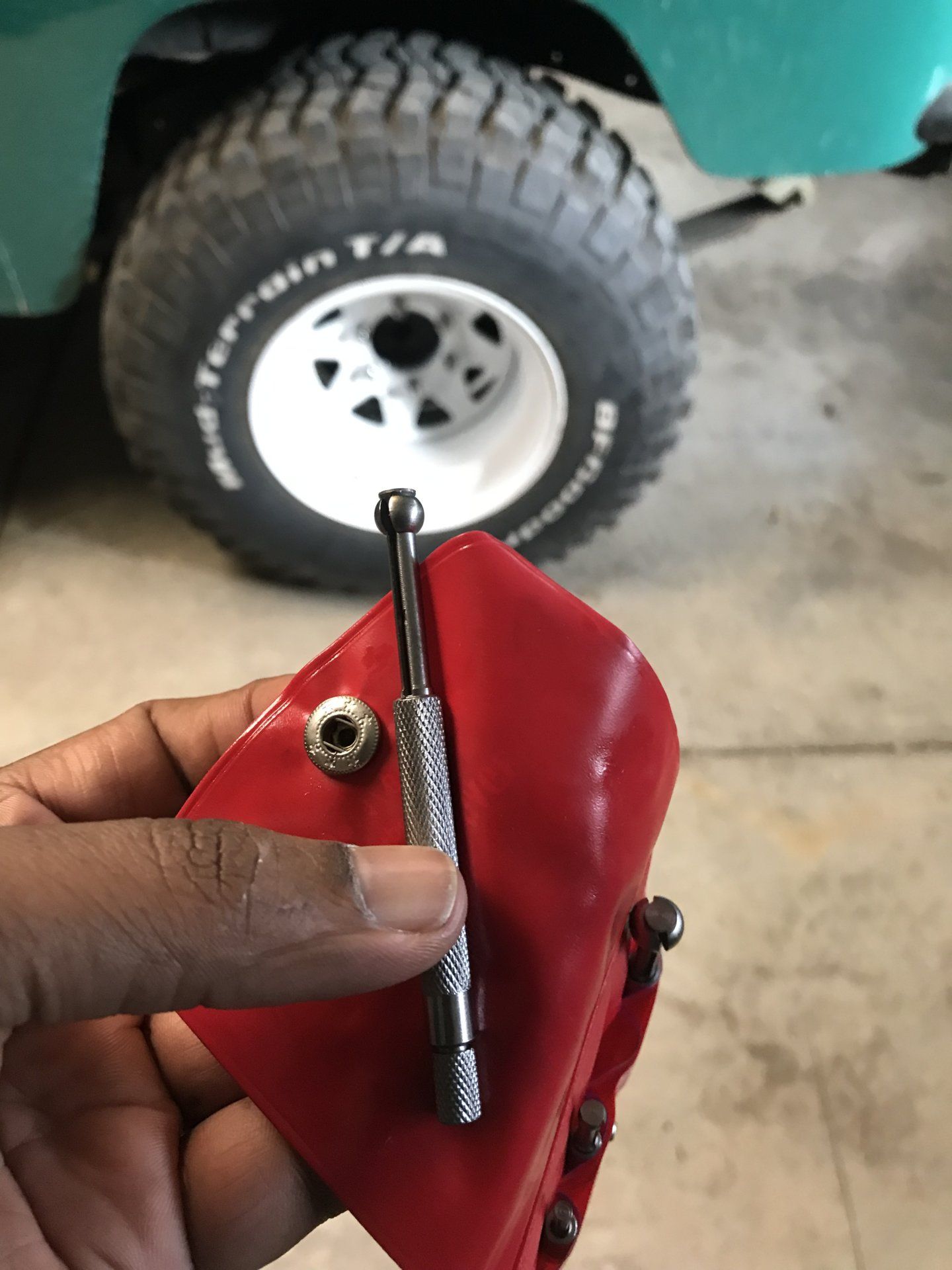

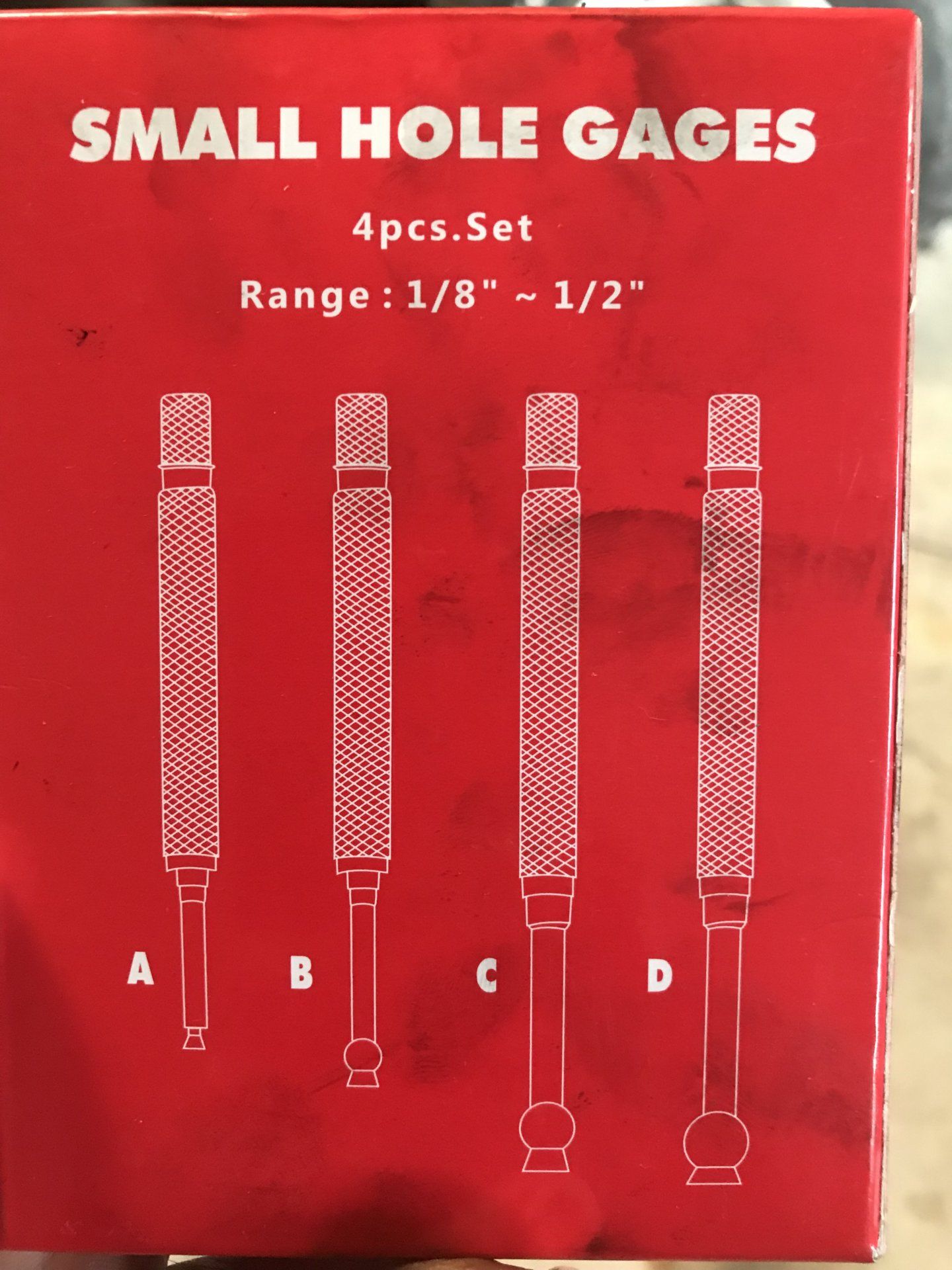

Bore diameter gauge. @Cowboy45 explains a bit about how it works. It is the gauges in the red case on pg 26. Attached a couple of pics.
