Official 80 Series Manual Transmission Club Thread

1. Year and model truck
2. Engine
3. Mileage
4. Originally with manual or transmission swapped later
5. Transmission
6. Transfer case - Full time or Part time
7. Gearing
8. Any modifications to manual transmission
9. Any modifications to transfer case
10. Fuel consumption
11. Mods
12. Other .... anything you would like to add relevant to subject
13. Pictures of your rig

Please keep chat to a minimum.



LandCrusher80



[landcrusher80]

1. 1994 HDJ81V VX Limited -Special Package -
2. 1HD-T
3. 162,000 km
4. A442F swapped to H151F
5. H151F
6. HF2A Full time
7. 4:11
8. No
9. Not yet
10. Average 9.3 L/km - 10.7 L/100km - 22 MPG
11. Wish I had a taller 5th gear
12. …… later

LandCrusher80
View attachment 705131



[Tapage]

I'll play ..

1. 1995 HDJ80 Marilu ( my sign for more pics and details )
2. 1HD-T
3. Almost 400k km ..
4. A442F swaped to H150F
5. H150F ( 300mm Clutch 21 splines )
6. HF1A Part Time ( Factory )
7. 4.11
8. No
9. No
10. 22 - 26 km/g



[Sam Stewart]

Gonna be a small club...



[finderscuba]

1. 1990 HDJ81
2. 1HD-T
3. 195000 km
4. Original
5. H151F
6. Full time
7. 4.11
8. No
9. No
10. Avg 21-22mpg
11. Yup
12.
13.

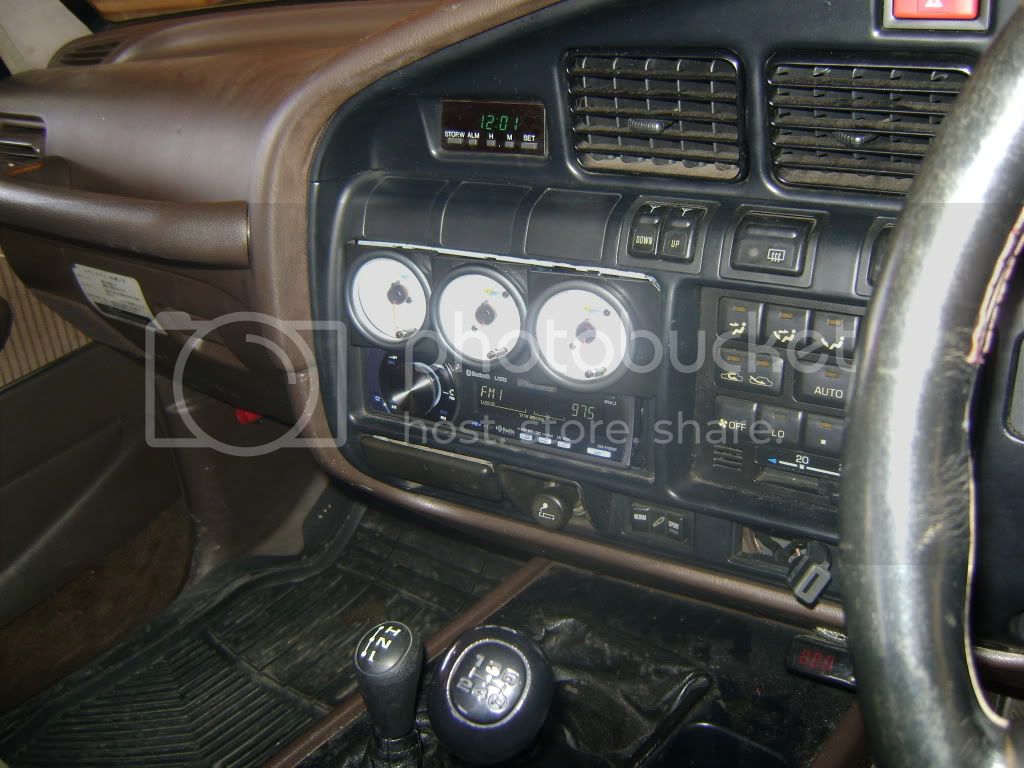

Only shifter photo I have:

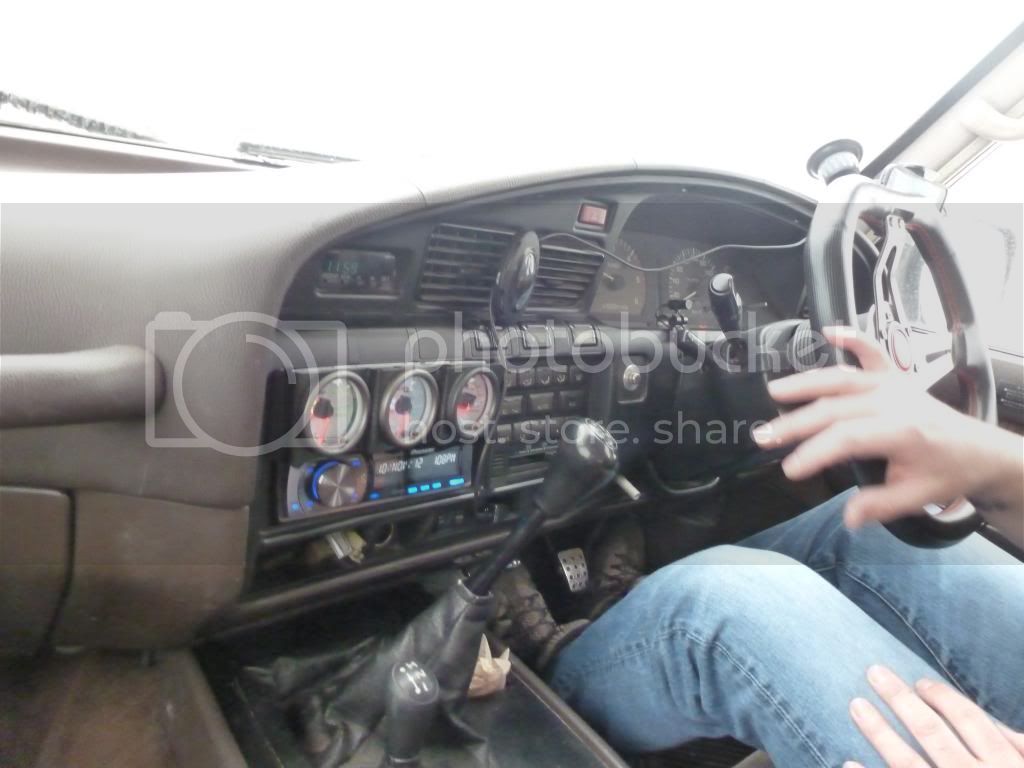

Wait, here's another:

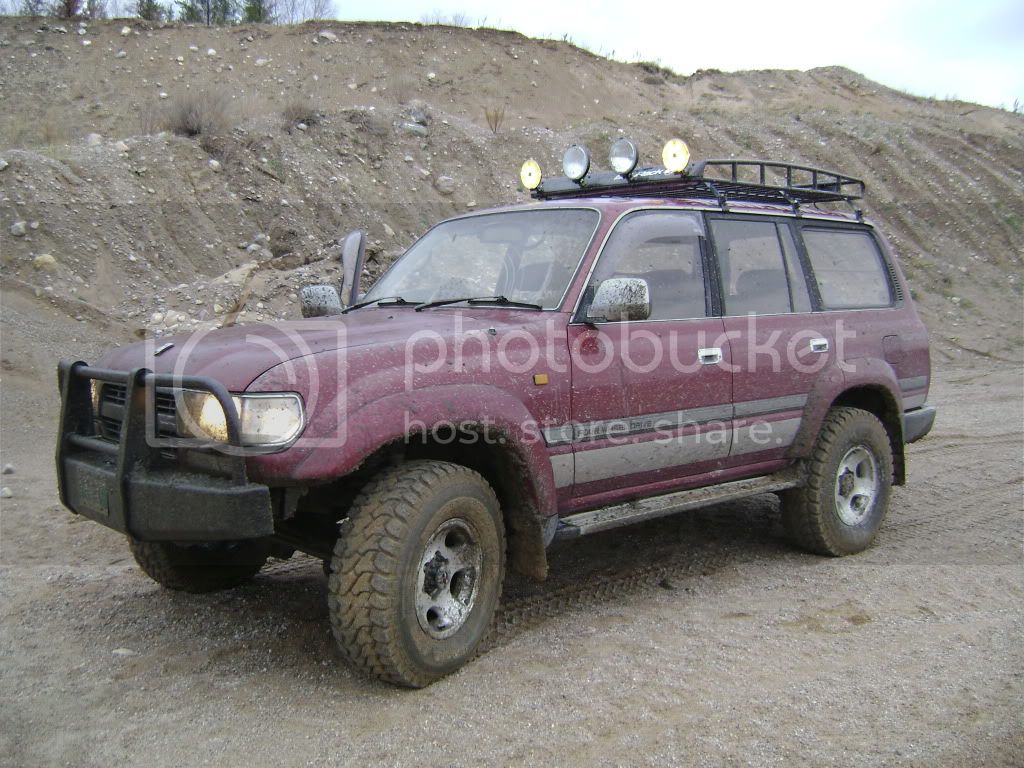

Recently, after dunking in muddy ice water:

Muddy:

Sledding:



[Impreza]

I hate this thread. Jelly to level 20,000.



[bhmmapping]

Gonna be a small club...

Maybe not, there are two h42 swaps in our local club alone (I built and sold one to another club member so I will let him post here)



[VK3FHDJ]

1. 1996 HDJ80 Aust model
2. 1HD-FT
3. 370,000km
4. Factory manual
5. H151F
6. Full time
7. Stock - 4Terrain HD Clutch
8. None
9. Pin 7 mod?
10. 11L/100km on 285 ATs, 13L/100km on 315 MTRs
11. Lots... GTurbo, FMIC, 3" Ex, 3" Autocraft Slinkies, Slee Rear, ARB & Warn Front, F&R ARBs, Snorkel, Gauges etc etc



[SPECTRE]

Why does the rest of the world get all the good options.



[80seriesnut]

Ok I'm going to ask because I don't know. So in the pictures I've seen LHD and a RHD. Close up of the shifter shows that all the gears are in the same location but the shifter leans towards the steering wheel weather it be LHD or RHD.I guess I thought in a RHD vehicle 1st gear would be the gear farthest right and on top. Anyone help me out here?



[finderscuba]

The gear pattern is identical whether it's LHD or RHD. First is leftmost and up, reverse is rightmost and down. The shifter does lean towards the driver, otherwise it would be a longer reach.

I think I would prefer having first closest to the driver, but I've gotten so used to it that I haven't really noticed for years. If they made it mirrored, then they would have to have 2 versions of every manual transmission.



[scuba steve]

Here is mine;

1. 1990 vx
2. 1-hdt
3. 293,000kms
4. Original
5. H151f
6. Full time
7. 4.11
8. None
9. None
10. City 9.5l/100 highway 11l/100kms
11. 35" tires, arb front, kaymar rear, cruisn sliders, 3/4 rack with arb rtt, snorkel, high performance extra horse power momo steering wheel.
12. Next week comes a 3" exhaust and hopefully for Xmas shel'll get 37's under her.
13. Here you go



[80seriesnut]

The gear pattern is identical whether it's LHD or RHD. First is leftmost and up, reverse is rightmost and down. The shifter does lean towards the driver, otherwise it would be a longer reach.

I think I would prefer having first closest to the driver, but I've gotten so used to it that I haven't really noticed for years. If they made it mirrored, then they would have to have 2 versions of every manual transmission.

So in a RHD 1st is just more towards where the steering wheel on a LHD is. I hope I don't sound stupid.



[mot]

So in a RHD 1st is just more towards where the steering wheel on a LHD is. I hope I don't sound stupid.

Yes.
The "pattern" would be identical whether LHD or RHD ir you were to look down on the shifter from directly above (where the sunroof is), same with the pedals on the floor, clutch to the left, brake in the middle, and the skinny pedal on the right.

Here's my info:

1. '90 VX (RHD)
2. 1HD-T
3. 220k+ kms
4. Originally with manual
5. H151F
6. Part time
7. No idea
8. Nothing yet, but have a "short-throw" kit that I got in Japan
9. No
10. 18 mpg(US) around town. 20-ish if driven at 60mph on the freeway. One time I've gotten something crazy like 26 or 28mpg when I was in Moab and drove to Arches NP, etc... doing mostly 40-45mph and coasting downhill, etc...
11. Stiffer unti-awaybars (removed to fix the broken brackets)
12. Nuttin'
13. Maybe later



[landcrusher80]

Mot joined!!!!!!!!
Where is the 70sguy??



[mot]

Gonna be a small club...

I have a small club...

Oh, this is not chat.



[dieselDaryl]

1. '92 VX (RHD)
2. 1HD-T
3. 180,000 kms
4. Original
5. H151F
6. Full-time
7. Stock. Way too low, RPM is 2600 at 100km/h
8. Stock
9. Stock
10. 11L/100km over-all. Hope that gets better once I put 33s or 35on (engine escremas with 31s)
11. Cruisinoffroad bumper is on and OME + 35s soon-to-come
12. Nope!

I've had this truck for 2 month now and just love it!



[finderscuba]

1. '92 VX (RHD)
2. 1HD-T
3. 180,000 kms
4. Original
5. H151F
6. Full-time
7. Stock. Way too low, RPM is 2600 at 100km/h
8. Stock
9. Stock
10. 11L/100km over-all. Hope that gets better once I put 33s or 35on (engine escremas with 31s)
11. Cruisinoffroad bumper is on and OME + 35s soon-to-come
12. Nope!

I've had this truck for 2 month now and just love it!

That's a nice clean looking truck! I wish my paint still looked that good.



[Jan-78FJ40]

1. 1996 US spec 80 series
2. 1HD-T swapped in
3. 0. Just completed the rebuild
4. Drivetrain original manual
5. H151F
6. Part time HF1A Transfer case
7. 4.1
8. rebuilt the transmission
9. rebuilt the transfer case
10. ~20mpg
11. bumpers, dual batteries, dual fuel tanks, OME heavy lift, lots of other stuff...
12. no
13. Pictures of your rig



[Splangy]

1. 1996 US spec 80 series
2. 1HD-T swapped in
3. 0. Just completed the rebuild
4. Drivetrain original manual
5. H151F
6. Part time HF1A Transfer case
7. 4.1
8. rebuilt the transmission
9. rebuilt the transfer case
10. ~20mpg
11. bumpers, dual batteries, dual fuel tanks, OME heavy lift, lots of other stuff...
12. no
13. Pictures of your rig

Wow, where was that photo taken?
