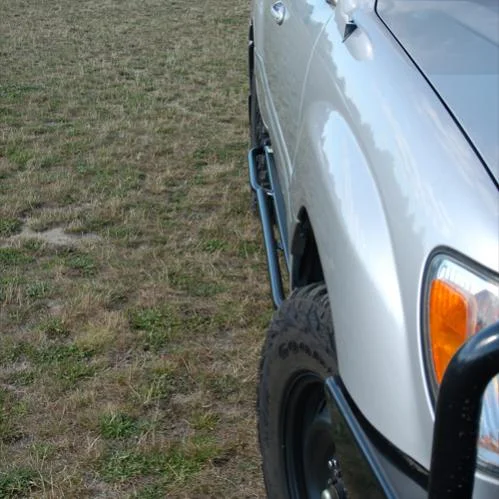

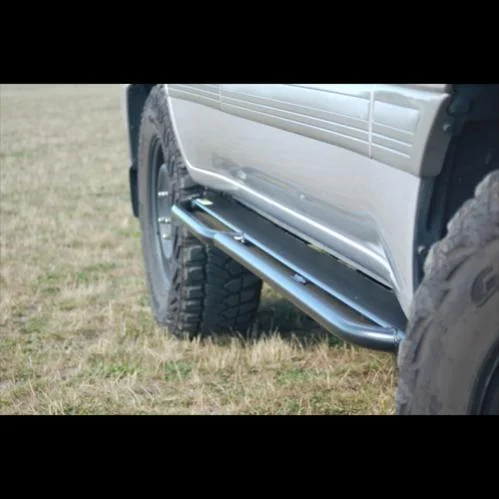

Metal Tech 4x4 is proud to announce the release or our 100 series Land Cruiser sliders! Our new sliders have the Metal Tech signature two stage rub rail originally designed for the 80 series but slightly redesigned to act as a step plus protecting your quarter panel. The main bodies start out as a flat sheet of 3/16" and is laser cut and formed to our unique styling that cannot be matched by anyone else. These are not your regular 2x3 box tube slider, they have 4 bends in the main body with gusseting throughout the backside.

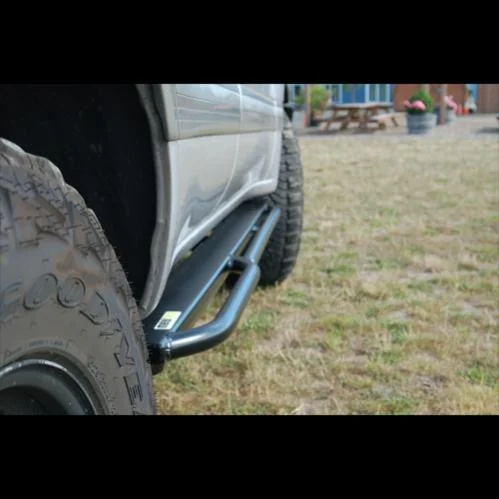

For the rub rail we decided to flatten our two stage rub rail design to create a step rather than having the upward kick like our FJ80 series sliders. This allows for a greater area for foot placement yet it still achieves it's purpose of protecting your quarter panel in the rear while grinding against rocks/trees. The tubing is made out of 1.5 x .120 DOM SRA.
For mounting to the frame we are using our custom made u-bolts that clamp onto our 1/4" laser cut and formed frame mounts. We made sure to properly space all three mounting legs for maximum strength placement throughout the slider while in contact with rocks/tree/etc. This style of mounting system has been used on our 80 series sliders for the last 7 years with zero failures.
For an introductory price we will be doing a production run of 5 sets of sliders and will be taking pre-orders. You can find the information in the vendor section 100 Series Land Cruiser Slider Sale
For the rub rail we decided to flatten our two stage rub rail design to create a step rather than having the upward kick like our FJ80 series sliders. This allows for a greater area for foot placement yet it still achieves it's purpose of protecting your quarter panel in the rear while grinding against rocks/trees. The tubing is made out of 1.5 x .120 DOM SRA.
For mounting to the frame we are using our custom made u-bolts that clamp onto our 1/4" laser cut and formed frame mounts. We made sure to properly space all three mounting legs for maximum strength placement throughout the slider while in contact with rocks/tree/etc. This style of mounting system has been used on our 80 series sliders for the last 7 years with zero failures.
For an introductory price we will be doing a production run of 5 sets of sliders and will be taking pre-orders. You can find the information in the vendor section 100 Series Land Cruiser Slider Sale
