Just so everyone knows it overlays everything except the blue circle. Go figure
Toyota really wants people to see the big blue circle.
Last edited:
LC 250 Parts Thread (1 Viewer)
- Thread starter LCQ
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Toyota really wants people to see the big blue circle. Now that the TLC has been released in the EU and Australia maybe we can answer this question...
Can someone find out the oem Toyota front winch bumper from Australia?
Also looking for a connector that would work on the back of the Reverse Brake Assist button. I want to make a wiring harness to move this button but do not want to cut the wires. I want to move it right next to the Tow/Haul button so I just push both at the same time.
Can someone find out the oem Toyota front winch bumper from Australia?
Also looking for a connector that would work on the back of the Reverse Brake Assist button. I want to make a wiring harness to move this button but do not want to cut the wires. I want to move it right next to the Tow/Haul button so I just push both at the same time.
Can anyone point us in the right direction to find some of these part numbers (and a source) ourselves? I've been searching, but haven't found what I want yet.
If I download everything from TIS will that have PNs (haven't tried a subscription yet, but am thinking about it)?
I'm looking for these panels to move the volume knob to below the HVAC controls like on the (I think) European version.
As the driver I will never touch the volume knob, but my wife having to reach all the way across the cabin is stupid.

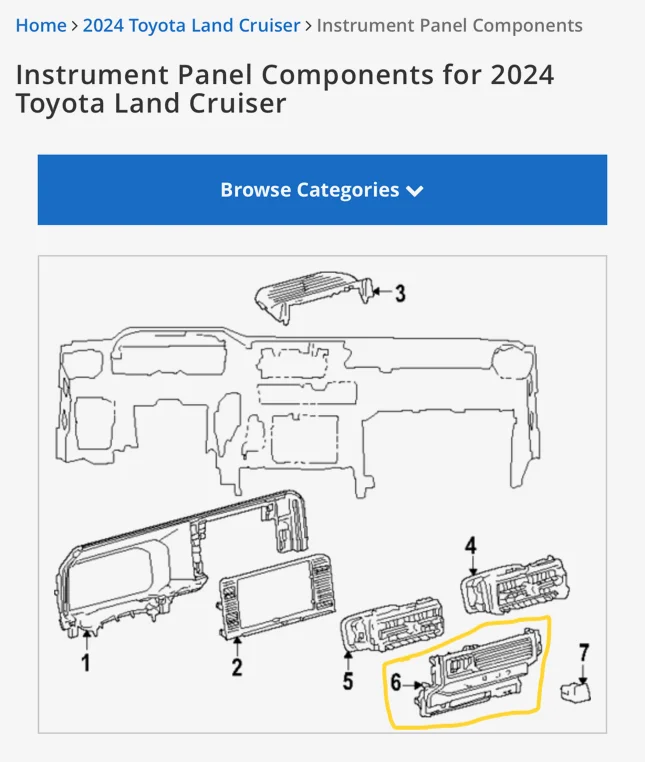

The closest I've found is #6 here, but I'm pretty sure there are the smaller panels that pop out of this larger trim piece:
If I download everything from TIS will that have PNs (haven't tried a subscription yet, but am thinking about it)?
I'm looking for these panels to move the volume knob to below the HVAC controls like on the (I think) European version.
As the driver I will never touch the volume knob, but my wife having to reach all the way across the cabin is stupid.
The closest I've found is #6 here, but I'm pretty sure there are the smaller panels that pop out of this larger trim piece:
Last edited:

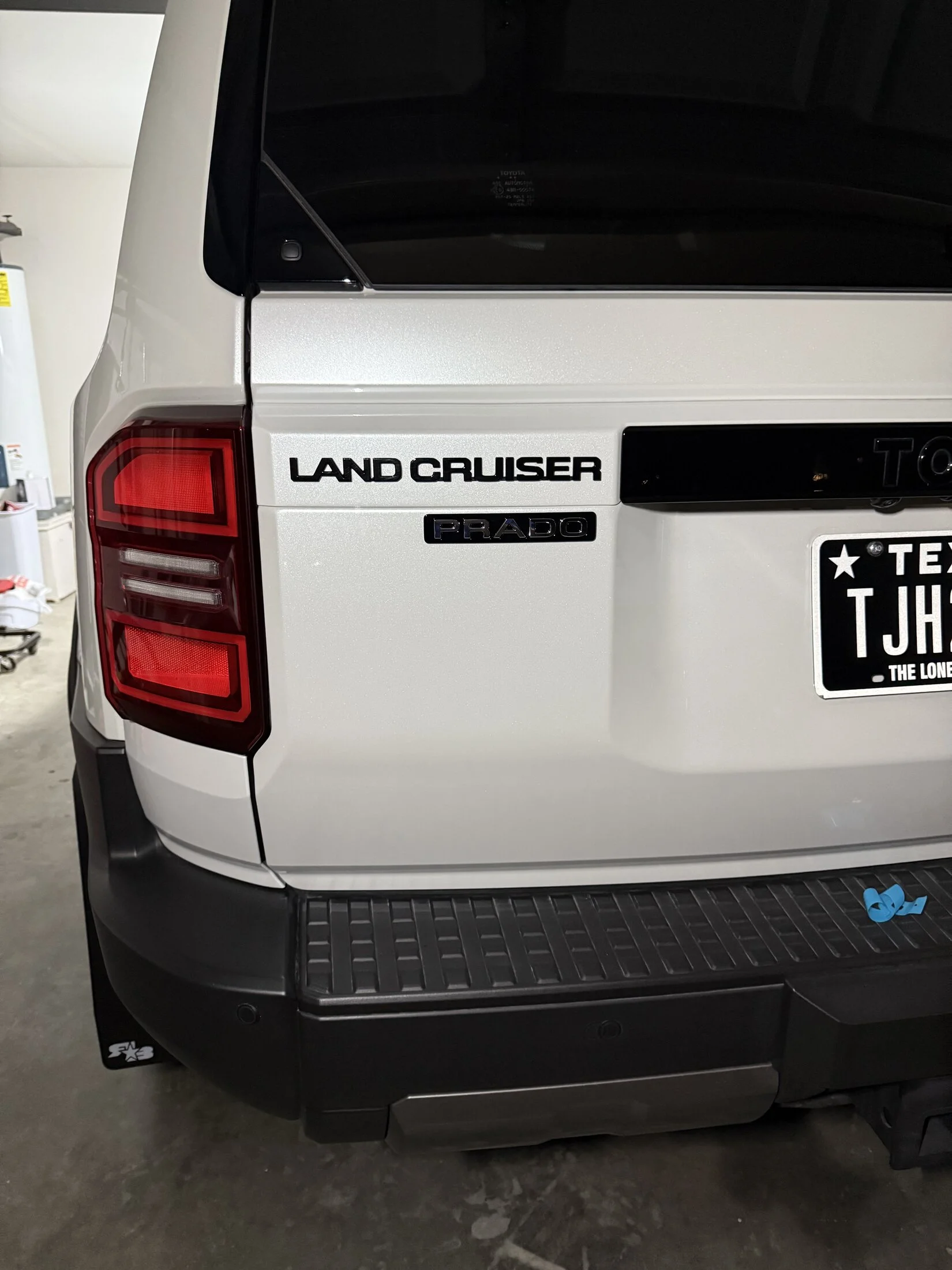

Prado badge for those who want one. Sourced from the Middle East.
75442-60220
75442-60220
@Oakleyguy Care to elaborate?
- Thread starter
- #86
Did you switch your ride?
Good eye. Made the switch a couple of months ago. Dealer I was getting the now old rig serviced at proposed a deal that was almost too good to be true. Plus the leak at the cylinder head plug was becoming far more noticeable. To the point that you could smell burning antifreeze. Long story short. Not wanting to deal with warranty repairs and wait time on parts (TMNA would have wanted to replace the cylinder head.) I walked out of the dealer in another 250… This one will now stick around for the long run.
Same buildout so far. Waiting the aftermarket to come up with the only real gripe I have with the 250. Fuel capacity.
About what?
Thanks for sharing!
Footwell lights for GX550 in non color change configuration is 81080-50110. Can't get the last portion of LC250 part number. These will work though if you have to have Toyota: 8108048010 Genuine Toyota LAMP ASSY, CONSOLE BOX ILLUMINATION, RH/LH 81080-48010 | eBay - https://www.ebay.com/itm/183414203260
The lights from Toyota have very poor performance even turned all the way to max. I swapped all of mine out for brighter ones in blue, search toyota footwell lights and you find allot of options on colors or even white in better output. I now have the brightness turned all the way to minimum and they are just right.
Do you have a photo of what that part number is?
I'm wondering if the color change leds from the lexus could be fitted? I was able to enable the option in my menu via techstream to allow color change but not sure if the wiring is identical or not. Either way not worth it to me as one unit cost ~$150.
Alternatively I could give mine up, I'll never use them, I have nine total. Both footwells, the one above the phone charger, eight for the door handle pockets and water bottle area (can only find 4 right now) and two for the rear cargo area.
Some of these have rubber lens over them (door handle pockets/phone) and some have plastic lens to either (rear cargo) defuse light/protection or aid in attachment to the vehicle neither of which is required to install any of them. I replaced all with the style in the link.
The lights from Toyota have very poor performance even turned all the way to max. I swapped all of mine out for brighter ones in blue, search toyota footwell lights and you find allot of options on colors or even white in better output. I now have the brightness turned all the way to minimum and they are just right.
Do you have a photo of what that part number is?
I'm wondering if the color change leds from the lexus could be fitted? I was able to enable the option in my menu via techstream to allow color change but not sure if the wiring is identical or not. Either way not worth it to me as one unit cost ~$150.
Alternatively I could give mine up, I'll never use them, I have nine total. Both footwells, the one above the phone charger, eight for the door handle pockets and water bottle area (can only find 4 right now) and two for the rear cargo area.
Some of these have rubber lens over them (door handle pockets/phone) and some have plastic lens to either (rear cargo) defuse light/protection or aid in attachment to the vehicle neither of which is required to install any of them. I replaced all with the style in the link.
Last edited:
Parts Requests:
-GX550 Acoustic (Double-Glazed) Door Window parts and associated motors/window regulators if applicable
-LC250 Cabin Air Filter
-GX550 Seats for transplant to LC250 (Probably too many part numbers, will just look for part-outs)
-GX550 Acoustic (Double-Glazed) Door Window parts and associated motors/window regulators if applicable
-LC250 Cabin Air Filter
-GX550 Seats for transplant to LC250 (Probably too many part numbers, will just look for part-outs)
- Thread starter
- #94
Dig into the parts diagrams online and you should find these fairly easily. Try Longo Toyota parts.

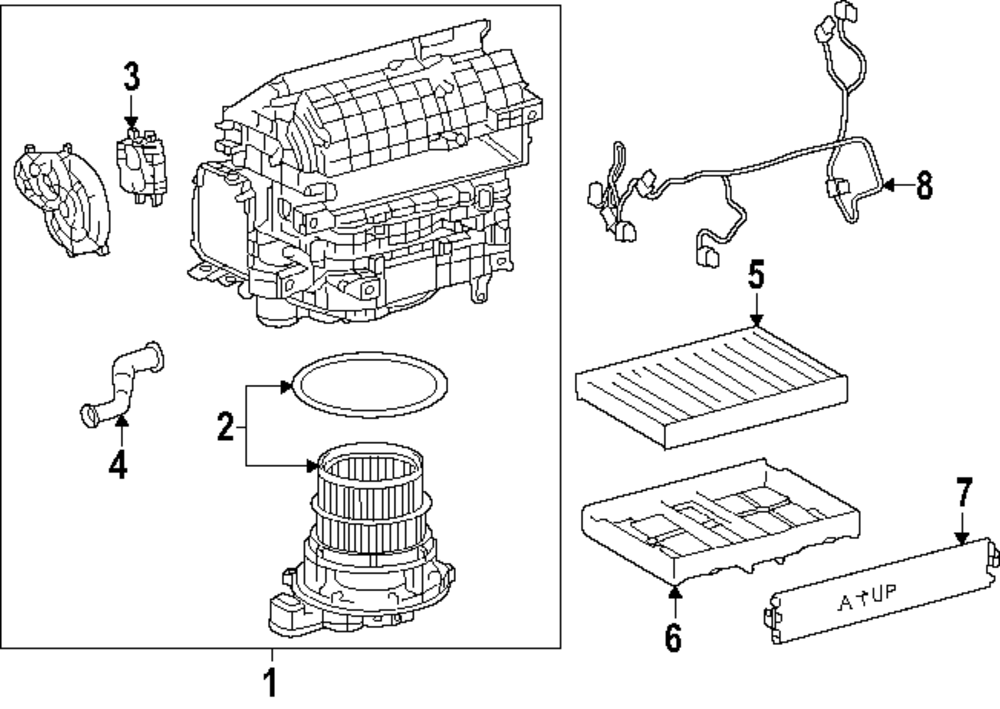

Searching at parts.longotoyoyta.com for Cabin Air Filter, found:
PART CAN BE FOUND AS REFERENCE #5 IN ILLUSTRATION
Filter - Toyota (87139-60030)
2024 Toyota Land Cruiser - 8713960030Genuine Toyota & Scion Parts
- Manufacturer:Toyota
- Part Number:87139-60030
2024 Toyota Land CruiserChange This part fits your vehicle
- MSRP:$25.13
- Discount:$3.35 (13.3% off)
- Sale Price:$21.78
-+
ADD TO CART
Manufacturer WarrantyMinimum of 12 Months
Guaranteed FitmentAlways the correct parts
Shop with ConfidenceYour information is safe
In-House ExpertsWe know our products
- Thread starter
- #96
Didn't know there would be a setting to adjust brightness - is this through techstream?
Which part number? 81080-60460 is the one I ordered. The one I got doesn't have a part number stamp - just a UL2W131 stamped on the end of it. It has a white rubbery lens cover.
Didn't know there was one above the wireless phone charger. Maybe that's the one I ordered (81080-60460).
The 1958 trim does not have any of those. It only has the inside lower door lights that shine down to the ground when you open the door.
Is your trim level the LC premium or non-premium?
Im LC Premium: Brightness setting in in the MID settings under vehicle/interior/illumination IIRC
Not sure about part number on them, I have two with UK5W143 (footwell) one with UJYW111 (Phone charger) the ones from the doors have 3738 and the ones from the cargo area have 6880 on them.
If you have one with a white rubber cover on it you can remove that at it should lock into the panel. Your electrical connector doesn't fit?
I cant recommend the after market ones if you don't have a brightness control for them as they will be extremely bright at night.

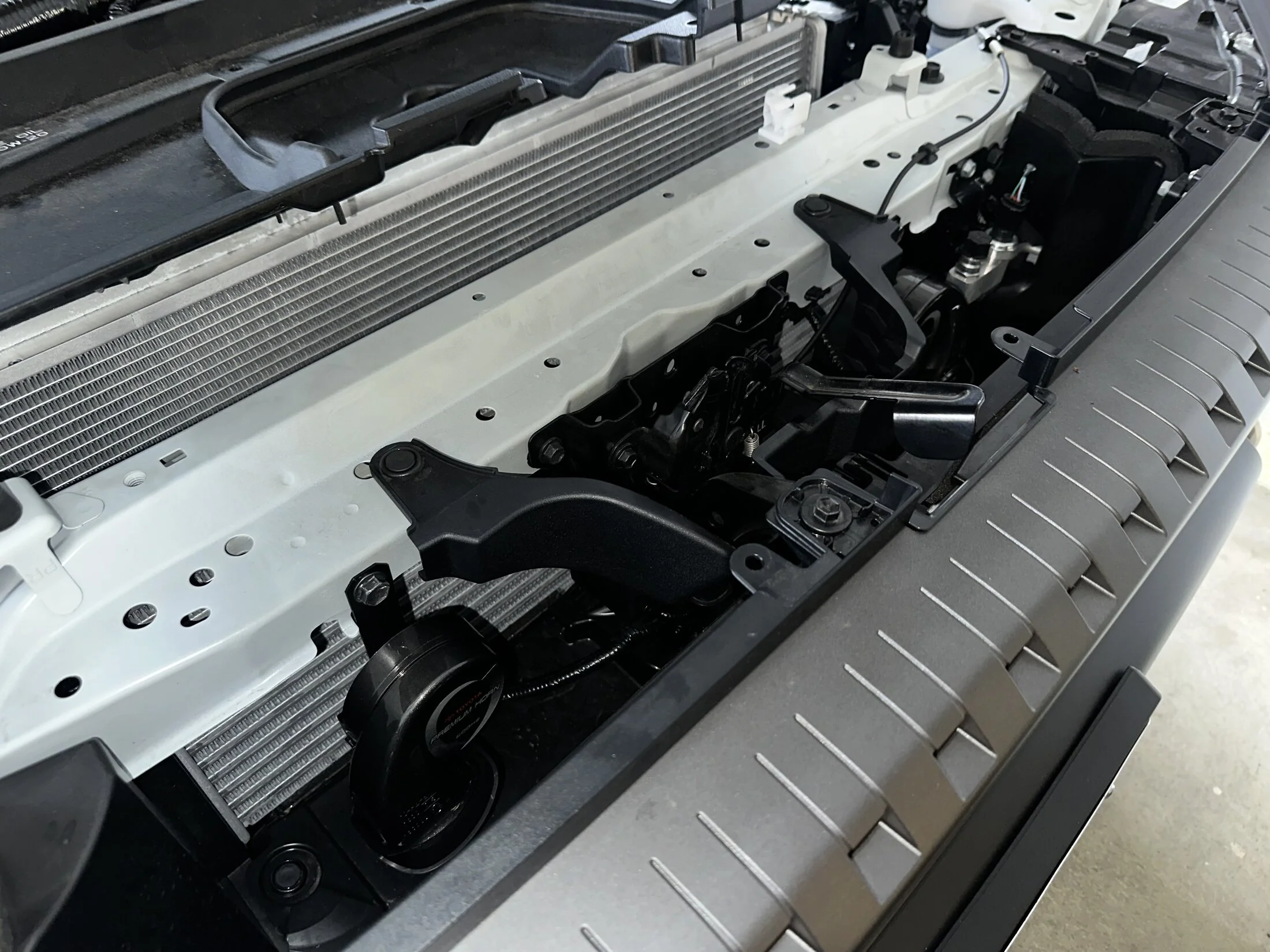

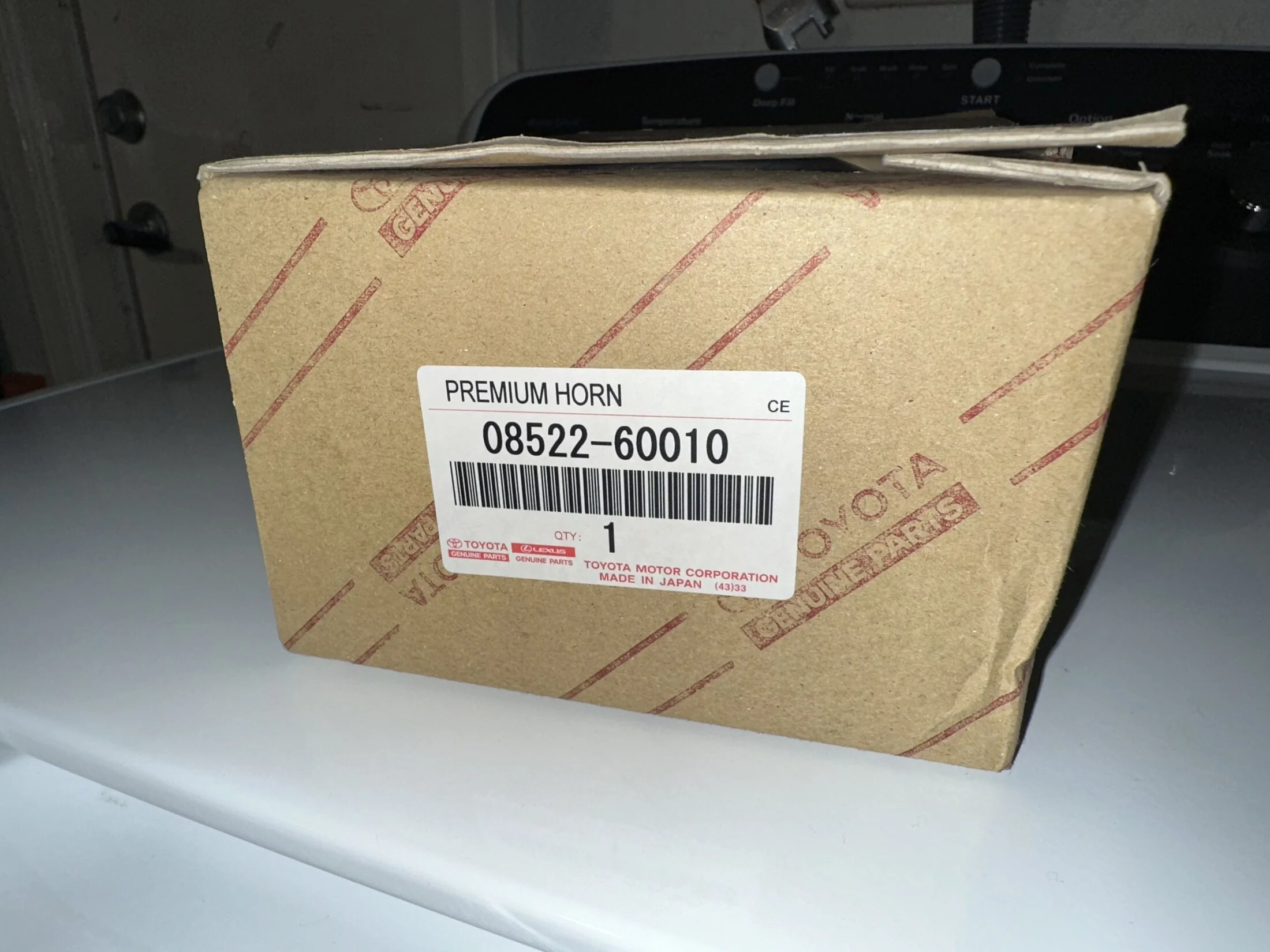

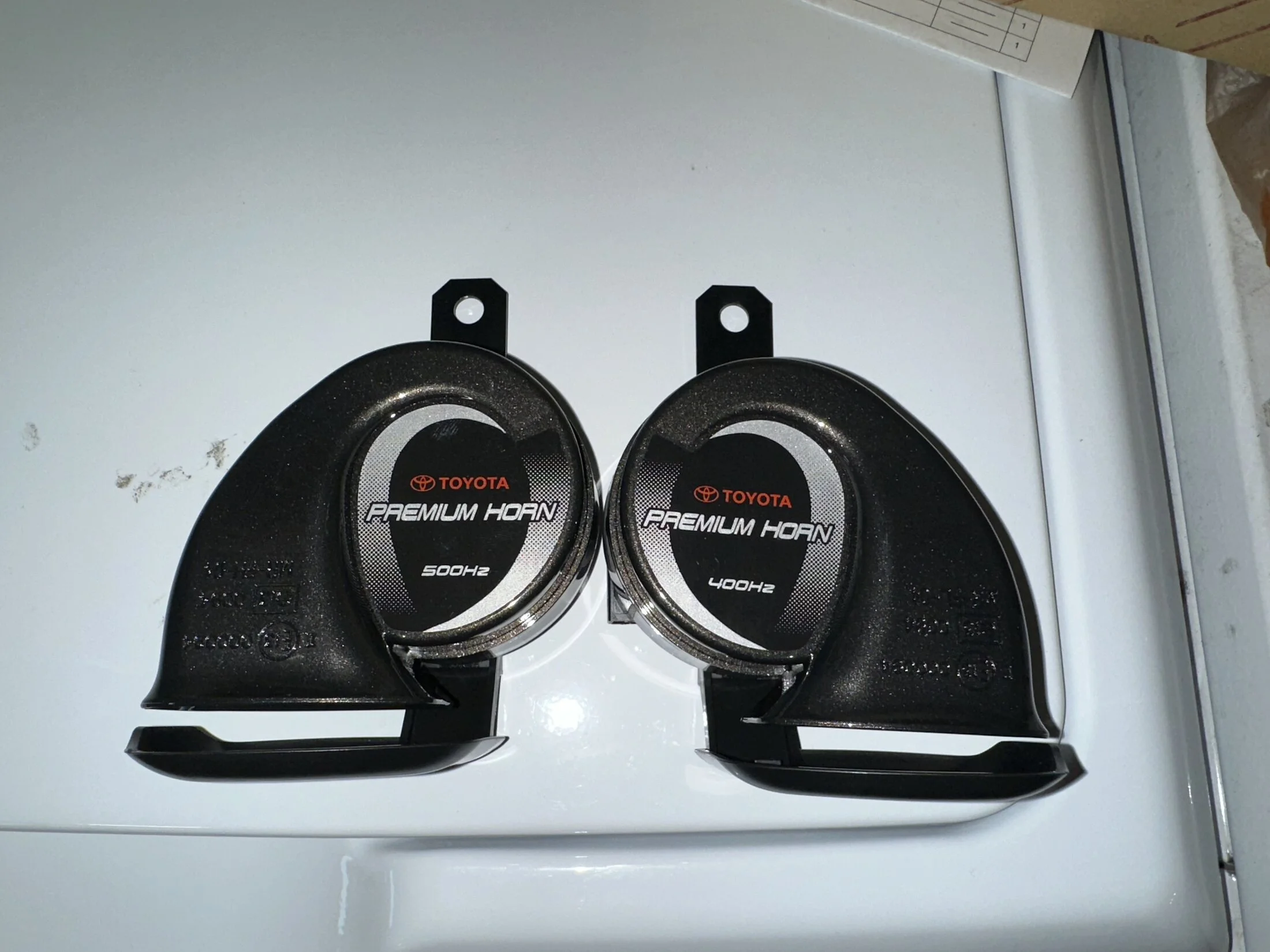

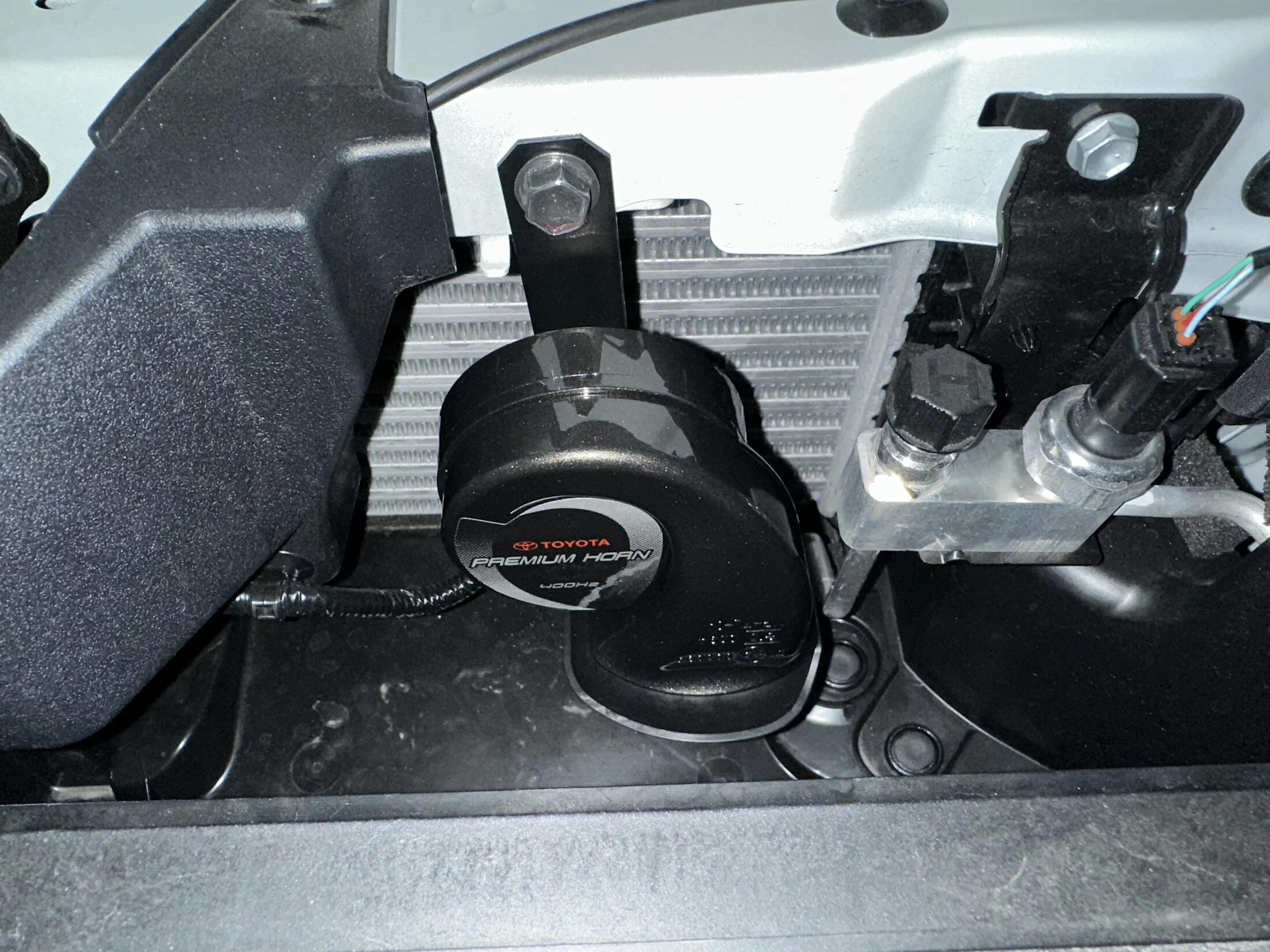

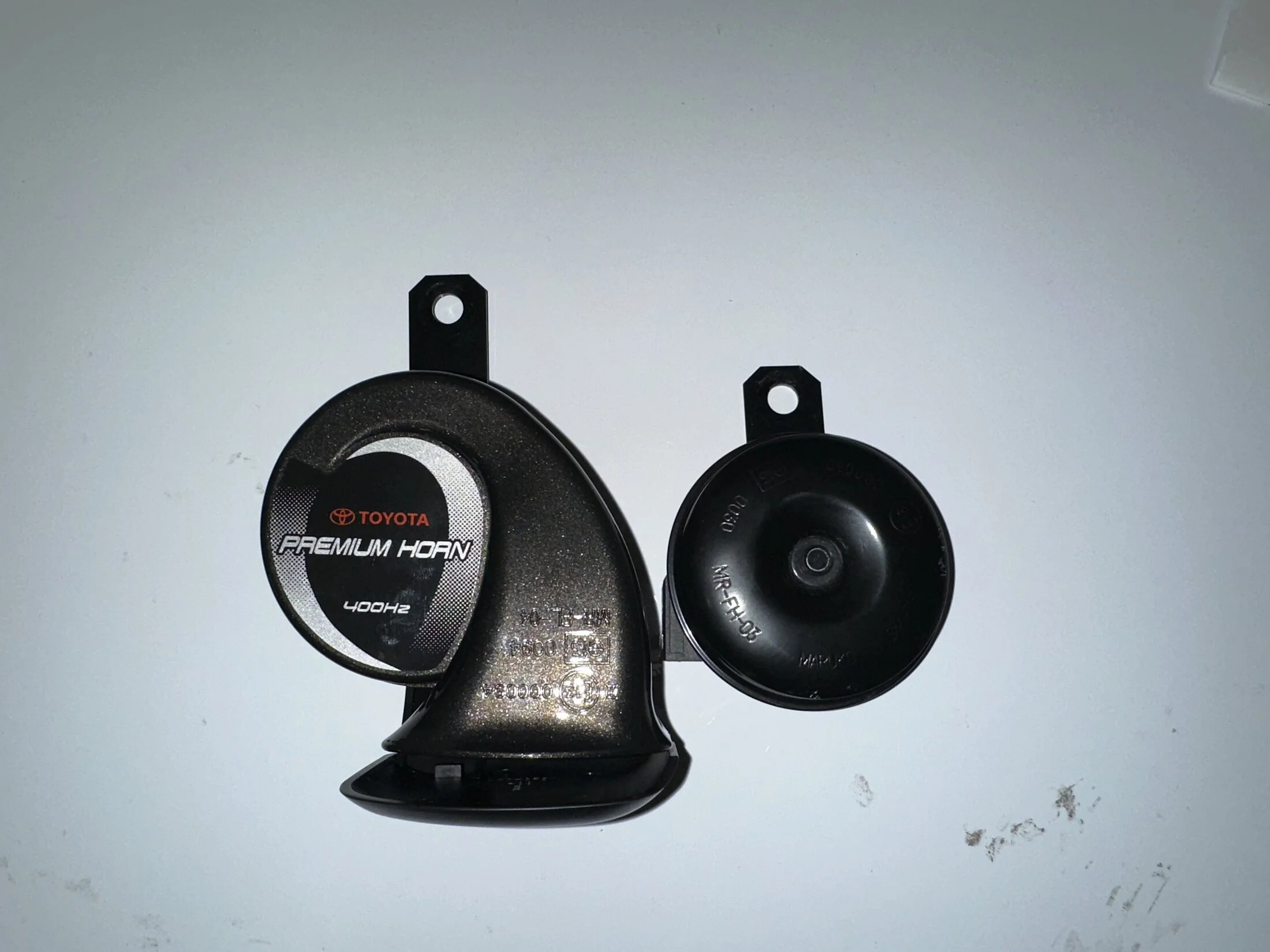

"Premium Horn", how does the sound differ
Is this the same as the HELLA horn?
