LANDTANK rear bolt on tire carrier

Discussion in '80-Series Tech' started by landtank, Feb 8, 2018.

  1. landtank

    landtank SILVER Star

    Messages:
    19,283
    Likes Received:
    1,563
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    I've been working on this for just over 2 years now. I finally got a beta unit for final evaluation and to work out any kinks in the design, which were a few but small ones.

    What I wanted in the design was:

    Bolt on
    support for a hi lift jack
    multi position open points
    hold a 35" tire
    lighted license plate
    cb antenna mount

    all the while keeping everything tight to the body and not weighing a metric ton.

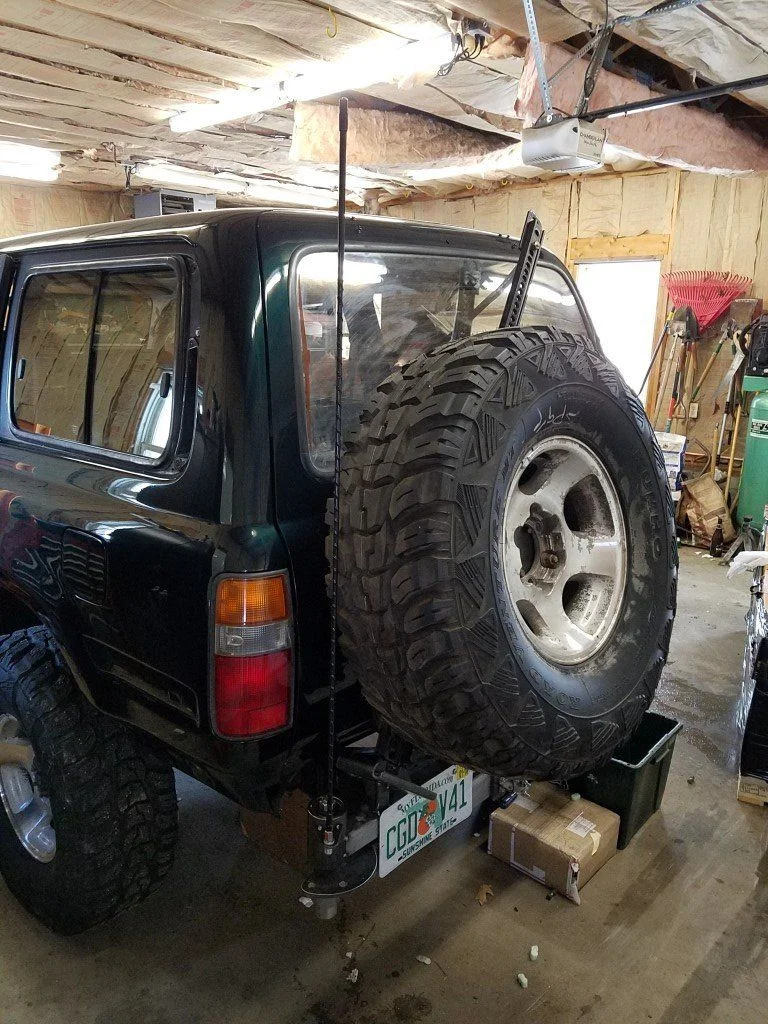

    These next pictures show the overall position and layout of the carrier rear view.jpg left side view.jpg right side view.jpg

  2. landtank

    landtank SILVER Star

    Messages:
    19,283
    Likes Received:
    1,563
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    latch and license plate

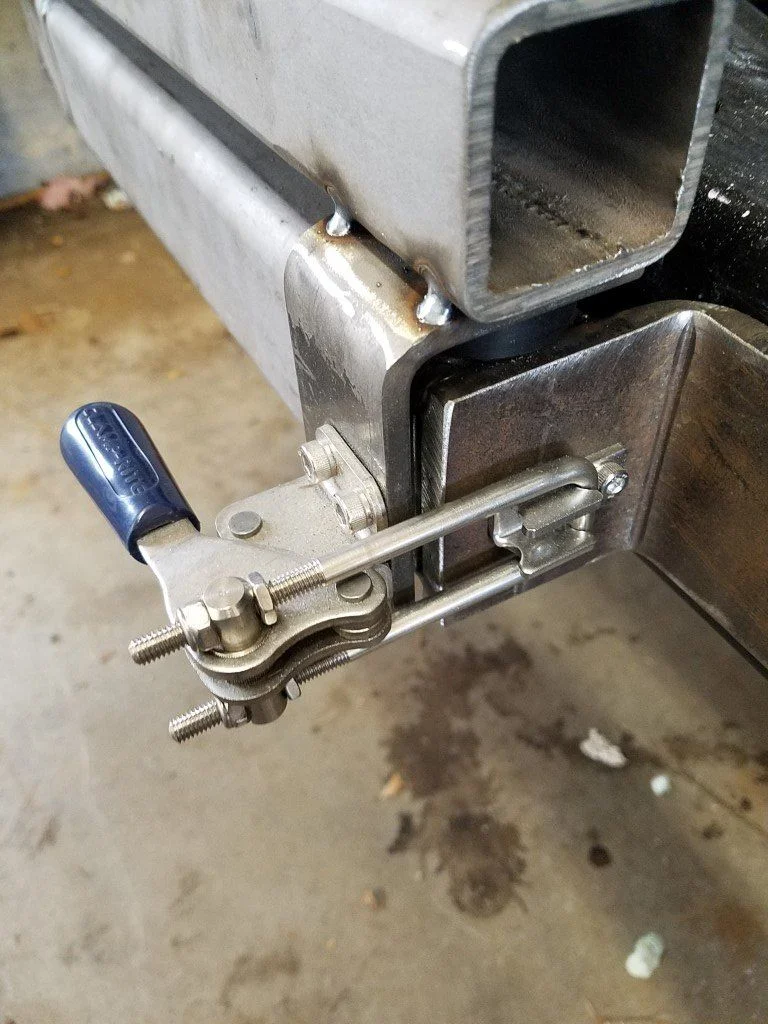

    For the latch I wanted a vertical pull toggle clamp with a rubber bumper to keep rattles at bay. The pull is a stainless steel pull mounted using stainless steel hardware.

    When closed the position pop pin is used as a secondary device for holding the carrier closed

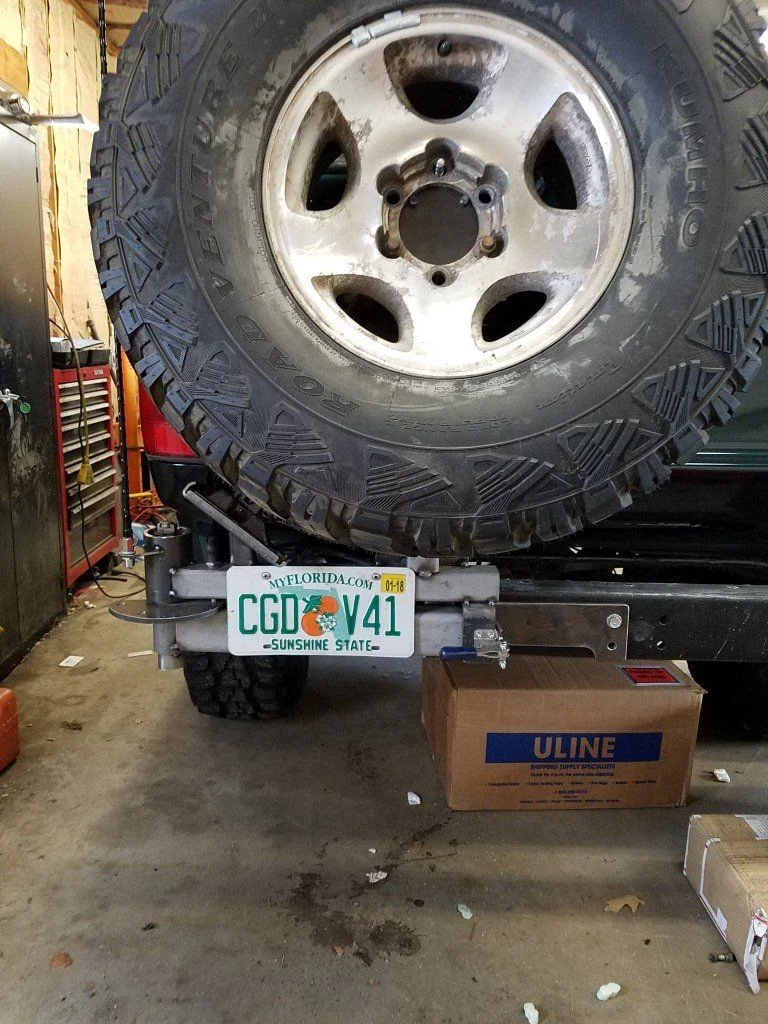

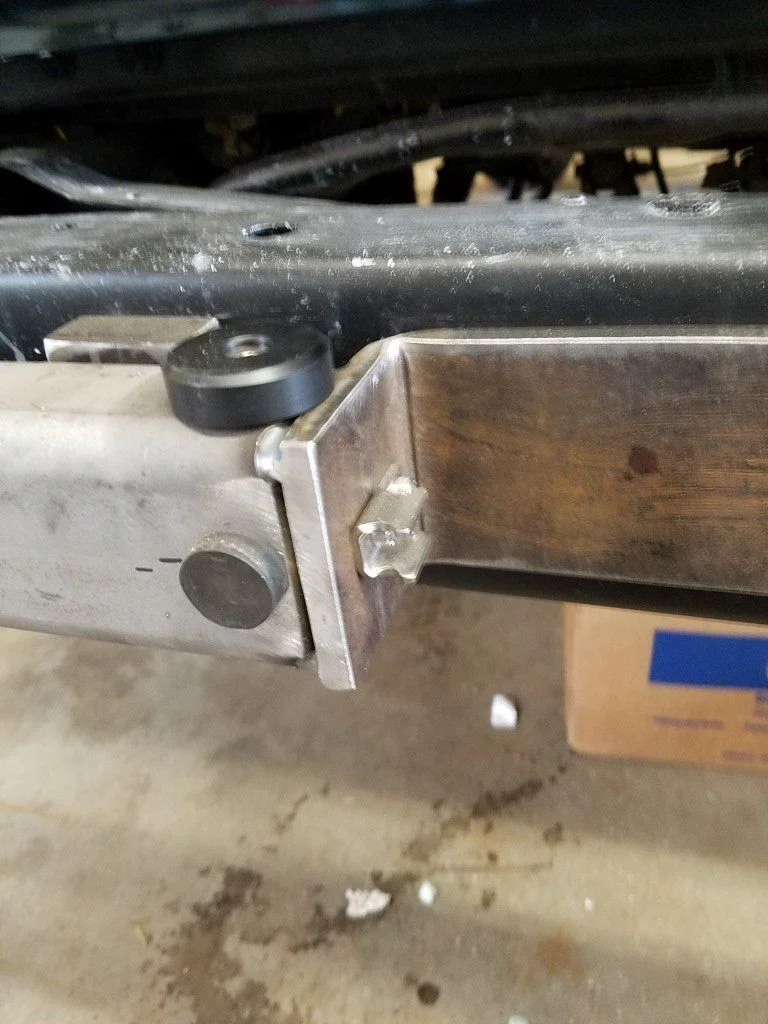

    While not shown there will be an led light used for the license plate Lower arm cushion and slide.jpg arm latch.jpg license plate.jpg

    Last edited: Feb 8, 2018
    Funner and GA Trevor like this.
  3. landtank

    landtank SILVER Star

    Messages:
    19,283
    Likes Received:
    1,563
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    The hi-lift jack is the black model and this one is 60" tall. The top of the jack is about even with the top of the air deflector when installed.

    The Jack rotates into the shoe and rests on the back of the support for the tire. Once in place the jack will rest in position allowing the use of both hands to secure it.

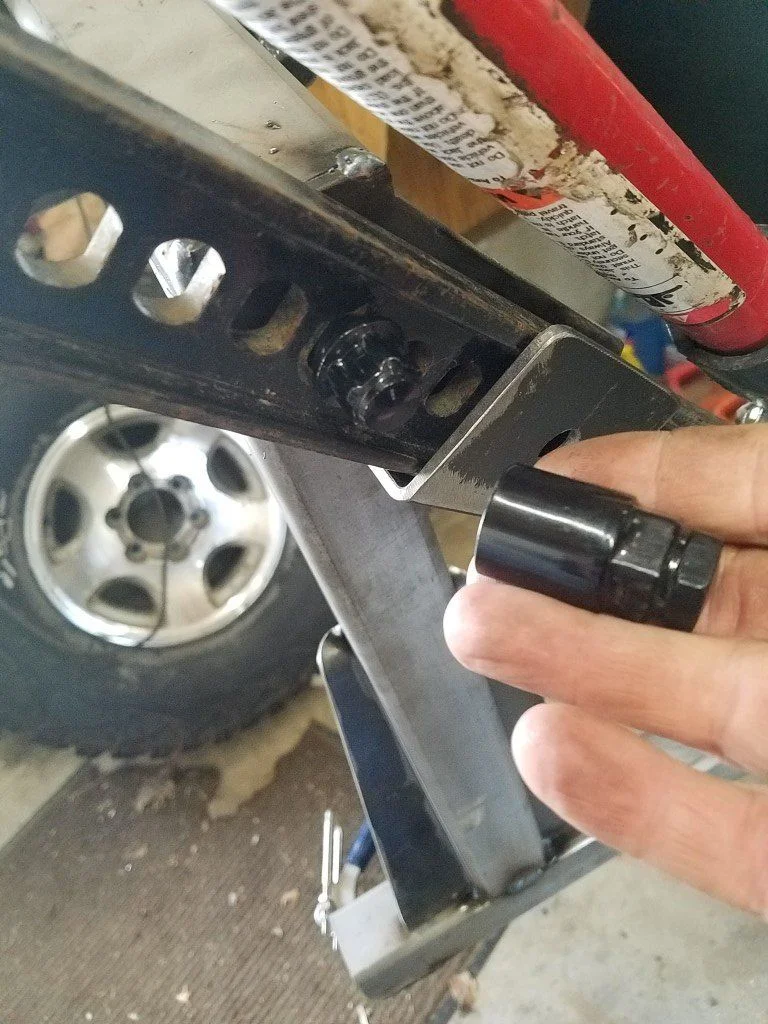

    I placed a nut in the support so I can use a security lug bolt to hold the jack in place. This allows me to use the trucks lug wrench to remove and replace that bolt.

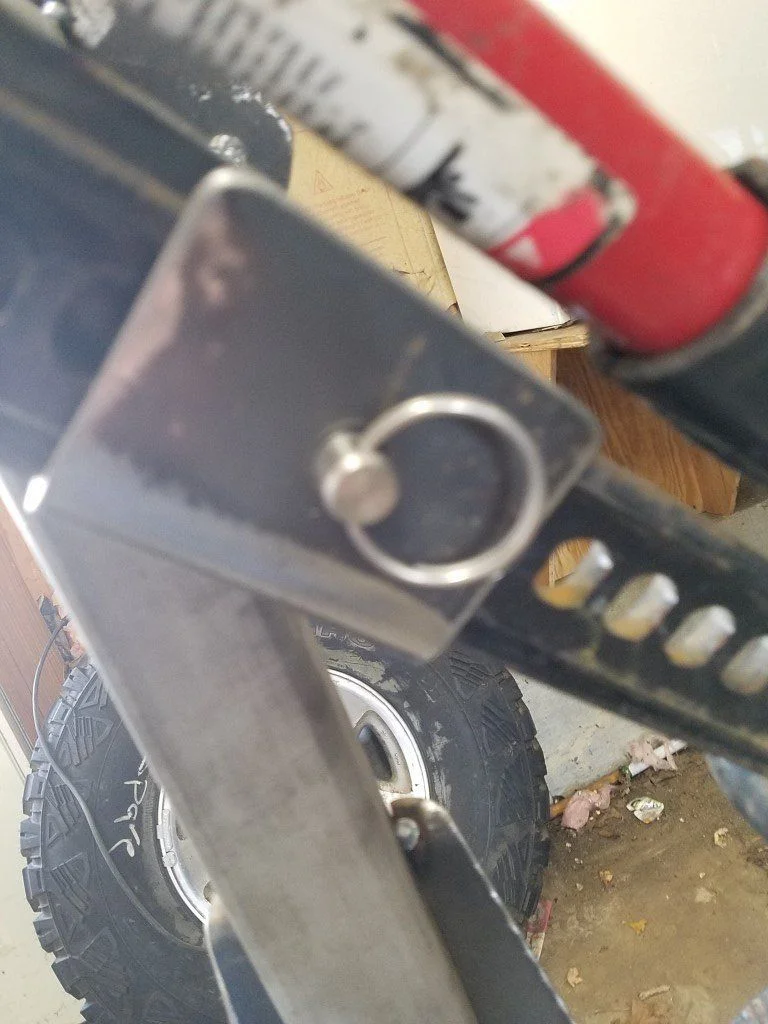

    As a less secure option is to use a push pin in the supplied aux hole. This way when I'm out for a weekend I can simply open the carrier and pull the pin to release the jack.

    That aux hole could also accommodate a padlock as an addition theft deterrent.

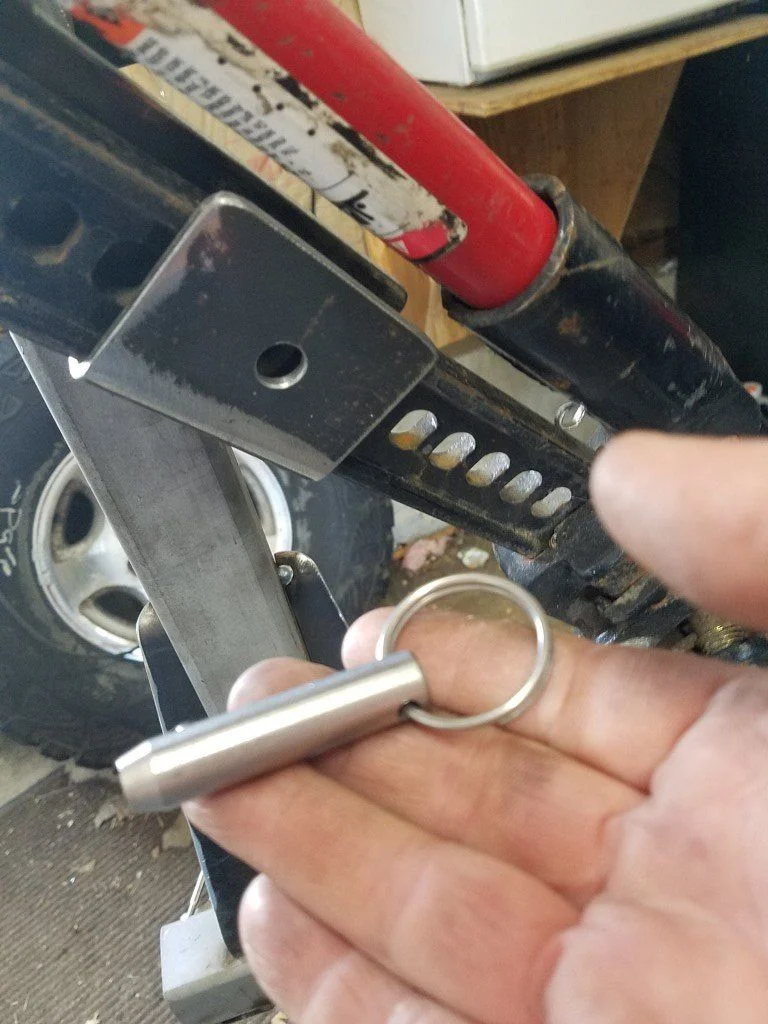

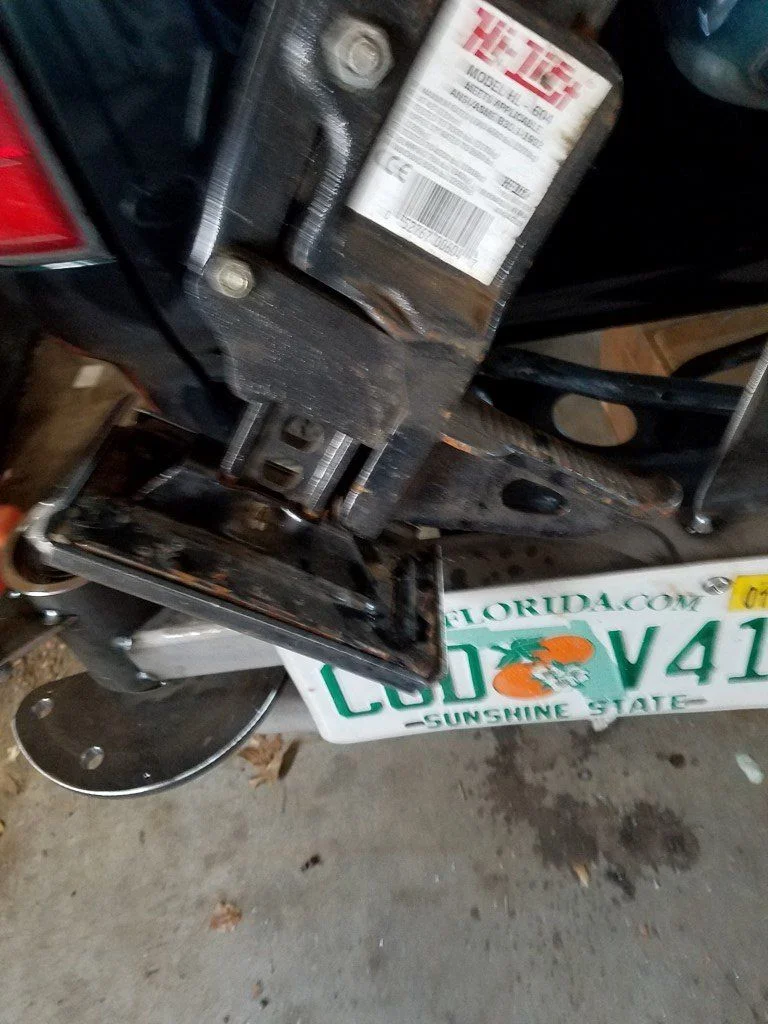

    inside jack mounted.jpg HiLift security bolt.jpg jack shoe.jpg HiLift push pin.jpg HiLift push pin installed.jpg hi-lift jack

    Last edited: Feb 8, 2018
  4. landtank

    landtank SILVER Star

    Messages:
    19,283
    Likes Received:
    1,563
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    spindle

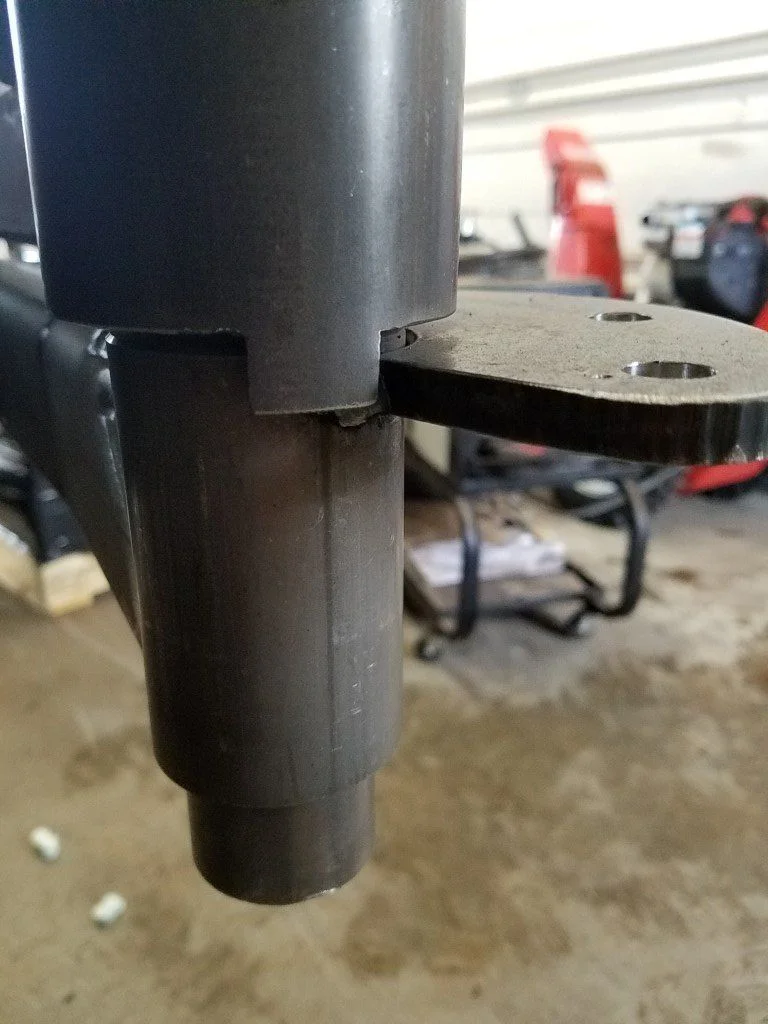

    I had a custom spindle made for the carrier. It has a tooth on the back side that stops against the index plate should the pop pin fail to engage. Last thing I need is for the carrier to rotate around and damage the side of the truck.

    The spindle is also installed with a sleeve.

    Welding directly to the spindle itself can be detrimental to it's strength afterwards. Bu using a sleeve the spindle is initially tack at the bottom in a single place to hold it's position.

    Then the entire sleeve is welded in place and allowed to cool. During the cooling process the sleeve shrinks and clamps firmly on the spindle. Once completely cooled two more additional tacks are placed at the bottom.

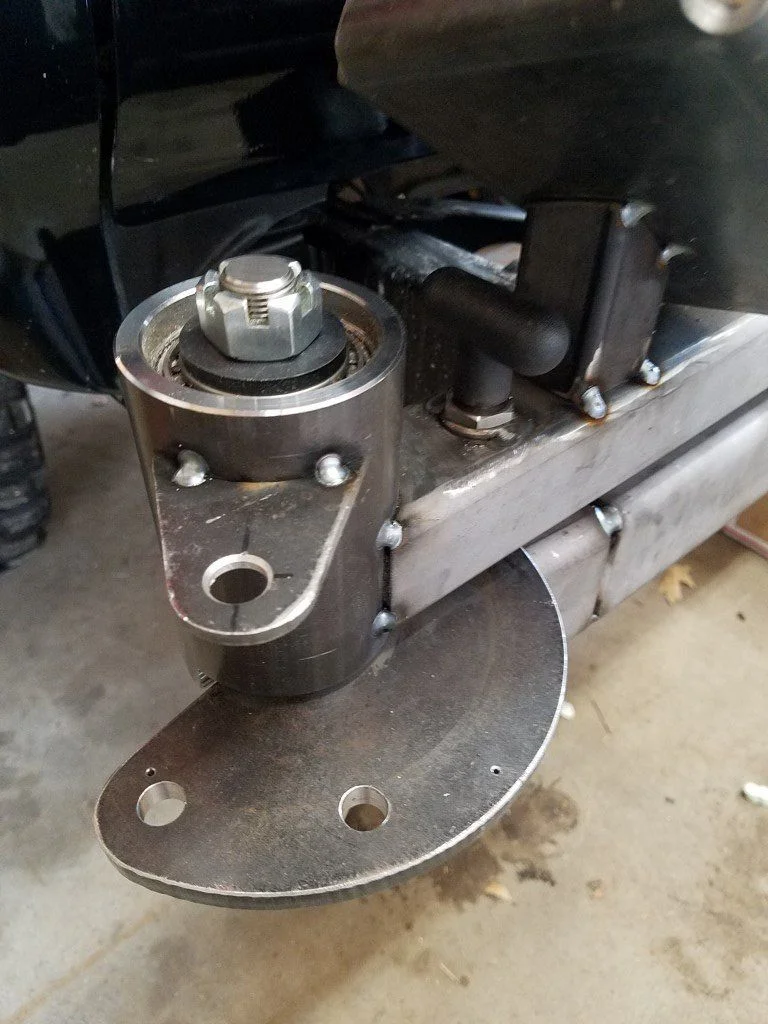

    This process ensures the strongest results post welding and should there ever be a need to replace the spindle one would just grind off the tack welds, replace the spindle and then retack the new spindle. antenna mount.jpg spindle stop.jpg

    Last edited: Feb 8, 2018
  5. landtank

    landtank SILVER Star

    Messages:
    19,283
    Likes Received:
    1,563
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    tire mount:

    I wanted the tire mount to be simple and effective. Angling the tire to follow that of the hatch allowed this to happen. Because the tire is sitting on top of a pedestal the contact area is not the the tire but actually the rim. The most common rims used are the factory rims and the 17 rims from 4Runners or FJ Cruisers. All these rims will work with this design and so incorporating some kind of adjuster really isn't needed.

    One feature I added was 2 dowel pins on the backing plate. The more popular rims are now shank style rims which means that the hole in the rim for the lug nuts are greatly oversized to accommodate the shank of the nut.

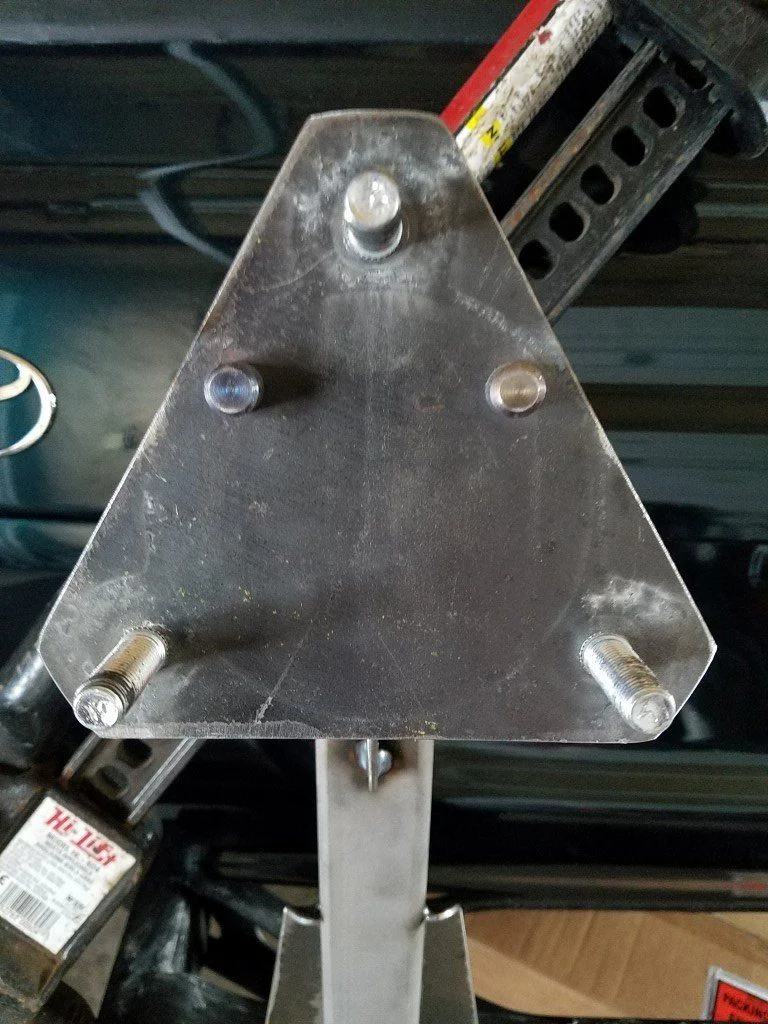

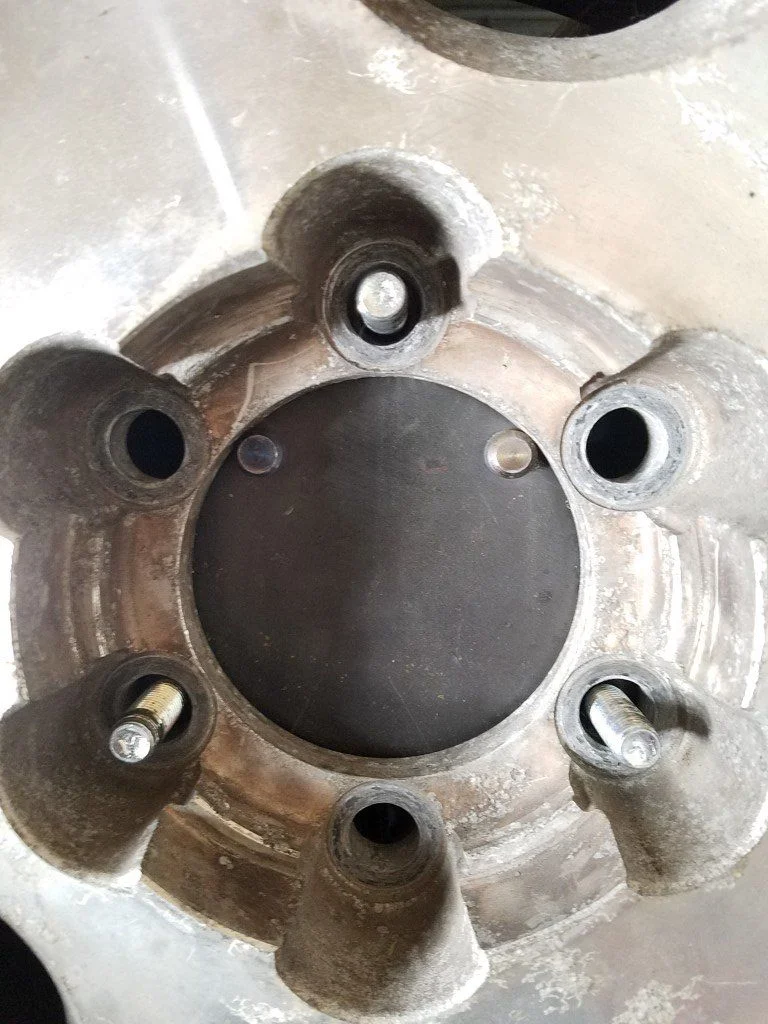

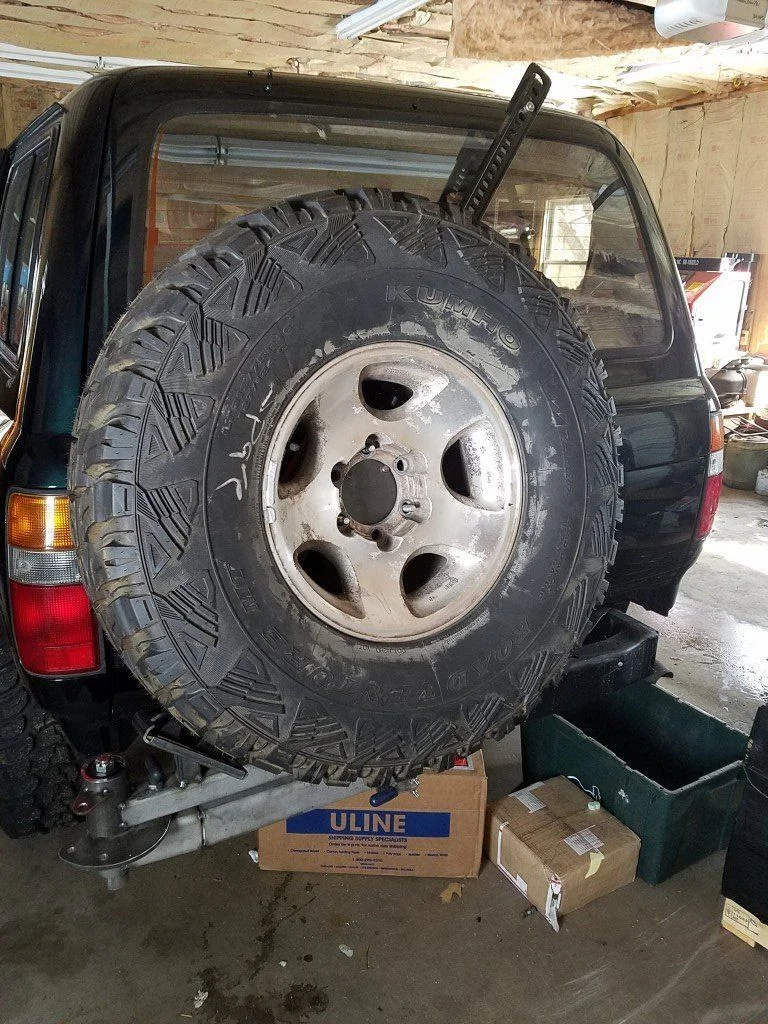

    These two dowel pins allows you to rest and rotate the tire in position so that the lug bolts are centered in the enlarged holes freeing both hands to install the lug nuts. And with the tilt of the tire it will sit on the carrier hands free. Tire in place.jpg tire dowels.jpg Lug bolts in center.jpg
