Wanted H55f input shaft for HJ61 (2 Viewers)

[bcsteel]

Vehicle Model

1. 60 Series

Location

Terrace, British Columbia Canada

Looking to see what’s out there.. coarse spline input shaft required for a 12ht/h55 application.. shipping to Terrace BC Canada.



[rick_d]

33311-60120 or 60121 will work that fits also 2F and 3F gas engines and 2H. These are later H55’s made 1985 plus.



[bcsteel]

Thanks…



[ginericLC]

orangefj45 Georg Cruiser Brothers Valley Hybrids most likely has one in stock. That would be my suggestion. That isn't a part that a typical hoarder has laying around on the shelf.



[orangefj45]

What year is your H55F?

Happy to help

Georg @ Valley Hybrids @ Cruiser Brothers
Shop 209-475-8808
Sales@valleyhybrids.com



[bottombracket]

Just buy a new h55 from @orangefj45 if your box is wrecked. I had a 470,000km h55 rebuilt and it cost me $1500- and for $1000ish more I could have had a brand new zero km transmission.



[lynchmob]

I have new takeout and a good used one. Both for later versions with sealed input bearing. Atypical hoarder i guess.



[bcsteel]

@orangefj45 (George) the current possible donor is from a 1985 bj60. Production date 5/85 so I’m assuming this is an early model…If it’s easier I can give you a shout at your convenience.

@lynchmob pm’d



[orangefj45]

The best way forward is to get some specs from the existing input gear.

Seal surface diameter
Bearing surface diameter
Tooth count ( not splines )

Georg @ Valley Hybrids @ Cruiser Brothers



[bcsteel]

Will do that…thx



[loctite]

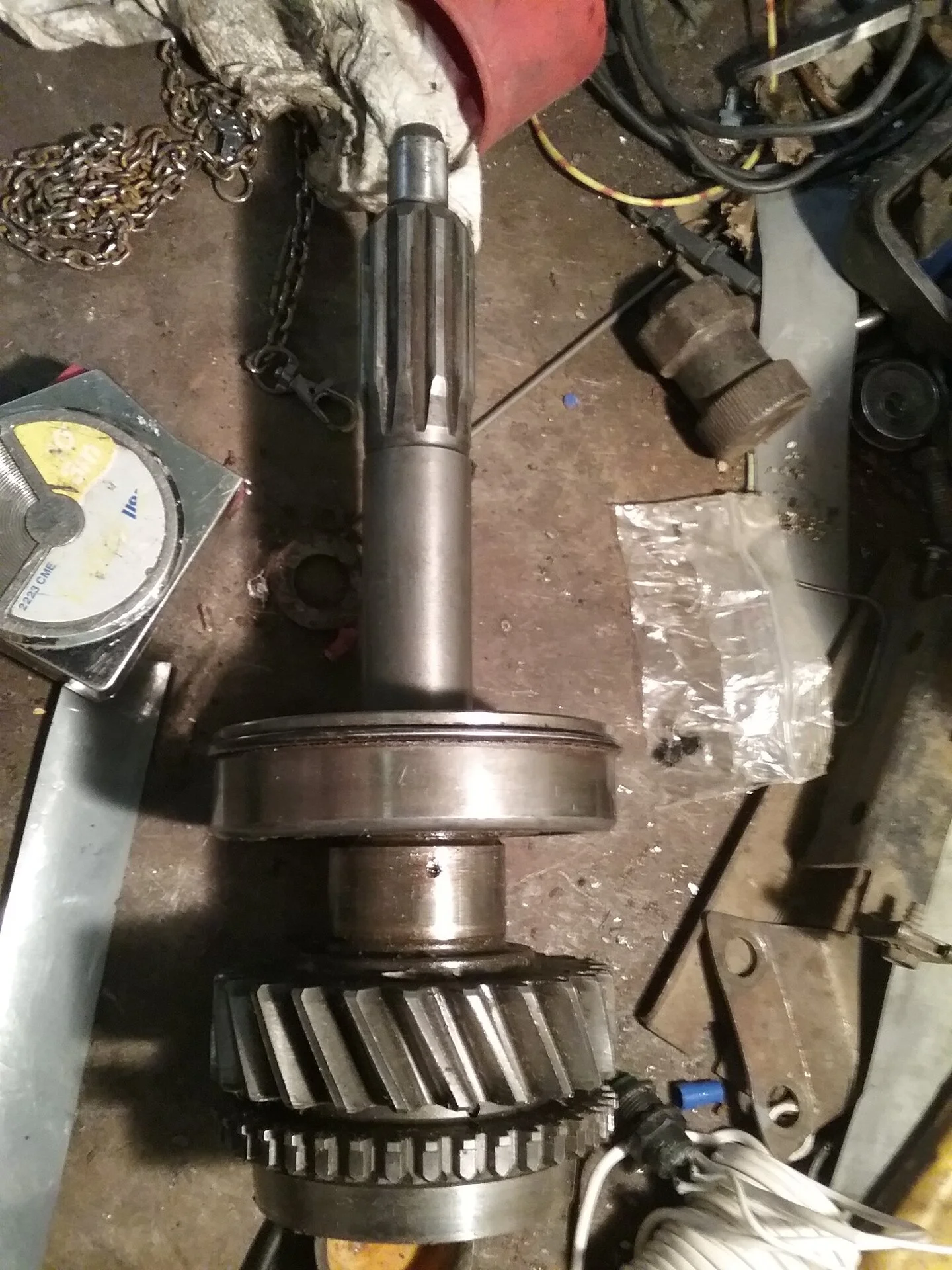

I have one in Qualicum beach. 24 tooth gear, 86.7mm dia. 10 tooth spline,10.5" tall, 27.7mm dia. bearing is 6308N check yours then PM and I'll send more pictures if needed
