GX470 HID Projector Retrofit

Discussion in '120-Series Toyotas' started by Luke111, May 10, 2018.

  1. Luke111

    Luke111 Supporting Vendor

    Messages:
    2,713
    Likes Received:
    852
    Joined:
    Aug 6, 2006
    Location:
    Northern Virginia
    I've run the same bulbs in my 80 for 4 years without and issues as have millions of others from OEM to those doing retrofits in various models.

    if you don't own a GX or LX you won't have to worry about it

  2. Luke111

    Luke111 Supporting Vendor

    Messages:
    2,713
    Likes Received:
    852
    Joined:
    Aug 6, 2006
    Location:
    Northern Virginia
    It won't make much of a difference..that's where I started and quickly realized a full retrofit was the way to go. I will measure the lens for you but there's no telling what's inside the DEPO's... in the way of projector bowl quality and lens. Lightwerks does great work and would no doubt recommend a new projector. I'm finishing up a set of LX lights and will crack open the GX light this weekend

    Last edited: May 16, 2018
  3. Luke111

    Luke111 Supporting Vendor

    Messages:
    2,713
    Likes Received:
    852
    Joined:
    Aug 6, 2006
    Location:
    Northern Virginia
    I have a Mudder local to me that reached out already.. Thank you

  4. GonzoShinyPants

    GonzoShinyPants

    Messages:
    173
    Media:
    5
    Albums:
    1
    Likes Received:
    56
    Joined:
    Oct 12, 2017
    Location:
    Raleigh, NC
    no worries thx


  5. BukkakeAisu

    BukkakeAisu

    Messages:
    126
    Media:
    6
    Likes Received:
    55
    Joined:
    Feb 21, 2018
    Location:
    Tokyo, Japan
    The light output is why!! haha

    The shop I work with here in Tokyo does custom bike/scooter headlights and is trying to steer me to LEDs over HIDs. I guess that's another possibility? No idea how good it would look with an LED lens array in that headlight but (correct me if I'm wrong) running decent LED bulbs through HID projectors would still be better than LED through halogen projectors?

  6. BukkakeAisu

    BukkakeAisu

    Messages:
    126
    Media:
    6
    Likes Received:
    55
    Joined:
    Feb 21, 2018
    Location:
    Tokyo, Japan
    The light output is why!! haha

    The shop I work with here in Tokyo does custom bike/scooter headlights and is trying to steer me to LEDs over HIDs. I guess that's another possibility? No idea how good it would look with an LED lens array in that headlight but (correct me if I'm wrong) running decent LED bulbs through HID projectors would still be better than LED through halogen projectors?

  7. Luke111

    Luke111 Supporting Vendor

    Messages:
    2,713
    Likes Received:
    852
    Joined:
    Aug 6, 2006
    Location:
    Northern Virginia
    I don’t know but Morimoto has the M-Led and I believe there’s a few other companies that are selling them. I recently finished a set of FJ cruiser headlight using the M-Led. While they offer a few advantages from long life to instant on the D2S still has a wider beam pattern and just as bright

    Last edited: May 19, 2018
  8. teejnut

    teejnut

    Messages:
    838
    Media:
    28
    Albums:
    5
    Likes Received:
    93
    Joined:
    Jan 30, 2007
    Location:
    Los Angeles, CA
    Looking forward to what you find...

  9. teejnut

    teejnut

    Messages:
    838
    Media:
    28
    Albums:
    5
    Likes Received:
    93
    Joined:
    Jan 30, 2007
    Location:
    Los Angeles, CA
    Any updates?

  10. Luke111

    Luke111 Supporting Vendor

    Messages:
    2,713
    Likes Received:
    852
    Joined:
    Aug 6, 2006
    Location:
    Northern Virginia
    I’ve opened up the light and removed the OEM Bracket. I can make the MIni H1 work by cutting the low beam side of the bracket but I’m working on trying to get the D2S mounted and a slick solution for the Highbeam.

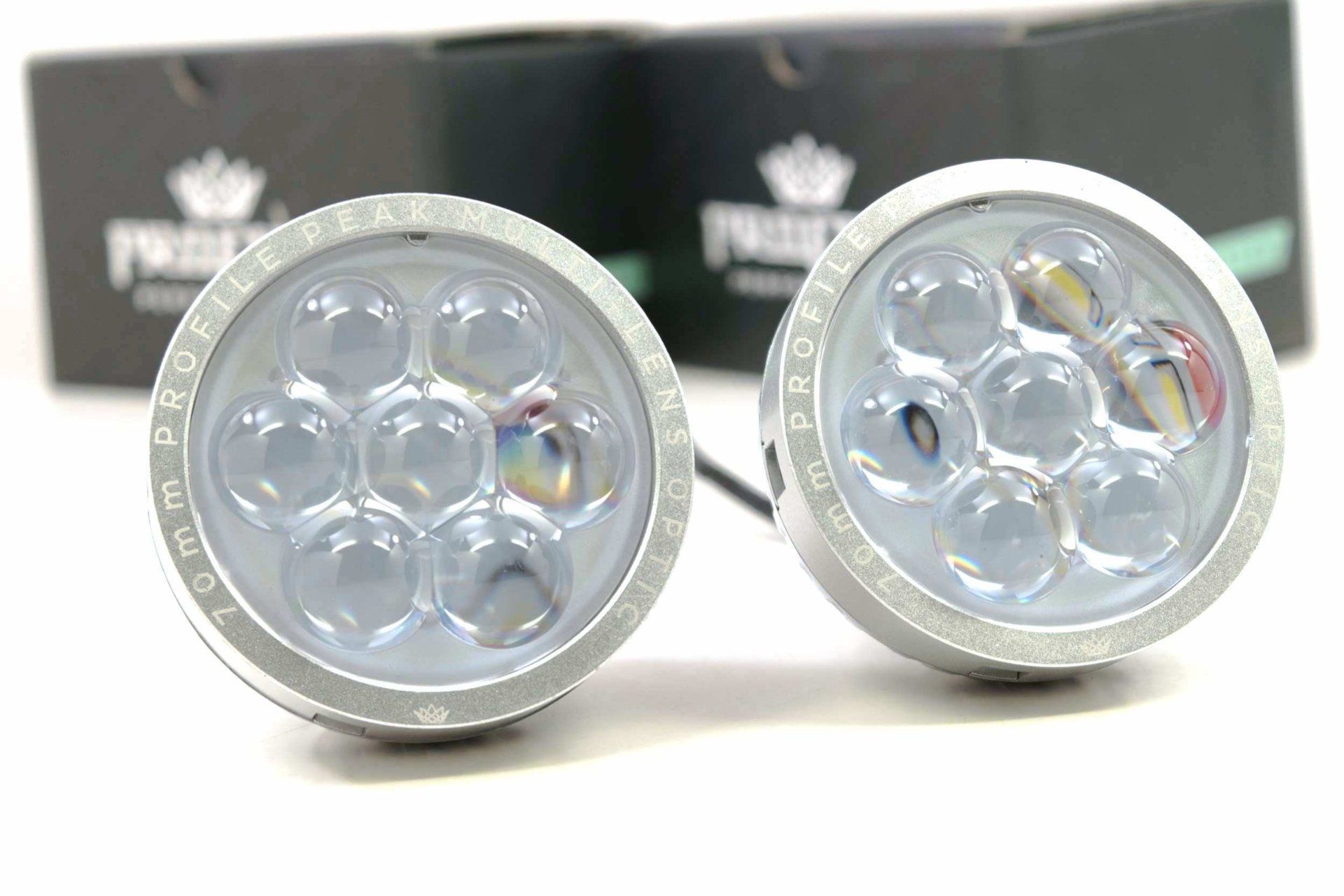

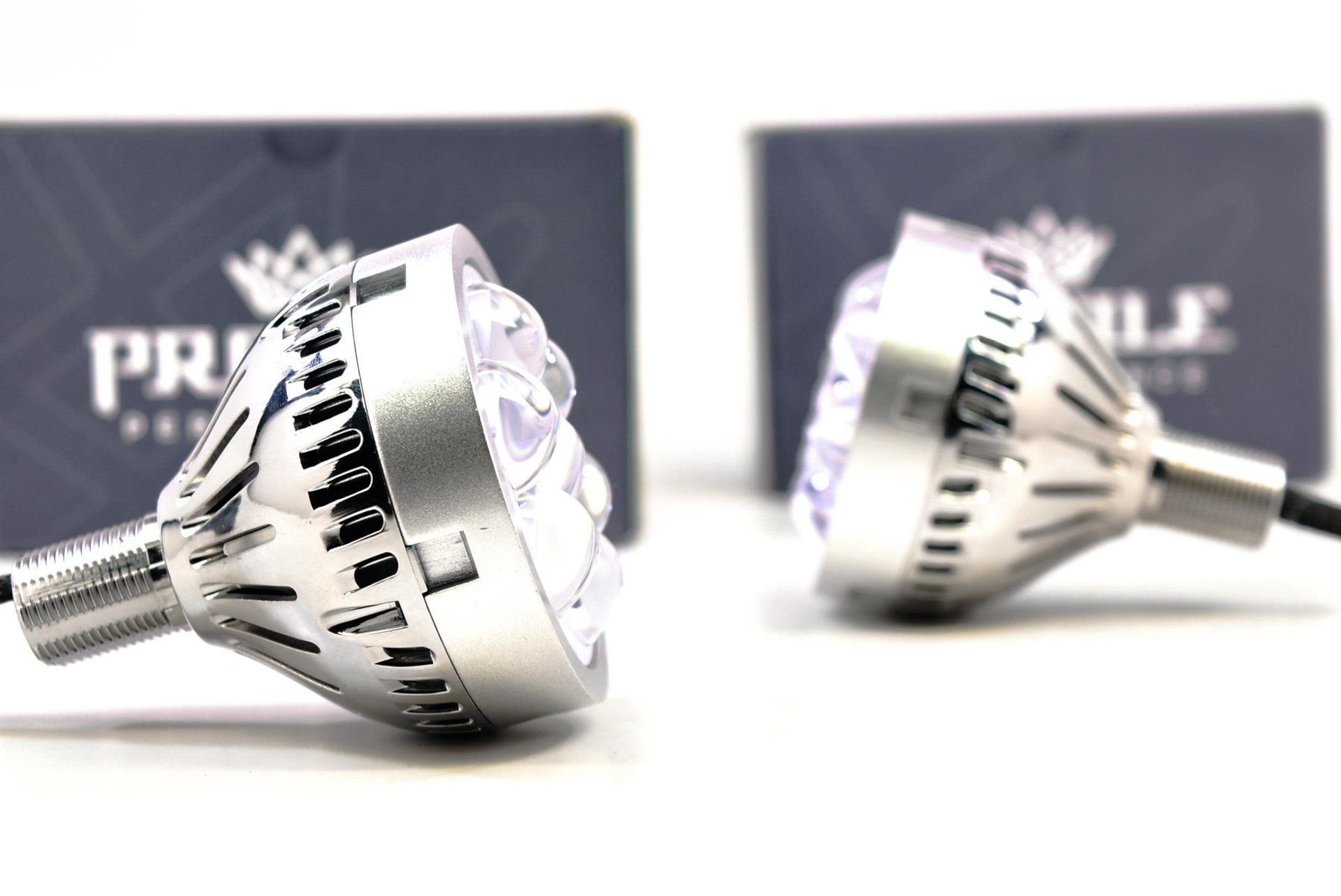

    The Profile Hi-Lens LED which might slip right into the highbeam side of the bracket. Just waiting for it to arrive




    teejnut likes this.
  11. BukkakeAisu

    BukkakeAisu

    Messages:
    126
    Media:
    6
    Likes Received:
    55
    Joined:
    Feb 21, 2018
    Location:
    Tokyo, Japan
    Please keep us updated! That LED lense looks awesome! I brought my mess to work and the pro we have there is giddy with excitement about how large these housings are.

    I already have the RX projectors but he's now got me looking at a combo LED setup from the new Sienta...

    [​IMG]

    Luke111 likes this.
  12. BukkakeAisu

    BukkakeAisu

    Messages:
    126
    Media:
    6
    Likes Received:
    55
    Joined:
    Feb 21, 2018
    Location:
    Tokyo, Japan
    I think I might end up with something like this. Carbon fiber over the side reflectors, LED DRL/Turn signal strips, and effectively a quad LED highbeam.

    SoCal80, inovashn and Luke111 like this.
  13. Luke111

    Luke111 Supporting Vendor

    Messages:
    2,713
    Likes Received:
    852
    Joined:
    Aug 6, 2006
    Location:
    Northern Virginia
    The Hi-Lens Led arrived and it looks like it’s going to be perfect . I just need to cut a small section of the bracket which will allow the lens to sit straight.. it will extend about 3/4 of an inch from the front edge of the bracket which is about the same distance that the OEM highbeam lens stuck out allowing it to slip into the shroud perfectly





    teejnut likes this.
  14. BukkakeAisu

    BukkakeAisu

    Messages:
    126
    Media:
    6
    Likes Received:
    55
    Joined:
    Feb 21, 2018
    Location:
    Tokyo, Japan
    Hi LED lenses ordered!!

    Luke111 likes this.
  15. rodhx

    rodhx

    Messages:
    12
    Likes Received:
    4
    Joined:
    Aug 9, 2017
    Location:
    Alabama
    Really interested in your impressions on that high beam mod. My son just retrofitted my GX with HIDs from an 04 RX330 and it turned out great. He started a build thread here.

    teejnut likes this.
  16. BukkakeAisu

    BukkakeAisu

    Messages:
    126
    Media:
    6
    Likes Received:
    55
    Joined:
    Feb 21, 2018
    Location:
    Tokyo, Japan
    Hey Luke - do you think multiple mod pods (or mini) would look any good in the OEM turn signal location?

  17. Luke111

    Luke111 Supporting Vendor

    Messages:
    2,713
    Likes Received:
    852
    Joined:
    Aug 6, 2006
    Location:
    Northern Virginia
    Sounds like a nice setup.. hit the link but I couldn’t see the photos

    It might look great but wiring could get complicated... I’m still trying to figure out what your plans are to install two lights is the low beam area... are you going the cut the shroud?

  18. rodhx

    rodhx

    Messages:
    12
    Likes Received:
    4
    Joined:
    Aug 9, 2017
    Location:
    Alabama
    Hmm, pics were working on the thread when I linked it but now I can't see anything but the first one either.

  19. Luke111

    Luke111 Supporting Vendor

    Messages:
    2,713
    Likes Received:
    852
    Joined:
    Aug 6, 2006
    Location:
    Northern Virginia
    You should load them here is this thread

  20. BukkakeAisu

    BukkakeAisu

    Messages:
    126
    Media:
    6
    Likes Received:
    55
    Joined:
    Feb 21, 2018
    Location:
    Tokyo, Japan
    Yeah, will trim the shroud if needed. Most likely going to need some trimming and satin black paint.
    Any advice on switchback LED strips? I ordered a 12" ACME DYNAMO strip but seems like it was cancelled and is no longer being offered?

  21. Luke111

    Luke111 Supporting Vendor

    Messages:
    2,713
    Likes Received:
    852
    Joined:
    Aug 6, 2006
    Location:
    Northern Virginia

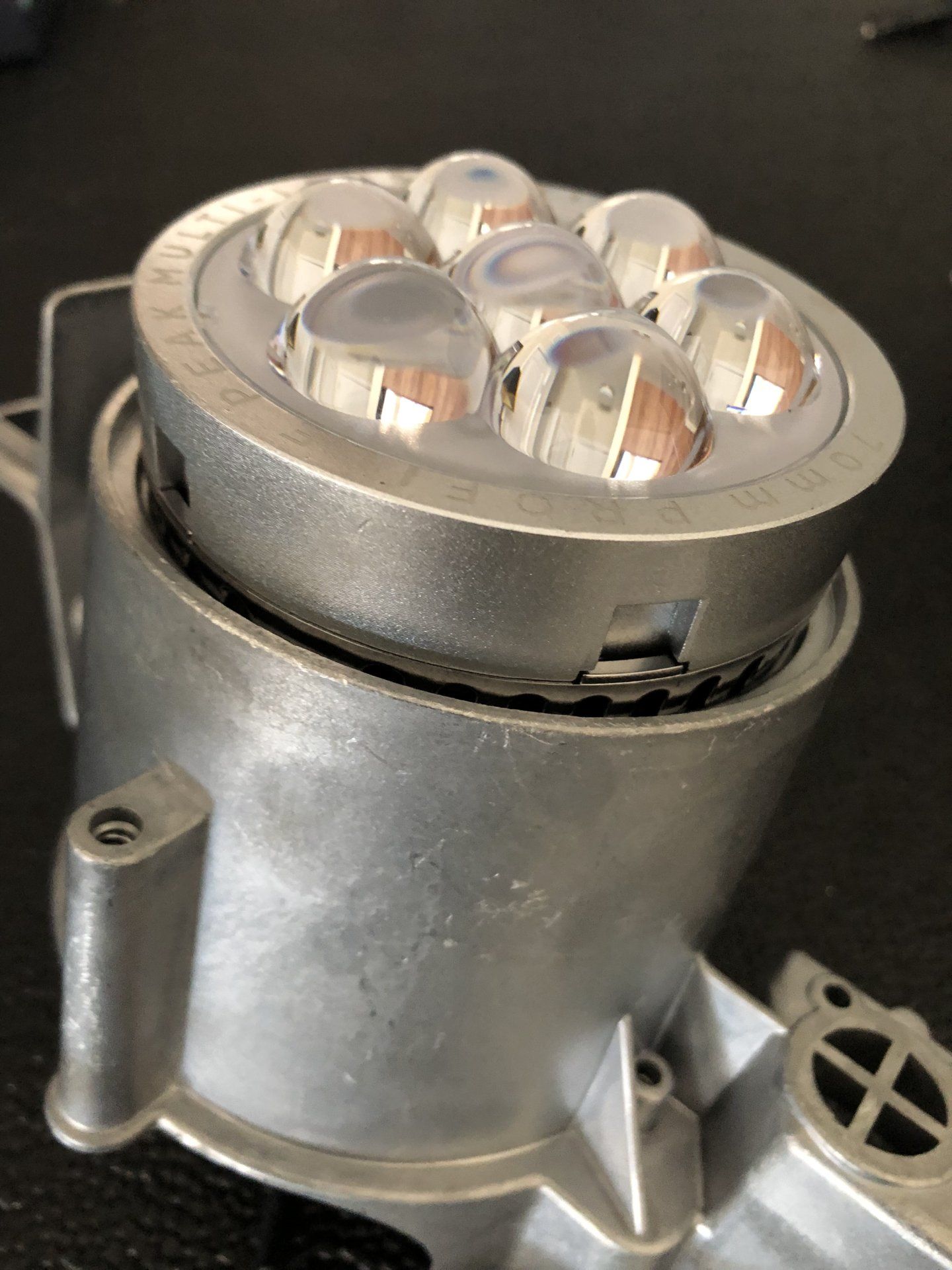

    Mounting a D2S 4.0 projector would require some serious engineering but I was able to mount a Mini H1 7.0. To really do a proper retrofit it would require making a simple bracket...

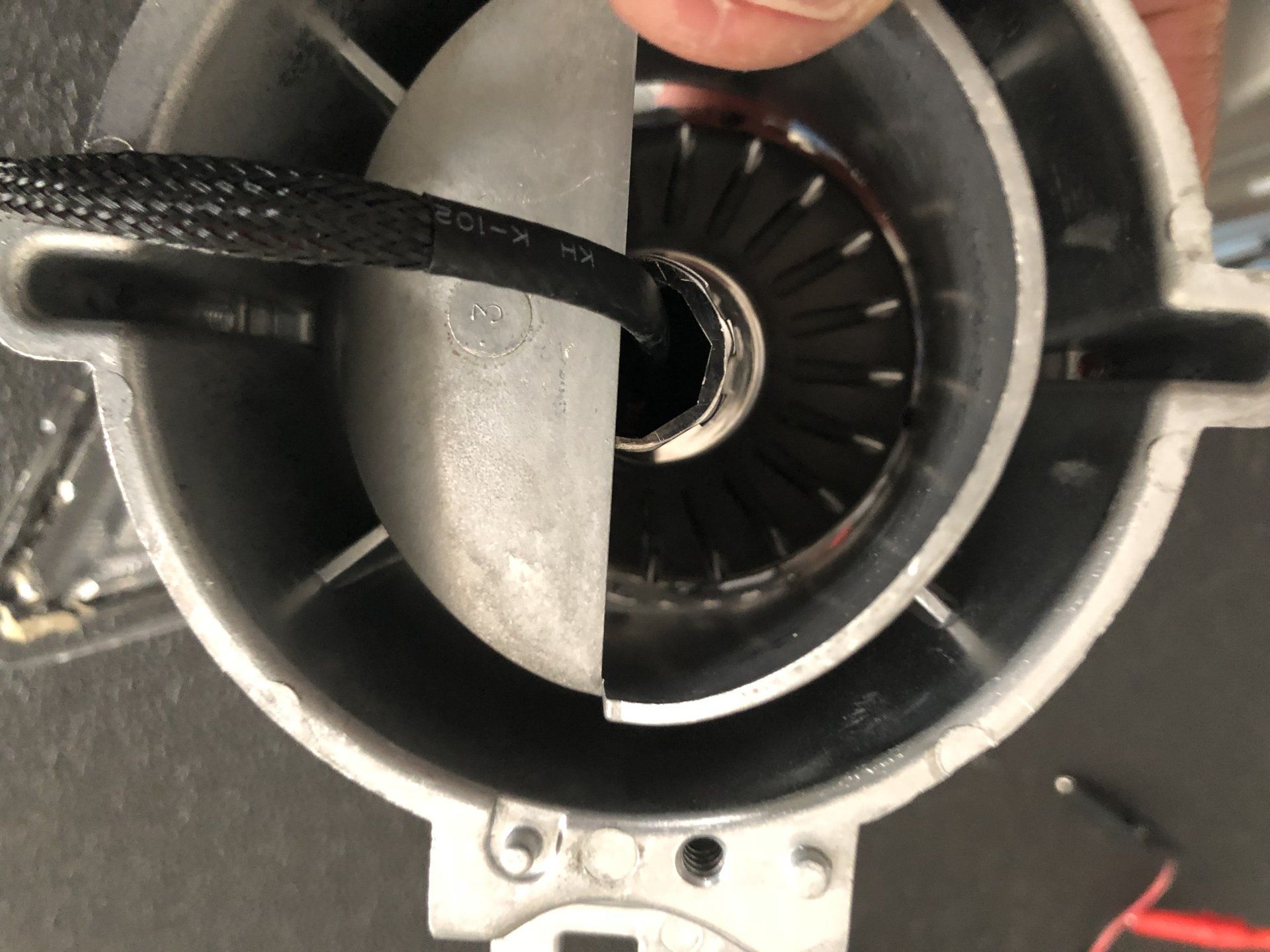

    I hacked up one of my Mini H1 brackets

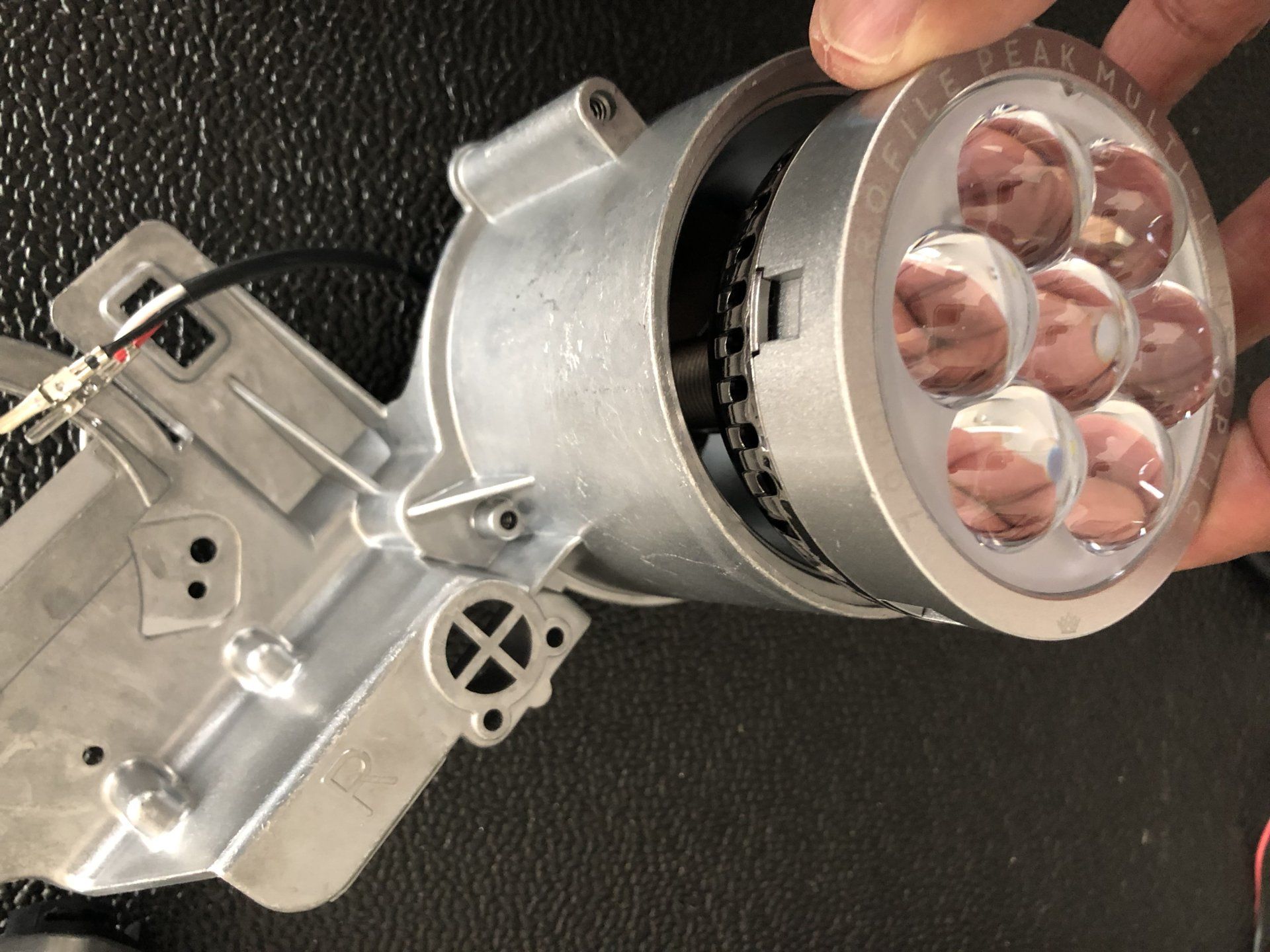

    and bolted it to what was left of the OEM bracket.

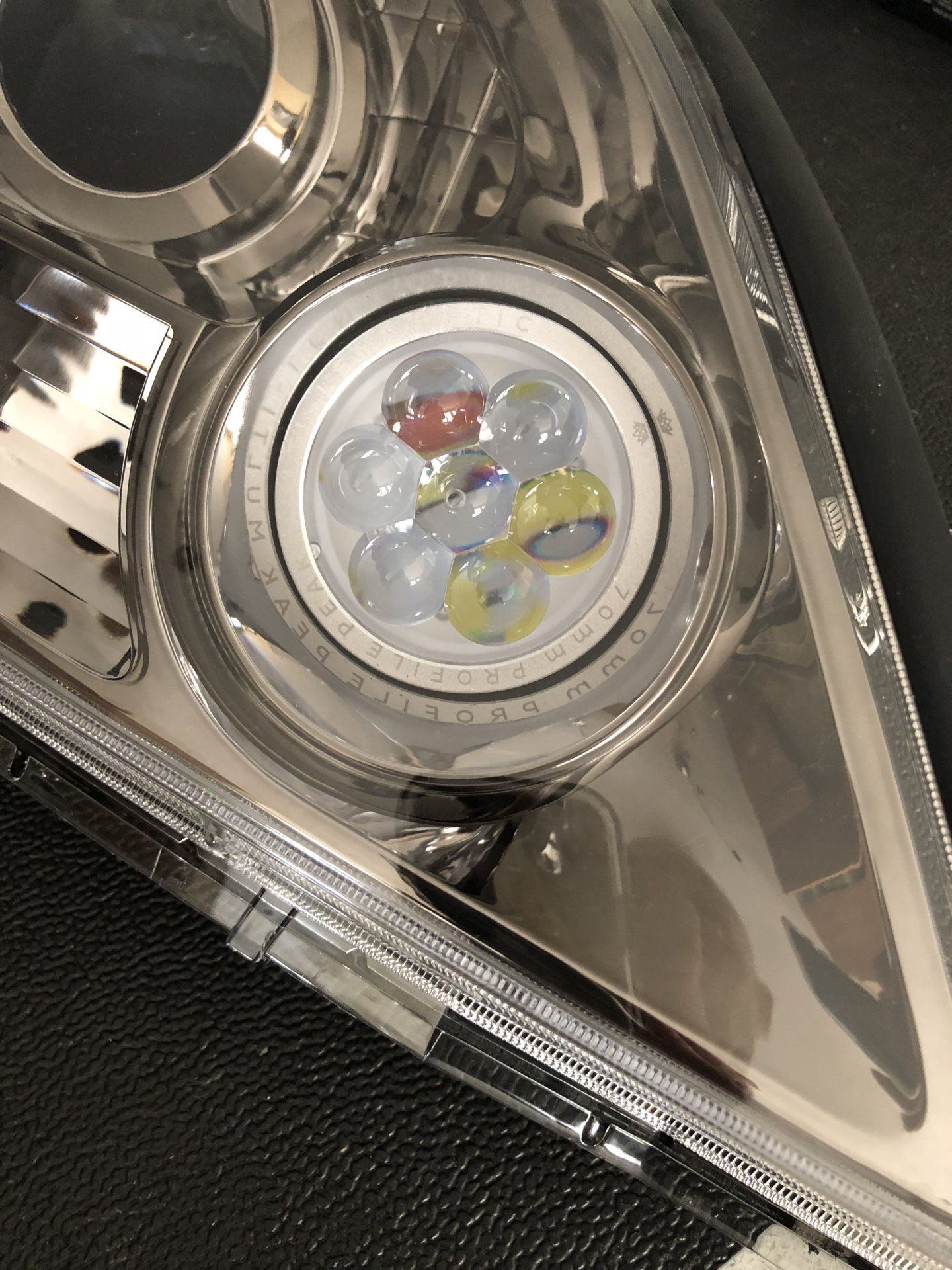

    For the LED high beam a simple cut using a Dremel allow the LED to sit level
    and there was just enough of the threaded shaft for the bolt to hold it in place. This would not be adequate for a permanent retrofit but just for the test it worked great ..I’d mockup a different mounting method which wouldn’t be that difficult
    I’ll try to far these things up in a couple days and shoot some output shots





    teejnut likes this.
