Fzj80 A/T shift linkage removal (1 Viewer)

[MudSlider80]

Hello folks,

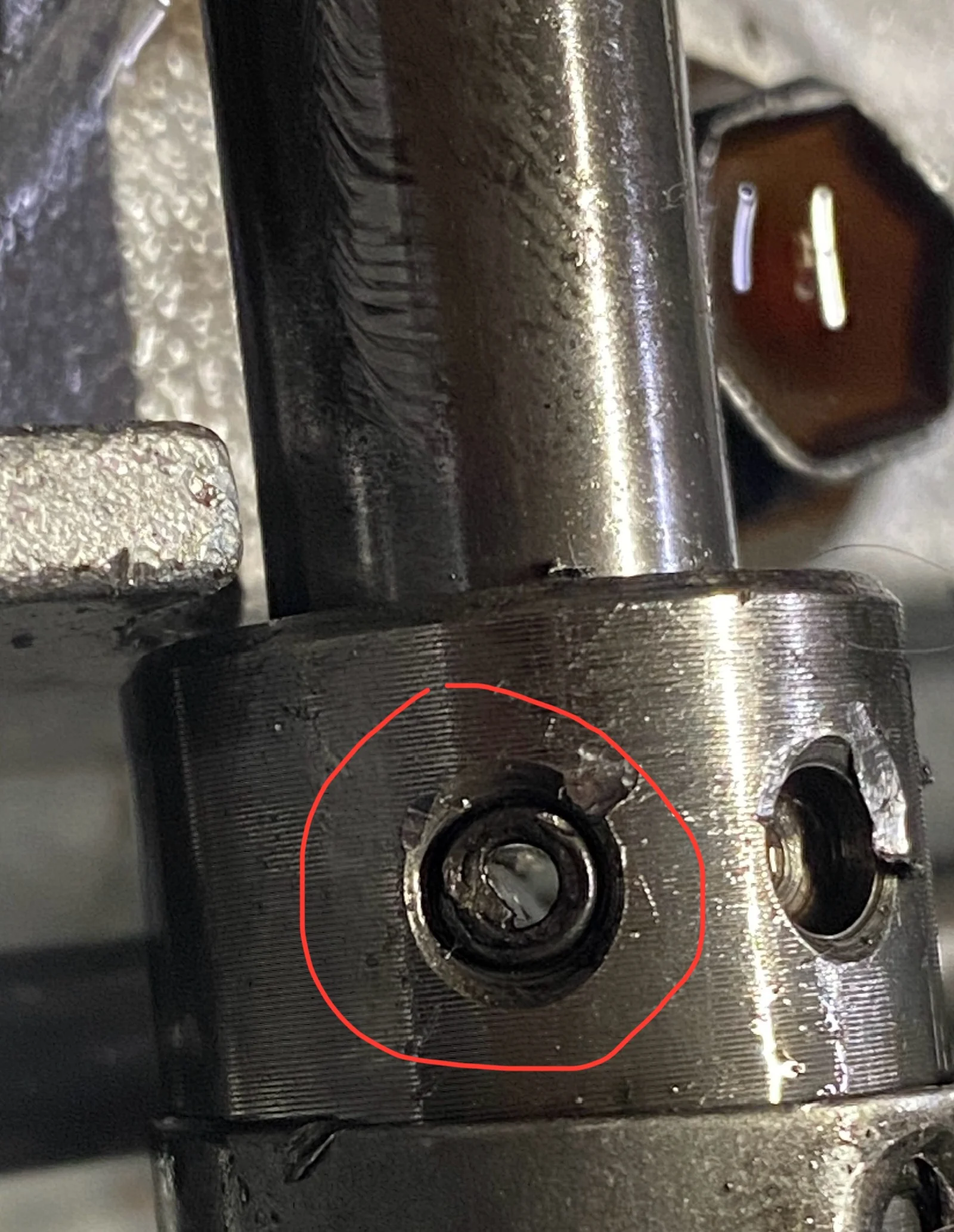

I snapped off the nut that secures the trans shift linkage is this something that can be replaced with out opening up the trans, or any idea how to fix this?



[NLXTACY]

That’s not so bad. Was expecting it being the shift rod that you snapped.

Just remove with an easy out.



[MudSlider80]

That’s not so bad. Was expecting it being the shift rod that you snapped.

Just remove with an easy out.

Just to be clear, I'm talking about the lever that shifts the trans, there was a nut on a stud. how is this stud connected?



[jonheld]

Which of the 3 possible transmissions is this?



[MudSlider80]

Which of the 3 possible transmissions is this?

I believe it is A343F



[jonheld]

The FSM shows the center of the rod protruding past the nut that secures the NNS. I would think that if the nut "broke" you should just source a used one from someone. Perhaps you can post a picture of what broke off.



[Kernal]

Could you post up a couple more photos including one looking at the shaft
from the side?



[NLXTACY]

You need to replace the shift rod with a new one. It’s a pain cuz the valve body needs to be removed. It’ll look exactly like this:



[Kernal]

How often does this rod become damaged when replacing the NSS (IDK)??



[NLXTACY]

And btw, I thought your original post was referring to the missing (what I thought was broken) bolt at the top.



[NLXTACY]

How often does this rod become damaged when replacing the NSS (IDK)??

Considering it only gets changed MAYBE once in its life…



[Kernal]

So a generous application of penetrating oil to that nut/threads prior to removal might help??



[NLXTACY]

If it’s a 343 the part number for the shaft is: 35561-30070
For the nut: 94110-40800
For the washer: 94512-00800



[MudSlider80]

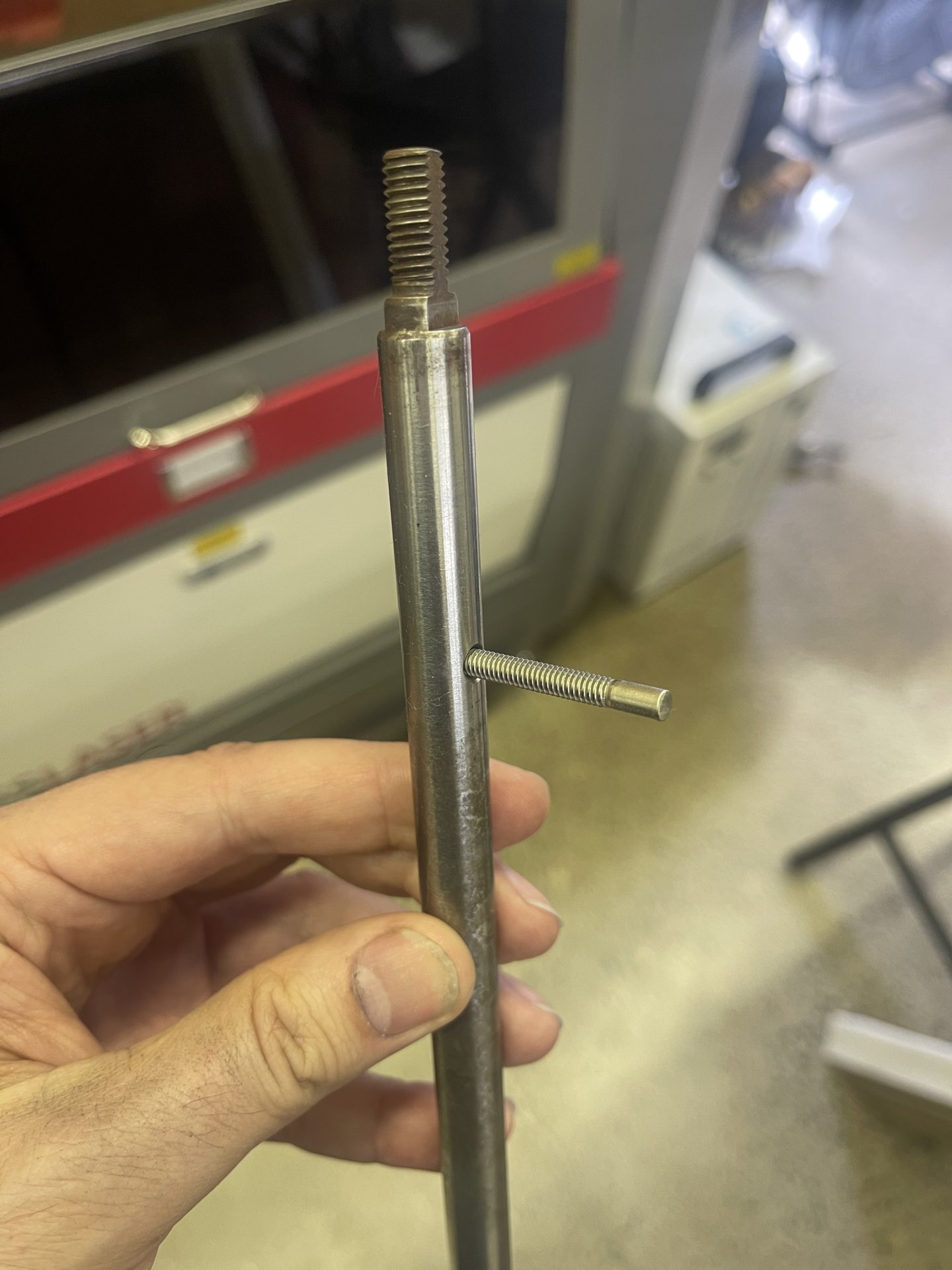

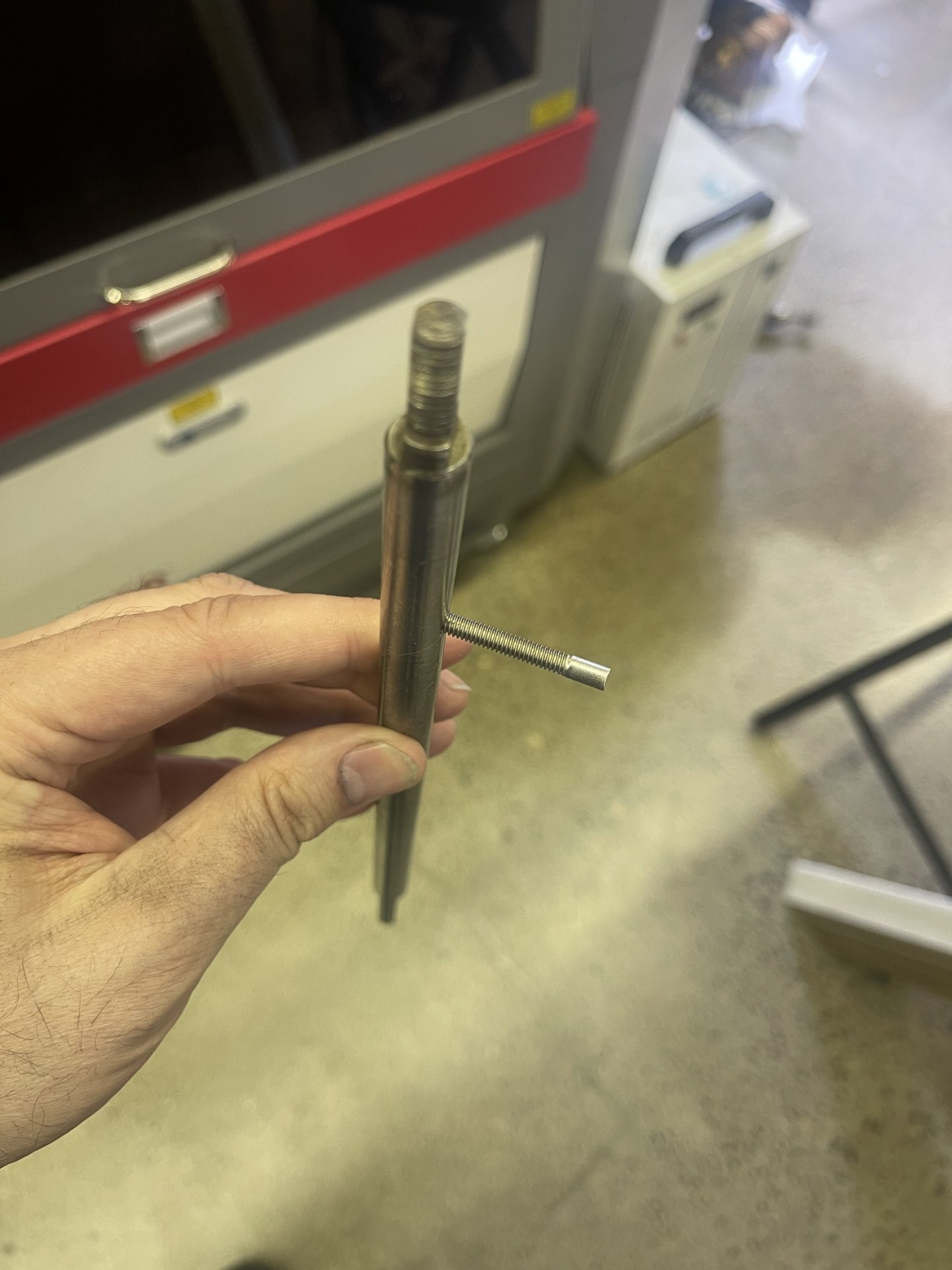

You need to replace the shift rod with a new one. It’s a pain cuz the valve body needs to be removed. It’ll look exactly like this:

View attachment 2988352

View attachment 2988354

Any idea where to get this shaft from? or part numbers, I cant find anything



[cahill]

Any idea where to get this shaft from? or part numbers, I cant find anything

It looks like they are listed in the post just above yours. You probably were typing your question as the answer was being given



[Kernal]

Any idea where to get this shaft from?

Do an internet search for Toyota Parts Online or go to your local Toyota dealership parts dept. Many parts and assembled kits are also available
from a Mud Vendor, search for wits end absolute ---



[MudSlider80]

The lever still fits on the spindle, would a small tack weld be okay or is that too risky ?



[NLXTACY]

The lever still fits on the spindle, would a small tack weld be okay or is that too risky ?

100% your call but…
100% not the thing to do
