FT Diff - Check your nuts

Discussion in '80-Series Tech' started by landtank, Sep 14, 2018.

  1. landtank

    landtank SILVER Star

    Messages:
    19,320
    Likes Received:
    1,623
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    Quite a few times I've come across front diffs that leaked from gasket between the axle housing and Diff carrier. It's almost always loose nuts. However while out at Cruise Moab on my final trail run @cruiserdan spotted a large oil spot moments after we parked for lunch and sure enough the nuts were quite loose and the gasket was torn. Luckily we were near the end of the trail and while I had a 36 hour drive home I'm part time so not a problem. Dan mentioned that Toyota at some point eliminated the lock washer for a flat one and that was likely the issue.

    So I went on the hunt for better nuts and found some that I like. They are a JIS serrated flange nut, class 10.9 and zinc plated.

    Today I tore apart the axle to replace the gasket and install the new nuts. As it turns out I did have lock washers they simple didn't do the job for me.

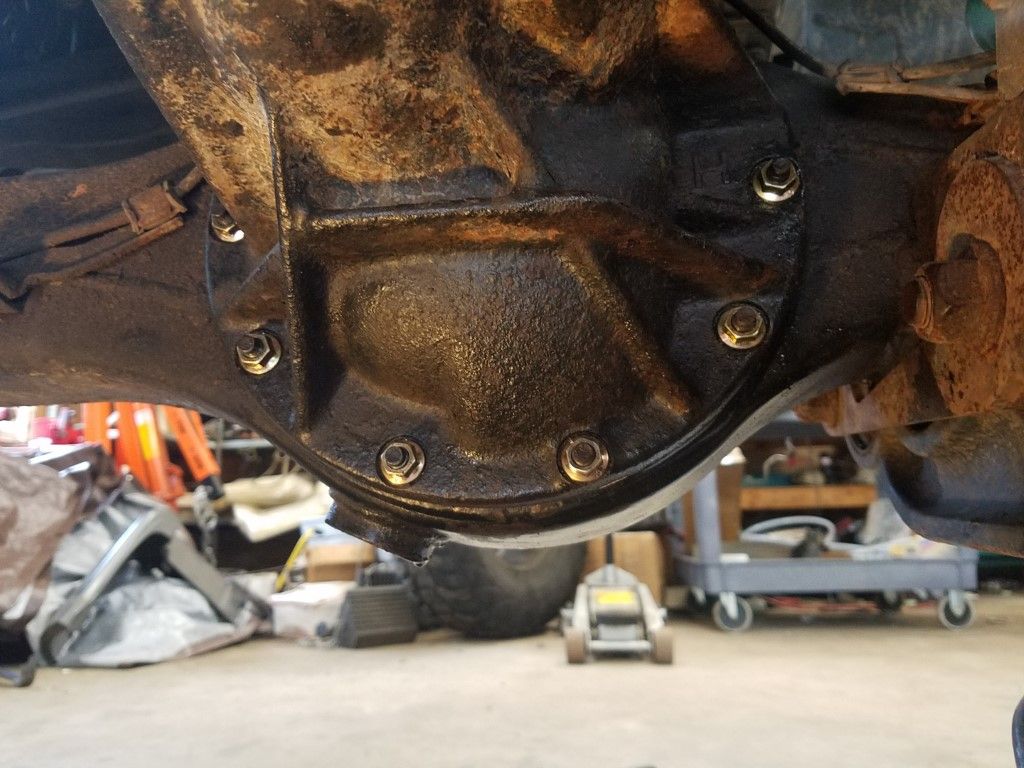

    Attached are the before and after pics of the diff along with one of the nuts I used.

    It takes 10 for an open diff. This is just the front diff and I'll get some for the rear and swap them out as well.
    20180914_153246.jpg 20180914_160134.jpg 20180914_160126.jpg

    davidp14, 06Yoda, mingles and 8 others like this.
  2. Tools R Us

    Tools R Us

    Messages:
    23,276
    Likes Received:
    4,704
    Joined:
    Jul 20, 2004
    Location:
    Chandler, AZ
    That should be on the occasional torque check list. If the gasket is ditched and the diff is installed with Permatex Gray, the nuts almost never come loose and leaks are greatly reduced.

    MScruiser, LC4LIFE, 06Yoda and 4 others like this.
  3. landtank

    landtank SILVER Star

    Messages:
    19,320
    Likes Received:
    1,623
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    I had previously use FPIG on the failed gasket. I'll check these before my next trip but the truck gets very little use.

    My rear diff is fine and I just ordered nuts for that and will change them out 1 at a time so no need to tear in and deal with the gasket as of yet.

    NLXTACY likes this.
  4. nukegoat

    nukegoat

    Messages:
    3,363
    Likes Received:
    3,080
    Joined:
    Apr 11, 2013
    Location:
    San Jose, CA
    Might as well check ring gear bolts while you're at it since apparently those come loose randomly on their own too

  5. chap79

    chap79 Wheel. Break. Fix. Repeat. SILVER Star

    Messages:
    2,316
    Likes Received:
    4,599
    Joined:
    Mar 20, 2009
    Location:
    Valley Center, CA
    I’ve had this happen a few times too. Used blue loctite last time I tore into it and haven’t had the issue return :meh:

  6. inkpot

    inkpot SILVER Star

    Messages:
    13,007
    Likes Received:
    2,492
    Joined:
    Jan 30, 2003
    Location:
    Chandler, Az.
    Probably just a rumor? :doh:

    nukegoat likes this.
  7. chap79

    chap79 Wheel. Break. Fix. Repeat. SILVER Star

    Messages:
    2,316
    Likes Received:
    4,599
    Joined:
    Mar 20, 2009
    Location:
    Valley Center, CA
    They don’t come loose when you don’t bounce them off rocks. IME...

    RFB likes this.
  8. Cruiserdrew

    Cruiserdrew On the way there SILVER Star

    Messages:
    15,501
    Likes Received:
    4,447
    Joined:
    Mar 15, 2003
    Location:
    Sacramento, CA
    It's only the front 80 diff that has this problem, but it's very, very common. I think the 8mm studs just are not up to the task. Or maybe there's some strange torque forces with the high pinion diff.

    Anyway, check them every oil change, and I doubt you'll have further problems. And I got rid of the paper gasket up front too and went to the FPIG.

    NLXTACY likes this.
  9. mudgudgeon

    mudgudgeon

    Messages:
    2,942
    Likes Received:
    1,763
    Joined:
    Dec 17, 2007
    Location:
    Sydney, Australia
    I replaced all the studs and nuts on my HZJ105 with 10mm studs when I had the diff carrier out.

    Fairly common issue. I've used paper gaskets and FIPG and had leaks and loose nuts with both

  10. amay3

    amay3

    Messages:
    52
    Likes Received:
    68
    Joined:
    May 25, 2016
    Location:
    Chapel Hill, North Carolina
    Hey Richard,
    Many thanks for this post. Where did you source the JIS flange nuts?

  11. landtank

    landtank SILVER Star

    Messages:
    19,320
    Likes Received:
    1,623
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    I talked with Joey at wits-end and he's going to stock them. it will be cheaper then buying as i did.

  12. davework

    davework Cruiser Hardware: OverlandMetric.com Supporting Vendor

    Messages:
    718
    Likes Received:
    216
    Joined:
    May 6, 2005
    Location:
    Erie, CO
    For JIS Flange Nuts with serrations, the best place I’ve found for them is BelMetric.com. Reasonable shipping on small qtys. If Joey will stock them, even better though.

    RFB and NLXTACY like this.
  13. davework

    davework Cruiser Hardware: OverlandMetric.com Supporting Vendor

    Messages:
    718
    Likes Received:
    216
    Joined:
    May 6, 2005
    Location:
    Erie, CO
  14. landtank

    landtank SILVER Star

    Messages:
    19,320
    Likes Received:
    1,623
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
  15. NLXTACY

    NLXTACY Wits' End Supporting Vendor

    Messages:
    23,320
    Media:
    23
    Albums:
    2
    Likes Received:
    15,996
    Joined:
    Dec 7, 2007
    Location:
    West Hills, CA
    ^ this

  16. 80t0ylc

    80t0ylc Hill & Gully Rider

    Messages:
    2,643
    Media:
    32
    Albums:
    3
    Likes Received:
    249
    Joined:
    Sep 24, 2008
    Location:
    Canyon City, OR
    Thinking about Nylock nuts, but they're temp limited.

    "THERMAL PROPERTIES Most nylon insert locknuts are manufactured from Zytel 101 which has an effective temperature range up to 250 ° F. Zytel 103 has a higher effective range to 350 ° F and can be special ordered for your higher heat applications."

    Would the Zytel 103 work or does the normal diff temps exceed that? Trying to remember what I've read with my laser thermometer when checking heat readings, before...:bang: ...damn dementia...lol

  17. Tools R Us

    Tools R Us

    Messages:
    23,276
    Likes Received:
    4,704
    Joined:
    Jul 20, 2004
    Location:
    Chandler, AZ
    The active part is, not using the gasket.

  18. Tools R Us

    Tools R Us

    Messages:
    23,276
    Likes Received:
    4,704
    Joined:
    Jul 20, 2004
    Location:
    Chandler, AZ
    Doubt that is a problem here, even the diff drain plug ring is virgin, never been kissed.

    Last edited: Sep 15, 2018 at 1:07 PM
    NLXTACY likes this.
  19. davework

    davework Cruiser Hardware: OverlandMetric.com Supporting Vendor

    Messages:
    718
    Likes Received:
    216
    Joined:
    May 6, 2005
    Location:
    Erie, CO
    Agree. But how often are diff covers pulled? Wouldn’t it be better to have a locknut rather than not?

  20. LandCruiserPhil

    LandCruiserPhil Peter Pan Syndrome Supporting Vendor

    Messages:
    22,264
    Media:
    55
    Albums:
    3
    Likes Received:
    13,367
    Joined:
    Mar 10, 2004
    Location:
    Scottsdale Arizona
    Factory locked diffs uses more hardware than non locked.

    I had nothing to match the yellow zinc so I used clear zinc:flipoff2:

    Before

    [​IMG]

    What is needed for factory locked diffs

    [​IMG]

    Results :princess:

    [​IMG]

    davidp14 and Mdej3 like this.
