Forum Members Rear Bumpers

[jditom]

My rear bumper by 4X4labs

Drove down to GrassValley Ca 2 months ago to have Luke put his rear bumper on my rig!
It's sweet and I love it.
Enjoy
The boys at 4X4labs are great!



[thestallionq8]

These are a few pics that I have on my computer of the rear bumper! I might take a few more later but there's nothing special about my rear bumper! It's actually the factory bumper with a piece cut out of it since I installed the second spare tire!



[concretejungle]

the stallion.... thanks for posting those pics. That further identifies that even though it is not "rated for DOT towing" the rear stock bumper of the 80 will pull a large load.



[Box Rocket]

This is my home built WildYoats rear bumper.



[Mlachica]

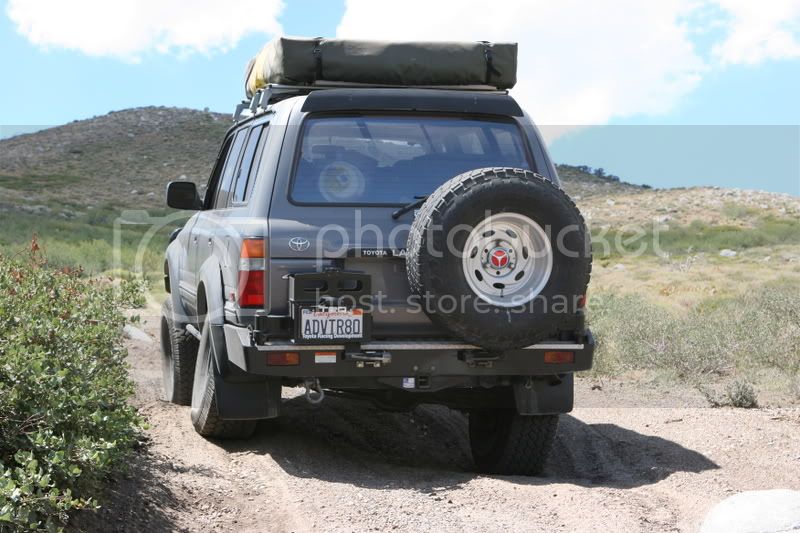

Here's a kaymar with a jerry can holder and spare 35" tire

Not a bad bumper for overlanding. I have a hi-lift adapter as well, not pictured.

For more technical trails the side wings can definitely use some reinforcement.

I'll eventually end up getting a 4x4labs or hannaquality bumper in the future for the added protection.



[jfz80]

Iron Pig Off Road rear bumper FZJ-80

I dont see an iron pig bumper on the list so here is mine.



[sseaman]

seeing all these bumpers/ crash guards makes you wonder how much damage they would inflict on todays modern bumpers/ crumple zones



[ERG80]

IPOR hybrid

Another IPOR rear.
Dual Swing outs with 4x4 Labs tire carrier and ladder/basket.



[concretejungle]

I"ll go ahead and add pics of my IPOR with dual swingouts. These are not the 4x4 lab swingouts like the post above, but IPOR's design.



[Bear80]

Here is my TJM with modified tire carrier. The original carrier mounted the tire low which kept rear window visability great but limited the tire size to a 33. The bumper is not nearly as heavy duty as others but I like it for several reasons, nice matching lines with the plastic top covers, low profile, light weight, and hidden away dual spindles. The main down sides are the powder coating simialr to those used on trailier hitches, and the recovery loops that could be stronger while not sticking down so much.



[Firedog]

M and M Offroad (there is a tire on there now)



[Nay]

SROR custom. Light n' Tight



[ForealBoreal]

lets get this thread going again like the front bumper thread!



[Gavlad]

MUX's rear bumper - snug as a bug in a rug

I'll play...

From behind (we like to sneak up on you from behind... Hedgehog Sandwich?? Not The Nine O'clock News?? Anyone...)

Rear wheelcarrier on the bench with side tubes to be added



[YOTAFAN]

Here's a few pics of my homemade build. More sepcifics are here --> https://forum.ih8mud.com/80-series-...r-bumper-w-tire-hi-lift-jerry-can-holder.html



[YOTAFAN]

Here's a few more shots.



[97 FZJ80]

New Kaymar clone rear bumper with dual swingouts purchase from a mud forum member here. All the bumper parts, like the front bumper, are powder-coated to match the lower cladding color on the LX450. The bumper is only partially installed and is waiting to be finished out with LED lights and a new receiver hitch.



[maniacv]

4x4 Labs



[FloridaFJ80]

My friends Custom made Colombian Rear Bumper Set up



[97 FZJ80]

Mall Cruiser with powdercoated rear bumper - dual swingout with spot light brackets
