Tried to start it but I can not get it to crank. I rechecked the distributor, primed all lines with gas, it has hit a couple of times, and backfired a couple of times. It sounds like it is back firing through the carb. I am at a loss. Any thoughts

so the engine is turning? if you are hearing backfiring that is a sign that you are getting fuel and spark - my guess is timing or double check the order of your spark plug wires.

Yes it is turning, I removed the distrib, got the white mark on flywheel and got put the distib back in with the closest I could get it pointed at the first position on the cap. This motor is a fresh rebuilt never run. Tried to start it again. No foot on gas and full choke, sounded almost like it would crank but it didn't
Should I get some starter fluid and give that a try.

if it sounds like you're close. then turn the distributor while its seated in the engine to adjust the timing... you'll probably only need to move it no more than 10* or so

wouldn't mess with starter fluid.. does the glass sight have gas about half way up?

Did you get the wire issues resolved - I can look at those two wires on my 82 if you still need to know where they end up. Shoot me a PM and let me know. Also, as was suggested, try moving the distributor a little more and see if it will start. Sounds like a timing issue. You said you have the rotor pointing toward the block where it is supposed to be, but you also need to make sure the number one cylinder is at top dead center on the compression stroke before you point the rotor there. There are several ways to find top dead center. I think the easiest way to find it on the compression stroke is to remove the number one spark plug and put a cotton ball loosely over the spark plug hole. Turn the crank slowly by hand and the cotton ball will shoot out when you are close to TDC on the compression stroke. Look in the spark plug hole with a light and watch for the piston to reach the high point of its stroke and then place the distributor in and tighten it down, making sure it seats in the oil pump.
Its easy to set the distributor in 180 degrees off (piston at TDC on the exhaust stroke) which makes the engine backfire or surprisingly run, but run very poorly.

Chasing demons

I got the timing problem resolved. Now I have a fuel problem, not getting any. If I fill the carb up it runs great. I made a fuel line to give the carb gas and left the fuel line going to the carb open. I let the motor run and nothing comes from the supply line and I don't fill anything when I put my hand over it. I tried to prime the lines and when I was setting the timing it appeared I was getting plenty of fuel. I ran it for several min. When messing with the timing. Then it died. That is when I realized it was not getting fuel anymore. It is like the pump stopped working but that seems very strange. Any advice it welcome

I guess this one still has the original tank under the cab? Try taking the inlet hose from the pump and see if you have fuel should have some from weight of the fuel on the outlet which I'm assuming is on the bottom of the tank. If nothing is coming out try blowing into the hose back toward the tank and see if that makes it flow. I'm not familiar with the 79+ tanks I'm assuming the fuel outlet is on bottom like on 78 and earlier tanks.

bugs worked out and new wheels installed.

getting close

report on how it is doing

Being driving it around town, and everthing is working well. when i installed the h55 i had the drive shafts redone, with new ujoints installed. I still have a slight vibration at speeds higher than 45. any thoughts?

Thought I would share this now that you are there:






I miss this truck but I do love what you have done with it. Kudos.

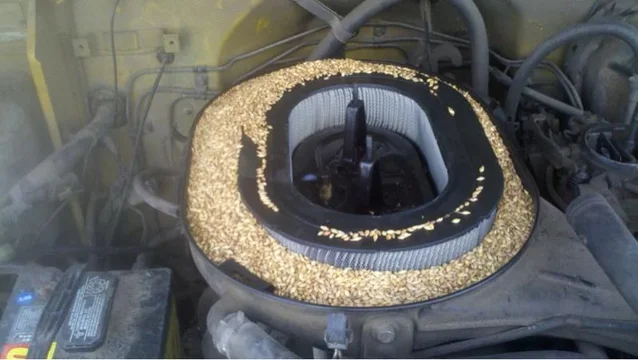

Funny thing is I drove it for a day before I realized how much wheat was in that breather. It ran great! :)

:eek:

:lol:

Funny thing is I drove it for a day before I realized how much wheat was in that breather. It ran great! :)

I was picturing what might have happened if that was popcorn ,...

updated photos

guys, just wanted to give you some updated photos. Also i installed a h55 in it but am thinking of putting the 4 speed back in. If anyone is interested shoot me a pm. Something is wrong with the photo's so i will post them later
