F, 2F (and 3F for giggles) Head Gasket Tech & Reference

[Spike Strip]

I don't know about Europe or the ME, but the 1.5F heads in the US are either 60050, 60051, or 60052: Each was used for about 3-4 months of production over the course of the year the F1.5 was installed in the FJ40. The 60050 and 60051 look identical, externally, to me.

The last few months of production, the 60052 head has the 'step-down' head-to-manifold-studs because it seems the mfg was gearing up tooling for the 2F head. The 60052 head has 12mm stud holes, but still had to accommodate the 10mm Int/Exh manifold holes, so the step-down was a quick bridge.

These head numbers are not in the EPC or Microfiche, or at least I've never been able to find them listed anywhere... @65swb45 told me most of it. The rest of it became clear after acquiring a few different '74 heads. Also, be aware, the 1.5F head uses Head Bolts specific to that engine only.



[flx]

I don't know about Europe or the ME, but the 1.5F heads in the US are either 60050, 60051, or 60052: Each was used for about 3-4 months of production over the course of the year the F1.5 was installed in the FJ40. The 60050 and 60051 look identical, externally, to me.

The number you talk about is the one in the casting of the head?

From the EPC the partnumbers for the USA F.5 head are 11101-60091 and 11101-60092.
(Cylinder head for Toyota Land Cruiser FJ40LV - Auto parts - https://toyota-usa.epc-data.com/land_cruiser/fj40lv/3677/engine/1104/11101/)


My engine was built in 10/73 (31008), so an early F.5, and the head has 60034 as casting number while EPC gives 11101-60075 and 11101-60077 for Europe.
(Cylinder head for Toyota Land Cruiser FJ40LV - Auto parts - https://toyota-europe.epc-data.com/land_cruiser/fj40lv/8655/engine/1104/11101/)


I would be curious to see what kind of casting numbers the 2F heads got but either the EPC is f***ed-up or this casting number is not related to the partnumber.



[flx]

Also, be aware, the 1.5F head uses Head Bolts specific to that engine only.

The head bolts yes I discovered that when I was looking for replacements after opening my engine. Thankfully my old ones were still usable because those bolts are almost impossible to find.
As for some other particularities of the F.5 I'm still wondering why Toyota decided to change this and then went back to the original size 1 year later...



[pigvalve]

I don't know about Europe or the ME, but the 1.5F heads in the US are either 60050, 60051, or 60052: Each was used for about 3-4 months of production over the course of the year the F1.5 was installed in the FJ40. The 60050 and 60051 look identical, externally, to me.
The last few months of production, the 60052 head has the 'step-down' head-to-manifold-studs because it seems the mfg was gearing up tooling for the 2F head. The 60052 head has 12mm stud holes, but still had to accommodate the 10mm Int/Exh manifold holes, so the step-down was a quick bridge.
These head numbers are not in the EPC or Microfiche, or at least I've never been able to find them listed anywhere... @65swb45 told me most of it. The rest of it became clear after acquiring a few different '74 heads. Also, be aware, the 1.5F head uses Head Bolts specific to that engine only.
View attachment 2968684
[/QUO

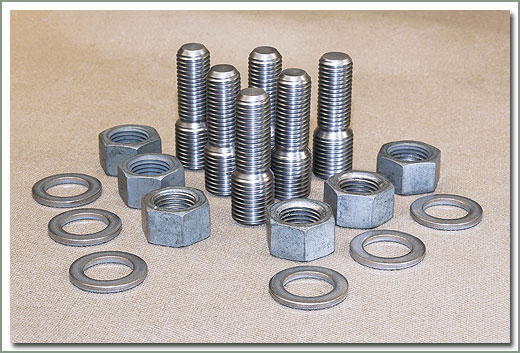

I recently found a 60051 head for my 74 F1.5. It has 10mm stud holes and I need the 'step-up' manifold studs for my manifolds which are 12mm. The only place that I can find them is $pector.



[pigvalve]

I recently found the correct 60051 head for my 74 F1.5. The manifold stud holes are 10mm and the manifold takes 12mm. I need the 'step-up' studs. So far the only place I can find them is $pector.



[Spike Strip]

I recently found the correct 60051 head for my 74 F1.5. The manifold stud holes are 10mm and the manifold takes 12mm. I need the 'step-up' studs. So far the only place I can find them is $pector.

Yes, the part is NLA from Toyota. SOR has them reproduced. Only place you'll be able to find them. Bel-metric has some that look like they'll work, but I've never tried them.

This is getting off-topic from the OPs intent. Prolly best in a new thread...



[FQ15]

I have a Siamese F motor I am rebuilding is there a head gasket kit with all seals?



[Living in the Past]

I have a question. When did the F135 end and the F145 start? I thought it was 9/67 when the changes for 68 started. Lately seeing the wide intake manifold listed as 67-69. Thought those were only 68-69 models?



[mattressking]

Digging into headgaskets for @02 champ

@cruiseroutfit did you ever find a -60030/-60031? I seem to have potentially found one on YAJ, however the validity is up for debate.

トヨタ純正部品 F型エンジン ヘッドガスケット F... - Yahoo!オークション

ご覧いただきありがとうございます。こちらは、トヨタ自動車 ランドクルーザー40 系 ヘビーデューティートラック 6t のヘッドガスケットです。トヨタ品番は、 11115-60030 11115-60031 11115-60032 11115-60033相当です。トヨタでは、既に廃番部品となっているものです。ヘッ

page.auctions.yahoo.co.jp



[cruiseroutfit]

Yes, we've had/sold them. I need to see if we have any at the shop I can photo.



[Hugh Heifer]

Not sure it is pertinent but my original 10/1972 F has a 60050 [what I believe to be an] original head so the early F.5 apparently used the same head as the last of the Fs?



[cruiseroutfit]

Not sure it is pertinent but my original 10/1972 F has a 60050 orginal head so the early F.5 apparently used the same head as the last of the Fs?

Cool. I'll work on updating my post to include that information as well. I need to spend some time poking around 40's at the museum to grab head casting numbers off them too.



[Hugh Heifer]

Cool. I'll work on updating my post to include that information as well. I need to spend some time poking around 40's at the museum to grab head casting numbers off them too.

Kurt, I posted elsewhere too but want to reiterate for you, I have no reason to believe this head has ever been swapped but unfortunately the PO is no longer with us to ask him.



[Spike Strip]

@Hugh Heifer

Does the engine have the oiling system w/ Oil filter under Intake or on the Passenger-side of the block? Does it have the oiling tube up to the rockers?



[Hugh Heifer]

@Hugh Heifer

Does the engine have the oiling system w/ Oil filter under Intake or on the Passenger-side of the block? Does it have the oiling tube up to the rockers?

It does not have either. Old style oil filter on the DS bolted to the intake. It does however have the extra two studs for the ends of the manifold.
I am pretty sure the engine is toast. It looks like somebody plastidipped the valve train.



[Spike Strip]

Odd. Granted, I'm not super-familiar with the early F engines, but (like my 4/74 with a 60051 head), oiling circuit to valve train is either internal, through the rocker tower, or, like earlier F engines, from the oil pump, through the tube to the connection on the rocker arm (split type).

I would lean toward that being a replacement head, and not the correct one. But there are others I'm sure who have keener knowledge about this.

I vaguely recall @65swb45, years ago, showing me something where this or a later head was grafted on to an early F block and the oiling somehow figured out. But I might be mis-remembering.



[Hugh Heifer]

Since the 60050 was one of the first ones used on the F.5 I just figured it would make sense that it could have been a leftover from the last of the Fs. (10/72) Who knows.
Given the disgusting condition of this, I suspect the rings are gone and it would be smart to just drop in a 2F I have rather than screw around with this.



[Hugh Heifer]

It would be super helpful to list all these different head casting numbers with corresponding years, part numbers and differences. Both for the Fs and 2Fs. And maybe even go further and list interchangeability. Kurt has a sort of good start researching the various head gaskets.



[cruiseroutfit]

It would be super helpful to list all these different head casting numbers with corresponding years, part numbers and differences. Both for the Fs and 2Fs. And maybe even go further and list interchangeability. Kurt has a sort of good start researching the various head gaskets.

That is my plan, to continue adding casting numbers. I'll head to the museum one of these nights and pop some hoods. My end goal would be a doc like my input shaft thread:

Thread 'Tech Talk: H55F Input Shaft & Bearing Retainer Tech/ID Page'

Mar 22, 2024

H55F Input Shaft, Bearing Retainer and Bearing Tech and Identification Guide - Full Nerdery!

First, there are many great posts on this subject here on Mud but they are in dozens of different threads. I wanted to share some of our internal reference docs and information we use to assist customers and build H55F/BF1 Split T-Case transmissions and transmission/t-case combos.

(33030-60450 / Cruiser Outfitters Part# TR60450 Shown)

There are 20+ different iterations of the H55F (EPC: 33030), many are minor changes, the most prevalent differences being associated with the...

• cruiseroutfit
• Replies: 34
• Forum: Cruiser Outfitters

•
•



[Pighead]

I am pretty sure the engine is toast.

Oh, pshaw. Give it a good 12 volts and dribble some fresh gas down the carb, it'll start right up.
