Electronic F & 2F Distributors

Trollhole

THC
Supporting Vendor
Moderator

Joined
Mar 6, 2005
Messages
20,837
Location
Mauldin, SC
And if that doesn't work just go to this link cause I'm a tard when it comes to figuring out Woodys secret code things.








Last edited:

Trollhole

THC
Supporting Vendor
Moderator

Joined
Mar 6, 2005
Messages
20,837
Location
Mauldin, SC
Well now you have got me thinking on the coil. It's possible it will work. But if the coil has a ballast resistor inline it won't or may not run correctly as it needs to see 12 volts. If you have a coil that requires a ballast resistor I'd suggest just going out and buying a new coil that doesn't.

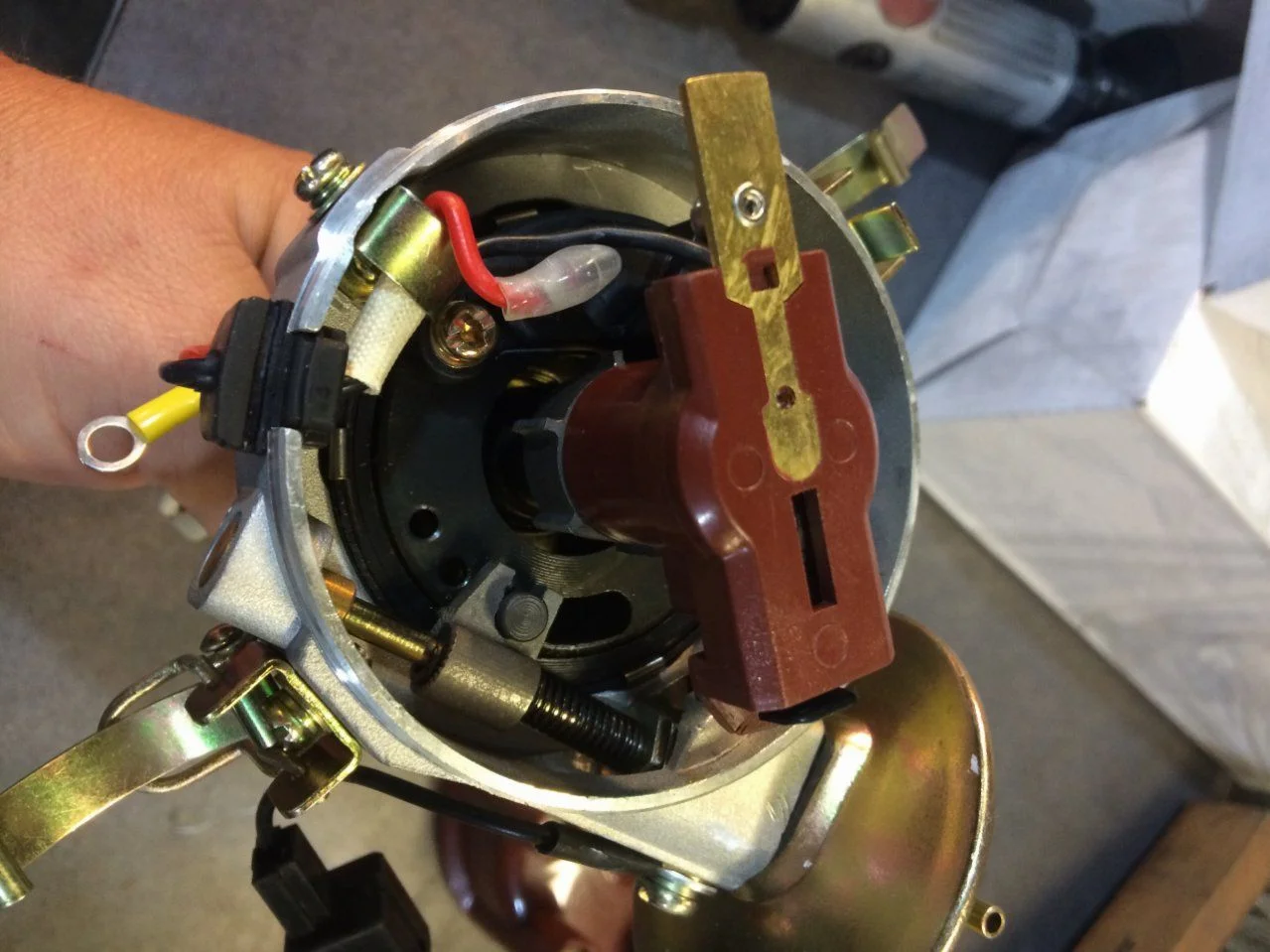

On this unit all you do is pop the old one out install the new one. Connect the black wire to the negative on the coil and the red wire to the positive side of the coil. That is it. You don't use the igniter that came on some of the later 40's and you don't need the ballast resistor that came on the early models.


Trollhole

THC
Supporting Vendor
Moderator

Joined
Mar 6, 2005
Messages
20,837
Location
Mauldin, SC
I've got 1 more. Who wants it?

I also put in an order for 50 of these since they sold so well. Will now be another quality product from me to you as cheap as I can sell it.

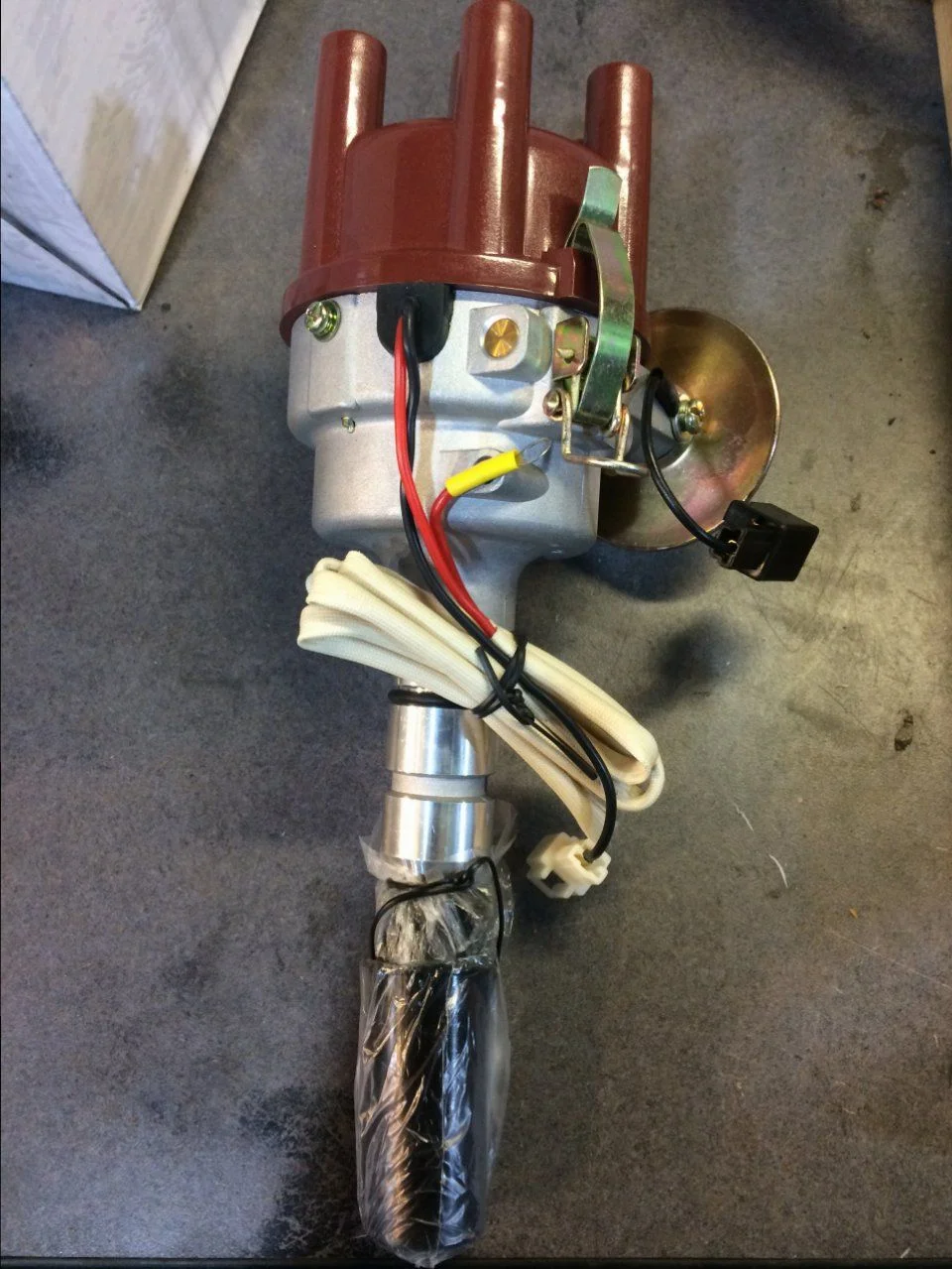

Every one was like night and day going from a oem points dizzy to this. The firing points were rock solid all the way to 5k. No more float, points bounces or poor timing from the points firing on the heal or toe of the contacts. No condenser. Later I'll be carrying the trigger separately cheap so you can have a trail spare. For those people who like the piece of mind.

And of course I run every single dizzy on my Sun Distributor Machine to check them out and tune before they ship.


Trollhole

THC
Supporting Vendor
Moderator

Joined
Mar 6, 2005
Messages
20,837
Location
Mauldin, SC
myquestoyota said:
Dang, I'd have gone this way if I hadn't already bought one of your points dizzys. How about a conversion kit?
How about you pay 75 more and I'll send you one on the next batch.


krzyabncanuck

USFS HOTSHOT
GOLD Star

Joined
Apr 5, 2005
Messages
8,719
Location
NC
Marshall, what ya got left for a F ?

When do you expect the next shipment as i am not in a hurry for mine ?


Trollhole

THC
Supporting Vendor
Moderator

Joined
Mar 6, 2005
Messages
20,837
Location
Mauldin, SC
I'm out of the electric ones at the moment. I do have standard points distributors though. They are 75 shipped.


crimsonaudio

1972 (late '71 build)
SILVER Star
Joined
Jul 25, 2010
Messages
1,501
Location
West TN
Please let me know when you get more in for the F engine - I can Paypal ahead of time if you wish. Gonna be a nice match with your carb!
