Early Box Heaters (1 Viewer)

[treerootCO]

The 67 is armed with this:

http://imageshack.us/a/img843/972/p1010900b.jpg
http://imageshack.us/a/img823/6265/p1010901a.jpg
http://imageshack.us/a/img94/2365/p1010902q.jpg
http://imageshack.us/a/img534/4263/p1010903j.jpg

Brand/model unknown so far.

That is OEM - '65 and up...
Should have the diagonal vent on the cowl for a '67



[Living in the Past]

Neither of my 65 FJ45s had the stock heater. Bith had after market units. It was a option in 65. Standard in the US market starting with the 66 model. The diagonal vent was only in 65 model. I believe to make it easier for one unit to fit both right drive and left hand drive a horizonal was used.



[Lupdog]

Here is one that I picked up off Oz ebay not so long ago. It was advertised as an "early FJ40 heater" so I took a bit of a punt without knowing a whole lot about them. I have seen a couple of early 40s (Australian) with this style of round heater installed. After seeing the heater that Foxfab posted on the first page of this thread they look very similar so I think I did ok on the buy. There are no markings or brand names on the heater and it has been refurbed by the seller so some details may have been removed. The ones I have seen like this over here have been mounted in the center, above where the transmission tunnel cover meets the firewall. The pic that Foxfab posted seems to show his mounted above the passenger footwell.

I will save this one for my '67 40 I think and leave my '62 45 without a heater as I doubt very much that it came with one. Neither rig has a heater inlet vent in the side of the cowl - would a heater inlet vent on the cowl mean a factory fitted heater came with the truck does anyone know?



[Lupdog]

Here is a rear view of the heater. Here is how I think it works - The water inlet and outlet pipes are at the bottom (6 O'clock). The water circulates through the fins and air from inside the cab is drawn ipast these fins by the fan and heated then blown out the two front flaps and also out the two larger air ducts (11 & 4 O'clock) on the backside. I presume the air is then piped from these up to the windscreen defrost vents.



[tbinzo]

Heater

Here in one Restored



[Gumby]

This came out of my 64. It had the round bolt on louvered vent on the cowl too.

any idea as to make?



[Lupdog]

This came out of my 64. It had the round bolt on louvered vent on the cowl too.

any idea as to make?

I came across this old thread by chance tonight:

https://forum.ih8mud.com/fj45-owners-club/40333-dealer-option-heater.html

Similar but not the same heater, but there is some talk and a pic or two of a vent like you mention. No answers but HTH.

Lup



[D'Animal]

Here in one Restored

That is really nice!

Sent from my iPhone using IH8MUD



[JohnnyC]

here is an option for a stock denso looking heater>>>

Link>> http://www.holden.co.uk/displayprod...ical+Fans&agCode=0205&agName=Circular+Heaters

and they have heater cores... i wonder the size?



[JohnnyC]

clayton heaters: http://claytonclassics.co.uk/what-we-offer/89-circular-heaters



[JohnnyC]

looks like the Hupp Heater company was making heaters for Briggs

1st pic is the briggs

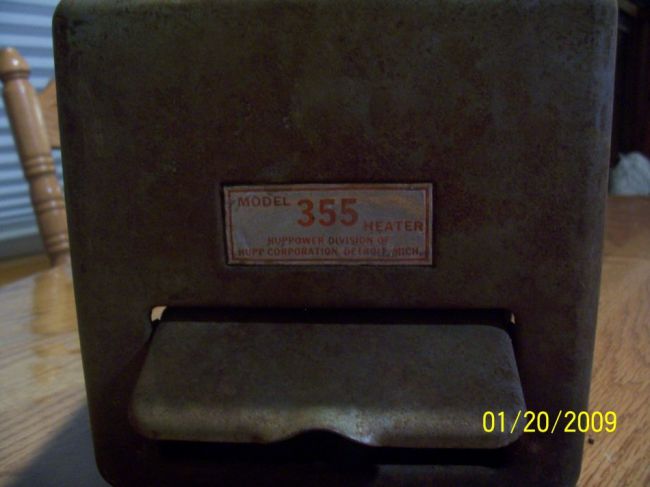

2nd and 3rd are the Hupp model 355



[ozcrusier]

Had this for years not sure where I got it from



[fhawk5]

Here is my 1965 FJ45 LWB heater before I install it.



[Corwin117]

This is what came with my 62 fj40. I have never seen one like it. Sorry for the bad pic. Only one i have right now.



[JohnnyC]

This is what came with my 62 fj40. I have never seen one like it. Sorry for the bad pic. Only one i have right now.

looks like the eaton heater without the front cover

https://forum.ih8mud.com/40-55-series-tech/252338-seeking-early-eaton-heater-info.html



[Splangy]

I found this Hupp 356 at a swap meet in CT this morning. I haven't seen this model before. It's about 1.5" smaller than our models and the heater core pipes are slightly offset. This one was in great original condition.



[pardion]

I found this Hupp 356 at a swap meet in CT this morning. I haven't seen this model before. It's about 1.5" smaller than our 355's and the heater core pipes are slightly offset. This one was in great original condition.

Good find!



[JohnnyC]

More circular heaters here:

Vintage Bosch Heater - Nippon Clone or Vice Versa



[Splangy]

I was recently lucky enough to acquire an early Denso round heater. I'm debating whether to install it in the 25 or the 45LV. While I know they came from the factory in the LV's, does anybody have evidence that they made their way into any 25's?



[oregon fj]

Here is my 1965 FJ45 LWB heater before I install it.

Does anyone know what blower switch these Hupp units came with? I just ordered a new replacement for the one that was connected to the Hupp in my ‘64 FST. Any idea if this is/was original?
