Dial indicator suggestion for genuine Toyota 1hz 1hdt IP timing tool ?

Joined
Oct 8, 2011
Messages
637
Location
Toronto, NSW, Australia
Managed to pick up a new genuine Toyota tool for setting injector pump timing on 1hz and 1hdt motors. Is there a specific type of dial indicator required to go with it or just any one that has the right thread and scaling?

Thanks, craig.

Joined
Mar 21, 2010
Messages
2,945
Location
SK, Canada
I use a Mitutoyo, I can check the model on the weekend. But the right thread and scaling is all you need to have.


lelandEOD

SILVER Star
Joined
Aug 21, 2012
Messages
1,200
Location
Northern Nevada

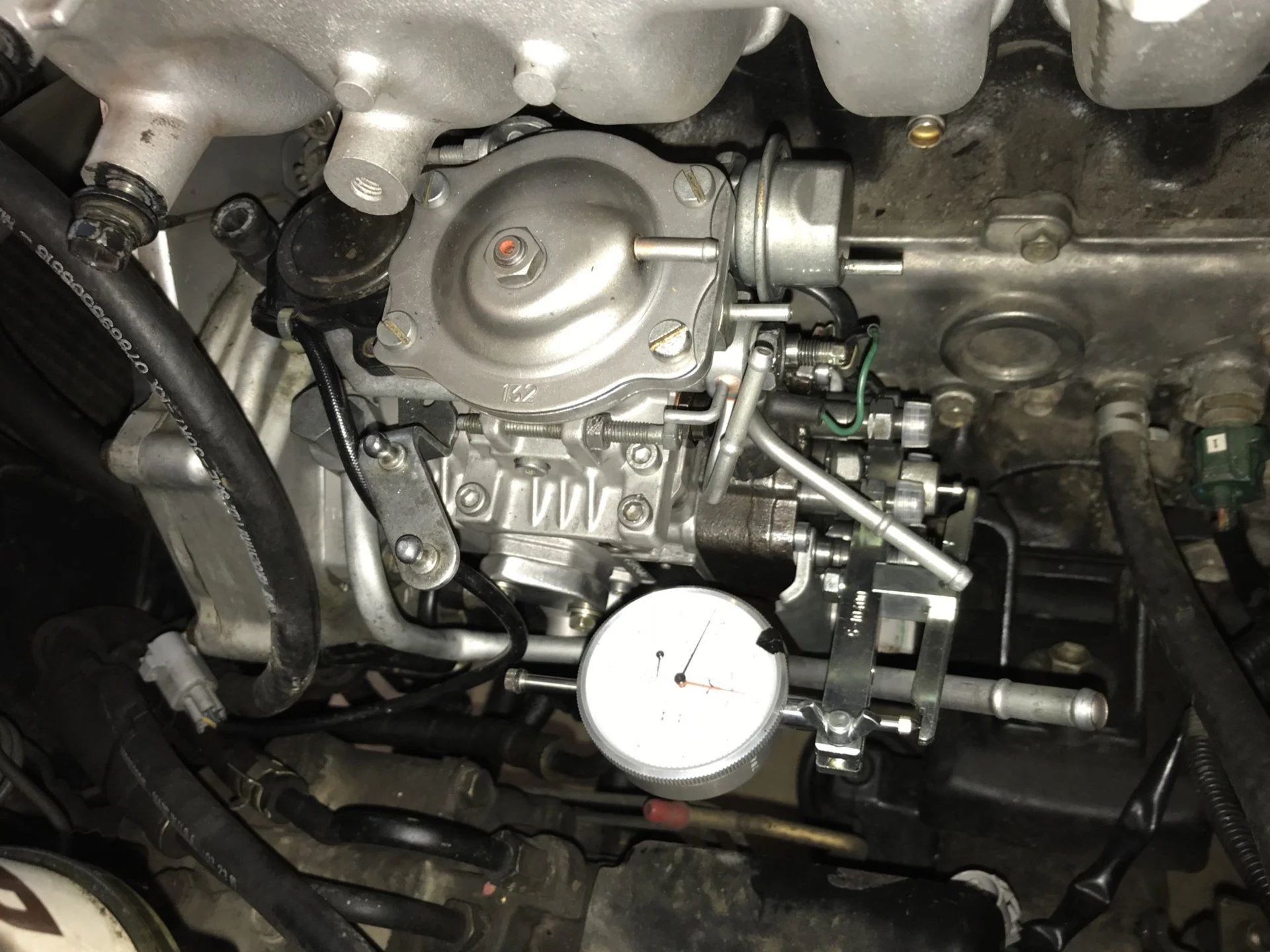

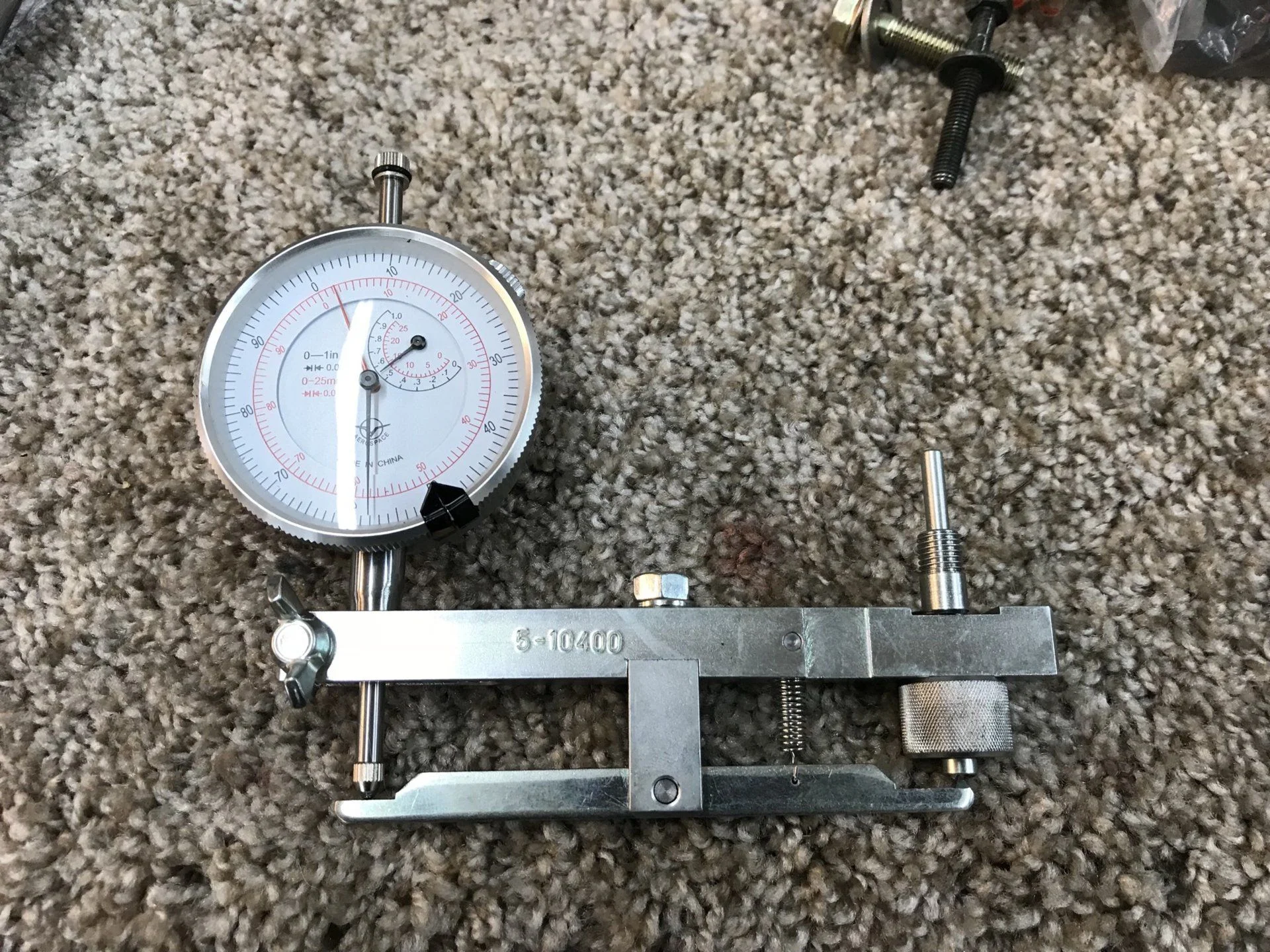

Mine is a Made in Japan tool produced by Denso. You can source them overseas. I used a simple (metric) dial gauge from McMaster Carr and it worked great. I will loan this tool out if anyone is interested, send me a PM.
You’re the man! That’s exactly what I was going to ask the OP until I realized he was on another continent. I’ll be in touch with you when I get to that point. I’m still working on my long block rebuild at present.

Joined
Mar 26, 2012
Messages
182
Location
Australia, NSW
Watch the shank Diameter on the dial gauge - the sst takes quite a small one. I drilled it out a bit to fit my gauge but if buying a gauge might as well get the right one. You’ll have to measure it I can’t remember the size...

Joined
Feb 21, 2012
Messages
1,559
Location
Snohomish, WA
Watch the shank Diameter on the dial gauge - the sst takes quite a small one. I drilled it out a bit to fit my gauge but if buying a gauge might as well get the right one. You’ll have to measure it I can’t remember the size...
That's exactly right. I had to turn mine down a bit so that the shank on the gauge would actually fit the SST

Joined
Oct 8, 2011
Messages
637
Location
Toronto, NSW, Australia
Is there actually a Toyota SST intended to fit the tool? Probably worth asking...

I had a look at the dial gauge hole in the tool today and it's 8 mm with no thread. The wingnut secures it once fitted.
