Can someone explain what the lines running to my alternator are?

Discussion in 'Diesel Tech / 24 volts' started by Aaroneous, Mar 8, 2017.

  1. Aaroneous

    Aaroneous

    Messages:
    58
    Media:
    28
    Albums:
    2
    Likes Received:
    8
    Joined:
    Jun 1, 2016
    Location:
    Evergreen, CO

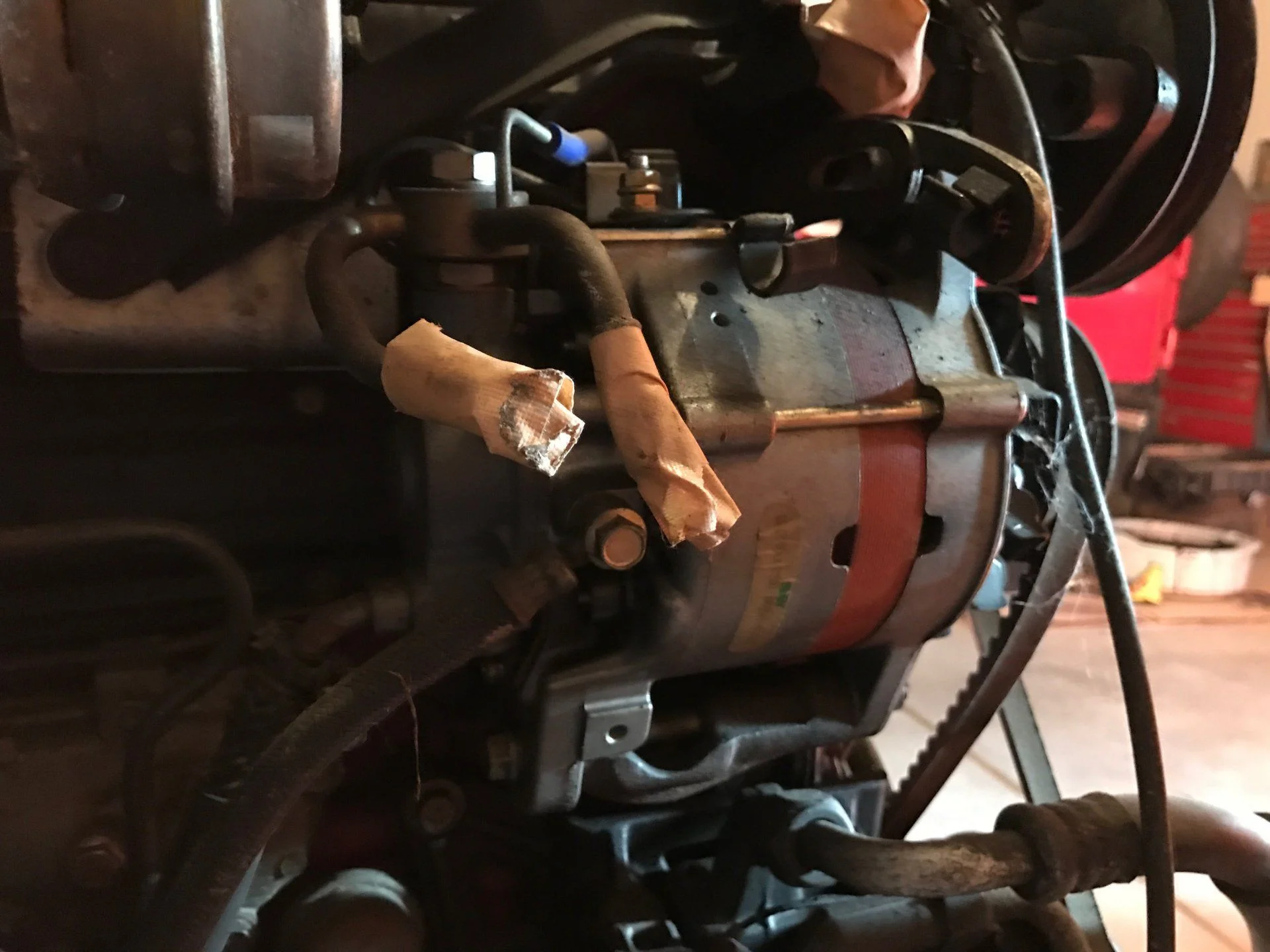

    Trying to get my head around converting this 24V red block 13B-T to 12V, and I want to understand what is there so I can hunt down the right 12V replacement. Is the alternator lubricated with engine oil? Should these oil and ?? lines be retained? If so, where do the capped lines go and what flows through them? If not, is there a preferred way of capping the oil lines at the distribution block?


    Thanks!

  2. Douglas S

    Douglas S

    Messages:
    2,855
    Likes Received:
    1,220
    Joined:
    Mar 21, 2010
    Location:
    SK, Canada
    I'm not certain but I suspect they are vacuum lines.

    IanB likes this.
  3. IanB

    IanB SILVER Star

    Messages:
    3,914
    Likes Received:
    1,480
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    Vacuum lines is my guess too.

  4. Aaroneous

    Aaroneous

    Messages:
    58
    Media:
    28
    Albums:
    2
    Likes Received:
    8
    Joined:
    Jun 1, 2016
    Location:
    Evergreen, CO
    Is it part of the alternator or something that is just driven by the splined rear output shaft to provide function somewhere else?

  5. gerg

    gerg

    Messages:
    2,976
    Media:
    11
    Likes Received:
    883
    Joined:
    Jun 13, 2005
    Location:
    Centre of the universe
    That provides Vacume for your brake booster. There are also 2 oil lines. All are required.

  6. Jan-78FJ40

    Jan-78FJ40

    Messages:
    3,794
    Likes Received:
    482
    Joined:
    Sep 6, 2002
    As gerg said, there is a vac pump attached to your alt, as the diesel engine does not generate vacuum. The pump is lubricated by engine oil and the vac is required for your brake and clutch boosters.

  7. Aaroneous

    Aaroneous

    Messages:
    58
    Media:
    28
    Albums:
    2
    Likes Received:
    8
    Joined:
    Jun 1, 2016
    Location:
    Evergreen, CO
    Thank you for the input, guys. Vacuum pump makes a ton of sense. My follow-up question would be how do I plumb this into my BJ40 with manual brakes and manual clutch? I don't want to eliminate the possibility of adding power brakes in the future, but I want to get things running as-is without being forced into that upgrade. Would this require removal of the vacuum pump and blocking off the oil lines at the source until the need arises? Is there a way to keep it installed and safely unused?

  8. roscoFJ73

    roscoFJ73

    Messages:
    15,752
    Media:
    3
    Albums:
    1
    Likes Received:
    1,829
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    You cant connect it unless you have the vacuum reservoir or power booster. Can you actually get vacuum by putting your finger over the hoses?
    If I didn't need the vacuum pump I would be inclined to remove it and replace it with a standard one until you need it.
    The vacuum pumps are expensive and they do wear out

  9. Aaroneous

    Aaroneous

    Messages:
    58
    Media:
    28
    Albums:
    2
    Likes Received:
    8
    Joined:
    Jun 1, 2016
    Location:
    Evergreen, CO
    This is what I was thinking, but I'm curious if the "right" way to do this is to block the vacuum pump oil system using short bolts with the banjo washers or if I should create a loop from send to return?

  10. roma042987

    roma042987

    Messages:
    4,512
    Media:
    3
    Albums:
    1
    Likes Received:
    2,488
    Joined:
    Mar 30, 2011
    Location:
    huntsville al
    Just put a vacuum cap over the two vacuum ports on the alternator I wouldn't monkey with removing and capping oil lines for the pump.

  11. KiwiDan80

    KiwiDan80

    Messages:
    28
    Likes Received:
    22
    Joined:
    Jun 3, 2016
    Location:
    New Zealand
    If you leave that alt on there do not remove the oil lines. The rear housing on them does not have a bearing, it is a bronze bush that is oiled buy the vac pump supply.

  12. Aaroneous

    Aaroneous

    Messages:
    58
    Media:
    28
    Albums:
    2
    Likes Received:
    8
    Joined:
    Jun 1, 2016
    Location:
    Evergreen, CO
    Yup. The plan is to either leave the vacuum pump on and install a brake booster to make use of it or take the vacuum pump off and block the oil lines off until there's a reason to re-install the vacuum pump. I don't plan to leave the pump on the alternator unless I'm going to use it.

  13. Mr Cimarron

    Mr Cimarron DRIVE, BREAK, FIX, REPEAT SILVER Star

    Messages:
    4,104
    Likes Received:
    2,695
    Joined:
    Nov 8, 2011
    Location:
    Austin, TX
    So that alternator is 24v, right? Do you have a 12V replacement yet?

  14. Aaroneous

    Aaroneous

    Messages:
    58
    Media:
    28
    Albums:
    2
    Likes Received:
    8
    Joined:
    Jun 1, 2016
    Location:
    Evergreen, CO
    Yes, currently everything on the motor is 24V, I am in the process of sourcing 12V parts.
