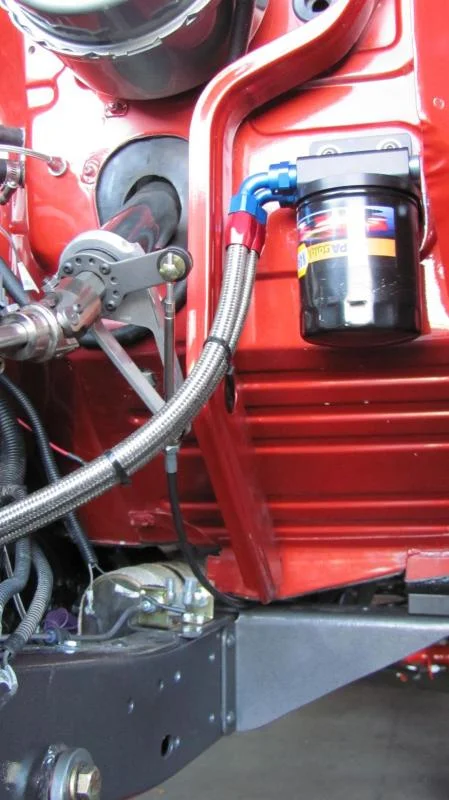

Got the remote oil filter, heater, steering column, brake booster, body bushings, rear quarters on and starting to seperate the wiring rough in. shouldnt be that hard just wish i had more time in the day. will fab a alum box to cover circuit panel.
FJ40 Project Pics 260.jpg
FJ40 Project Pics 258.jpg
FJ40 Project Pics 261.jpg

would love a set of those rear guards they look awesome
do you have any build pics of them

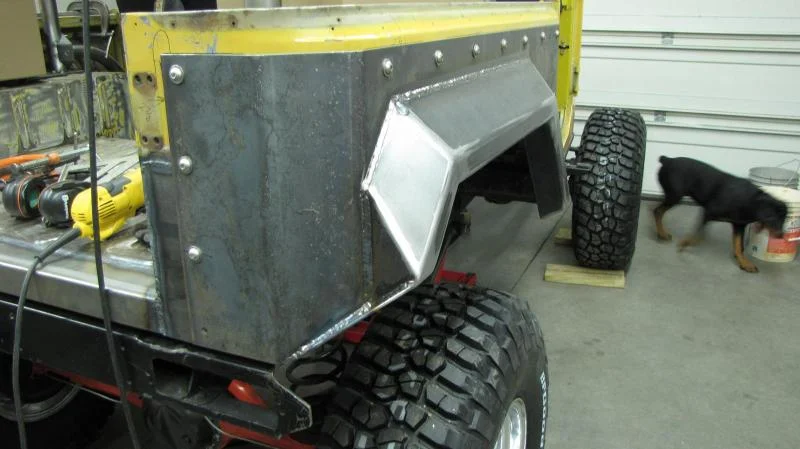

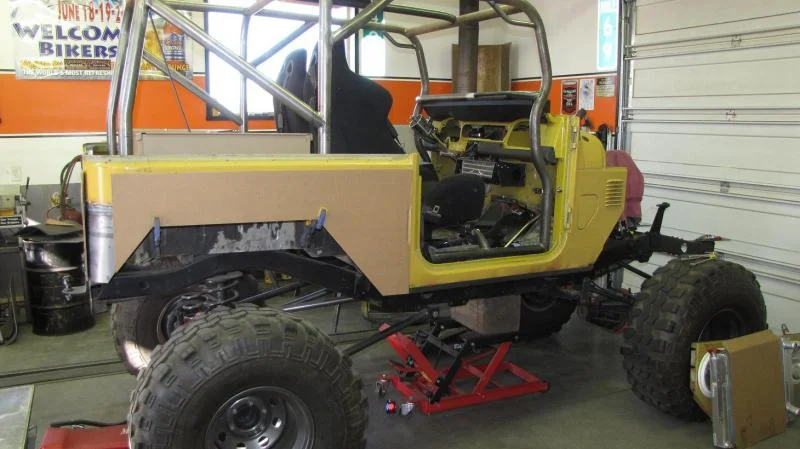

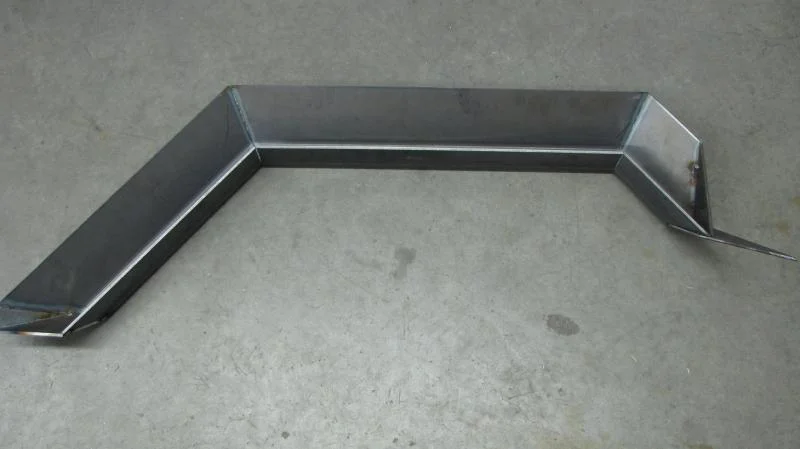

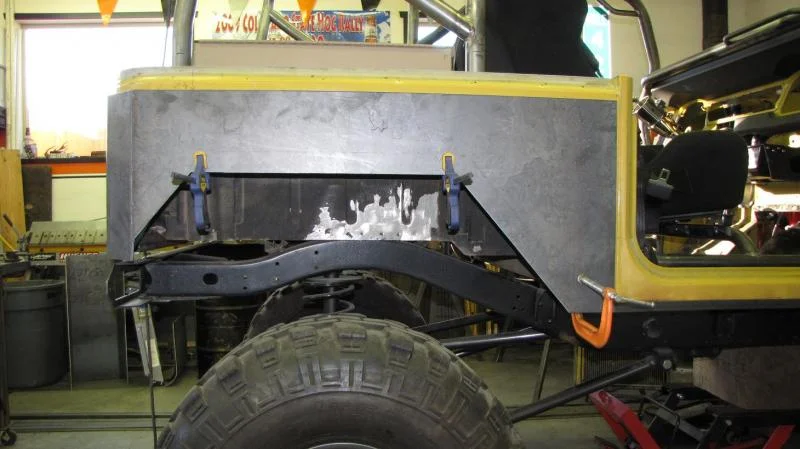

Heres a few......basically, always start with cardboard, saves time and money. Cut out what i had visioned, then transfered to .25" steel. then for the flare, had a 2.5" bent 90* to 2" bent 35* to 3.75", by 96" long. Then cut the corners each @ 22.5" fit it on, did a little grinding, then welded together. The third pic is the back side of the flare. When you weld them together, make sure everything is bolted tight to tub as if finished or the heat will warp and you will never get them straight. I've done a couple of these before with slight variations. I have put quite a bit of time into making a die for the brake to create the perfect radius for the FJ40 rear corners, but finally gave in to the 45*.......funny thing is i've have never seen another cruiser with this style quarter peotection, the Nicholas the czar did a build and saw them on there, dont know where he got the but they looked good.
FJ40 Project Pics 042.jpg
FJ40 Project Pics 047.jpg
FJ40 Project Pics 060.jpg

Burnttoast.....

those flares are insane; as well as the whole build. A+++
such a joy to follow. Keep up the great work.

lance at IPOR worked up some 1/4'' rear fender flares that I thought were already available for those looking but lacking the mad metal skills. (myself included) I didnt see them on his site but saw them on a couple rigs at GSMTR.

couple shots from the build thread
https://forum.ih8mud.com/hardcore-corner/264922-fzj40.html#post4111047

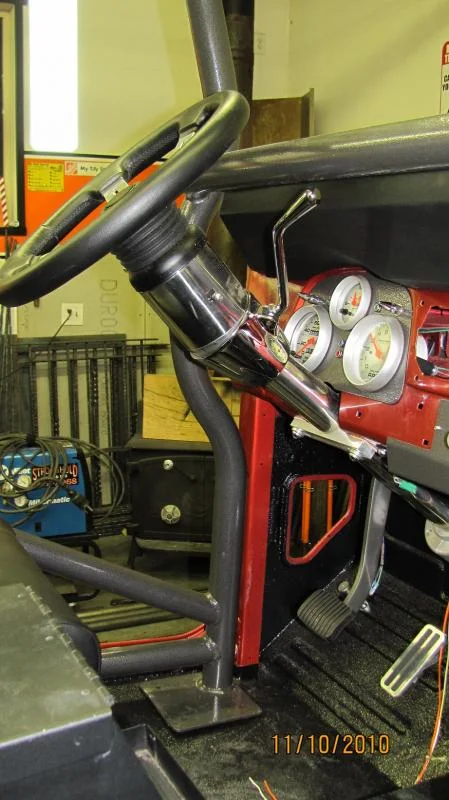

got the headlight buckets in and mounted the bezel and radiator screen, both powdercoated. Got the Lokar shifter cable in and adjusted. I caught a good rashin' from a few buddies who wanted to know why i went with a column shifter as opposed to a floor mounted rachet style.My reply was:

"This aint no race truck, its job is to roll slow and look good doin it"
FJ40 Project Pics 264.jpg
FJ40 Project Pics 265.jpg
FJ40 Project Pics 267.jpg

Burnttoast.....

those flares are insane; as well as the whole build. A+++
such a joy to follow. Keep up the great work.

lance at IPOR worked up some 1/4'' rear fender flares that I thought were already available for those looking but lacking the mad metal skills. (myself included) I didnt see them on his site but saw them on a couple rigs at GSMTR.

couple shots from the build thread
https://forum.ih8mud.com/hardcore-corner/264922-fzj40.html#post4111047

i dont know about IPOR but budbuilt has some rear corners link

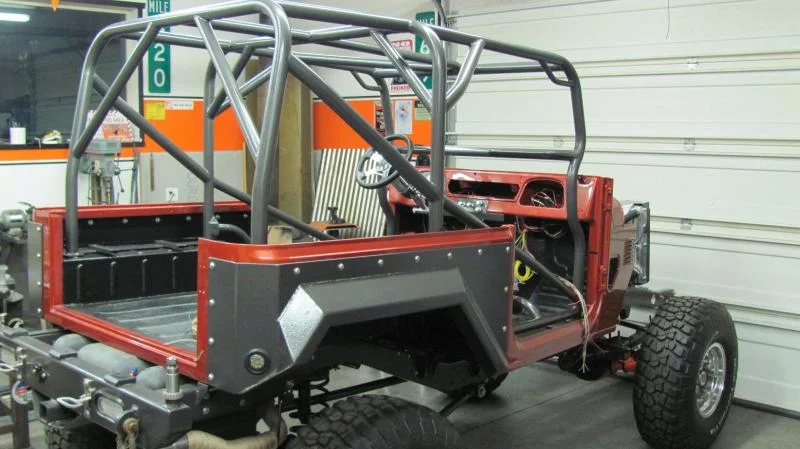

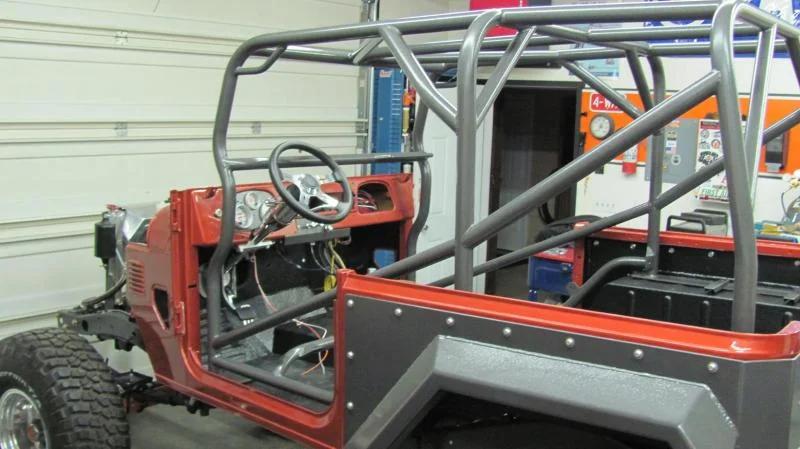

Completed the majority of the dash wiring, had to get the roll cage out of the weather so decided it was best to just mount it in.
FJ40 Project Pics 268.jpg
FJ40 Project Pics 269.jpg
FJ40 Project Pics 270.jpg

OMG! Those flare body panels look SICK!!!!

Looks really solid. Have you thought about conecting the cage (B and C tubes) to the flare body's on the inside of the tub? That way the fenders will not bend in when you roll.:bounce:

Thanks for posting the pics that gived me a good idead of location. You build looks awesome. The flares are sweet and your cage lines are kick @$$. You do some greatt work

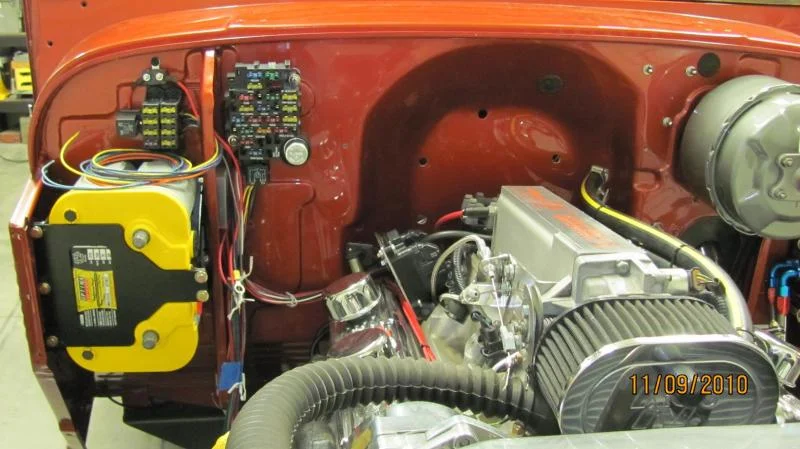

Back from Florida, only to have warmer weather in Colorado. Got back to the wiring, finished up everything underneath, the engine, dash and tail sections. Just have aux light and headlights to go. Everything is wired awaiting the test start, once and wiring checks out good, then i will tie-wrap and loom. Got the front seats, console, dash box, battery and some seat belt hardware finished up today. I had a 7 circuit fuse block so i decided to use it for all my aux. lighting. Once im up and rolling i'll weld up some weather proof aluminum boxes for the fuse blocks.

As for the Painless Performance Universal Harness, it is absolutely worth every single penny. I am by far no wiring guru, but was very surprised at the ease of install, i think mostly due to my anticipation to start finally wiring, stubborn desire for it to come out perfect and reading the manual at least 8 times. The only snag i had was trying to use an aftermarket wiper switch to the FJ wiper motor. There was nothing wrong with the oem switch so i decided to alter it slightly and stick it in, other than that everything else was a snap, just very time consuming.
FJ40 Project Pics 271.jpg
FJ40 Project Pics 272.jpg

Looking SAWEET!!! How about a few pics of the lokar shifter. I installed a lokar floor shifter in mine and kind of wish I would have done a column shifter.

Nick


Thanks Nich, yeah, this area was a definite, as for the floor vs. columndebate. The column , to me, is just a cleaner look, uncluttered for the floor, just drop it into D and go, the linkage was a little pricey, but not enough to deter me form installing it anyway. Rachet shifters have their place just not in this application.
FJ40 Project Pics 276.jpg
FJ40 Project Pics 277.jpg

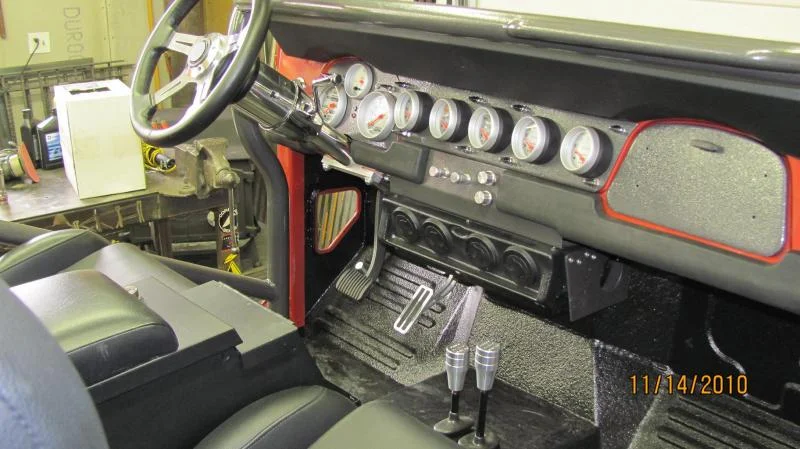

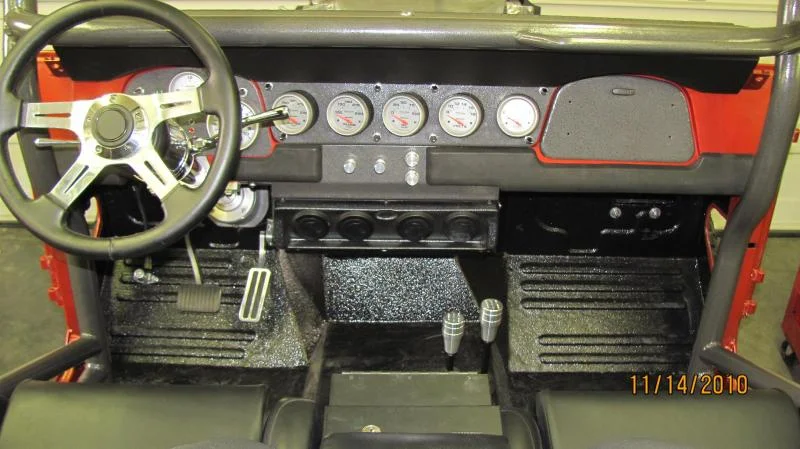

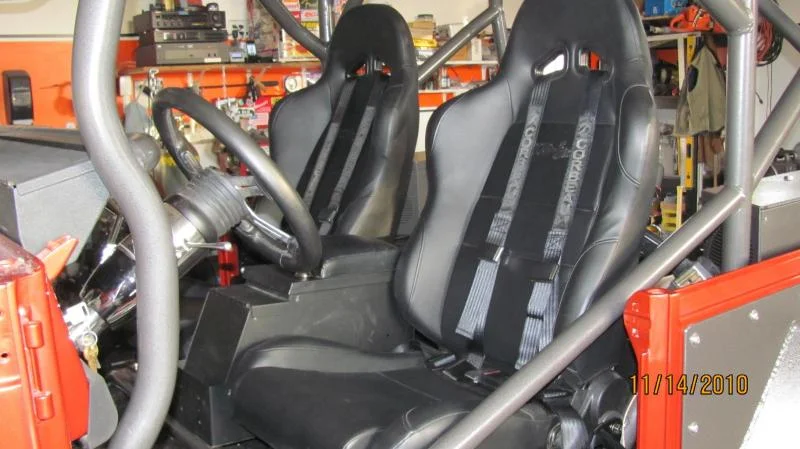

Finally got the Cruiser running. no leaks, no problems, typical Ramjet, runnin rich but that'll change as it computer is goin down to Arizona Speed and Marine for a few mods. All the gauges worked as should, im very impressed with the Painless Harness. seat belt got finalized anlong with the wiring loom behind dash and inside motor cab. For some reason the exhaust seems to be restricted, two into one, with a decent size Magnaflow muffler, i will only know for sure when the test drive comes up, other than that,still waiting on the rest of tinwork, but rear seat and stereo, front fendersapron and bib will be next, then finish wiring completely.
FJ40 Project Pics 279.jpg
FJ40 Project Pics 280.jpg
FJ40 Project Pics 282.jpg

Hi Mr. Burntoastburgos,

How much lift do you have on your front springs?

TIA.

Cheers!

gado
