Anyone towing with their 60 series?

60Works

60 Series Iron Works
SILVER Star
Joined
Sep 28, 2009
Messages
1,430
Location
NH
The 60 Series drive train can certainly handle the strain. However, the short wheel base and poor braking can make towing more than a light trailer a challenge. I've towed campers, boats, moving trailers, etc. but I've always been keenly aware of how limited the braking and sway control is on my 60. Loading matters and a heavy tongue weight really adversely affects the 60's because of how far forward the rear axle is. It's hard to overstate this.

Start small, go slow, and be careful. Anything with 2 or more axles is too large. Toyota's stated Tow Capacity is only like 1,500 lbs. As a general rule, up to half a vehicle's weight tends to be OK if loaded properly and the trailer has brakes. Figure 2,500 lbs if the Cruiser's brakes are new OEM, the trailer has brakes, the road is mild, and the driver has experience.

Last edited:
Joined
Sep 18, 2006
Messages
402
Location
Huntingtown, MD
When we first purchased our '85 FJ60 (when it was clean and rust-free) - I desmogged it and Jim C rebuilt the carb and curved the dizzy. We (wife and two small kids) camped in Washington state for a few years pulling a good-sized pop-up. It had electric brakes which was a must I think - of course we were slow going up the mountain passes - but we survived and the engine did fine. I now have a smaller trailer since the kids are more grown. It doesn't have electric brakes, but it's also not nearly as heavy overall. BTW, that's my folks in their 17' Casita next to us - great trailer. Might have to purchase my in-laws Casita (also 17'), but may need an engine upgrade in the 60 for that - they weigh a bit more then the ole' pop-up.
camp WA.jpg

FJ60 Trailer WV.jpeg

Joined
Mar 21, 2010
Messages
882
Location
NE Oregon
talk to @srogers

He posted some pic of his setup here Camping with your 60/62 thread.... ready go:

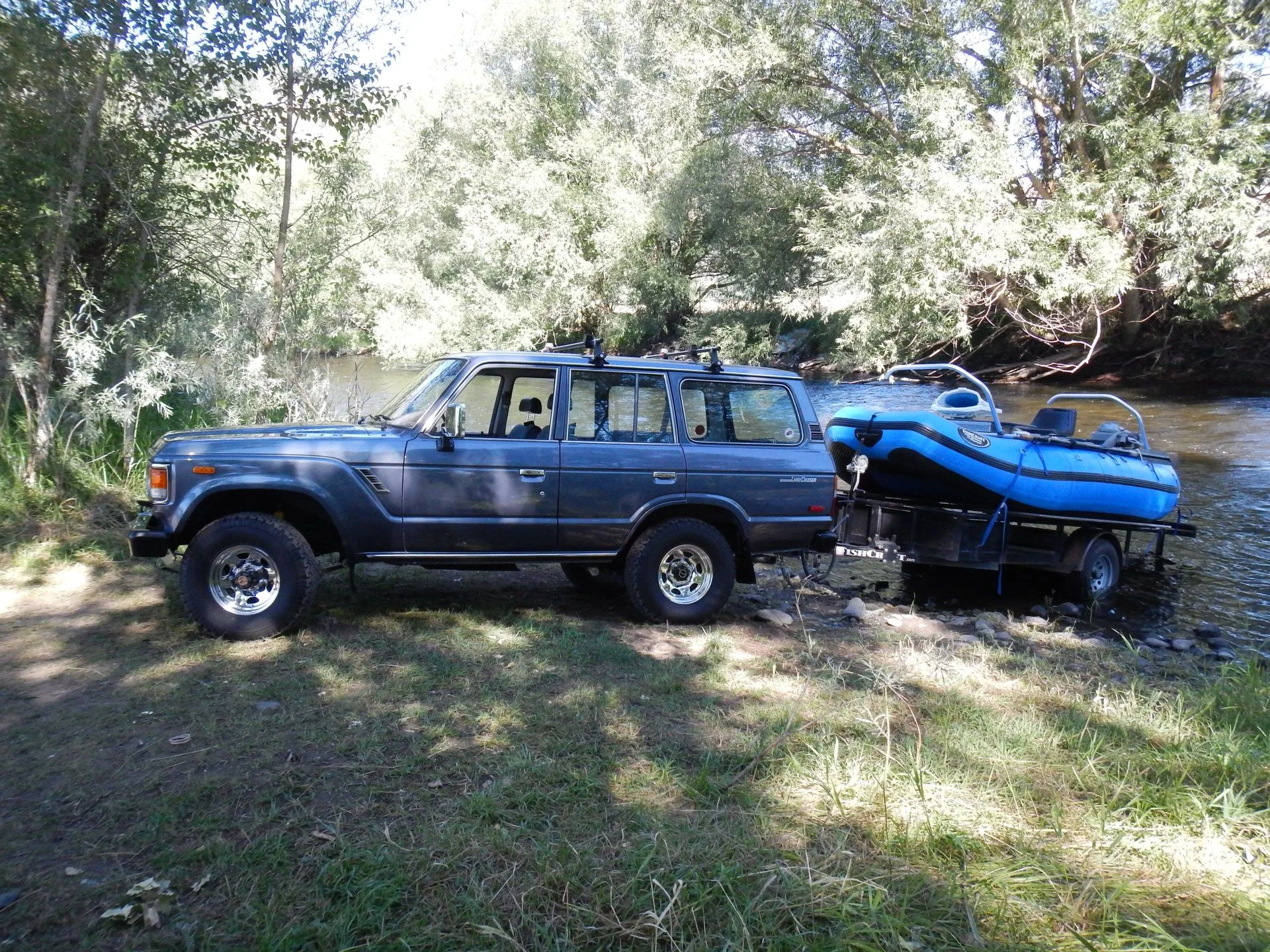

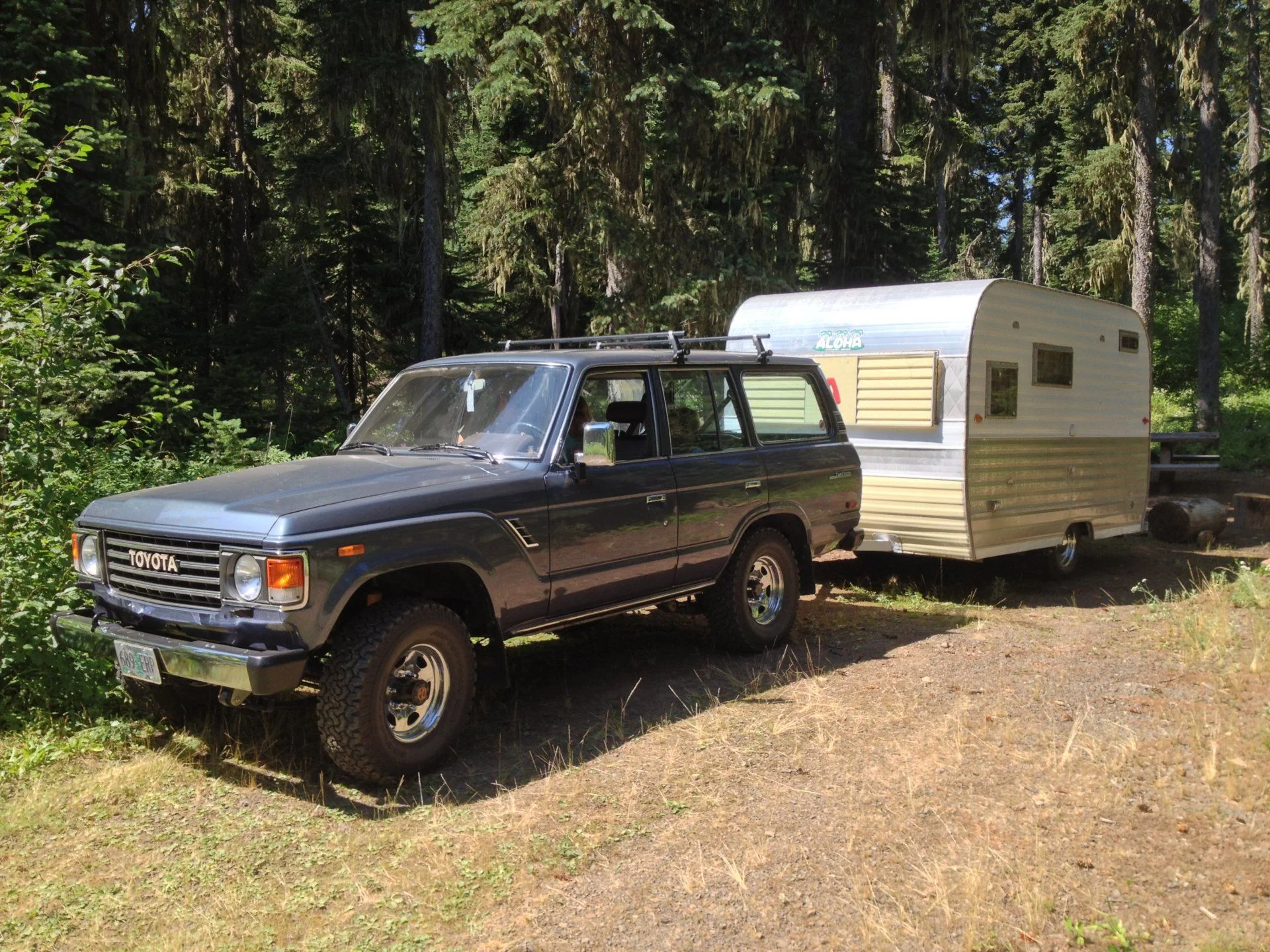

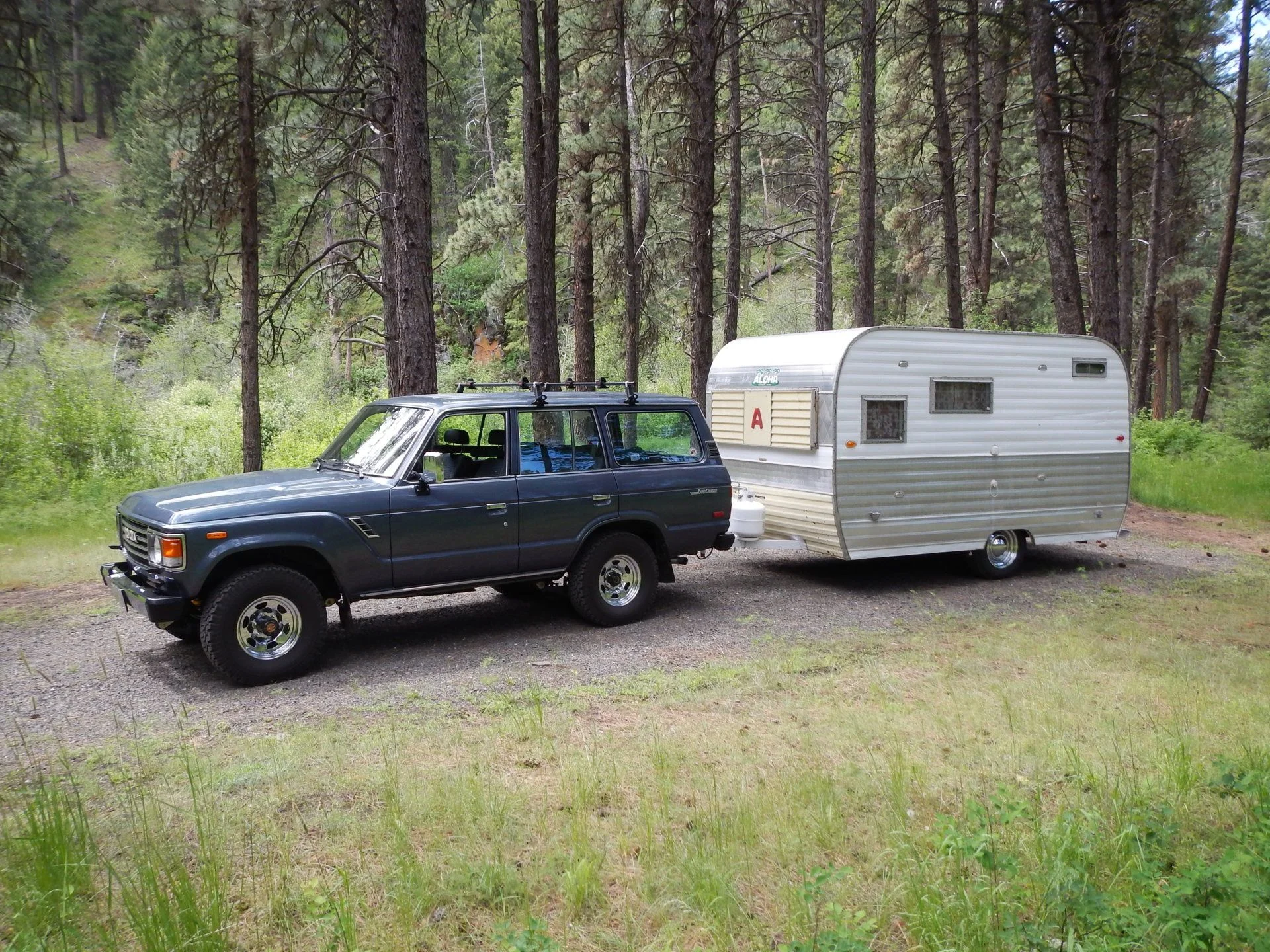

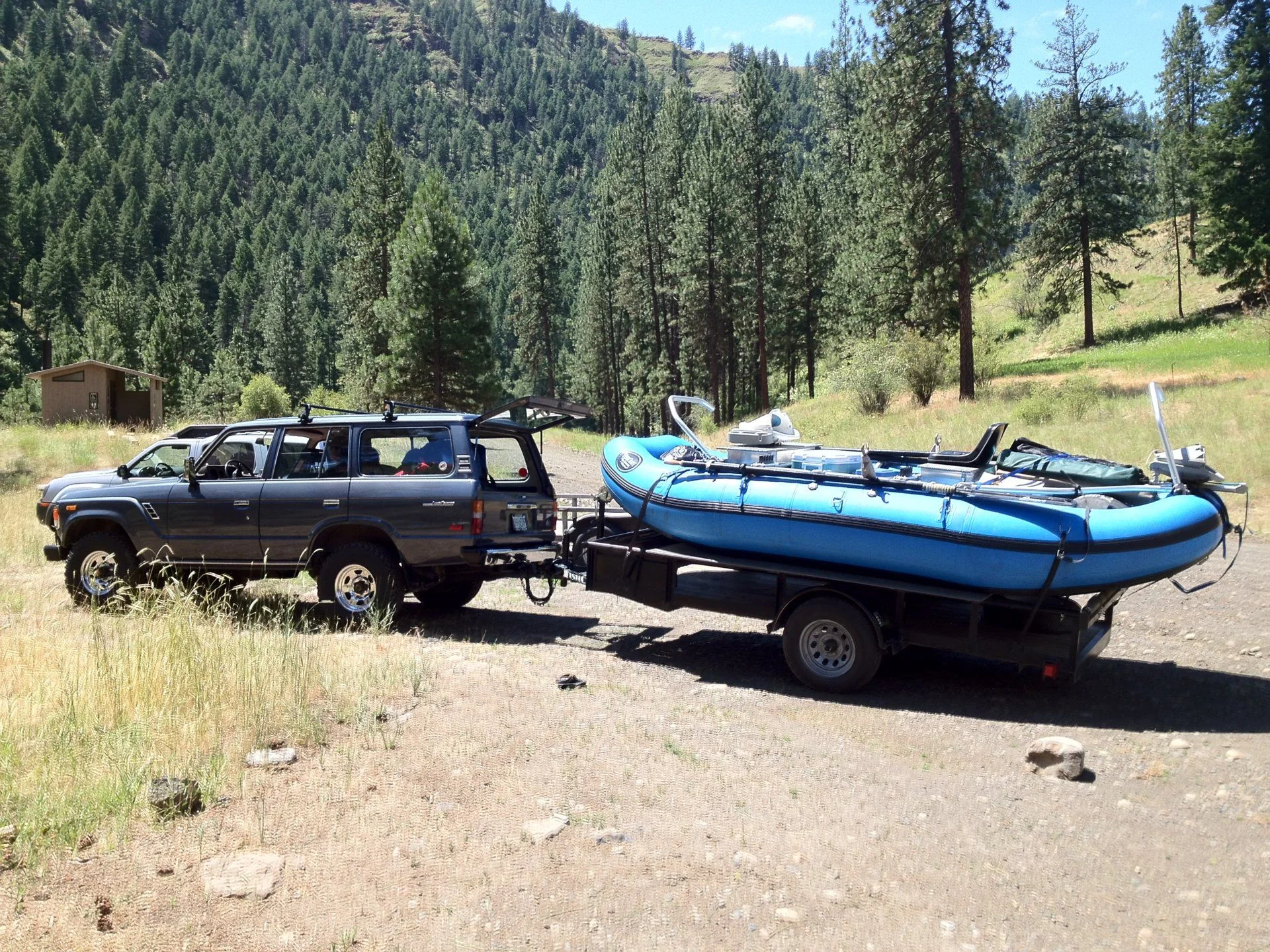

Yes, I actually towed quite a bit with my 60, both a 15' 1967 Aloha travel trailer and an oversized raft trailer, throughout eastern Oregon.

With the OME mediums in the rear, I didn't even know it was there - the 60 behaved the same! Slow and steady off the line, stock 2F and 4 speed just plugged merrily away. Make sure your cooling system is tuned up as well. As called out, braking is the biggest challenge, but I'm in a *very* rural environment, so I wasn't dealing with traffic and such, and it was mostly just loafing along around 50 to 60 MPH top speed.

One other recommendation - step up for 62 series manual mirrors - they make a world of difference when hauling a trailer. The stock 60 mirrors are a joke for that purpose, and I would say create a legitimate safety hazard.

I picked up a Tundra a few years back, so my 60 doesn't see the tow duty it used to, but I wouldn't hesitate to tow with it, so long as you aren't in a hurry...

Feel free to send me a PM if you need/want more info

Last edited:
Joined
Mar 21, 2010
Messages
882
Location
NE Oregon
Joined
Jan 28, 2016
Messages
507
Location
N Richland Hills
I tow a 5x12 flat bed trailer weighs about 450 lbs. I have used it to past several weekends to move trash bulky items from my new lake property with acreage. I also used it to move my wife's teaching materials. Filled the trailer and rear of the 60 with seats down. It was @ 1200 lbs. On the trailer. Ran the A/C since wife was with me. We drove 60 on freeway and FJ60 was fine. She is still smogged, but that will change very soon. :cheers: I have towed with it to the deer lease 130 miles away with all my gear and 500 lbs of corn on trailer. You just remember to keep it @ 60 mph and no more. Don't push it, if I want faster I'd buy an 80 or 100 series LC.

Last edited:
Joined
Dec 15, 2005
Messages
1,151
Location
Reno, NV



I tow an 18’ travel trailer from time to time. Drivetrain is upgraded to a 5.3l LS and 4l60e which makes a huge difference of course. This trailer weighs around 3000lbs and the cruiser does fine with it. Mind you I have good trailer brakes with a very good controller - this is essential IMHO.

I did tow this same trailer with the old 2F once or twice. While the 2F had the torque to get it moving and even drag it up pretty steep grades it was absolutely no fun to do.

-Ed

Last edited:
Joined
Feb 19, 2012
Messages
433
I tow my 18" boat, about 2500#, but it's mostly flatish to the ramp, no problems. H55 trans in an FJ62, that low 1st gear definitely helps jerking it out of the water. It might get slow cruising over a long steep grade, but no issues getting to 65+ mph around the coast.

Ok, seriously, what I am I freaking missing with the trailer lights?


RockDoc

Nobody must know my terrible secret

Joined
Jun 3, 2007
Messages
7,051
Location
SW MB, Ca
It's been a while........ but I have done 3500-4000 miles worth of flat towing project cruisers with my 62, and towed a tandom axle U-Haul moving my buddy's family across a few provinces. As others have said, you have to be aware of the limitations of your brakes. As far as power, I got around fine with a 3FE. The extreme valve body with 3rd gear lockup helped a lot..... later on the 2FE swap helped even more :grinpimp:

Now-a-days I tow much more comfortably with a 3/4 ton and good trailer brakes.




Joined
Sep 19, 2015
Messages
316
Location
Durango, CO
Towing capacity for a 60 is 3,500 lbs, not 1,500 as stated earlier. I've towed right at 3,000 lbs with a pop-up camper.

Stock, smogged 2F with new OME springs and shocks. Trailer brakes installed as it's illegal to be w/o in Colorado with trailer more than 2,000 lbs.

Towed just fine, albeit way slow over 10,000 ft passes. Got a little hot going over the pass once, but I just ran the heater for a while to bring the engine temp back down.

We could do 60-65 on the hwy, but stuck shifting between 2nd and 3rd up the passes.

Have added an 07 Sequoia to the stable since then, so we dont pull much with it anymore.


umpqua

SILVER Star


Joined
Jun 10, 2004
Messages
1,042
Location
Portland, OR
I'm pushing 7K lbs on my 62 with manual transmission. 300k miles on the 3fe. I somewhat regularly tow a 16' Klamath boat....not sure of the weight. Single axle trailer. It's only slightly less doggy on inclines. Doesn't seem to materially affect it one way or another.
