Any pictures of the Dome Light Switch Disassembled? - LEDs in Dome Light Glow/Flicker When Off

Joined
May 7, 2019
Messages
22
Location
Tennessee
I bought some cheap warm LEDs off of Amazon for the two dome lights in my '94 FZJ80. When the switch is in the off position the LEDs stay barely lit and flicker. Appears to work fine doors closed in the door position, LEDs on when door is open and no glowing or flickering when closed. According to the wiring diagram I found here: Connecting Map Light to Dome Light, I wouldn't expect there to any potential across the circuit or current leak. I took the light fixture out, but it is unfortunately plastic riveted together so I don not want to disassemble it. Has any one taken one apart? Any pictures? I am wondering if there is something allowing the circuit to complete inside the switch itself.

I was also thinking about placing a zener diode in series or resistor in parallel to try and "fix" the issue. However, I would like to solve the problem more than patch the symptom. The big surprise is that I haven't killed the battery. It sits long enough I would think the current draw, though small, would be enough to drain the battery over a few weeks with the incandescent bulbs.

Any thoughts? I tried search but most issues were getting the lights to come on, not off. Thanks!

PS The issue seems to be occurring in only one of the two dome lights. Will be swapping locations to try and diagnose more this weekend.


enox

SILVER Star
Joined
Mar 12, 2018
Messages
940
Location
Los Angeles, CA

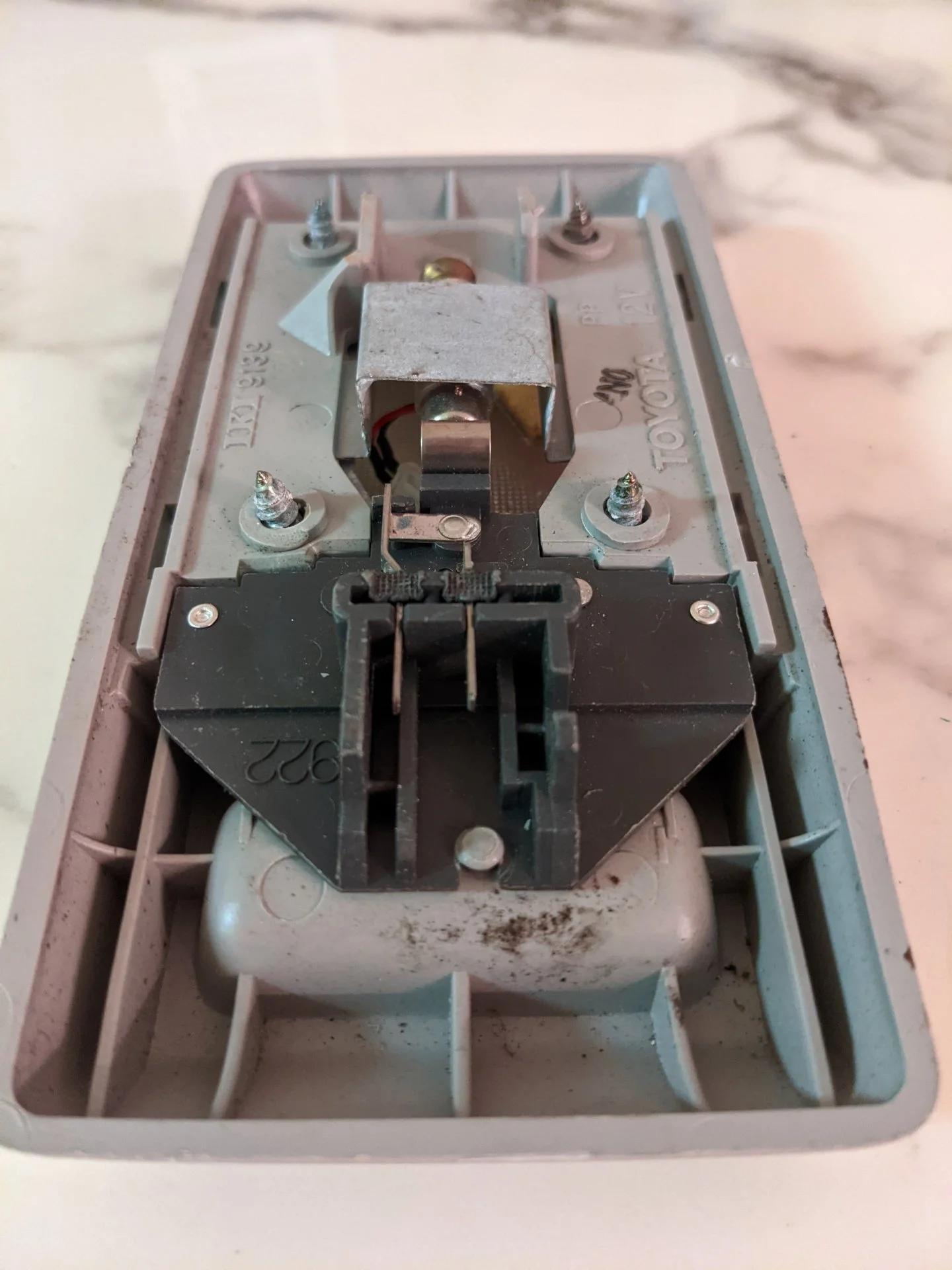

Pictures




Joined
May 7, 2019
Messages
22
Location
Tennessee
Sorry i don't have any pictures but when you had it out. What where you getting with your multimeter checking continuity ?

Will be digging out the multimeter this weekend for further testing. I will also be swapping the front and rear switches to see if its the switch or wiring issue. Symptoms lead me to think its the switch. Will update with results.

@enox Thanks for the pictures. I was able to remove the switch, I was just hoping someone had disassembled it (drilled out the rivets). I was wanting to get a look at the actual switch mechanism to see how it worked.

Also, yours looks different than mine. Mine has a bar and appears to ground itself through the roof. I will get a picture if I can and post it with any updates.

Last edited:
Joined
May 7, 2019
Messages
22
Location
Tennessee
Was able to find the multimeter and test the switches. Both switches show a small voltage in the off position ~0.01 volts and 0 volts when in the door position with the door closed. If I can find a spare switch for cheap I will take on apart and see what's going on inside. It's weird that the off position doesn't fully open the circuit.


clx16

SILVER Star
Joined
Oct 26, 2017
Messages
1,366
Location
Alpharetta GA
can you remove the switch and just check for continuity? That will let you know what is happening without opening one up, and it will tell you if there is any real continuity even in the off position.


SmokingRocks

I bought a Cruiser to keep miles off my Cruiser
Joined
Oct 6, 2014
Messages
3,546
Location
Colorado
This circuit, like almost all on the 80 series, is ground switched. This means that there is always 12v power at the light, the switch is on the ground leg. So if you have a bad door switch or something else allowing a weak ground to occur then you'll get what you are experiencing.
