That is a LOT of drilling... I think if I were to ever do the same, I would be hitting up my machinist friend and make use of his machine shop and industrial drill press. All I have is my cordless drill which would take me all day to do that many.

I used a drill press to drill the proper size holes for the tap. I still had to tap by hand and slightly oversize the holes on removing mounts to fit the proper size bolts. 12x1.75



[coldtaco]

Different housings front and rear.
Front

Rear

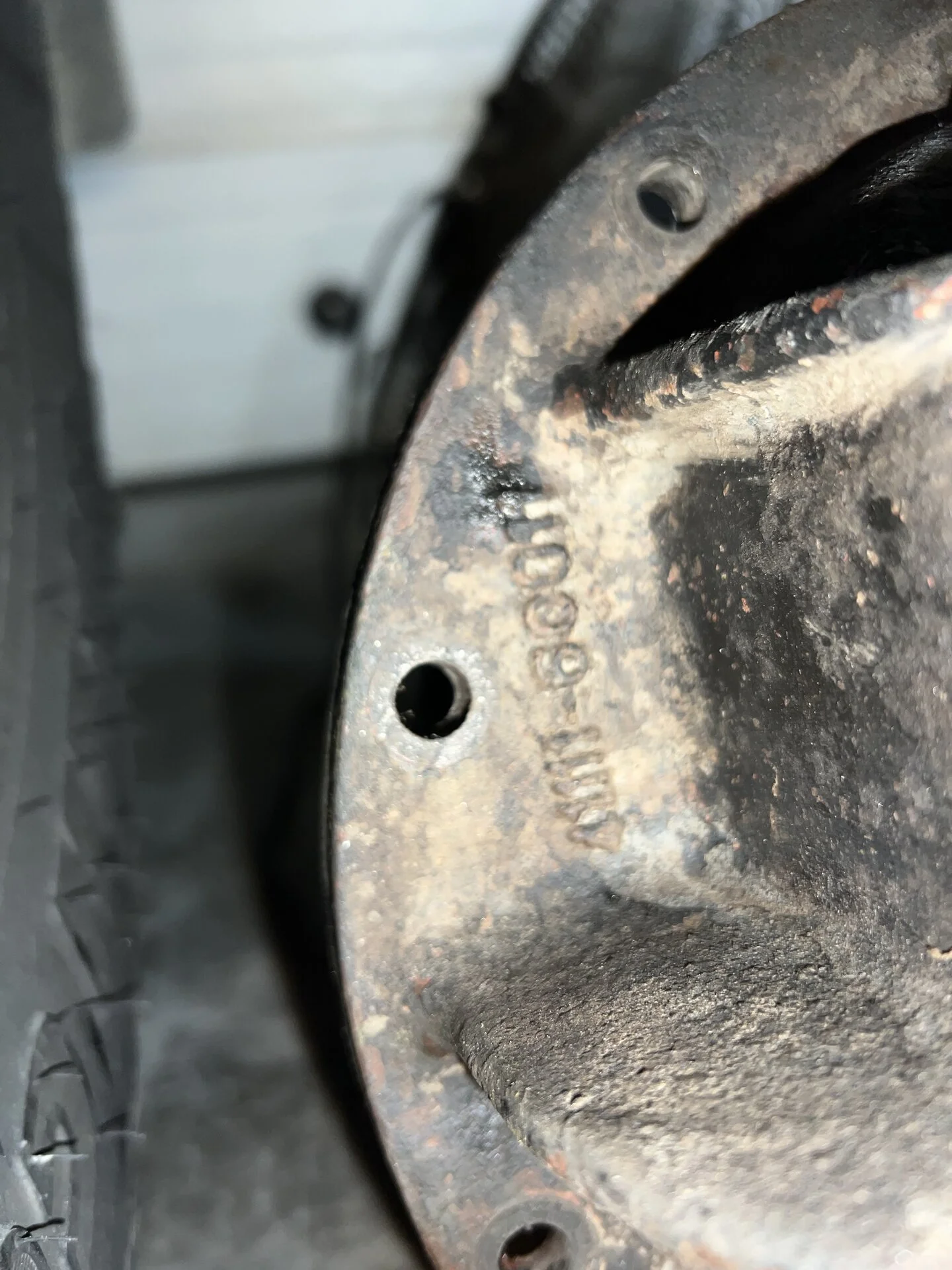

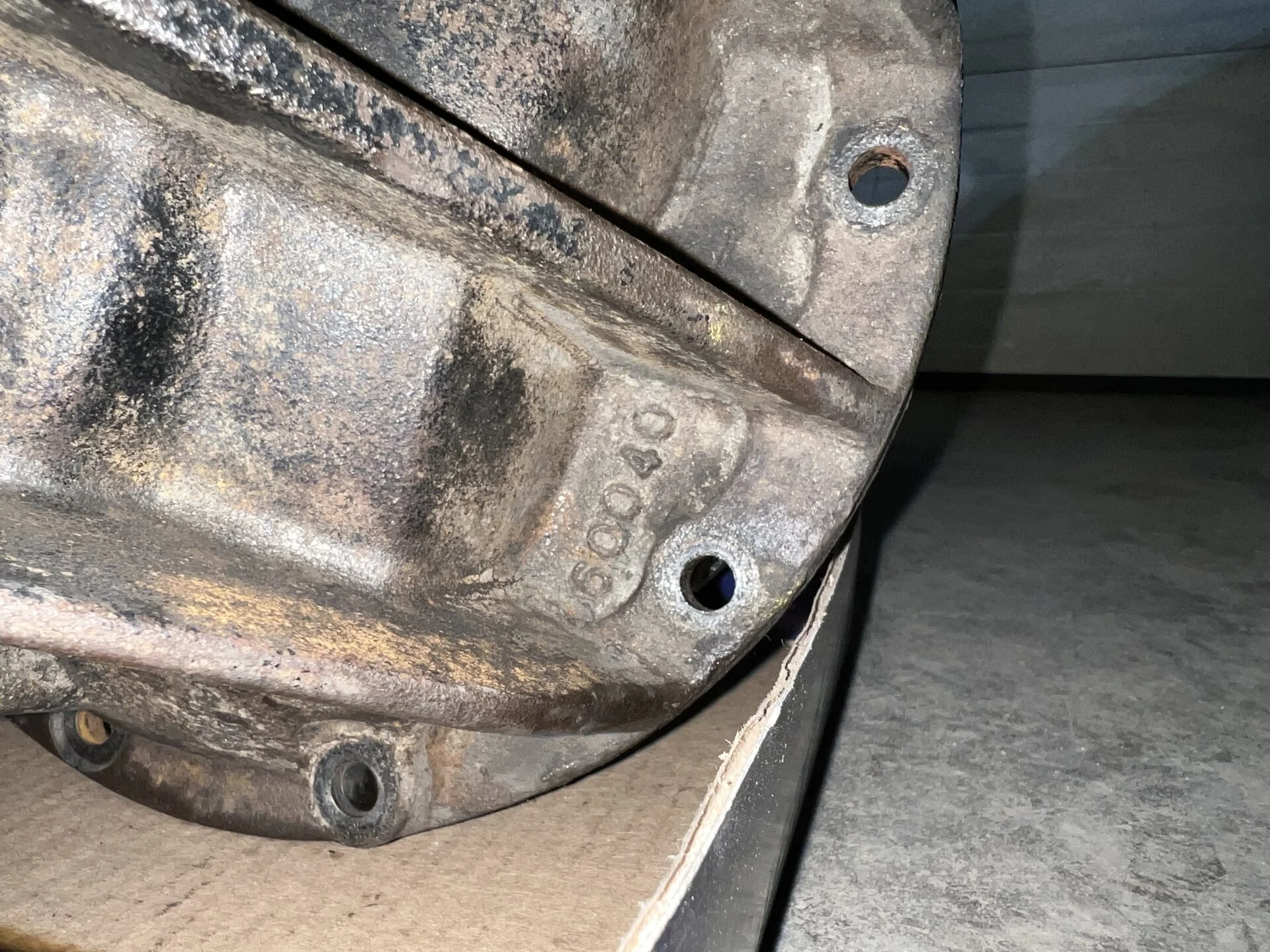

Looks like the front has larger ribbing



[coldtaco]

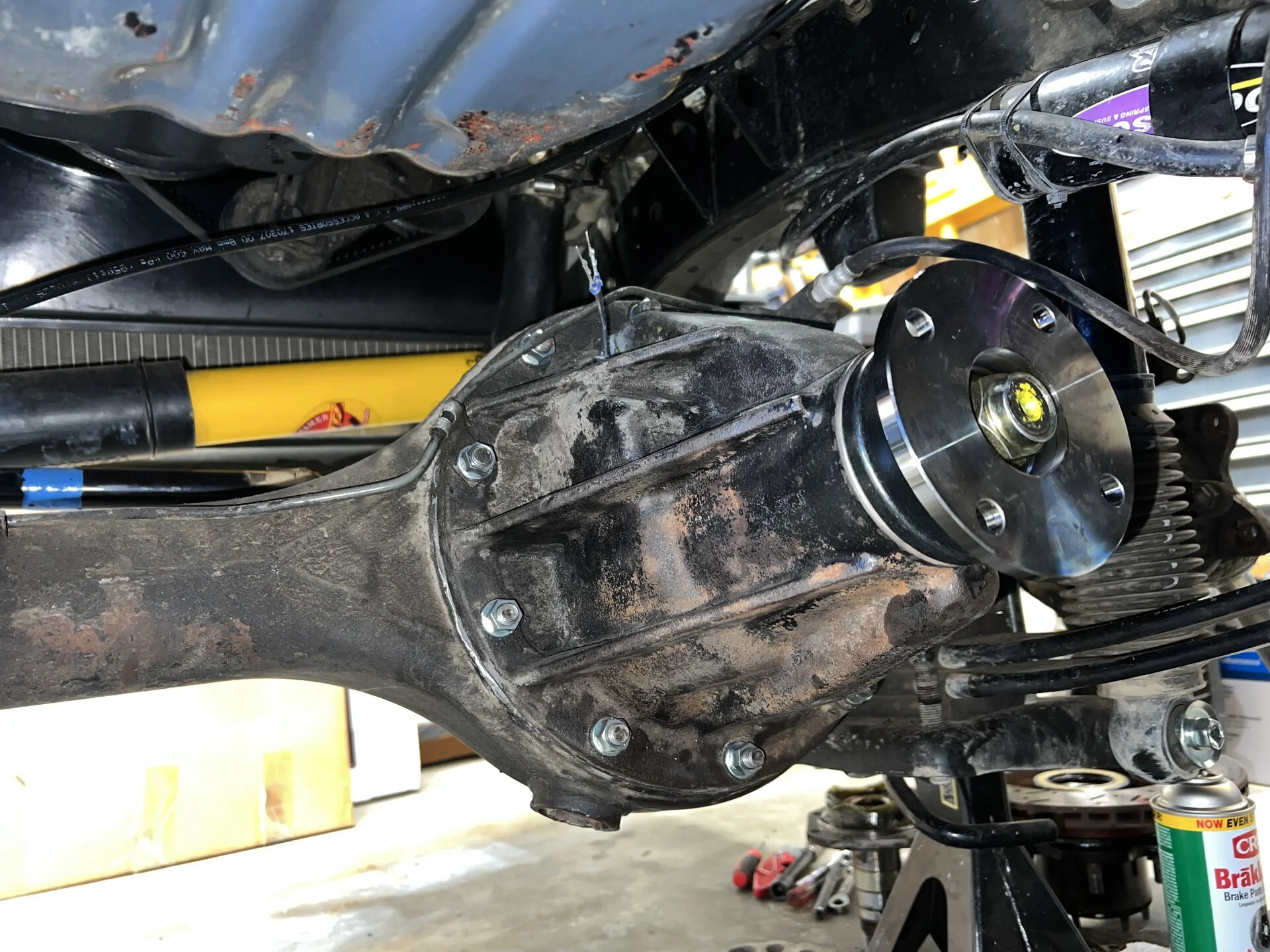

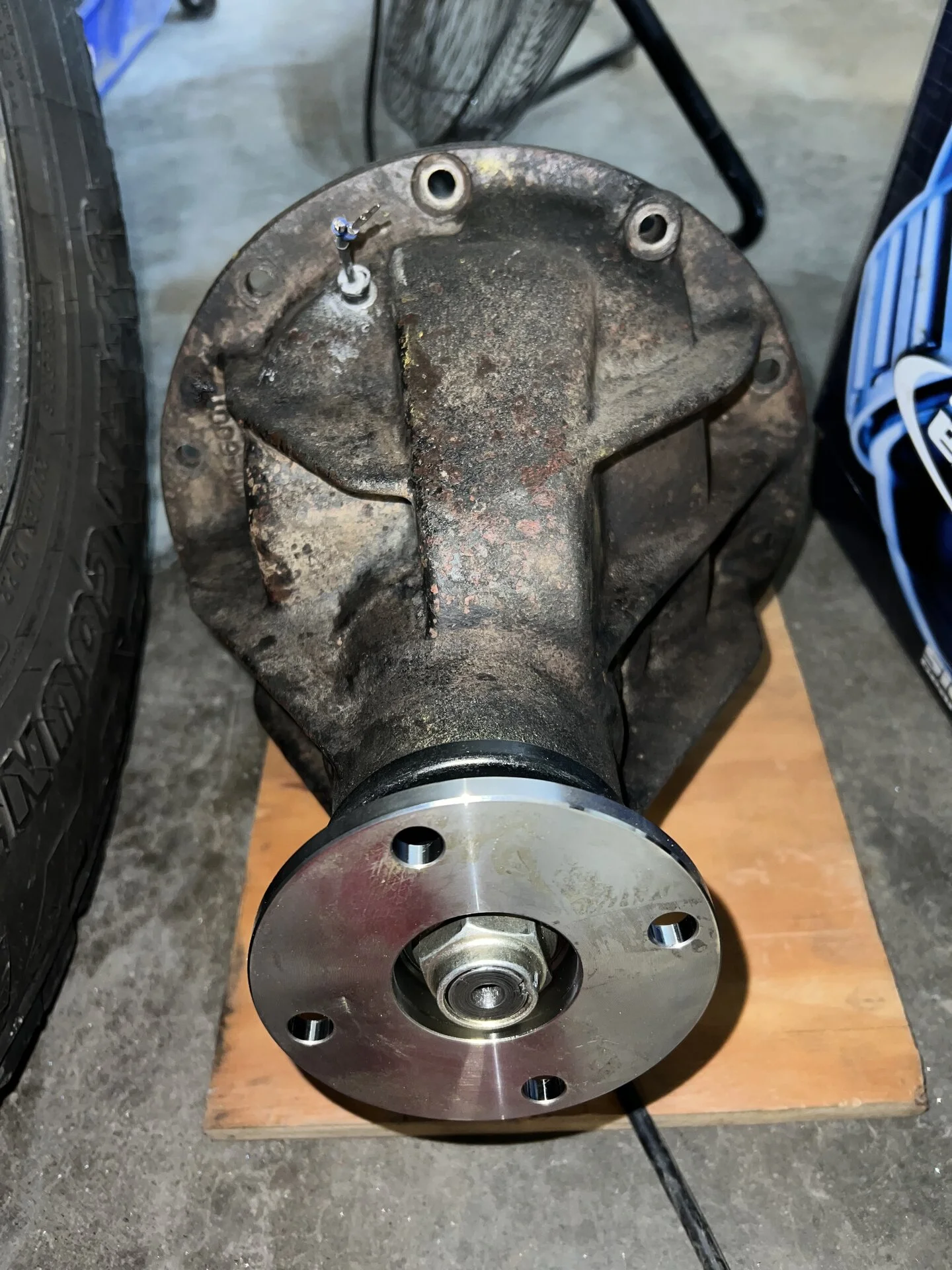

Rear installed



[coldtaco]

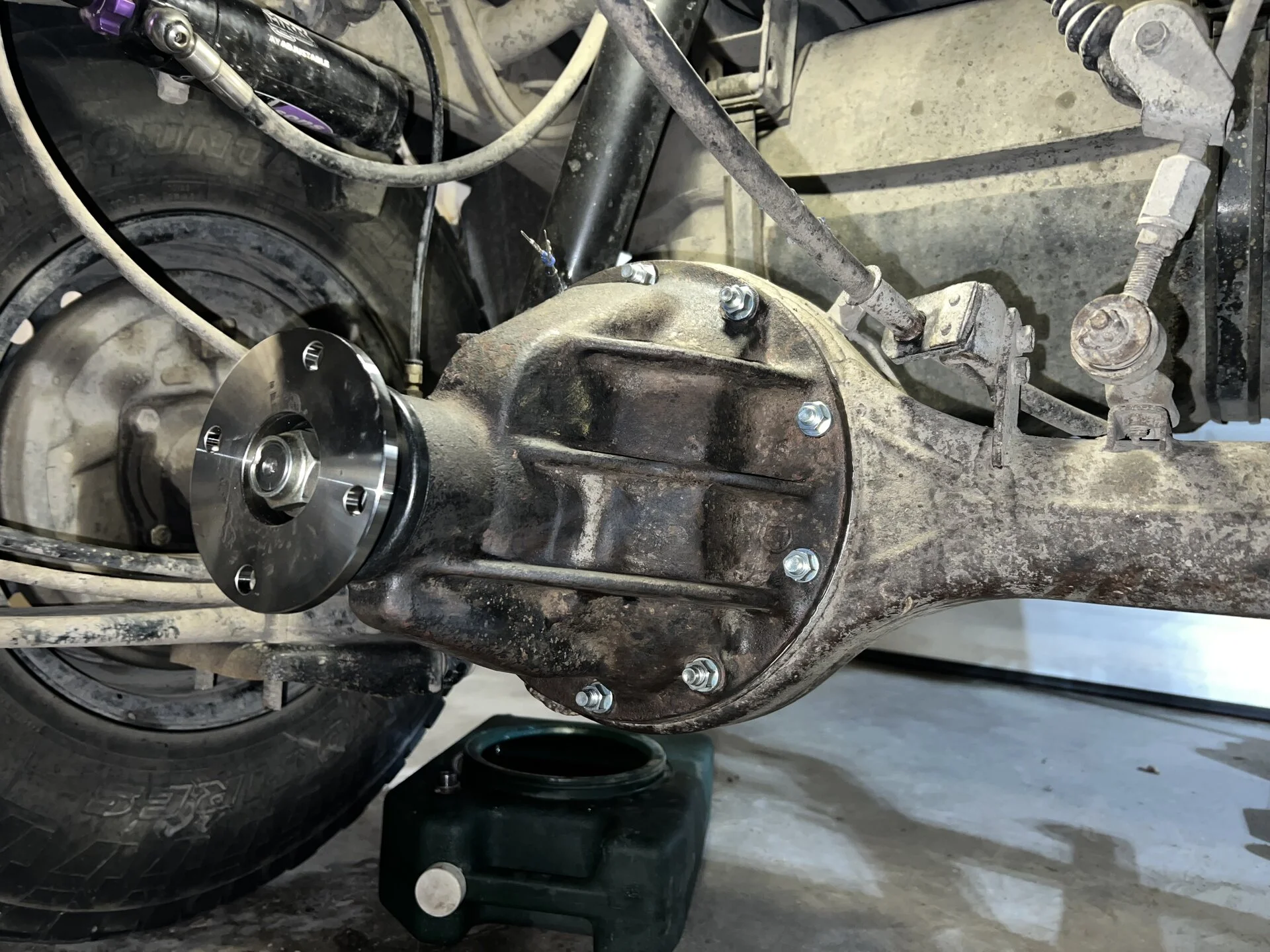

Front is in. Unfortunately the rear has a good leak from one little spot I guess I will have to use some goop.



[coldtaco]

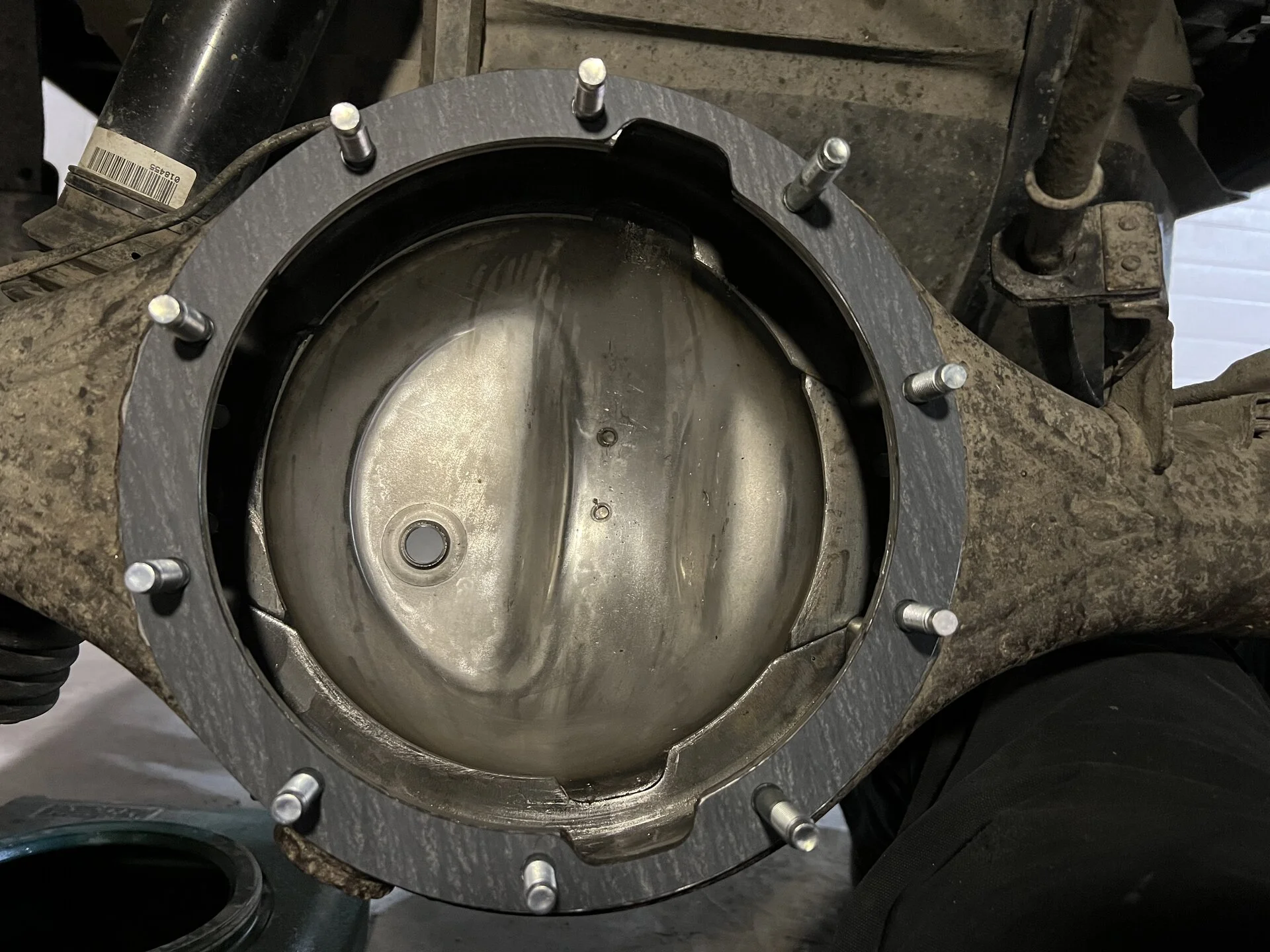

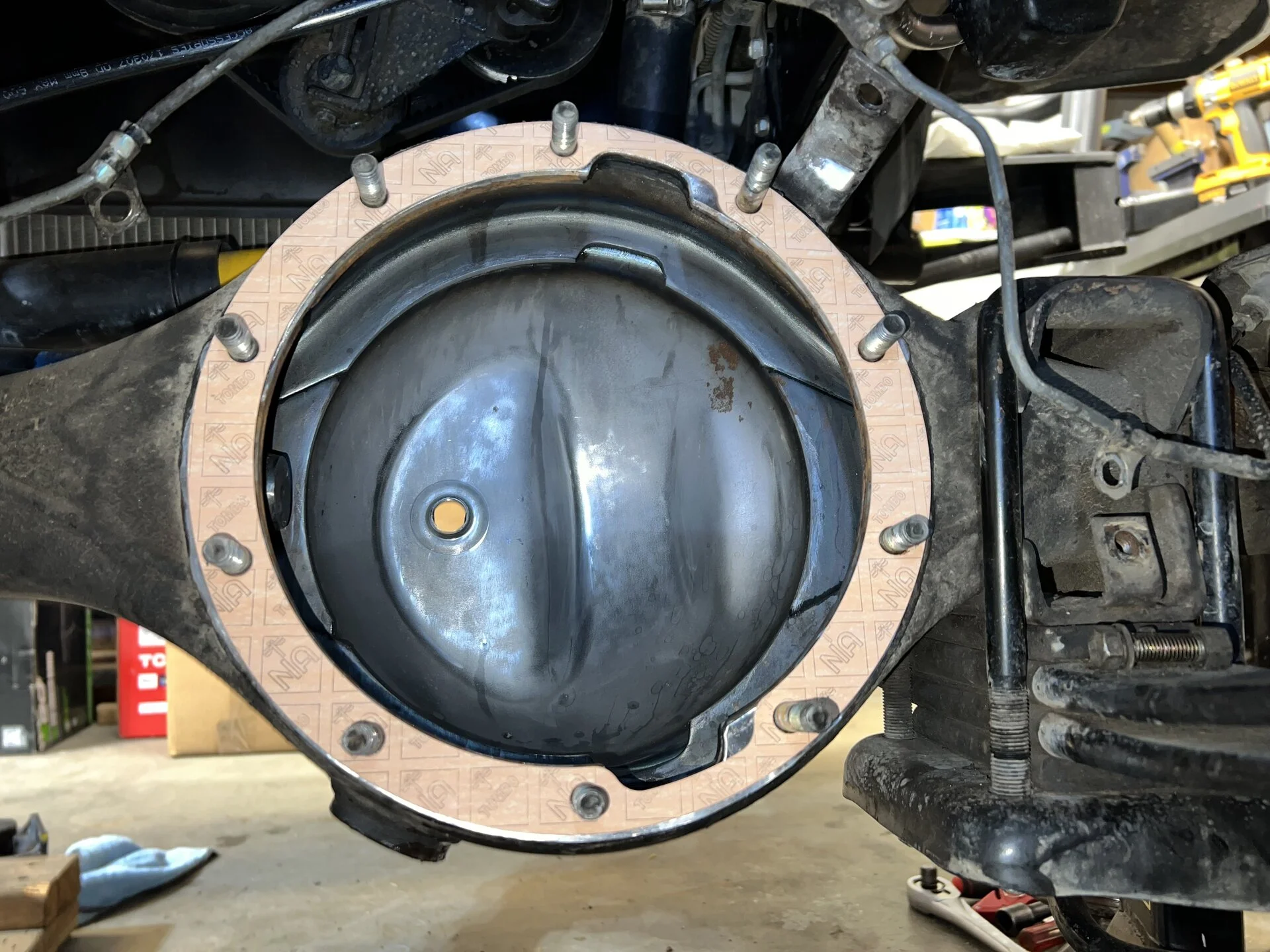

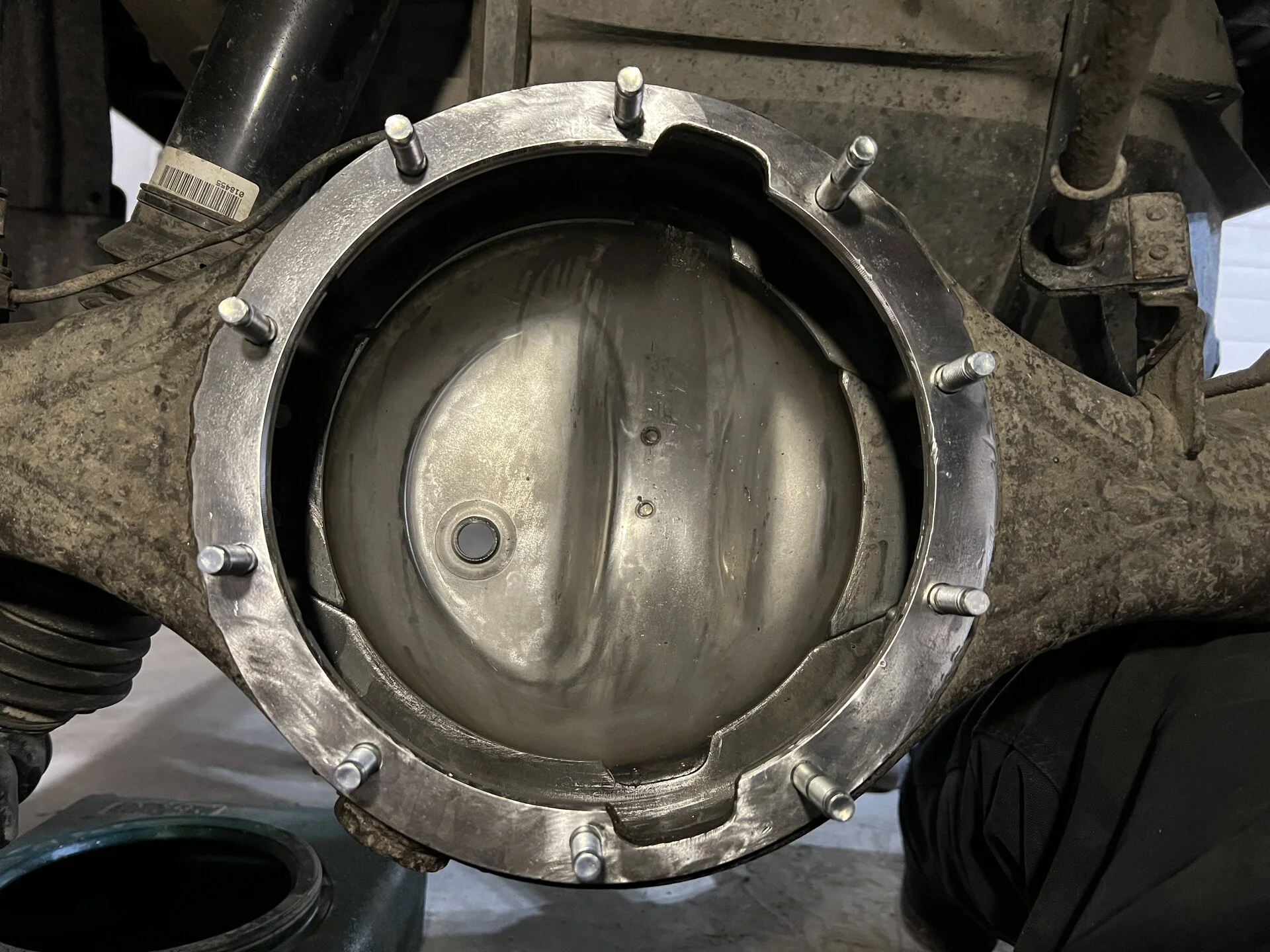

Pulled the rear diff off again and noticed that about 96% of the gasket was still attached on the diff. It looked like part of the mounting surface so didn’t look very closely before installing . Fortunately I had another gasket here and after cleaning off the old gasket and installing the diff and filling back up so far no leaks



[coldtaco]

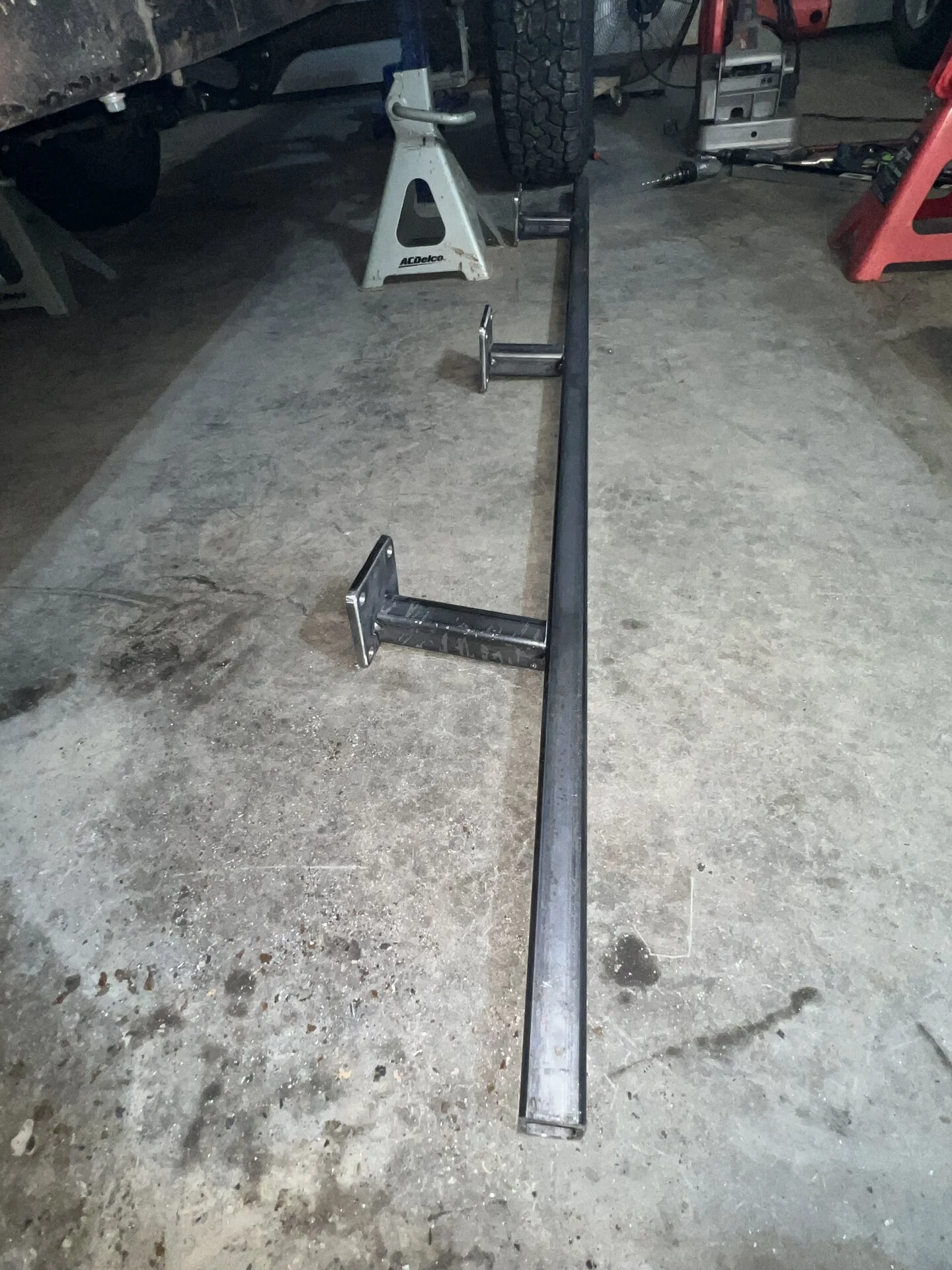

Hardest part to figure out and execute is complete. Finish up tomorrow . Now I know how the other side will go.



[coldtaco]

Rear diff is still leaking so off it will come again.



[coldtaco]

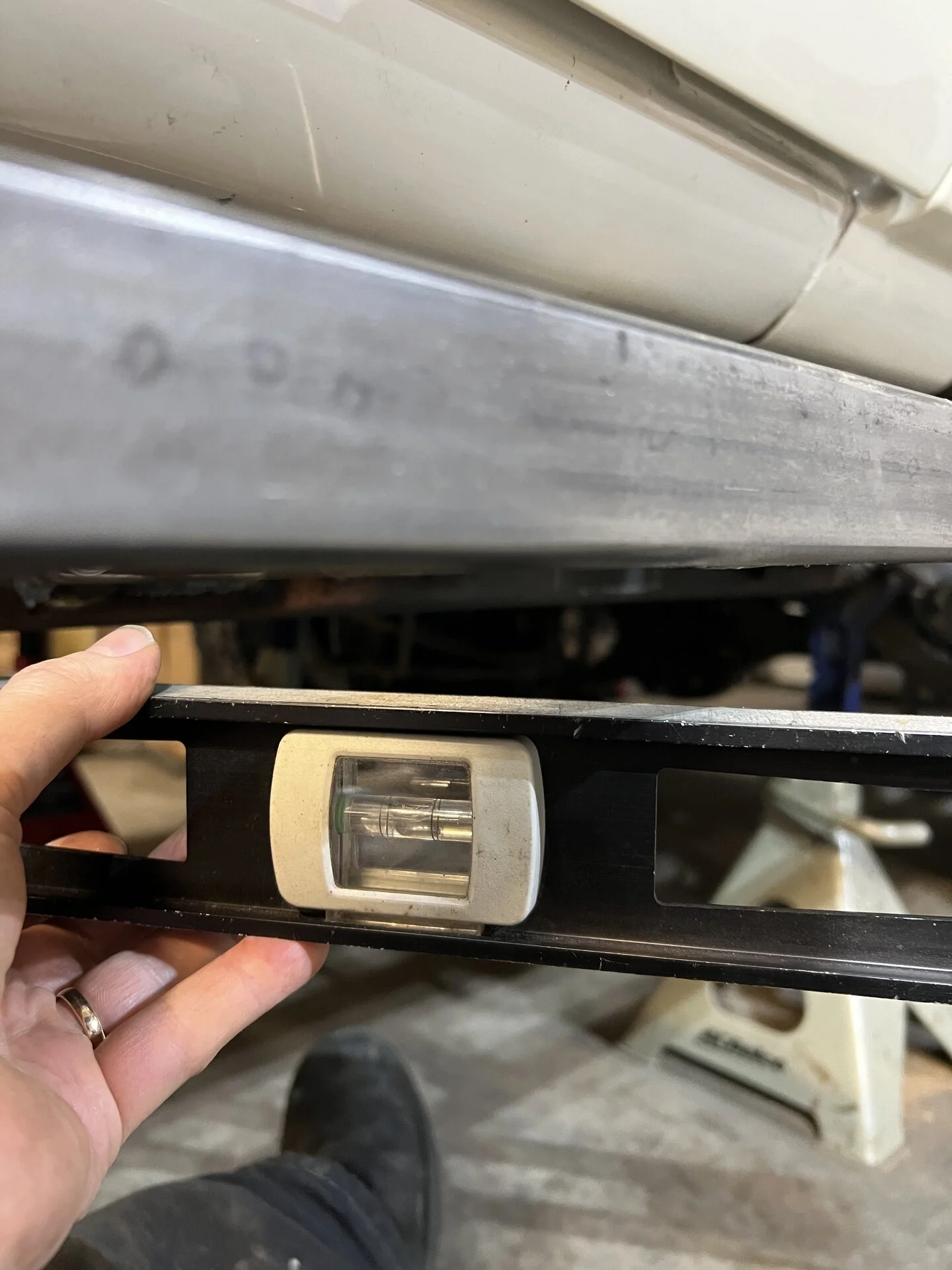

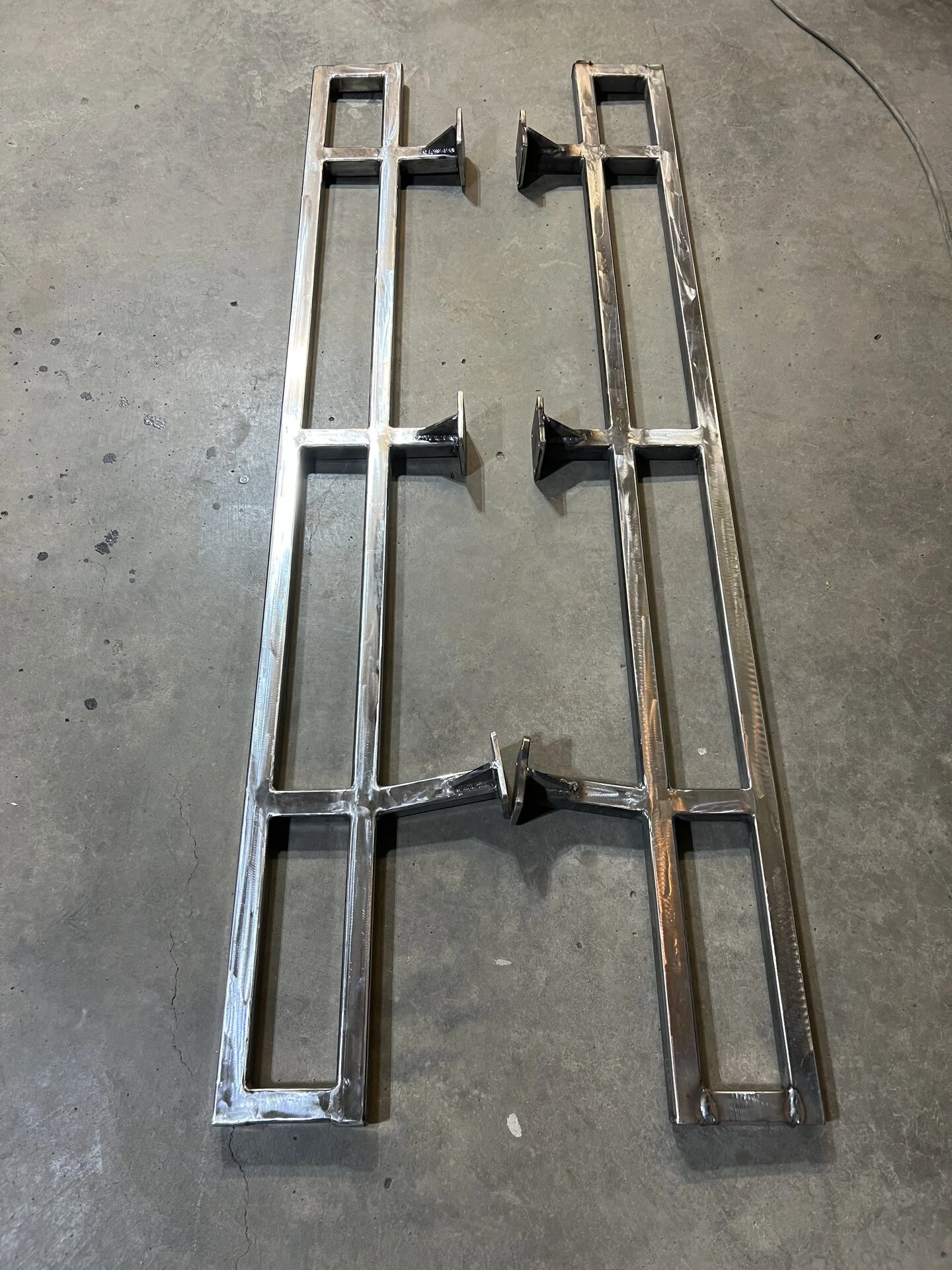

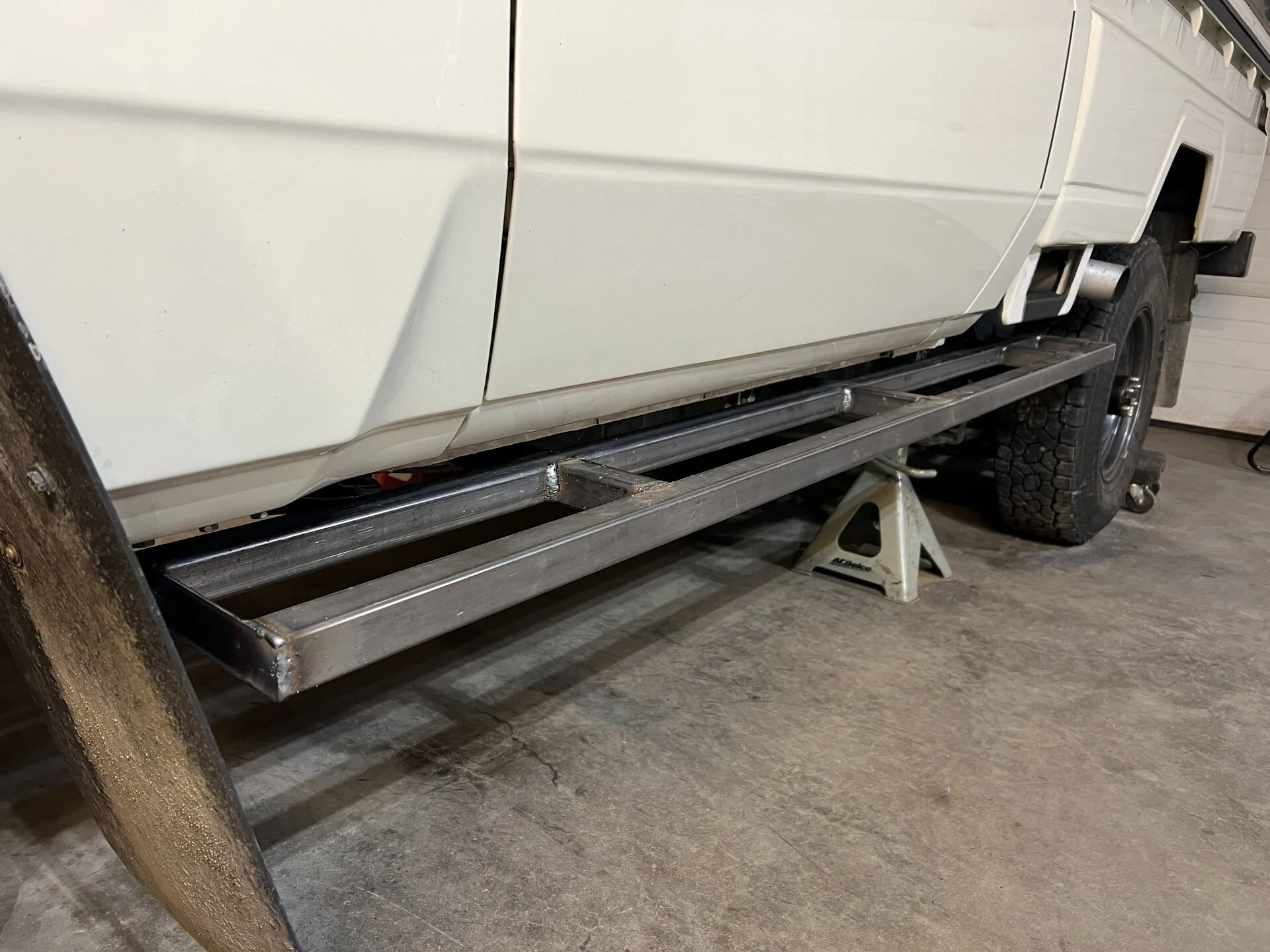

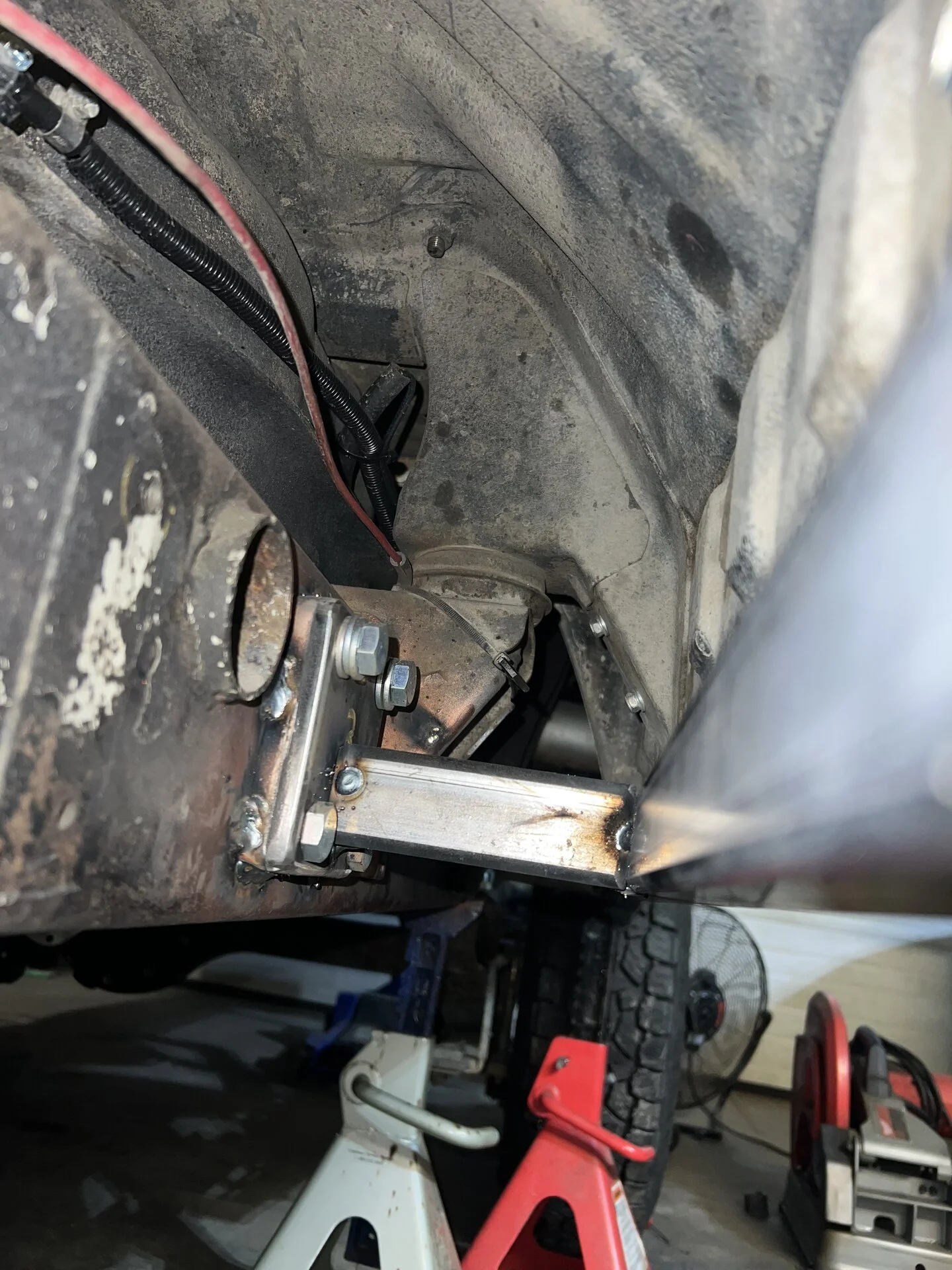

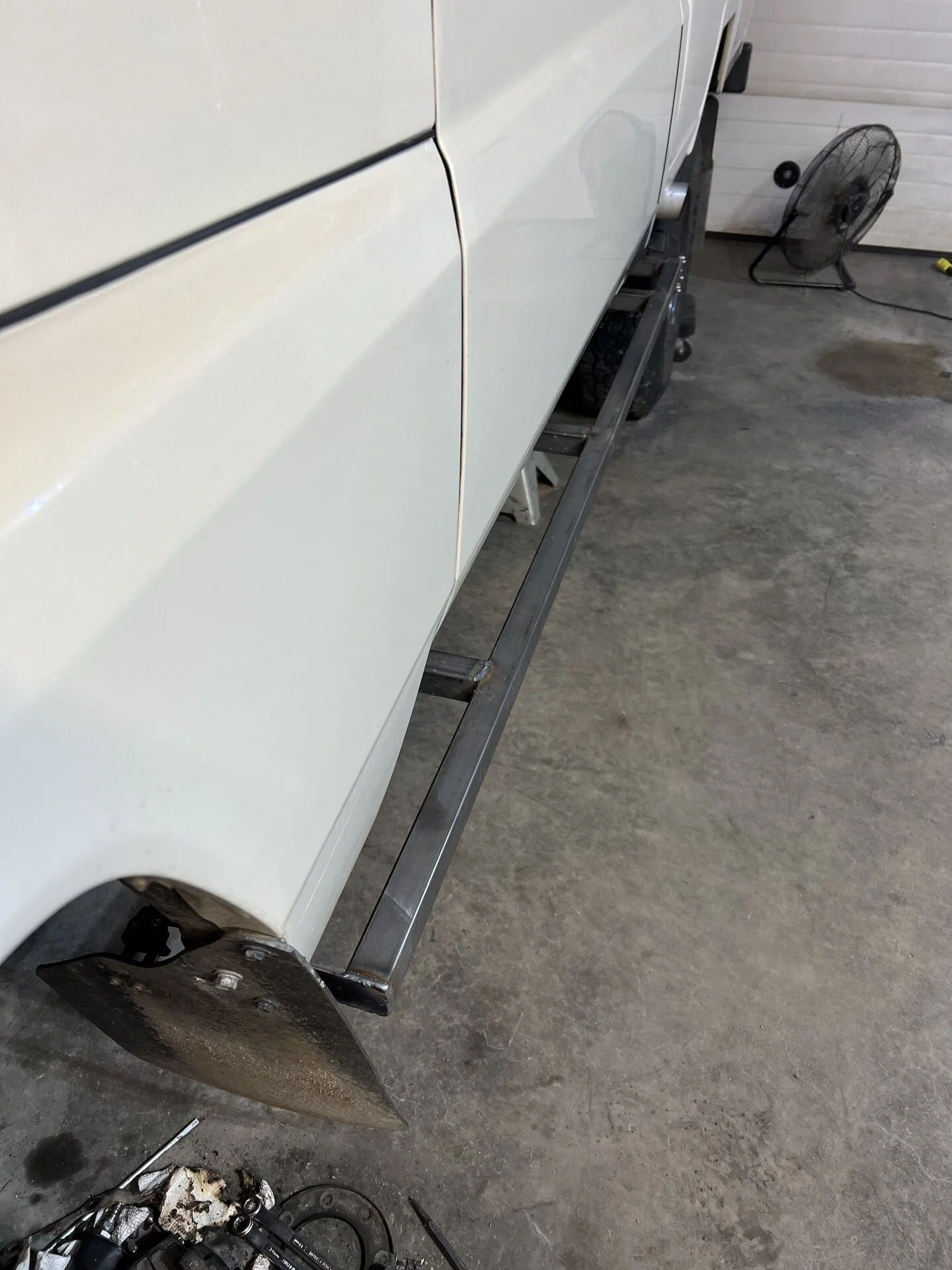

Left slider is done. Looks like the bottom of the sliders are a little more than an inch above the frame. Once the right side is done then paint.



[coldtaco]

Mama Moose and baby taking a nap in the neighbors yard



[coldtaco]

Got some new spindles, but they look quite different. Anyone with any insight?



[AirheadNut]

Front Axle Spindle Tech

Primarily for my full-frontal nerdery. There are a wide variety of spindles used on the 7x Series throughout the range. Most are self-explanatory but it gets a bit weird when you get into the late model stuff that can have ABS or not and/or Dual Mode Auto Locking Hubs (DMALH). Lots of combos...

forum.ih8mud.com



[coldtaco]

I think manufacturing is done. Another 6hrs (give or take) of prepping for paint



[coldtaco]

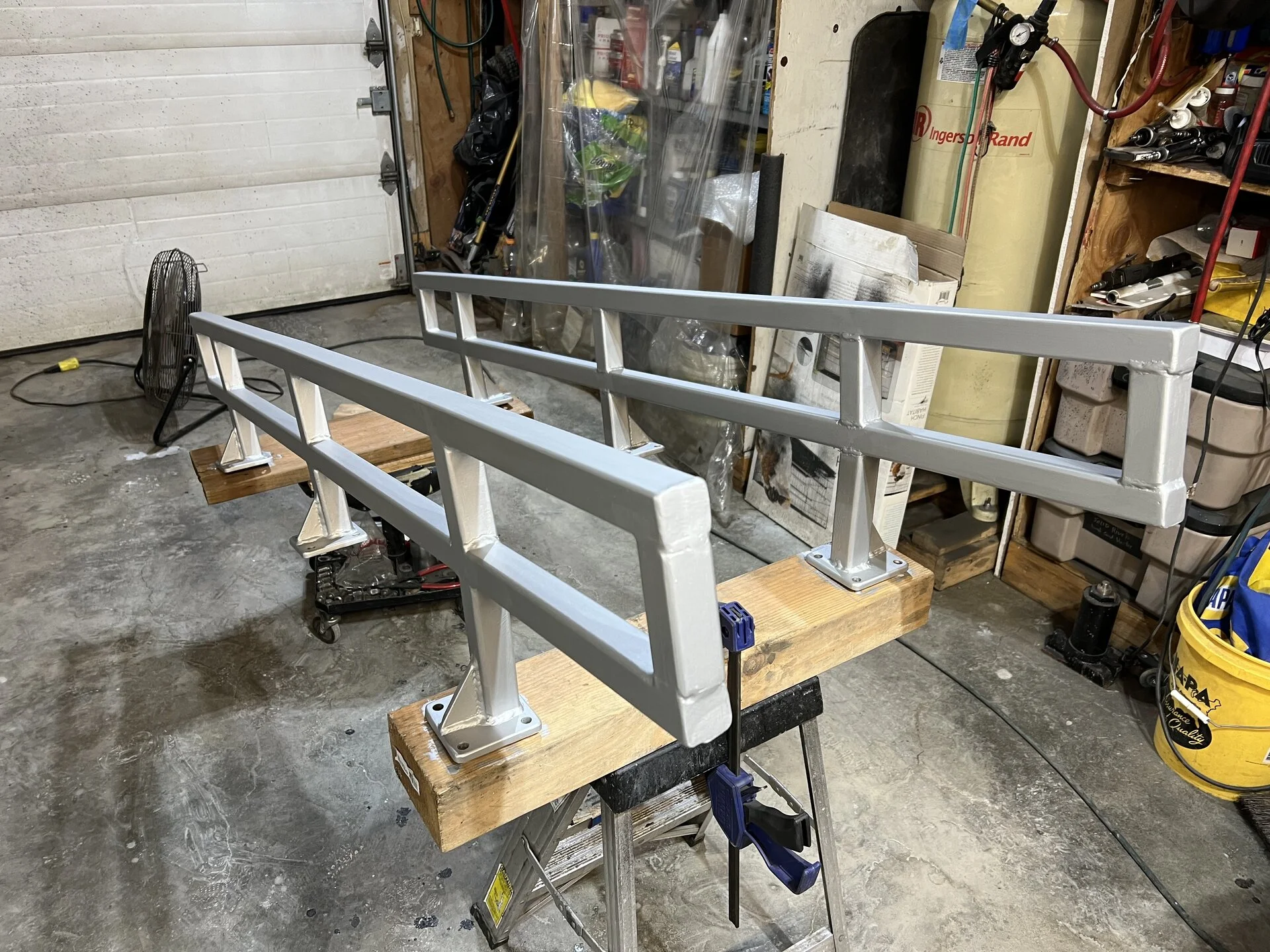

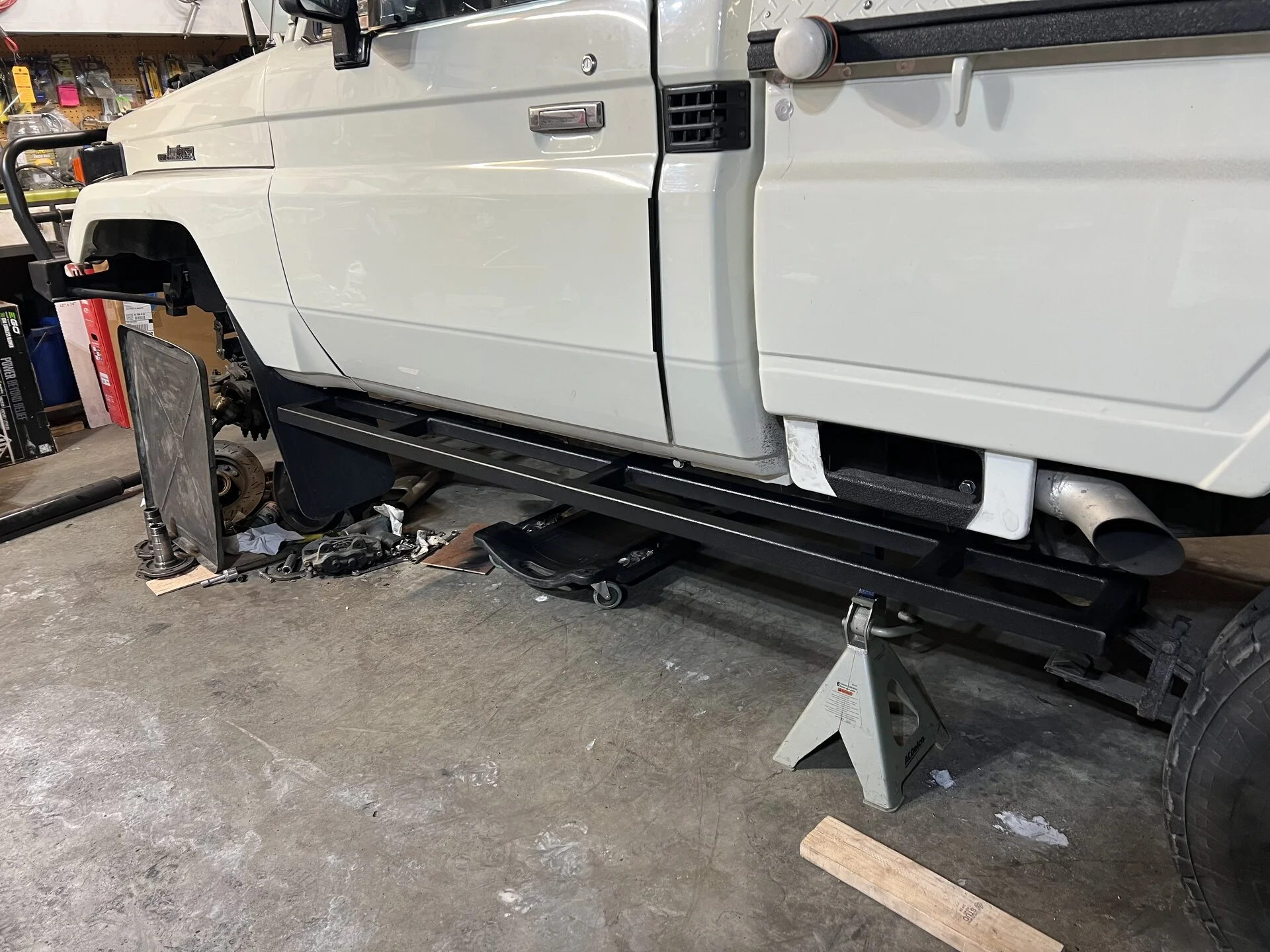

Paint drying



[Rigster]

Paint drying

View attachment 3545569

View attachment 3545570

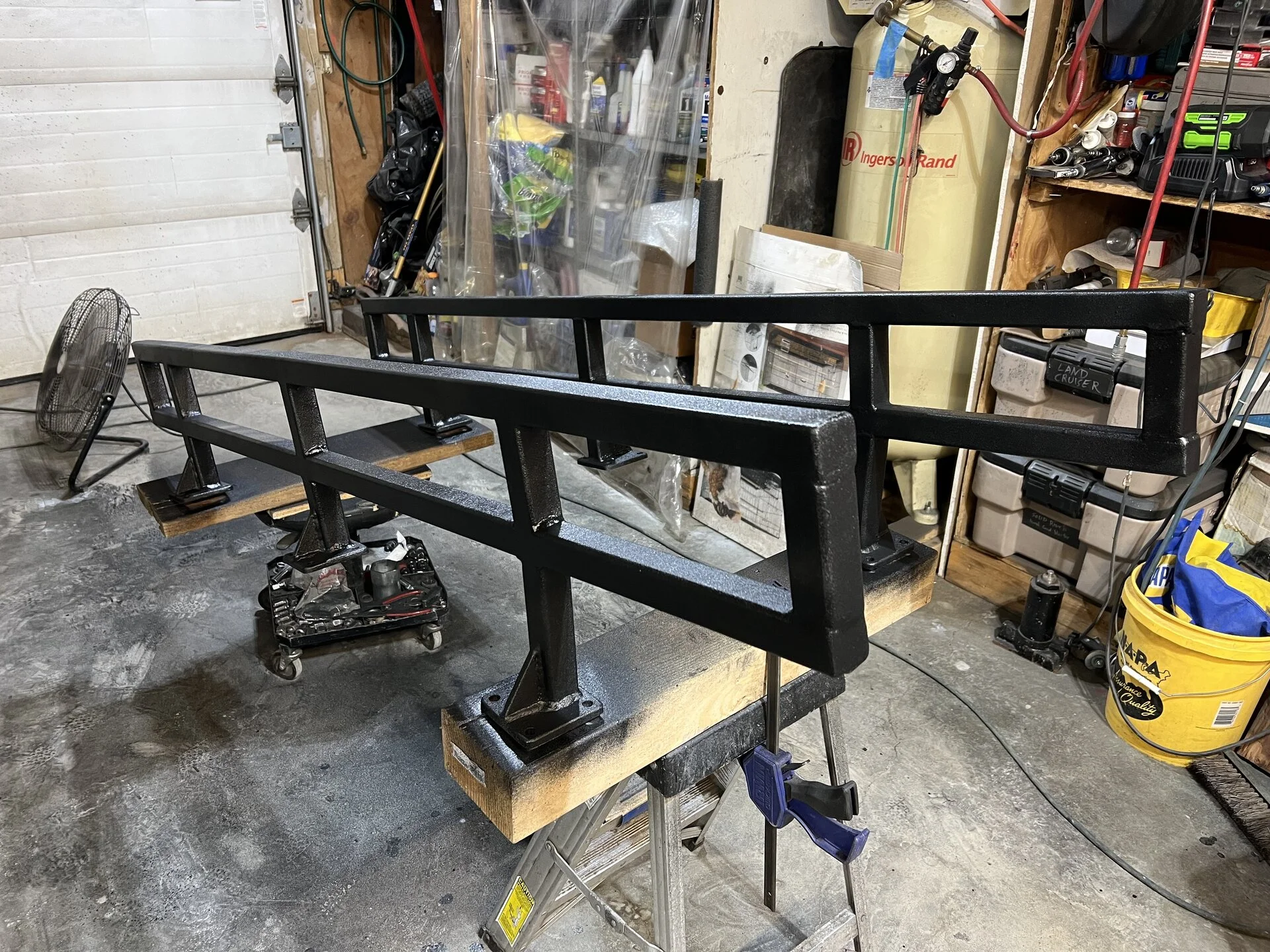

I'm going to sit here and watch it...



[jblueridge]

Please come here and organize all the crap in my shop.
What paint did you use?



[coldtaco]

Please come here and organize all the crap in my shop.
What paint did you use?

I try not to show too much of the garage mastercoat for base and raptor liner in the can for top coat. Will see how it holds up



[jblueridge]

Now that I zoomed in, I can see texture of bedliner.



[coldtaco]

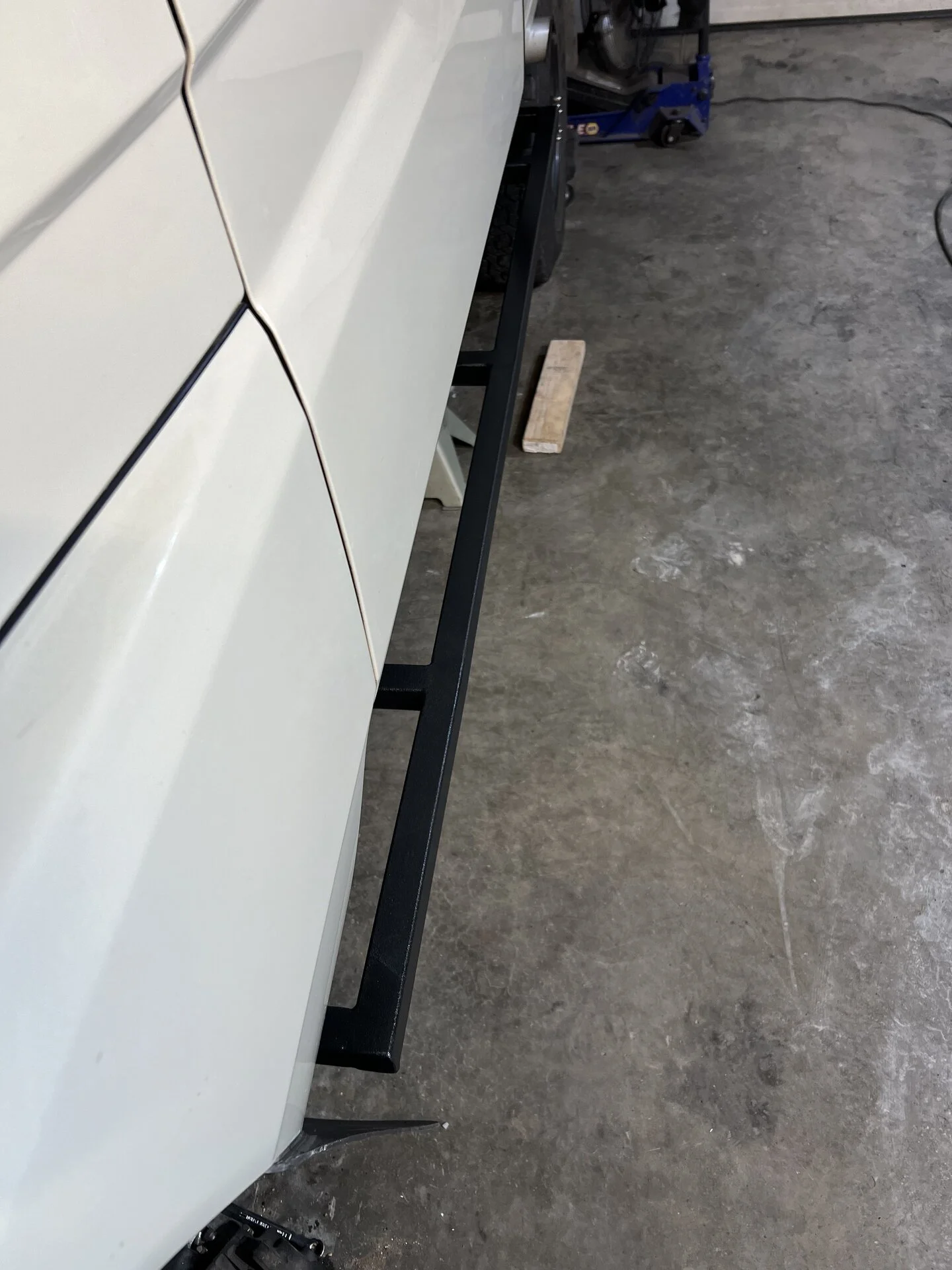

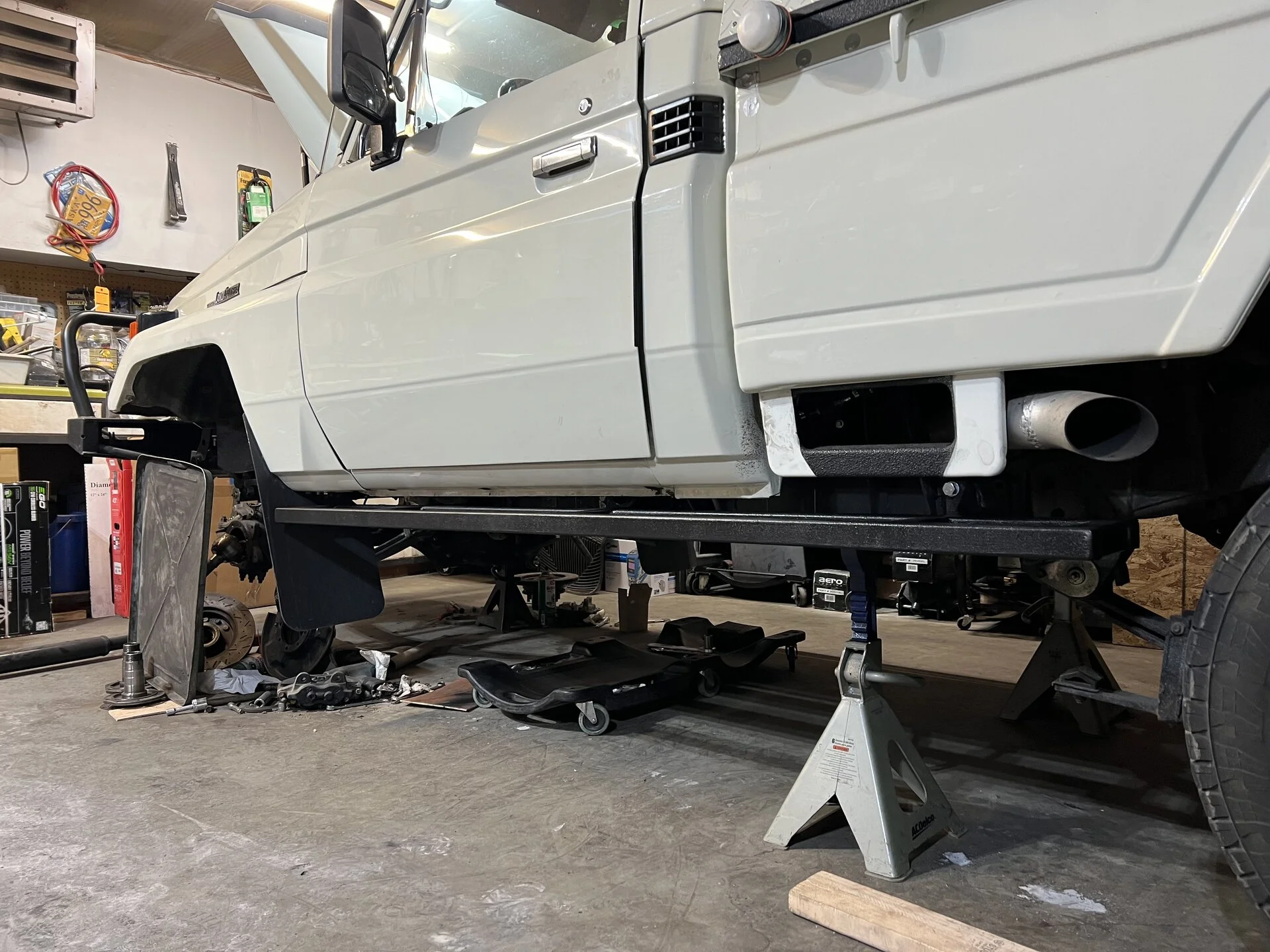

One project finally done, ish. Have to get more hardware for the install. 2” square tube would have looked better but would have weighed quite a bit more



[coldtaco]

Got a box for next week’s project



[renago]

Big box , big project
