SOLD 96 1FZ-FE rebuilt long block (1 Viewer)

[Fj80oregon]

Vehicle Model

1. 80 Series

Location

Forest Grove, Oregon 97116 United States

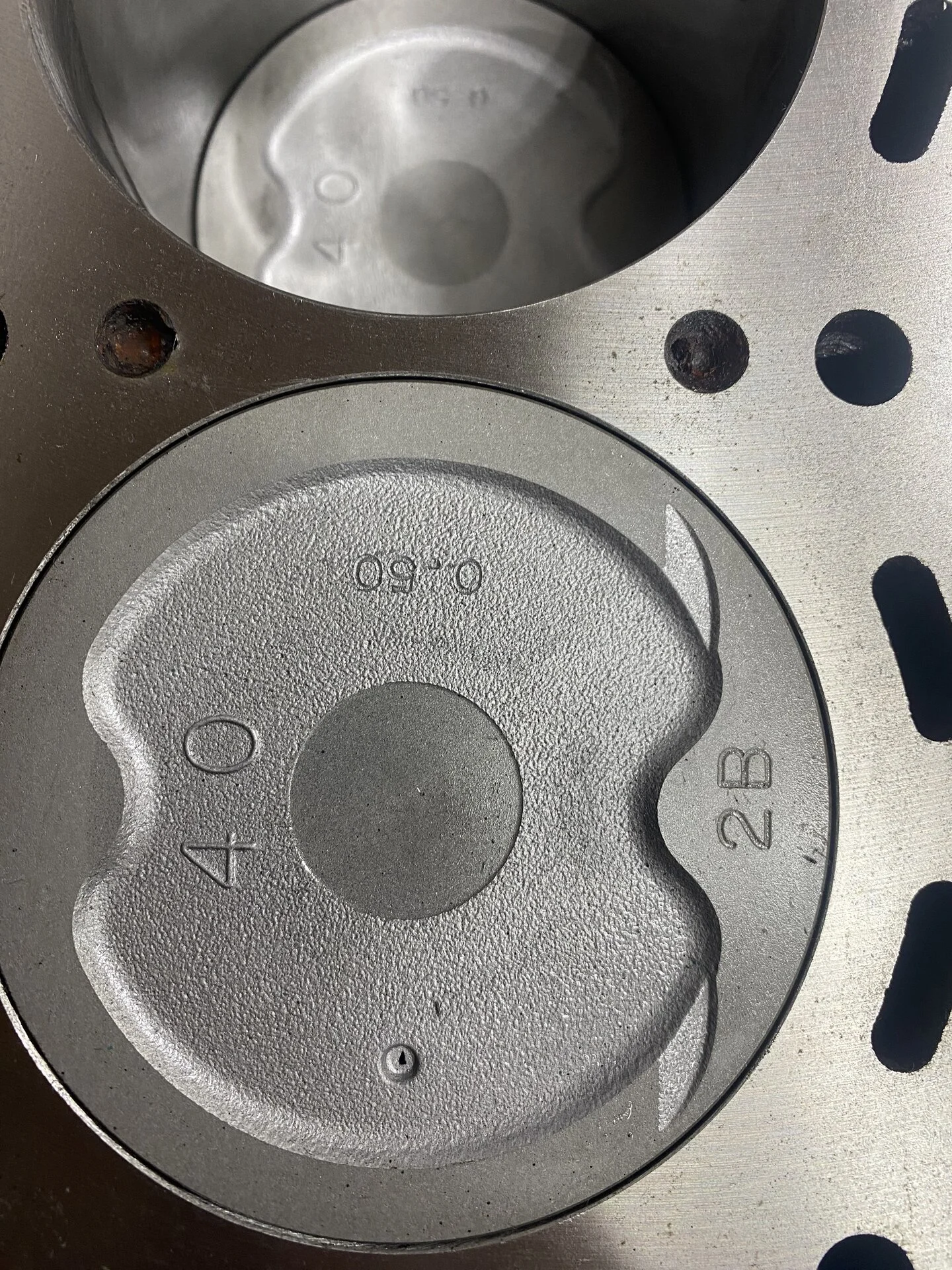

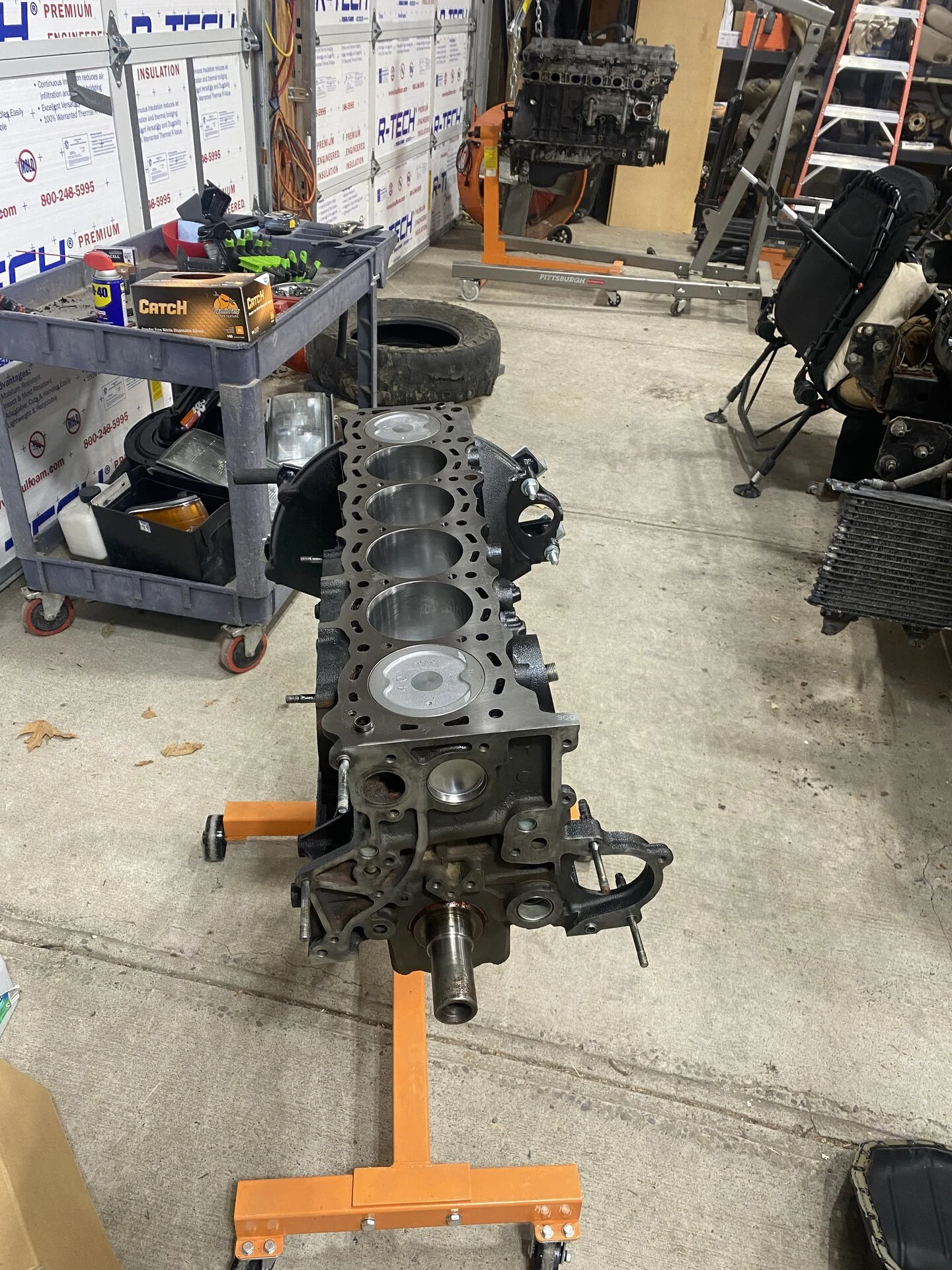

This posting is for a long block only. so valve cover to oil pans no accessories. The block has been hot tanked then machined for flatness. Bored .50 over OEM pistons and rings will be installed. New OEM bearings on the rods and crank. The head has been cleaned and checked for cracks. Three way valve grind and OEM valve guide seals installed. Head has been machined for flatness. Head is assembled and valves adjusted by machinist. New timing chain, tensioner, sprockets, and slipper/dampner. will paint the block then install OEM head gasket with ARP head studs. New oil cooler cover and used oil cooler installed. Oil pans installed with new front and rear main seal. All parts are OEM nothing aftermarket at all. Shipping is available Last one I shipped to San Diego area from Oregon was $700 each way. I ship them on a standard pallet so you would need a way to unload it. I would require a core deposit as I want your old motor if it’s available. So I can keep rebuilding these and putting them out for the MUD community. Pm me or ask questions here for full transparency. This is the 7th motor I have done and have two more on the stands now. I drive my first rebuild and have sold 2 trucks and 4 long block with rebuilds by Me. Hopefully I can turn this eventually into a part time gig.

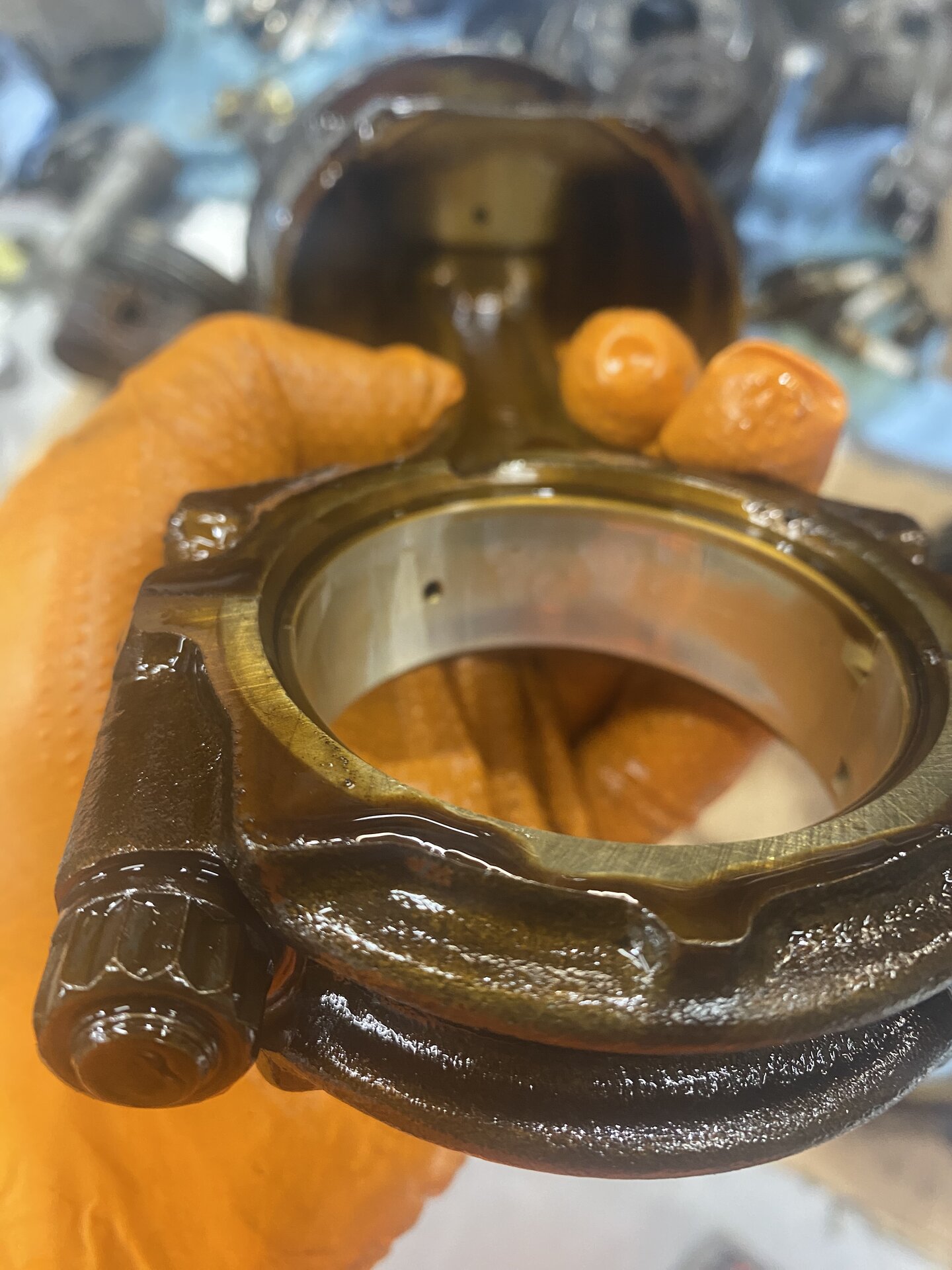

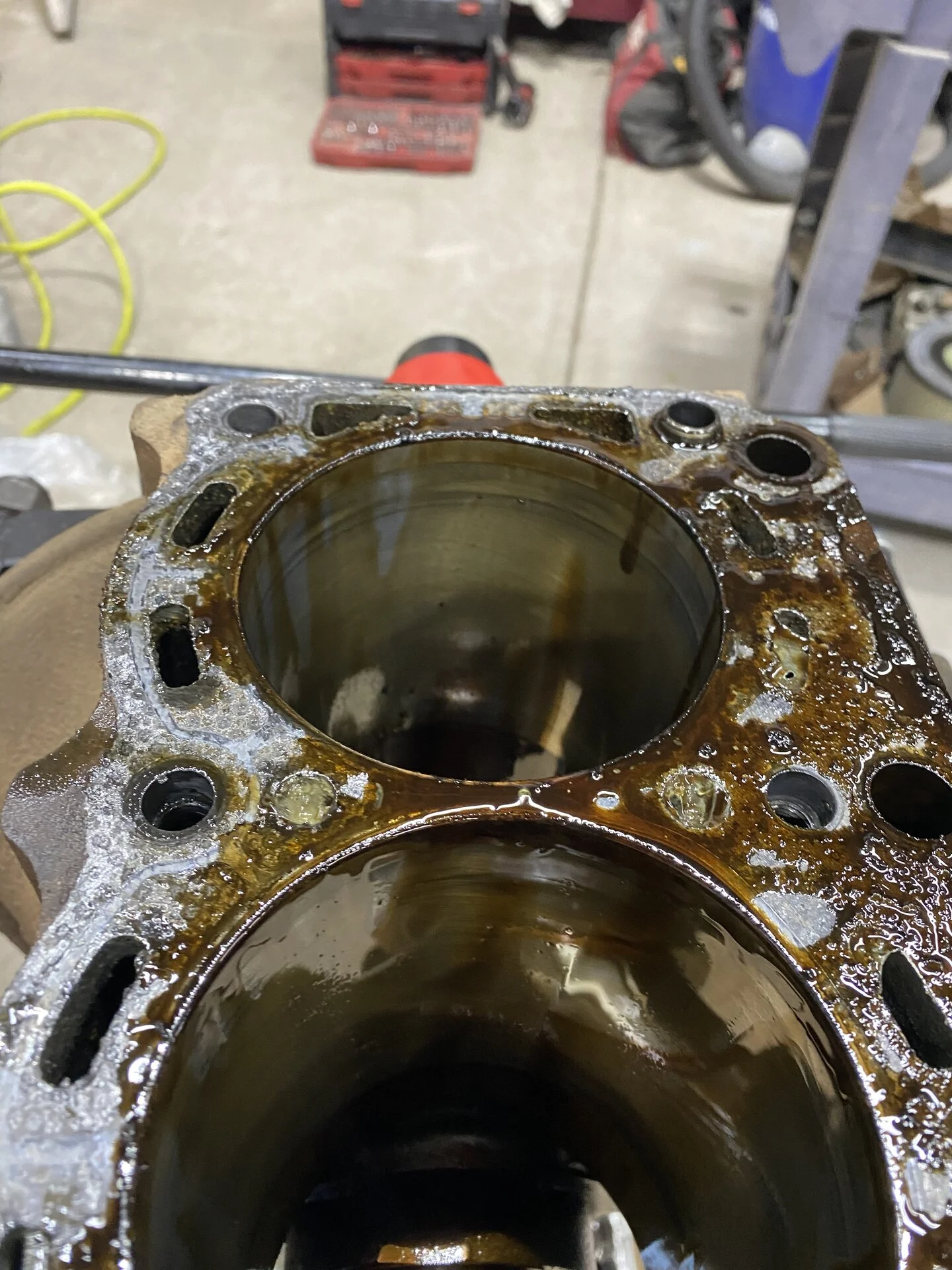

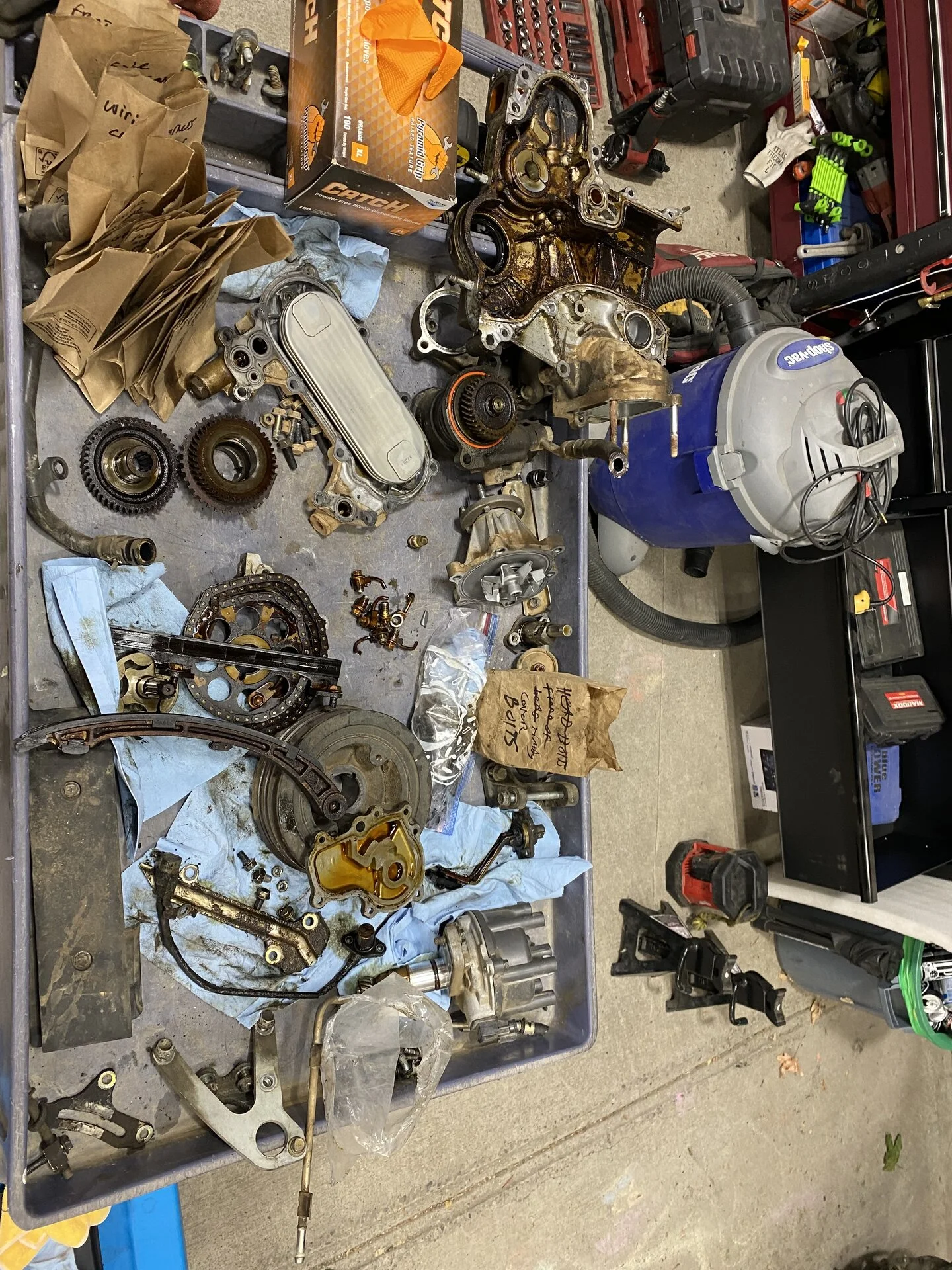

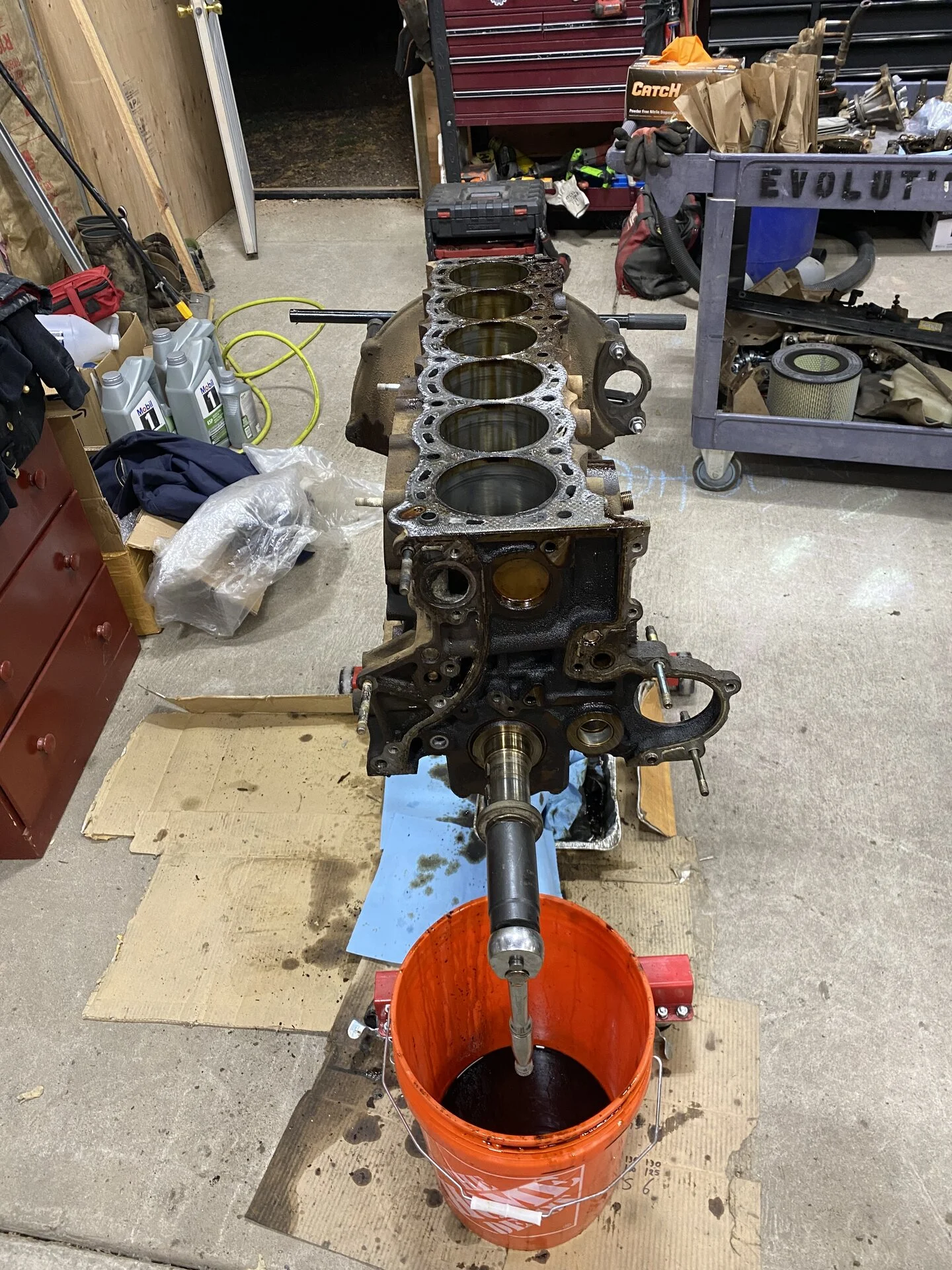

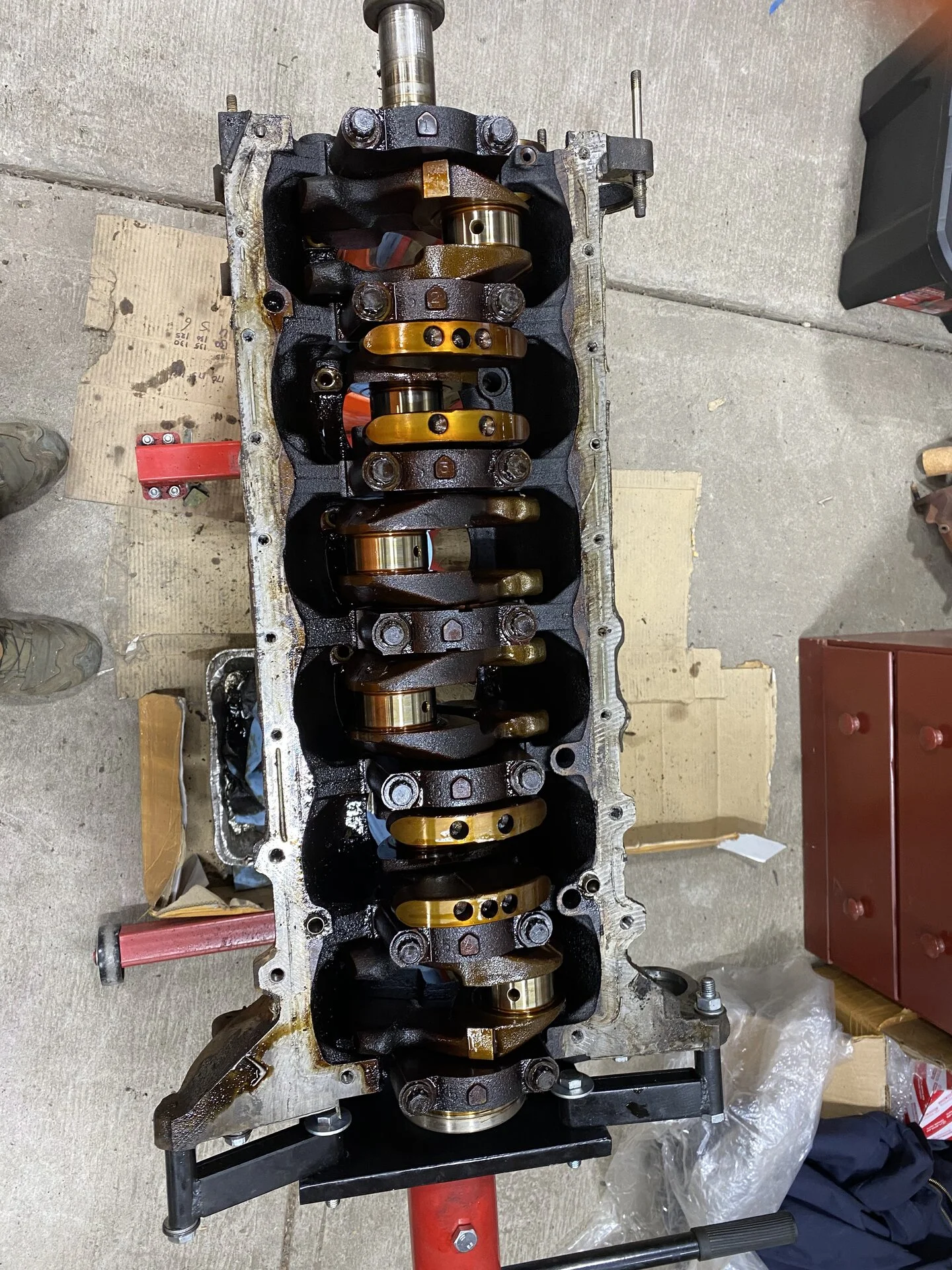

Motors are $7500 with a $1000 refundable core. Pictures are from the tear down And will post pictures of assembly hopefully this weekend. Thanks Wes



[Fj80oregon]

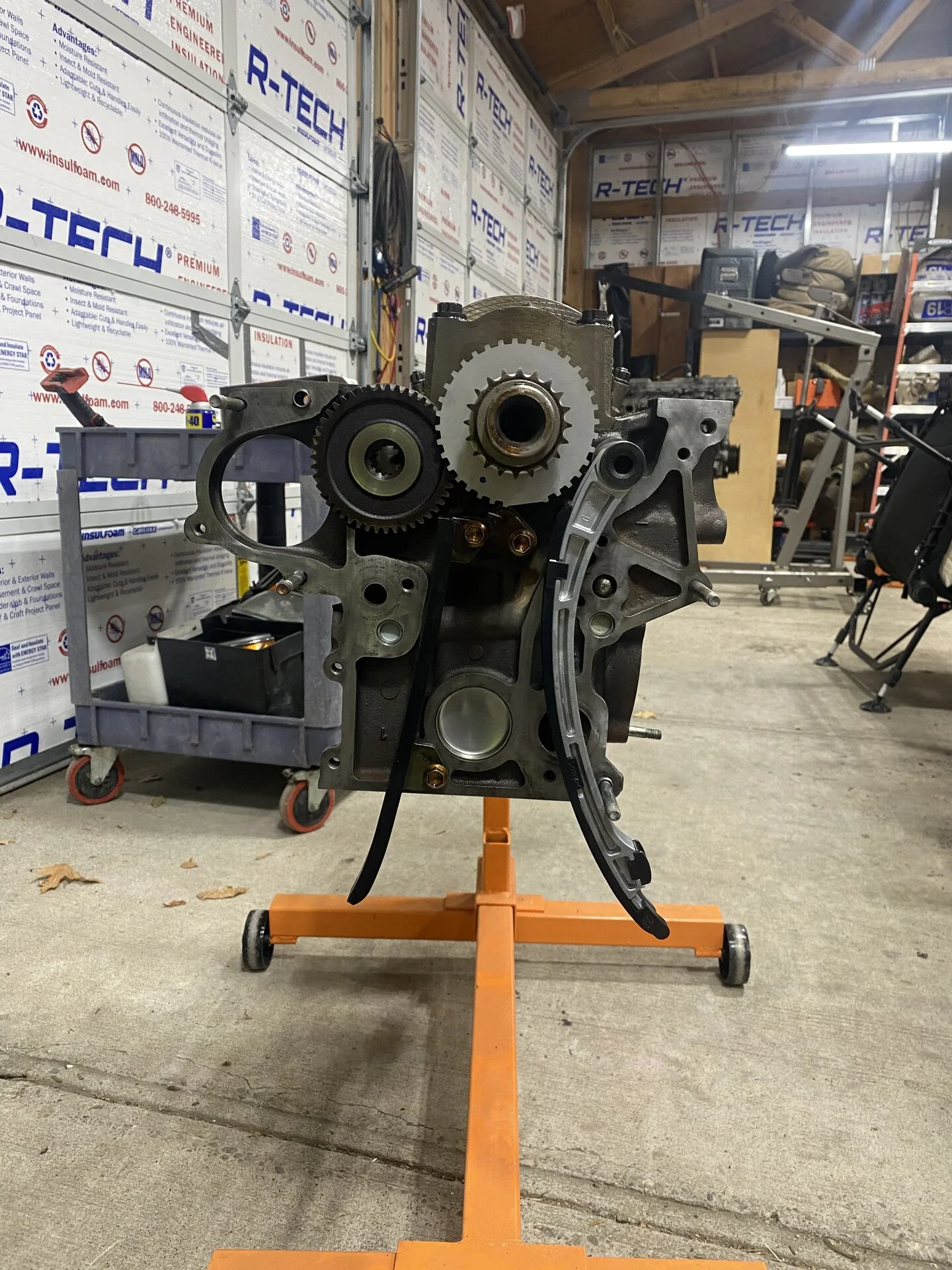

Finally started assembling, new timing component’s installed.



[Fj80oregon]

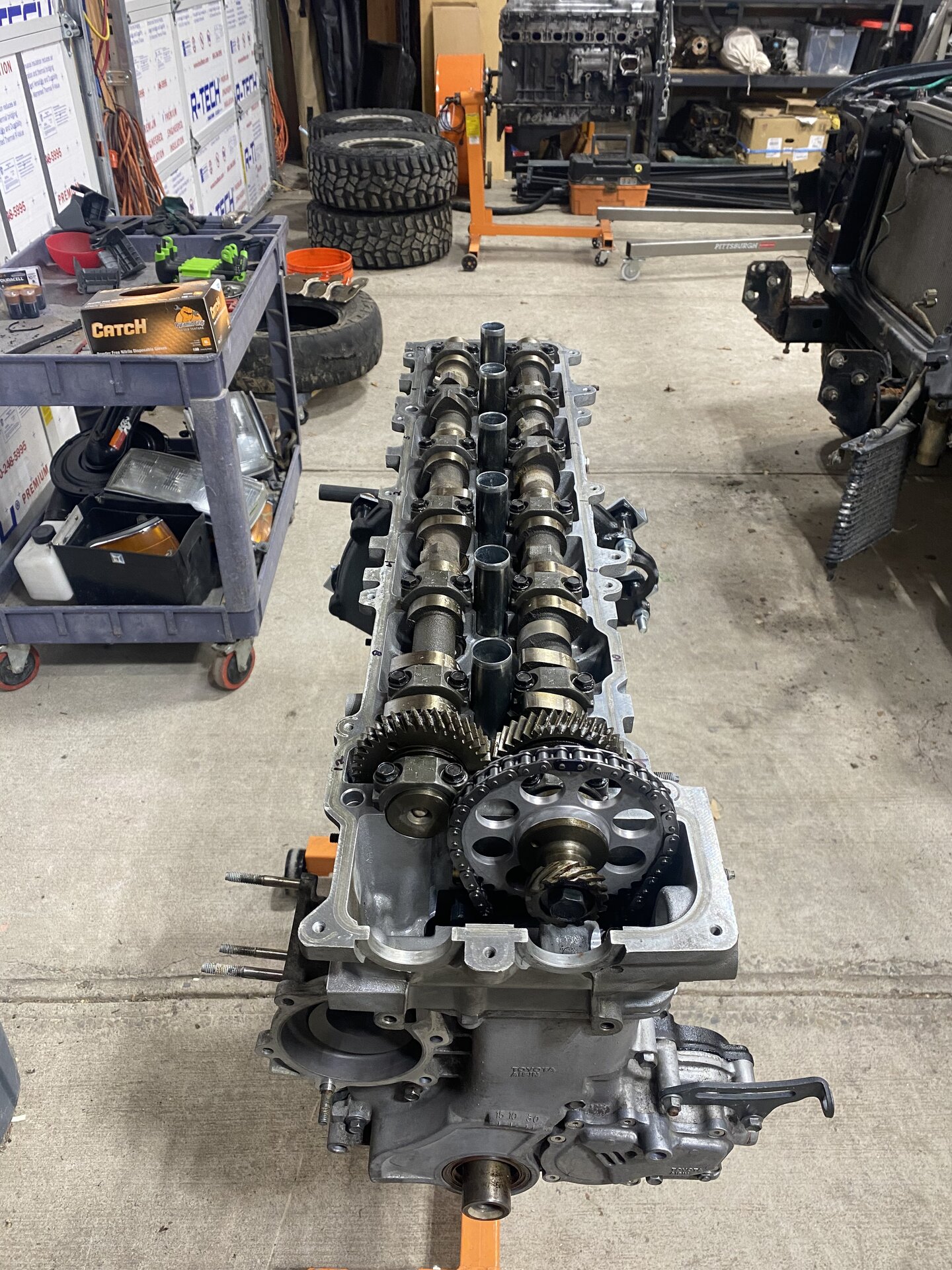

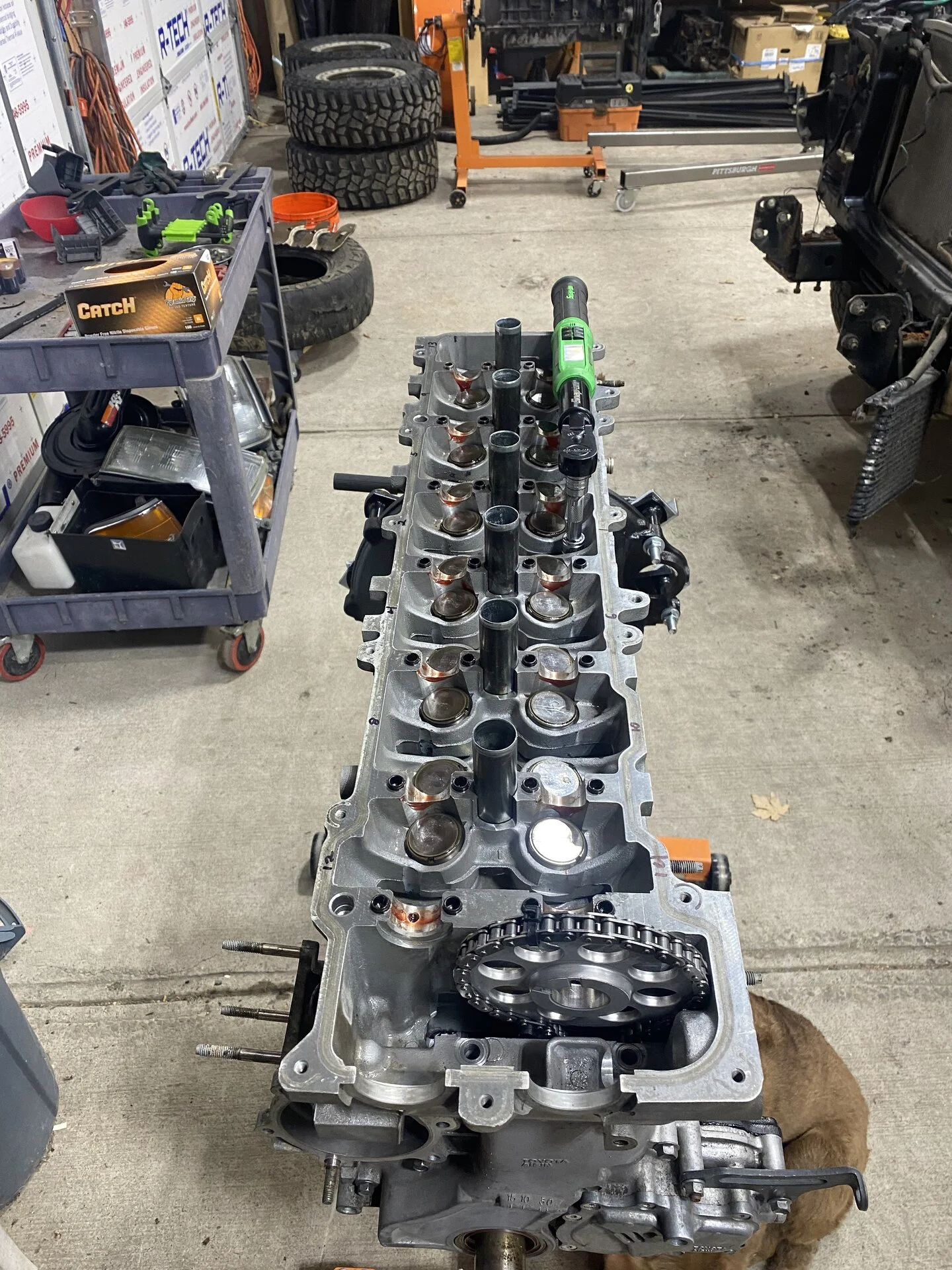

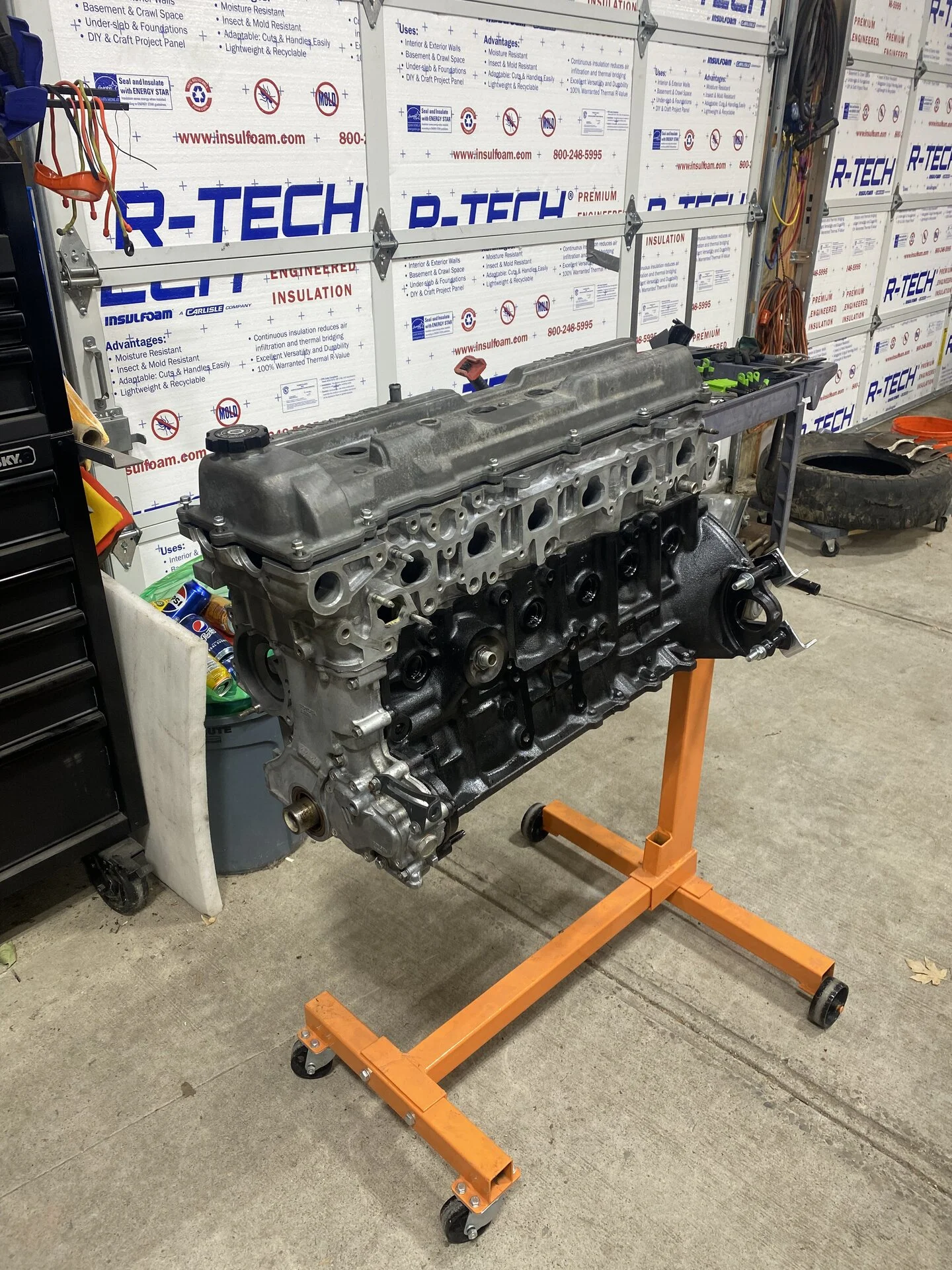

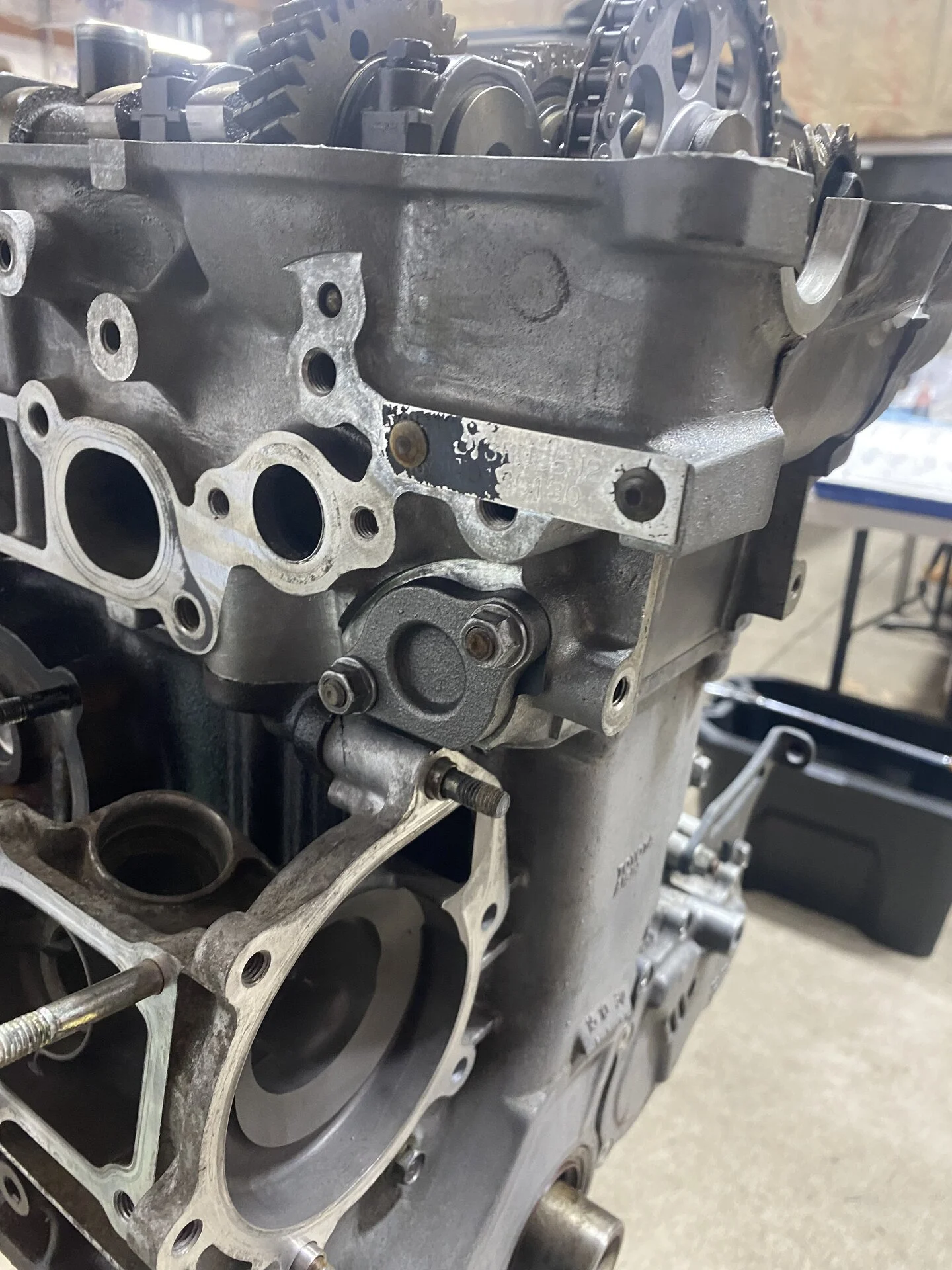

Head is on with ARP head studs installed,OEM head gasket, cams installed and new timing chain tensioner. Should be finished up this week and ready for a new home.



[Fj80oregon]

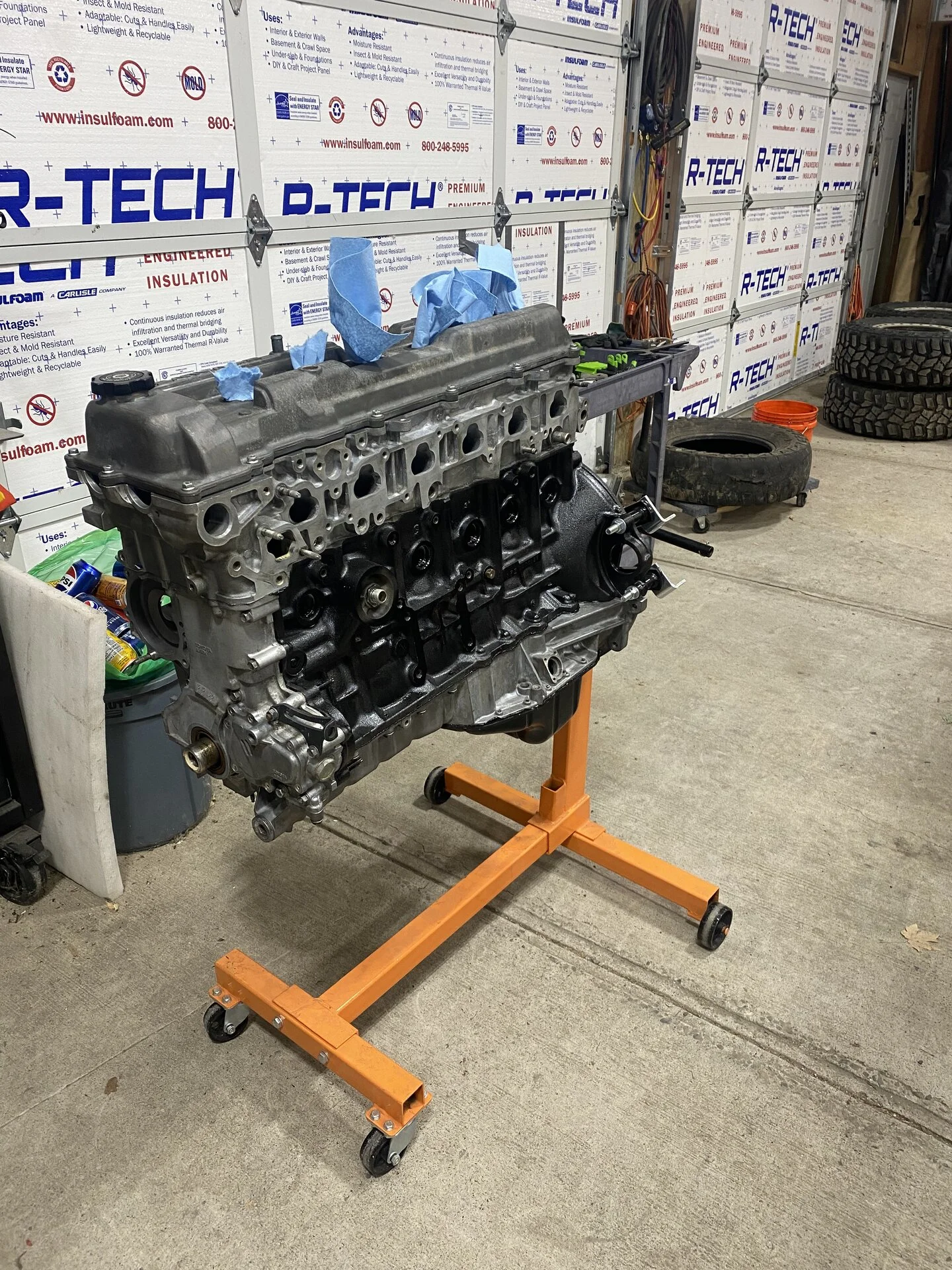

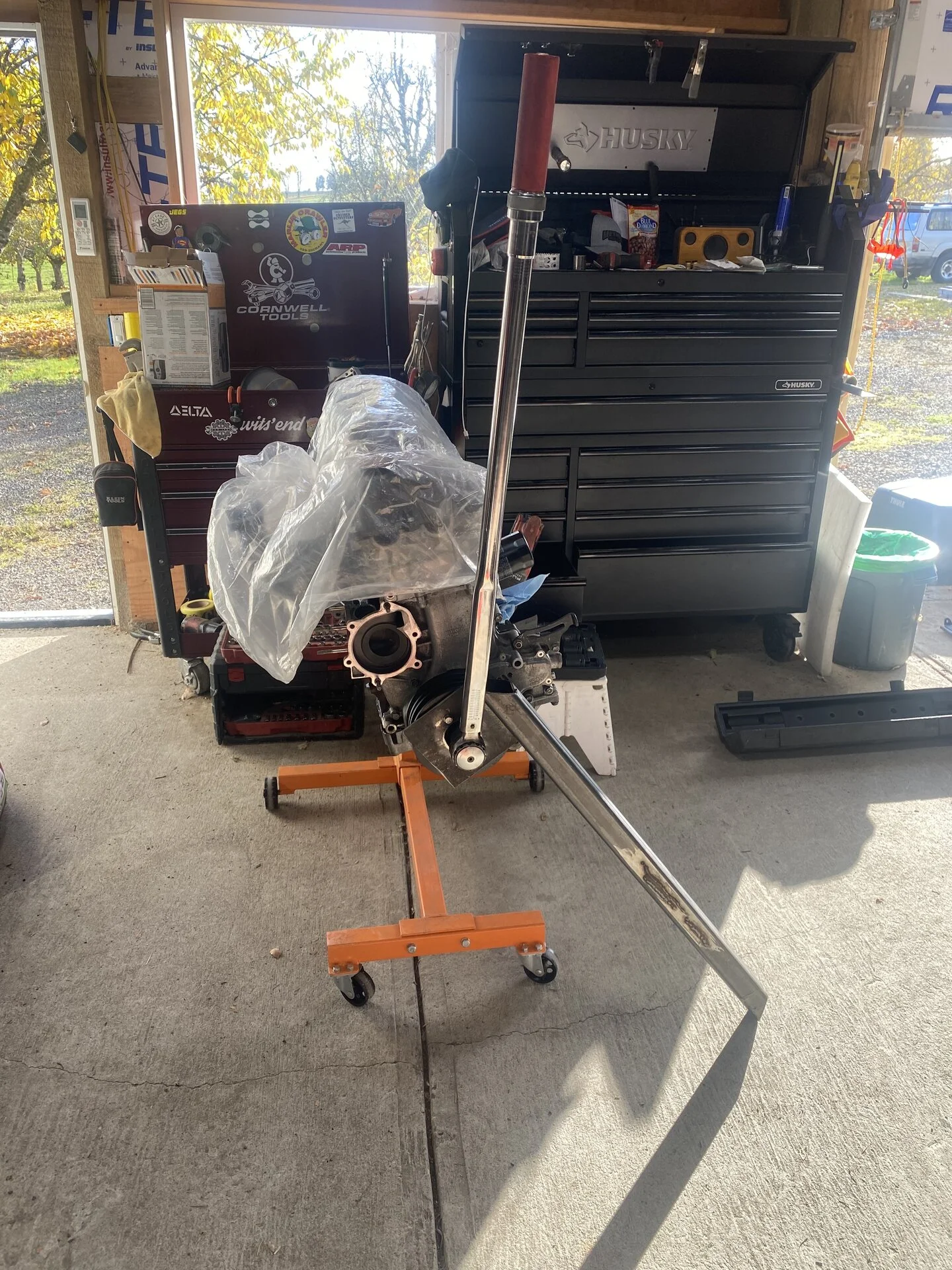

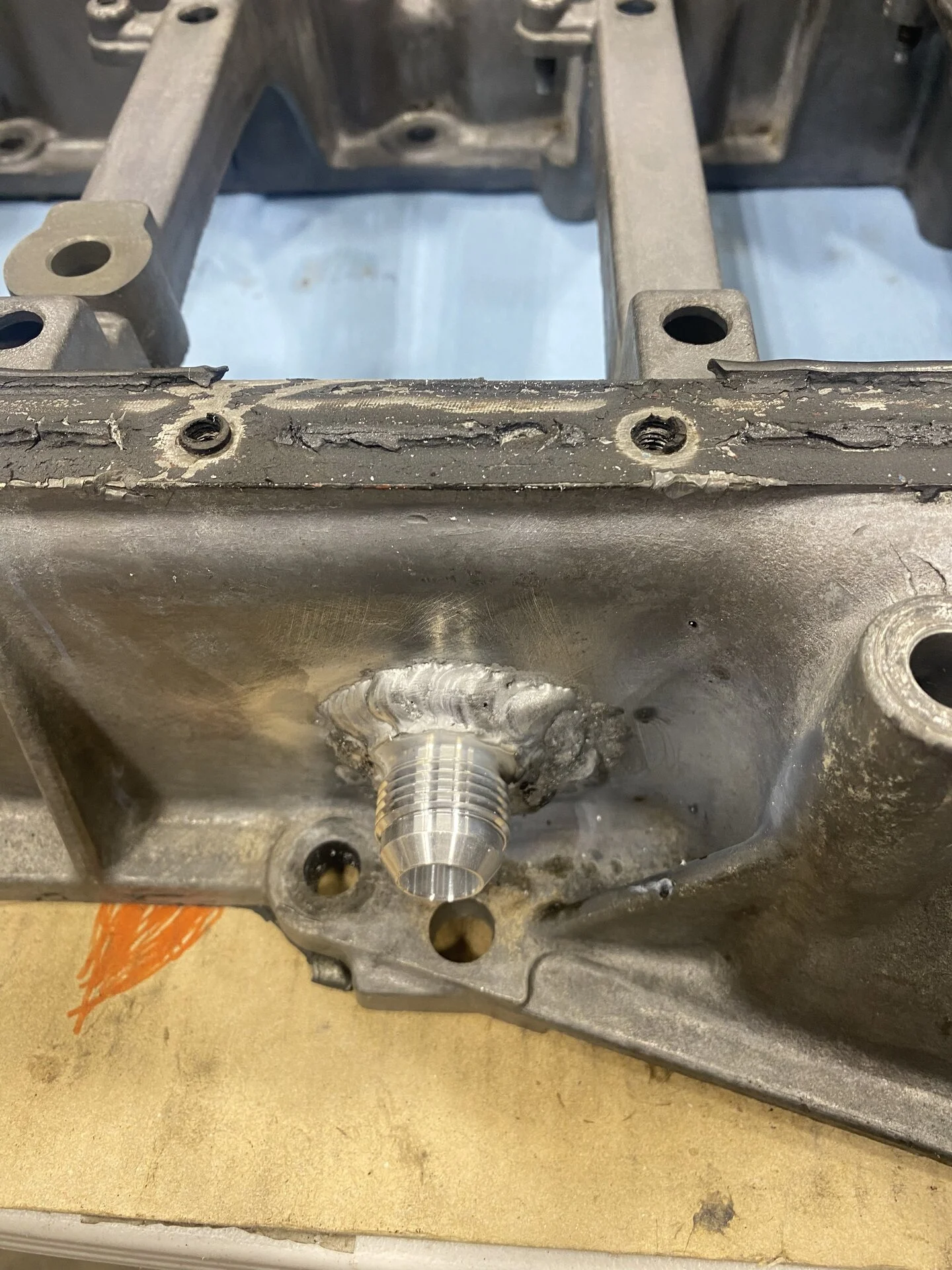

Oil pans installed. I had an AN10 bung welded on the upper oil pan for a turbo oil drain. Incase I keep this or the next guy wants to run a turbo. Just gotta put on the harmonic balancer and torque that sucker down to 306ftlbs



[Fj80oregon]

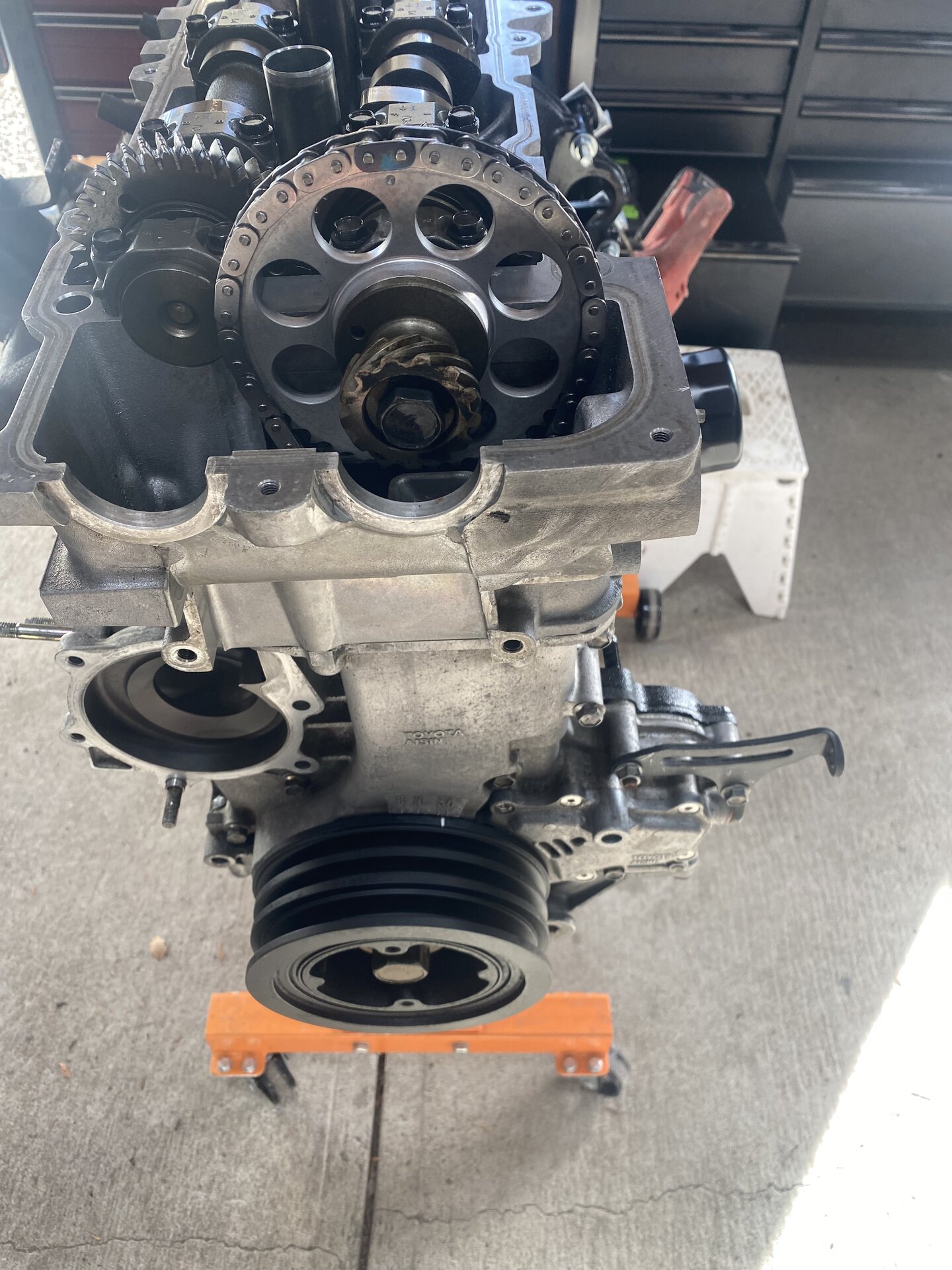

Harmonic balancer installed and reset to top dead center!



[Cruisers and Co]

PM Sent



[DrDuc]

Harmonic balancer installed and reset to top dead center!

View attachment 3486158

View attachment 3486159

Your motors look so good!



[Fj80oregon]

Your motors look so good!

Thank you sir.



[deltapine1]

@Fj80oregon post some photos of the motor your setting up for me when you get a chance.



[Fj80oregon]

@Fj80oregon post some photos of the motor your setting up for me when you get a chance.

Yes sir



[shellb]

@Fj80oregon post some photos of the motor your setting up for me when you get a chance.

You’ll be able to follow along on the swap + turbo (plus a whole bunch more) build here shortly!

Hopefully that will provide some inspiration!

Btw buying and shipping was a breeze…not sure there’s a better deal out there if you need a new motor.
