Build 73 FJ40 Refresh

[FJ40Savvy]

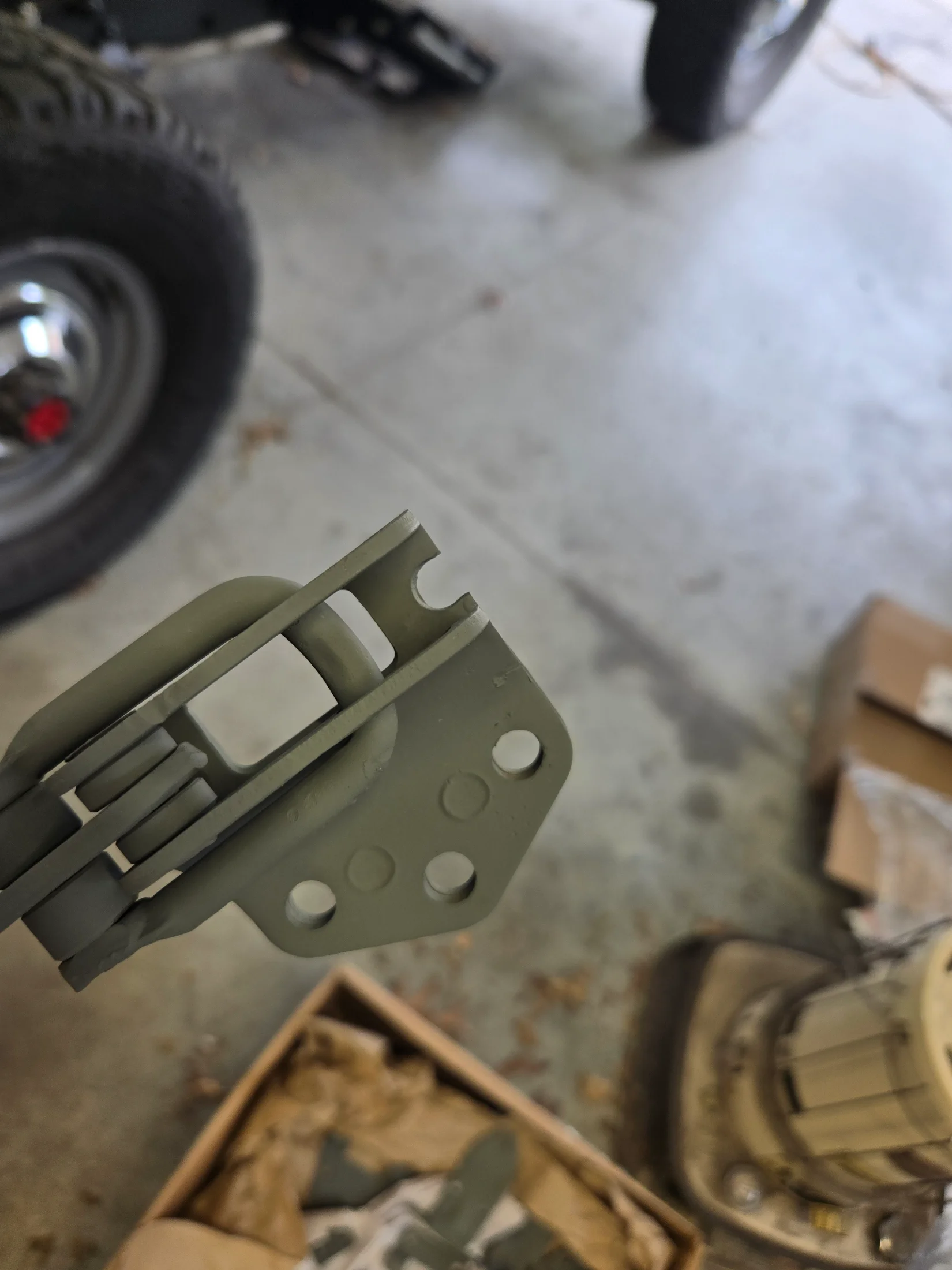

I noticed the left side tail gate latch has this cutout, is this correct or has someone modified it?

View attachment 4125238



Finished cleaning/priming small parts.

View attachment 4125239



DIY zinc plated the tail gate hinge pins.

View attachment 4125241

Here are pictures of the left side latch on Louie. It seems to match the latch on the spare tire carrier. There is no hole in the top part of the latch.

FYI Love the work you are doing on your '73.



[Engineer8000]

Thanks for the photos and compliment. Didn't you print the little covers for the VSS terminals? I may have you confused with someone else.



[FJ40Savvy]

Thanks for the photos and compliment. Didn't you print the little covers for the VSS terminals? I may have you confused with someone else.

Yes I printed the wiper contact covers...



[Engineer8000]

I thought so, I have misplaced mine for the time being. I have so many part in the shop waiting to reassemble my truck.



[Engineer8000]

I worked on the spare tire carrier hinges. I added a nylon washer between the two rotating parts. I started with the washer shown and increased the ID using a step drill bit and a final little bit with the Dremel sander. I zinc plated the original washers and the threaded end of the hinge bolt. The nuts are from Vintage Teq Parts. Now they are ready for paint and reassembly.



[Engineer8000]

I noticed the wiper harness clips had some sort of yellowing coating on the metal part so I cleaned them up with some acetone and hit them with some clear enamel.



[Engineer8000]

I finished installing the cast hitch. I used these bolts, they are used to connect tow hooks on a Tundra.



[Engineer8000]

I started stripping and priming this week also. I finished the hatch, tail gate and half a door.



[wimberosa]

Are these some older purchased nuts for the hinges or recently delivered from Matt? I'm wondering what the delivery times are these days and if things may have changed.



[Engineer8000]

I bought these from Matt a while back, when he was still a member on here. I placed an order from him last year on 6/27 and it shipped 7/16. I did not think that was too bad.



[RevISK]

I finished installing the cast hitch. I used these bolts, they are used to connect tow hooks on a Tundra.



View attachment 4128870

View attachment 4128869

Thanks for the part number, I actually need to replace these bolts on my tundra.



[Engineer8000]

Not much going on the last week or so. I had it with the body shop and brought home everything but the tub. I worked on one of the doors that had the limiter ears ripped off in the past and poorly repaired.

I was thinking on the wiring. I need 5 fusible links and three fused circuits under the hood.

FLs
main fuse panel in truck
EFI x 2
alt power
alt sense

fuses
headlights (using the upgrade harness, modified)
fog lights
OBA compressor clutch

I didn't like the thought of all that hanging off the battery terminal. I found this scrolling for ideas on ebay, they are made for VWs and AUDIs. It has 5 FLs and three fuses. It uses good bolted connections vs. plugs for the FL. I rearranged/replaced the fusible links for the ratings I need. Still need to replace the fuses with lower amperage. I crimped those Sumitomo connectors on the plug it comes with. It looks like there should be some seal where the wires enter, I need to find that still and I will need to change that main supply connector.



[knuckle47]

For what it’s worth…. That is great… I must have at least 6 wires hanging on the + and 4 on the - of the battery…it’s clean but I don’t like the look of it. Where would this be mounted?



[wimberosa]

See.... @Engineer8000 .... there you go. Now I have envy of the HP 11C on your desk. Particularly fond of the 16C as well.



[Engineer8000]

For what it’s worth…. That is great… I must have at least 6 wires hanging on the + and 4 on the - of the battery…it’s clean but I don’t like the look of it. Where would this be mounted?

I am planning on creating a bracket that attaches to the fender where the carb fan would attach. This would be there as well as the relays for the headlights, fog lights and compressor clutch. I'm modifying the headlight upgrade harness to work like that. I bought a second headlight upgrade harness to use for the fog lights and air compressor. They can be relatively inexpensive on ebay considering all the wire and relays you get.



[Engineer8000]

See.... @Engineer8000 .... there you go. Now I have envy of the HP 11C on your desk. Particularly fond of the 16C as well.

That's a 15C, never could afford one back when they came out when I was in college. I got this minty one on ebay a few years ago. Nostalgia. I have a 12c financial calculator I use in the house that I picked up at a junk store for 10 bucks. Honestly, 99% of my math now days is done in excel.



[Engineer8000]

If you ever need to re-pin one of these VW connectors, slide the purple part over opposite the arrow and the terminals should come right out. I had a little issue with the middle one, had to get out my Yazaki tool to get the tab to clear. Remember to pop the tabs up a little on the terminals before re-installing.



[Engineer8000]

I found this at carrot top tuning, pretty slick.



[knuckle47]

@Engineer8000 after seeing your post this morning it searched eBay and found this box and ordered it. Did the 3 pin connector come with it? I have a few watertight 3 pin connectors but I debate whether they will fit the box arriving on Monday. You should know this actually will make my battery LOOK NORMAL AGAIN !



[Engineer8000]

I don't know if all of them come with the connector, the one I bought specifically showed it in the listing. I bought my replacement links from a VW parts place but I'm thinking they are the same as these HSB fuses by Littlefuse. Much less expensive from Mouser.
