Going to be posting progress as I upgrade my 94 FJZ80 Stereo. Going for a factory look wherever possible, and getting creative with 3D Printing to overcome the small, shallow door speaker limitations. Here's the gear I'm working with so far:

• Front Door Speakers: Morel Maximo 5.25 Components (hope to 3D Print and mount tweeters by the rear view mirror trim.)
• Rear Door Speakers: Rockford Fosgate Punch 5.25 P152's. (Bumped out to clear the window with Custom 3DP bezel)
• Sub: JL Audio 6W3c3-4 6.5" (Seeing if I can use factory bracket)
• Amp: Alpine MRV-M250 (May 3D Print a mounting bracket or something.)
• Head unit: Don't know yet.
• Remaining dash/headliner speakers: Don't know and not sure if I care. Considering mounting the Morel tweeters in the lower dash location (if the A pillar location doesn't work.)
• Going to use some Dynamat inside door panels along the way.

Digging into the back door speakers first as they seem to be the easiest place to start.

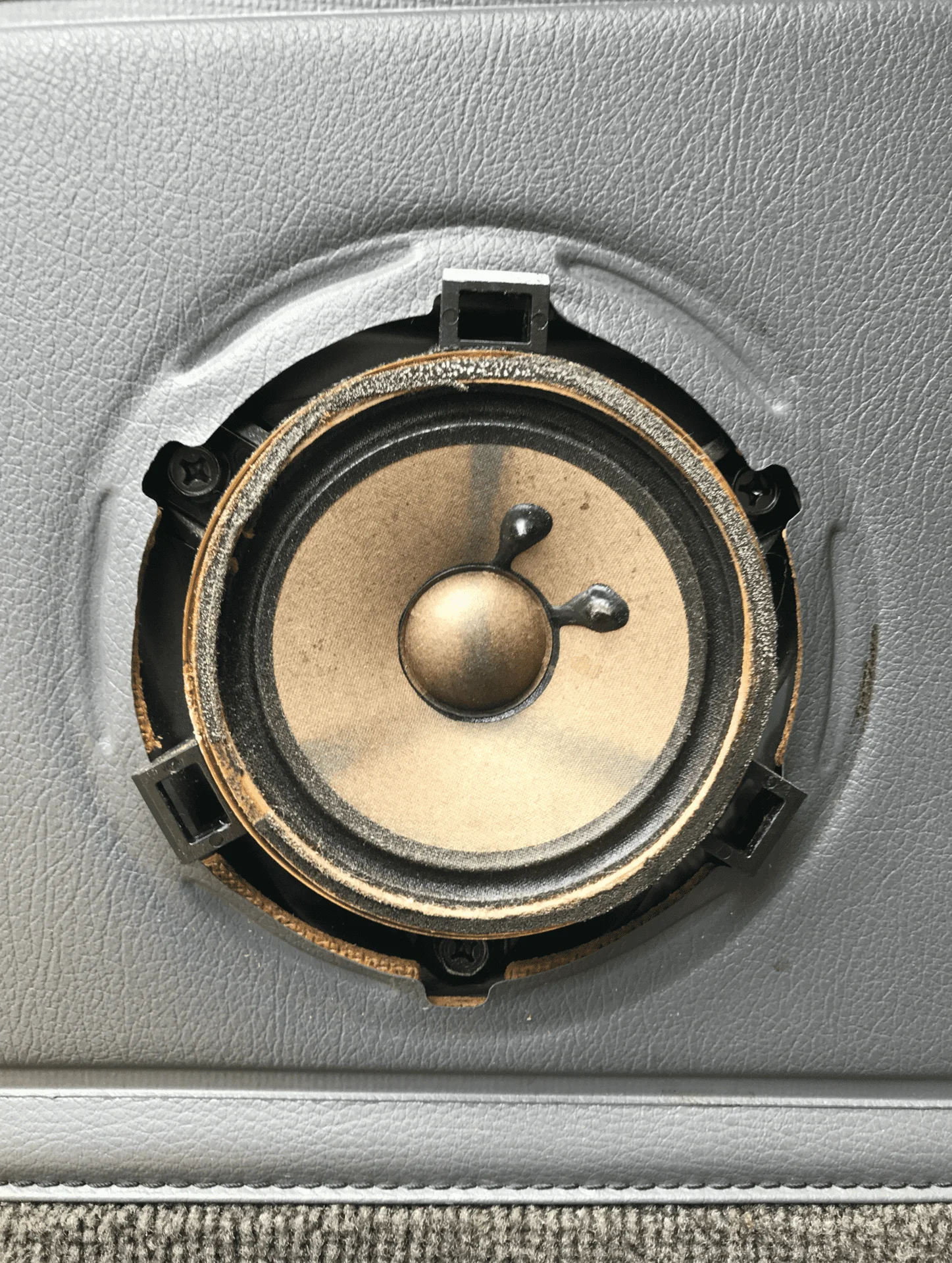

- Pry grill off to reveal JANKY blown original speaker.
- Remove 3 screws and pry out the plastic speaker basket housing. (Gotta break through the adhesive) Cut wires.

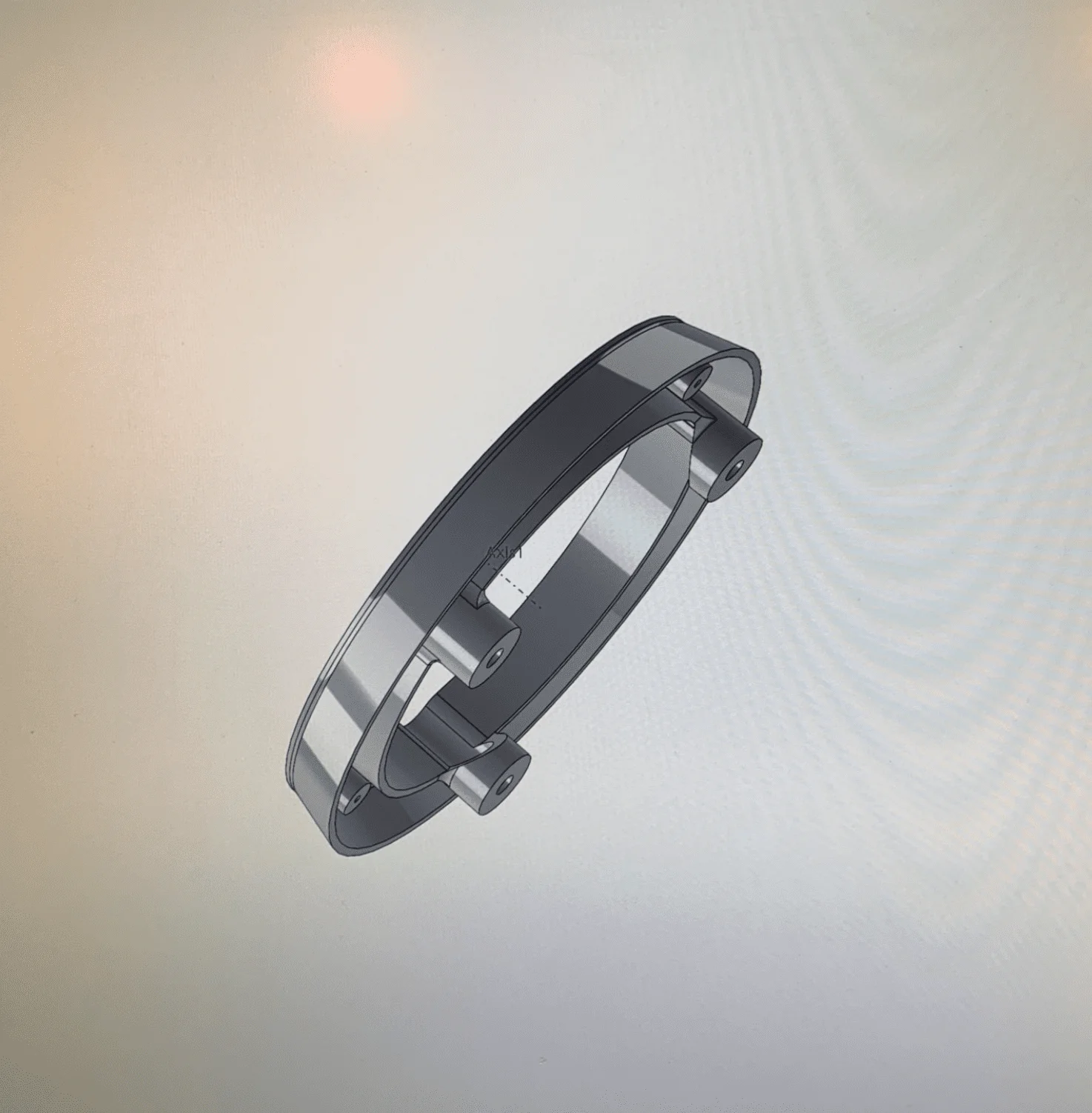

- Used the OEM speaker basket to template the new 3D mount, built up the height, increased the diameter, and included the new speaker hole pattern.

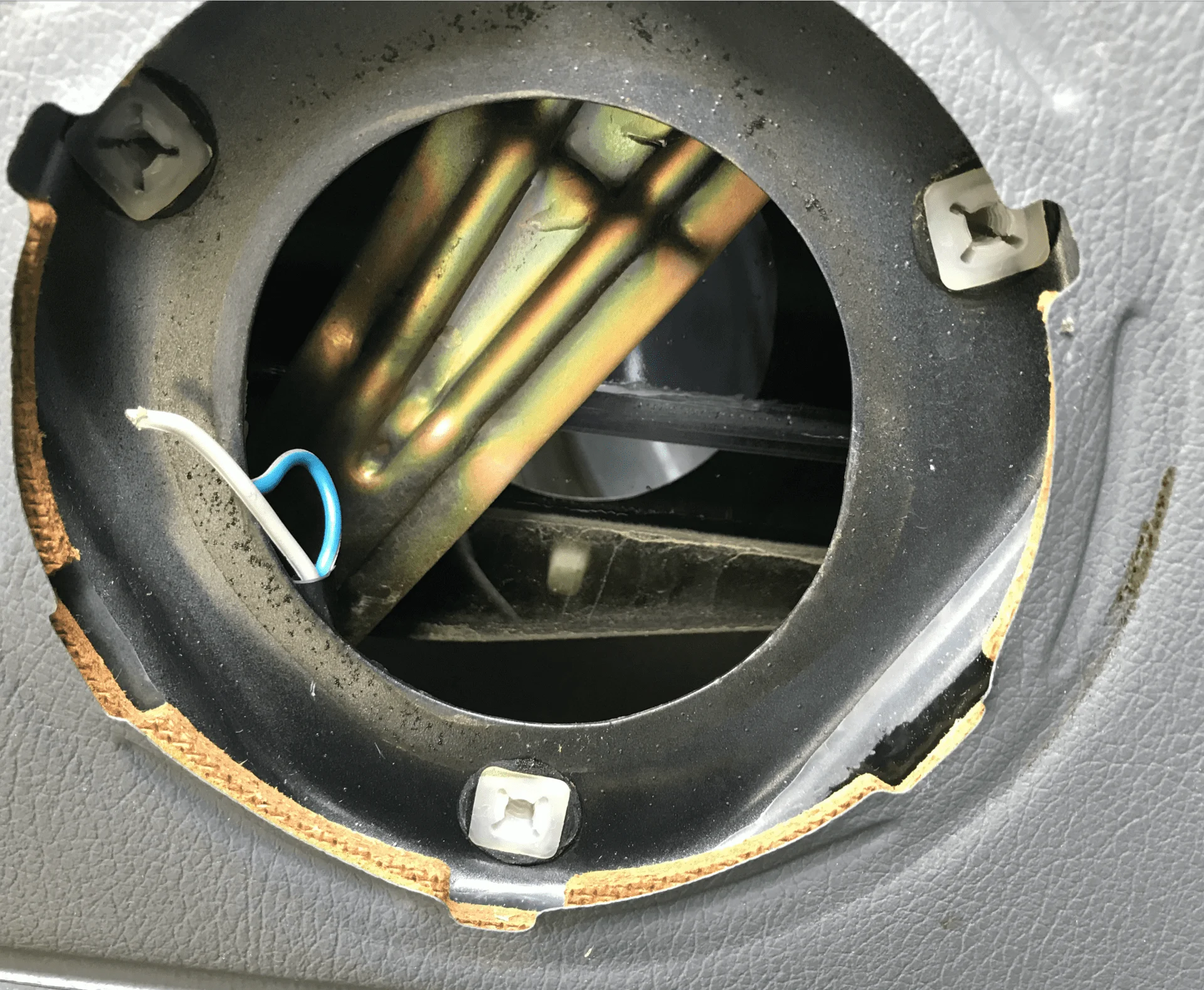

- Masked the door (for sparks) and Dremeled the opening to increase clearance for the big Punch magnet and for wiring clearance.
- Xacto cut out the door material to provide access to the 3 original screw mounts.
-



[Brisco94]

Forum noob here - I couldn't post any more pics so replying to my own thread.

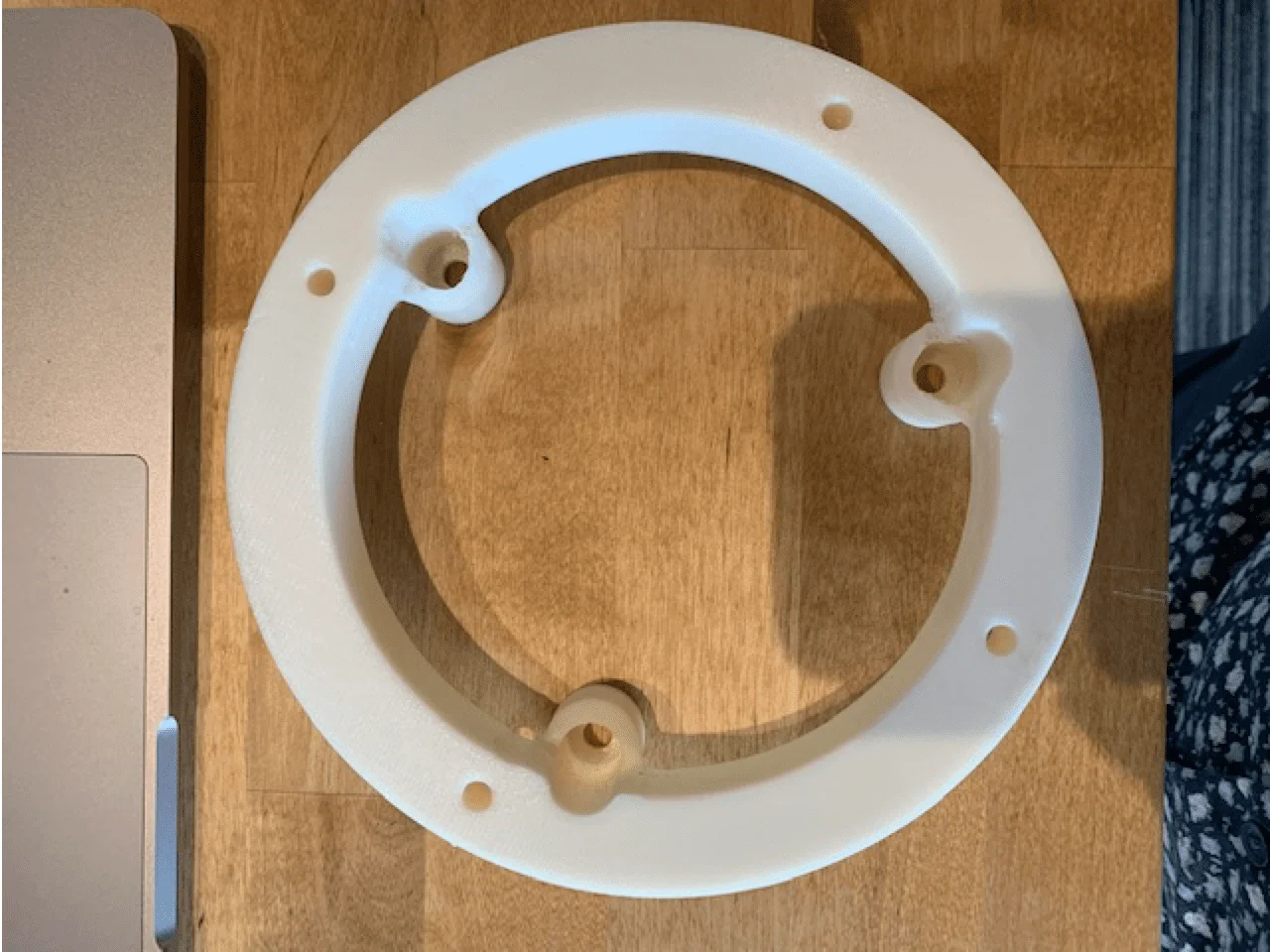

This pic shows how it goes together. With the standoffs, this magnet still clears the power window actuator.

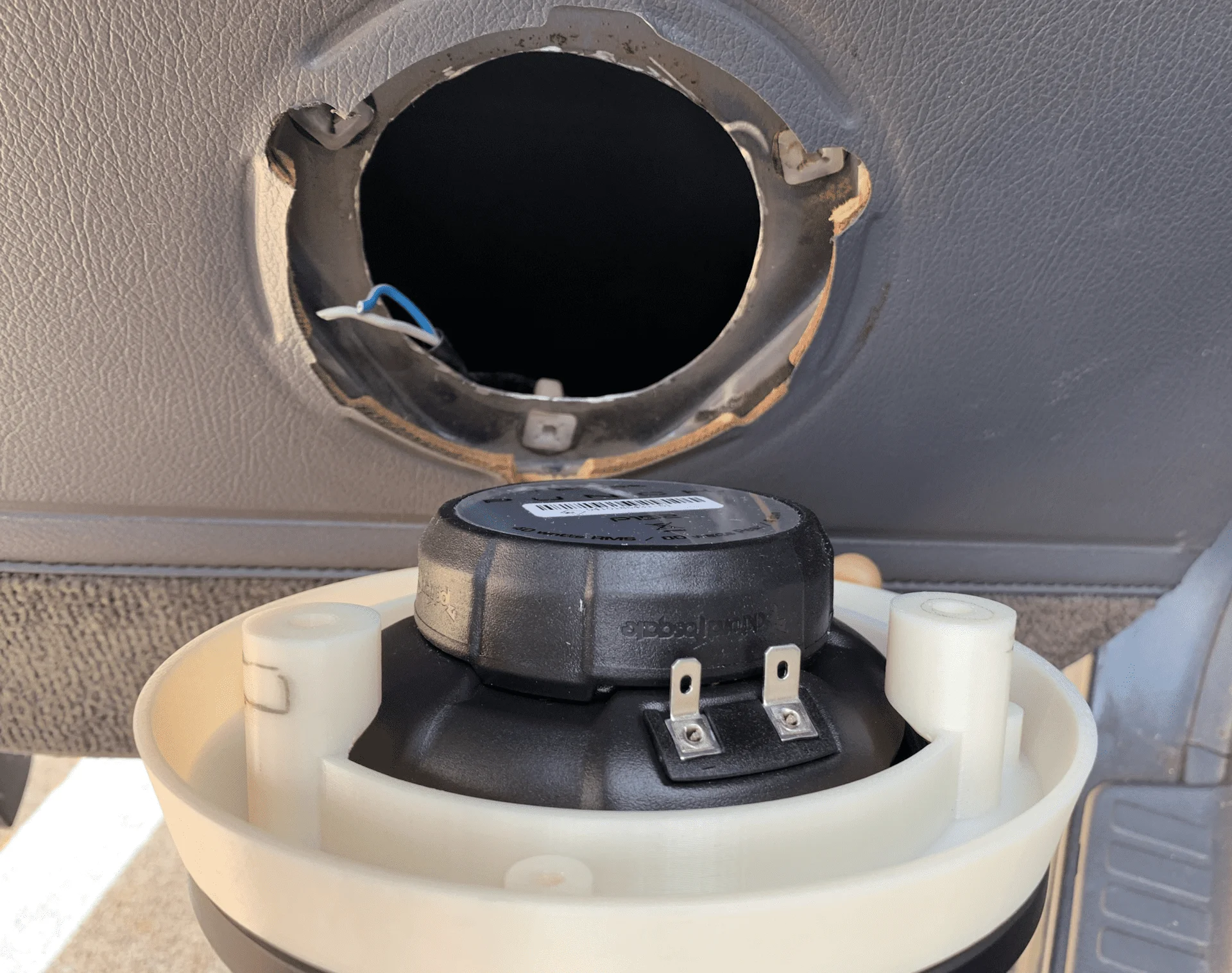

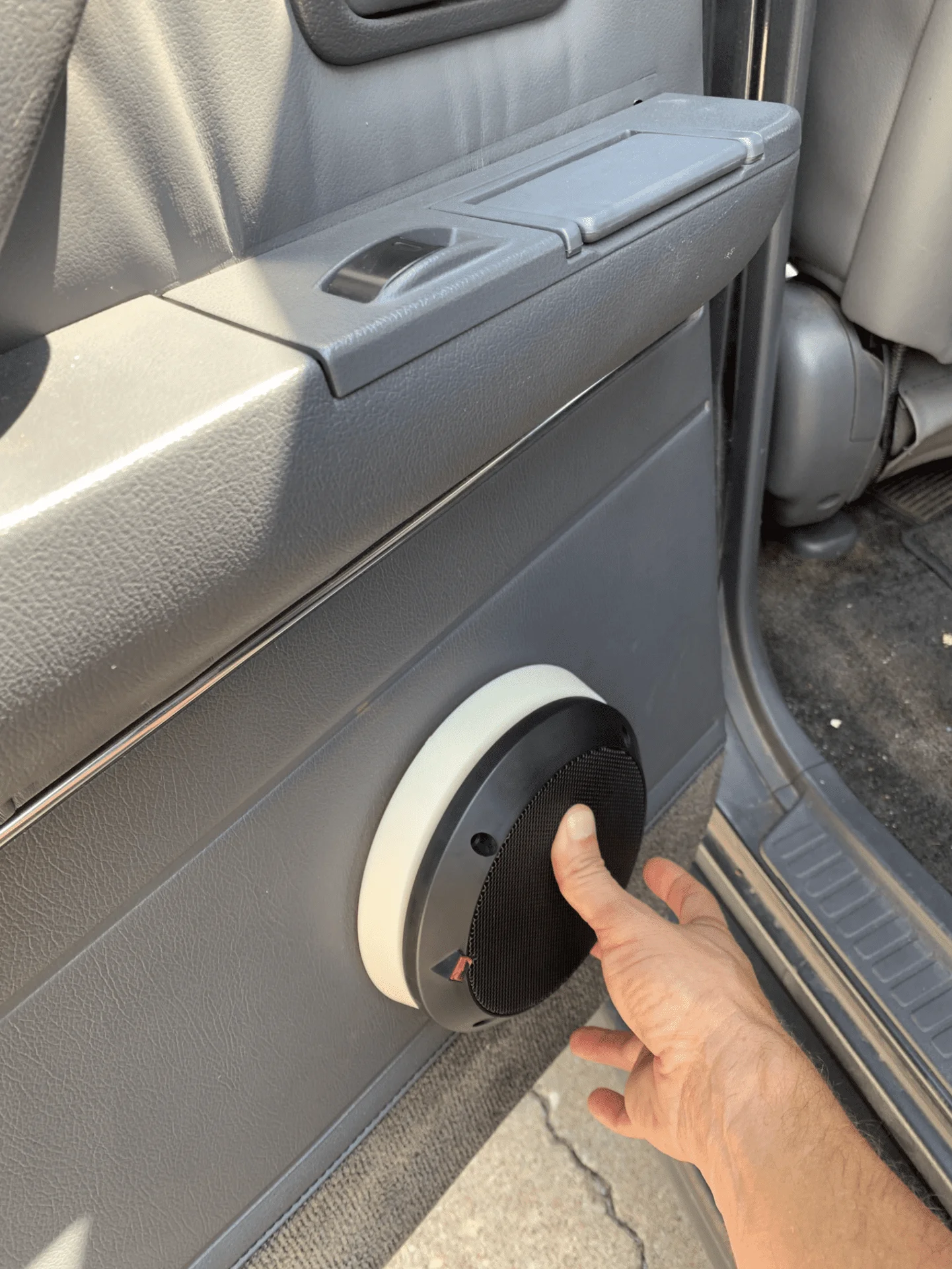

This image shows it roughly comped into the opening. Going to sand, prime, and paint the standoff for a cleaner look. Debating between black or gray. These stand a little taller than I hoped, but I think when it's painted and installed, I won't mind.

I was originally hoping to use the factory grill, but I didn't see a realistic way to attach it to the 5.25's. I think these RF Punch Grills are a decent match.

That's all the progress for now. I'll post more when it matters.
