Builds 1987 FJ60 Expedition Build (2 Viewers)
- Thread starter KeepCruzin
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #462
Ill track it down for you. Its a 4runner compressor I believe. Ill find it though.
- Thread starter
- #463
I havent fixed the bumper yet, but I might replace it with a 4plus or another style of bumper. But if I choose to go with something stock, Ill be sure to get in touch! You got a rough price in mind?
For a fellow 12H-T owner, pretty cheap.
- Thread starter
- #465

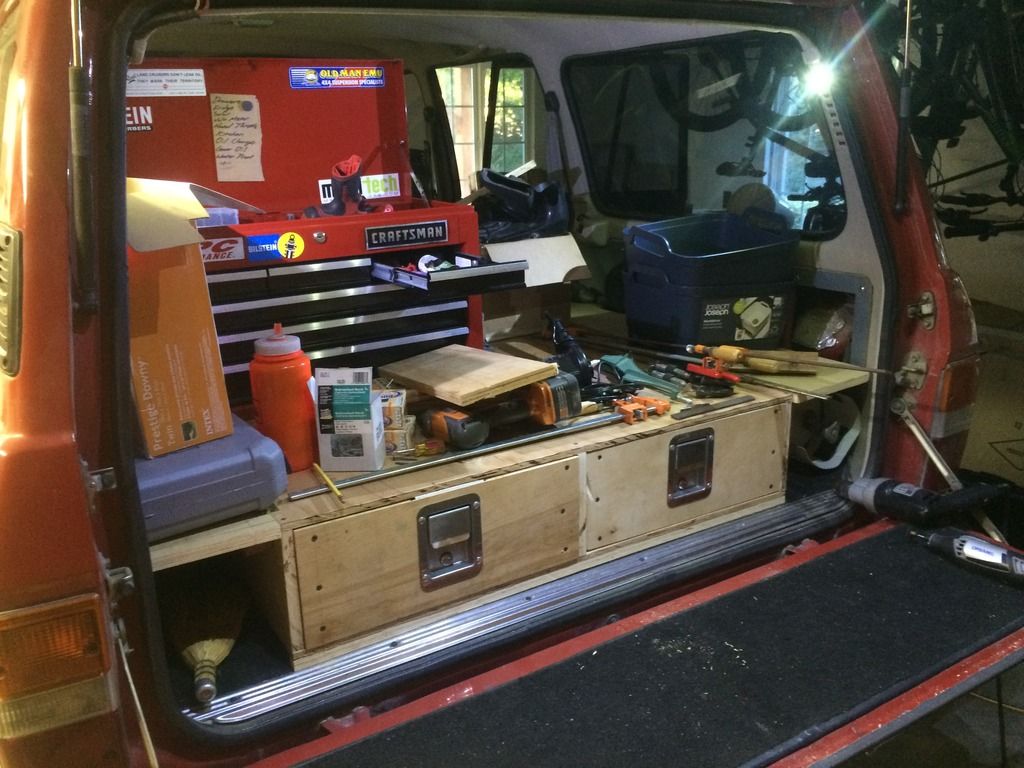

More drawer progress.
The drawers are fully assembled, and they open, close, latch, and lock. The basic system is now good to go, and in the next couple days I will be installing my 100watt, 12volt solar panel, third battery, and Waeco CFX50 fridge.
More updates to come.
The drawers are fully assembled, and they open, close, latch, and lock. The basic system is now good to go, and in the next couple days I will be installing my 100watt, 12volt solar panel, third battery, and Waeco CFX50 fridge.
More updates to come.
gregnash
Anal Retentive Analyst
Looking good dude!
MicahMan
TLCA 20925
SWEET! I need to build shelves in mine as well
- Thread starter
- #468
Solar system is done!
First off, I got my solar system all put together.
The panel is mounted to a homemade roof rack, then runs to the rear where I installed a charge controller. Then I installed a third battery under the rear driver's side beside the spare tire, bolted to the frame.
That third battery runs the fridge completely independently. Unfortunately I didnt take any photos of that whole system, but I did take photos of the rack and panel
First off, I got my solar system all put together.
The panel is mounted to a homemade roof rack, then runs to the rear where I installed a charge controller. Then I installed a third battery under the rear driver's side beside the spare tire, bolted to the frame.
That third battery runs the fridge completely independently. Unfortunately I didnt take any photos of that whole system, but I did take photos of the rack and panel
- Thread starter
- #469

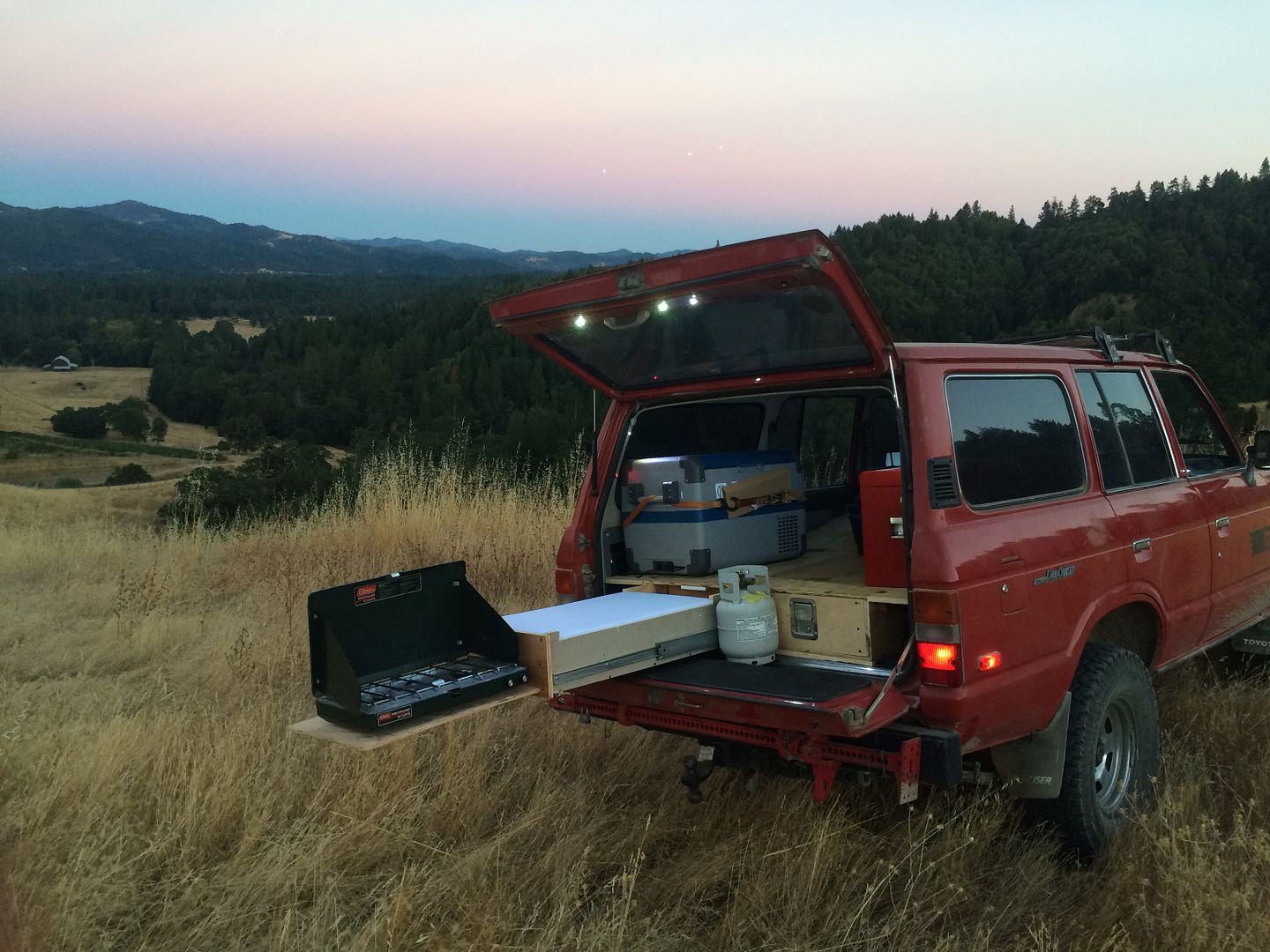

Then we did some work on the kitchen and got it all put together.
Fridge, drawer, cutting board, stove, and sinks are all in.
I've already used the fridge for a bunch of work-related trips this summer. Being able to go out on the ranch for a day and always have cold water and food even in 100 degree temperatures was amazing.
More details on the kitchen setup, propane system, and "finalization" to come.
I plan to carpet the top of the drawer system.
Fridge, drawer, cutting board, stove, and sinks are all in.
I've already used the fridge for a bunch of work-related trips this summer. Being able to go out on the ranch for a day and always have cold water and food even in 100 degree temperatures was amazing.
More details on the kitchen setup, propane system, and "finalization" to come.
I plan to carpet the top of the drawer system.
- Joined
- Jul 22, 2012
- Threads
- 484
- Messages
- 14,279
- Location
- Winter Park, Florida
- Website
- www.cruisermatts.com
I'm glad all your setup works nicely, but please tell me you're going to redo that roof rack! Get those outer clamp parts bent instead of welded, and use some nice tube instead of threaded conduit. Don't want to be harsh but you have potential man!
- Thread starter
- #471
It was necessary to keep things in budget (unfortunately)
And as for bent vs welded, I didn't see any real advantage so I just welded them. This rack is only temporary to hold the solar panel
Awesome job stud! Looking forward to see all that new stuff.
cruisedeisel
Toyota's for life
Cruiser 1
Dodge neon zero
I hope your frame is still straight.
Dodge neon zero
I hope your frame is still straight.
- Thread starter
- #475
Hey guys. I have another question.
So after I did my rear drums and shoes, my brakes just havent been the same. Some of it I attribute to the new master cylinder, but I could really use some advice.
Problem 1: Braking power is low. No matter how hard I slam on the brake, none of the wheels will lock up. Im not sure this is a particularly bad thing because its almost "budget" anti-lock braking. Should I try to remedy this? The braking power is decent, but the tires definitely wont lock up unless I absolutely crush the brake pedal. Should I bleed the whole system again?
Problem 2: The rear drums seemed to be a bit loose. Before today my e-brake really didnt work all that well. It would do a decent job of holding me on a hill, but not great. In order to really "lock it up", I had to first press the brake peddle, then crank on the ebrake, even after I tightened the adjustment nut down quite a ways and it was hard to pull the handle.
CURRENT Problem: I have tightened the shoes. The E-brake now works about 60% better, and can hold me on almost any hill. However, the shoes might be TOO tight now, as it is very difficult to push the car on flat ground by myself.
I did a roll test (went down a small hill in neutral with brakes off to see how much resistance there was), and after the shoe adjustment, though I gained better braking, I drastically increased my rear drum resistance, and Im afraid that I will wear them out.
Any thoughts?
Thank you all in advance
So after I did my rear drums and shoes, my brakes just havent been the same. Some of it I attribute to the new master cylinder, but I could really use some advice.
Problem 1: Braking power is low. No matter how hard I slam on the brake, none of the wheels will lock up. Im not sure this is a particularly bad thing because its almost "budget" anti-lock braking. Should I try to remedy this? The braking power is decent, but the tires definitely wont lock up unless I absolutely crush the brake pedal. Should I bleed the whole system again?
Problem 2: The rear drums seemed to be a bit loose. Before today my e-brake really didnt work all that well. It would do a decent job of holding me on a hill, but not great. In order to really "lock it up", I had to first press the brake peddle, then crank on the ebrake, even after I tightened the adjustment nut down quite a ways and it was hard to pull the handle.
CURRENT Problem: I have tightened the shoes. The E-brake now works about 60% better, and can hold me on almost any hill. However, the shoes might be TOO tight now, as it is very difficult to push the car on flat ground by myself.
I did a roll test (went down a small hill in neutral with brakes off to see how much resistance there was), and after the shoe adjustment, though I gained better braking, I drastically increased my rear drum resistance, and Im afraid that I will wear them out.
Any thoughts?
Thank you all in advance
First question I will ask is this.
Did you bled the brakes right?
According to the FSM.
the Shoe clearance is .06mm (0.024 in)

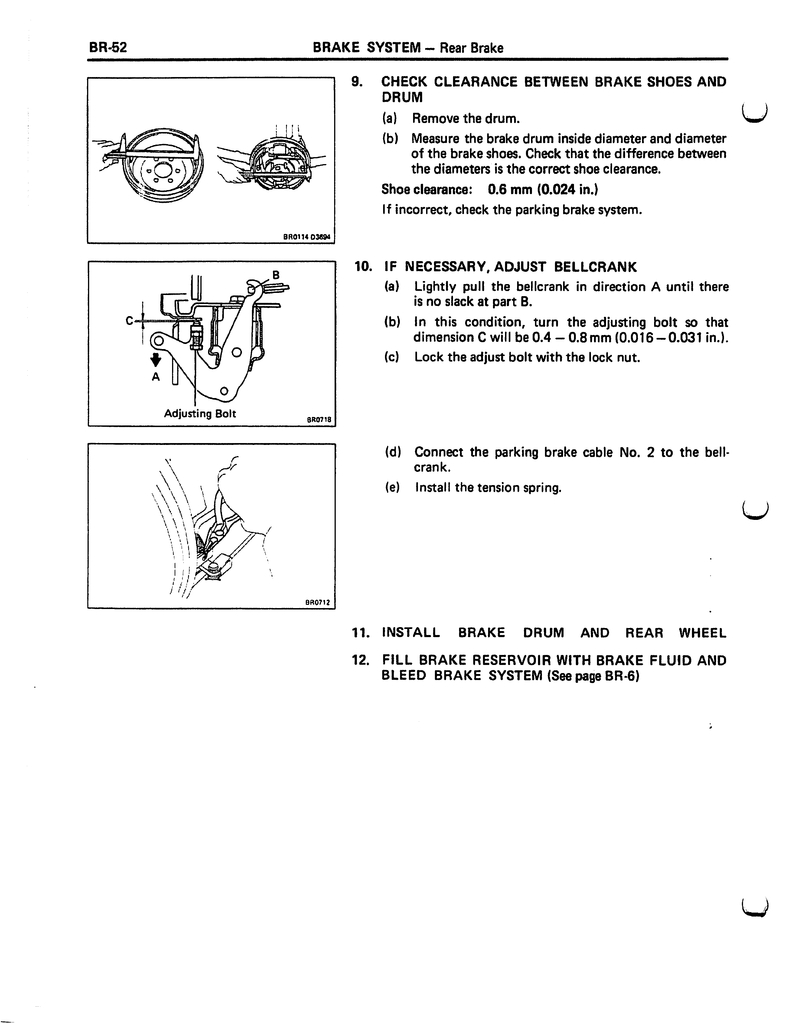

Pulled from my manual (scanned for you!)
Did you bled the brakes right?
According to the FSM.
the Shoe clearance is .06mm (0.024 in)
Pulled from my manual (scanned for you!)
I re-did my rear brakes recently. Thought that my master was going out on me after replacing everything else. My e-brake was also pointless after replacing parts, not braking at all.
I followed the FSM and brought the rear axle up on jack stands. Tightened the star adjustment wheels up until they the rear wheels wouldn't turn. Then back the adjusters back 3-4 clicks.
After doing this I was able to lock up the tears on dry pavement.
I followed the FSM and brought the rear axle up on jack stands. Tightened the star adjustment wheels up until they the rear wheels wouldn't turn. Then back the adjusters back 3-4 clicks.
After doing this I was able to lock up the tears on dry pavement.
Did you bench bled the MC?
What sequence did you follow on the bleeding of the brakes.
I believe you do the
LR tire first
RR tire second
LF tire third
RF tire last.
You might want to pull apart those bell cranks and see that these are clean, and or put some lube in them. Also check that cable, and ditto on what the post above says.....
What sequence did you follow on the bleeding of the brakes.
I believe you do the
LR tire first
RR tire second
LF tire third
RF tire last.
You might want to pull apart those bell cranks and see that these are clean, and or put some lube in them. Also check that cable, and ditto on what the post above says.....
- Thread starter
- #479
Thank you all so much for the help. I really appreciate it. Ill give you an update when I get after it.
Nice set-up, especially the kitchen.
Please tell me the zip ties holding your solar panels in place are temporary.
Please tell me the zip ties holding your solar panels in place are temporary.
