cruiserdan said:
56s are all JDM
Click to expand...

I don't disagree 😀

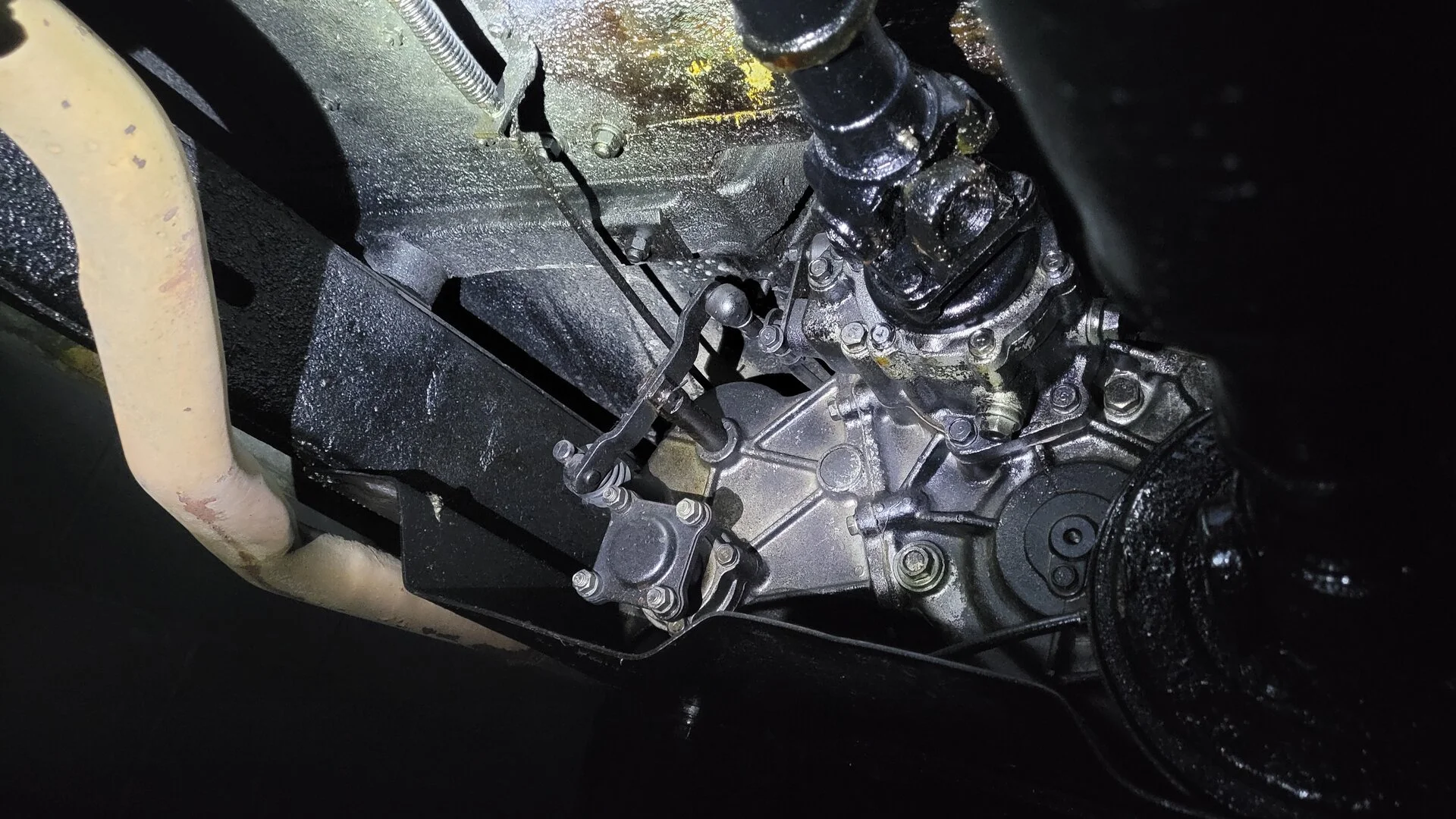

I'm sure you recognize the ‘Fier Truck' in question. I didn't crawl under the tow truck. It may be magnet type too. EDIT: I was around the corner and stopped back by. The FJ56 tow truck is also 'Magnetic Type' and triple PTO'd which is cool too 😎

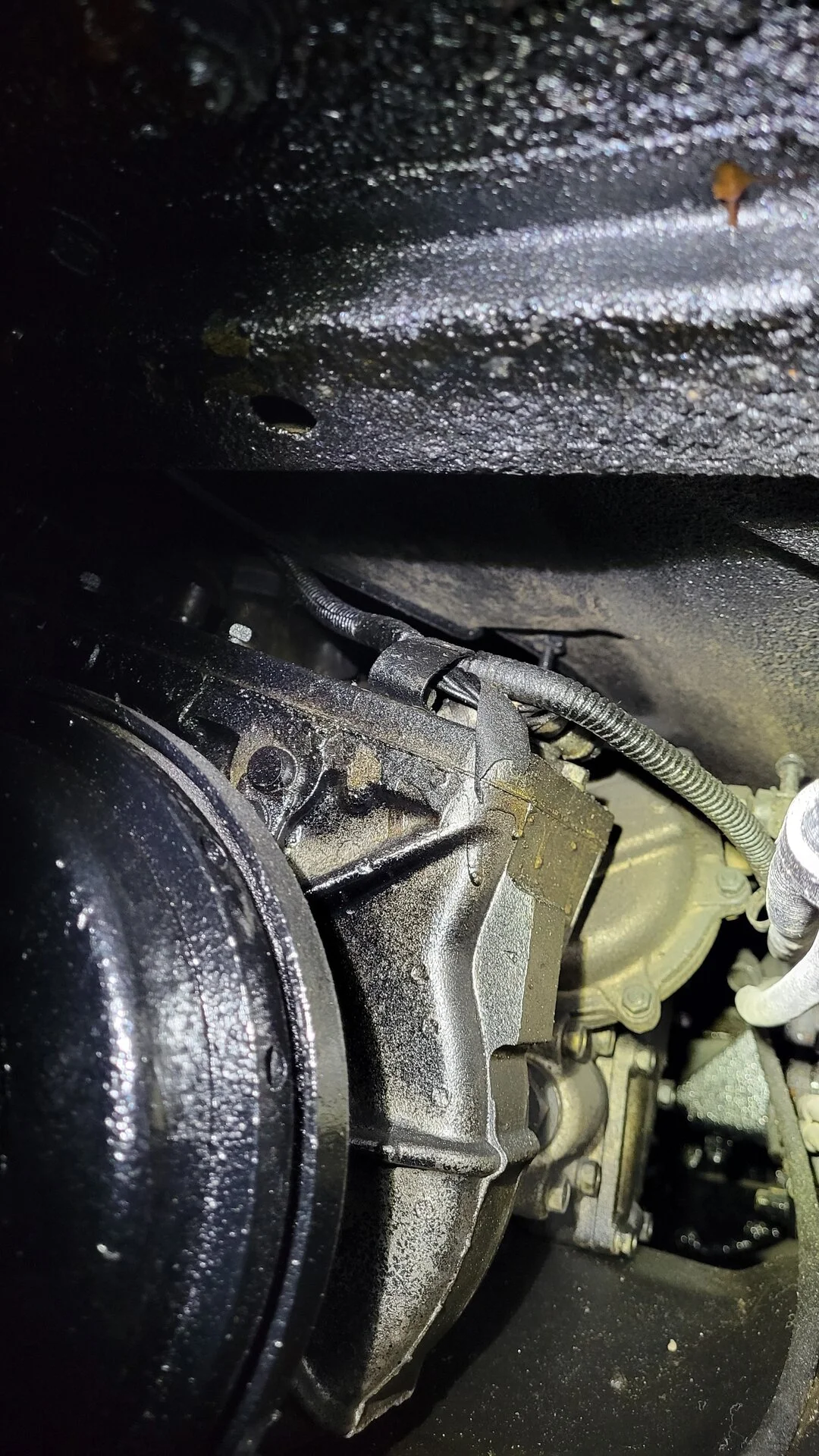

Hard to see, but it's got the switch.


Front and rear traditional PTO and the rear trans output shaft (tcase input shaft) PTO.

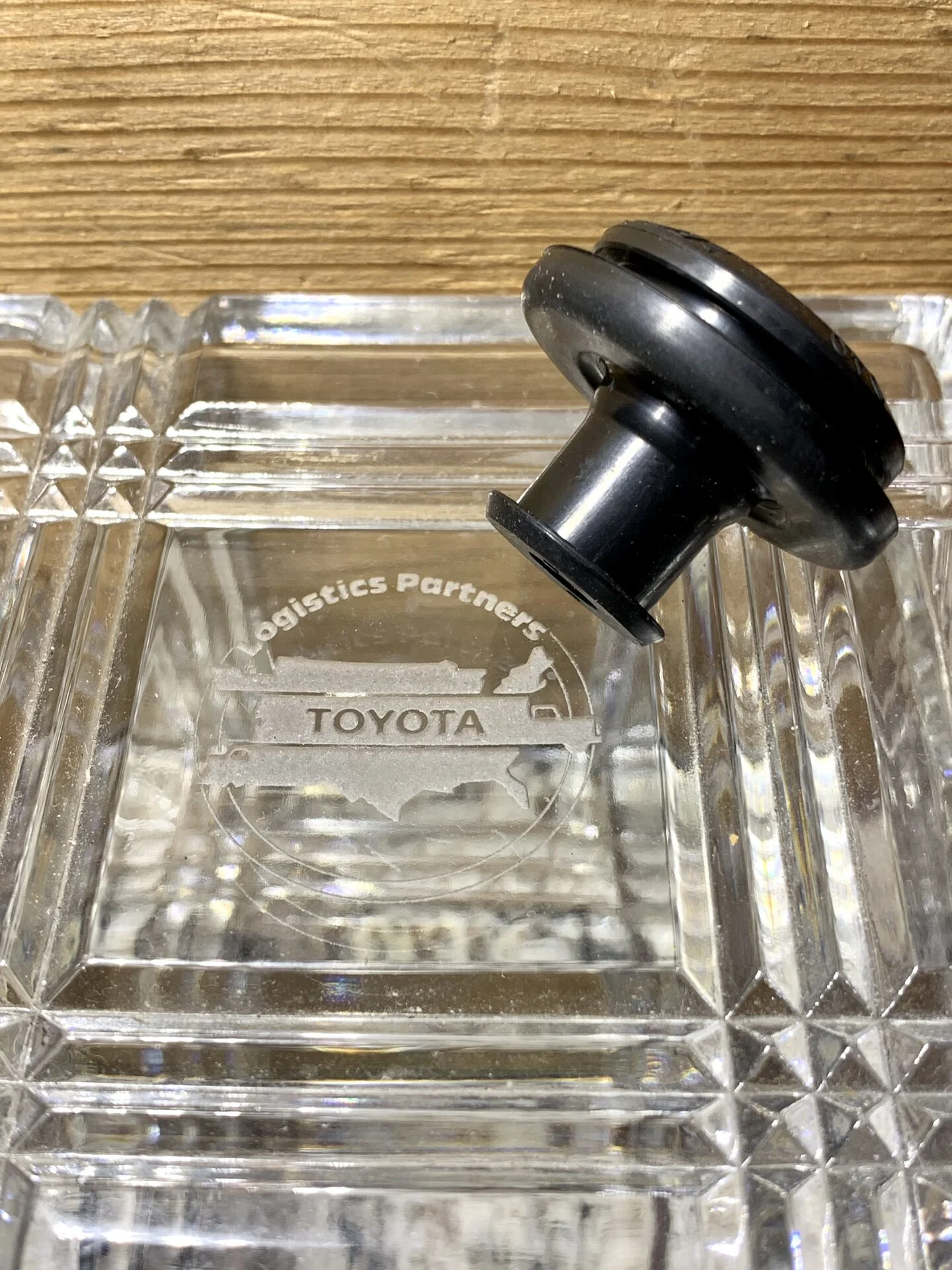

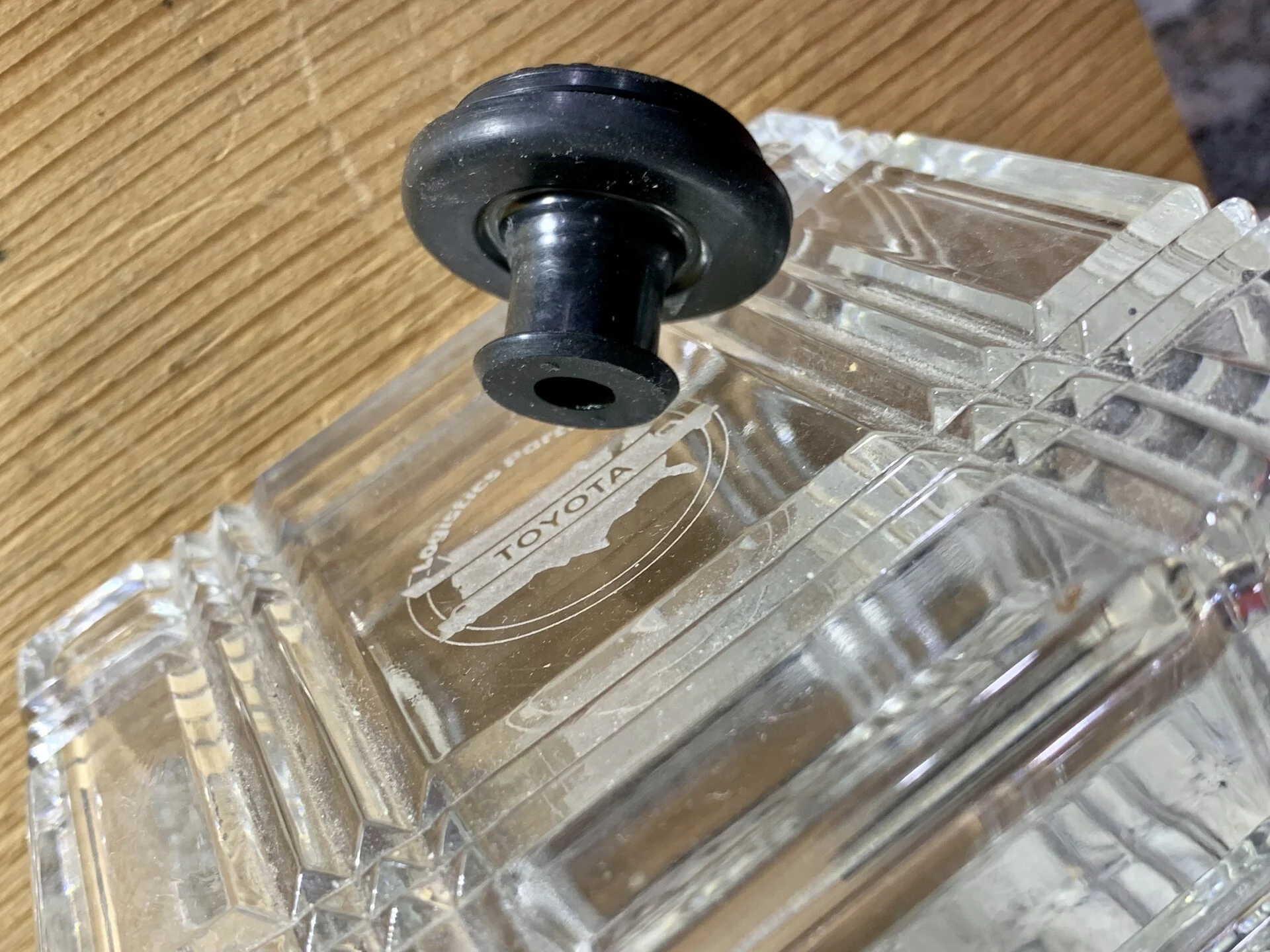

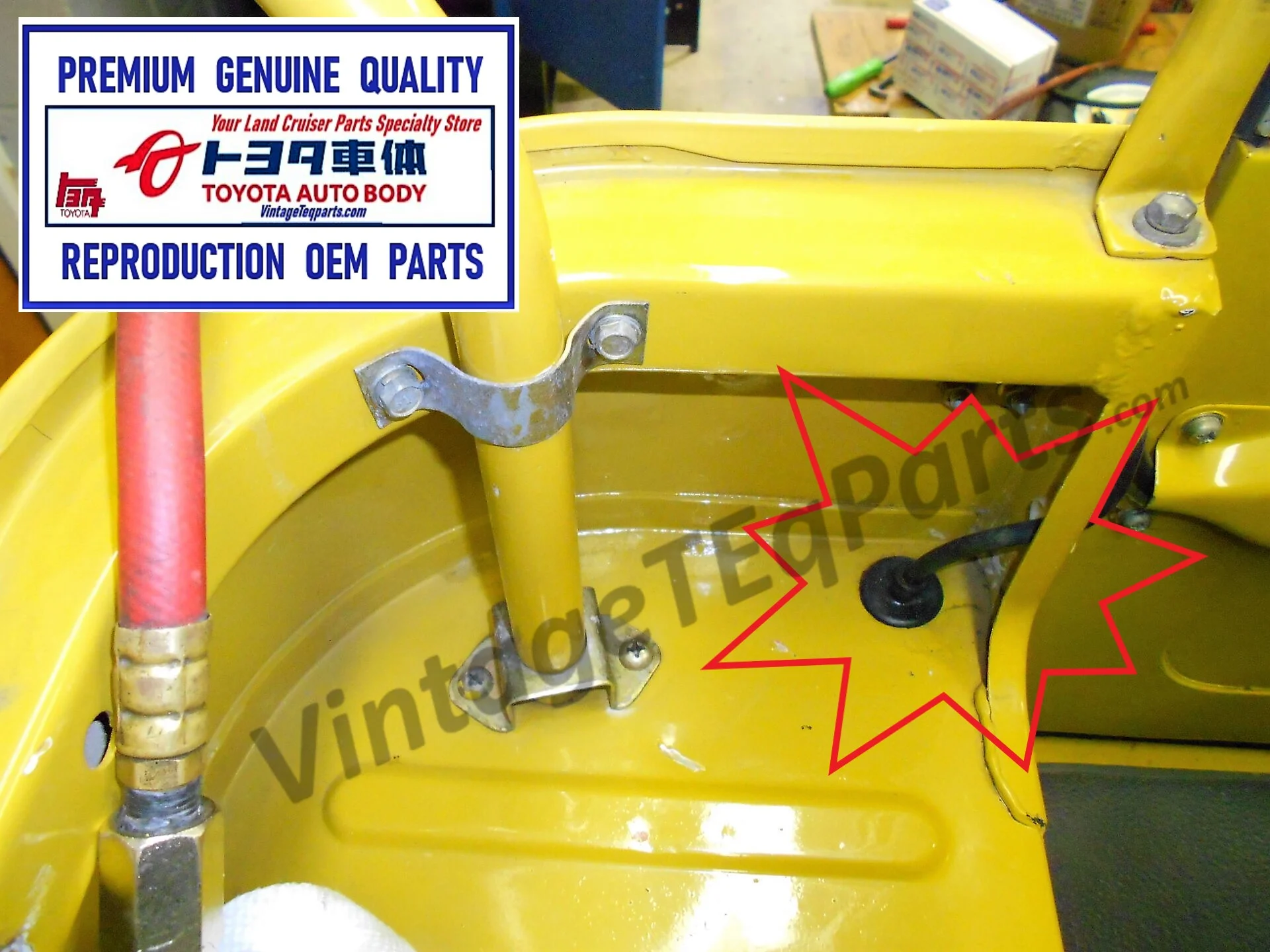

40 series rear wheel well side marker lamps / ambulance door tag lamps grommets are alive again ….

In my research I could not find a part # to reference or that is was ever available as a service replacement part ?

My original specimens only had the YAZAKI triangle logo ?








Last edited:
ToyotaMatt said:
40 series rear wheel well side marker lamps / ambulance door tag lamps grommets are alive again ….

In my research I could not find a part # to reference or that is was ever available as a service replacement part ?

My original specimens only had the YAZAKI triangle logo ?


View attachment 3272746View attachment 3272747View attachment 3272749
Click to expand...
This p/n 90480-15194 ? I've ordered several in the past and it's for the license plate light/door tag lamps as you have described. But if you have the fender grommet for the fender blinkers, I'm in!!! (it's not p/n 90480-10300 which is way too small)

Last edited:
firemanj92 said:
This p/n 90480-15194 ? I've ordered several in the past and it's for the license plate light/door tag lamps as you have described. But if you have the fender grommet for the fender blinkers, I'm in!!! (it's not p/n 90480-10300)
Click to expand...




that's not correct .....


both are much smaller

I am not discussing the 2 ambulance door ones …

The ones that come up and feed the side markers lamps

Last edited:

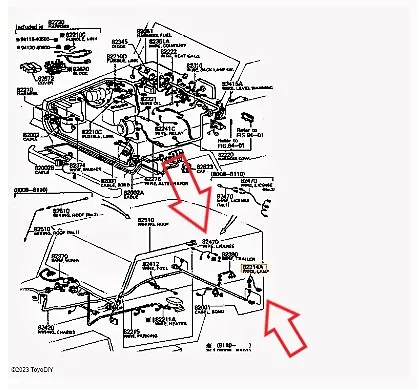

Okay, I thought you are referring to "ambulance door tag lamps grommet"???? I see the schematics. PN 82470-90802 is for later 81-84, not what I have and I thought I could help with narrowing it down with the P/N I offered. On my early, these grommets do not have "snout" on them. They are just round hole grommets coming thru the body. I have a P/N around here somewhere since I replaced all of mine with new ones....I'll look in the a.m. and add them to this post.

Also, I looked on your website for the grommets you posted to buy but it's not listed yet. Will it be soon? You and have had this conversation about Grommet #30 on Mr T's master grommet sheet (aka #90480-15007, called a "hood lock cable grommet", which is approx 21mm wide-I'm still on the hunt but it looks like you have a good substitute. I want to get a couple from ya!!

15194 is approx 23mm in diameter according to the master sheet right (prod. date 7605-?
15138 is even smaller (no mention of size on sheet-prod. date 7106-7109)

firemanj92 said:
Okay, I thought you are referring to "ambulance door tag lamps grommet"???? I see the schematics. PN 82470-90802 is for later 81-84, not what I have and I thought I could help with narrowing it down with the P/N I offered. On my early, these grommets do not have "snout" on them. They are just round hole grommets coming thru the body. I have a P/N around here somewhere since I replaced all of mine with new ones....I'll look in the a.m. and add them to this post.

Also, I looked on your website for the grommets you posted to buy but it's not listed yet. Will it be soon? You and have had this conversation about Grommet #30 on Mr T's master grommet sheet (aka #90480-15007, called a "hood lock cable grommet", which is approx 21mm wide-I'm still on the hunt but it looks like you have a good substitute. I want to get a couple from ya!!

15194 is approx 23mm in diameter according to the master sheet right (prod. date 7605-?
15138 is even smaller (no mention of size on sheet-prod. date 7106-7109)
Click to expand...


do you know what the snout is technically for ?

- the electrical tape now has a LIP to hold on to , interference fit , much like a metal hose bib had a bead ....


- Toyota's grommet charts are deceiving , so i go by actual sheet metal knock out hole ID .

- they seam to go with overall OD of the said grommet part # in those old fuzzy microfiche grind patten diagrams ? :confused:

i have never understood that logic ?

Last edited:
firemanj92 said:
Okay, I thought you are referring to "ambulance door tag lamps grommet"???? I see the schematics. PN 82470-90802 is for later 81-84, not what I have and I thought I could help with narrowing it down with the P/N I offered. On my early, these grommets do not have "snout" on them. They are just round hole grommets coming thru the body. I have a P/N around here somewhere since I replaced all of mine with new ones....I'll look in the a.m. and add them to this post.

Also, I looked on your website for the grommets you posted to buy but it's not listed yet. Will it be soon? You and have had this conversation about Grommet #30 on Mr T's master grommet sheet (aka #90480-15007, called a "hood lock cable grommet", which is approx 21mm wide-I'm still on the hunt but it looks like you have a good substitute. I want to get a couple from ya!!

15194 is approx 23mm in diameter according to the master sheet right (prod. date 7605-?
15138 is even smaller (no mention of size on sheet-prod. date 7106-7109)
Click to expand...

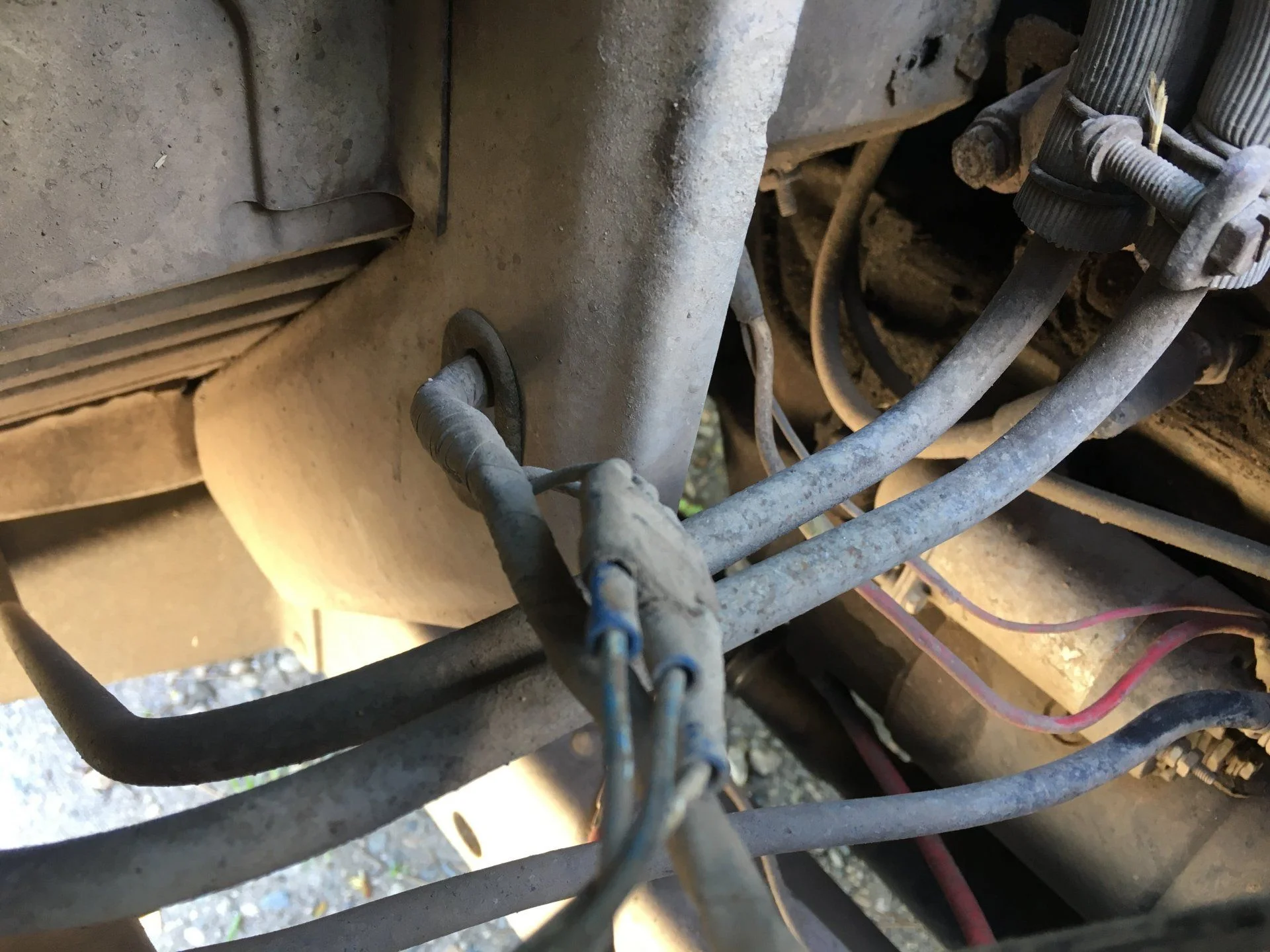

these ?

img_2676-jpg.2291789

@Racer65 If I were to send you this ventilation hose - could you have it recreated? Ideally it would be made of the same material which I believe is unreinforced NBR/CSM. Would work for 75-80 Fj40s and the same type of hose was used for 80-87, albeit a shorter, unformed version.

12261-61020


firemanj92 said:
Okay, I thought you are referring to "ambulance door tag lamps grommet"???? I see the schematics. PN 82470-90802 is for later 81-84, not what I have and I thought I could help with narrowing it down with the P/N I offered. On my early, these grommets do not have "snout" on them. They are just round hole grommets coming thru the body. I have a P/N around here somewhere since I replaced all of mine with new ones....I'll look in the a.m. and add them to this post.

Also, I looked on your website for the grommets you posted to buy but it's not listed yet. Will it be soon? You and have had this conversation about Grommet #30 on Mr T's master grommet sheet (aka #90480-15007, called a "hood lock cable grommet", which is approx 21mm wide-I'm still on the hunt but it looks like you have a good substitute. I want to get a couple from ya!!

15194 is approx 23mm in diameter according to the master sheet right (prod. date 7605-?
15138 is even smaller (no mention of size on sheet-prod. date 7106-7109)
Click to expand...

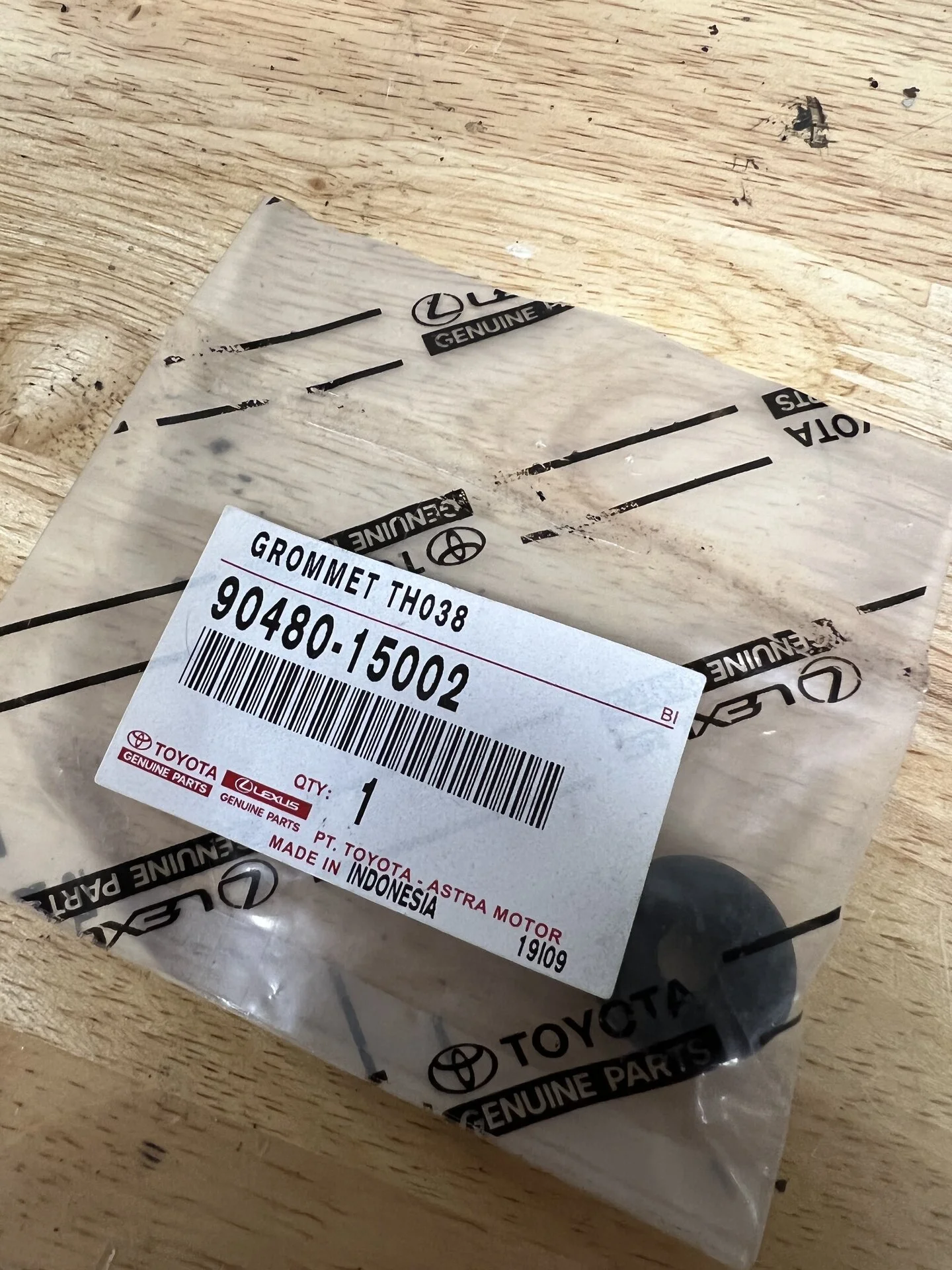

If you're talking about the pass-through grommet for the front turn signal harness into the engine bay - I used 90480-15002. It is a perfect fit.


mattressking said:
If you're talking about the pass-through grommet for the front turn signal harness into the engine bay - I used 90480-15002. It is a perfect fit.

View attachment 3278759
Click to expand...

Which I quickly recognize as a 6x hood prop rod grommet :D We use them for other applications too.

mattressking said:
You don’t track all your parts via excel and note date of acquisition, price and storage location?

That’d make two of us.
Click to expand...

Hmmm, I'm the oddball then :D


(my situation is obviously different as this is inventory that often turns into my hoard)

Horn contact insulator
