Trying to find the part number for this engine harness clamp (1 Viewer)

[Mike NXP]

Thanks.
I'd lost track of this thread. Or I'd reported back found all I've been looking for with the prefix 82711-

Any tips on the circular style clamp with a 15 over 19? This one doesn't have the other digits embossed to get me going in the right direction



[2001LC]

Any tips on the circular style clamp with a 15 over 19? This one doesn't have the other digits embossed to get me going in the right direction

Sorry no. I've not pulled a complete one to check for numbers.



[martino333]

Do you recall if any of your clamps have 15 19 stamped on? I can't find a replacement. It's one of the circular ones posted in your pic that is used on the backside of the motor to hold large wire loom in place

yes, the clip with the 15-19 is also installed in my Toyota. last year the clip was still available from the dealer without any problems.



[Mike NXP]

yes, the clip with the 15-19 is also installed in my Toyota. last year the clip was still available from the dealer without any problems.

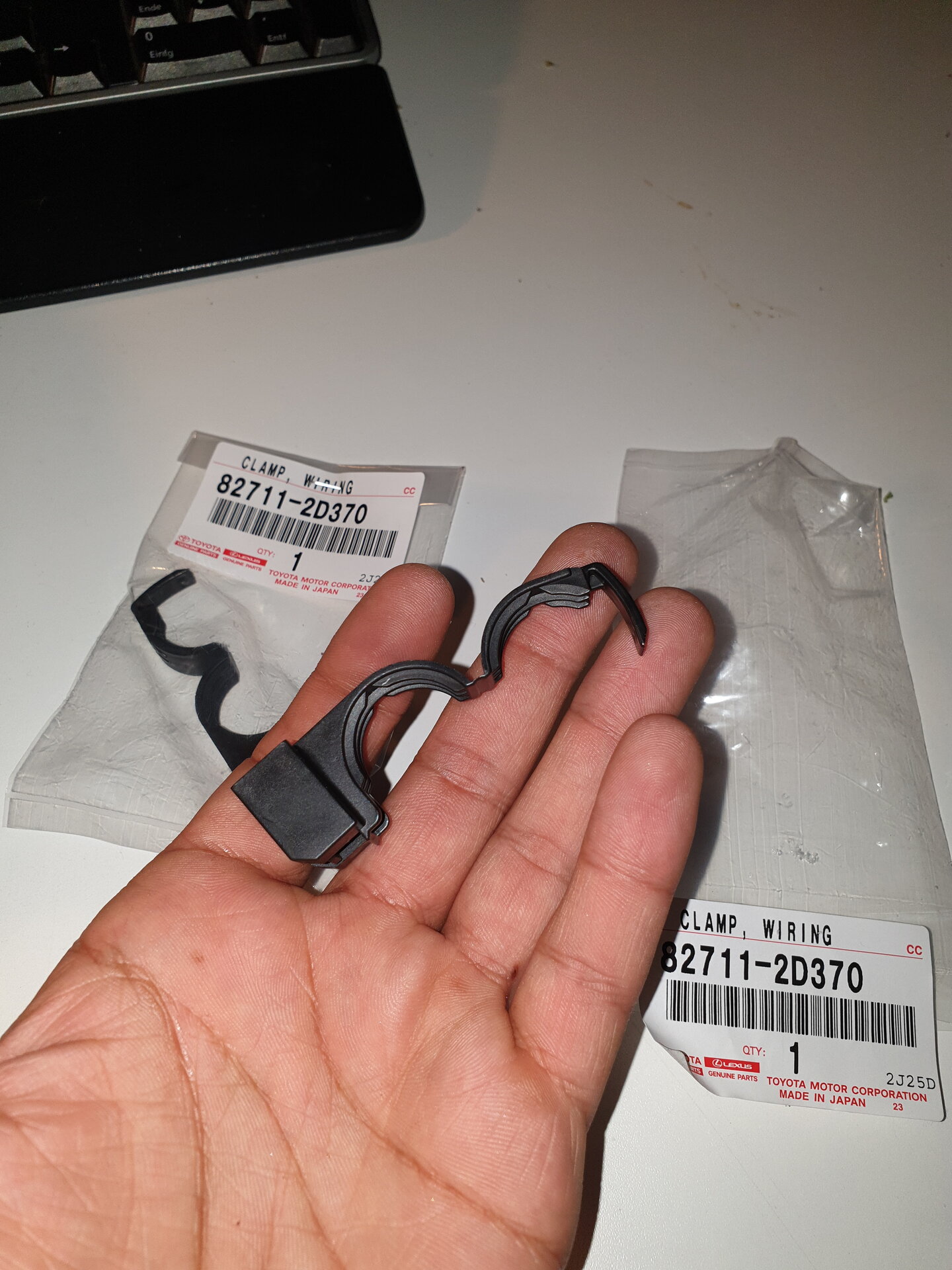

View attachment 3315968

View attachment 3315969

View attachment 3315970

View attachment 3315971

Much appreciated, the embossed number on mine has faded . Time to order a proper clip and cut the zip ties . Thanks

Looks like US vendors don't even show this part number existing anymore. Amayama.com does show it available so I'll order from over seas



[martino333]

Toyota also uses special cable ties on its wiring harnesses that fit perfectly at specific points on the body. you can also order these cable ties. finding the number is a bit tricky though. it is on the tape inside. Normally you would cut the tape open at this point with side cutters. you have to carefully open the band with a screwdriver, then you can see the second part of the five-digit part number. the first five-digit number is then the category number 82711-XXXXX, just like the brackets.



[Zuberg]

Did some digging trying to find this firewall clamp for my 2006 LC. In super fine text inside the clamp it reads "28380". So I ordered a couple from amayama.com and sure enough it's the correct clamp! Has the 28 over 32. See pics and comparison with other clamp mentioned earlier in this thread. @2001LC

My understanding is that the 03+ use this larger clamp. I know for a fact they're in the 06 and 07.



[martino333]

Yes, it is possible to get individual terminals for the wiring harnesses, but Toyota makes it really damn difficult. At terminal 28, for example, there is no number on the inside. Finding out the part number for this clamp was a real masterpiece. Anyway, congratulations if you found the clamps for your car!



[tincan45]

Adding this for others who find themselves looking for toyota engine bay clamps. It's taken hours to figure out these part numbers, I hope it helps a few folks.

Metal Tab Clamps

7mm = 82711-24010
10mm = 82711-2A420
13mm = 82711-2A600
15mm = 82711-2A530
15/19mm = 82711-2D370
25mm = 82711-3H180
28mm = 82711-20870
28/32 = 82711-28380



[edbods]

Has anyone figured out what the 13mm "barb" type clamp is? Looks just like the 2A420 clamp, but 13mm instead of 10mm.

Hopefully the below pic better shows how it's mounted:

I've got the 13mm barb clamp with me, but there's no part number on it at all, and the only other number I can see is a very small '1' to the top and right over the 13 that's on it.



[medtro]

Has anyone figured out what the 13mm "barb" type clamp is? Looks just like the 2A420 clamp, but 13mm instead of 10mm.

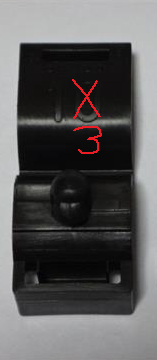

View attachment 3639833
Hopefully the below pic better shows how it's mounted:
View attachment 3639835
I've got the 13mm barb clamp with me, but there's no part number on it at all, and the only other number I can see is a very small '1' to the top and right over the 13 that's on it.

Is the part number for 13mm clamp right before your post not good?



[edbods]

Nope, that one doesn't have a little barb to stick it in a bracket



[edbods]

Gah, low post count means I can't edit posts. It's literally just the 82711-2A420 clamp but with a 13mm inner diameter, rather than a 10mm one. Which was why I crossed out the 0 in the pics I attached.



[2001LC]

Go back through this thread. You may see it. Also, look really close for P/N on your old clamp or one like elsewhere on engine. I use iphone magnifier, to see these tiny P/N.

It may be 82711-2D350. I use these on wire harness (cam, cranke & oil sending unit) that goes over LH timing cover. Also some throttle wires harnesses.



[edbods]

That one looks like it's the 10 over 13 one. This one just says 13. I know this is getting really pedantic but it's really tickling my OCD lol.



[martino333]

I'll look at home later!!



[edbods]

Thanks, any luck?



[PabloCruise]

This might help

View attachment 2917402

Very nice! Thanks!
