Toyota Tools

Joined
Oct 26, 2011
Messages
183
Location
...
formerly "Refurbishing an Early Tool Roll"

Toyota Land Cruiser Tool Kits

Large Tool Roll - 23mm (58-6308)



Large Tool Roll - 21mm (6308-65)



Large Tool Roll - 21mm (66-6903)



Medium Tool Roll - Canvas (6903-7103)



Medium Tool Roll - Vinyl (7104-7203)

View attachment 1268699

Zipper Bag -TEQ Yellow (7204-7901)

View attachment 1268703

Zipper Bag - TEQ Brown (7901-8210)

View attachment 1268704

Zipper Bag - Toyota Motor (8210-8309)



Links to Land Cruiser Tool and Tool Kit Threads

Tools / Tool Kits / Options & Accessories - Index
- Specific topics of interest relating to tools, tool kits and other early Land Cruiser items.

OEM Tool Kit Inventory
- Additional information about tools and tool kits. Includes a link to the Inventory pdf that details Land Cruiser tool kits through 1984, and includes criteria to help identify the kits and the tools included with each of the kits.

Land Cruiser Tool Kits Album - Images of Land Cruiser tool kits from IH8Mud, e-Bay, and elsewhere.

Land Cruiser Tools Albums
- Images of Land Cruiser tools from IH8Mud, e-Bay and elsewhere.

Toyota tool catalog: “Recommended Tools and Checkers”

Refurbishing an Early Tool Roll

In early 2013, I had this large tool roll refurbished, and stocked with new Toyota tools.



While the body of the roll and the pockets and loops were in fairly good shape, the top, bottom and side flaps were not. The outside of the flaps appeared to suffer from exposure to sun and moisture. The fabric was bleached, weakened, and easily torn.


Working with local canvas and leather designer Rusty Zylstra (Mercy Supply, Grand Rapids, MI) the tool roll was repaired and recovered. Rusty did a great job repairing the tool roll and making the changes needed.

The plan was to keep the body of the tool roll and replace the top, bottom and side flaps with new, waxed canvas. Keep the original buckle, but since the strap was quite worn, replace it with a canvas or leather strap. Repair the loops and pockets as needed and adjust as necessary to fit the new tools. Since the binding was worn through and falling apart in some areas, replace it with a leather binding, and cover the outside of the roll with leather for added protection.

With a new set of Toyota tools, the refurbished roll looks great.





The Refurbishing Process

Preparing the new top and bottom flaps. Rusty was able to clean and reuse the Contents List window.


Every tool loop was re-stitched and backed with leather, to address weakness due to canvas dry rot; it won't rip in the corners any more.


Two copper rivets attach the strap and buckle.


Full leather outside and trim, with a Horween leather strap.



Stocking the Tool Roll

A refurbished tool roll needs the proper tools.


With the exception of the wrench clip and grease pump, these are all new Toyota tools. Most are service tools, available in Japan, but not in the U.S. The wrench clip is from KTC, purchased on eBay. The Toyota grease pump (Yamada KH-120, part number 09170-00030) pictured above dates from around 2002 and is no longer available.

The small Yamada KH-120 grease pumps with the ring/chain are available from online sellers. The current look is different than the earlier one. The pump has a satin silver finish instead of gold, and the handle says MADE IN INDIA. Still marked YAMADA although the mark is now on the top of the head instead of the side. The pump comes with the straight nozzle, a bent nozzle (CNP-2) is available.
View attachment 1185353

When stocking an old tool roll with new tools, consider that the dimensions of new tools may be different than the originals. This is especially true of the screwdrivers. The handle sizes are larger, and the handle material is more difficult to slide through the canvas loops. It was necessary to resize the #8 and #9 loops to fit the new screwdrivers. The original roll had two rows of stitches between these loops. Fitting the screwdrivers involved removing these stitches, adjusting the loops to fit and re-stitching with a single row. Test fitting the actual tools in the vintage roll ensured a proper fit.


Ordering the Tools


The Toyota tool part numbers can be found in “Recommended Tools and Checkers”.

There are several ways to order parts from Japan. Using Amayama Trading (www.amayama.com), it took 25 days to receive the parts. Amayama uses a multi-step order process: initially enter part number and descriptive information, Amayama confirms the availability and pricing for the parts and provides the shipping cost, confirming at this point places the order.

Joined
Oct 26, 2011
Messages
183
Location
...
Tool Roll Content List - FJ40

The large tool rolls came with a Content list, identifying the tools and their location in the tool roll. Due to age, wear, exposure to the elements, etc. these lists are often in poor condition or missing.

Attached are replica Content lists. Two versions, based on the type of lug wrench (Wrench, hub nut box):

  • 1963 and earlier, with a 2-piece, 23mm lug wrench
  • 1963 and later, with a 1-piece, 21mm lug wrench
These are replica lists, not scans, that are a close match to original FJ40 lists. Original lists had several variations of wording and style, and there are differences between FJ25 and FJ40 versions. See post #11 for the FJ25 Content list.

Printed on cream color card stock, the list would look something like this:
View attachment 1053167

Based on this original:

View attachment 1053173

Content List PDF files for the 23 mm and 21 mm versions follow.


Attachments

Joined
Oct 26, 2011
Messages
183
Location
...
Toyota Hammer - Part 1

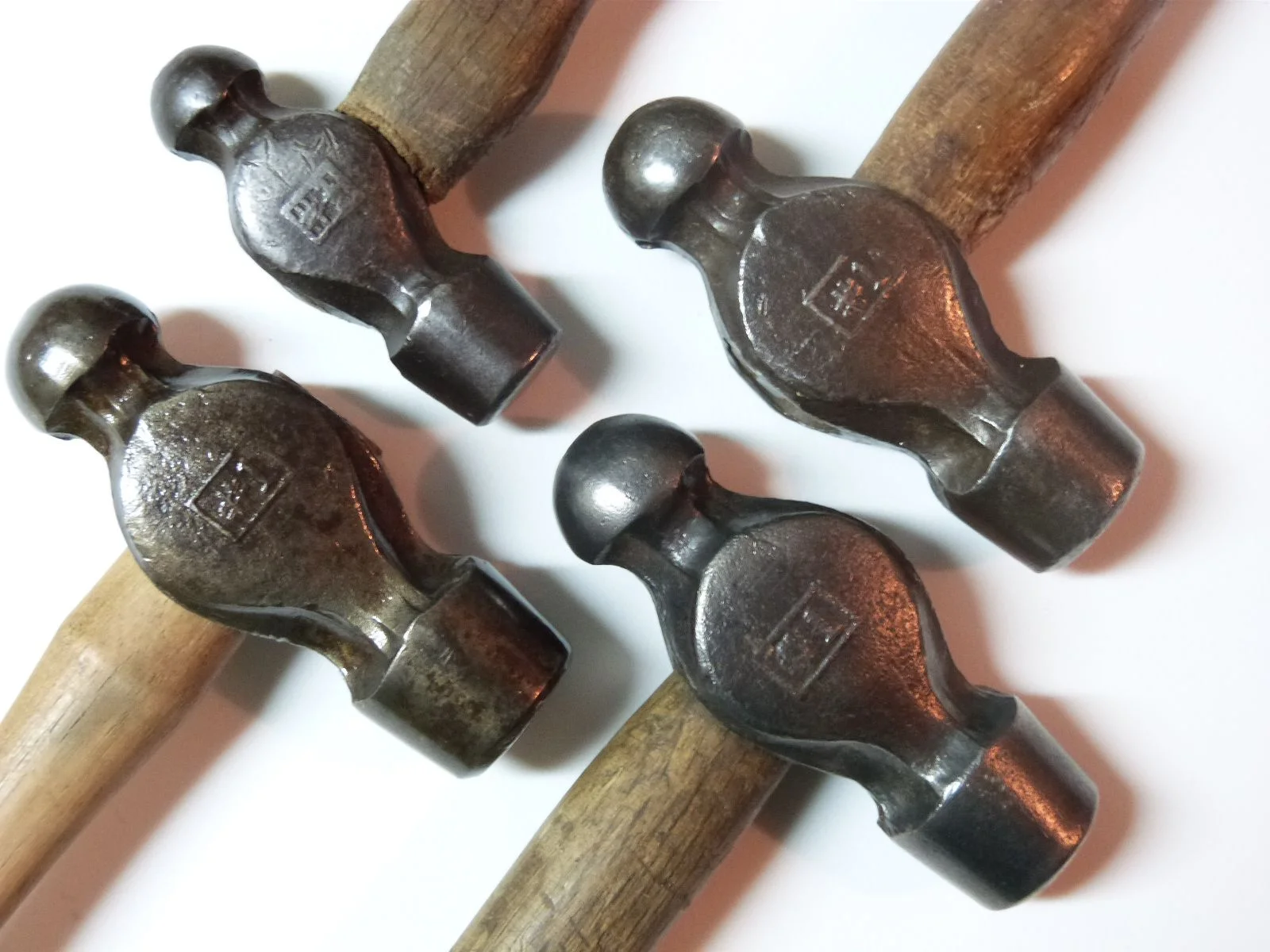

Large tool rolls came with a ball peen hammer. It is not unusual for hammers to be missing from tool rolls, and they don't appear often on auction sites.

The early rolls had a Maruki hammer, with the Maruki logo and MARUKI on one side of the head, and #1 inside a rectangle on the other. The #1 indicates a 1 pound hammer. The smaller hammer is 1/2 pound, same Maruki mark, but with #1/2 inside the rectangle. These were not included in the tool roll.





Later rolls had the OH hammer, One Hand is the brand. The logo, an O overlaid with an H was on one side of the head, and 450g and 1, or just 1, on the other, indicating 450 grams or 1 pound. OH logos may be either stamped or forge marks. The later Toyota tool rolls feature 1 pound, forge marked hammers (bottom) exclusively. The smaller hammer (top) is 1/4 pound, marked 1/4 on the reverse.



The hammer was phased out of later tool kits: the medium size tool roll, and the zipper pouch kit. However, the OH hammer was still available from Toyota. The hammers in the kits did not have marked handles, later hammers had TOYOTA MOTOR in blue, and later still TOYOTA in blue on the handle.

See OEM Hammer - Part 2 for more photos and information.

While vintage Maruki and OH hammers are hard to find, new OH hammers are available both from Toyota and elsewhere. The first post describes how to order Toyota service tools, including the hammer, from Japan. The Toyota hammer, part number 09051-1C100, has the OH logo on the head and TOYOTA in blue on the handle.

OH hammers are made by Oetchi Industrial Co., Ltd., also known as O.H. Industrial Co. The company logo is the letters O and H superimposed. According to the Japanese Trademark Database, this logo was registered as a trademark in 1964.
OH Industrial -  trade mark.jpg

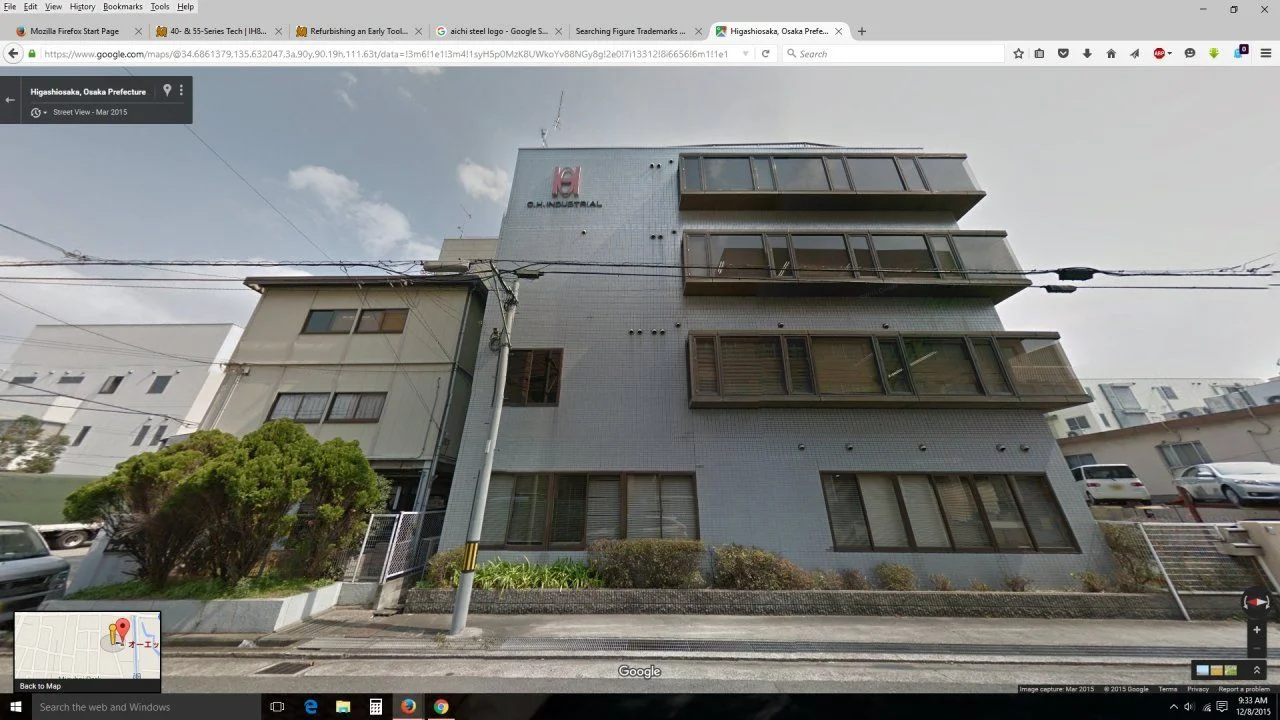

O.H. Industrial is located in Osaka, the company logo is prominently displayed on the building.
OH Industrial - location.jpg


Although their web site, www.ohnet.co.jp is in Japanese, it translates well using the Chrome browser.
OH Industrial - home page.jpg


The cover of their current, 44 page catalog, includes that familiar looking hammer.
OH Industrial - catalog cover.jpg


OH offers a wide selection of ball peen hammers in various sizes, materials, and handles.
The wood handle, 1 pound hammer in the tool roll is item HK-10.
OH Industrial - catalog pg20.jpg


OH hammers are available online (no affiliation). Some points to note:
  • Shipping from Japan is not insignificant and can vary widely by seller
  • Read the descriptions closely since there are several hammers that look very similar
  • Although the pictures show hammers with painted handle markings, the few I've ordered all came with the adhesive label instead.
Rakuten Global Market

Joined
Oct 26, 2011
Messages
183
Location
...
Toyota Screwdrivers - Part 1

Large and medium tool rolls came with three, tang-through, wood handle screwdrivers. It is not uncommon for these to have condition issues (cracked handles, bent shanks, ground tips), or for one or more to be missing. Screwdrivers can be difficult to replace; when they do appear on auction sites, it is usually as part of a larger kit, rather than as individual items. These screwdrivers were included:
  • 150mm shaft, 8mm Slotted Tip (-)
  • 75mm shaft, 5.5mm Slotted Tip (-)
  • 100mm shaft, No. 2 Cross Head (+)
screwdrivers - toyota motor.JPG


screwdrivers - tang through.JPG


Although the cross head screwdriver looks like a Phillips drive, it is actually JIS (Japanese Industrial Standard). JIS drives are different from Phillips; while Phillips drives are designed to cam out, JIS drives are not. Using a Phillips drive on JIS screws can damage the screws. The Vessel Tools web site has additional information about JIS.

Screwdrivers in large tool rolls were marked TOYOTA MOTOR on the shank. The same wood handle screwdrivers were also included in medium tool rolls, however these were marked TOYOTA MOTOR on the ferrule. Wood handle screwdrivers were replaced in zipper bag tool kits by a plastic handle screwdriver with a 2-ended insert. Early plastic handles were clear yellow, later changed to opaque black.

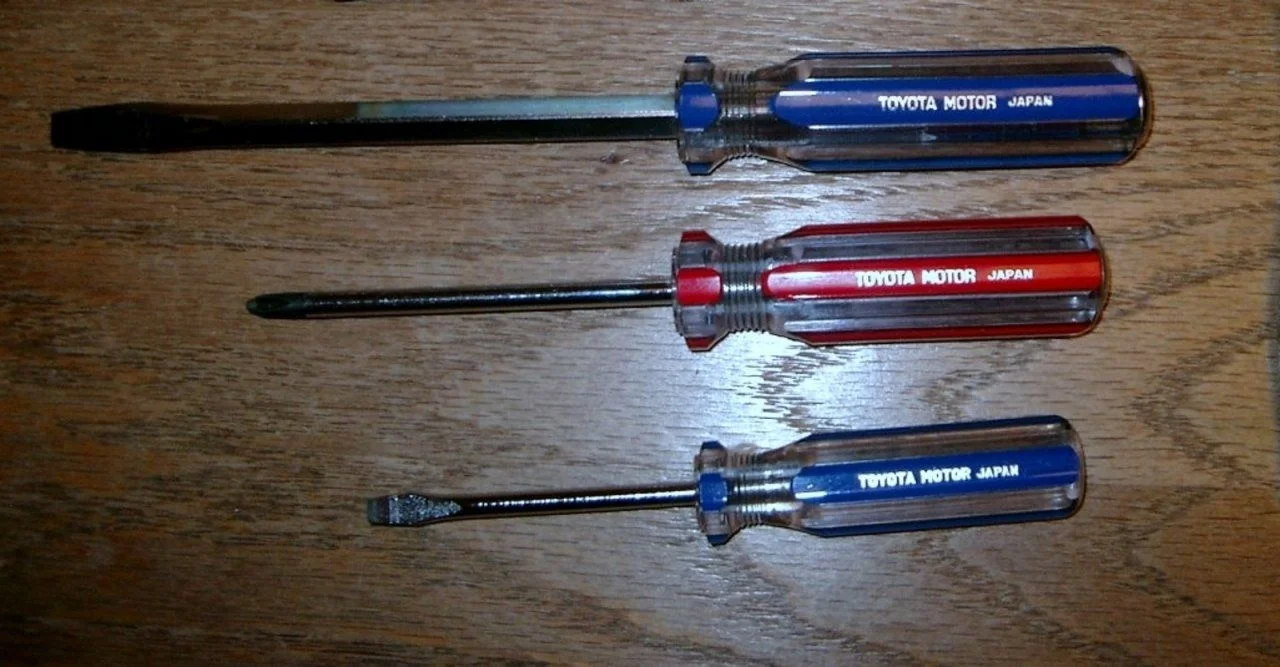

Although separate screw drivers were phased out of tool kits, they are still available from Toyota. The wood handle models were initially replaced by hard plastic handle versions.

Hard Plastic 2 - cropped.jpg

(cruiserdan)

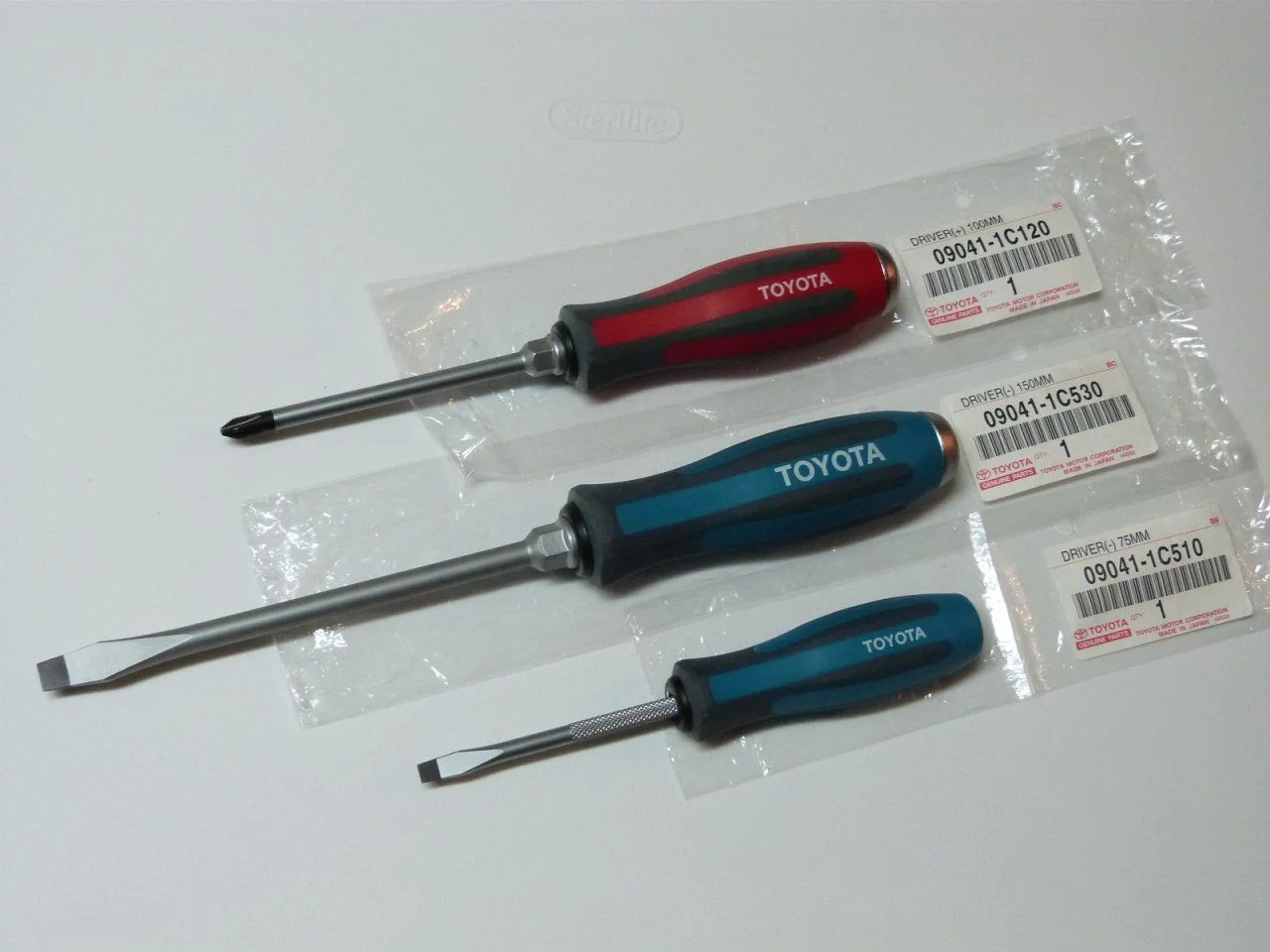

Later these were replaced by the soft grip versions available today:
  • 09041-1C530 Screwdriver, 150mm, Slotted (-)
  • 09041-1C510 Screwdriver, 75mm, Slotted (-)
  • 09041-1C120 Screwdriver, 100mm, No. 2 (+)
The current screwdrivers appear to be from the Megadora line of Vessel screwdrivers. The cross-head and large flat blade are still tang-through, and the top of the shank is hex-shaped to allow turning by wrench. The small flat blade has a knurled shank.



Although these are excellent screwdrivers, they may not be the best replacement choice for a tool kit, for several reasons:
  • The dimensions of these replacements are different than the originals; the handles are larger and may not fit the tool roll. Additionally, while the wood handle screwdriver slides easily through the canvas loop, the soft grip holds to the inside of the canvas loop, making it difficult to insert or remove the screwdriver.
  • Since they don’t match the original screwdrivers, replacing one or two missing originals results in a mixed set.
  • Wood handle screwdrivers are better to keep that classic look of the original tool kit.
Even if the ultimate goal is a complete set of original screwdrivers, good replacements in the meantime can fill gaps in the tool kit until originals are found. Like the originals, the replacements considered below are all tools from Japan. To match original screwdrivers, replacements should have all or most of these design features:
  • Light color wood (Maple); fluted handle with six lateral grooves
  • Tang-through, with adequate end cap
  • Pinned through the ferrule
KTC (Kyoto Tool Company) supplied original tools for the tool kits; they still offer wood handle screwdrivers similar to the originals. Can you spot the replacements?

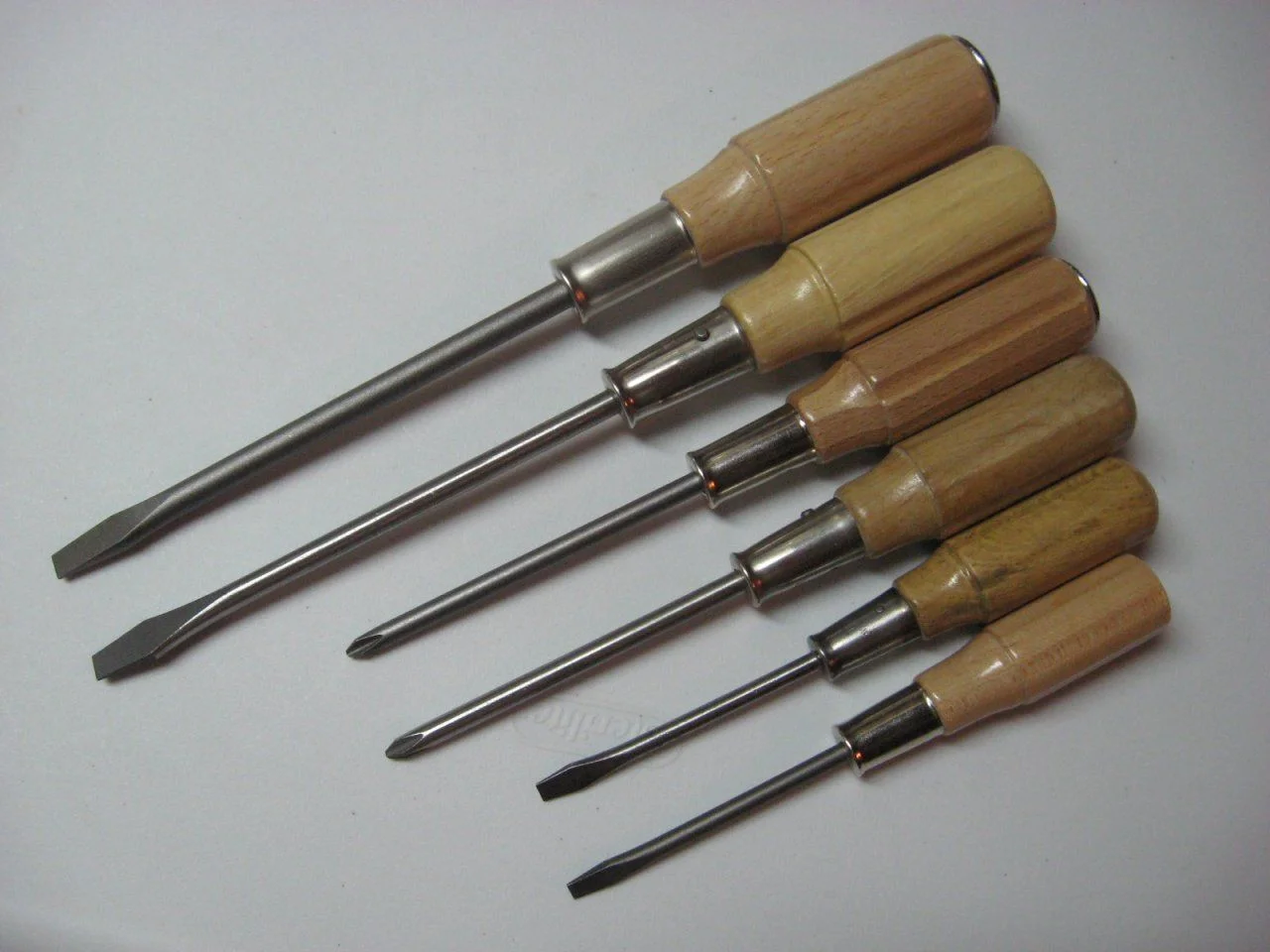

From top to bottom:
  • KTC, 150mm (-)
  • Original, 150mm (-)
  • KTC, No. 2 (+)
  • Original, No. 2 (+)
  • Original, 75mm (-)
  • KTC, 75mm (-)
Although the KTC screwdrivers are close, they do not fully match the originals:
  • Ferrule is crimped, rather than pinned
  • Significantly larger end cap than original
  • 75mm slotted; handle is noticeably smaller than original
The search for replacement screwdrivers continues with review of Vessel and Top brands; see OEM Screwdrivers - Part 2 for more photos and information.


FJ404345

Drive your 40 series daily !
Joined
Dec 3, 2012
Messages
1,476
Location
South Caribbean (Dutch Antilles)

Large tool rolls came with a ball peen hammer. It is not unusual for hammers to be missing from tool rolls, and they don't appear often on auction sites.

The early rolls had a Maruki hammer, with the Maruki logo and MARUKI on one side of the head, and #1 inside a square on the other. The #1 indicates a 1 pound hammer.

Later rolls had the OH hammer, One Hand is the brand. The logo, an O overlaid with an H was on one side of the head, and 450g and 1 on the other, indicating 450 grams or 1 pound.

The hammer was phased out of later tool kits: the medium size tool roll, and the zipper pouch kit. However, the OH hammer was still available from Toyota. The hammers in the kits did not have marked handles, later hammers had TOYOTA MOTOR in blue, and later still TOYOTA in blue on the handle.


While vintage Maruki and OH hammers are hard to find, new OH hammers are available both from Toyota and elsewhere. The attachment in the first post describes how to order Toyota service tools, including the hammer, from Japan. The Toyota hammer, part number 09051-1C100, has the OH logo on the head and TOYOTA in blue on the handle.

OH hammers are made by Oetchi Industrial Co., Ltd., also known as O.H. Industrial Co. Although their web site, http://www.ohnet.co.jp/ is in Japanese, it translates well using the Chrome browser. The cover of their current, 44 page catalog, includes that familiar looking hammer.

View attachment 770597

OH offers a wide selection of ball peen hammers in various sizes, materials, and handles. The wood handle, 1 pound hammer in the tool roll is item HK-10.

View attachment 770598

OH hammers are available from several online sites (no affiliation). Some points to note:

  • Shipping from Japan is not insignificant and can vary widely by seller
  • Read the descriptions closely since there are several hammers that look very similar
  • Although the pictures show hammers with painted handle markings, the few I've ordered all came with the adhesive label instead.
Japanese-Cutlery.com
Rakuten Global Market

Thanks for the info

Joined
Oct 26, 2011
Messages
183
Location
...
Tool Roll Content List - FJ25

Tool Roll Content List The large tool rolls came with a Content list, identifying the tools and their location in the tool roll. Due to age, wear, exposure to the elements, etc. these lists are often in poor condition or missing.

Attached are replica Content lists. Two versions, based on the type of lug wrench (Wrench, hub nut box):

  • 1963 and earlier, with a 2-piece, 23mm lug wrench
  • 1963 and later, with a 1-piece, 21mm lug wrench
These are replica lists, not scans, that are a close match to original FJ40 lists. Original lists had several variations of wording and style, and there are differences between FJ25 and FJ40 versions.

Printed on cream color card stock, the list would look something like this:

Joined
Oct 26, 2011
Messages
183
Location
...
Tool Roll Content List - FJ25

The FJ25 version of the tool roll Content list is attached. This is a replica based on an original posted by Cruiser_Nerd. There may be other variations of wording and style, and there are differences between FJ25 and FJ40 versions. See prior post #4 for FJ40 versions.

Printed on cream color card stock, the list would look something like this:


Based on this original


FJ25 Content list
View attachment 773187


Attachments

Joined
Jan 26, 2012
Messages
3,751
Location
Ohio, Illinois

Those are definitely Vessel screwdrivers , I own a few and by far my favorite ones out of the 30 or so I own currently . For overall use , especially on anything Japanese they just rule - even beating out some German and Swiss made units costing twice that of the Vessel tools . Good info , plan to order a few of the tools from Toyota for my '77's kit ....
Sarge


fj401978

Skip
SILVER Star
Joined
Oct 26, 2011
Messages
742
Location
Mt. Ulla, NC

Large tool rolls came with three, tang-through, wood handle screwdrivers. It is not uncommon for these to have condition issues (cracked handles, bent shafts, ground tips), or for one or more to be missing. Screwdrivers can be difficult to replace; when they do appear on auction sites, it is usually as part of a larger kit, rather than as individual items. These screwdrivers were included:

  • 150mm shaft, 8mm Slotted Tip (-)
  • 75mm shaft, 5.5mm Slotted Tip (-)
  • 100mm shaft, No. 2 Cross Head (+)
Although the cross head screwdriver looks like a Phillips drive, it is actually JIS (Japanese Industrial Standard). JIS drives are different from Phillips; while Phillips drives are designed to cam out, JIS drives are not. Using a Phillips drive on JIS screws can damage the screws. The Vessel Tools web site has additional information about JIS.

Screwdrivers in large tool rolls were marked TOYOTA MOTOR on the shaft. The same wood handle screwdrivers were also included in medium tool rolls, however these were marked TOYOTA MOTOR on the ferrule. Wood handle screwdrivers were replaced in zipper bag tool kits by a plastic handle screwdriver with a 2-ended insert. Early plastic handles were clear yellow, later changed to opaque black.

Although separate screw drivers were phased out of tool kits, they are still available from Toyota. The wood handle models were initially replaced by hard plastic handle versions.

View attachment 771512

Later these were replaced by the soft grip versions available today:

  • 09041-1C530 Screwdriver, 150mm, Slotted (-)
  • 09041-1C510 Screwdriver, 75mm, Slotted (-)
  • 09041-1C120 Screwdriver, 100mm, No. 2 (+)
The current screwdrivers appear to be from the Megadora line of Vessel screwdrivers. The cross-head and large flat blade are still tang-through, and the top of the shafts are hex-shaped to allow turning by wrench. The small flat blade has a knurled shaft.

View attachment 771513

Although these are excellent screwdrivers, they may not be the best replacement choice for a tool kit, for several reasons:

  • The dimensions of these replacements are different than the originals; the handles are larger and may not fit the tool roll. Additionally, while the wood handle screwdriver slides easily through the canvas loop, the soft grip holds to the inside of the canvas loop, making it difficult to insert or remove the screwdriver.
  • Since they don’t match the original screwdrivers, replacing one or two missing originals results in a mixed set.
  • Wood handle screwdrivers are better to keep that classic look of the original tool kit.
Even if the ultimate goal is a complete set of original screwdrivers, good replacements in the meantime can fill gaps in the tool kit until originals are found. Like the originals, the replacements considered below are all tools from Japan. To match original screwdrivers, replacements should have all or most of these design features:

  • Light color wood (Maple); fluted handle with six lateral grooves
  • Tang-through, with adequate end cap
  • Pinned through the ferrule
KTC (Kyoto Tool Company) supplied the original tools for the tool kits; they still offer wood handle screwdrivers similar to the originals. Can you spot the replacements?

View attachment 771514

From top to bottom:

  • KTC, 150mm (-)
  • Original, 150mm (-)
  • KTC, No. 2 (+)
  • Original, No. 2 (+)
  • Original, 75mm (-)
  • KTC, 75mm (-)
Although the KTC screwdrivers are close, they do not fully match the originals:

  • Ferrule is crimped, rather than pinned
  • Significantly larger end cap than original
  • 75mm slotted; handle is noticeably smaller than original
The search for replacement screwdrivers continues with review of Vessel, Top, and Annex brands; this post will be updated with additional findings.
Sweet thread, great info...thanks!


overton

SILVER Star
Joined
Oct 25, 2004
Messages
1,904
Location
Iowa



Reproduction Tool Roll

I'm looking to reproduce the original tool roll if no one else is doing this and make it available at a hopefully reasonable cost. The problem is I do not have an original to use as a pattern. Would anyone be willing to loan me theirs to create the pattern? If someone IS reproducing these please let me know. I'll just buy one.

G.


47coeman

Love those 45's
Joined
Jan 2, 2012
Messages
1,454
Location
Nor Cal, Richvale,Ca

What do you think a ball park figure would be for a price if not to ridiculous I would buy one, keep me posted well thought out. Best


overton

SILVER Star
Joined
Oct 25, 2004
Messages
1,904
Location
Iowa



What do you think a ball park figure would be for a price if not to ridiculous I would buy one, keep me posted well thought out. Best
Too early to tell - I don't have pricing on ANYTHING but I don't think there would be much interest if you couldn't keep it reasonable. I would not be selling the tools - just the canvas.

Joined
Feb 24, 2005
Messages
568
Location
boulder, co



I'm actually getting close to having these available now! I'm working on two versions, one that is going to be as faithful a representation as I can make, which will be kind of spendy at $90-100 each, and I figure is really only for the sticklers & concourse resto guys, and then one that will be a more of a work roll, that will be affordable, and look the part, but one that people won't mind actually throwing into the truck & using. I'm almost ready to go on the nice one now.
Best,
Abe


overton

SILVER Star
Joined
Oct 25, 2004
Messages
1,904
Location
Iowa



I'm actually getting close to having these available now! I'm working on two versions, one that is going to be as faithful a representation as I can make, which will be kind of spendy at $90-100 each, and I figure is really only for the sticklers & concourse resto guys, and then one that will be a more of a work roll, that will be affordable, and look the part, but one that people won't mind actually throwing into the truck & using. I'm almost ready to go on the nice one now.
Best,
Abe
I'm happy to hear this and I would buy either version.
