Toyota Jacks

[wscbill]

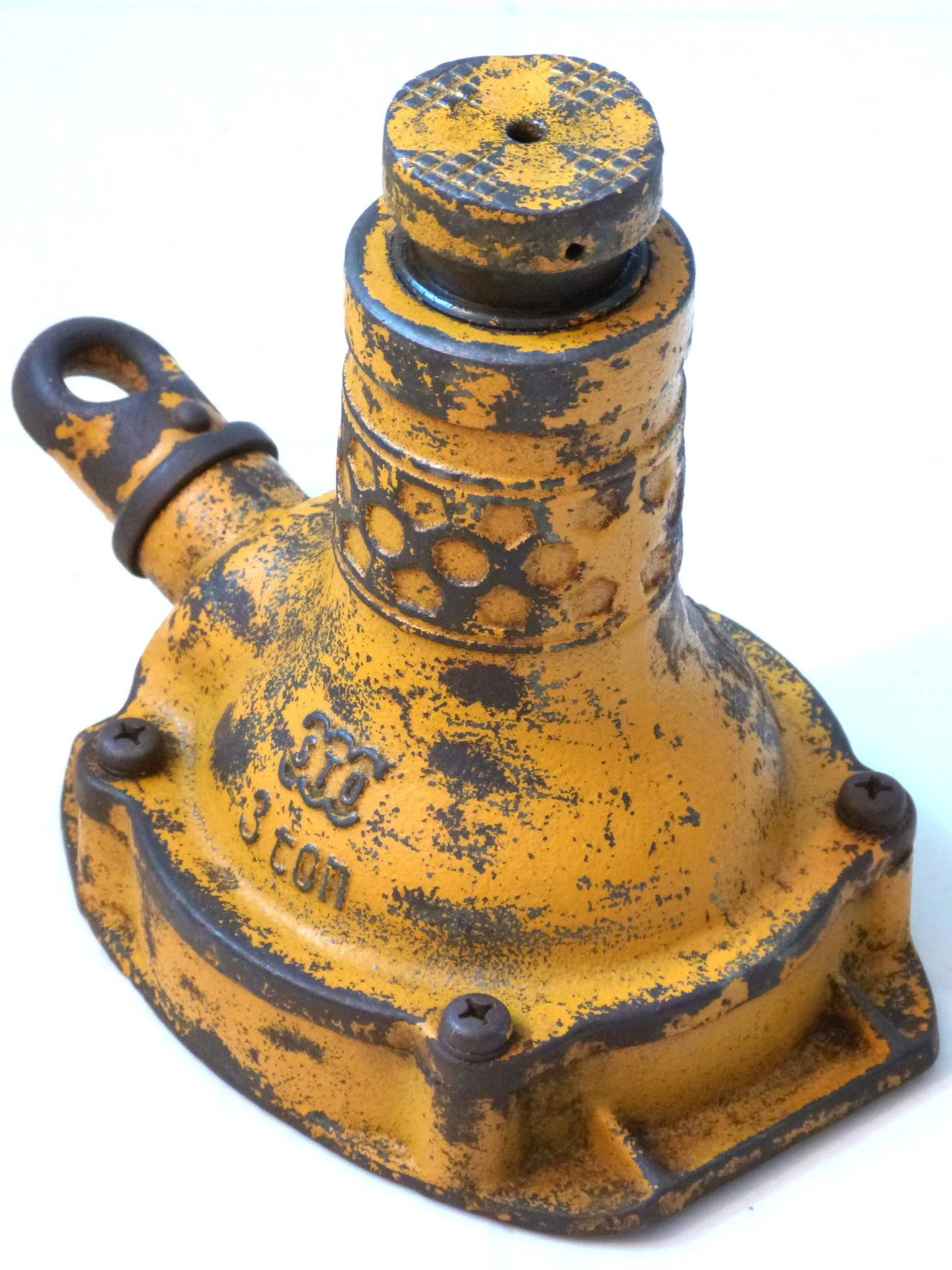

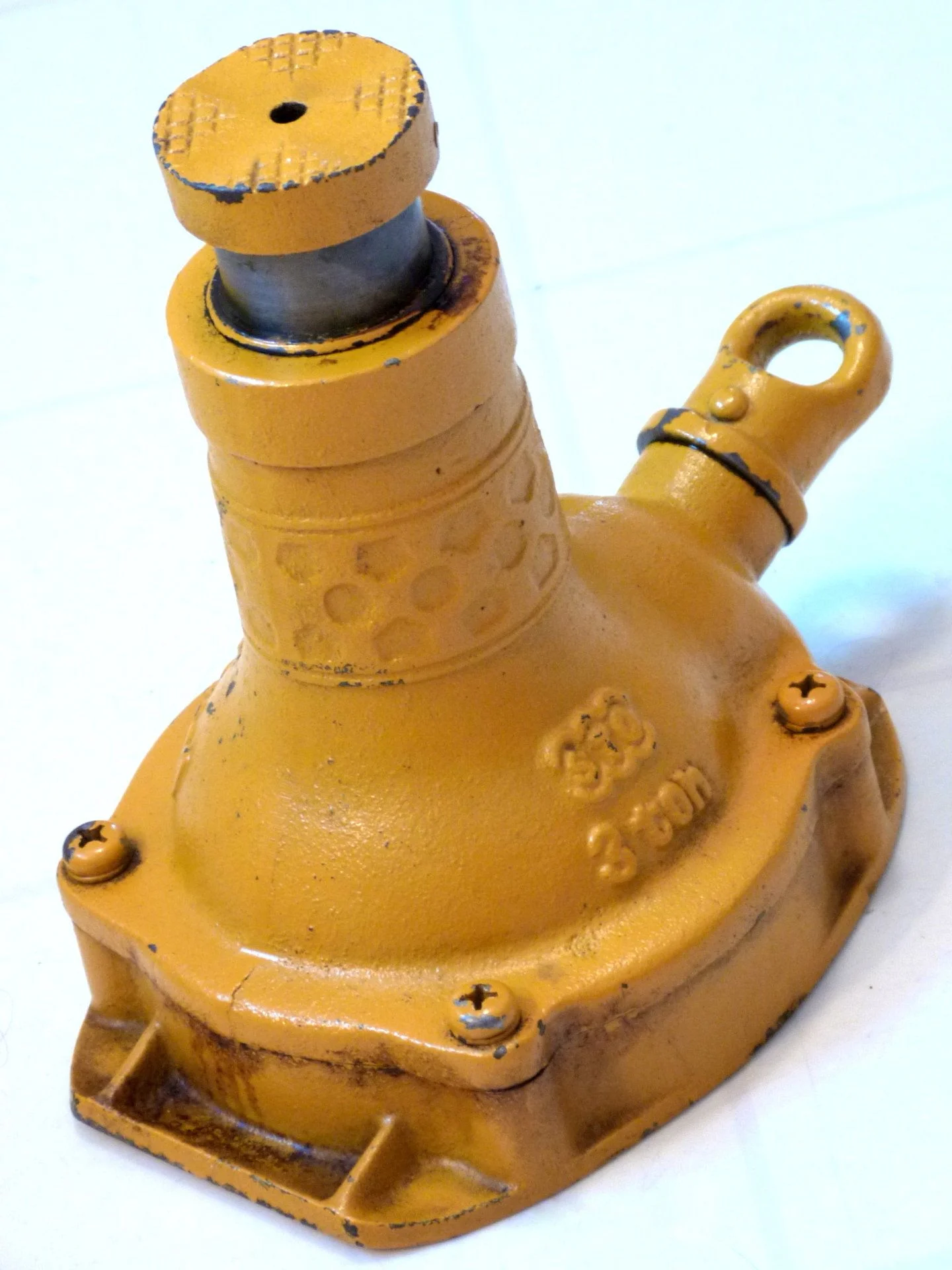

09110-36030 TEQ and Toyota Motor - 3 ton rating

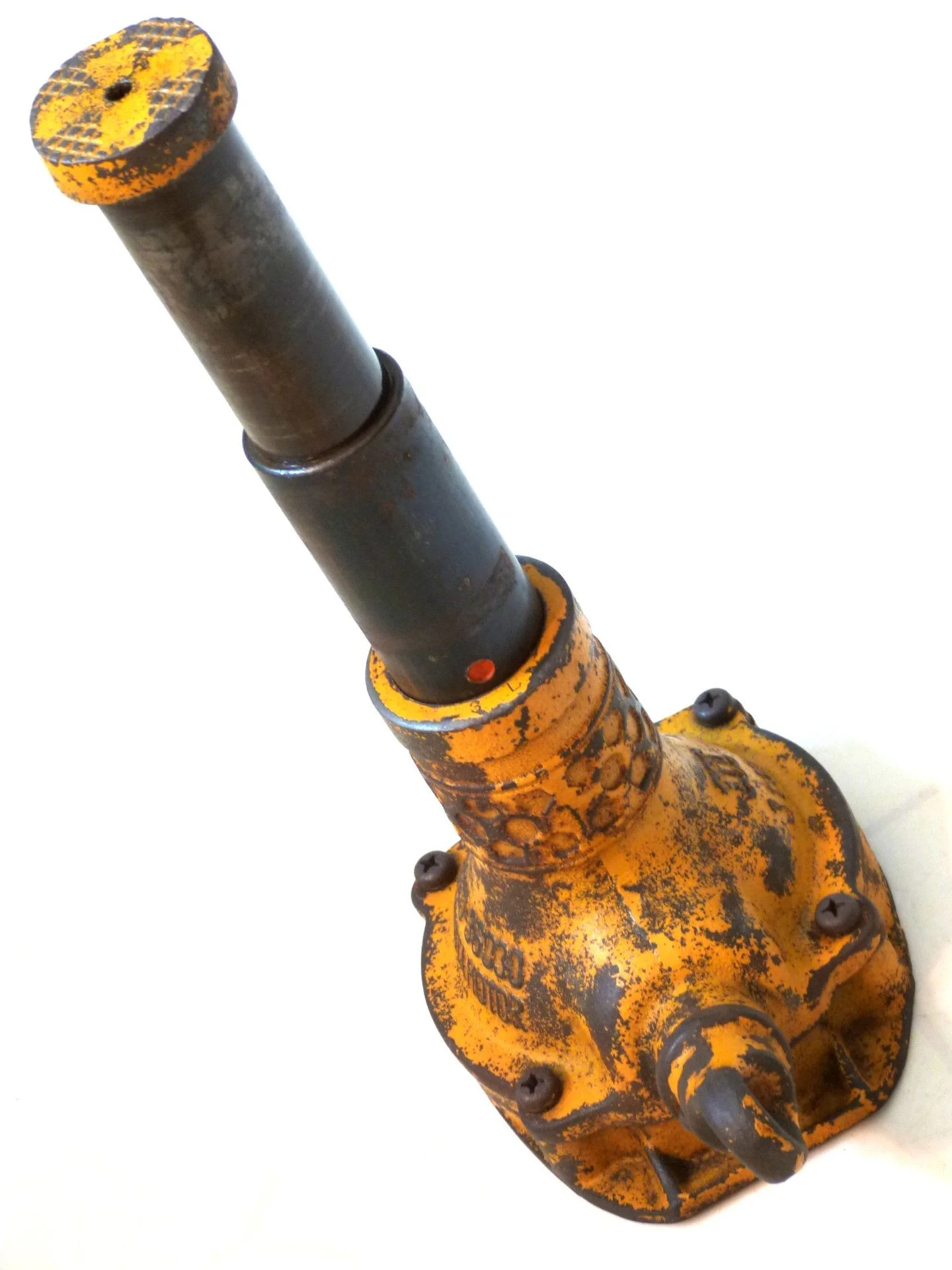

Not a Land Cruiser jack, standard equipment on Toyota Coaster minibus, Toyota Dyna and Toyota ToyoAce trucks. Rated 3 metric tons (6614 lbs.). Two stage column, no manual extension, 7" lowered, 15" raised. Has Made In Japan on the bottom, with the JIS mark and date of manufacture code stamped on the top of the collar. Different neck ornamentation than the Land Cruiser jacks.

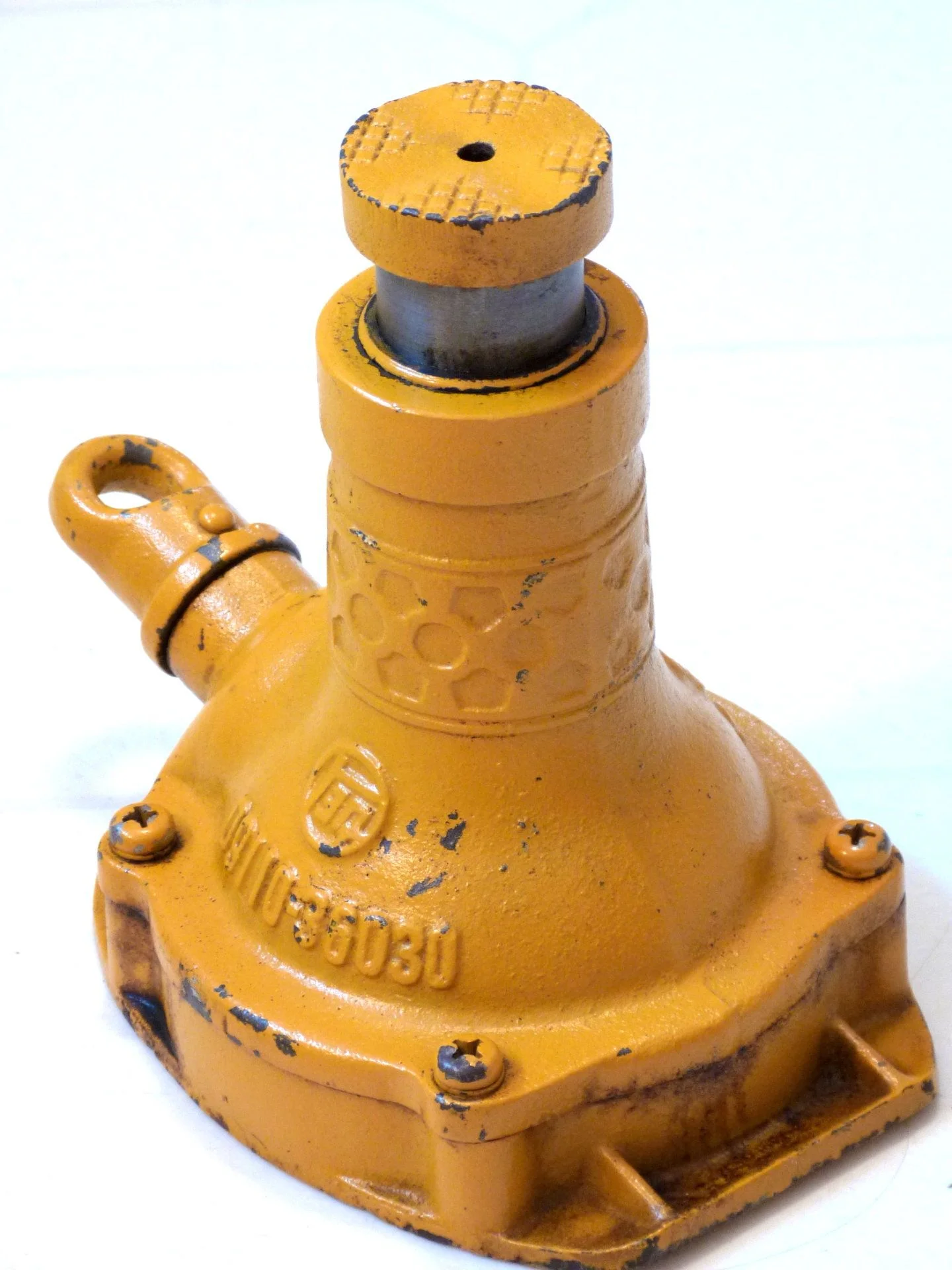

An unusual feature of the TEQ jack is that the TEQ mark and part number are located on the side opposite of their typical location.

TEQ - Date code 0K - November 1970. More pictures here.

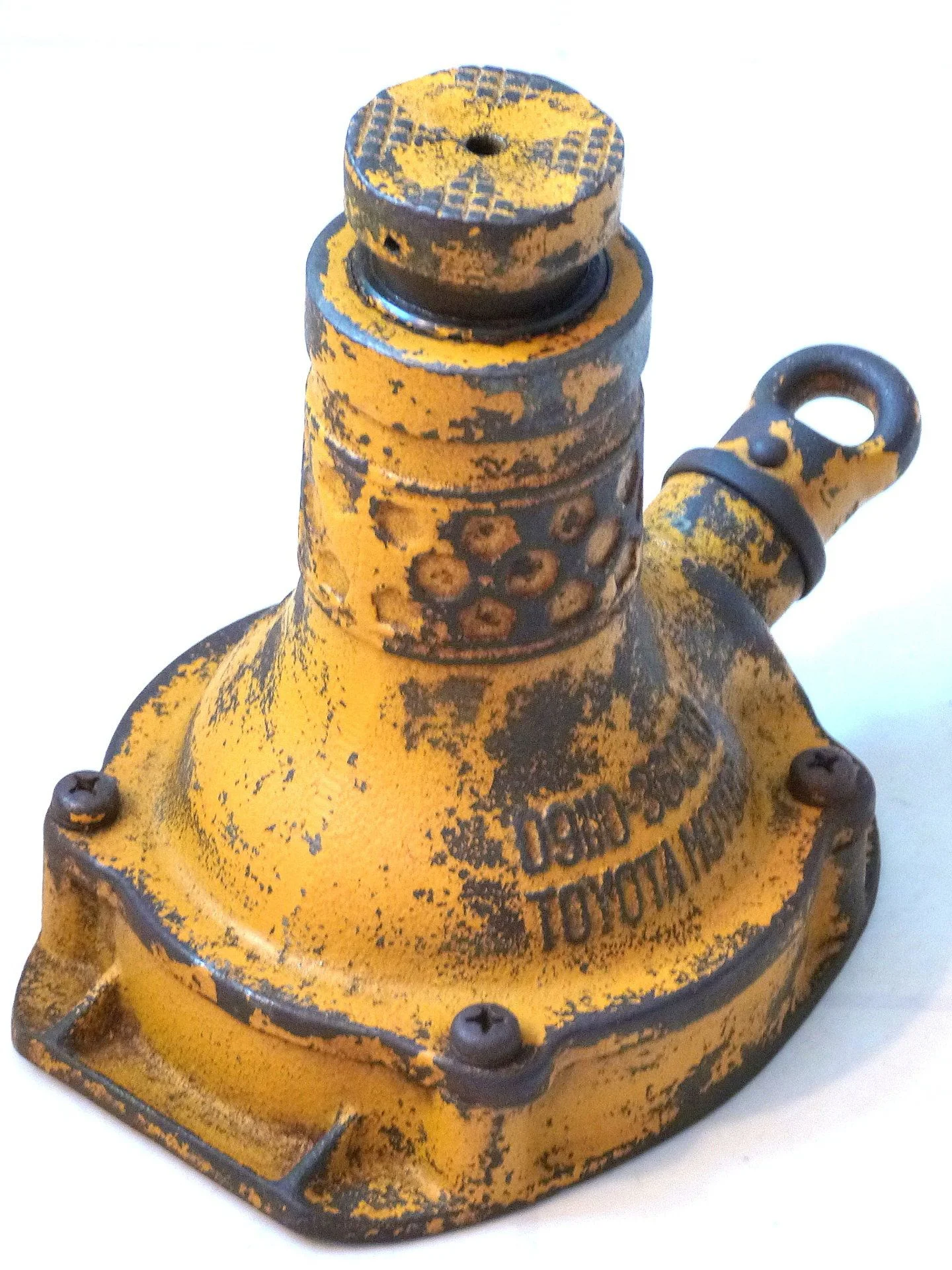

Toyota Motor - Date code 3L - December 1973. More pictures here.



[bwiygul]

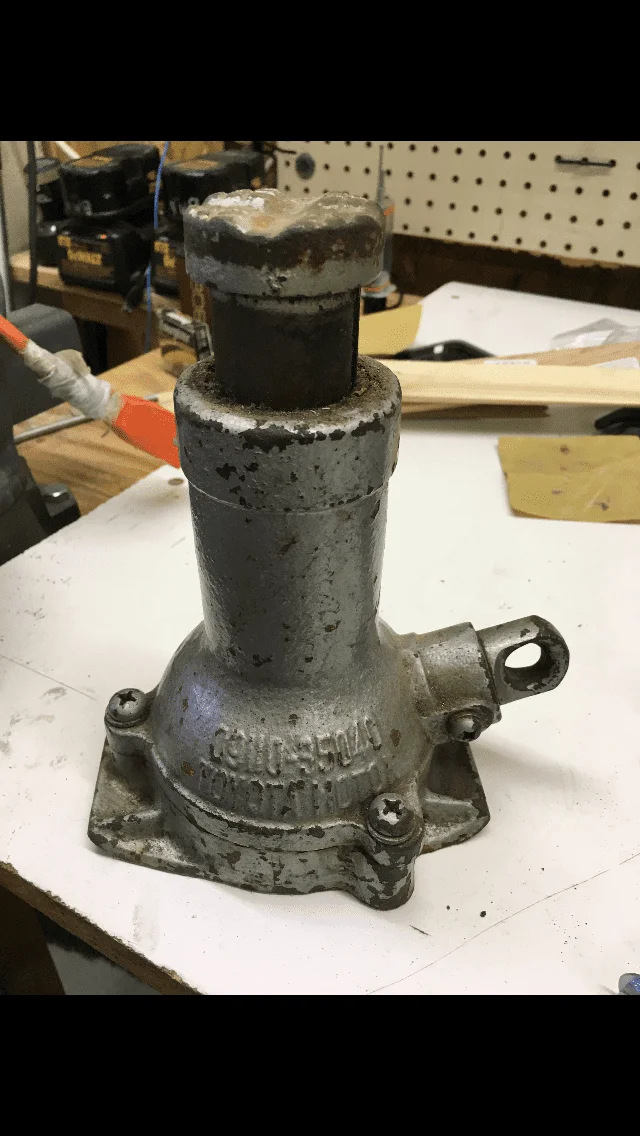

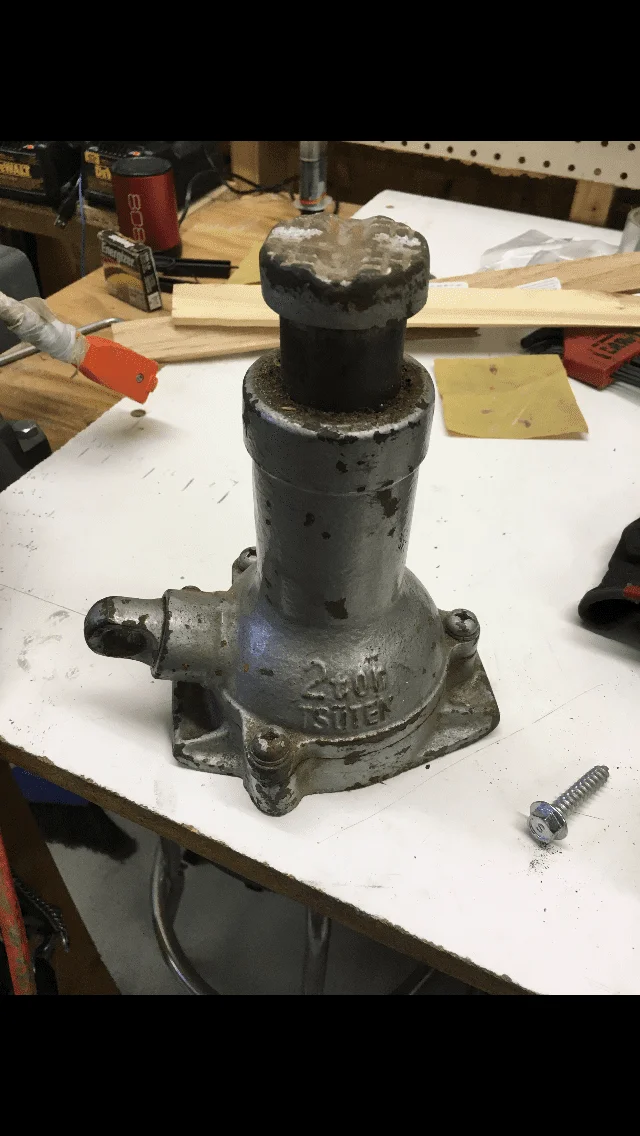

Any idea what a ballpark value or information on this jack? Thanks!



[wscbill]

Any idea what a ballpark value or information on this jack? Thanks!

View attachment 1613640

View attachment 1613641

View attachment 1613642

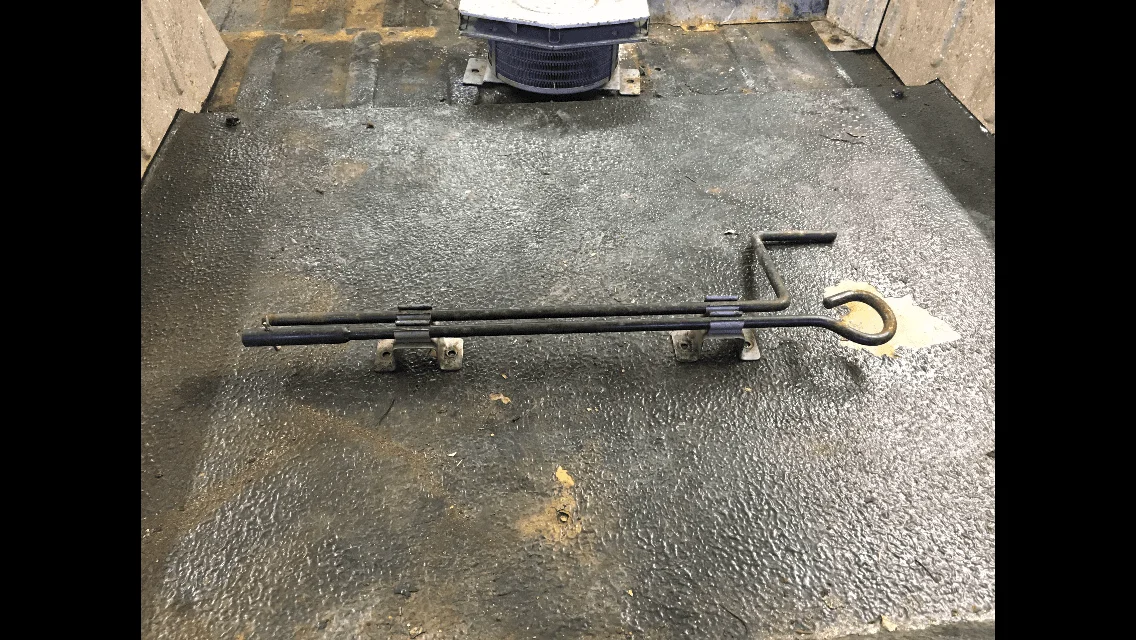

Jack is from a 1972 or later Toyota Hilux truck. Would have been painted yellow originally, with a caution sticker on the collar. The jack rod holders are Land Cruiser, the rods are not. These jacks show up on eBay occasionally, typically sell for less than $50.



[thebigredrocker]

@wscbill

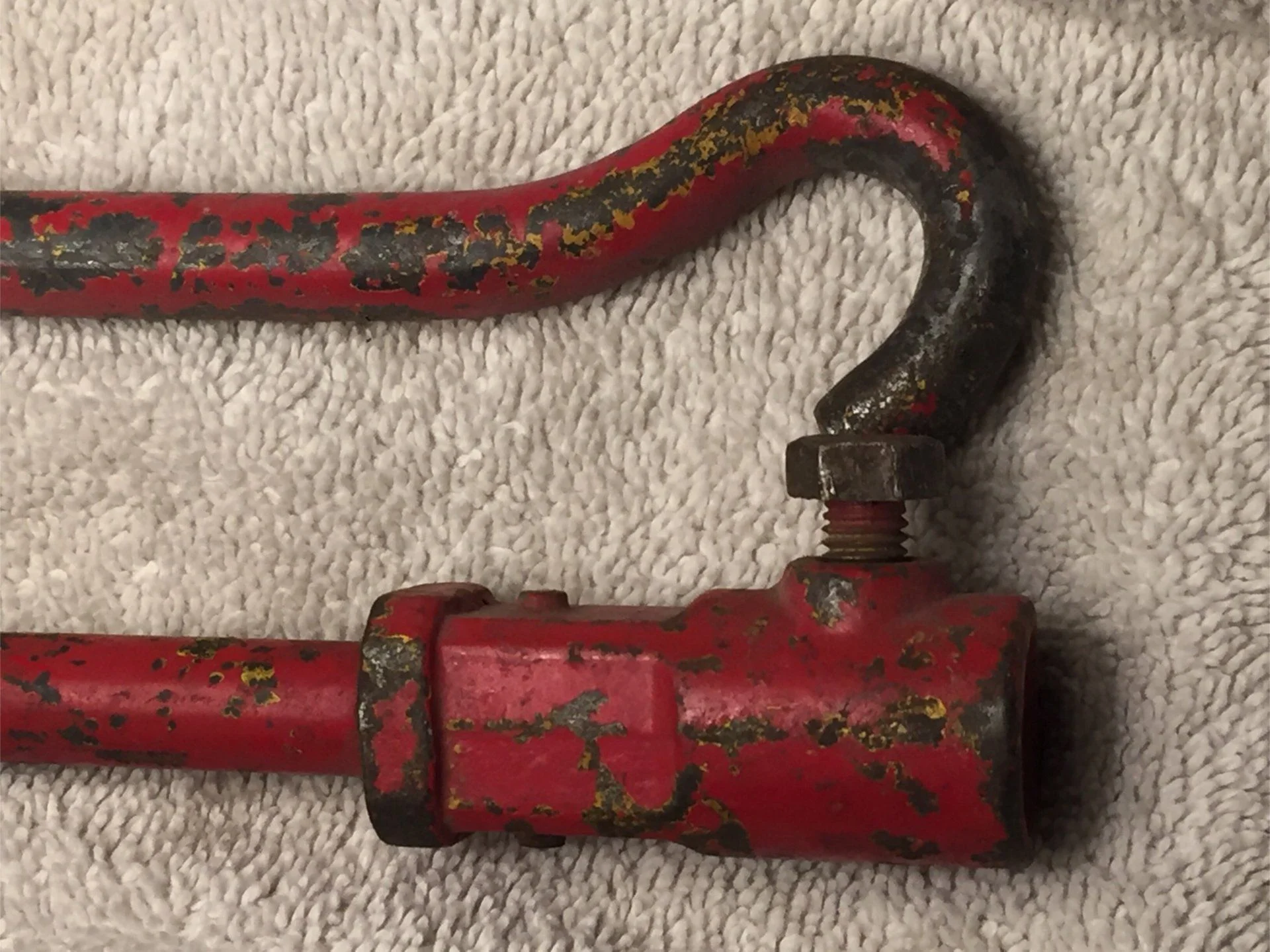

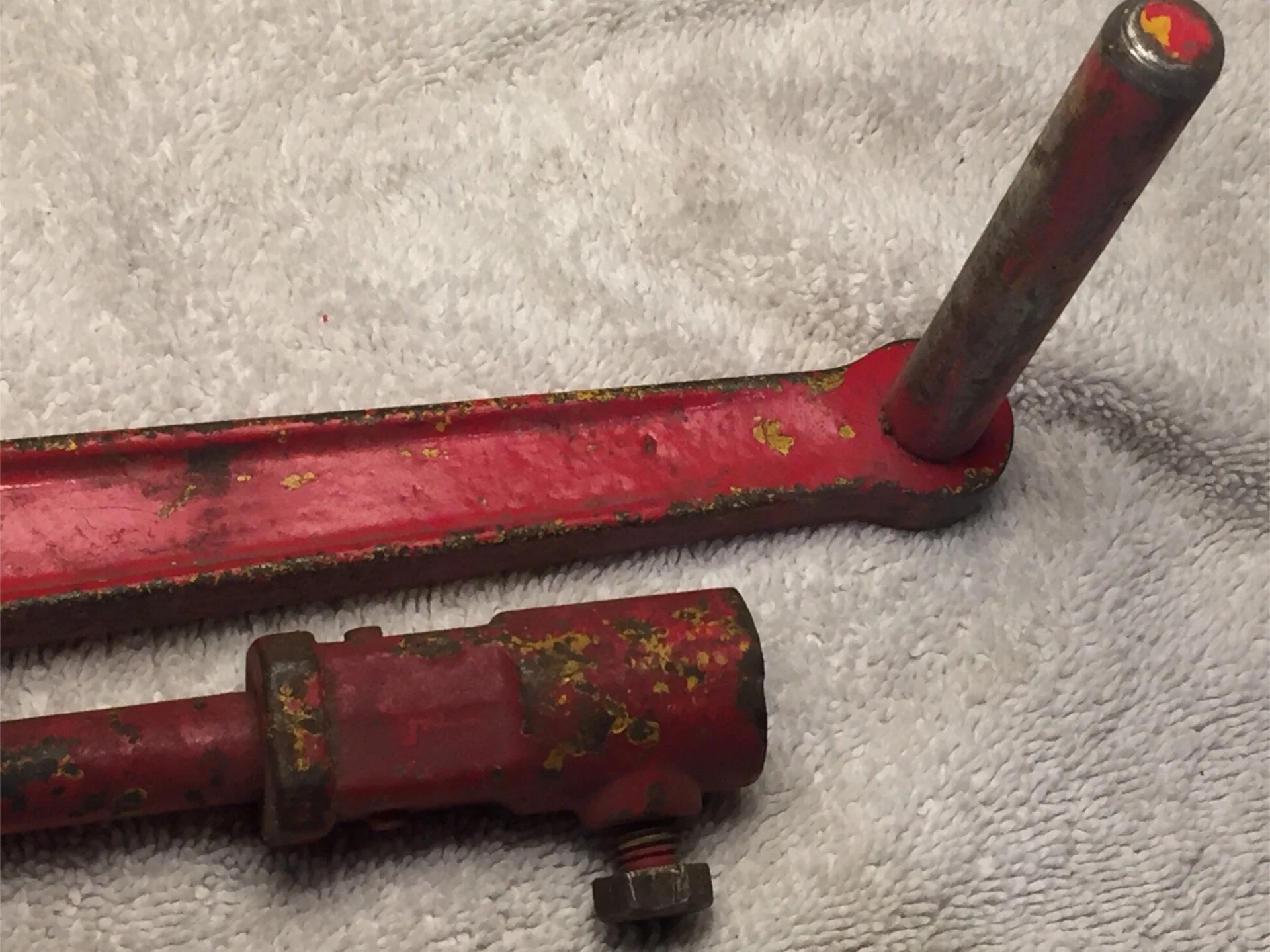

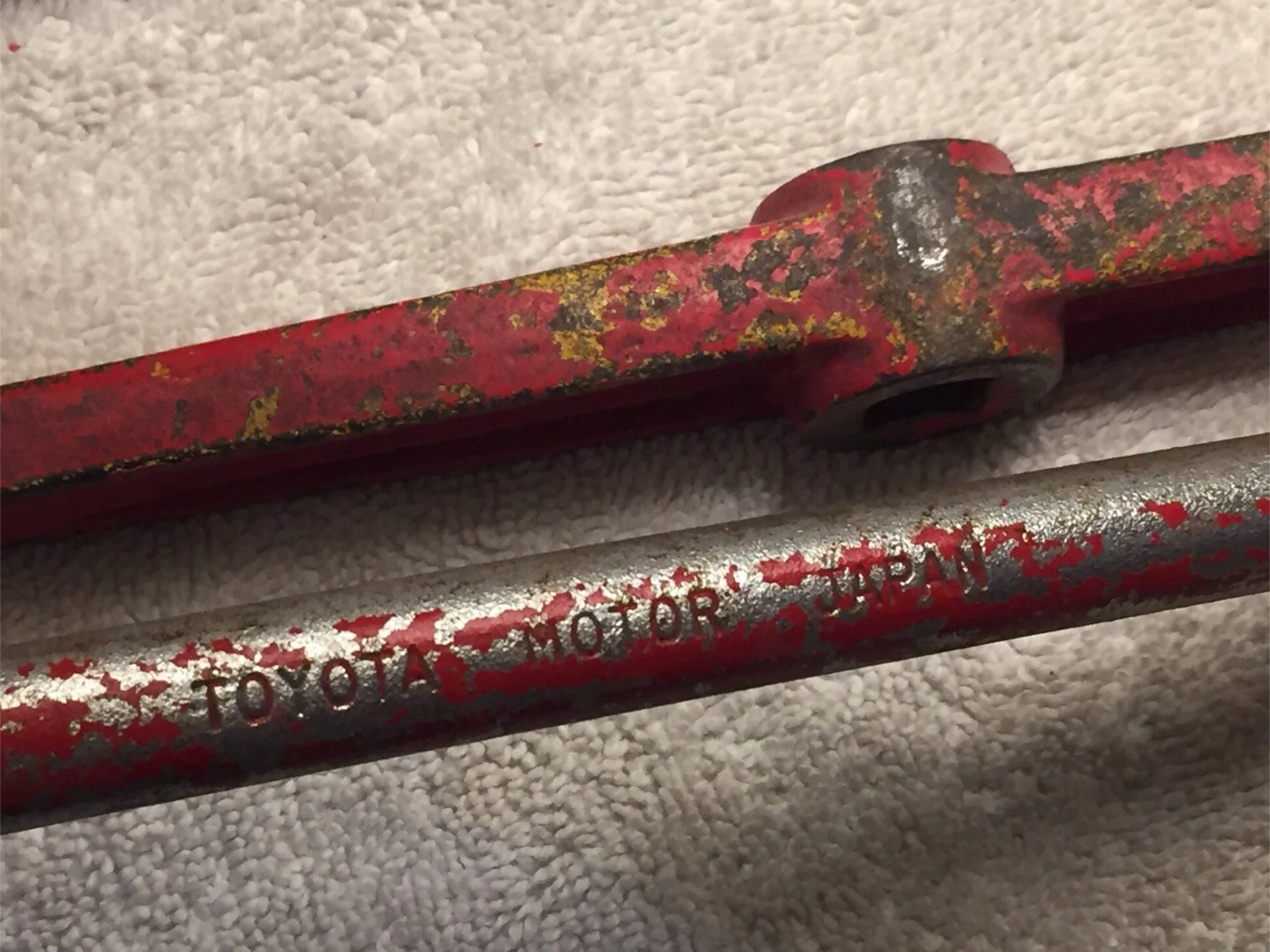

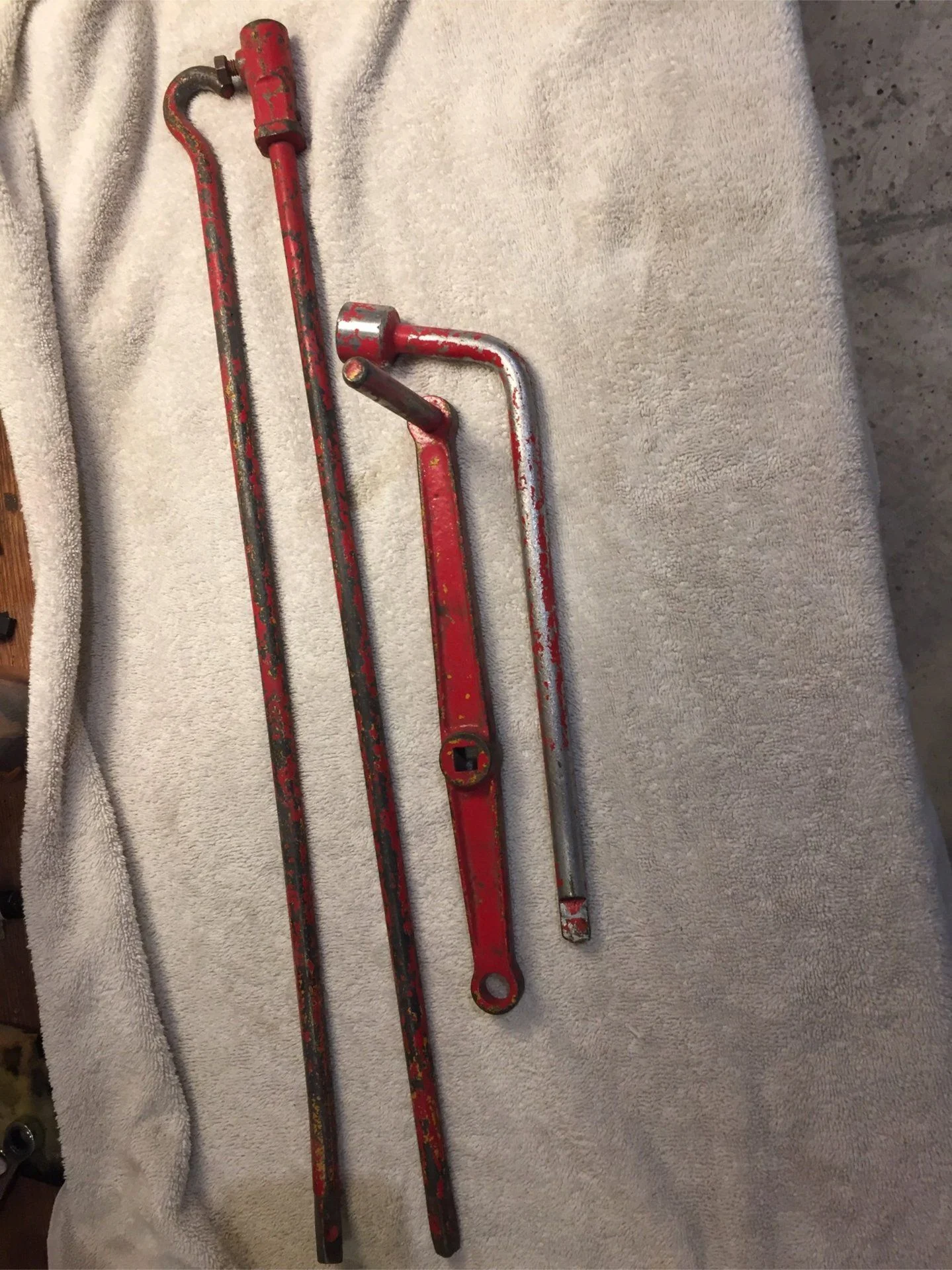

These tools came with my 12/75 40. Wondering if the PO painted them red. I see yellow underneath all except the lug nut bar. Thank you.



[wscbill]

@wscbill
These tools came with my 12/75 40. Wondering if the PO painted them red. I see yellow underneath all except the lug nut bar. Thank you.
View attachment 1672277 View attachment 1672278 View attachment 1672279 View attachment 1672280

Yes, the red is all PO work. Jack rods and handle originally yellow, and lug wrench silver/chrome. Those would be original for your rig.



[SuperDuperCruizer]

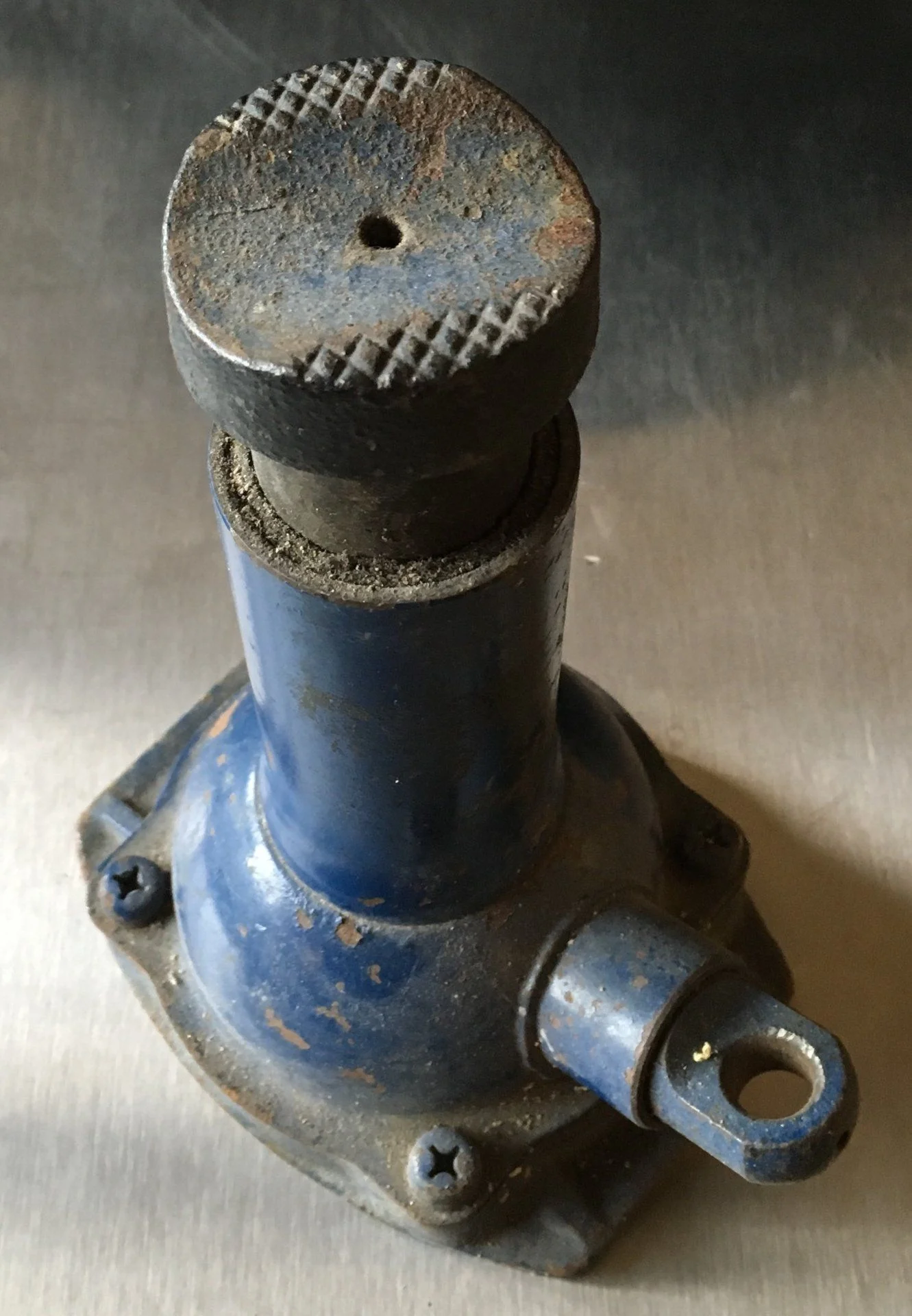

The brown color seems to be the normal color used for the later style jacks. This is the one that came with my FJ40 (Sept 1980) and the blue paint appears to be original:



[RIDGEROCK49]

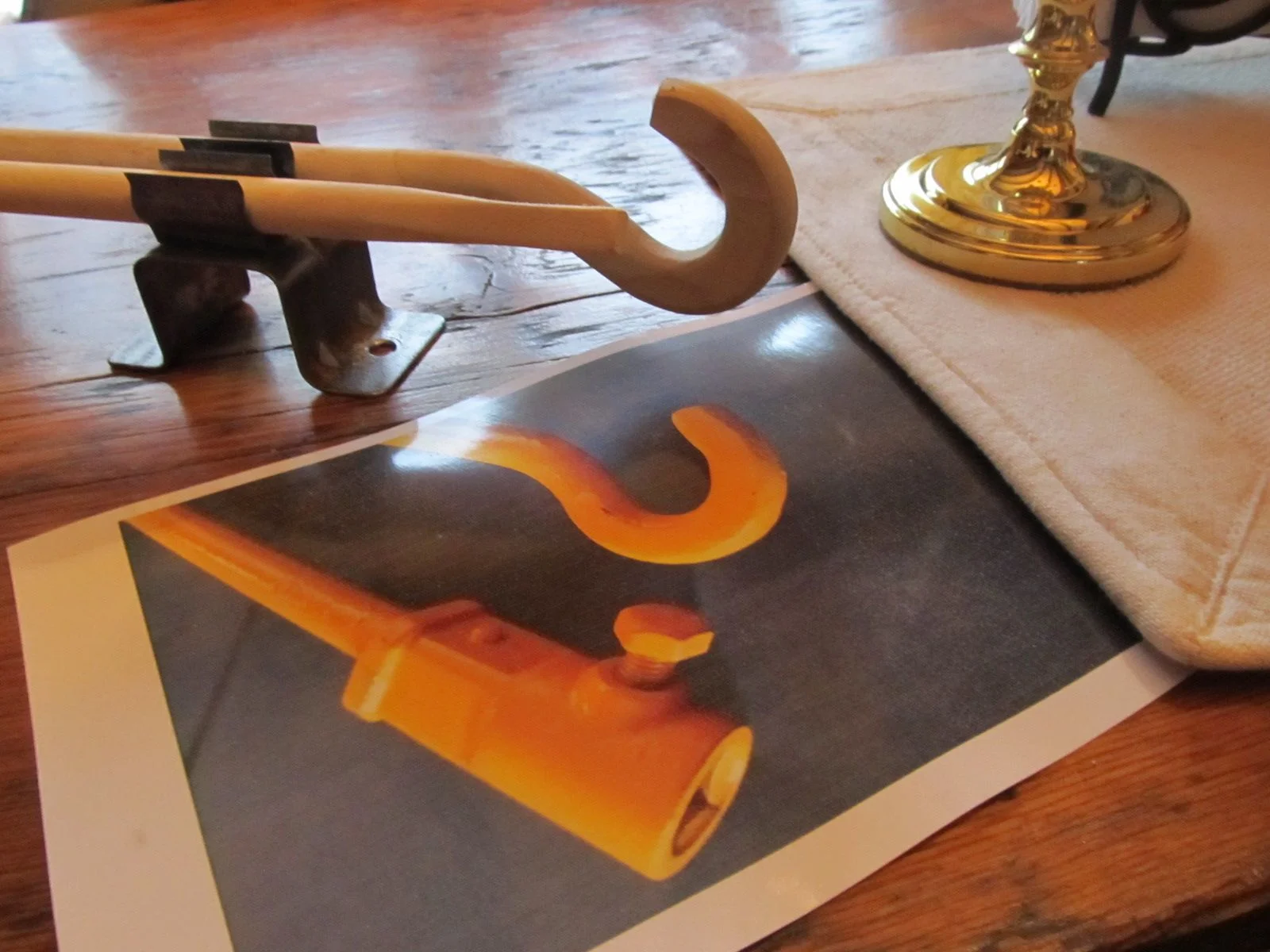

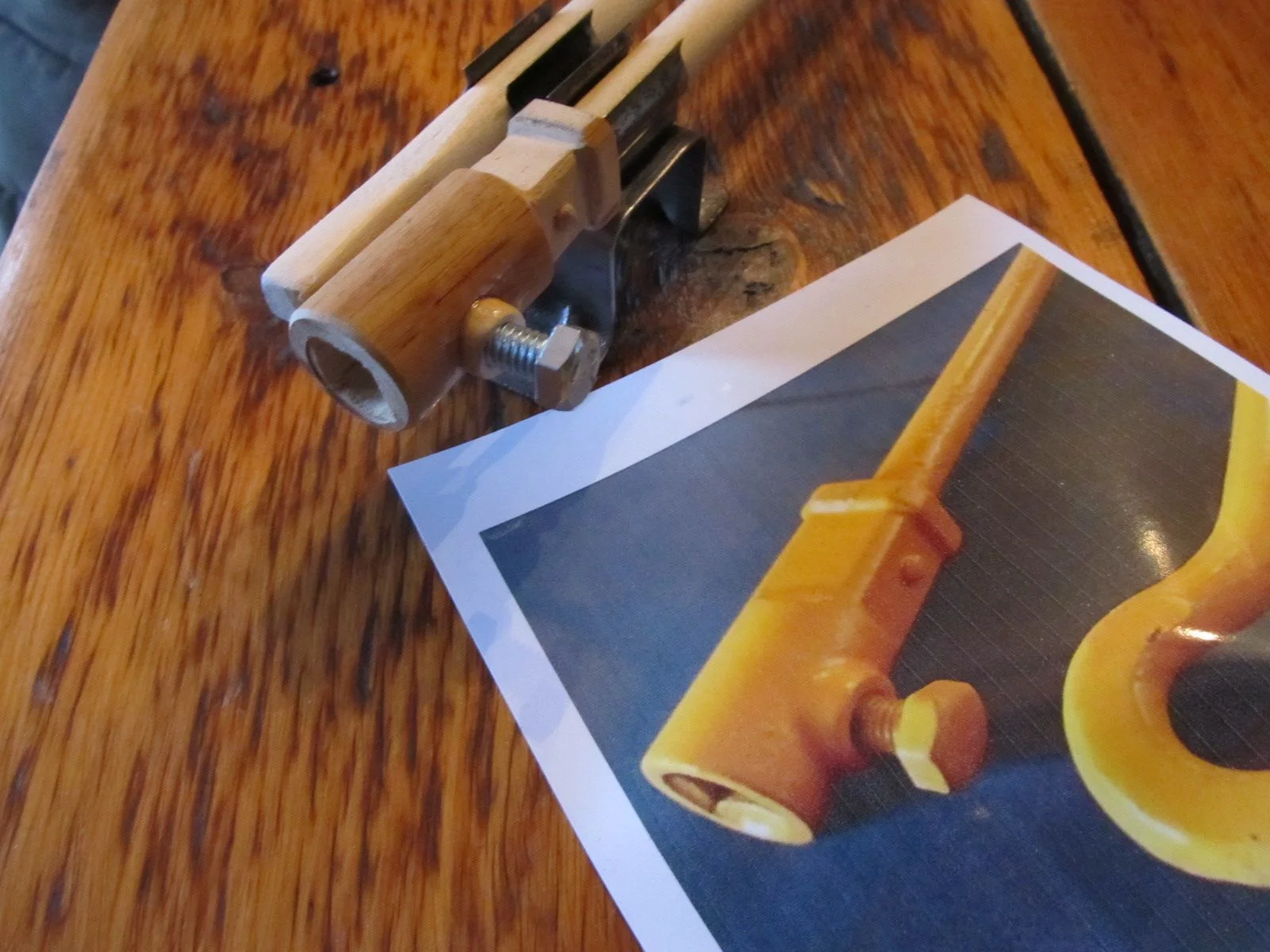

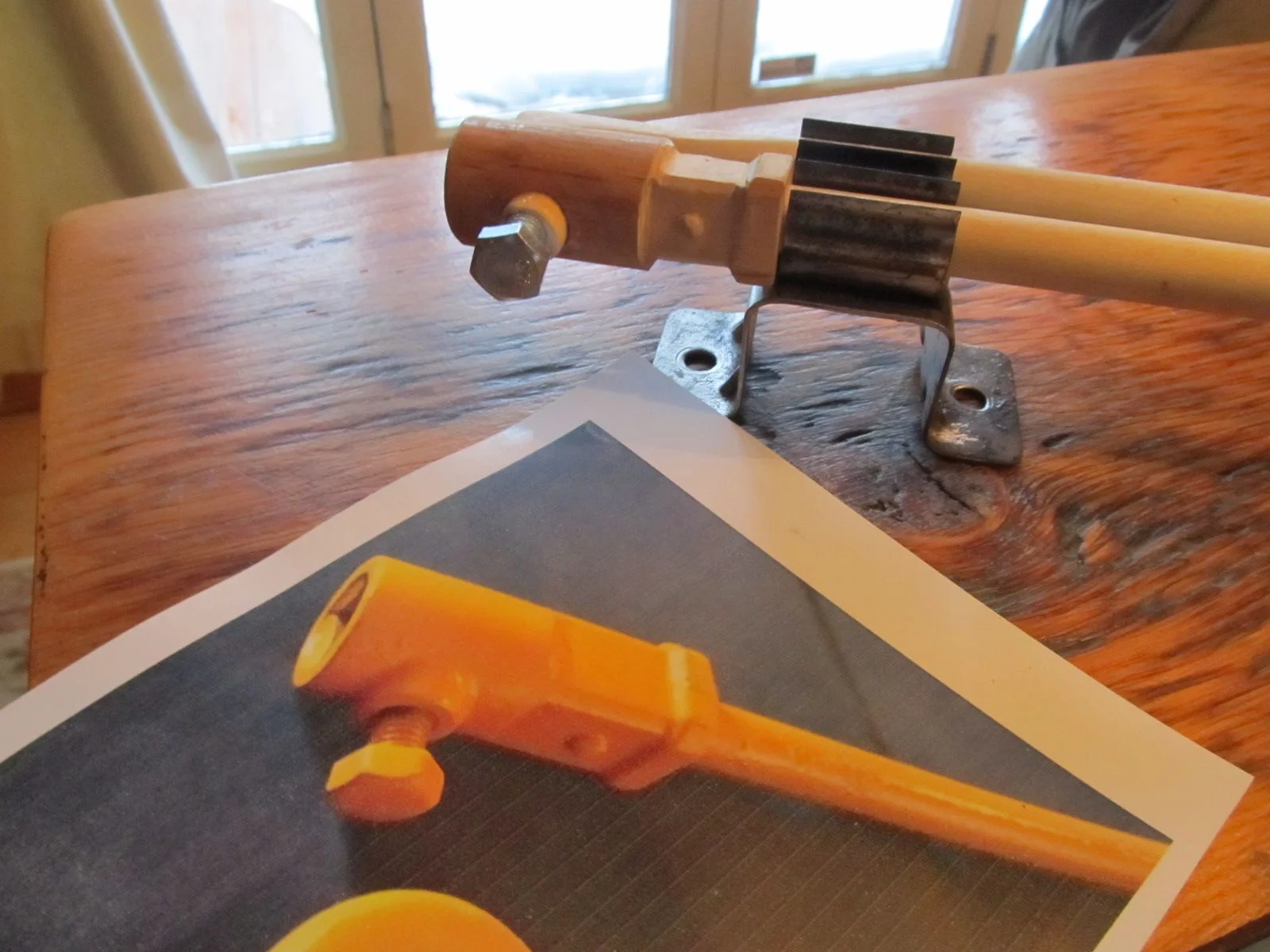

Amazing! I am new to this forum and already appreciate all the input found here. Have a jack w/ no upper screw. .7 ton marked. Hoping it is similar to the original that came with my newly acquired '68 FJ40. I'm not a purist so if it's close I will be ok w/ that. Couldn't bring myself t pay for a rod set so fabricated them out of wood. They won't work but will do for showing I guess.



[Gonzalo125]

Hi all,

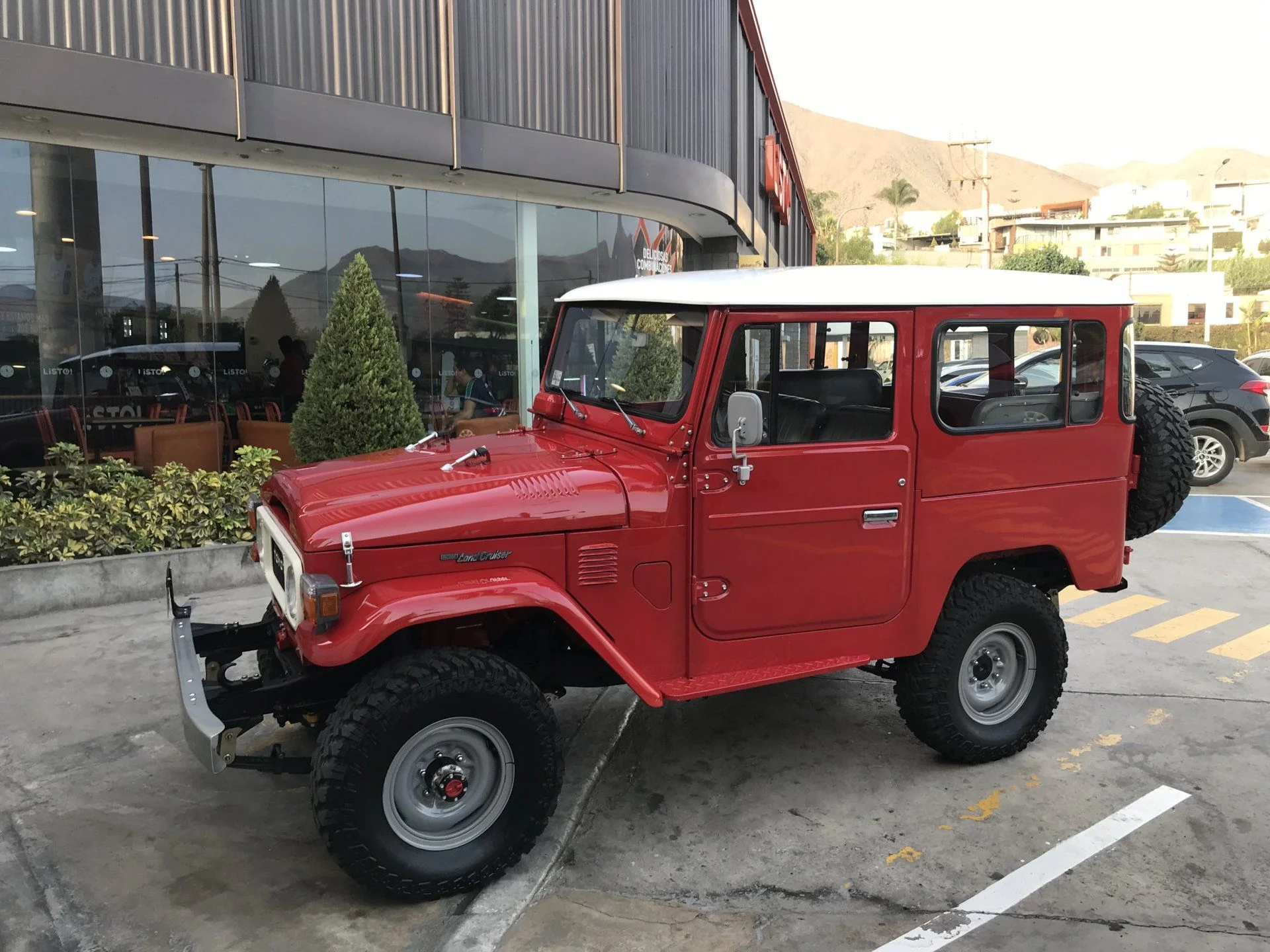

New here, i’ve just finished my early 80’s fj40 and need to know the correct jack and and extensions I should have. I read all this post and could not found the information? Any help would be appreciated!
Regards,
Gonzalo



[RIDGEROCK49]

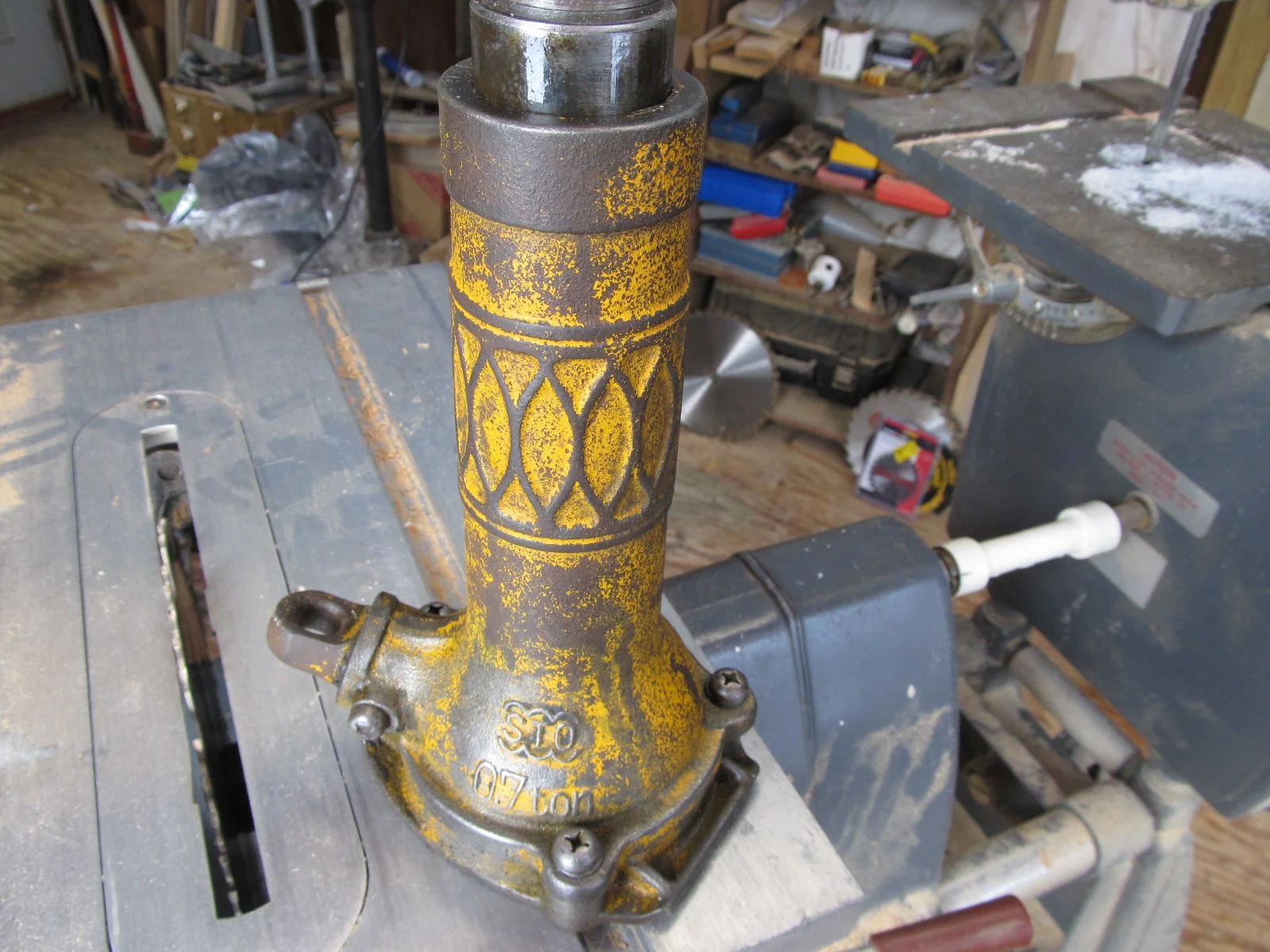

Gonzalo. Wow. Great looking FJ. Not sure about the jack but I am sure you will have responses that answer the question. There are so many versions. Here is the one I bought to go with my '68 FJ40. Not sure that it is the "correct" one but it will do for now.



[Gonzalo125]

Gonzalo. Wow. Great looking FJ. Not sure about the jack but I am sure you will have responses that answer the question. There are so many versions. Here is the one I bought to go with my '68 FJ40. Not sure that it is the "correct" one but it will do for now.View attachment 1948518

Thanks! this looks like an old one, Someone told me today that the jack should be grey something like this one?



[DavidF]

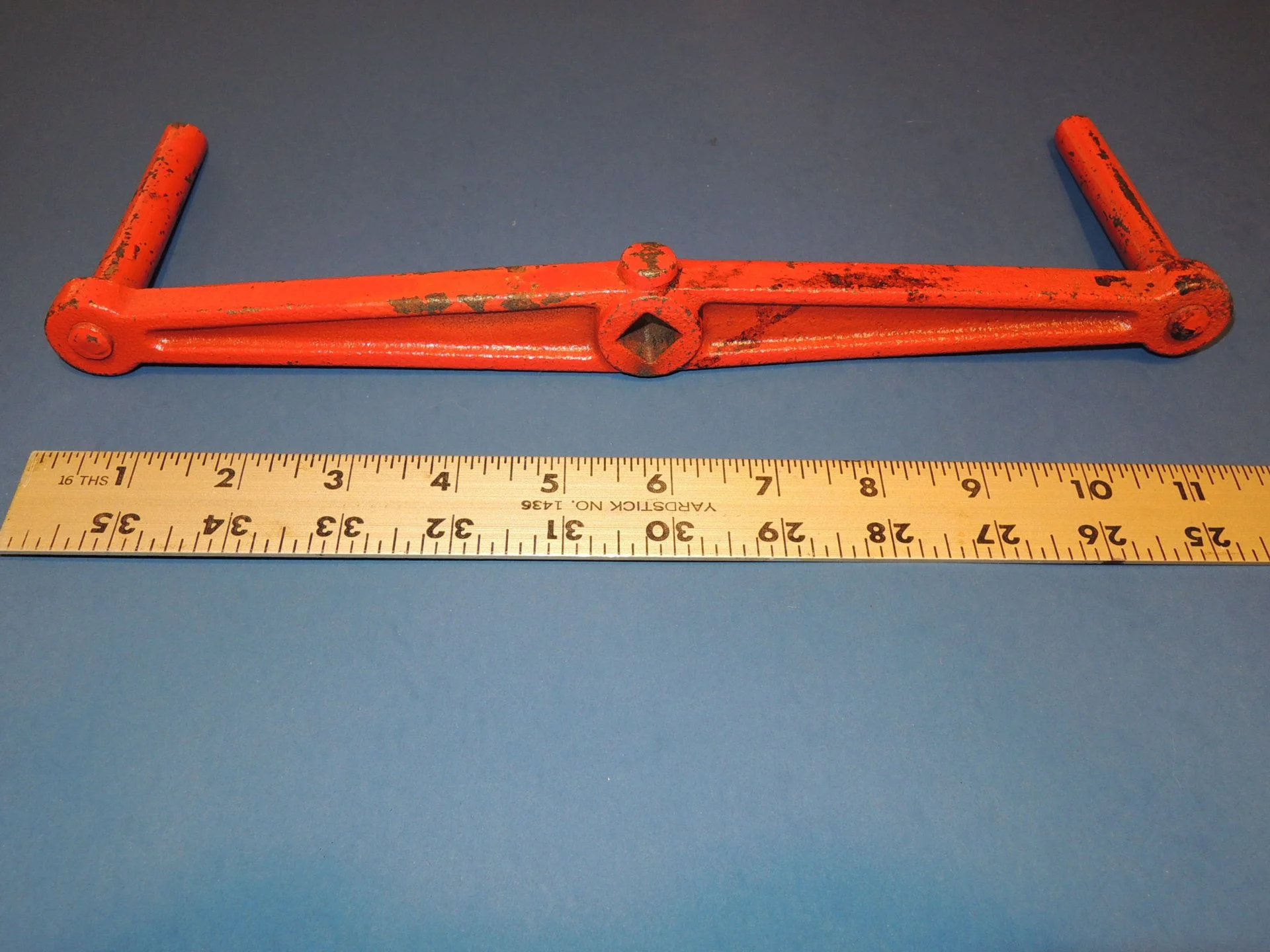

Picked up this handle at the Thrift Store, thought it might be for a Toyota, is it? It's 12" long with a 7/16" square center hole.
Thanks, David



[AussieFJ40]

Gonzalo. Wow. Great looking FJ. Not sure about the jack but I am sure you will have responses that answer the question. There are so many versions. Here is the one I bought to go with my '68 FJ40. Not sure that it is the "correct" one but it will do for now.View attachment 1948518

Hi mate - please note that isn't a Landcruiser jack, it's from a smaller Toyota vehicle of the period.

Note the load rating is 0.7 ton, whereas all LC jacks are marked 2 ton. Great to display in the vehicle but I wouldn't use it.

Cheers



[Ackcruisers]

@wscbill Thanks for your great post. Would it be possible for you to update the links to the PDF reference you mention in your initial post here. The drop box links are giving 404 error.



[tls3601]

This is a great thread, has anyone heard from @wscbill ?



[Living in the Past]

This is a great thread, has anyone heard from @wscbill ?

He has been gone a while. Must have been pretty upset about something because he deleted most his posts on mud when he left.



[iptman]

Yeah I always wondered what happened there. I went back and looked at recent threads where he posted and didn't see anything that stood out.



[tls3601]

He has been gone a while. Must have been pretty upset about something because he deleted most his posts on mud when he left.

Hey John. Well that is a shame, he was a real asset on here. His knowledge base was pretty impressive. Mud never fails to amaze me as to how many intelligent folks we have that are willing to share. You sir are one of our assets as well, you know so much! I have learned loads over the years reading your posts. I guess I am a purist at heart and think of the “real” Landcruisers as those with solid front axles. I guess I always will although I purchased a 5th gen 4Runner last year. Great vehicle but driving the 40’s is still pretty special to me.



[Ackcruisers]

Hey John. Well that is a shame, he was a real asset on here. His knowledge base was pretty impressive. Mud never fails to amaze me as to how many intelligent folks we have that are willing to share. You sir are one of our assets as well, you know so much! I have learned loads over the years reading your posts. I guess I am a purist at heart and think of the “real” Landcruisers as those with solid front axles. I guess I always will although I purchased a 5th gen 4Runner last year. Great vehicle but driving the 40’s is still pretty special to me.

I concur with everything you said. It’s a shame Sarge Is not participating in the community any longer. Thanks @Living in the Past for the heads up on his status.



[Advent]

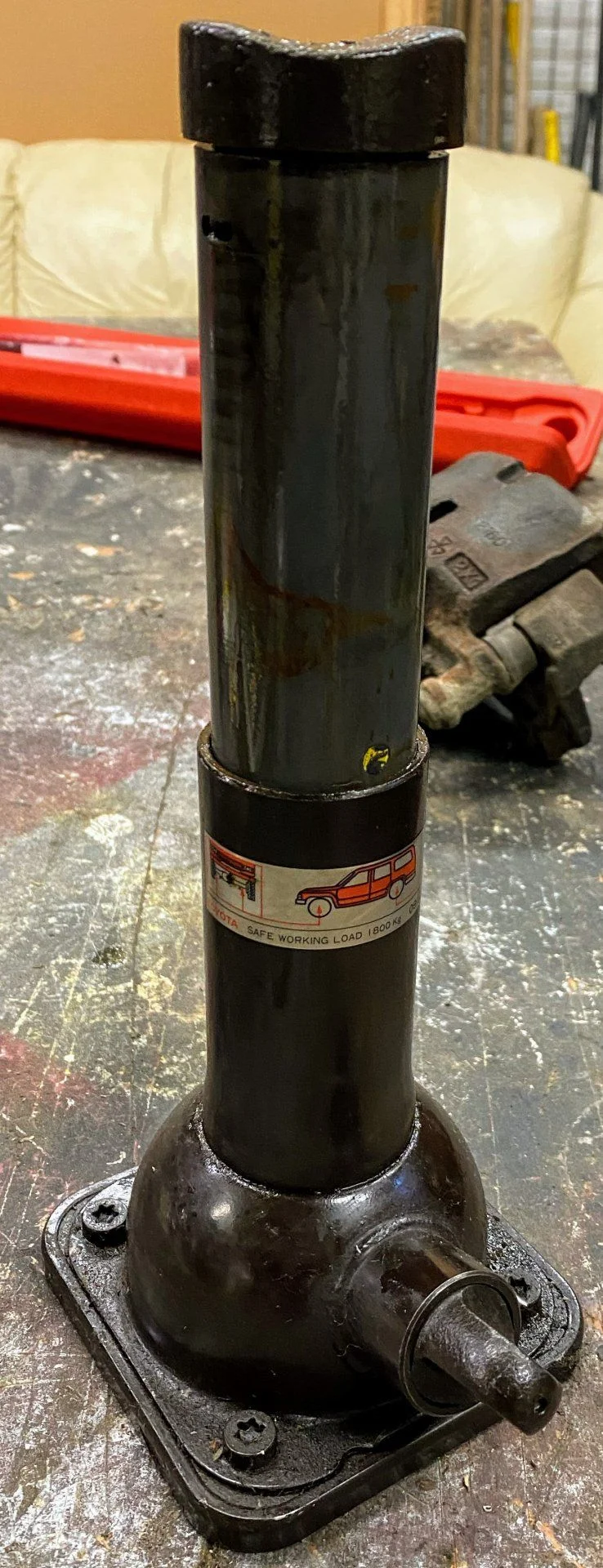

Back to tech...Is this how tall the 09111-60050 jack is supposed to be? It’s really not tall enough if so. All the diagrams show another piece but I don’t see another extension coming out.



[cruiserdan]

Back to tech...Is this how tall the 09111-60050 jack is supposed to be? It’s really not tall enough if so. All the diagrams show another piece but I don’t see another extension coming out.
View attachment 2552386

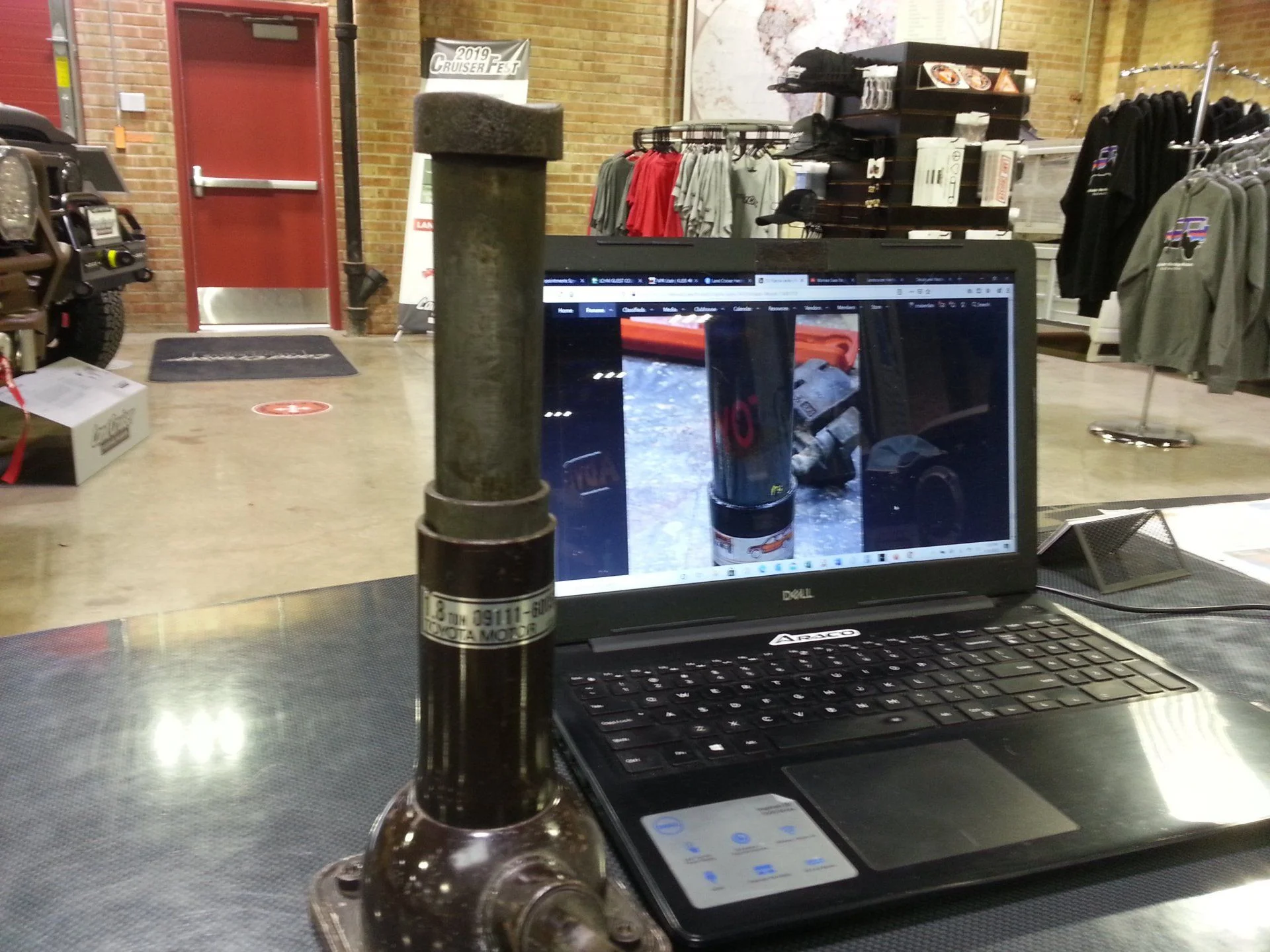

It should expand like this.
