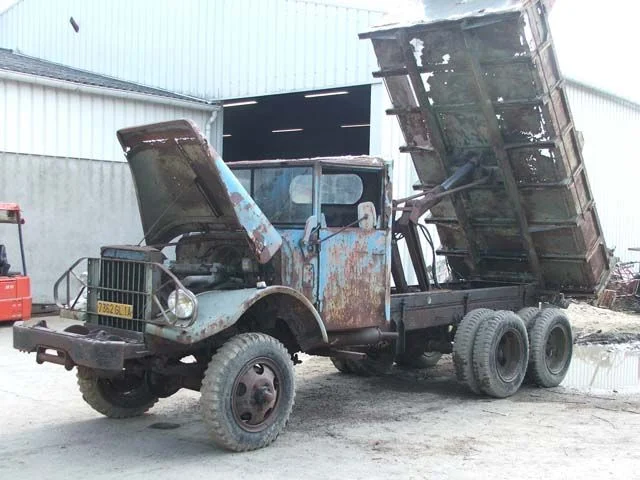

looks really complete Steve, is this going to be one of your next resto's

I would not touch that thing with a 10 foot pole!!
Just try and find any parts for it....
I am not sure what he will do with it, probably restore
it and sell it to Toyota.

shot earlier today :smokin:

Last edited:
Looks like a DW-15 - Very Rare!!

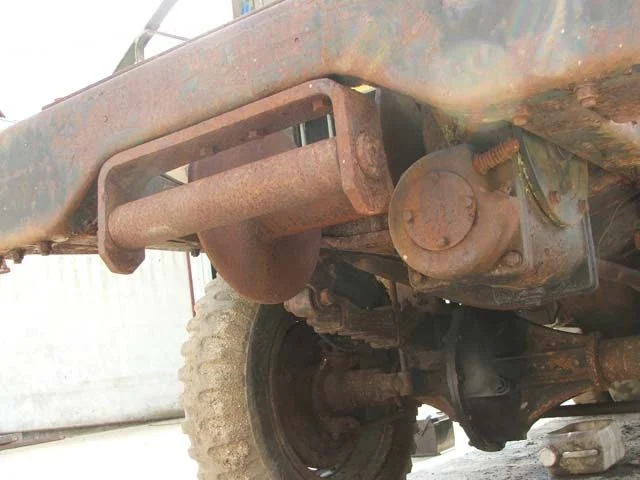

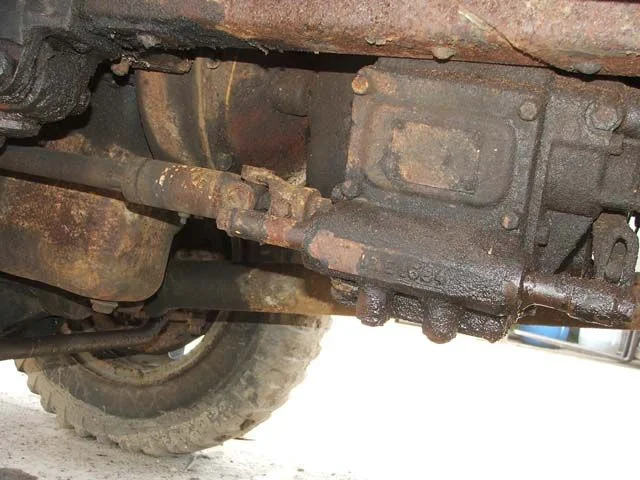

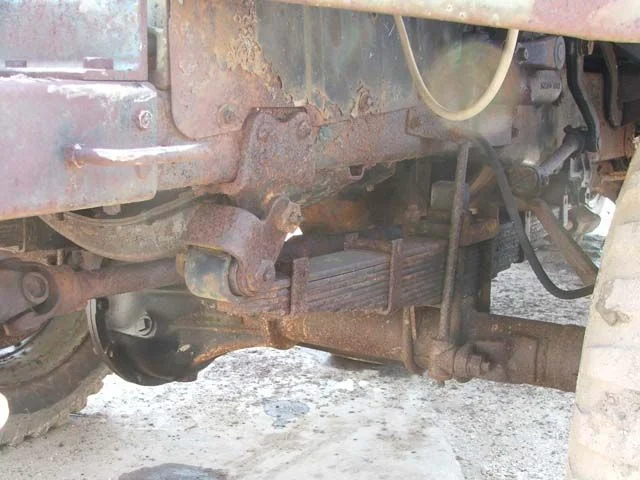

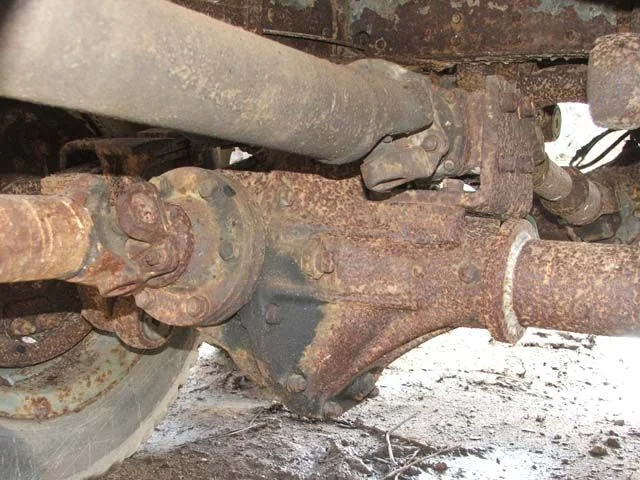

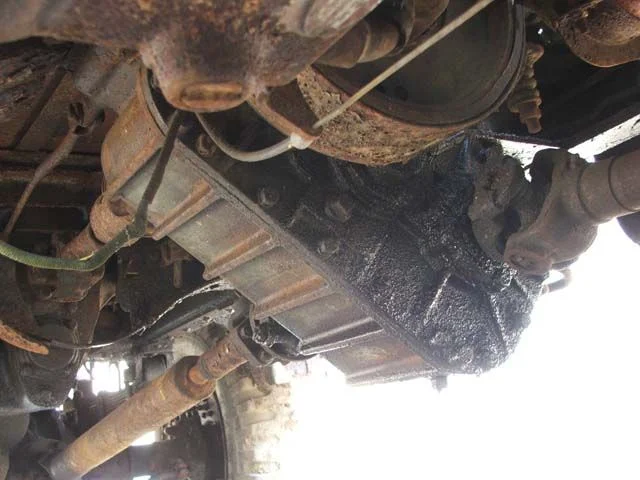

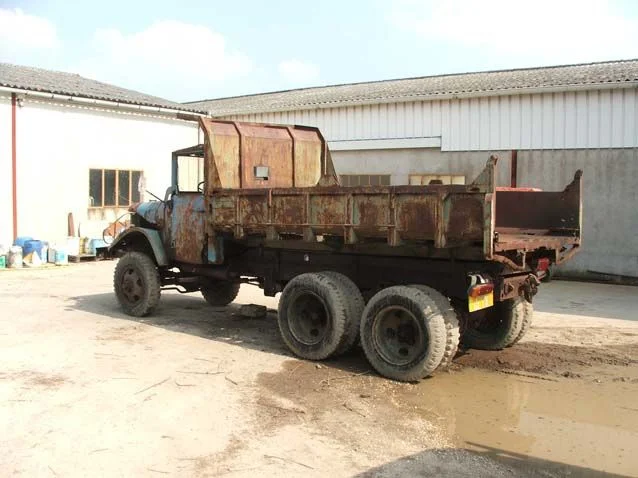

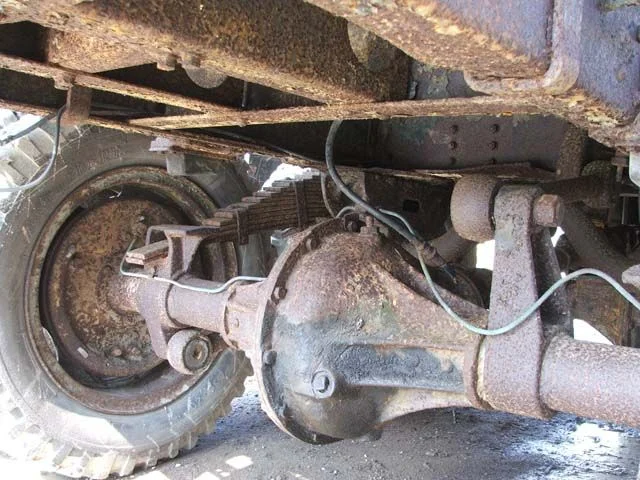

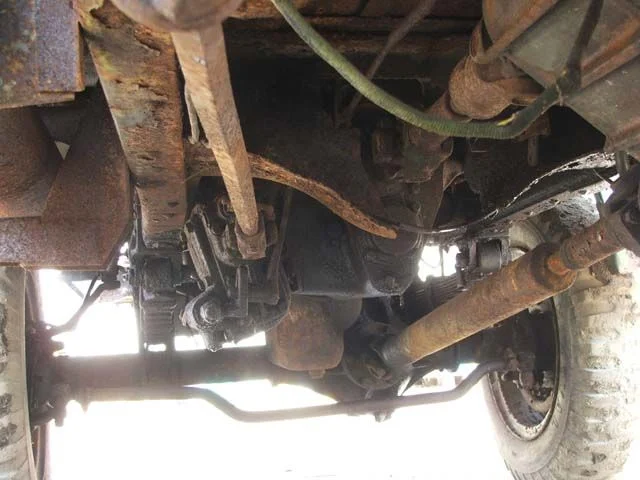

holy crap................., that thing's got more driveshafts.................and it's sprung over,
very cool vehicle:beer:

cool pics....
but if it isn`t a top secret ;) I would like to know where the pics are made.
Cheers
Peter

Toyota 2FQ15L (4 x 4) 750 kg Truck (Japan), LIGHT VEHICLES



DescriptionThis truck was developed in the 1950s for the Japanese Self-DefenceForce and is a further development of the Second World War AmericanT214(WC52) ¾-ton (4 × 4) truck. It is very similar in appearanceto the Nissan Q4W73 (4 × 4) 750 kg truck developed at the same time.Other Toyota trucks of this type include the FQ10 and FQ15 which arealmost identical in appearance to the T214(WC52).Production of the basic model ceased during the mid-1960s but manyvehicles remain in use.The layout of the Toyota 2FQ15L is conventional, with the engine atthe front, the two-man cab with removable top in the centre and thecargo area at the rear with a drop tailgate, removable bows and atarpaulin cover.The ambulance model is designated the HQ15V, has a crew of two andcan carry five stretcher patients or nine seated patients. Basic data:loaded weight 4300 kg, length 5.165 m, width 2.13 m and height 2.815 m.

Cab seating: 1 + 1Configuration: 4 × 4Weight:(empty) 2800 kg(loaded, road) 3867 kg(loaded, cross-country) 3640 kgMax load:(road) 1067 kg(cross-country) 840 kgLength: 5.08 mWidth: 2.02 mHeight: 2.32 mWheelbase: 3 mMax speed: (road) 82 km/hEngine: Toyota 6-cylinder water-cooled petrol developing105 bhp at 3200 rpmGearbox: manual with 4 forward and 1 reverse gearsTyres: 7.50 × 20Brakes:(main) hydraulic(parking) mechanical

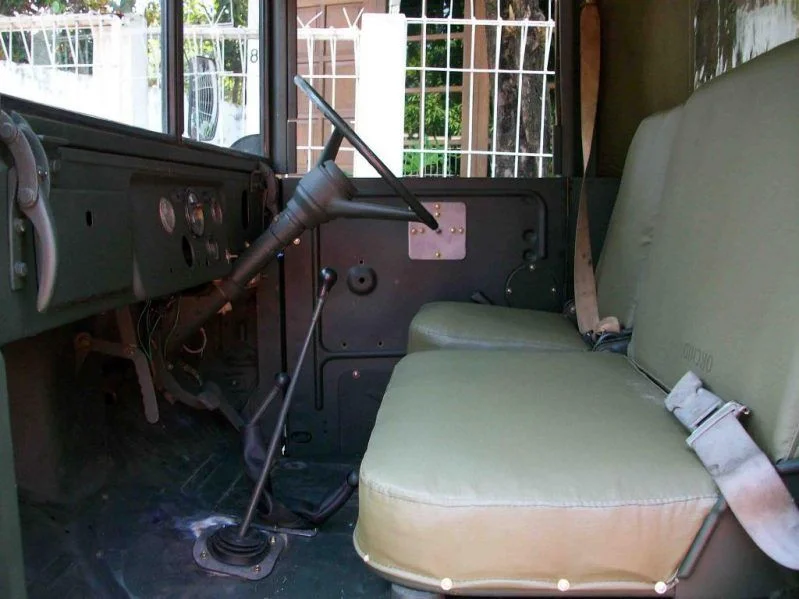

Fq15 1b.webp

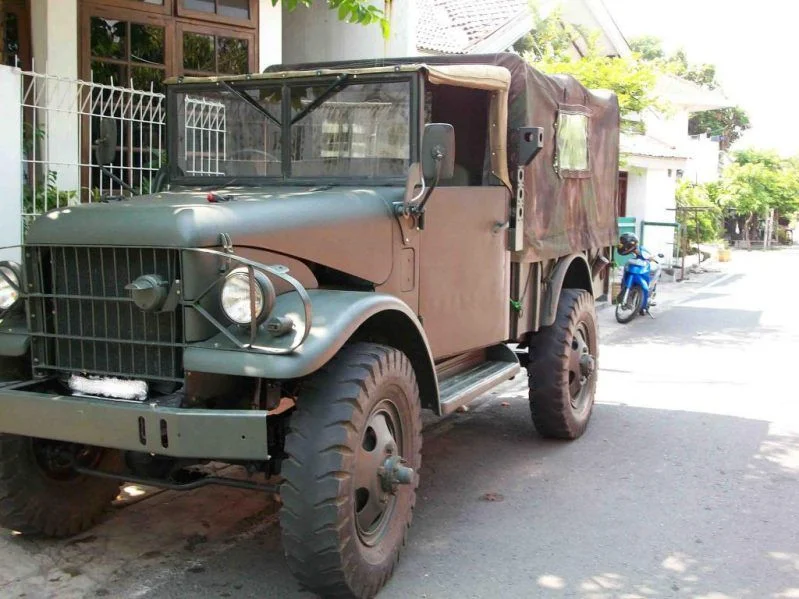

Fq15 3b.webp

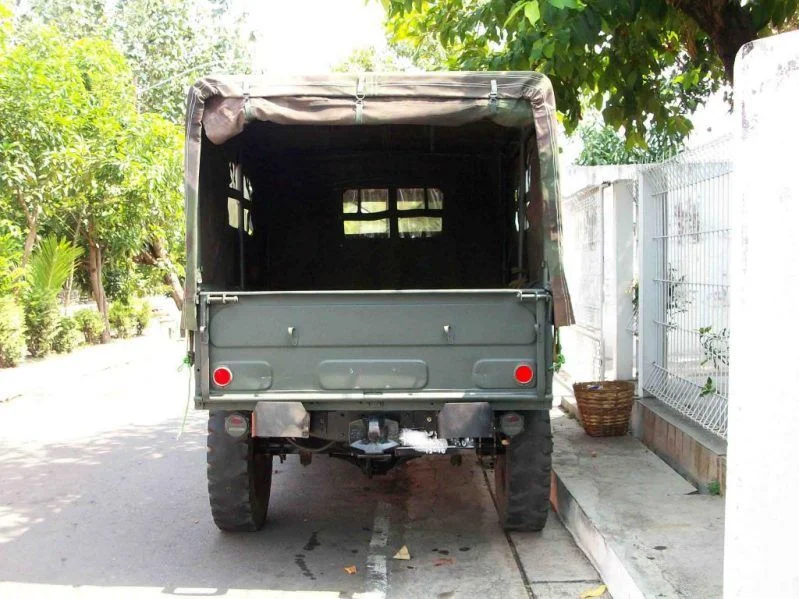

Fq15 4b.webp
