The official part number request thread

[CharlieS]

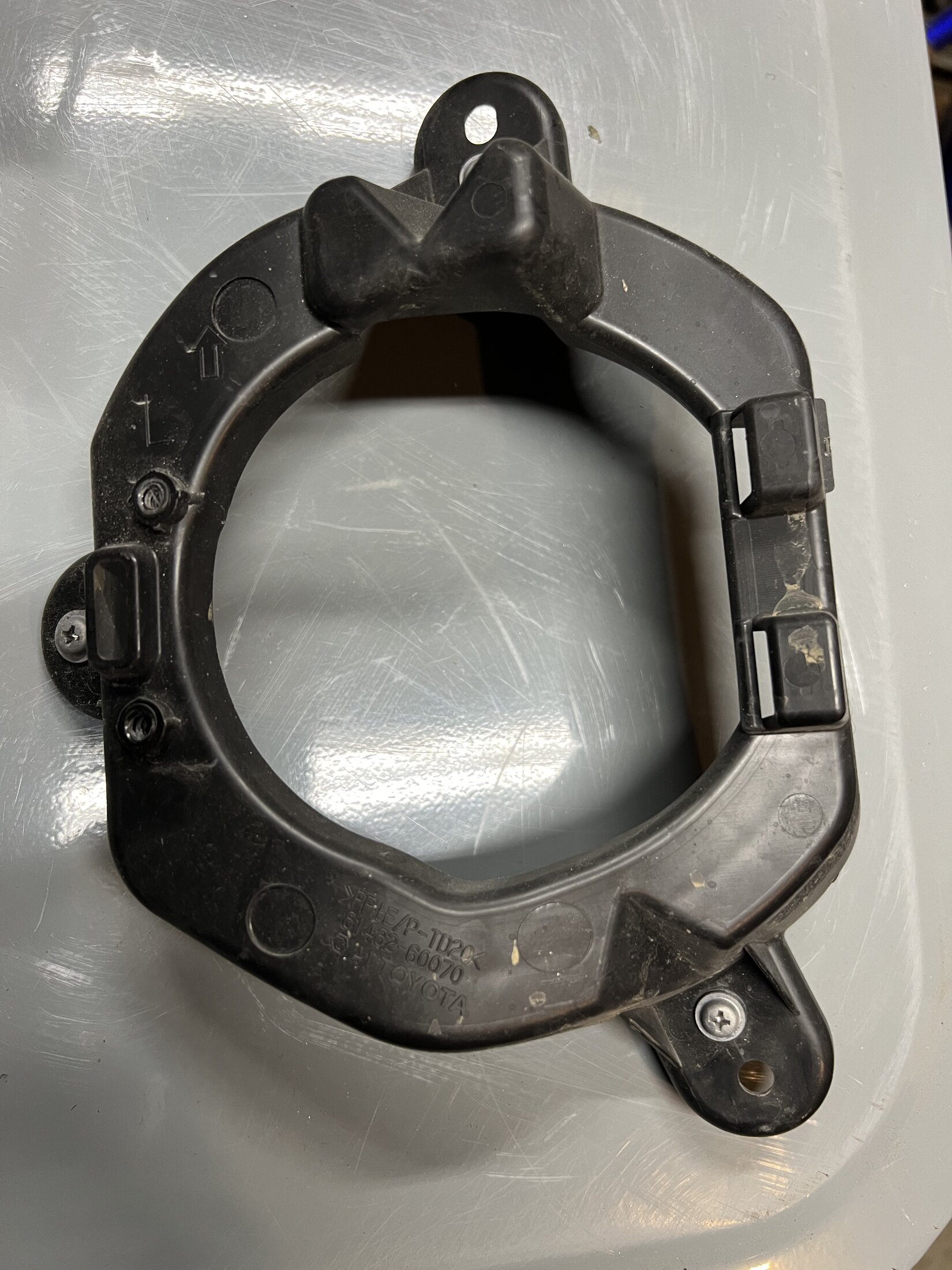

I'm looking for some fog light mounting brackets (or at least one of them) for my 2016 Land Cruiser.

They go inside the bumper, mounted with three screws and they provide a place to mount the fog lights.I have one (left side), but misplaced the other somewhere in my mess of a garage.

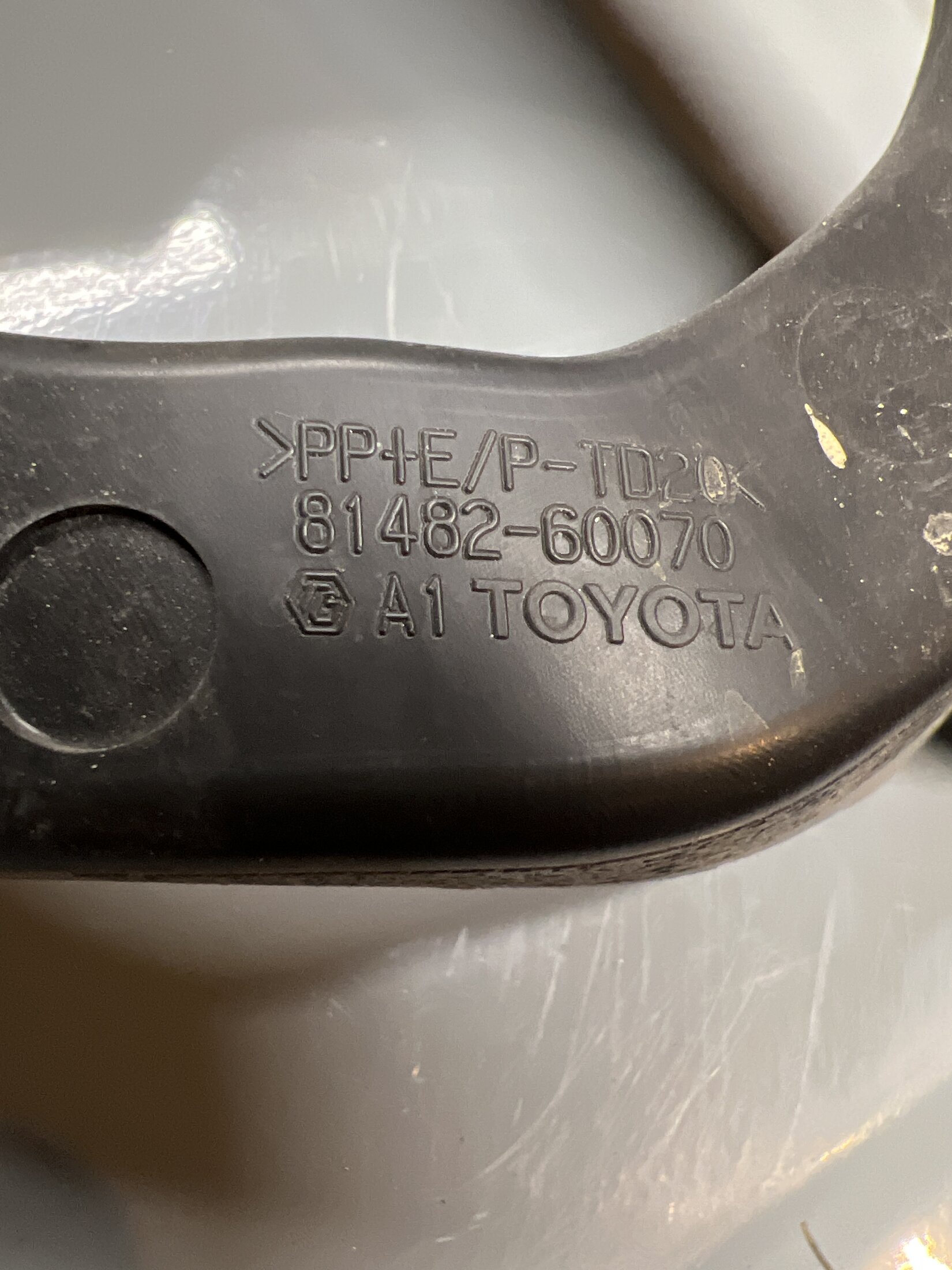

The (left) one I have has a clearly marked 81482-60070. I can't find that part number in any US Toyota parts sites.

I think the other (right) one is a slight variation: 81481-60080. I can only find it on Russian sites.

It should fit 16-21 Land. Crusiers, if I understand correctly.

I can't find these parts in the online parts site fiches.

Is there possibly a superceeded part number?

I can only find the other on Russian sites.



[cruiserdan]

This is the 2016+ lamp. The brackets are serviced.

This is the 2015 lamp. You buy the whole lamp to get the bracket.

Here are the 2016+ bracket part numbers.



[DanielW]

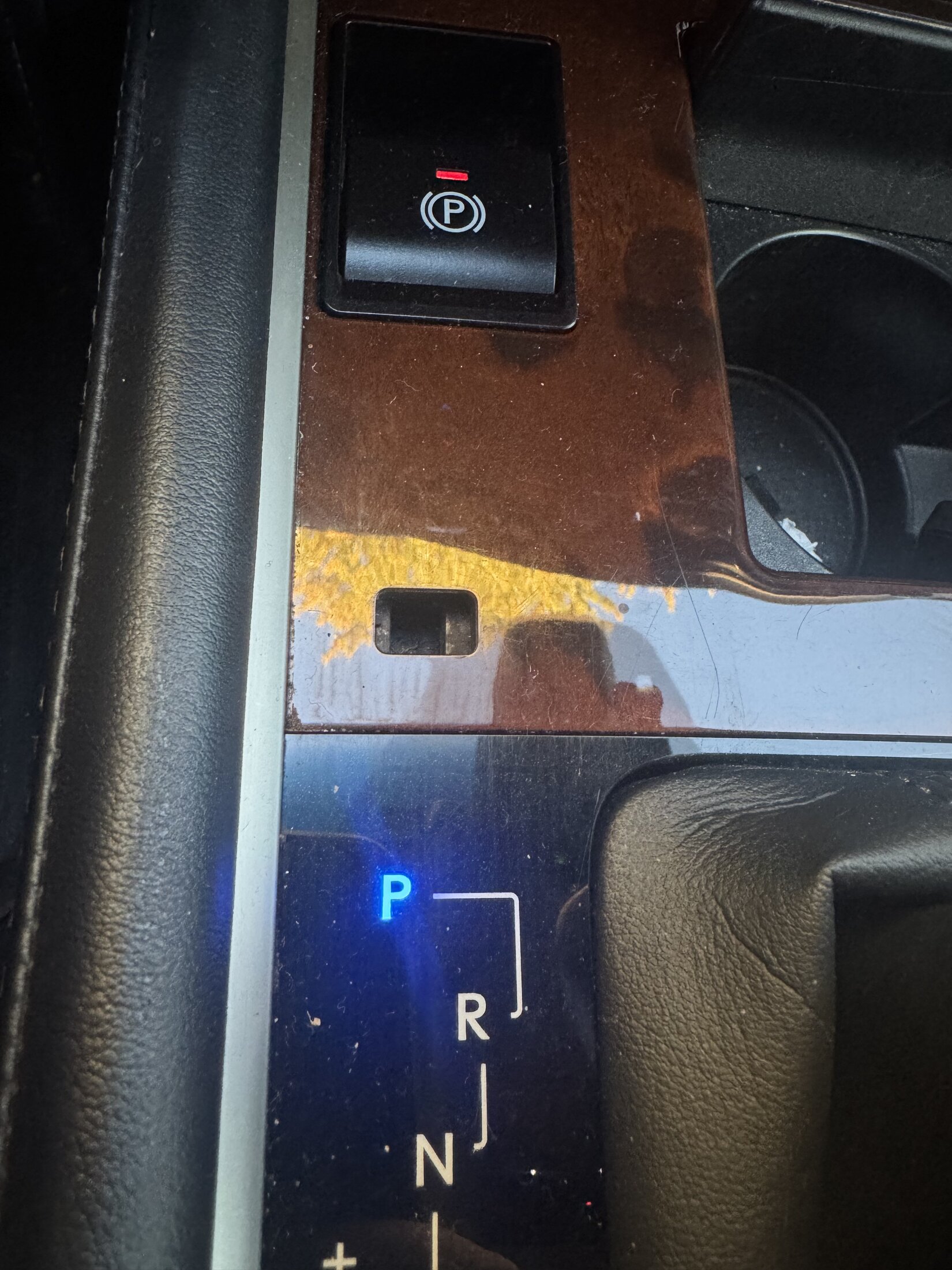

2017 LX570 shifter lock cover. Bought the car with it missing and it's been bothering me. I'm surprised the Lexus dealer didn't replace it before selling it.



[cruiserdan]

I'm surprised the Lexus dealer didn't replace it before selling it.

Why would they? It's a used car.

55539-60280



[DanielW]

Why would they? It's a used car.

55539-60280

I dunno. It kind of makes sense to replace a $5 missing part when you're trying to sell a $50k car. Anyways, thank you for the part number.



[cruiserdan]

I dunno. It kind of makes sense to replace a $5 missing part when you're trying to sell a $50k car. Anyways, thank you for the part number.

I worked in the car business for 37 years. That almost never happened. It had to be way more obvious than that to even get noticed.

Had you pointed that out in the purchase process, they would have addressed it.



[bloc]

"Attention to detail" is becoming a lost art in many fields, not just vehicle sales.



[cruiserdan]

"Attention to detail" is becoming a lost art in many fields, not just vehicle sales.

Attention to detail hasn't been in the vehicle sales world since at least 1979. That's when I started.



[CharlieS]

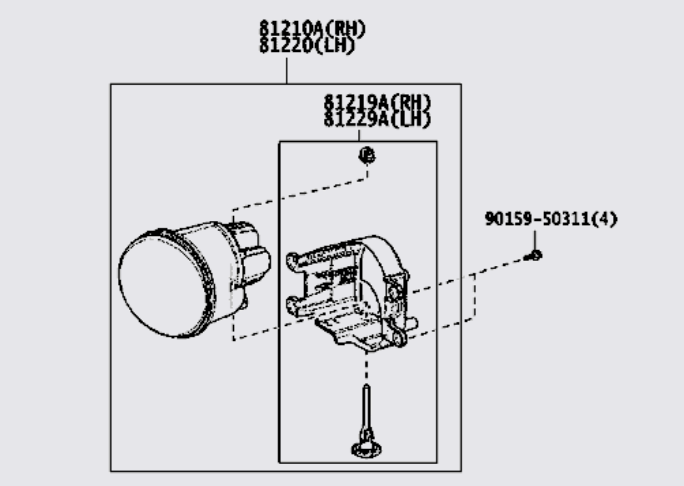

This is the 2016+ lamp. The brackets are serviced.

View attachment 3752597

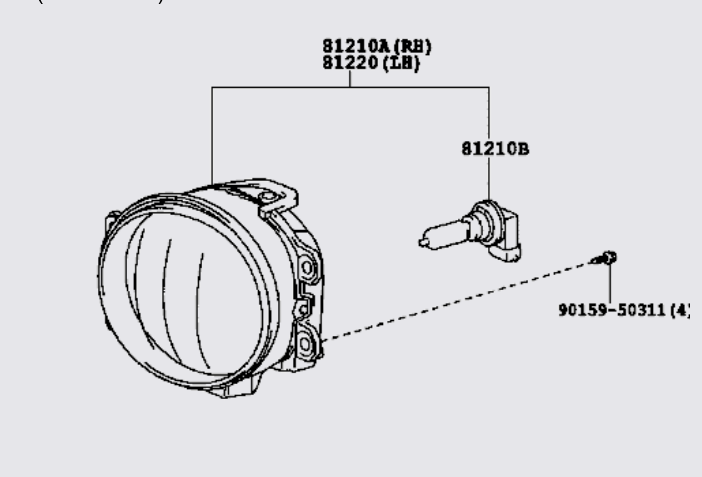

This is the 2015 lamp. You buy the whole lamp to get the bracket.
View attachment 3752596

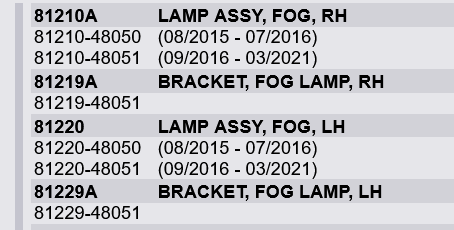

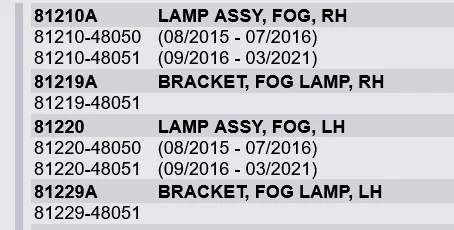

Here are the 2016+ bracket part numbers.
View attachment 3752601

@cruiserdan , thank you. Yes, 2016(+).

I googled those part numbers and don't see the bracket I am looking for.

I have the factory fogs and the bracket that they are attached to.

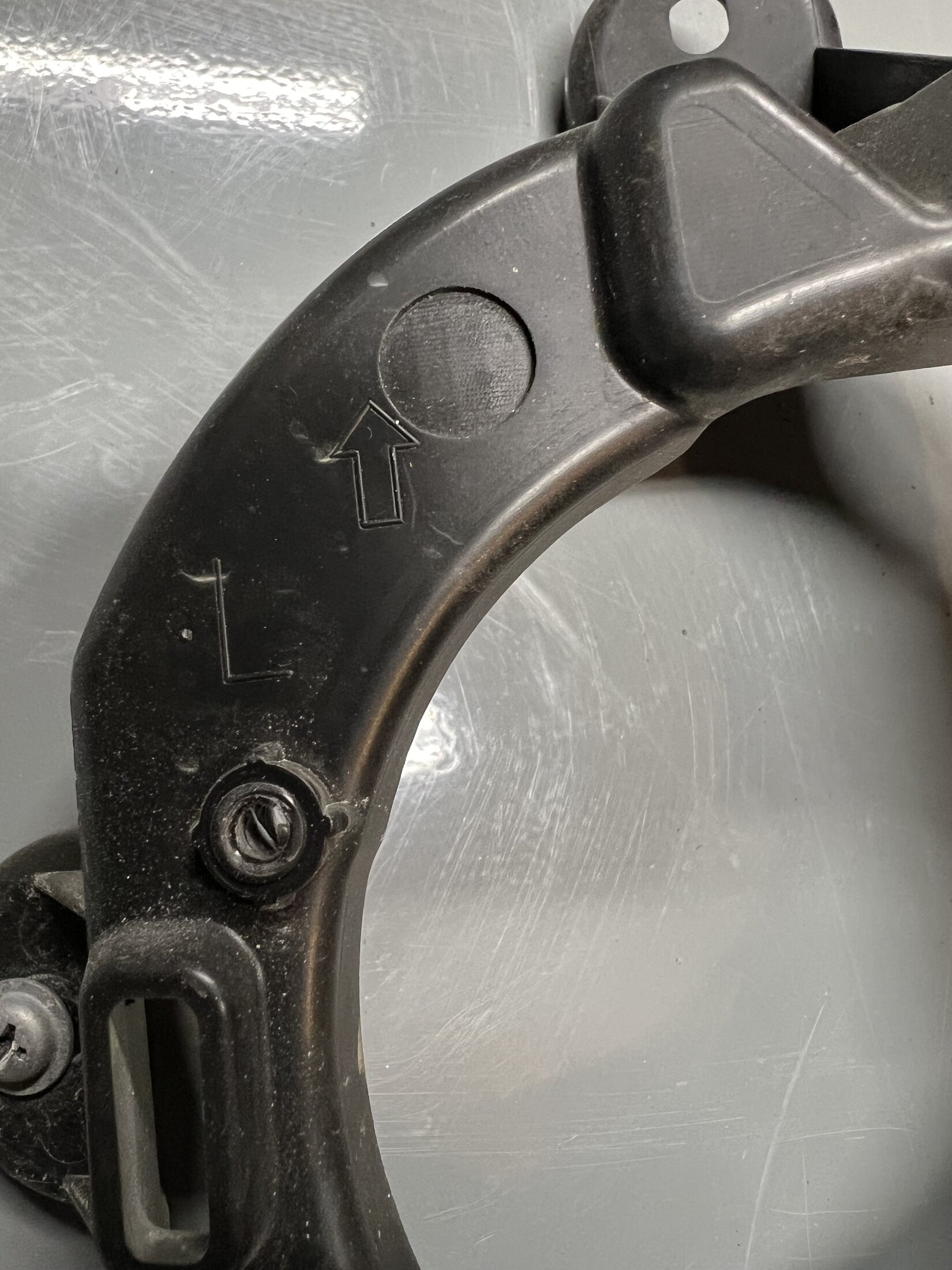

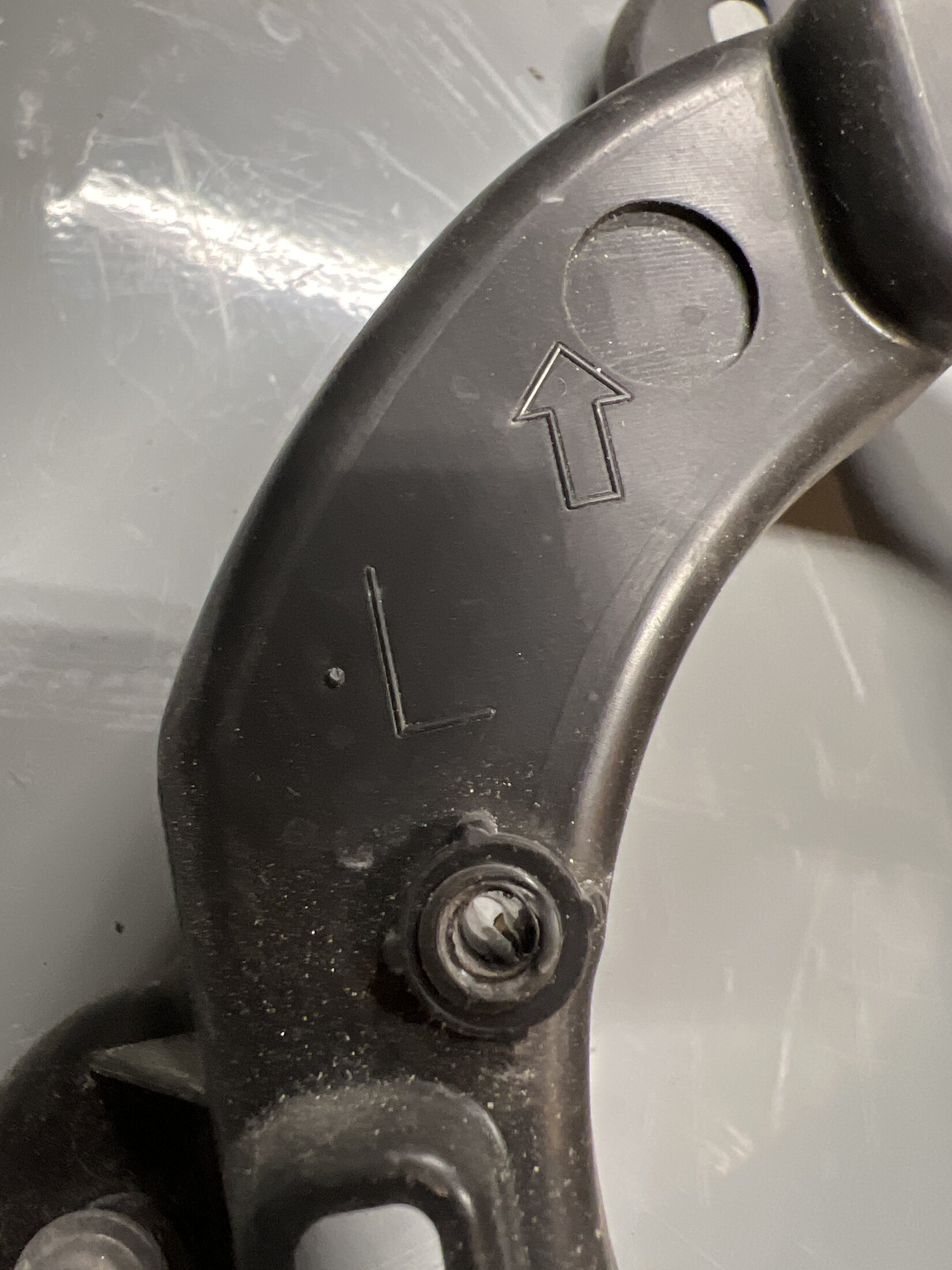

I'm looking for the female side that screws into the bumper. I think for the right side (the one I have has a L in the plastic casting).



[cruiserdan]

@cruiserdan , thank you. Yes, 2016(+).

I googled those part numbers and don't see the bracket I am looking for.

I have the factory fogs and the bracket that they are attached to.

I'm looking for the female side that screws into the bumper. I think for the right side (the one I have has a L in the plastic casting).

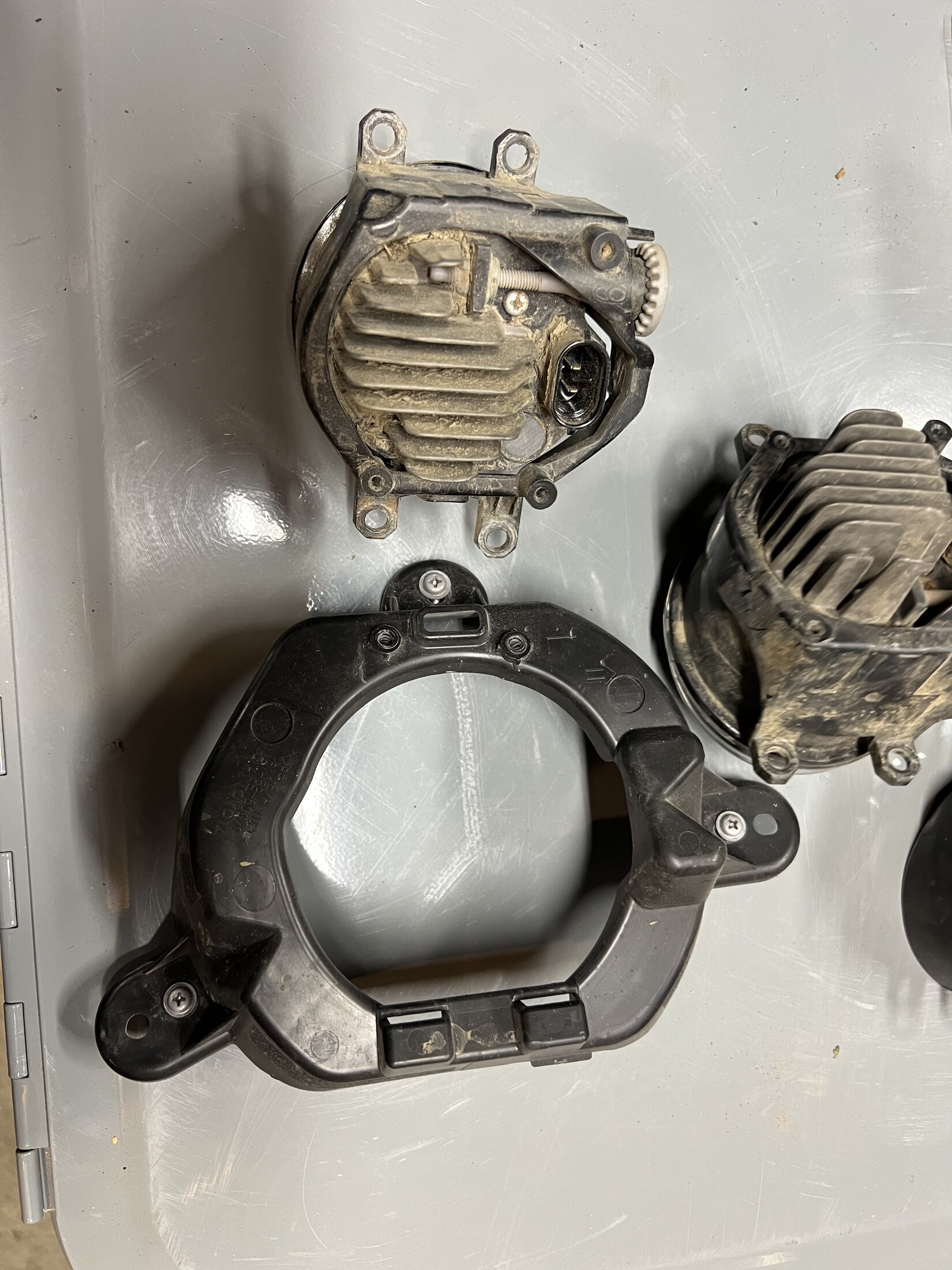

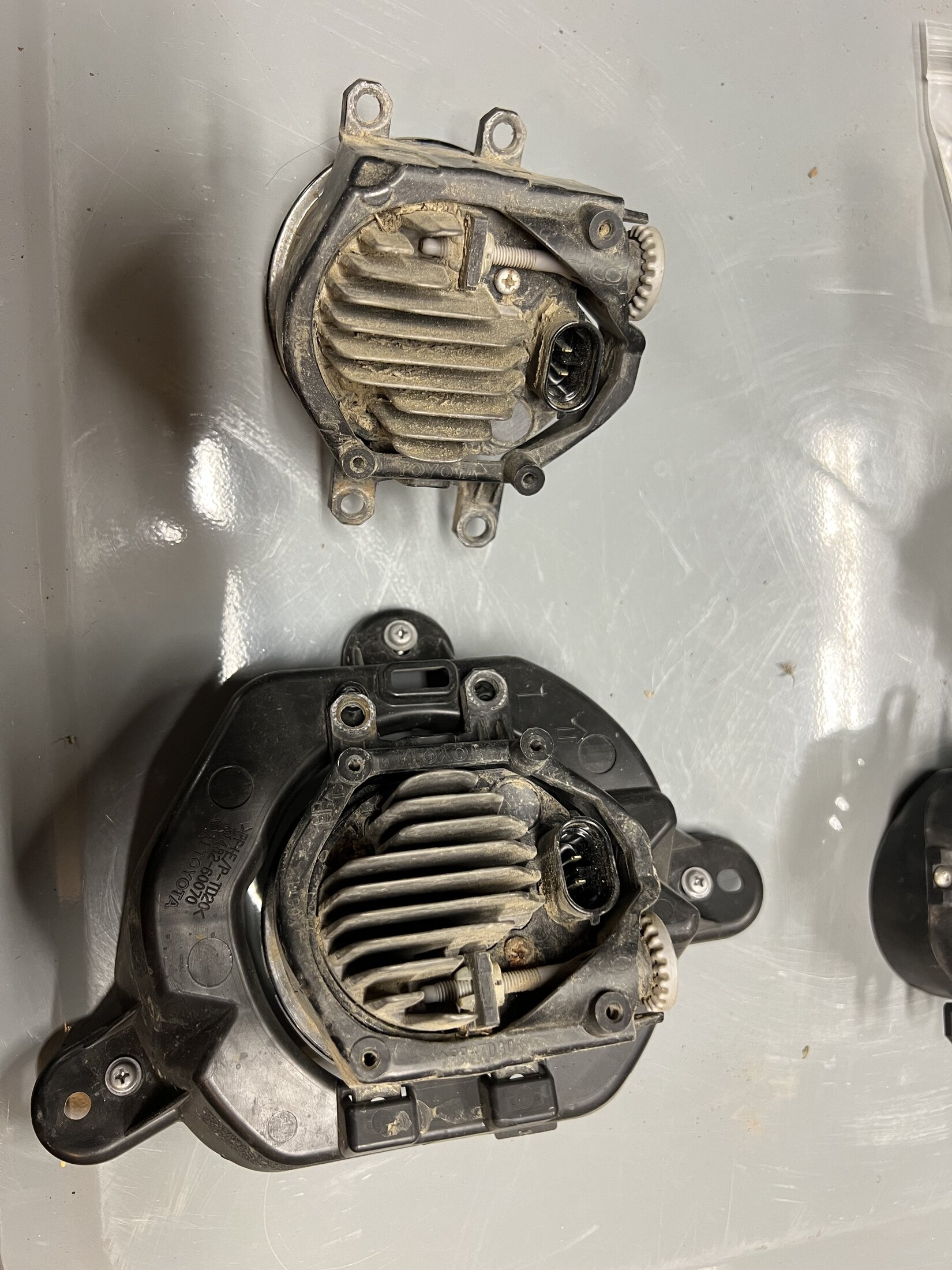

View attachment 3755858View attachment 3755859
View attachment 3755860View attachment 3755861

My best guess is that the pieces you are looking for are included with the 53103-60010 and 53104-60010 lower grilles.



[cruiserdan]

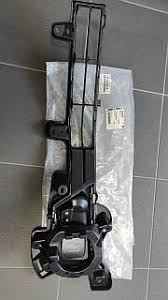

Looking at this photo suggests that the bracket comes with the grille.



[CharlieS]

Thank you! I never would have thought to look there.



[cruiserdan]

Thank you! I never would have thought to look there.

37 years of professionally navigating parts catalogs can occasionally come in handy.



[cruiserdan]

The rule of thumb, especially in the Toyota world, is if you can't find a specific call-out for the piece you need it is serviced as part of whatever it is attached to.

With GM and Chrysler, not so much.



[PhuckItImDone]

Part number for air intake filter, and cabin filter for a 2018 Land Cruiser? TIA



[bloc]

Part number for air intake filter, and cabin filter for a 2018 Land Cruiser? TIA

Engine air filter: 17801-38030

The cabin filter has a few numbers depending on the spec you want.
87139-50100 (no description)
87139-52040 POLLEN FILTER, OE PART
87139-76010 MICRO DUST FILTER, OE PART

Note that these are somewhat expensive for a cabin filter, but having had the first part number in my hand they are noticeably higher quality than most of this type.

I also think a carbon version is available from toyota, but it isn't listed in my system. From memory it has far less pleats though, so there's a chance it restricts airflow.



[Taco Supremo]

Hello. Can I please get the part number for the trailer wiring harness pigtail?

2015 LX.

Thank you!



[cruiserdan]

Hello. Can I please get the part number for the trailer wiring harness pigtail?

2015 LX.

Thank you!

82169-60080



[ExpeditionMan]

2013 LX570 w/ ivory interior.

Part number(s) for lower front driver side (LH) seat cushion and leather cover. I believe it's offered as an assembly (with the heater unit installed) but hoping someone can confirm. Suspected assembly part numbers in my other thread here (post #15).



[cruiserdan]

2013 LX570 w/ ivory interior.

Part number(s) for lower front driver side (LH) seat cushion and leather cover. I believe it's offered as an assembly (with the heater unit installed) but hoping someone can confirm. Suspected assembly part numbers in my other thread here.

Best call A Lexus dealer with your VIN. Uber expensive trim and you don't want to be wrong.
