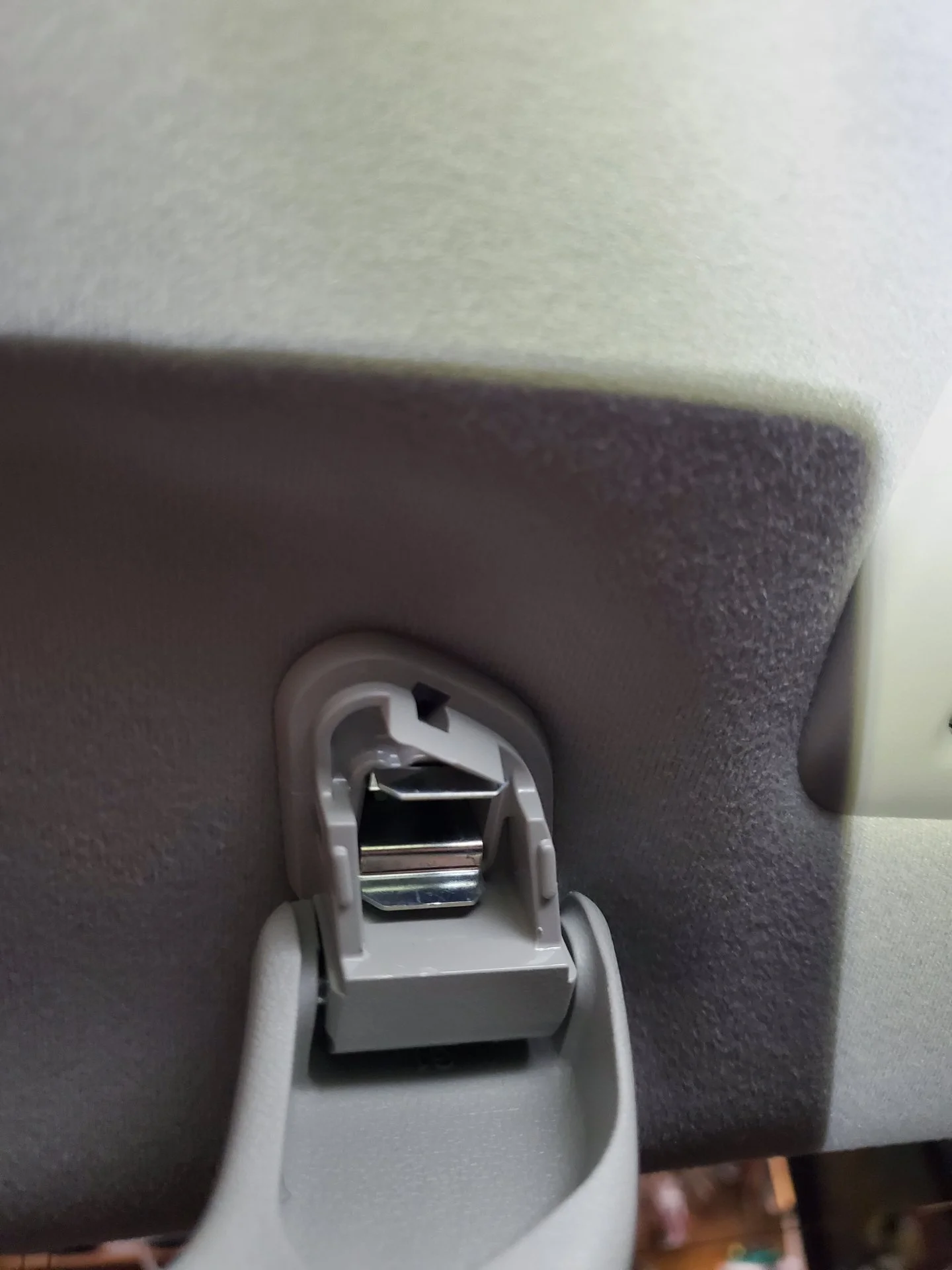

Anyone know the part numbers for the "oh-sh*t" handle retainer clip, the plastic insert, and the handles:
The part numbers are color and position-specific. I believe the metal clips are serviced only as part of the handle.
I am specifically looking for a match for the grey interior (2013 LX570) on the right hand side of the vehicle (all 3 handles)...many thanks if anyone can find the part number and/or diagram!
Call your dealer with your VIN handy in front of you. That is the best way to get correct interior trim.
bloc
SILVER Star
- Thread starter
- #266
Right side, 2013 LX, gray interior
Front row handle 74610-30240-B0 (same right/left)
Second row, RH 74610-30320-B2
Third row, RH 74610-30240-B0
The little covers should be included with the handles, but if you need them separate they are the same for all three rows, but each handle needs a "right" and "left", but it's pretty confusing which is which.. more of Front or Back on each handle, depending on the side of the vehicle. Basically you need both of the following numbers for each handle. But again, these are included with each handle.
74612-60100-B0
74611-60050-B0
Good morning, could I please get the part # for the front passenger side door sill for a 2015 LX. The previous owner bent the one that's in there. Drives me crazy!
Thank you kindly. Have a great weekend!
Thank you kindly. Have a great weekend!
PhuckItImDone
SILVER Star
2018 Land Cruiser, part numbers for inner and outer tie rod ends, both sides please.
bloc
SILVER Star
- Thread starter
- #269
What color interior trim? And is it the illuminated one or without?
LH TRE Assembly 45047-69146 (includes castle nut and cotter pin)
RH TRE Assembly 45046-69236
Inner Tie Rod (same number for both sides) 45503-60030
Edit: @PhuckItImDone do you need boots and clamps too?
Last edited:
PhuckItImDone
SILVER Star
I don't believe so, if that should change I'll be back.
My bad. Illuminated with black trim. Thank you!
I think one of the OEM clamps is not reusable.. at least by Toyota standards.. not sure if that means you can’t. I just ordered inner and outer and boots and clamps. I found one of my boots torn and figured if I was going to work on them I’d replace it all.
PhuckItImDone
SILVER Star
Much appreciated, I'd be kicking myself in the morning when I got to this point
